High quality conventional High Precision Factory supply fast and flexible Economical Universal Spiral Bevel Most pop
- Category: >>>
- Supplier: Henan rowdai Machinery Equipment Co. LTD
Share on (1600980432642):
Product Overview
Description
Product Description

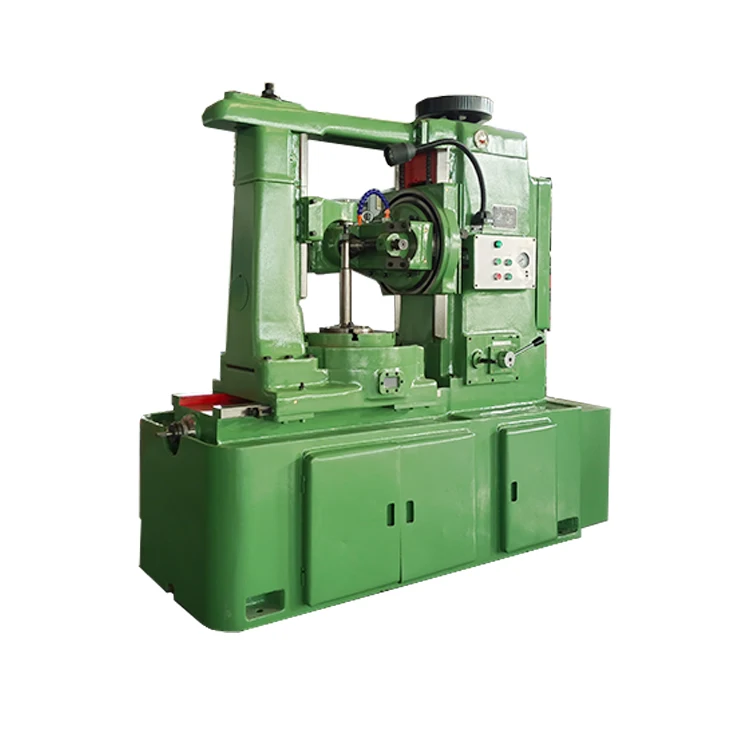

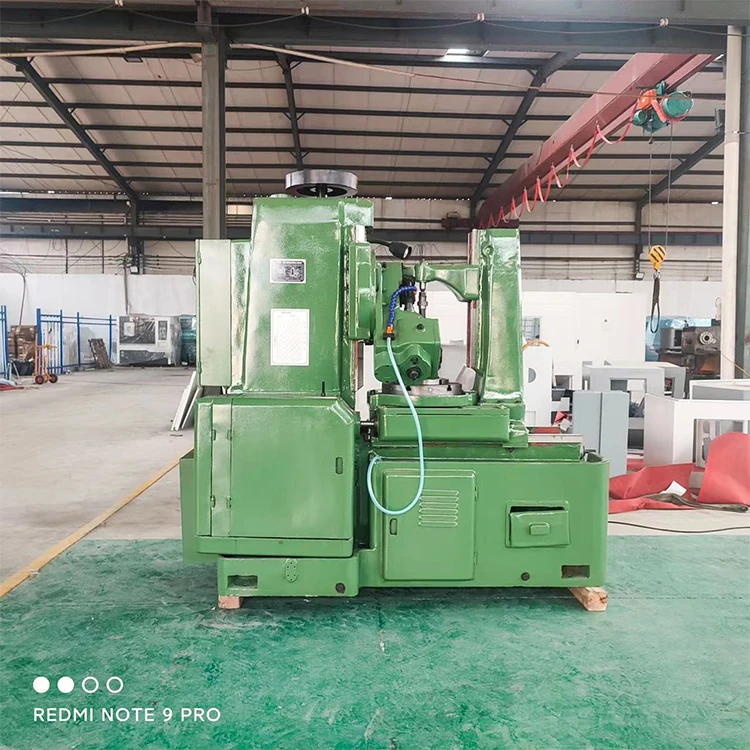

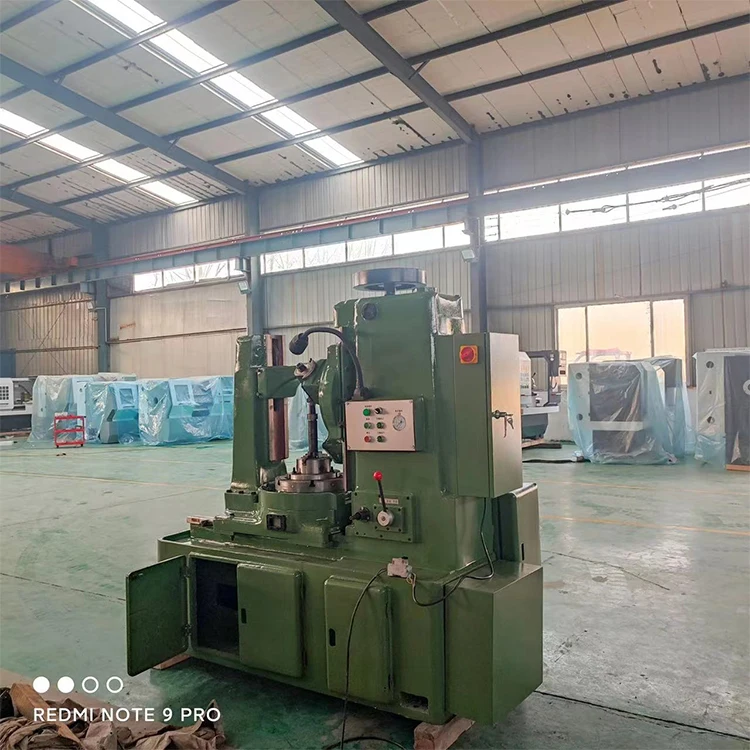

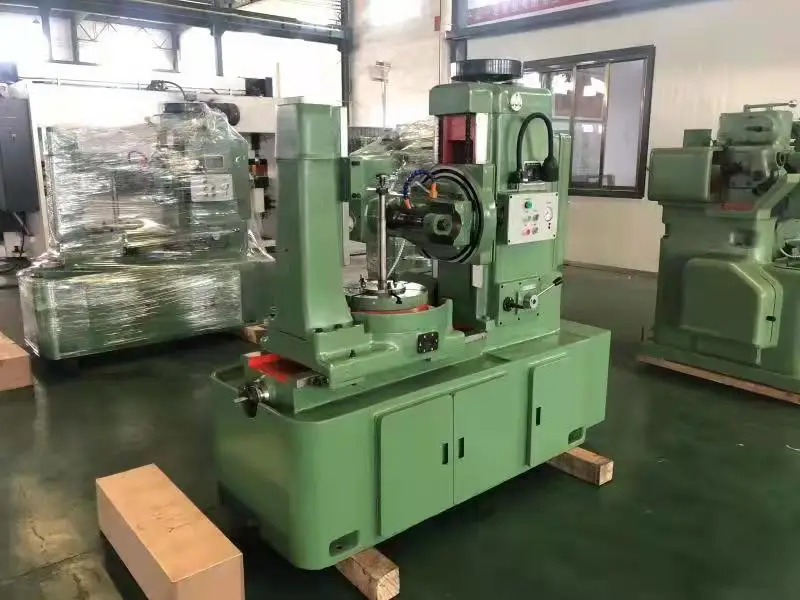

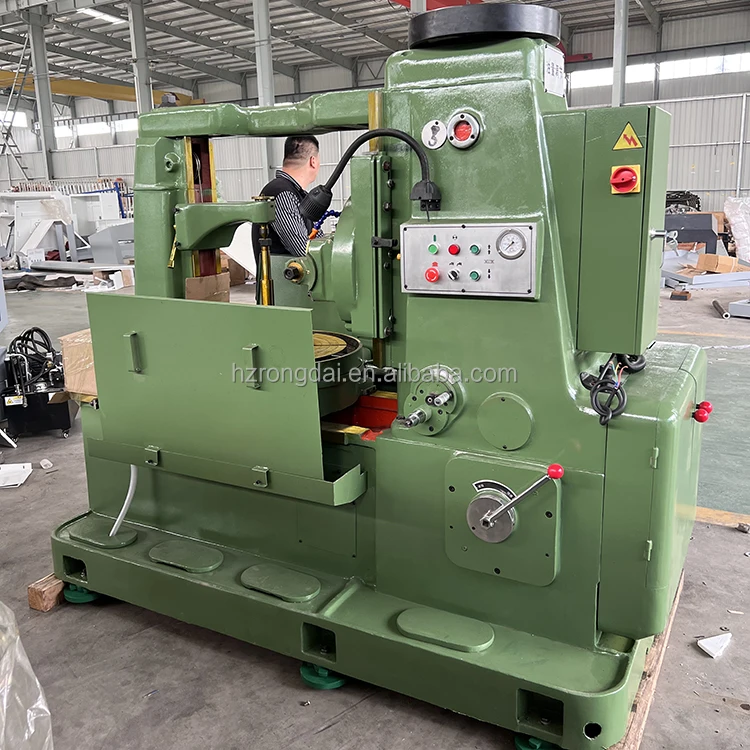

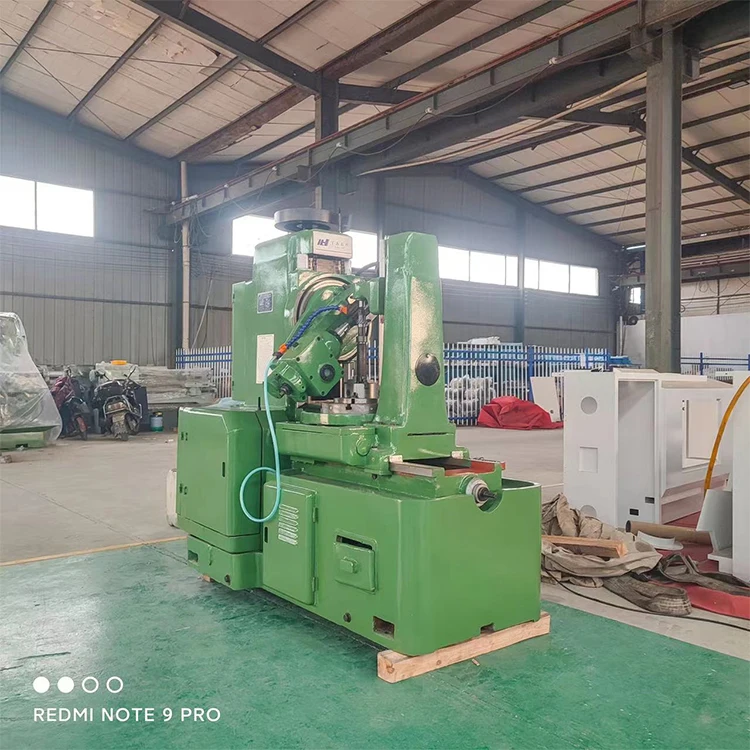

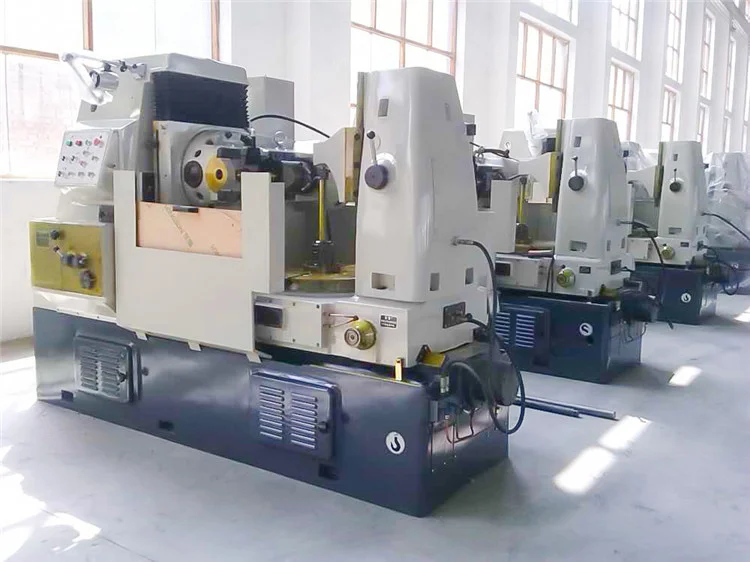

Gear Hobbing Machine for Machining Gear
Gear hobbing machine can process straight and helical gears, worm gears, sprockets and short spline shafts. It is suitable for single-piece, small batch or batch production of gears. When processing gears, machine tool can work in down milling or up milling. Machine tool is equipped with an automatic shutdown mechanism, a safety device and an automatic lubrication system.
Gear hobbing machine/gear creator/gear hobber has following features:
1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece.
2. This machine provides with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens or Fanuc CNC System to process crown gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
5. CNC is available too.
2. This machine provides with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens or Fanuc CNC System to process crown gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
5. CNC is available too.
Product Paramenters
Model | Y3150 | ||
Max working module | steel (mm) | 5 | |
Cast iron(mm) | 6 | ||
Max diameter cutting straight Spur gear | with column (mm) | 350 | |
without column (mm) | 500 | ||
Max diameter cutting Cylindrical helical gear | Rotation angle 30° (mm) | 370 | |
Rotation angle45° (mm) | 250 | ||
Max vertical travel of hob (mm) | 260 | ||
Max length of cutting (mm) | 240 | ||
Distance from hob spindle to worktable surface | Max (mm) | 320 | |
Min (mm) | 25 | ||
Minimum distance from worktable surface to hob spindle axis (mm) | 170 | ||
The changeable Diameter of hob spindle(mm) | 22/27/32 | ||
Max diameter of hob (mm) | 120 | ||
Diameter of workingtable hole (mm) | 60 | ||
Diameter of worktable mandrel (mm) | 30 | ||
Speed of Hob main spindle | Grade | 8 | |
Range (r/min) | 50-275 | ||
The vertical feed of hob (mm/r) | 0.24-4.25 | ||
Main motor power | 3kw | ||
Main motor speed | 1430 r/min | ||
Pump motor power | 0.125kw | ||
Pump motor speed | 2790 r/min | ||
Net weight (inclusive all standard accessories) | 2600 kg | ||
Size(L*W*H)mm | 2100*1000*2000 | ||

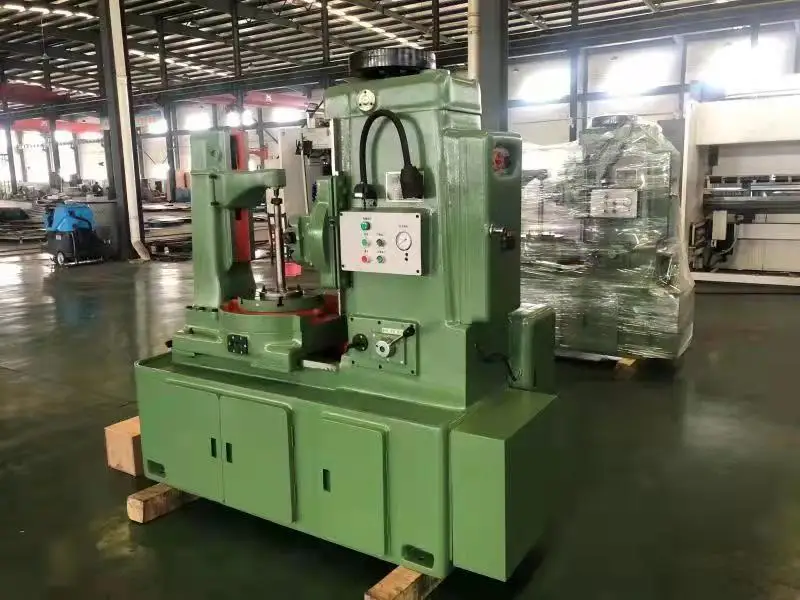

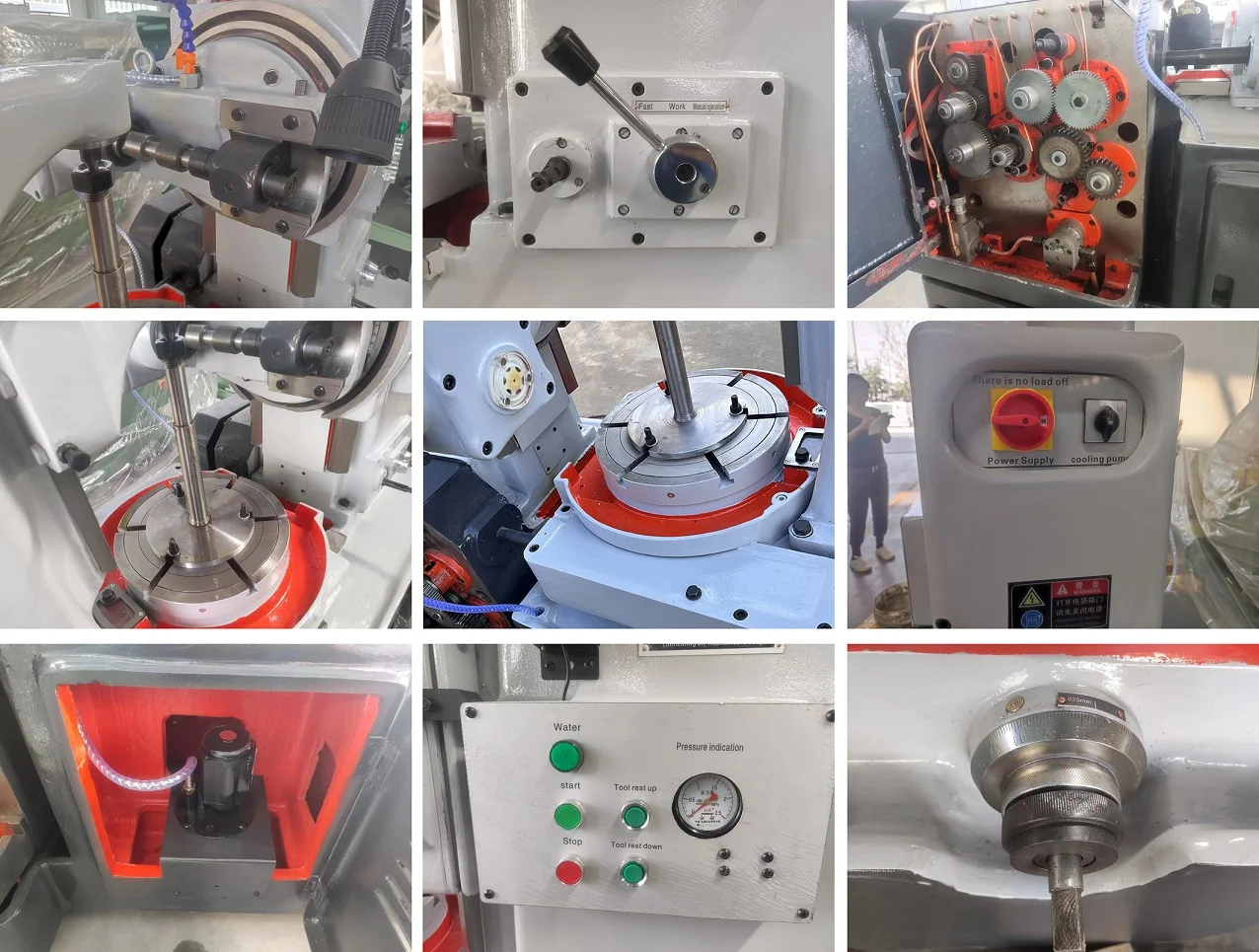

Details Images
Different Models

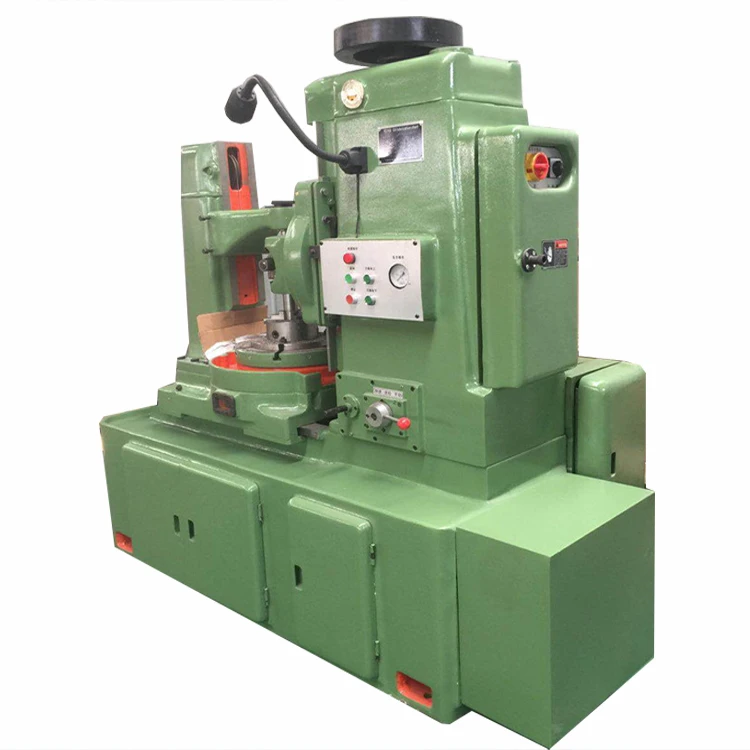

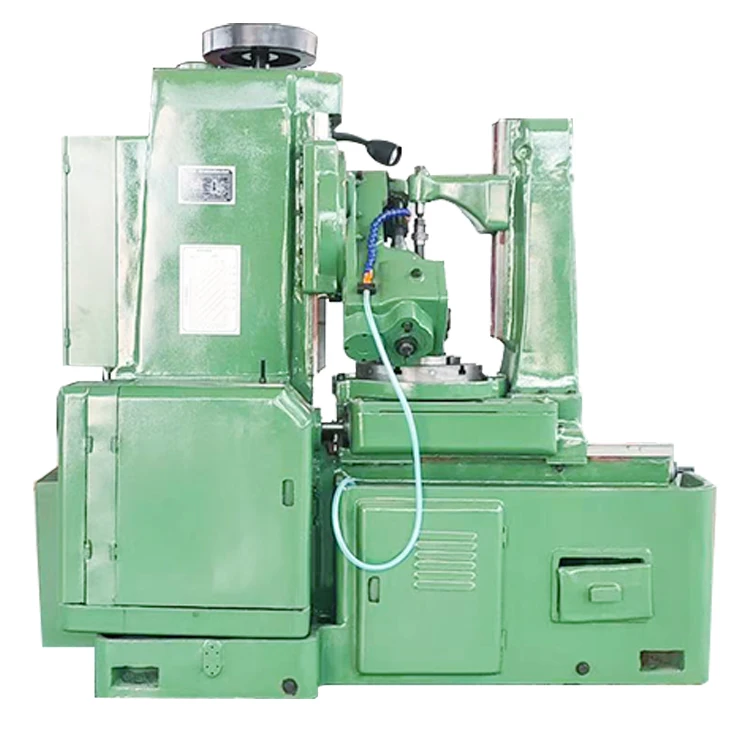

Y3150 Gear Hobbing Machine
Max modules:6mm
Max diameter:500mm
Y38-1 Gear Hobbing Machine
Max modules:8mm
Max diameter:800mm
Max diameter:800mm
Title goes here.
Y3180 Gear Hobbing Machine
Max modules:10mm
Max diameter:800mm
YK3150 Gear Hobbing Machine
Max modules:6mm
Max diameter:500mm
Max diameter:500mm

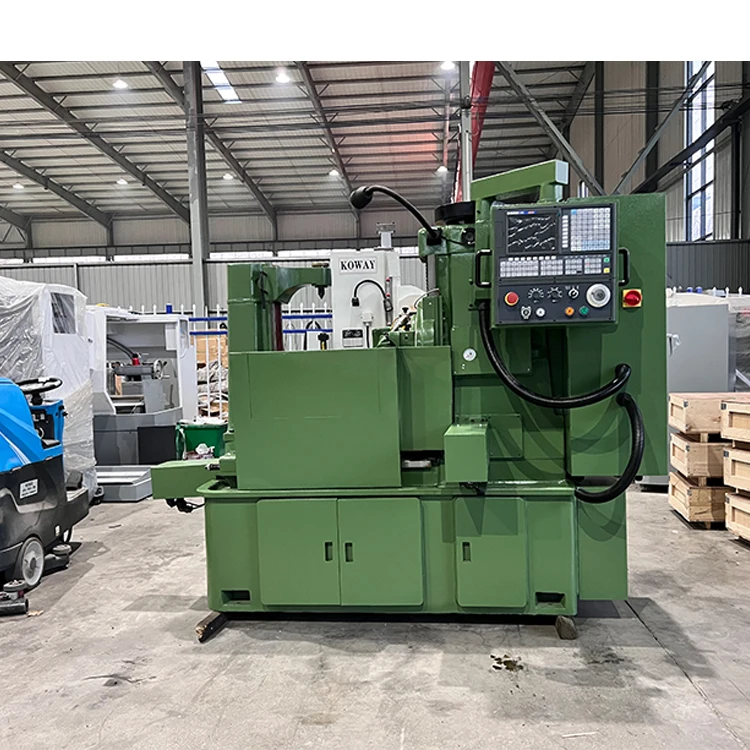

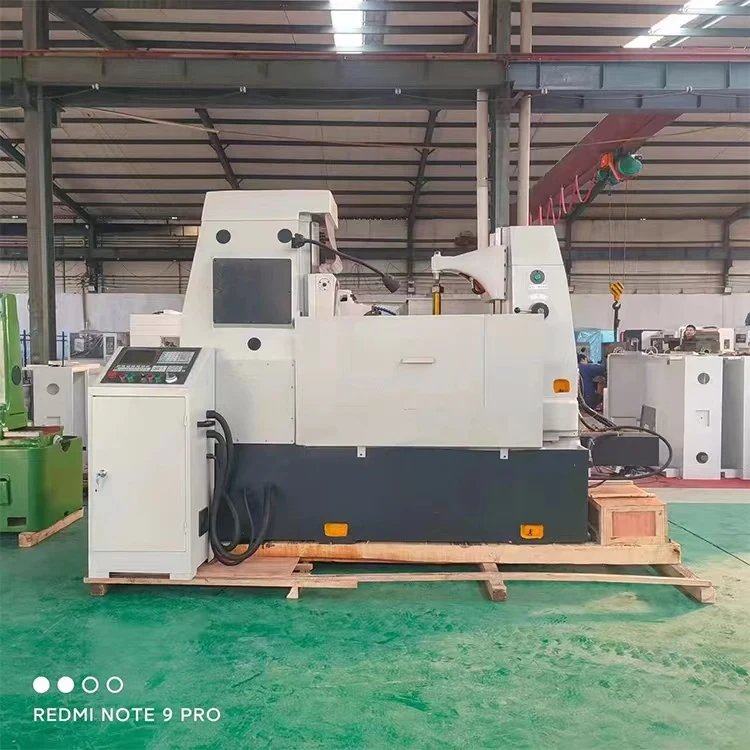

CNC Type
Y3180 Gear Hobbing Machine
Max modules:10mm
Max diameter:800mm
CNC Type
