Cheap Laptop 3D doppler Ultrasound Portable Ultrasound Machine Echo SUN 800F
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1600980437670):
Product Overview
Description
Product Description

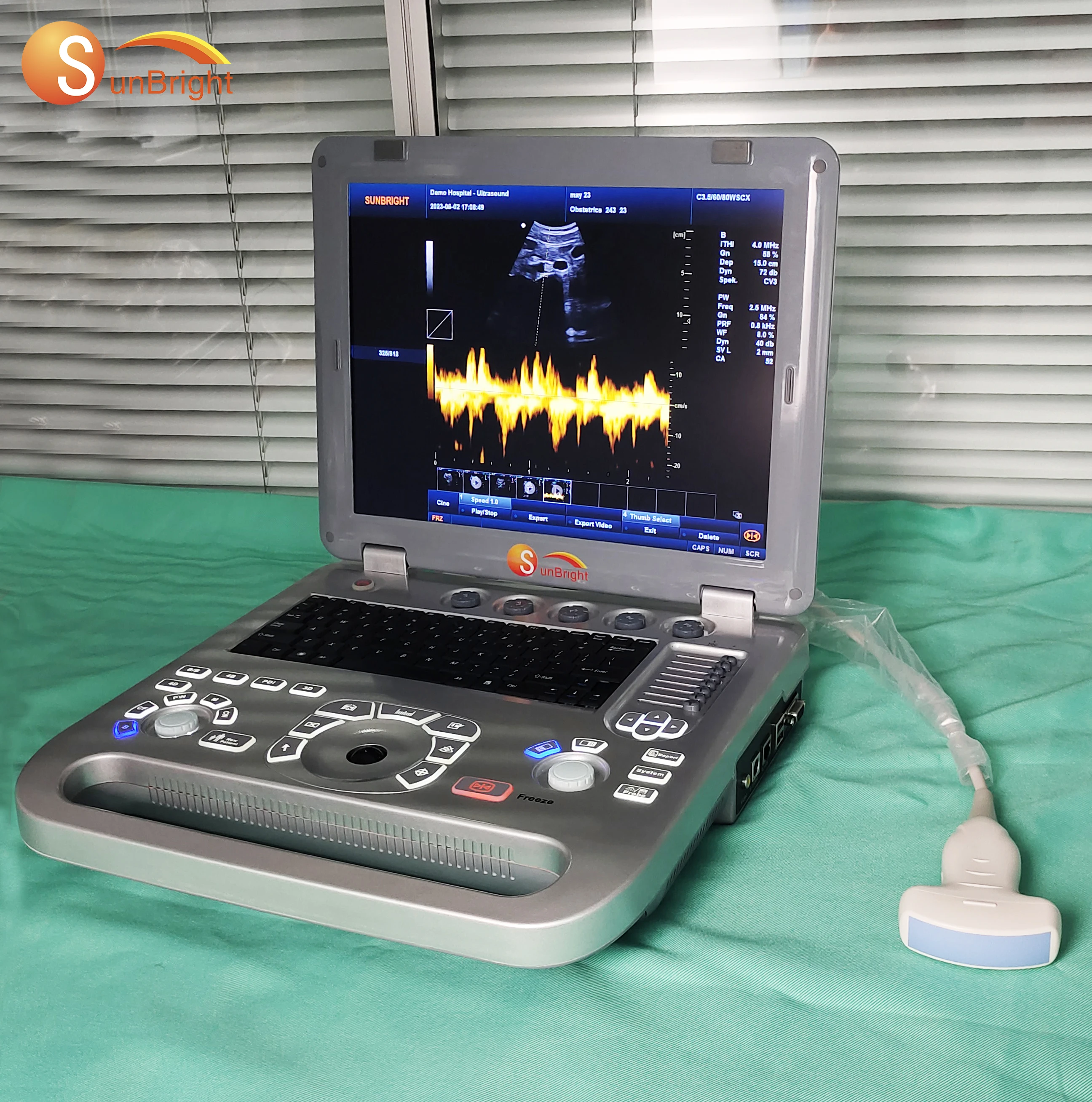

Cheap Laptop 3D doppler Ultrasound Portable Ultrasound Machine Echo SUN-800F
Specification
Application
Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal
Sales point: 128 elements + PW + CW + phased array probe + 4D volume probe + 3D + 4D
Physical Specifications
Physical Specifications
Equipment size | 365mm×300mm×75mm |
Equipment weight | 5.5kg |
Packing size | 490mm×270mm×490mm |
Packing weight | 10kg |

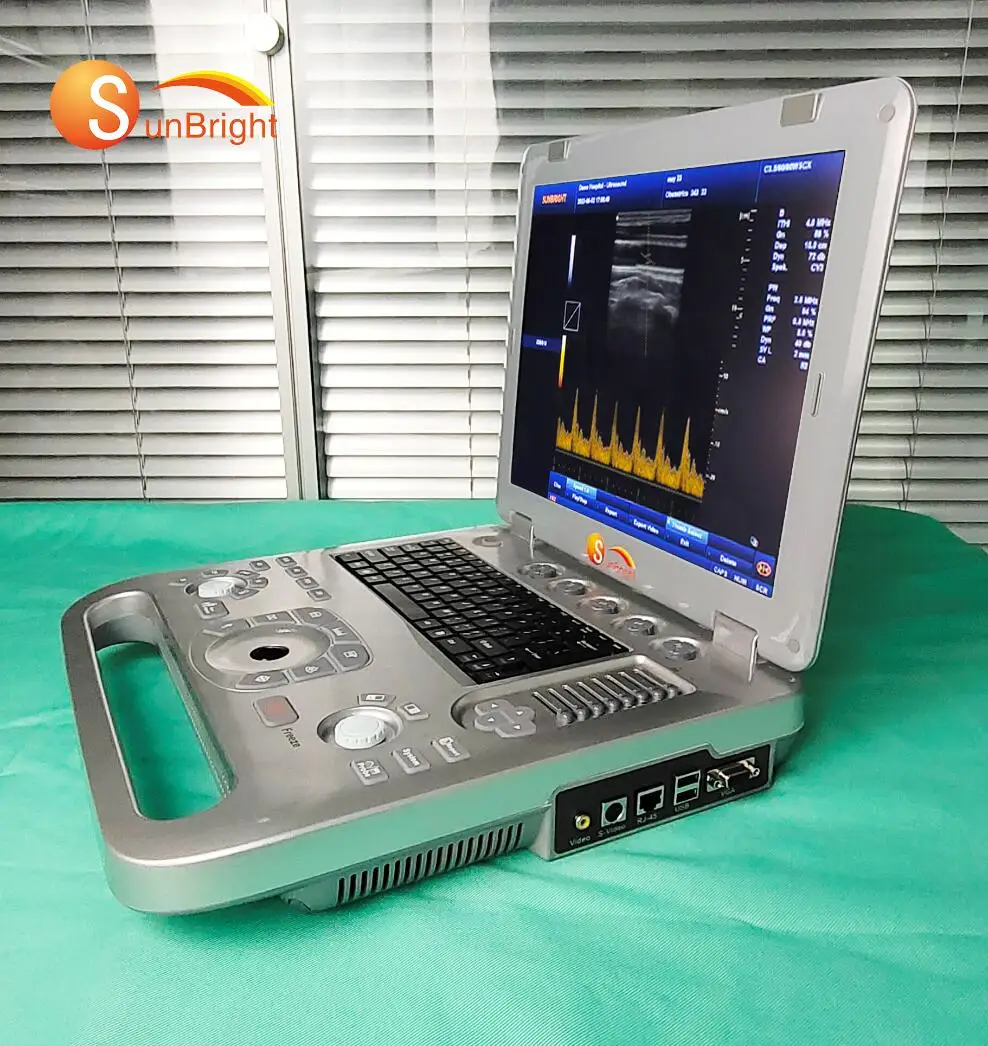

Connectivity/Media/Peripherals

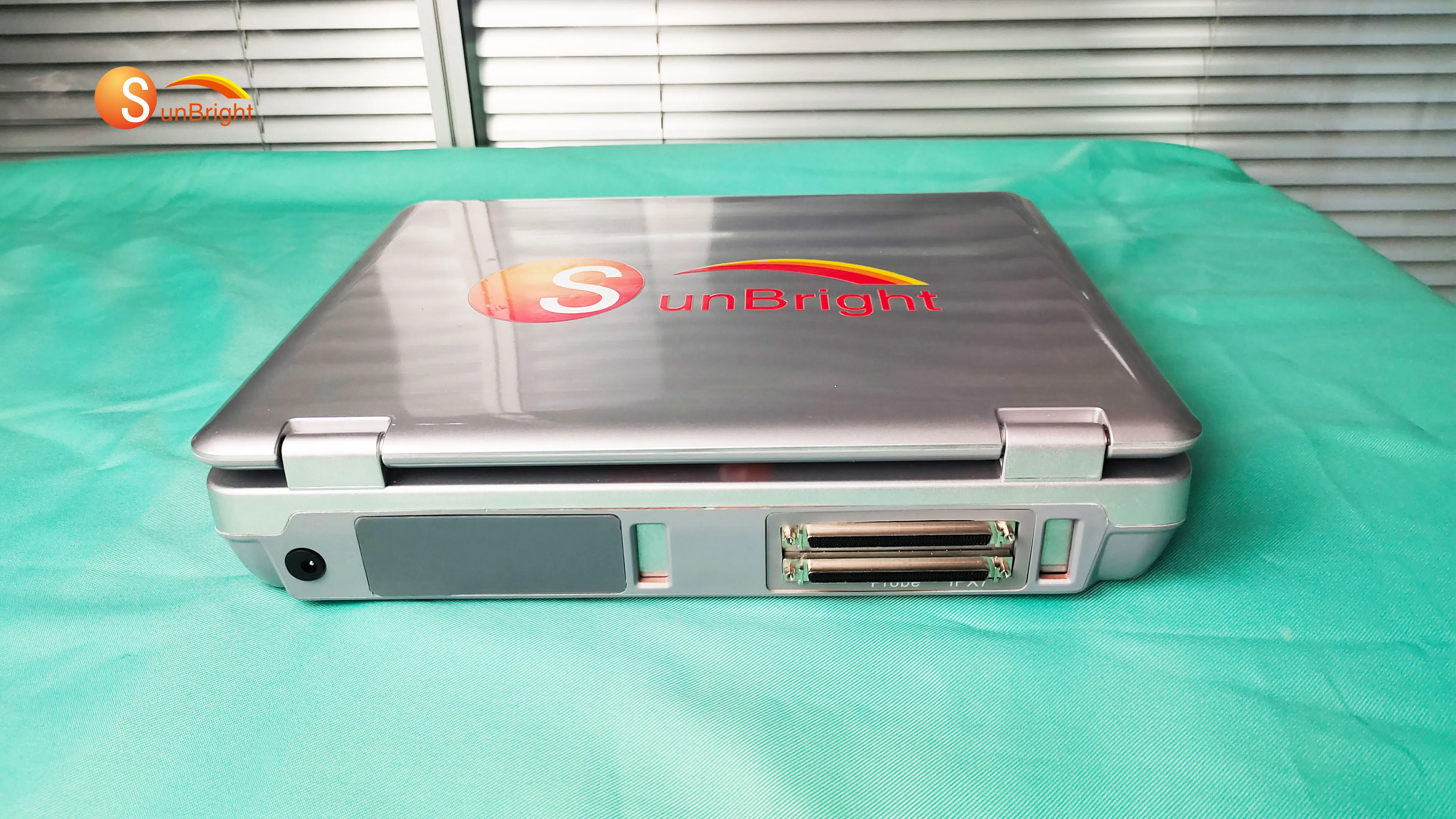

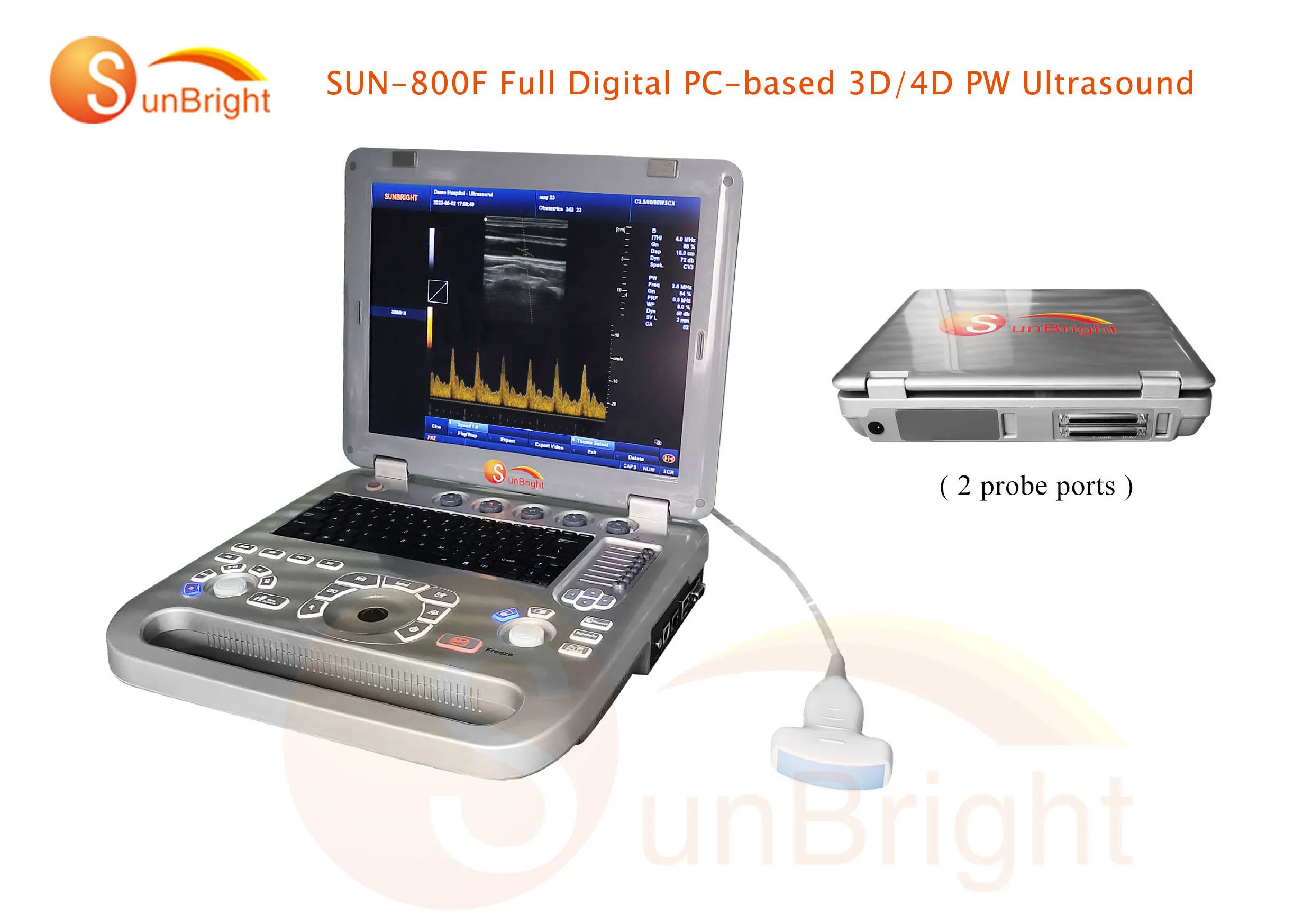

Transducer Ports | 2 |
USB Ports | 2 |
Hard Disc | 64GB (SSD), 120G/200GB SSD (Optional) |
Footswitch | USB |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA, HDMI, |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Printing Area | Image, report, Image+report |
Cine/Image Memory
Cine Memory:1200 frame (max)
Cine Review Speed:1, 2, 4, 8
Cine Review Loop:YES
Cine Capture Function:YES
DICOM Connectivity
DICOM3.0 Compliant

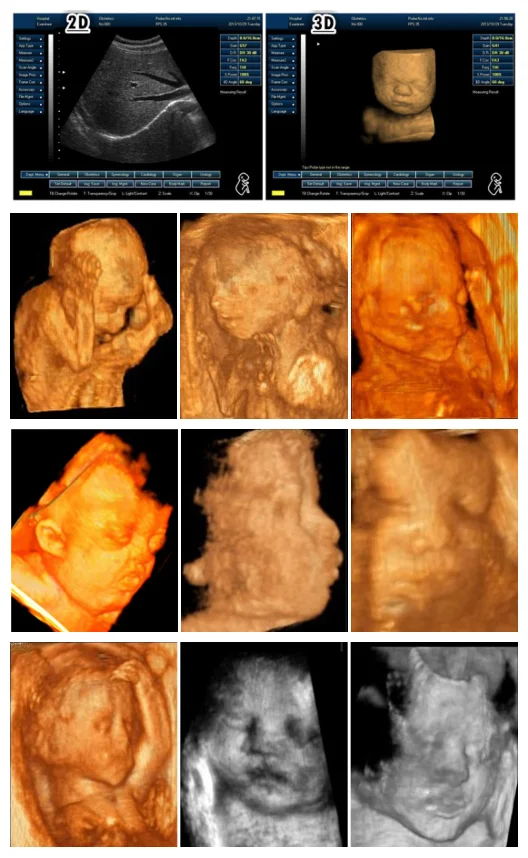

3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
Technology
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
Technology
Panoramic Imaging Tech |
All-digital signal processing Tech |
Multi-beam formation Tech |
Speckle Reduction Tech |
Tissue Harmonic Imaging Tech |
Dynamic Tissue Optimization Tech |
Duplex & Triplex Synchronous Display |
Directional Power Doppler |
Imaging Parameters Preset |
Tissue Special Image |
PW Auto Trace |
Update in line |
CF+B mode in one screen |
Complex Model Imaging |
IMT auto measurements |
Virtual convex array |
Trapezoidal imaging |
General Performance
Digital Broadband | 12288 channels |
Beam-former | Re-programmable |
Transmit Voltage | Adjustable (15 steps) |
Beam-former Frequency Range | 1~40 MHz |
Pan/Zoom
Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion
Hardware Specification
LED Monitor
Hardware Specification
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024×768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 90° |
Grey Levels | 256 |
UPS (Optional)
Embedded Speakers
Embedded Speakers
Impedance: 4Ω
Power: 5 W
Imaging Performance
Power: 5 W
Imaging Performance
Startup Time (Max) | Avg. < 90 seconds |
Preset Switching Time | Avg. < 1 second |
Storage Time (Image to Disk) | Avg. < 0.5 second |
User Interface |
User Permission setting |
Intuitive Windows-based operating principles |
User-centric control panel with Home Base layout and control customization |
On/Off task light and back-lit illumination of control panel |
Variable brightness indicates active state of function keys |
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming |
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu |

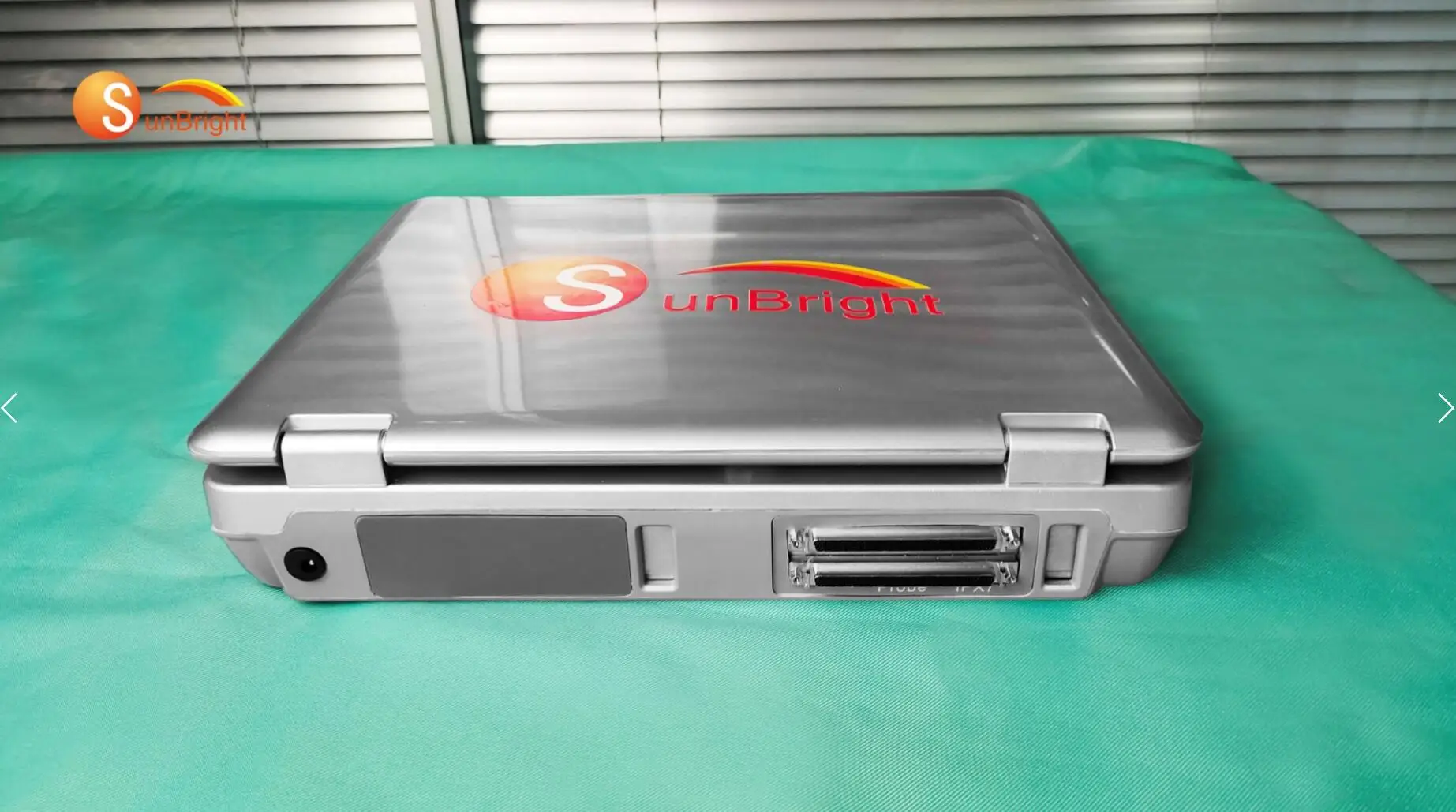

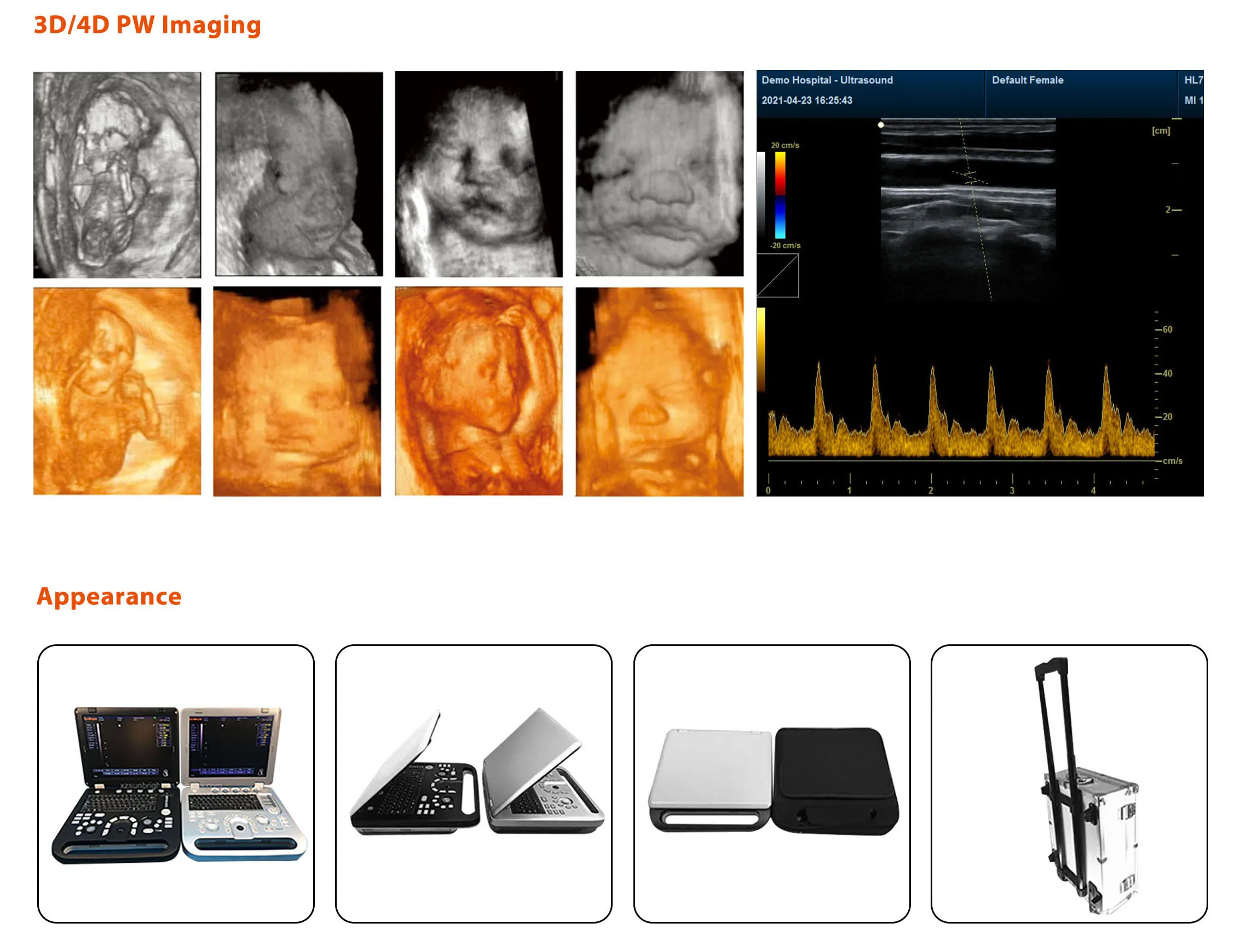

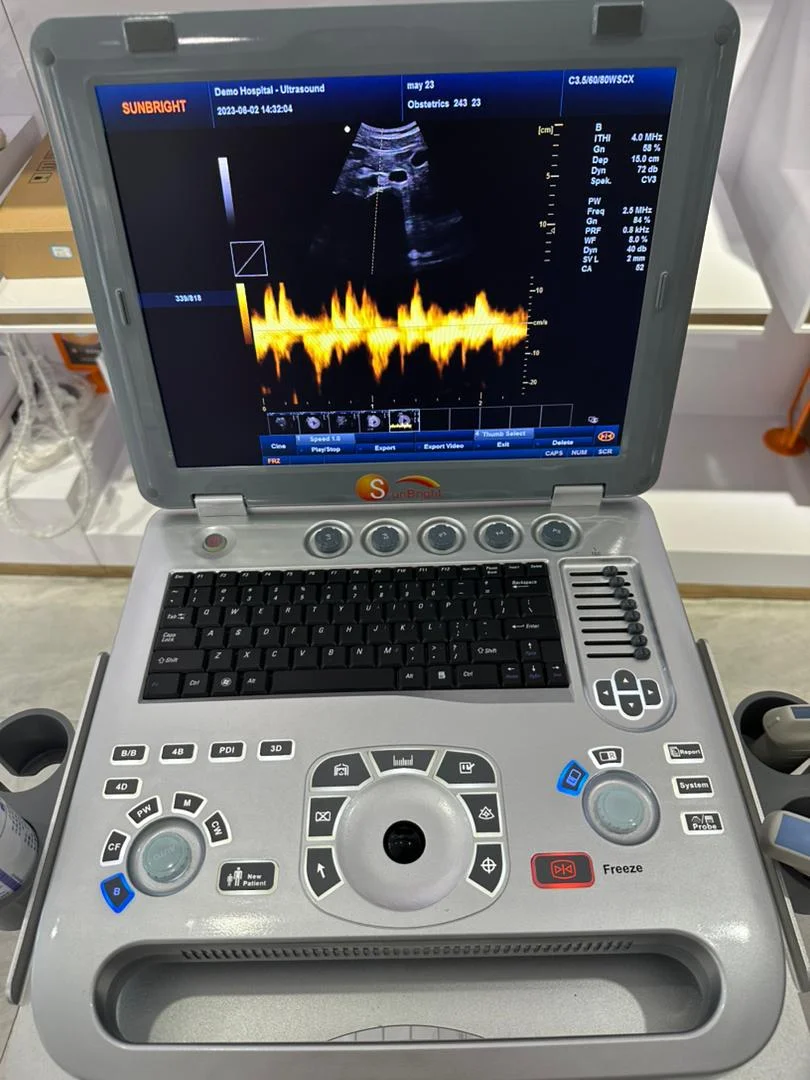

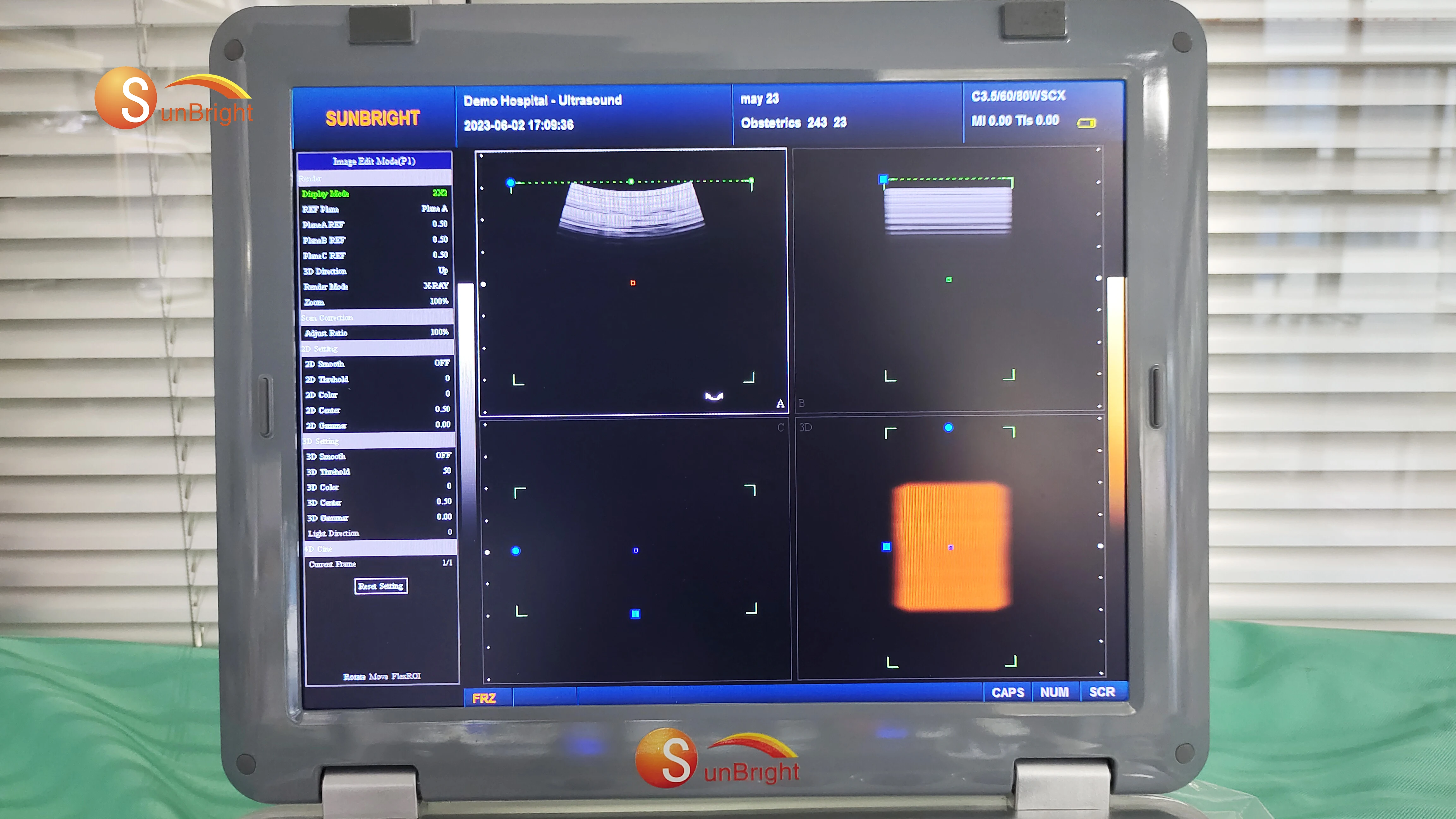

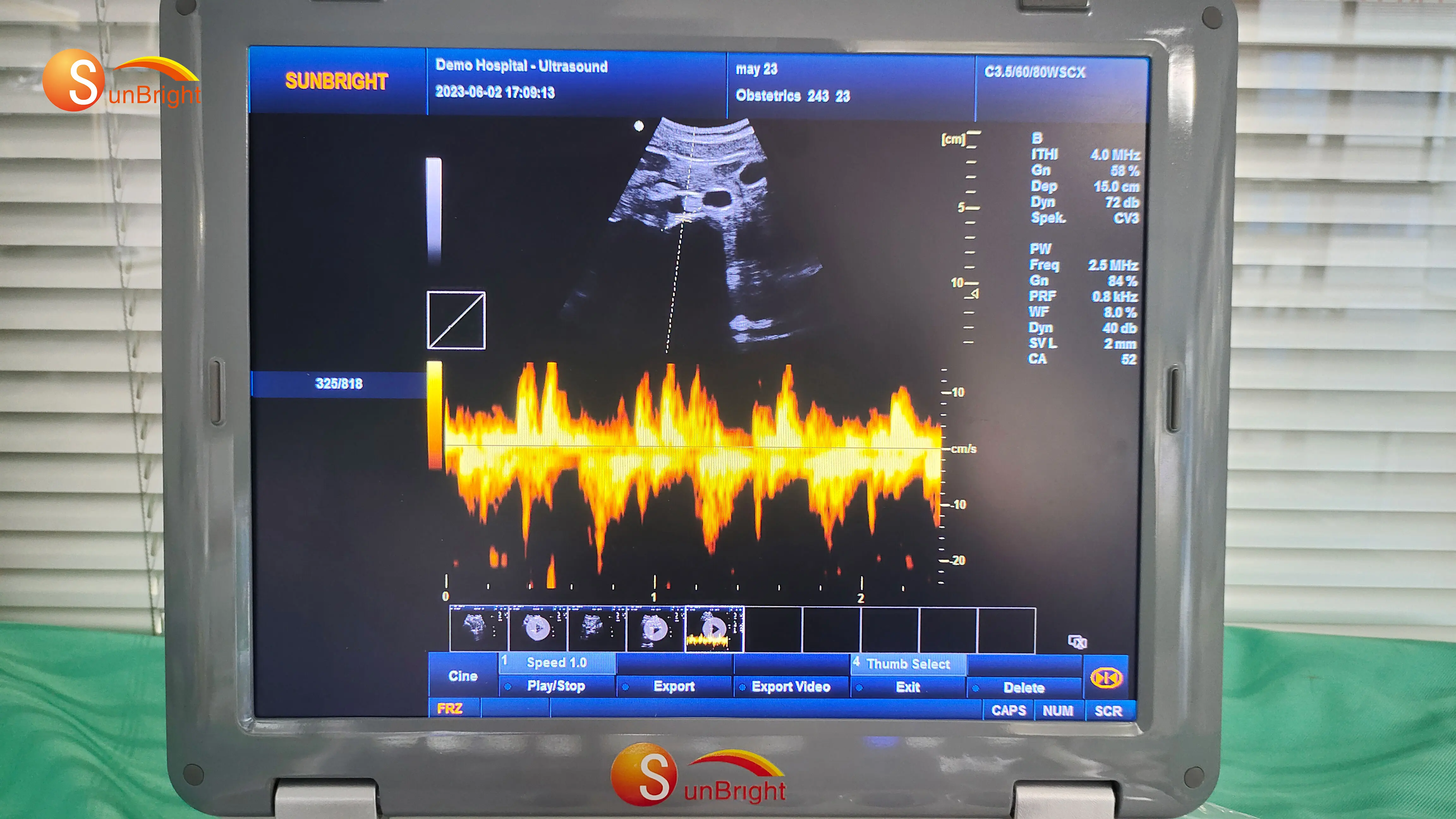

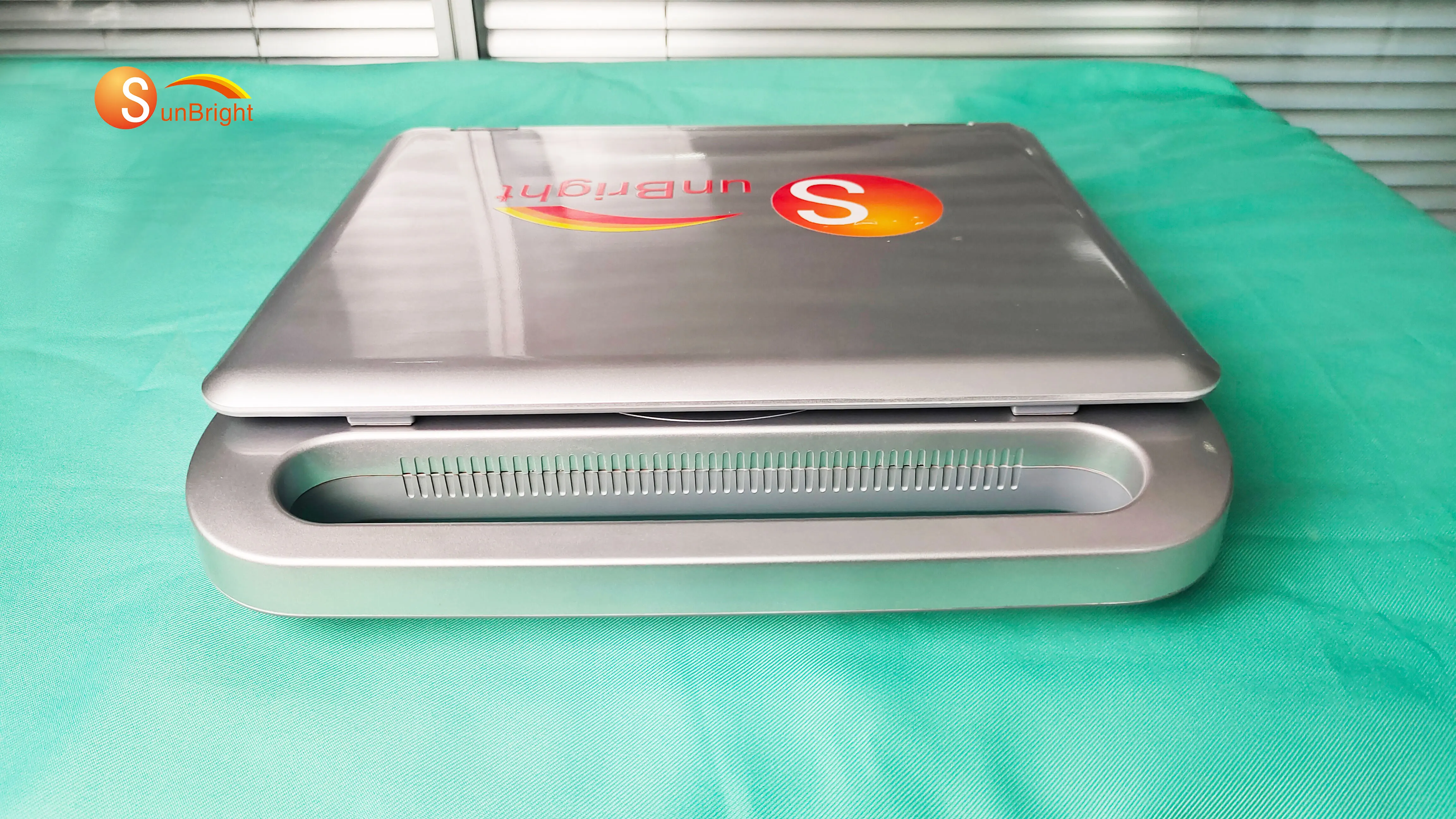

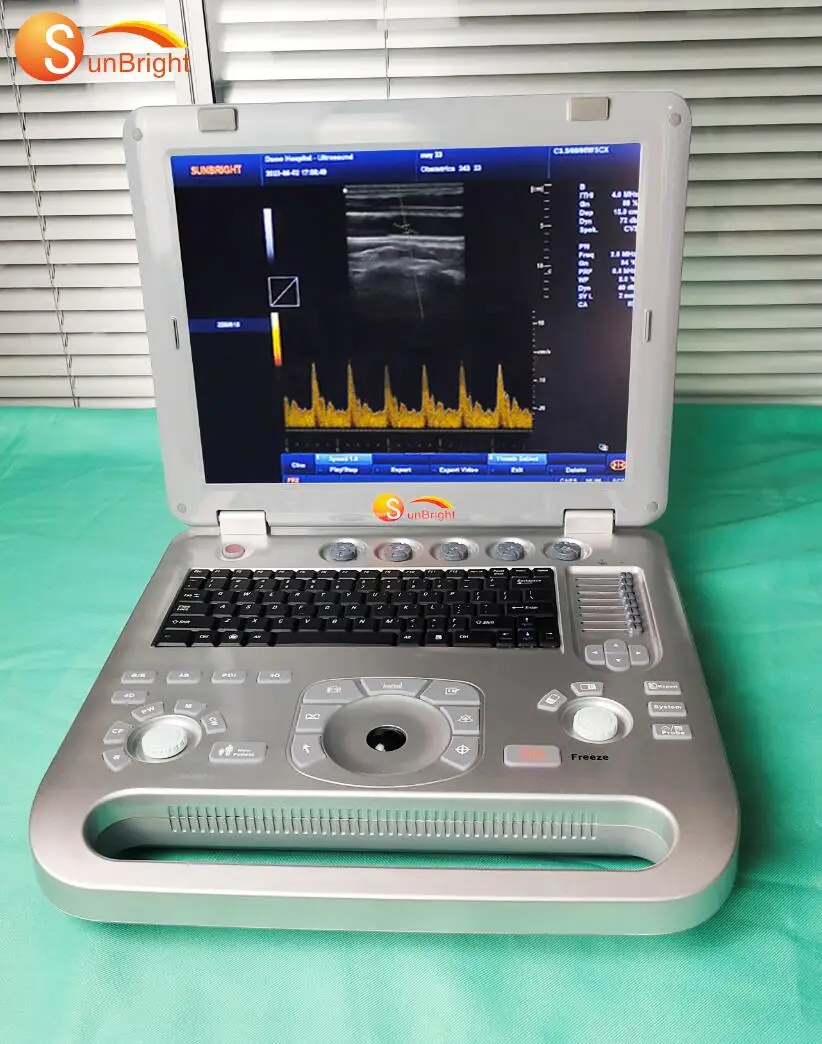

Details Images
Related Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
