Hi Target V60/A10/H32 Trimble Main Board Gnss Antenna Receiver Land Measuring Instrument Cheapest Gps Receiver Gnss Rtk
- Category: >>>
- Supplier: Jiangxi Wonder Survey Co. Ltd.
Share on (1600980449773):
Product Overview
Description
Original Hi target Software Can Be Updated At Any Time

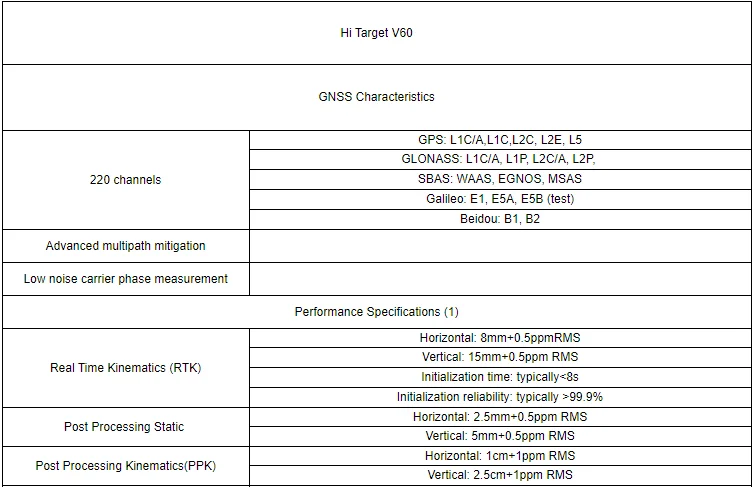

| Hi Target V60 | |
| GNSS Characteristics | |
| 220 channels | GPS: L1C/A,L1C,L2C, L2E, L5 |
| GLONASS: L1C/A, L1P, L2C/A, L2P, | |
| SBAS: WAAS, EGNOS, MSAS | |
| Galileo: E1, E5A, E5B (test) | |
| Beidou: B1, B2 | |
| Advanced multipath mitigation | |
| Low noise carrier phase measurement | |
| Performance Specifications (1) | |
| Real Time Kinematics (RTK) | Horizontal: 8mm+0.5ppmRMS |
| Vertical: 15mm+0.5ppm RMS | |
| Initialization time: typically<8s | |
| Initialization reliability: typically >99.9% | |
| Post Processing Static | Horizontal: 2.5mm+0.5ppm RMS |
| Vertical: 5mm+0.5ppm RMS | |
| Post Processing Kinematics(PPK) | Horizontal: 1cm+1ppm RMS |
| Vertical: 2.5cm+1ppm RMS | |
| Communications | |
| RS232 serial port | x2 |
| Blue tooth, NFC | x1 |
| Integrated GSM/GPRS or 3G modem | x1 |
| TNC antenna connector | x1 |
| DC power intput (8pins&5 pins) | x2 |
| USB standard 2.0 port | x1 |
| Hi Target internal UHFradio(Standard) | 450-470 Mhz, 116 channels, 1w,2w,5w adjustable. work distance: 5-10KM |
| Hi Target external UHF radio(Standard) | Hi Target External radio: 460Mhz,116 channels. 5w, 10w, 20w, 30w adjustable, work distance:8-20km |
| Pacific Crest internal/external UHF radio(optional) | internal: 403-473Mhz, 3-10KM; External: 390-430Mhz or 430-470Mhz, 8-20KM(work range) |
| Protocols | RTCM2.1, RTCM2.3, RTCM3.0, |
| CMR, CMR+ input and output | |
| NMEA0183 outputs | |
| RINEX and ZHD outputs for GNSS raw data | |
| Data Storage | 1GB internal memory+8GB internal Micro storage card |
| Record GNS and Rinex format simultaneously | |
| Physical | |
| Dimension (WXH) | 182mm×98 mm (7.17×3.86 in) |
| Weight | 1.25Kg with battery (2.76lb) |
| Working Temperature | -45 °C − +65°C (-49 °F − 149°F) |
| Storage Temperature | -55 °C − +85°C (-67 °F − 185°F) |
| Humidity | 100% condensation |
| Dustproof | IP67 |
| Waterproof | Protected from temporary immersion to depth of 1 meter floats |
| Shock | Survives a 3−meter drop on to concrete |
| Electrical | |
| Typical power consumption | less than 3.5 W |
| Battery capacity | 7.4v, 5000 mAh |
| Operating times on internal battery | Up to 15 hours typical |
| External power input | 6-28 V DC |
