Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color
Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color
Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color
Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color
Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color
Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color
Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color

Full Servo Motor Semi Automatic Electrical Appliance SD CardTampography Pad Printing Machine 2 Color

Share on (1600980479464):


Price:$9,380.00-11,300.00

Quantity:


Product Overview

Description



Product Description






It is applied for print various kind of material,such as metal,glass,
chinaware,plastic and so on.It also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on


Model Number
LC-PM2-200RTS
Print Colour
2 Colours
Pad Stroke
160mm
Standard Plate Size
100 x 250mm
Ink Cup Size
Diam 90mm
Max Printing Size
80*160mm
Max Workpiece Height
240mm
Max Printing Speed
1400 Pcs/Hr
Voltage
220V/50Hz, 110V/60Hz
Dimension
870 x 450 x 1370mm


Advantages:
1.Pure electric control, the microcomputer control, easy to operate, accurate and reliable.
2. FIVE servo motors control Printing head up-down, rear-back Steel Plate Inking rear-back, Workbench shuffle left-right, Fixture rotating
3. the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful and practical.
4. the oil ink roller assembly and disassembly, and easy to clean.
5. independently adjustable plastic head up and down stroke and speed.
6. automatic balanced squeegee, scraping the oil neat.
7. each of the ink disk blocks can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.




Printing process

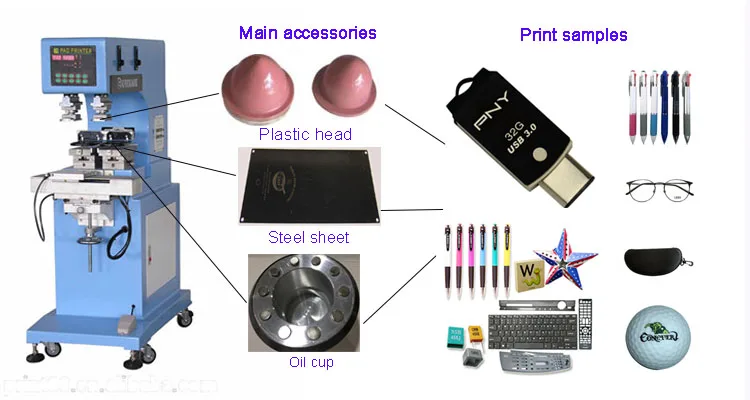

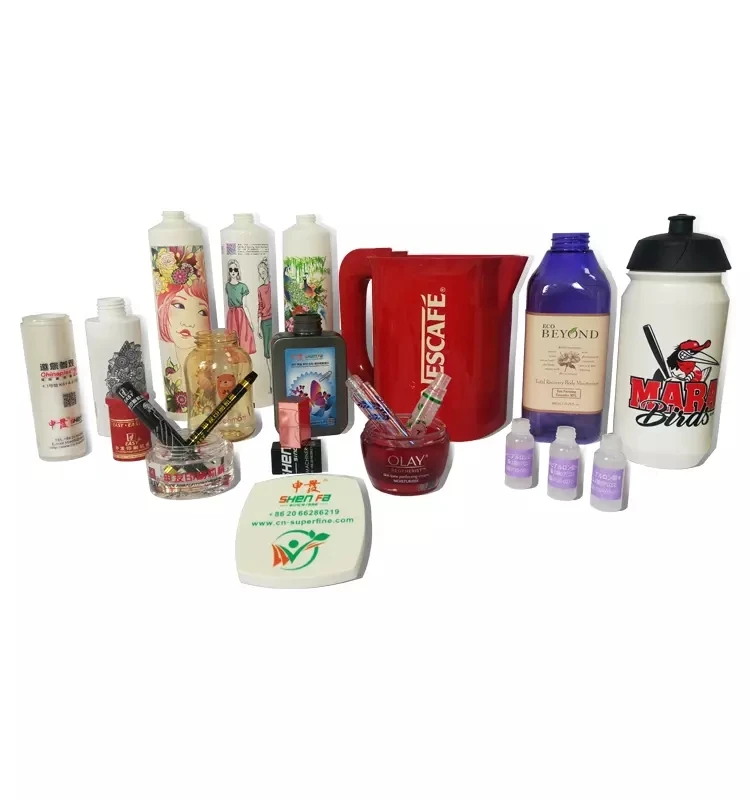

Print samples




More samples picture and video of the machine ,please contact with us.
