Napkins Screen Printer Automatic Machine
- Category: >>>
- Supplier: Dongguan Hoystar Machinery Co. Ltd.Dongguan Ltd.
Share on (1600980481652):
Product Overview
Description
Products Description
Application：
This high rapid screen printing machine is specially designed for printing Napkins automatic screen printing machine,its printing process like below: load the Napkin on the machine by hand---auto printing 1 color--auto drying--auto unloading on conveyor belt
Function:
1) Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2) Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3) The rotate worktable adopts electric control,CHINT AC contractor, Taiwan FOTEK photo-switch
4) Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5) High quality infrared lamps,it can be up to 1500-2000 hours
6) It has"No product,No print"function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable
7) Rotary worktable, It has total 8 pcs of work station.
8) Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.
9) Machine surface is metallic paint ,beautiful and dignified
2) Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3) The rotate worktable adopts electric control,CHINT AC contractor, Taiwan FOTEK photo-switch

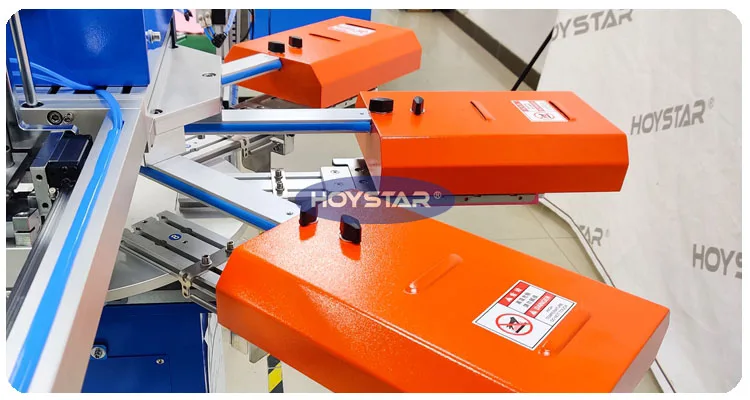

4) Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5) High quality infrared lamps,it can be up to 1500-2000 hours
6) It has"No product,No print"function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable
7) Rotary worktable, It has total 8 pcs of work station.
8) Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.
9) Machine surface is metallic paint ,beautiful and dignified
Technical parameter: | ||||||||
1) Max.printing area | 100*130mm | |||||||
2) Max printing speed | 1200pcs/hr | |||||||
3) Workstaion | 8 pcs | |||||||
4) Drying system | 3 pcs | |||||||
5) Power | 4.5KW | |||||||
6) Machine size | 1500*1400*1650mm | |||||||
7) Weight | 260kg | |||||||
8) Power | 220V | |||||||
Details Images

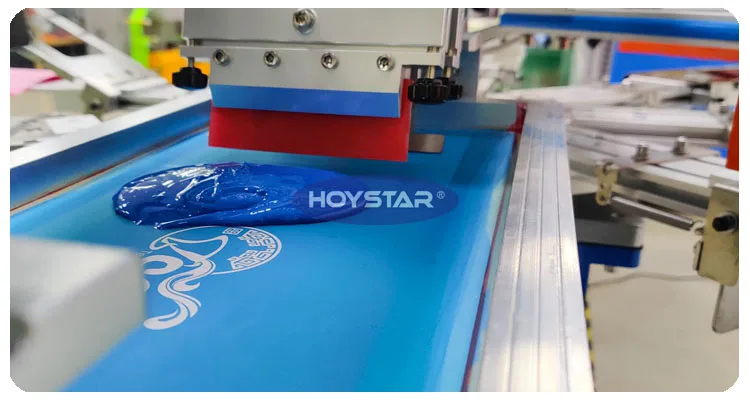

Screen frame with pattern
When you have silicone ink+screen frame with pattern,you can start printing now !
------We can make the screen frame with logo/pattern for you,you can send us the design drawings .
------or We also have some drawings for your reference if you needed.)

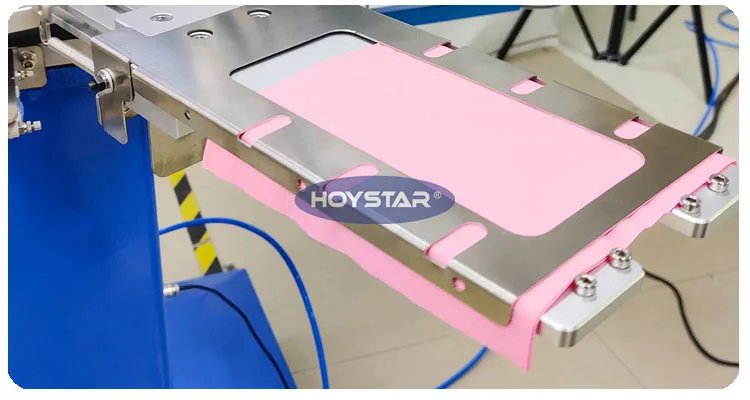

Napkins fixtures

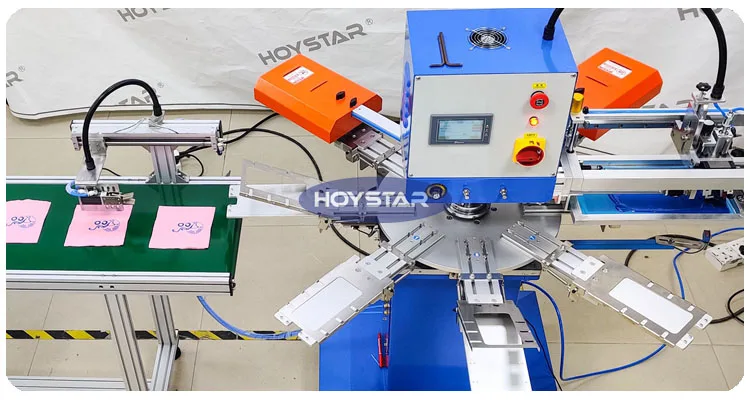

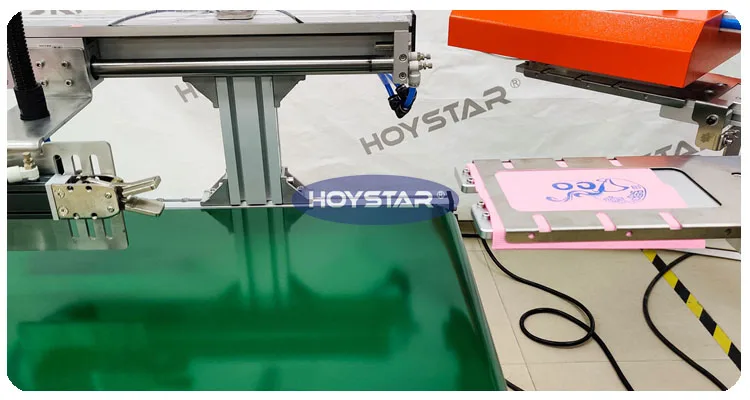

Auto unloading on the conveyor belt

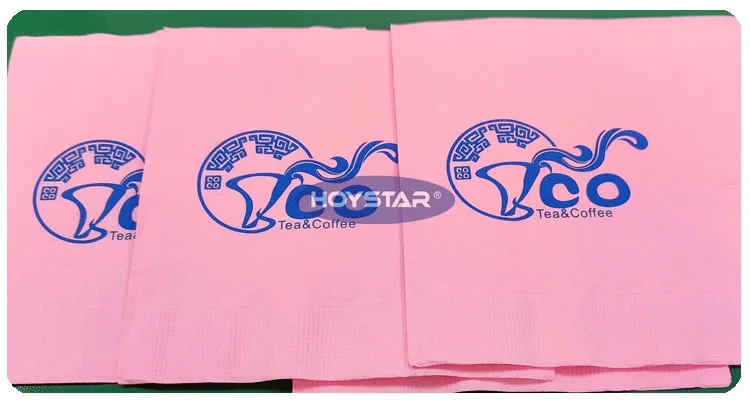

Printed samples (for napkins)
