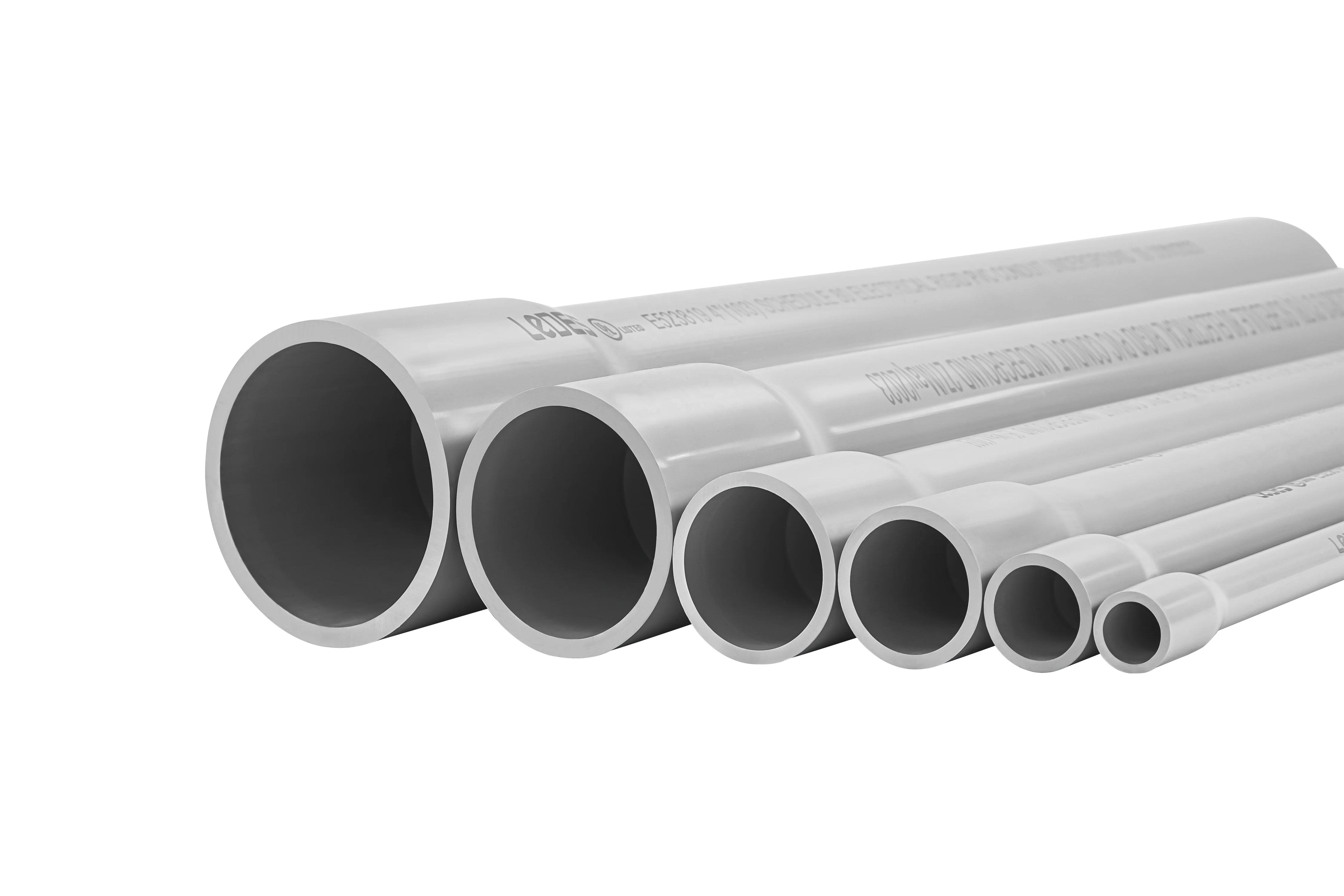

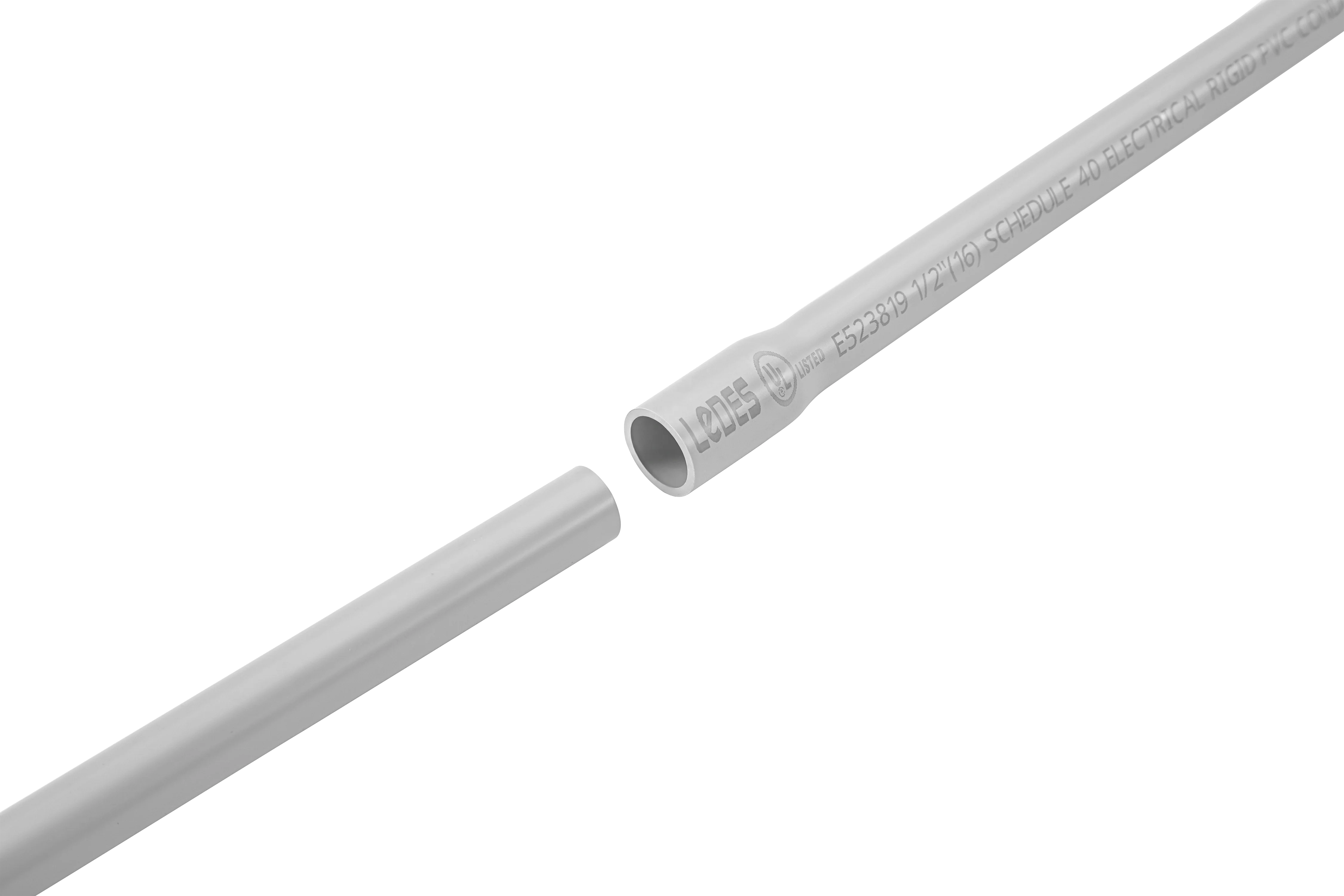

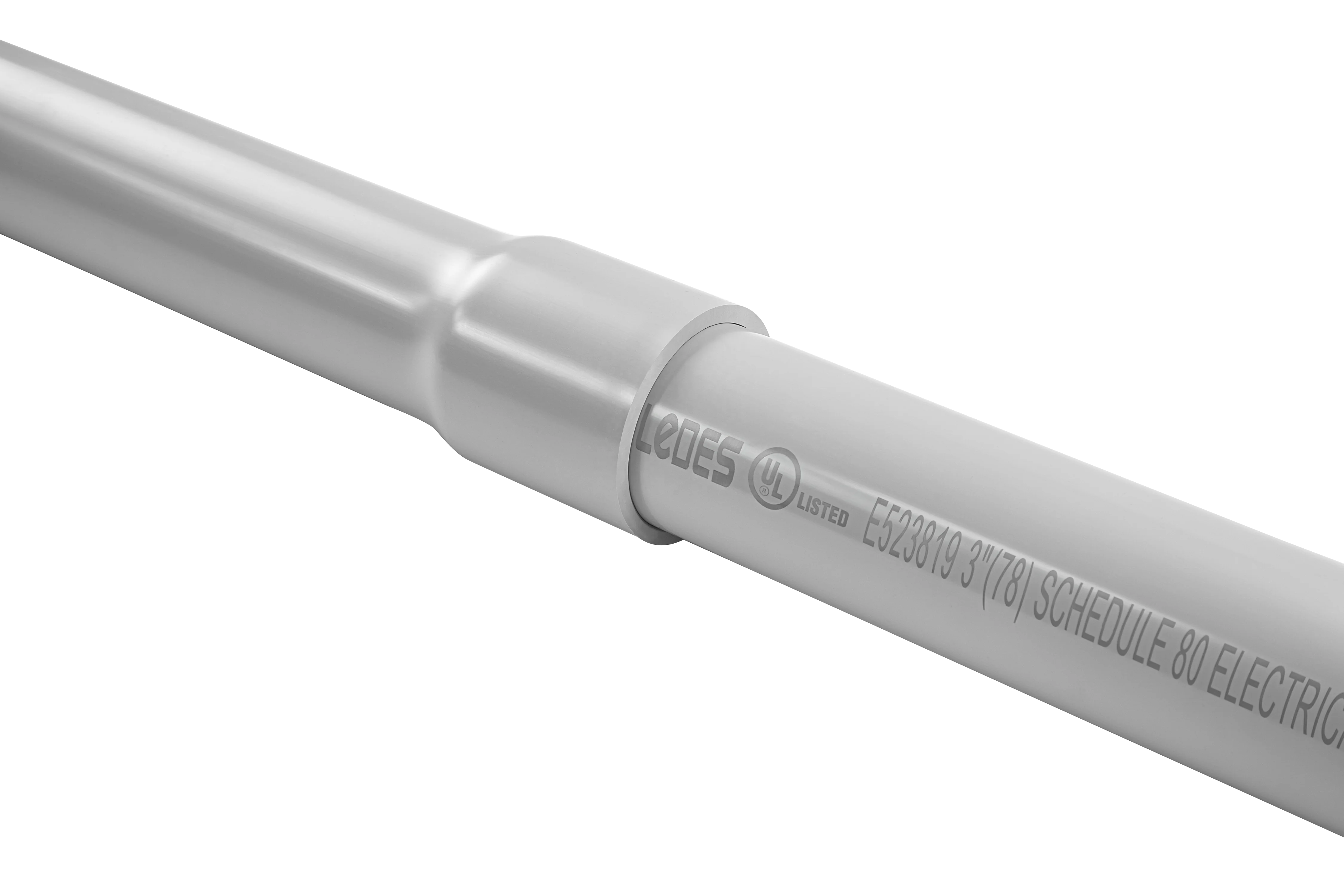

1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application
1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application
1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application
1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application
1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application
1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application
1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application

1/2'~8' UL651 Certified Schedule 80 PVC Pipes Suppliers Sunlight Resistant PVC Electrical Conduits for Underground Application

Share on (1600980564833):


Price:$1.58

Quantity:


Product Overview

Description



Products Description


Commodity Name:

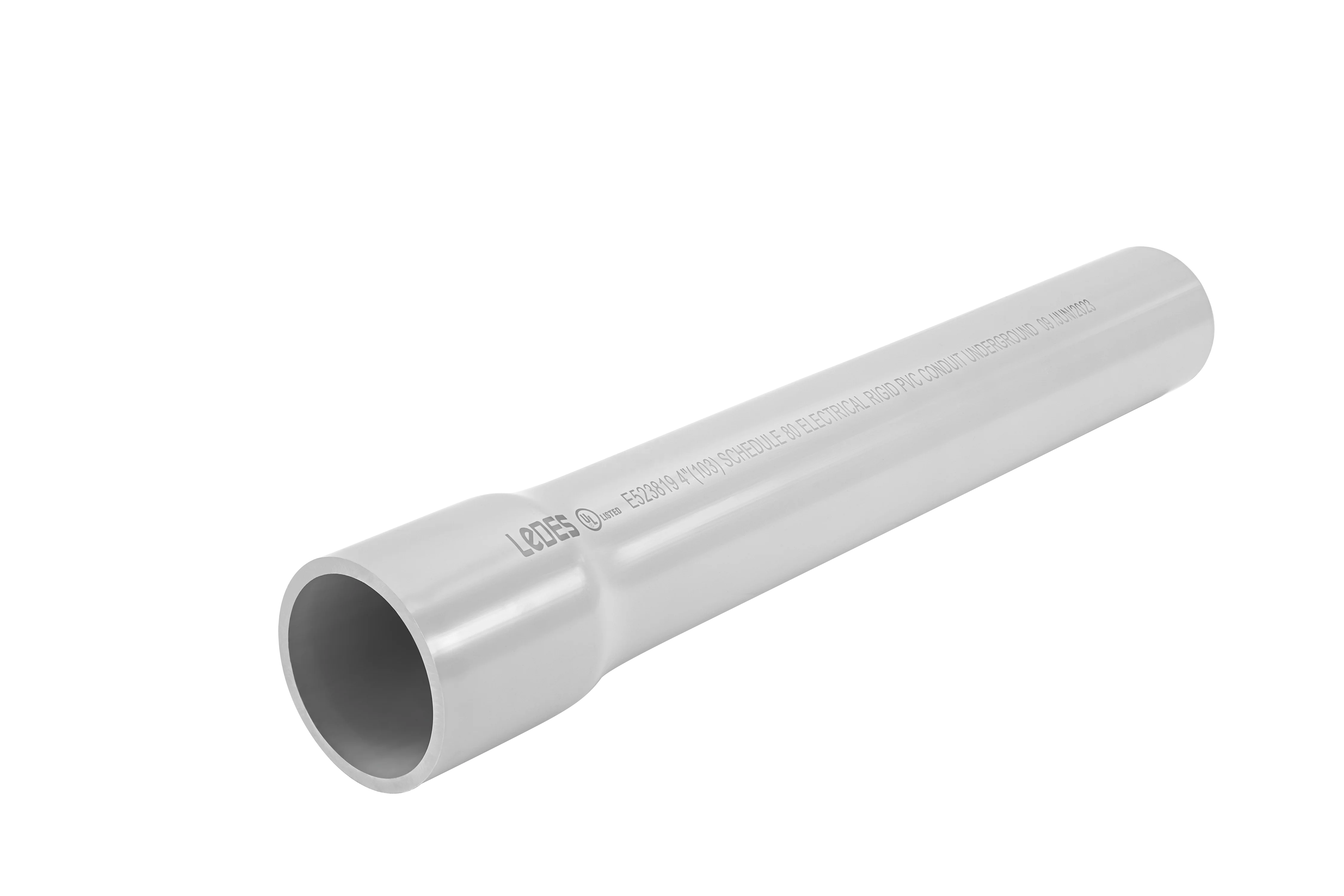

Electrical Schedule 80 PVC Conduit
Raw Material :
UPVC
PVC Material Test:
ASTM D1784-20
Trade Size :
1/2'', 3/4'', 1'', 1 1/4'',1 1/2'', 2'', 2 1/2'', 3'', 3 1/2'', 4'' , 5'' , 6'',8"
Length :
10 ft / 20 ft, or Customized
Standard :
UL651, NEMA TC-2
Color :
Grey , Or Customized
Application :
Approved For Underground And Above Ground
Feature :
Flame Resistance,UV Resistance,Corrosion Resistance,Impact Resistance


VR

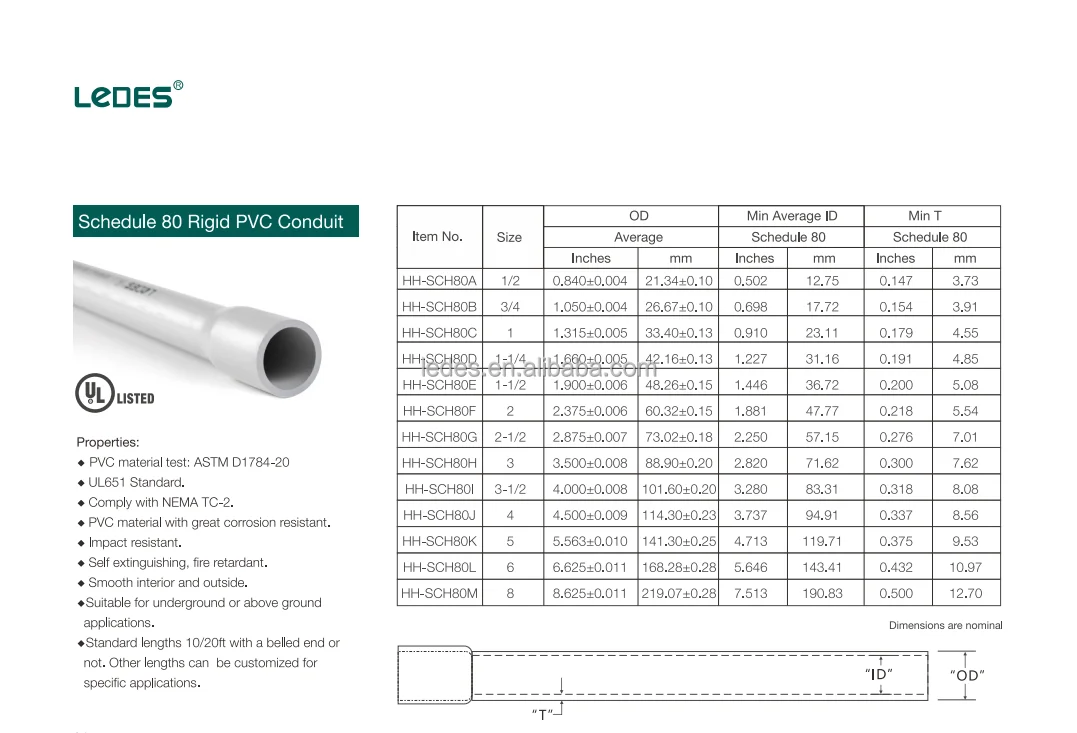

TABLE 2 - DATA SHEET


 Trade Size
Outside Diameters
( inch - mm )
Minimum Wall Thickness
( inch - mm )
inch - mm
Maximum
Minimum
Schedule 40
Schedule 80
1/2 - 16
0.848 - 21.54
0.832 - 21.13
0.109 - 2.77
0.147 - 3.73
3/4 -21
1.060 - 26.92
1.040 - 26.42
0.113 - 2.87
0.154 - 3.91
1 - 27
1.325 - 33.66
1.305 - 33.15
0.133 - 3.38
0.179 - 4.55
1-1/4 - 35
1.672 - 42.47
1.648 - 41.86
0.140 - 3.56
0.191 - 4.85
1-1/2 - 41
1.912 - 48.56
1.888 - 47.96
0.145 - 3.68
0.200 - 5.08
2 - 53
2.387 - 60.63
2.363 - 60.02
0.154 - 3.91
0.218 - 5.54
2-1/2 - 62
2.890 - 73.41
2.860 - 72.64
0.203 - 5.16
0.276 - 7.01
3 - 78
3.515 - 89.28
3.485 - 88.52
0.216 - 5.49
0.300 - 7.62
3-1/2 - 91
4.050 - 102.87
3.950 - 100.33
0.226 - 5.74
0.318 - 8.08
4 - 103
4.550 - 115.57
4.450 - 113.03
0.237 - 6.03
0.337 - 8.56
5 - 129
5.613 - 142.57
5.513 - 140.03
0.258 - 6.55
0.375 - 9.52
6 - 155
6.675 - 169.54
6.575 - 167.00
0.280 - 7.11
0.432 - 10.97




Product Advantages


GOOD PERFORMANCE
- Non-conductive And Non-corrosive
- Impact Resistant
- Sunlight Resistant
- Fire Retardant - V0 Fire Rated.
- Chemical resistance
- Compression Resistance

STRICT QUALITY
- In Accordance With UL651
Standard
- PVC Material Test: ASTM
D1784-20
- Smooth Interior and
Outside.
- Uniform Wall Thickness
- 100% Environmental Raw
Materials
- Permanent Markings


WIDE APPLICATION
- Exposed or Concealed
(plasterboard or cavity wall)
- Concrete or Buried
Underground
- Indoor or Outdoor
DIRECT FACTORY
- Company Industry
Experience (13 Year)
- Support Customized
Products,Packaging and
Mould.
- Direct Factory Will Supply
You with Competitive Price.


Company Profile




LeDES is one of the most professional manufacturers of electrical plastic conduits and accessories in China, specializing in the development and production of innovative conduits and accessories for cable  management and protection.

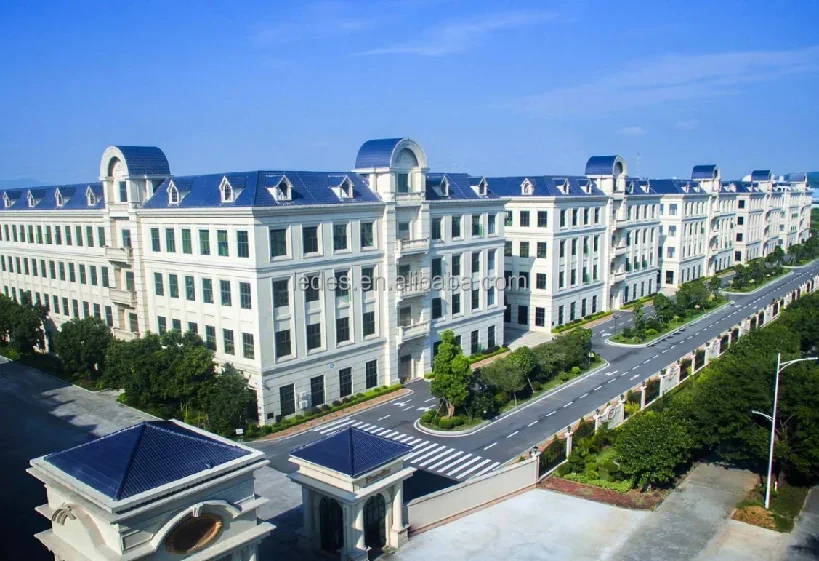

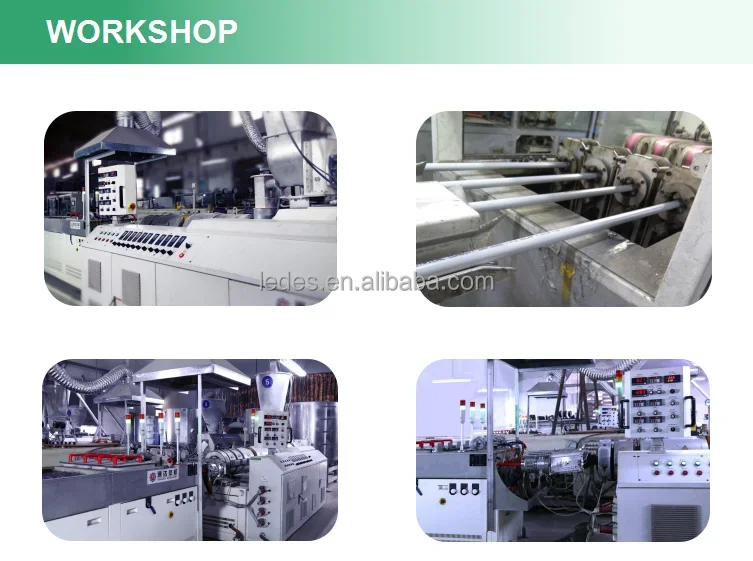

Our plants are in Dongguan City(China) and Lechang City (China), occupy more than 100,000 square meters. We have over 200 skilled employees, 50 modern manufacturing injection and extruder machines.

There are five series of products as below :

- American Standard Electrical Conduit
- Low Smoke And Halogen Free Conduit & Fittings
- Solar Conduit & Fittings
- AS/NZS 2053 Conduit & Fitting
- BS Conduit & Fittings

LeDES exported these conduit pipes and fittings to European and American, Australian, Asia and Middle East markets for many years, and now expanding to global world markets day by day.









Certifications




Our Factory Has Passed :

- ISO 9001 Quality System Certification.
- ISO 14001 Environmental Management System
  Certification.
- SGS, ROSH, CNAS, CE, IEC Certification ...

Please do not hesitate to contact us for more details of the certifications if you need ! Thank you!

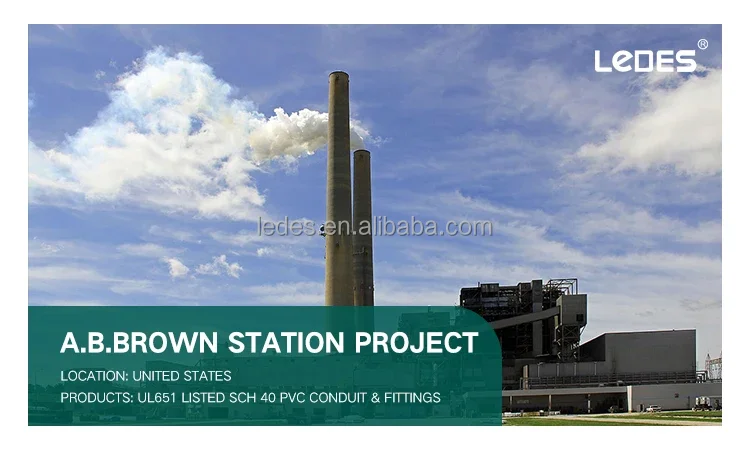

Projects

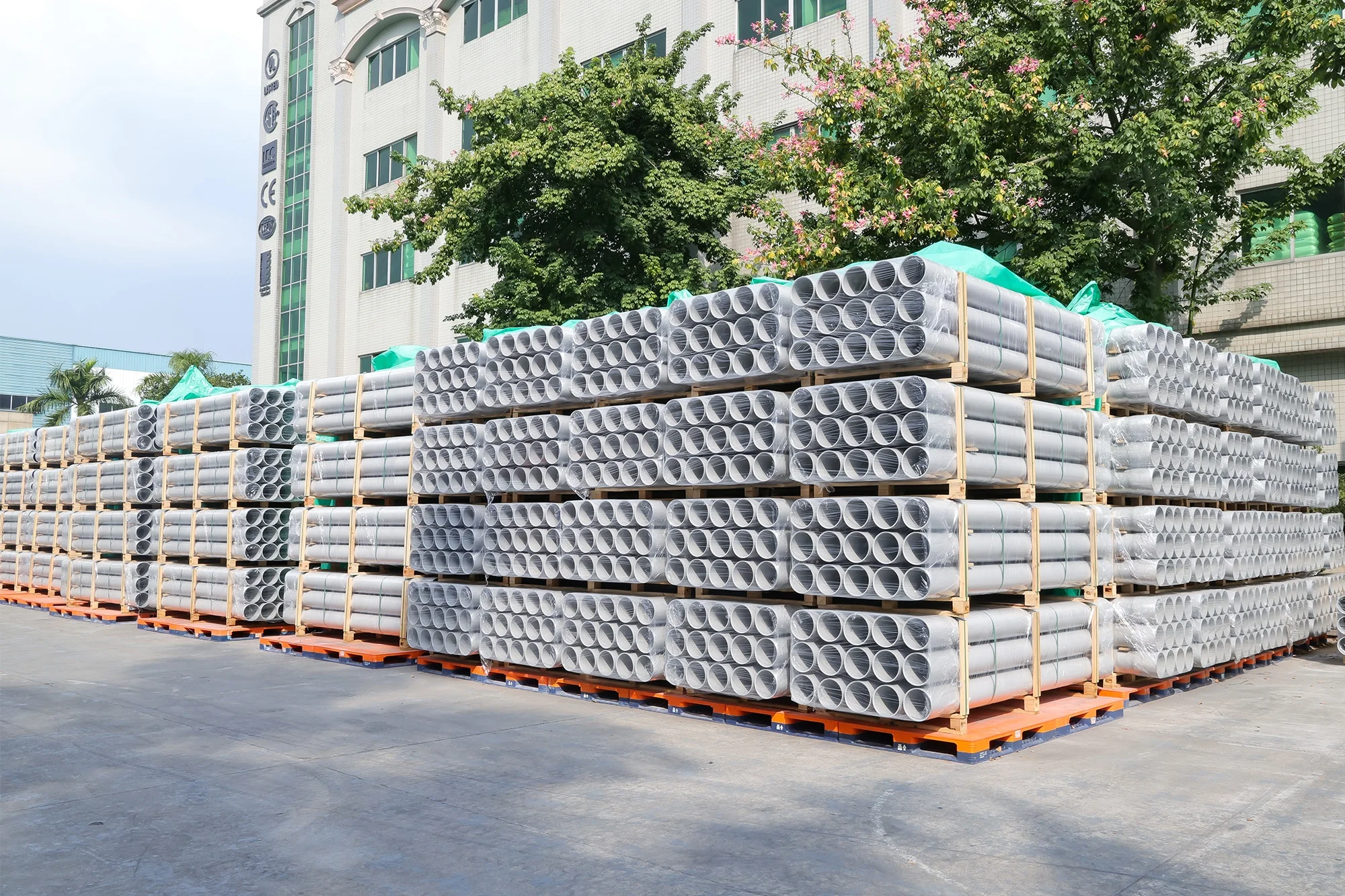

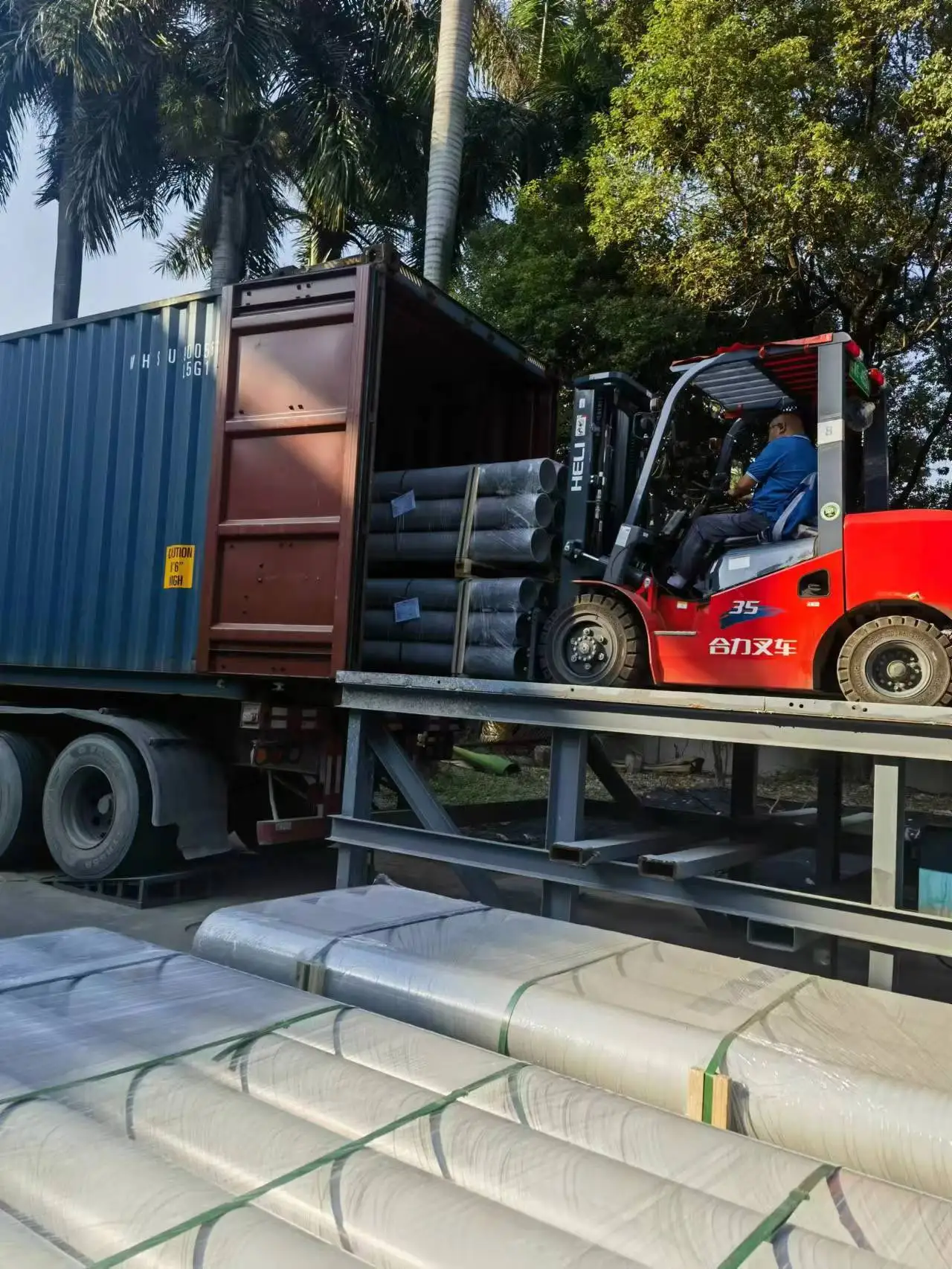

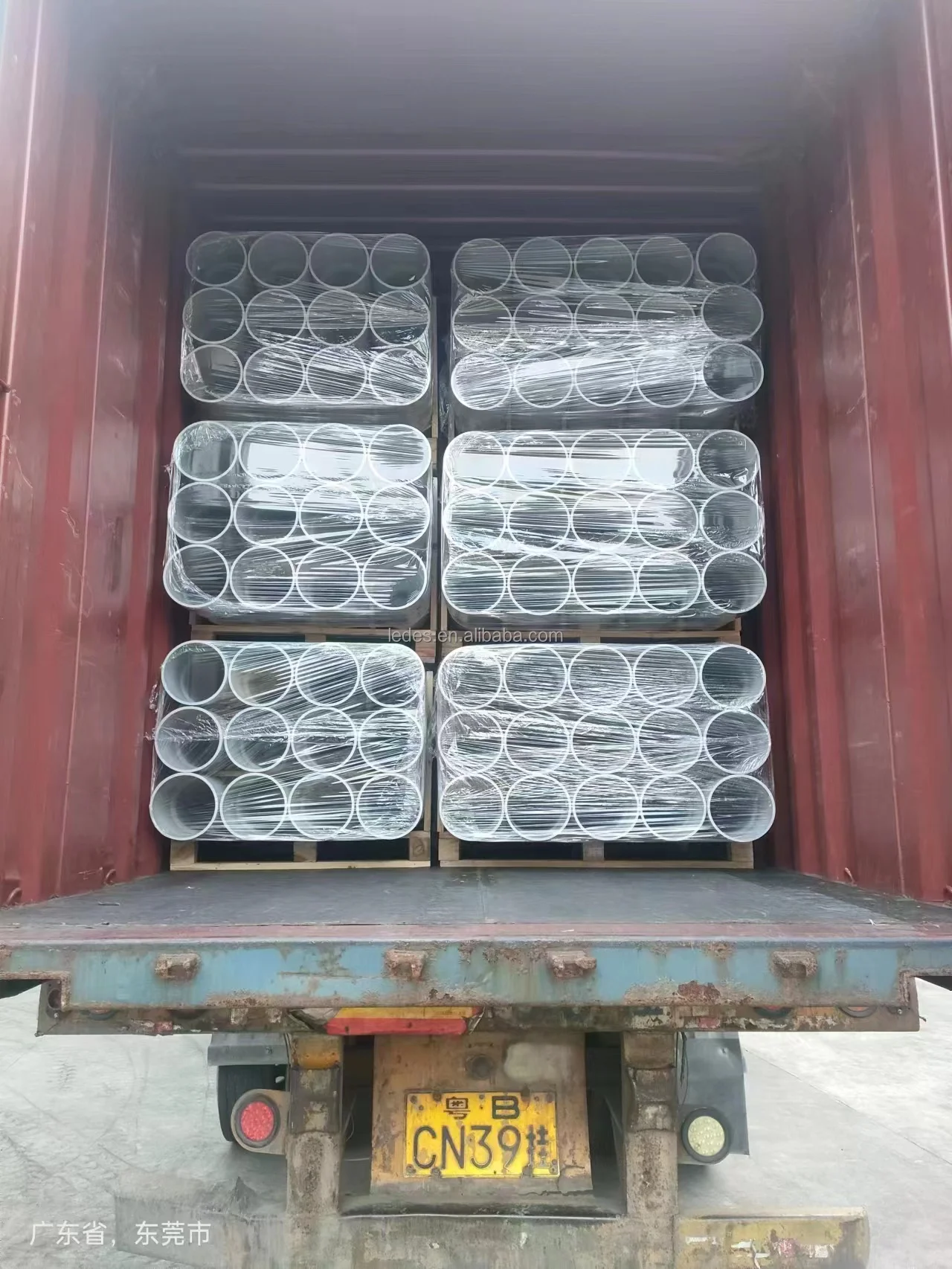

Packaging & Delivery


Normal Packaging :
1) By bundled
2) By wooden pallet
The Packaging Material Can Be Customized According To Your Need.

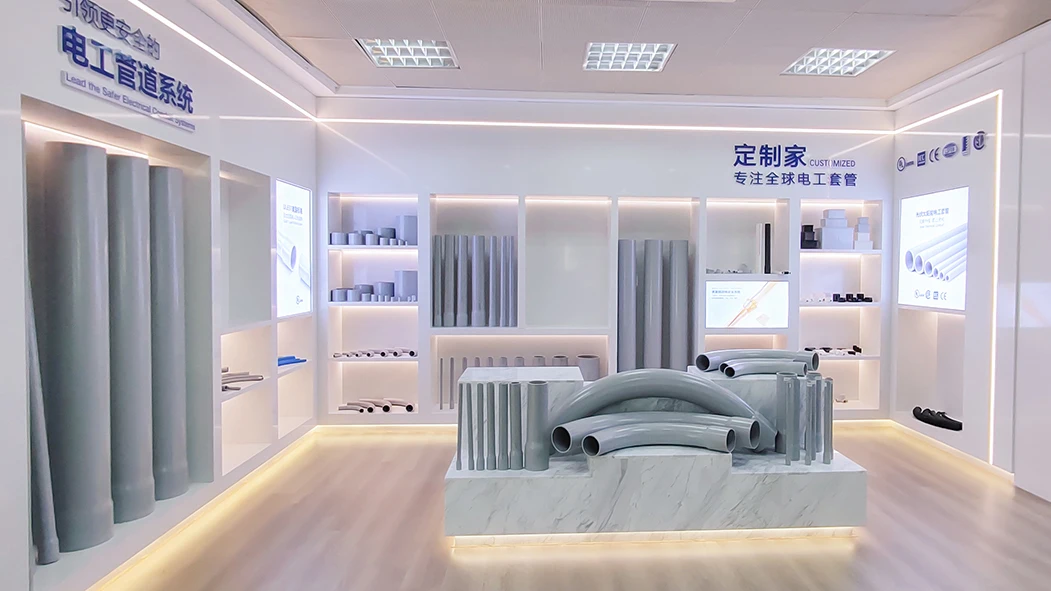

Exhibition




FAQ


Q1. Are you trading company or manufacturer?
A1. We are definitely manufacturer, and we do exporting directly.

Q2. What's the MOQ?
A2. Usually our MOQ for conduit is 3000 meters. But we may accept lower quantity for your trial order, according to different
situations. Please feel free to discuss with us.

Q3. Can you provide the free sample and sample delivery time?
A3. Yes, free samples can be provided with freight collect. For existing sample, it takes 2-3 days. For customizing sample, need
to confirm based on detailed situation.

Q4. How about the lead time for an order?
A4. Usually 15-30 working days.

Q5. What is your payment term?
A5. T/T Payment, 30% deposit against contract signed, and balance to be paid before delivery.
