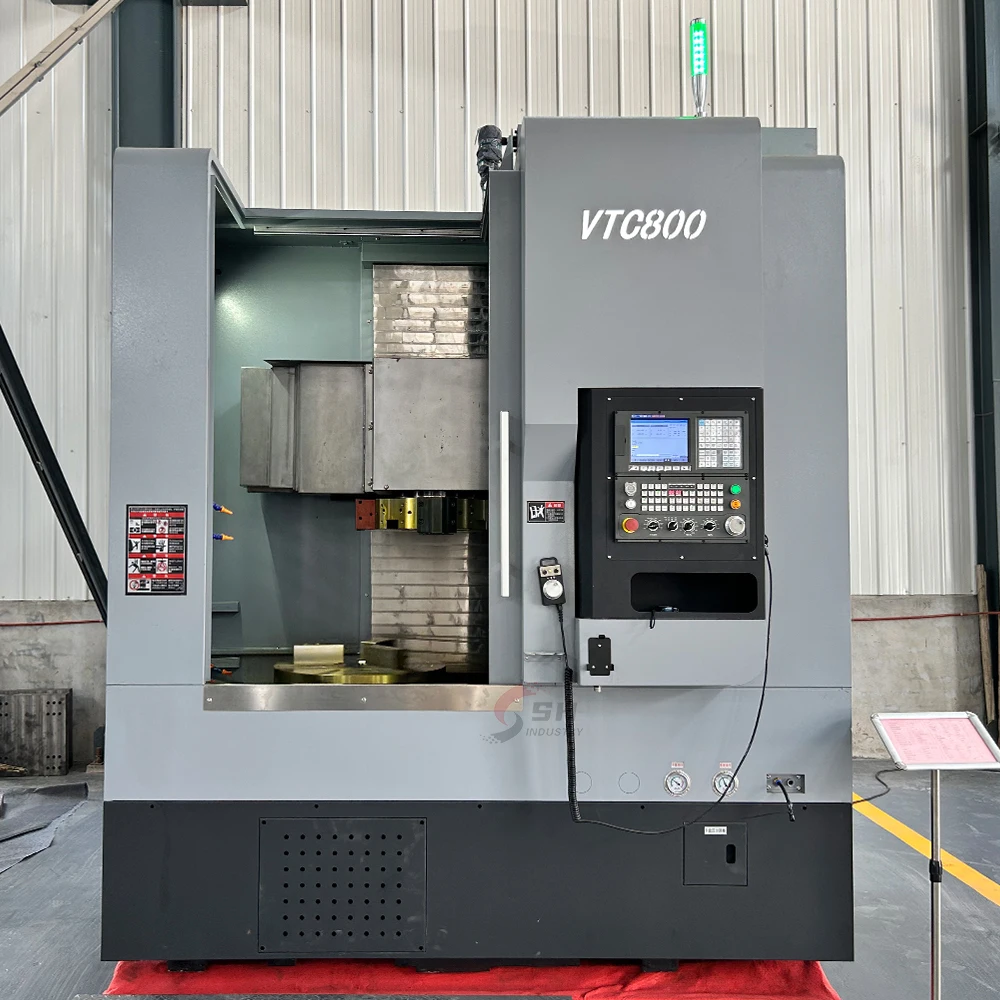

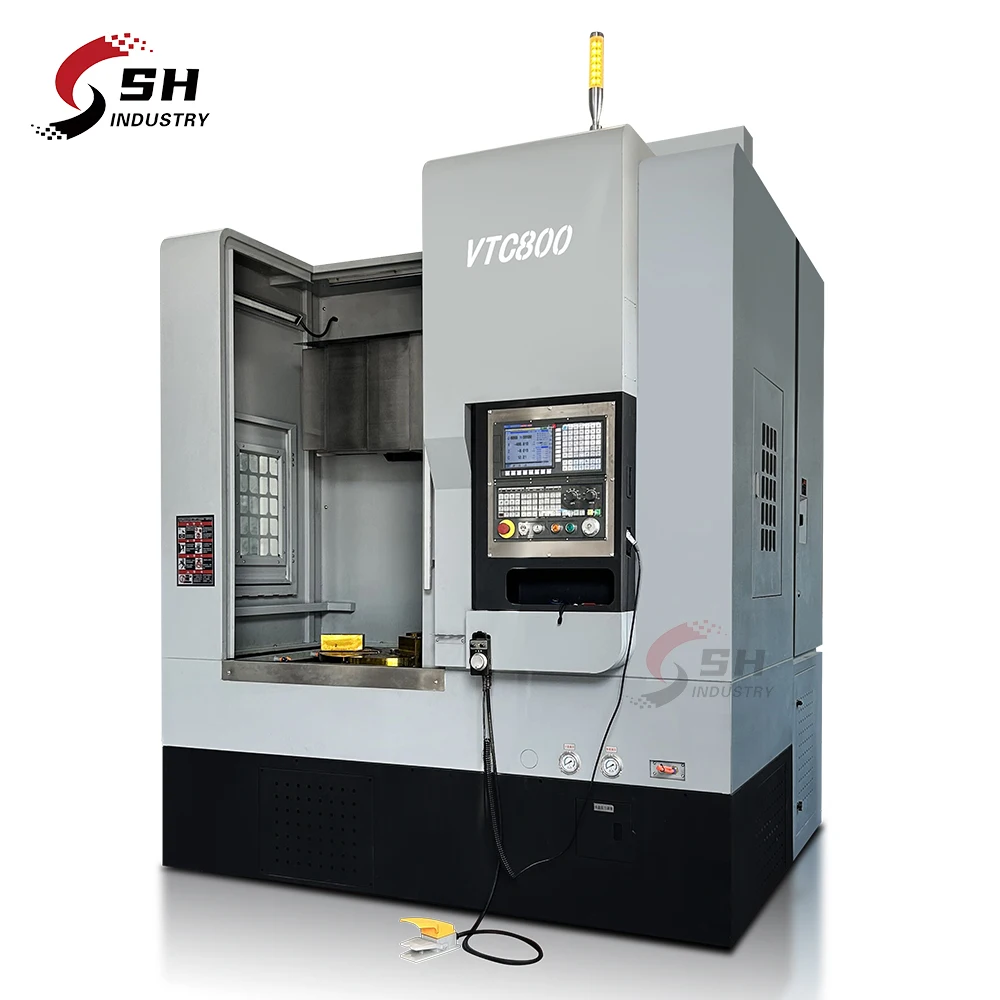

China Cheap Metal Vertical Lathe VTC 800 Vertical CNC Lathe VTC 800 CNC Lathe
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1600980607886):
Product Overview
Description
Specification | Unit | VTC850 |
Max. swing diameter | Mm | 900 |
Max. turning diameter | Mm | 850 |
Max.travel of vertical tool post(vertical) | mm | 650 |
Max.travel of vertical tool post(horizontal) | mm | -50-550 |
Distance between tool post and the surface of chuck | mm | 100-750 |
Spindle nose | - | A2-11 |
spindle bearing configuration | - | NN3036 180X280X74 Double row cylindrical roller bearing |
NN3030 150X225X56 Double row cylindrical roller bearing | ||
234436 180X280X120 Two-way thrust angular contact ball bearing | ||
Spindle speed range | r/min | 50-800 |
Max.torque of spindle | NM | 885 |
Main motor power | KW | 22/30(Rated speed 600, rated torque 350NM) |
X axis rapid traverse | M/min | 15 |
Z axis rapid traverse | M/min | 12 |
Cutting feed speed | Mm/min | 0.1-5000 |
X axis motor power and torque | Kw/Nm | 2.4/15 |
Z axis motor power and torque | Kw/Nm | 2.8/18 |

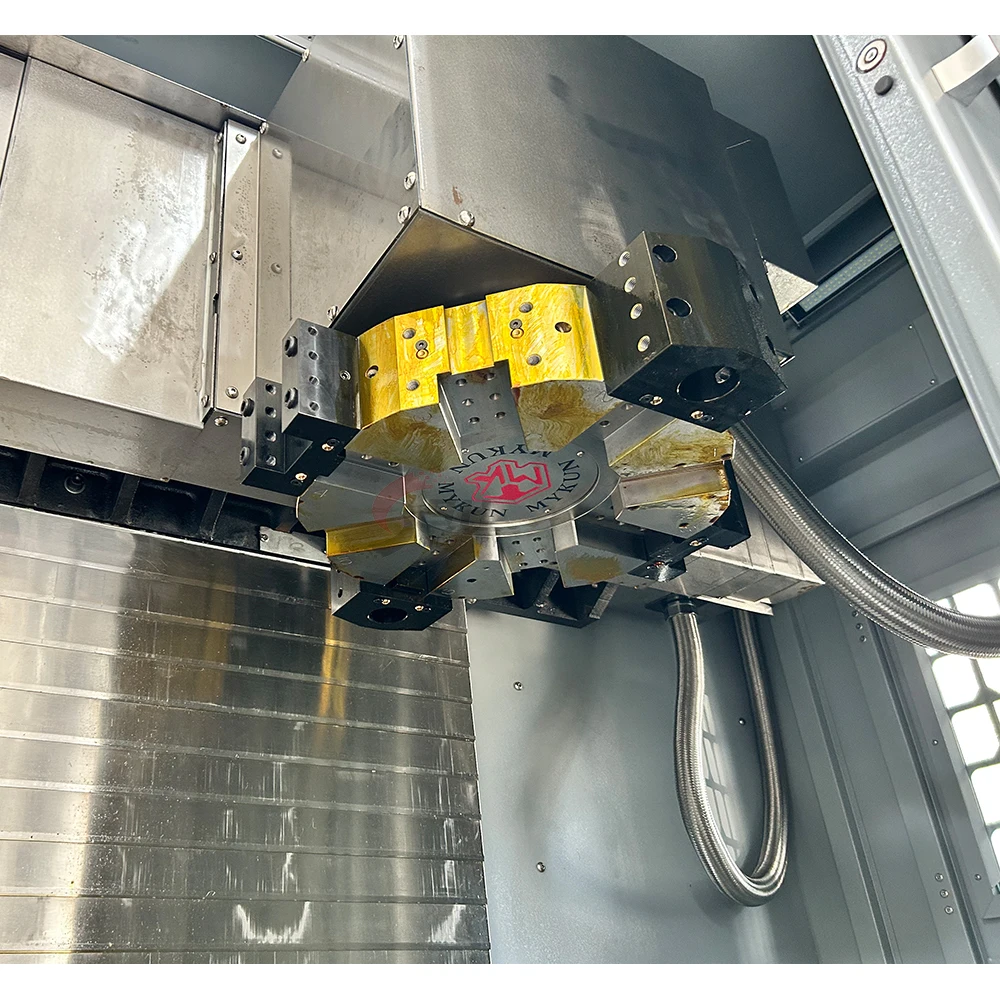

Turret/tool post | - | 8 position hydraulic turret |
Tool section size | mm | 32x32 |
Diameter of manual 4-jaw chuck | mm | 630 |
Positioning accuracy | mm | ±0.008 |
Repeat positioning accuracy | mm | ±0.005 |
Machine weight | KG | 8800 |
Overall dimensions | mm | 2800×2000×3200 |
Product Description
Exhibition
Certifications
Customer visiting
Packing & Delivery
FAQ
1: Where is your company ?
A: Our company is located in zaozhuang City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
