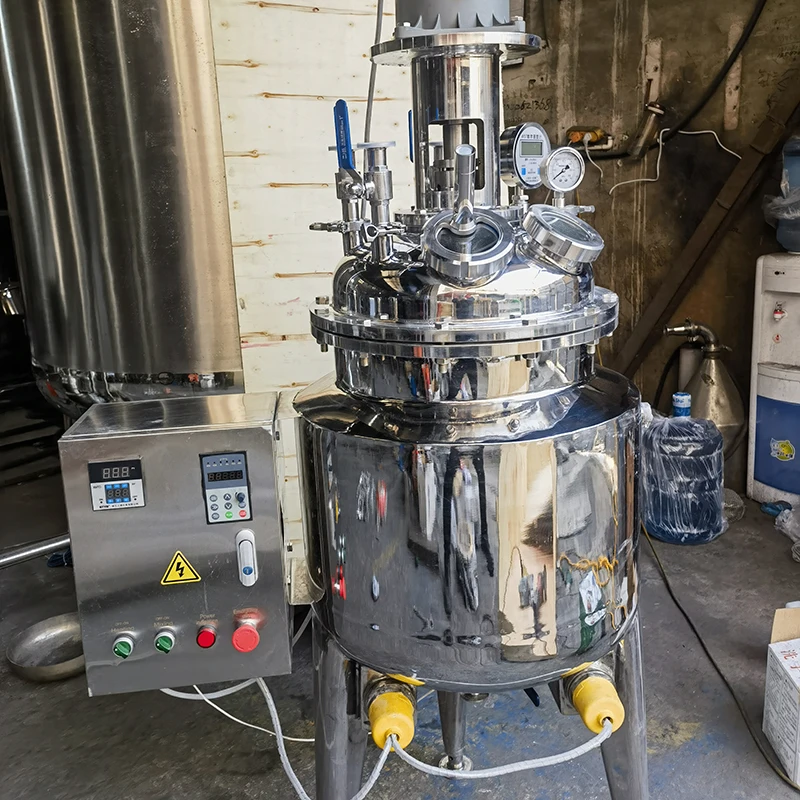

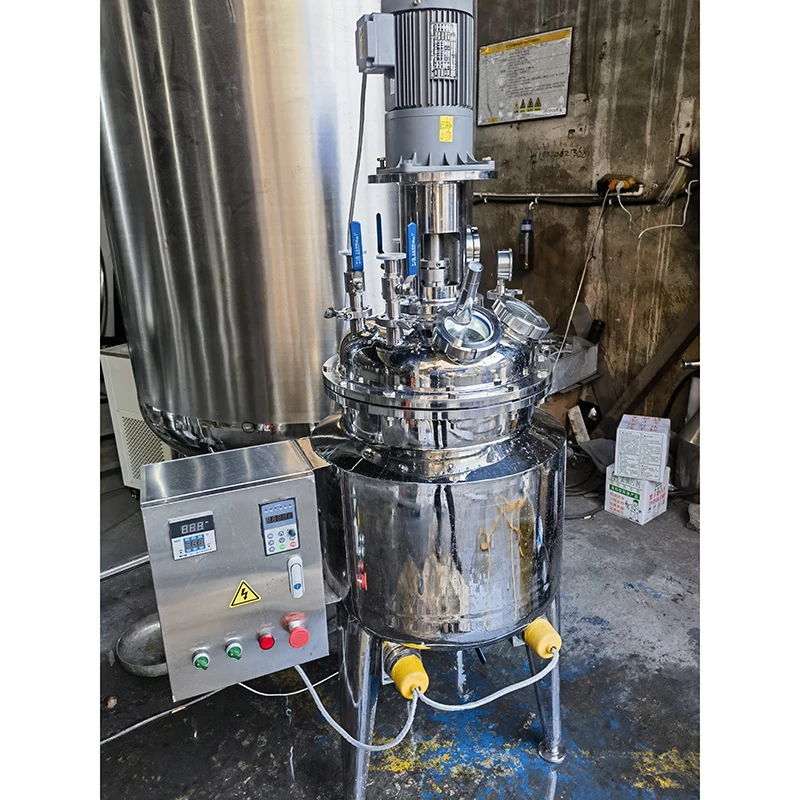

Stainless steel syrup and water mixing tank laboratory liquid reaction kettle
- Category: >>>
- Supplier: Wenzhou Kinding Machinery Co. Ltd.
Share on (1600980628844):
Product Overview
Description
Products Description
Feature
1. This machine can be CIP cleaned online, SIP sterilization (121°C/0.1MPa).
2. Designed in accordance with sanitary requirement, so the structural design is very user-friendly and easy to operate. While the smooth transmission, low noise.
3. There is appropriate diameter; the stirring device is made on demand, energy-saving, stirring, good fermentation effect.

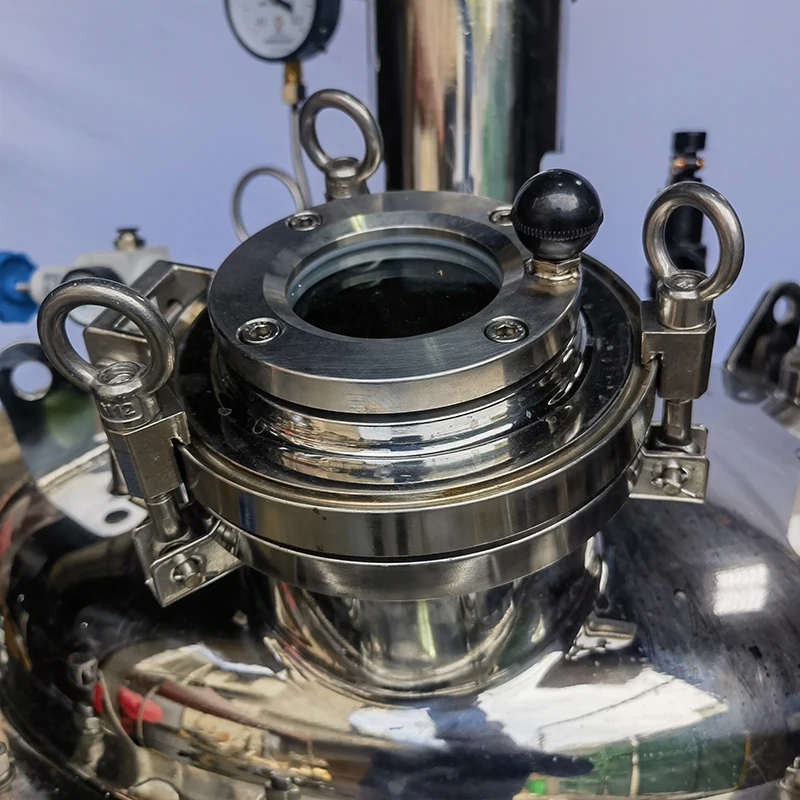

4.The inner surface is mirror-polished (roughness Ra≤0.4µm); The weld of the inner pot with inlet, outlet, sight mirror and manhole use stretch flanging arc transition.
5.Fully conforms to GMP requirements
6.According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.

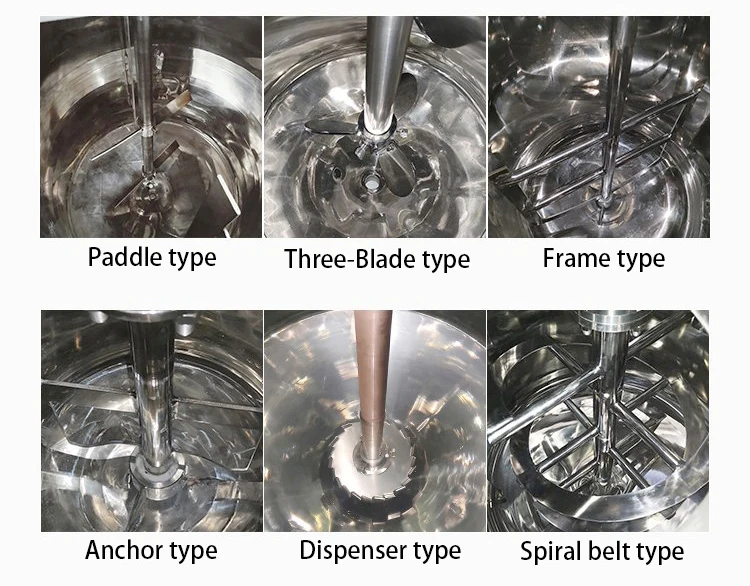

7. Various forms of blending vanes are suitable for production of different types of products.

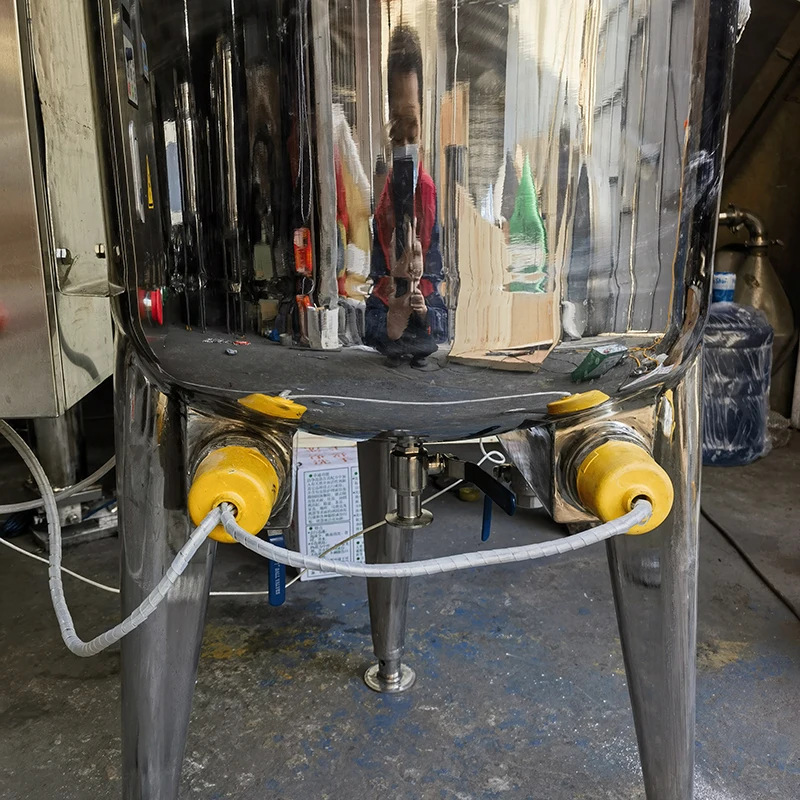

8. Easy to discharge, bottom direct discharge or by transfer pump.
2. Designed in accordance with sanitary requirement, so the structural design is very user-friendly and easy to operate. While the smooth transmission, low noise.
3. There is appropriate diameter; the stirring device is made on demand, energy-saving, stirring, good fermentation effect.
4.The inner surface is mirror-polished (roughness Ra≤0.4µm); The weld of the inner pot with inlet, outlet, sight mirror and manhole use stretch flanging arc transition.
5.Fully conforms to GMP requirements
6.According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.
7. Various forms of blending vanes are suitable for production of different types of products.
8. Easy to discharge, bottom direct discharge or by transfer pump.

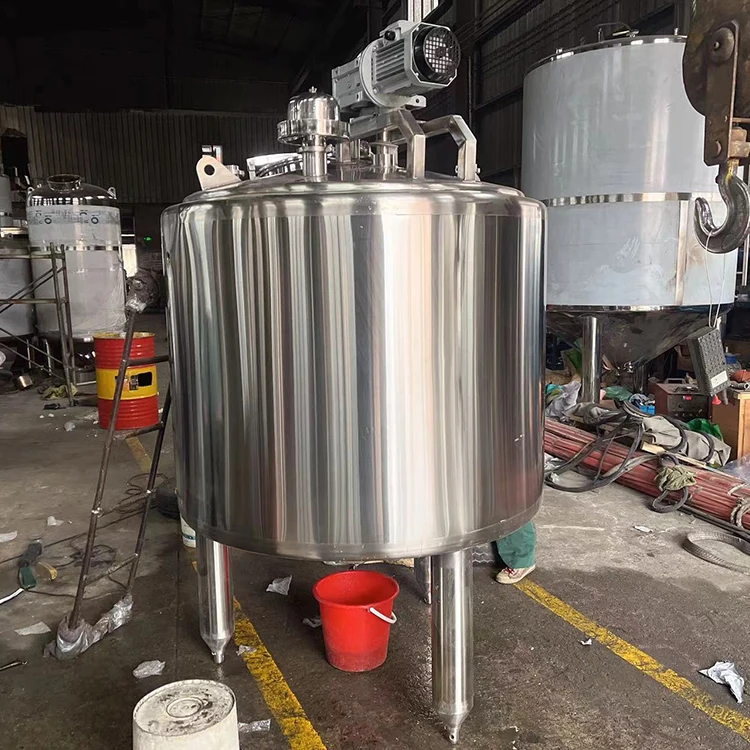

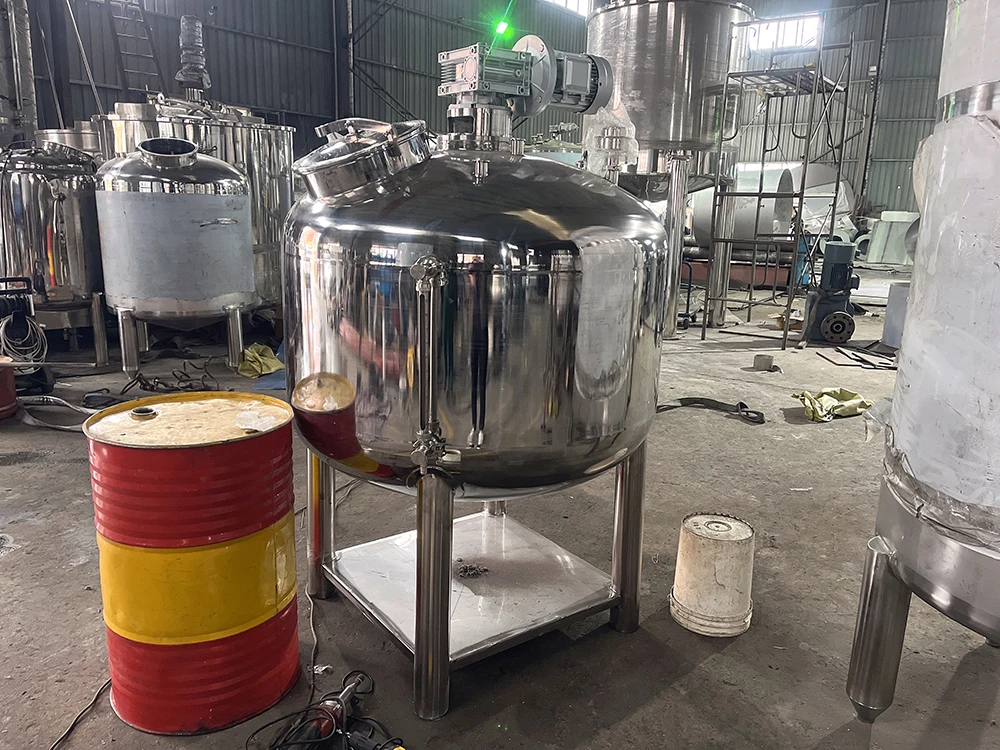

Equipment Structure: oval upper cover with manhole, lower oval bottom head, bottom discharge, vertical feet.
Main functions of the electric-heating mixing tank: heating (heating the medium in the jacket by the heaters, transferring heat energy, and indirectly heating the material in the tank, with automatic temperature control), heat insulation, cooling and stirring.
Main functions of the electric-heating mixing tank: heating (heating the medium in the jacket by the heaters, transferring heat energy, and indirectly heating the material in the tank, with automatic temperature control), heat insulation, cooling and stirring.
Model | KDFY-100 | KDFY-200 | KDFY-300 | KDFY-500 | KDFY-800 | KDFY-1000 | KDFY-1500 | ||||||
Volume | 100L | 200L | 300L | 500L | 800L | 1000L | 1500L | ||||||
Body diameter (mm) | ∅500 | ∅600 | ∅700 | ∅900 | ∅1000 | ∅1100 | ∅1200 | ||||||
Motor power (kw) | 0.75 | 1.1 | 1.5 | 2.3 | 3 | 4 | 5.5 | ||||||
Stirring speed (rpm) | 0-180rpm | ||||||||||||

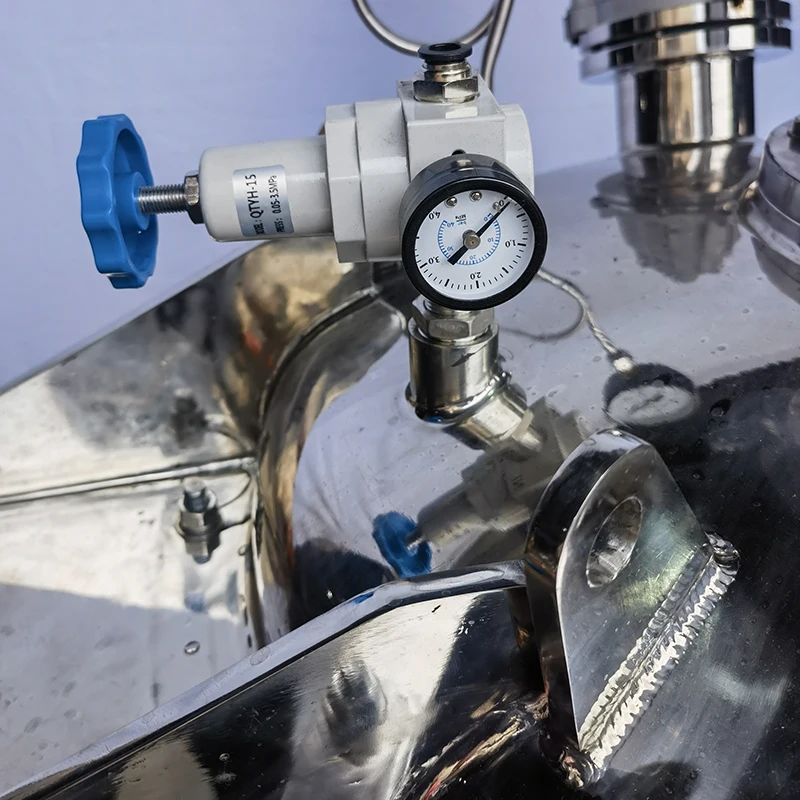

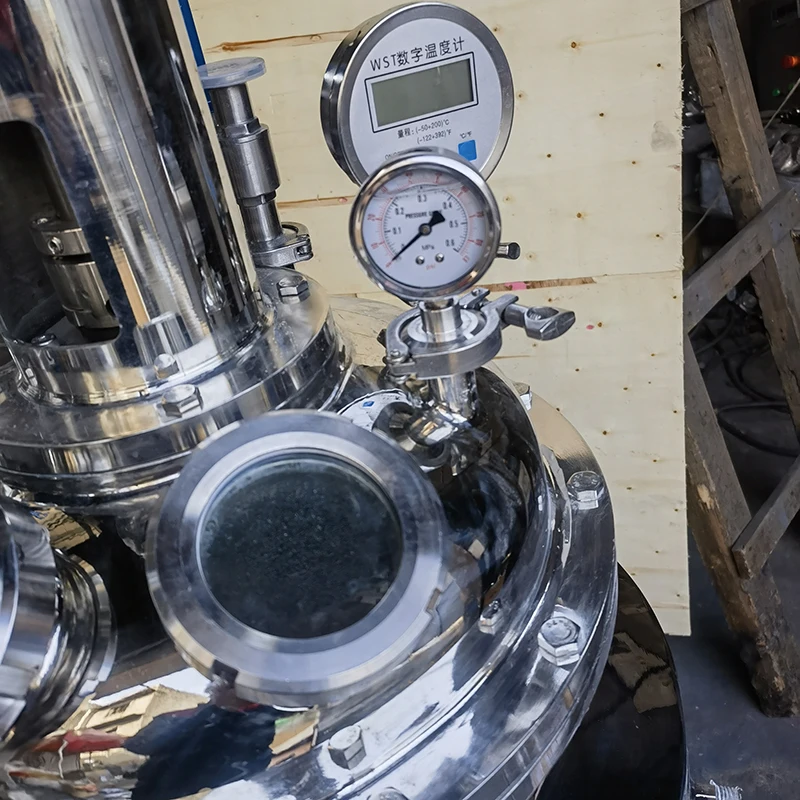

Accessories | Sanitary manhole, cleaning ball, safety valve, pressure gauge | ||||||||||||
Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
Package and Shipping
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
