Automatic Irrigation And Fertilizer System Garden Irrigation System Electric Linear Actuator Lift 3 Way Electric Ball Valve
- Category: >>>
- Supplier: Shenzhen Power-Tomorrow Actuator Valve Co. Ltd.
Share on (1600980629941):
Product Overview
Description
Product Description

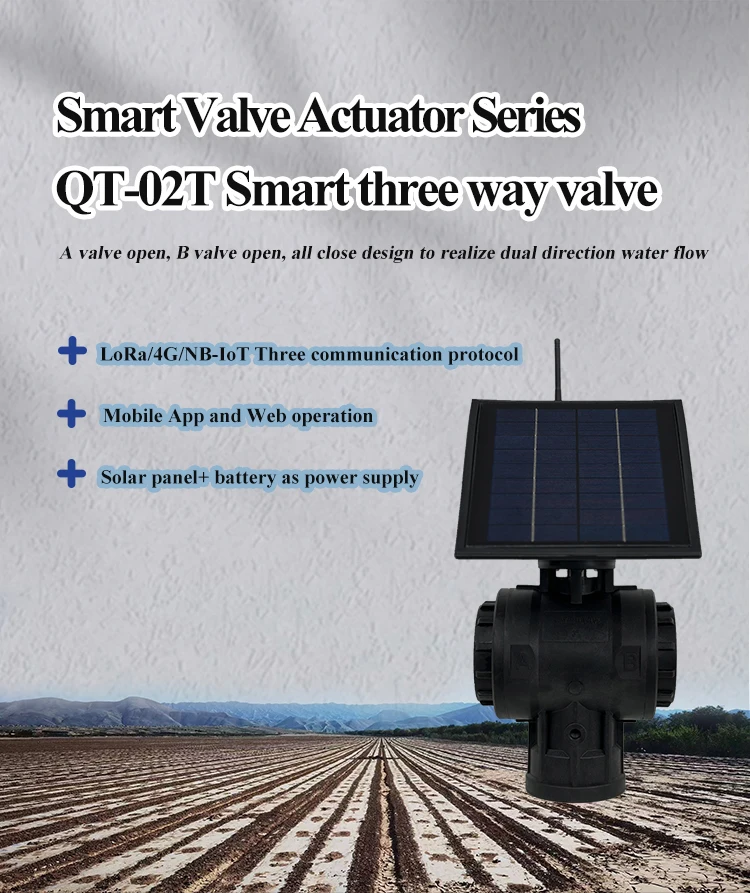

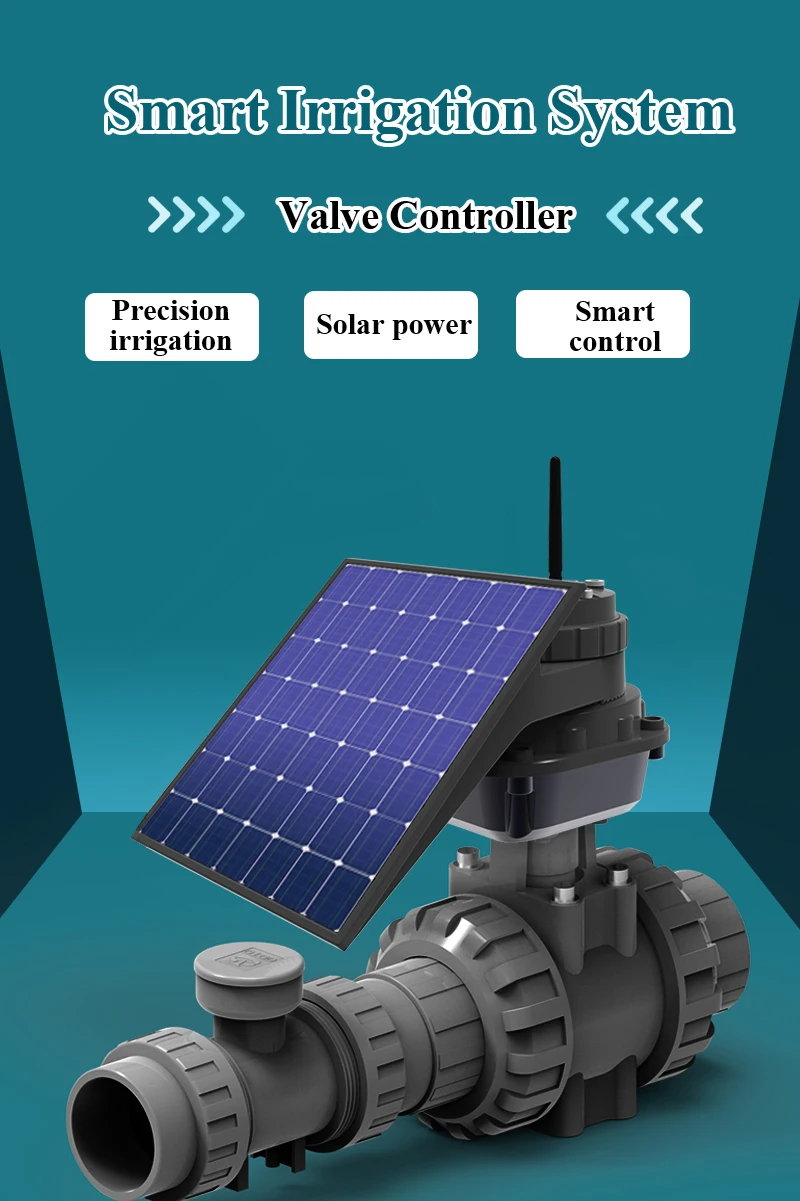

QOTO solar power control valve, the epitome of efficiency and sustainability in irrigation systems. Designed to harness the power of the sun, this innovative valve utilizes solar energy to enable automatic irrigation, providing a hassle-free and eco-friendly solution for your watering needs.
Product Characteristics

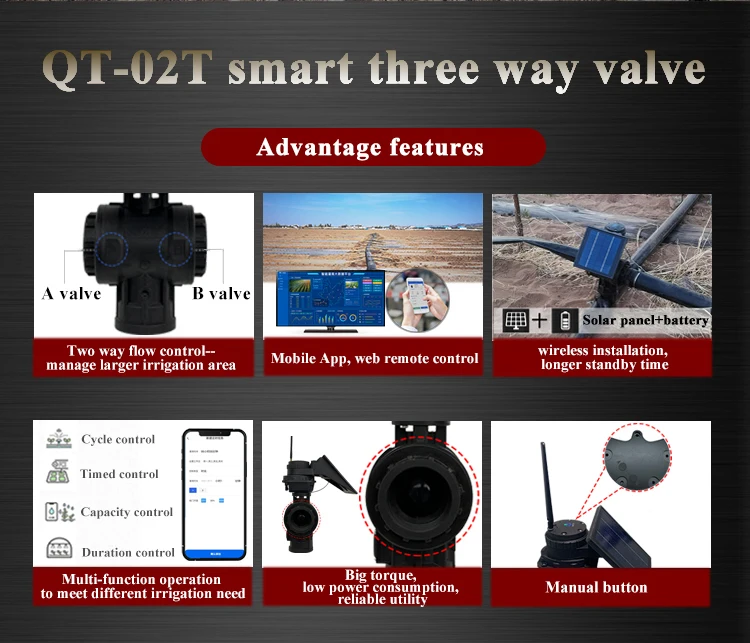

1.All in One Motorized valve.No wiring, high safety factor
2.Partial aperture(programmable from 0~100% )
3.External flow meter pulse counting
4.Water pressure: 0~1000PSI
5.Available ball valve from DN32-DN65, butterfly valve from DN50-DN100
6.Cellular network connectivity(GSM, GPRS, CDMA, 2G / GSM, 3G, 4G / LTE, EDGE)
7.Port available for USB power supply and extra solar panel
8.Control the irrigation task remotely via the internet or via SMS messaging
2.Partial aperture(programmable from 0~100% )
3.External flow meter pulse counting
4.Water pressure: 0~1000PSI
5.Available ball valve from DN32-DN65, butterfly valve from DN50-DN100
6.Cellular network connectivity(GSM, GPRS, CDMA, 2G / GSM, 3G, 4G / LTE, EDGE)
7.Port available for USB power supply and extra solar panel
8.Control the irrigation task remotely via the internet or via SMS messaging
Specification

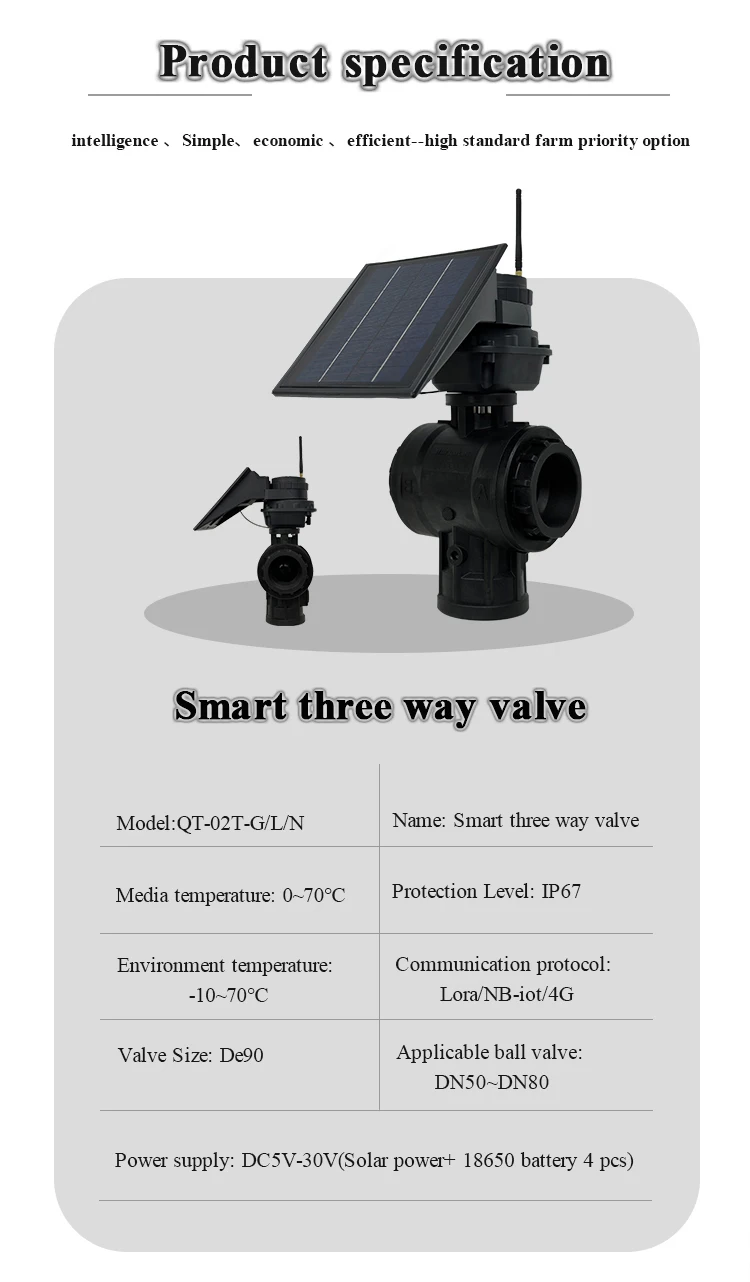

product model | QT-02-G |
ball valve torque | 60 N.m |
battery | 18650 lithium battery(wide temperature)， battery capacity: 2000mAh，four pcs |
solar panel | polysilicon 6V 5.5W |
flow meter | external flow meter |
Max power | communication：3.8W |
wireless communication specification | 4G： LTE Cat-1 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/38/39/40/41 |
low power mode | sleep current：<10uA |
non low power mode | stand-by current：NB<48mA,4G<65mA,lora<26mA |

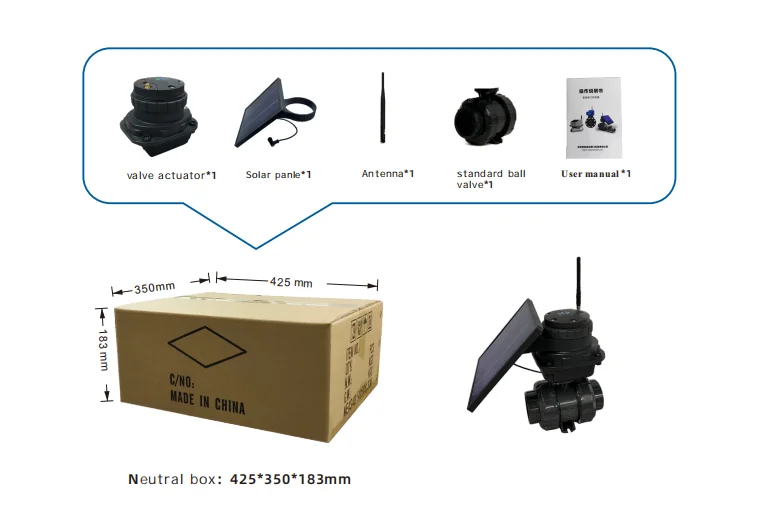

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen Power-Tomorrow Actuator Valve Co.,Ltd, started on 21st,Nov,2017, a high-tech company of IoT flow automation with the nucleus of Internet of thing+smart hardware, has created QOTO smart irrigation system and obtained multiple patents. The smart valves and valve controllers developed by our own for small and medium sized pipelines have been applied in municipal landscaping and agricultural irrigation, meeting different requirements from users and scenarios.After years of accumulations on experience and technology, QOTO has been the leader of remote control smart motorized valve, pushing forward the developing of IoT flow control and society, wining the honer with sincerity and market with quality. We stick to make contribution to saving water society with high quality products, professional technical solution and high standard before-sales and after-sales services.
FAQ

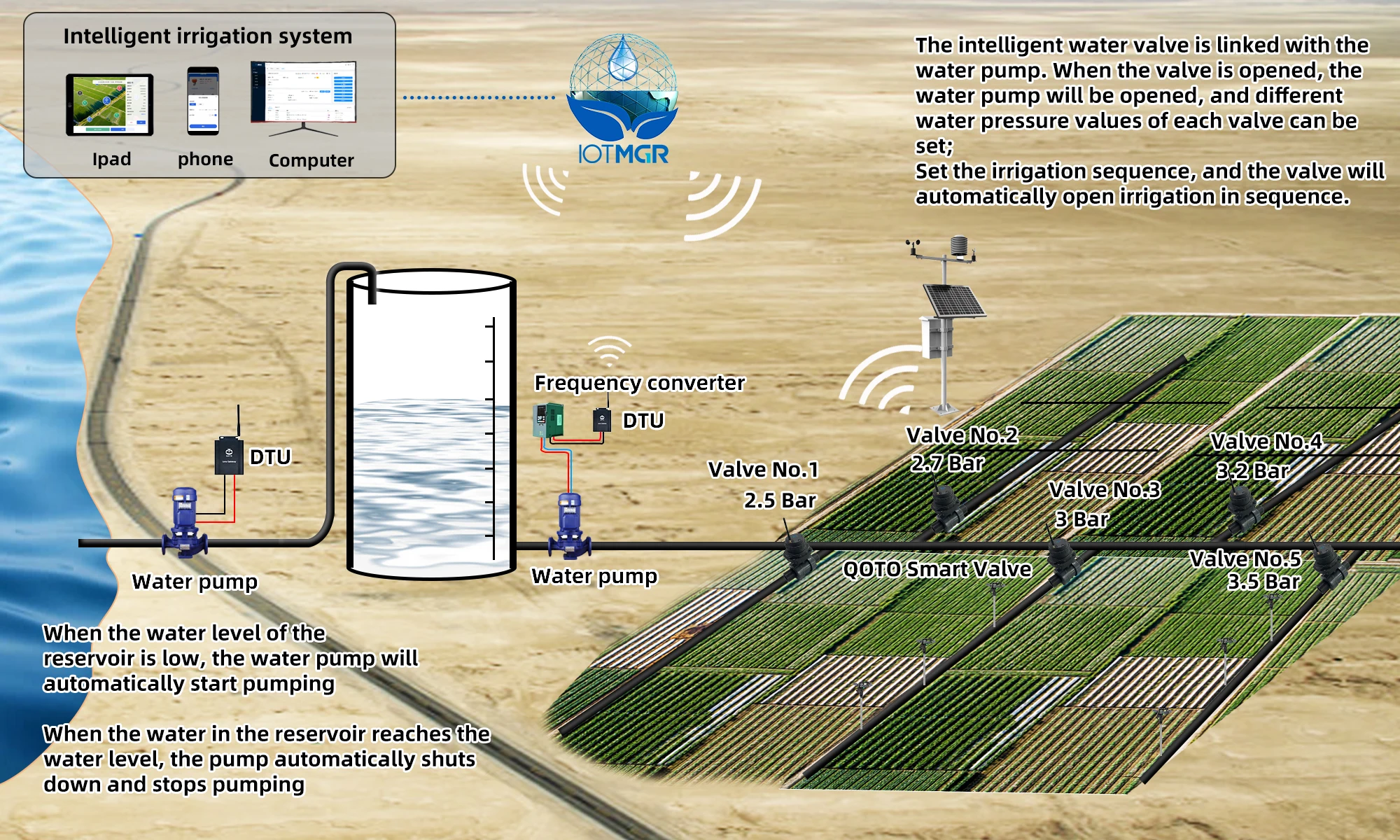

1. What is the special feature of our solar irrigation system?
Most of the solar irrigation system in the market, it is solar based
pumping system. Ours is solar based valve system. The valve automation
in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable
2. What is the longevity of the rechargeable batteries and solar panel?
Battery: 2 years
Solar panel: 5 years
3. How long can the valve work once batteried are fully charged.
As we use rechargeable batteries, in the sunny condition, the battery can work continously.
Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W. The QT-02-G use 4 batteries.
If in a cloudy weather situation,once full charge, the battery can stand by 15days.
4. What is a motorized valve?
A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close.
A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials.
5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system?
A. Motorized valve has bigger open port than solenoid valve.
B. The valve can be open without any water pressure
C. Solar powered Installation without any AC/DC electric power cable.
6. Can App support English language?
Yes, it has Chinese and English version.
7. What is the communication protocol for the devices?
We have 4G and LoRa protocol.
8. What internet protocol does the system support?
The system supports HTTP MQTT TCP/IP.
9. What is LoRa frequency?
For chinese market: 470Mhz-510Mhz
For oversea market: 860Mhz-930Mhz
10. What is the valve size.
There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN500
Most of the solar irrigation system in the market, it is solar based
pumping system. Ours is solar based valve system. The valve automation
in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable
2. What is the longevity of the rechargeable batteries and solar panel?
Battery: 2 years
Solar panel: 5 years
3. How long can the valve work once batteried are fully charged.
As we use rechargeable batteries, in the sunny condition, the battery can work continously.
Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W. The QT-02-G use 4 batteries.
If in a cloudy weather situation,once full charge, the battery can stand by 15days.
4. What is a motorized valve?
A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close.
A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials.
5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system?
A. Motorized valve has bigger open port than solenoid valve.
B. The valve can be open without any water pressure
C. Solar powered Installation without any AC/DC electric power cable.
6. Can App support English language?
Yes, it has Chinese and English version.
7. What is the communication protocol for the devices?
We have 4G and LoRa protocol.
8. What internet protocol does the system support?
The system supports HTTP MQTT TCP/IP.
9. What is LoRa frequency?
For chinese market: 470Mhz-510Mhz
For oversea market: 860Mhz-930Mhz
10. What is the valve size.
There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN500
