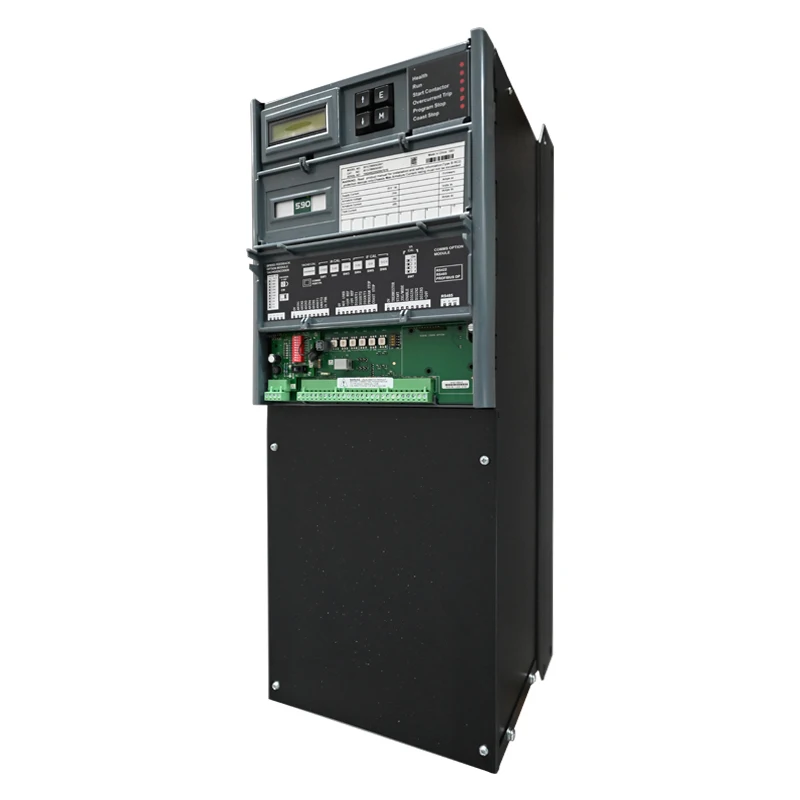

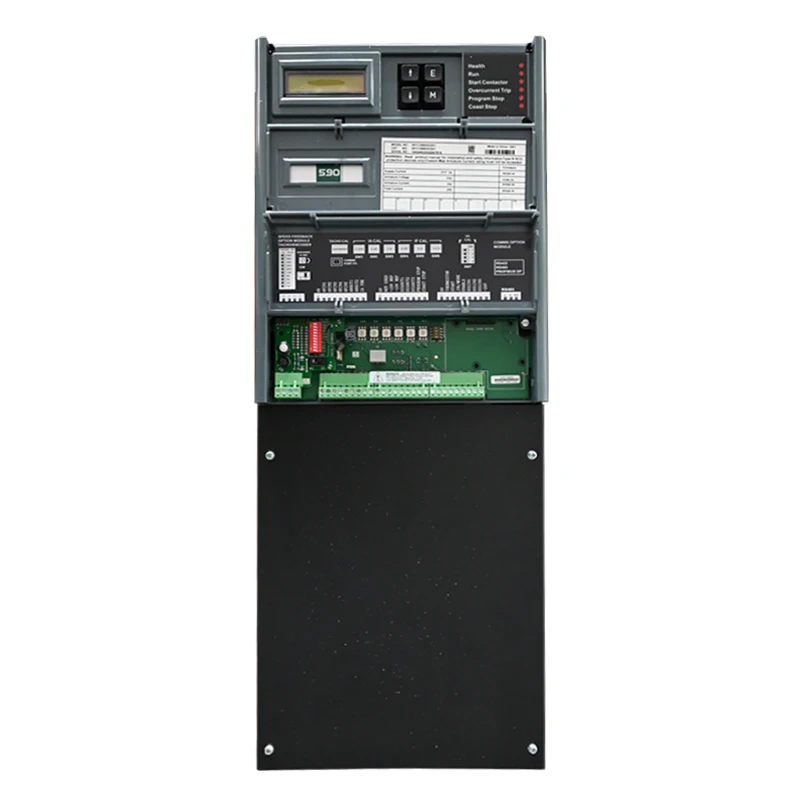

ParkerSSD590C controller 591C/0500/5/3/0/1/0/00 DC governor with sufficient inventory
- Category: >>>
- Supplier: Anhui Tailaide Automation Technology Co. Ltd.
Share on (1600980640113):
Product Overview
Description
Product Description

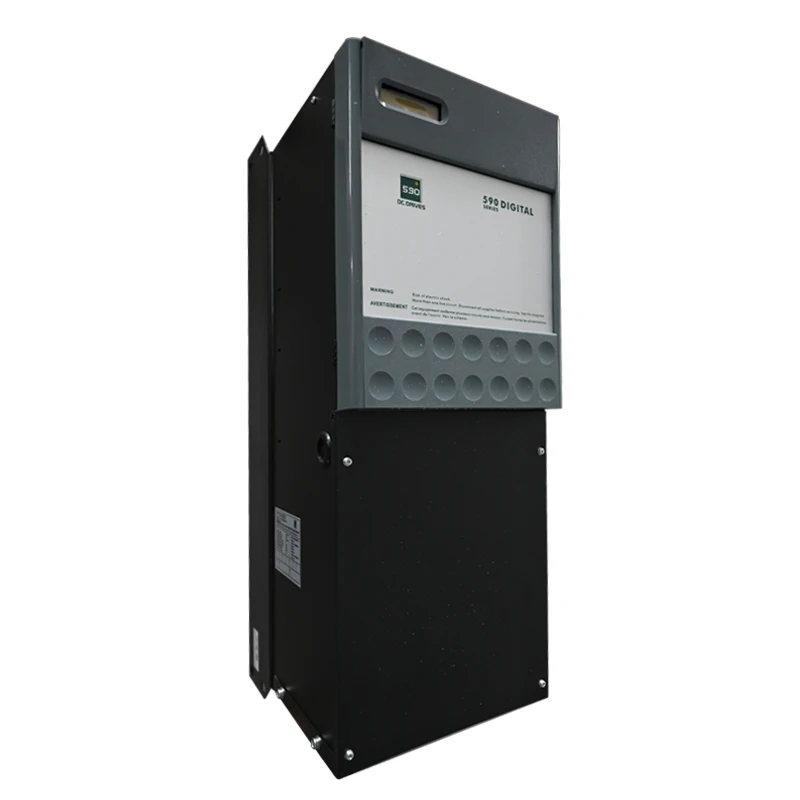

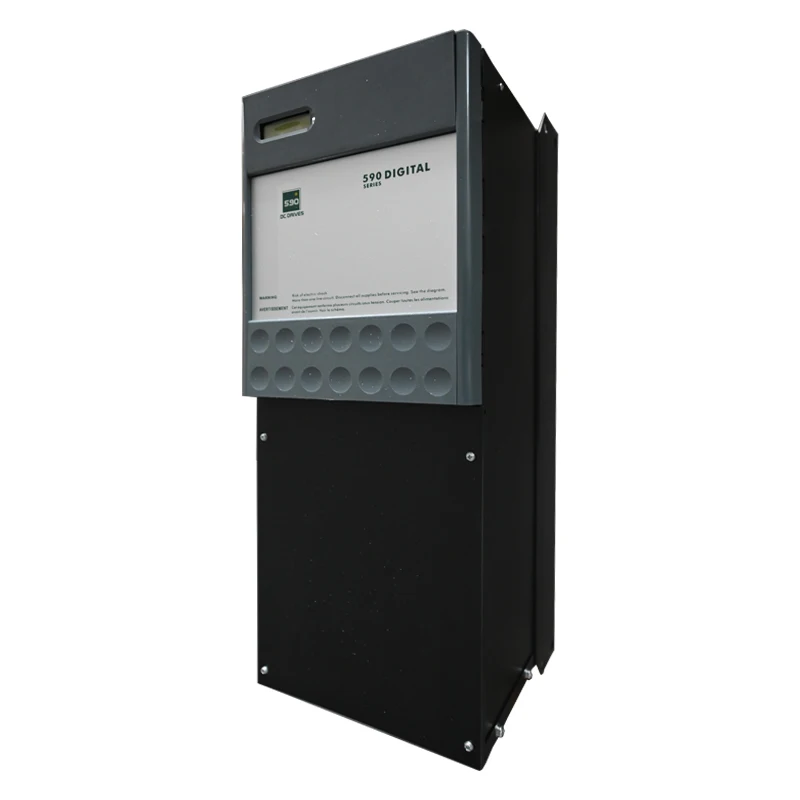

DC Drive 590C Series
The 590 Series DC Drive is suitable for the control of various parallel, separate and permanent magnet DC motors;
Working principle: 590 series DC Drive is designed as a part of supporting control equipment installed in the cabinet. Thedrive uses a 3-phase power supply of 110V to 500V to provide DC output voltage and current. Suitable for all kinds of parallel
excitation, other excitation and permanent magnet DC motor control
Product Detail
Product Name | DC Drive 590 Series |
Model Number | 591C/0500/5/3/0/1/0/00 |
Type | DC/DC Inverters |
Input Voltage | 110-500v |
Output Voltage | 500V |
Rated Current | 380A |
Output Frequency | 45Hz/60Hz |
Package Size | 800*360*450MM |
Weight | 34KG |
Warranty | 12 Months |
Product specifications
Product selection and installation size
590 is a reversible four-quadrant speed control system, 591 is a two-quadrant irreversible
speed control system, the current from 15-5000A
speed control system, the current from 15-5000A
Selection Table
590C Model | Rated current | Input voltage | Mode of operation |
590C/0350 | 35A | 500v | Reversible |
590C/0700 | 70A | 500v | Reversible |
590C/1100 | 110A | 500v | Reversible |
590C/1500 | 150A | 500v | Reversible |
590C/1800 | 180A | 500v | Reversible |
590C/2700 | 270A | 500v | Reversible |
590C/3800 | 380A | 500v | Reversible |
590C/5000 | 500A | 500v | Reversible |
590C/7250 | 725A | 500v | Reversible |
590C/8300 | 830A | 500v | Reversible |
591C/0350 | 35A | 500v | Irreversible |
591C/0700 | 70A | 500v | Irreversible |
591C/1100 | 110A | 500v | Irreversible |
591C/1500 | 150A | 500v | Irreversible |
591C/1800 | 180A | 500v | Irreversible |
591C/2700 | 270A | 500v | Irreversible |
591C/0380 | 380A | 500v | Irreversible |
591C/0500 | 500A | 500v | Irreversible |
591C/0725 | 725A | 500v | Irreversible |
591C/0830 | 830A | 500v | Irreversible |
DC Drive 590C Series 35A-70A
DC Drive 590C Series 110A-150A
DC Drive 590C Series 180A
DC Drive 590C Series 270A
DC Drive 590C Series 380A-830
DC Drive 590C Series High power
Installation Instructions
Size and Installation -- DC Drive 590 Series
All units are designed for simple and economical panel mounting using keyhole slots.
Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.
The overall size and installation size of the device are shown in the following figure and table:
Output rated current (A) | model | Overall size of device | Mounting size | |||||||
A | B | C | D | E1 | ||||||
35-70 | 590/591 | 250 | 415 | 180 | 200 | 400 | ||||
110-150 | 590/591 | 250 | 415 | 180 | 200 | 400 | ||||
180 | 590/591 | 250 | 500 | 210 | 200 | 400 | ||||
270 | 590/591 | 300 | 500 | 252 | 200 | 400 | ||||
380 | 590/591 | 253 | 700 | 358 | 150 | 680 | ||||
500 | 590/591 | 253 | 700 | 358 | 150 | 680 | ||||
725 | 590/591 | 253 | 700 | 358 | 150 | 680 | ||||
830 | 590/591 | 253 | 700 | 358 | 150 | 680 | ||||
950 | 590/591 | 410 | 700 | 358 | 150 | 680 | ||||
1000-5000a | 590/591 | Please consult customer service for details | ||||||||

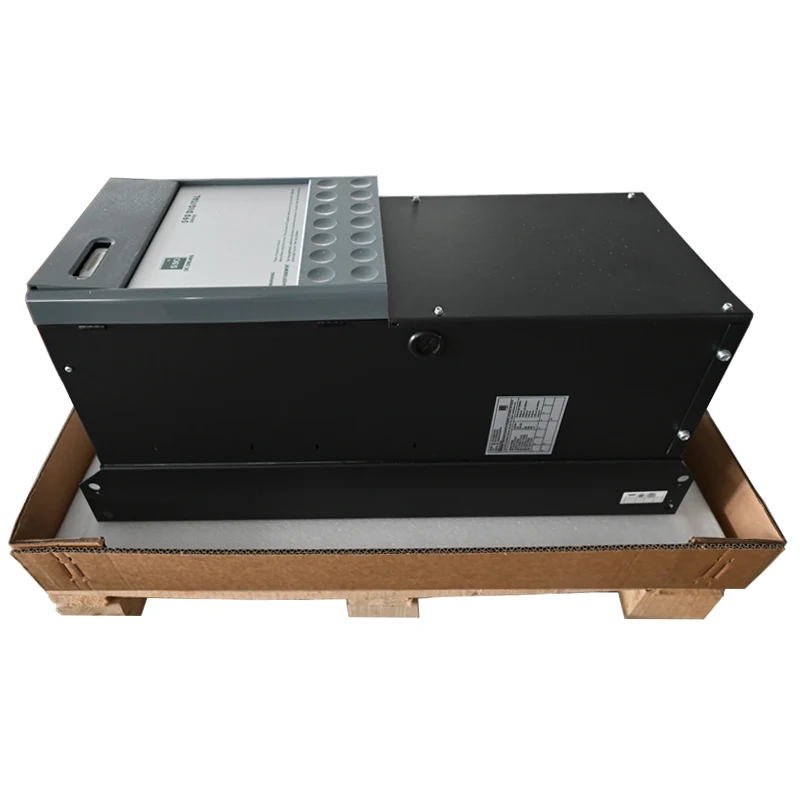

Logistics and Packaging
