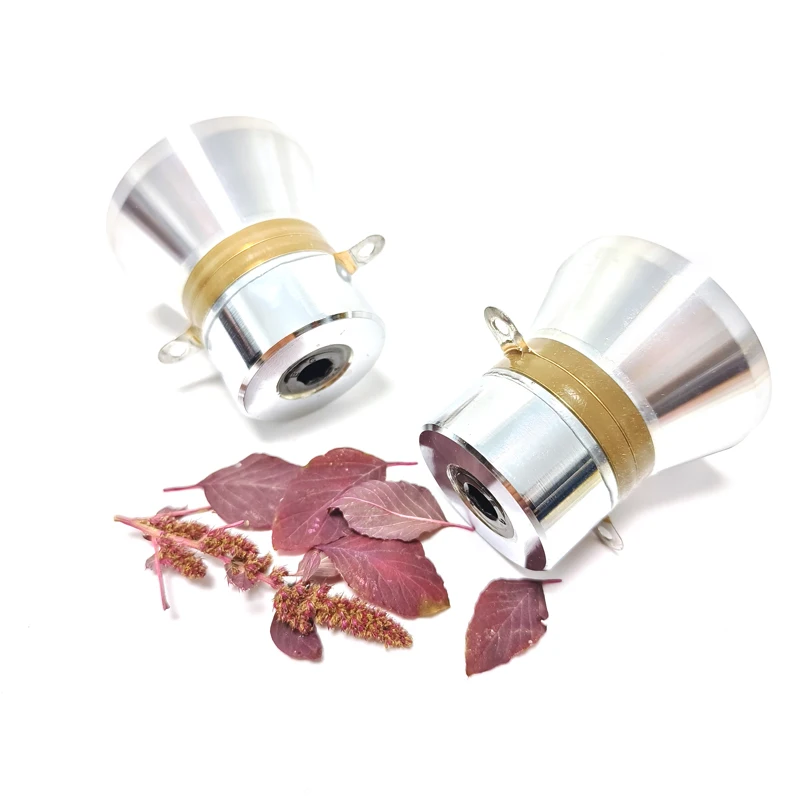

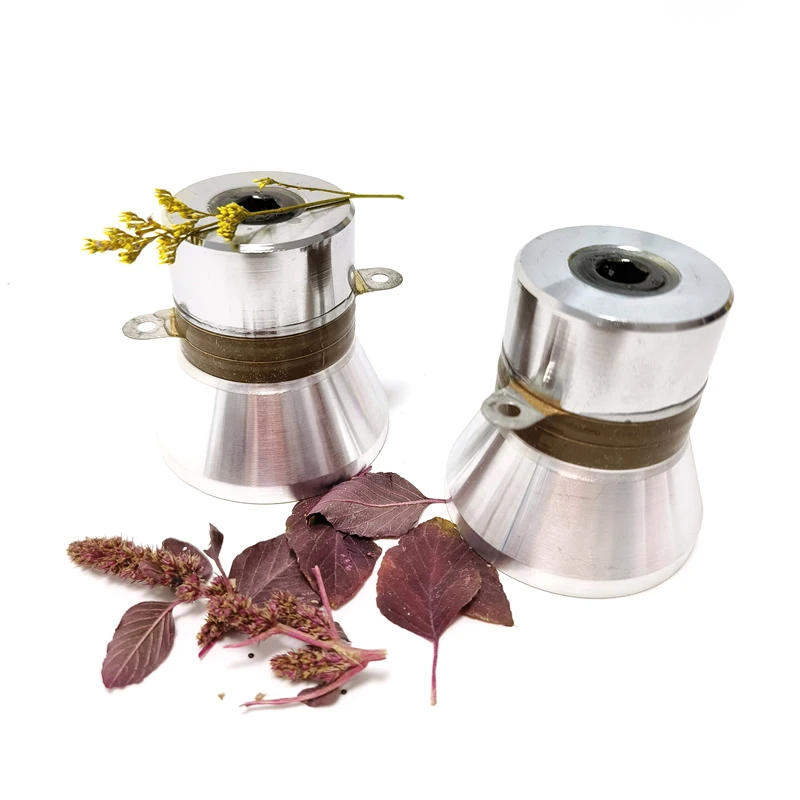

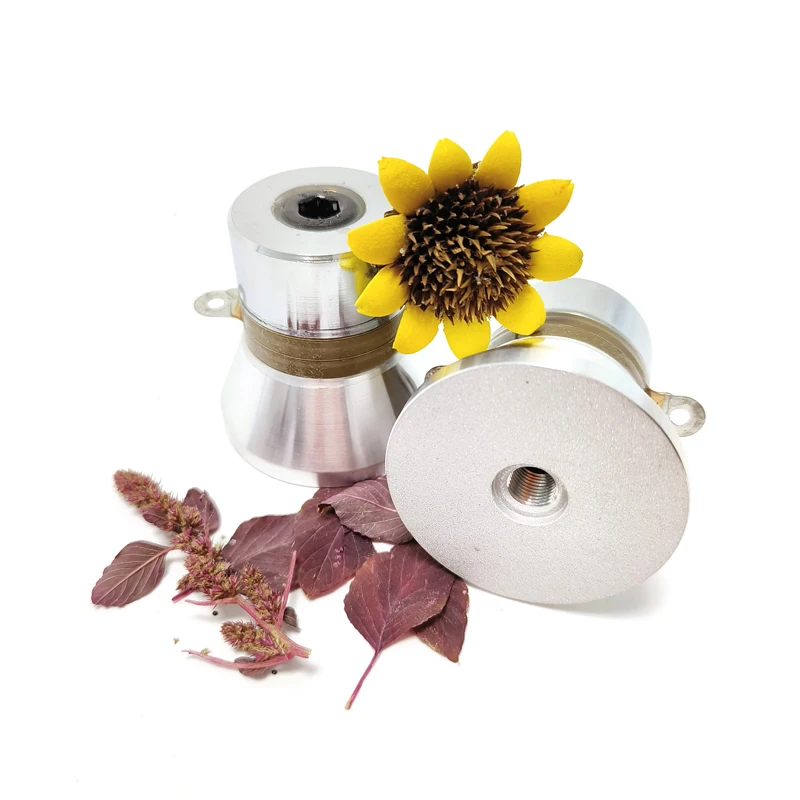

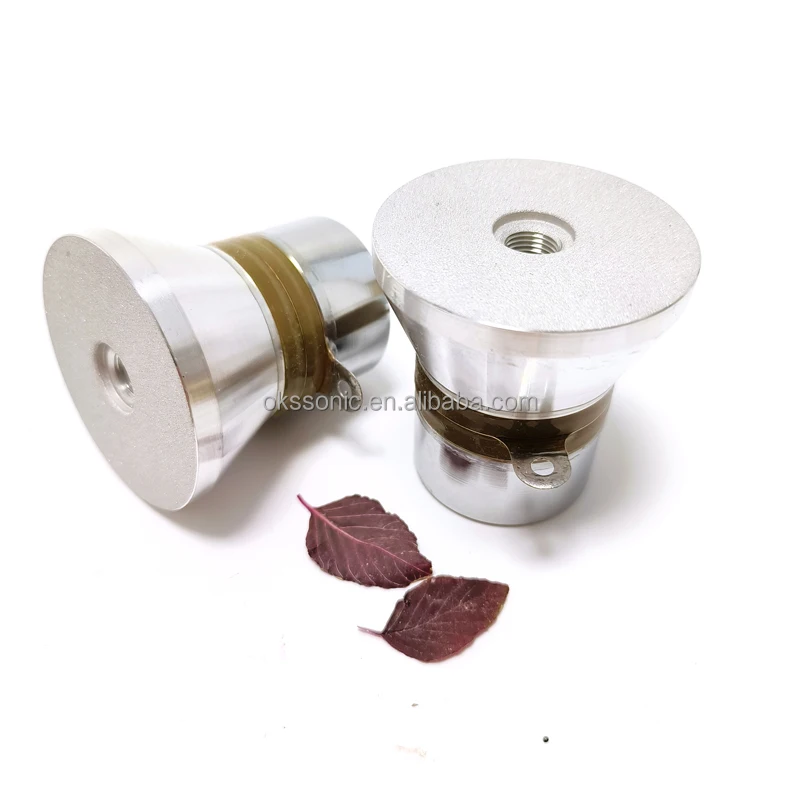

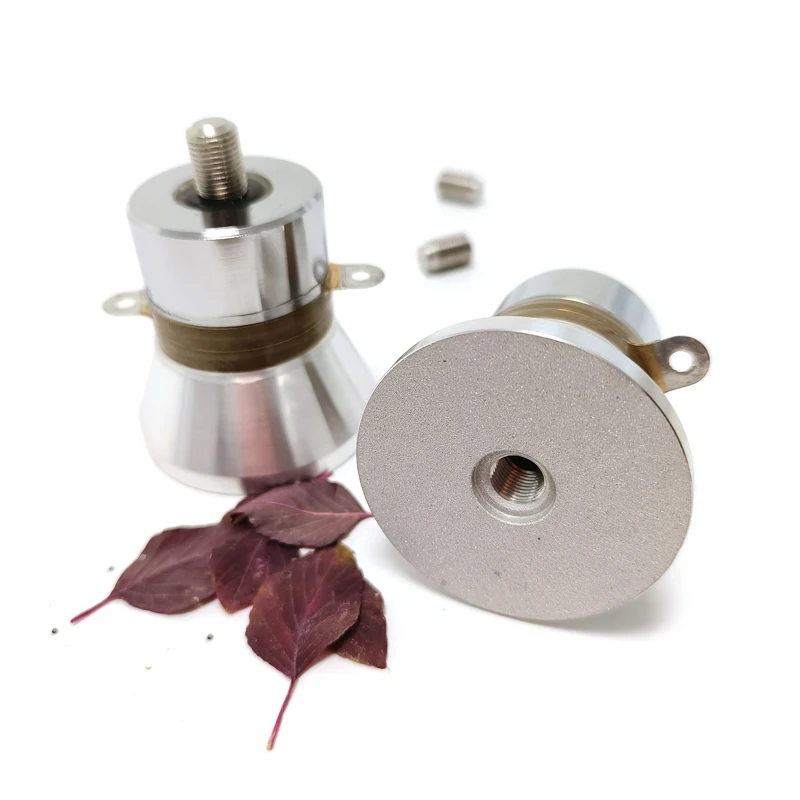

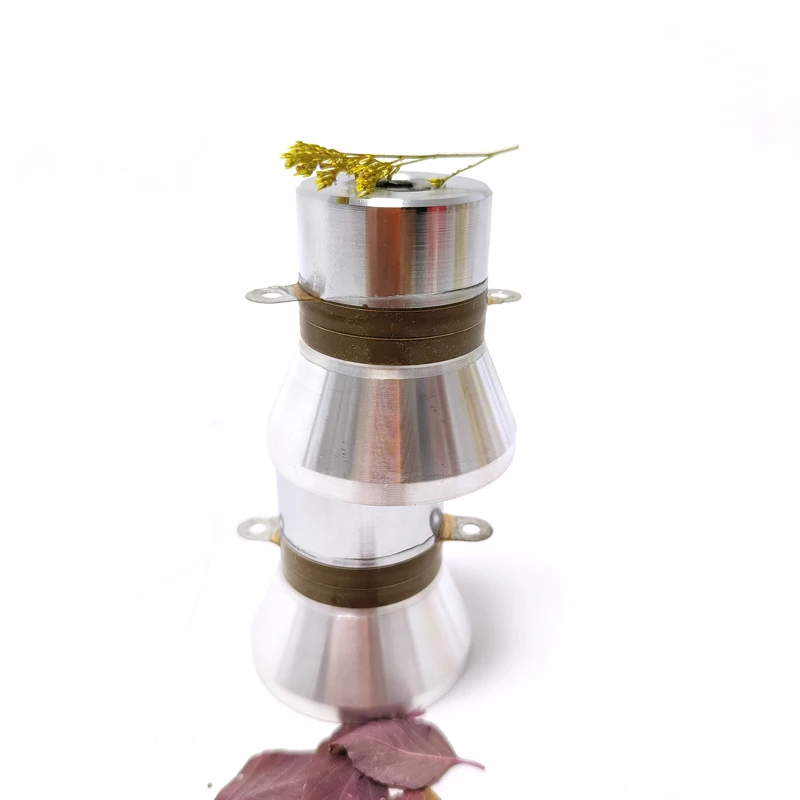

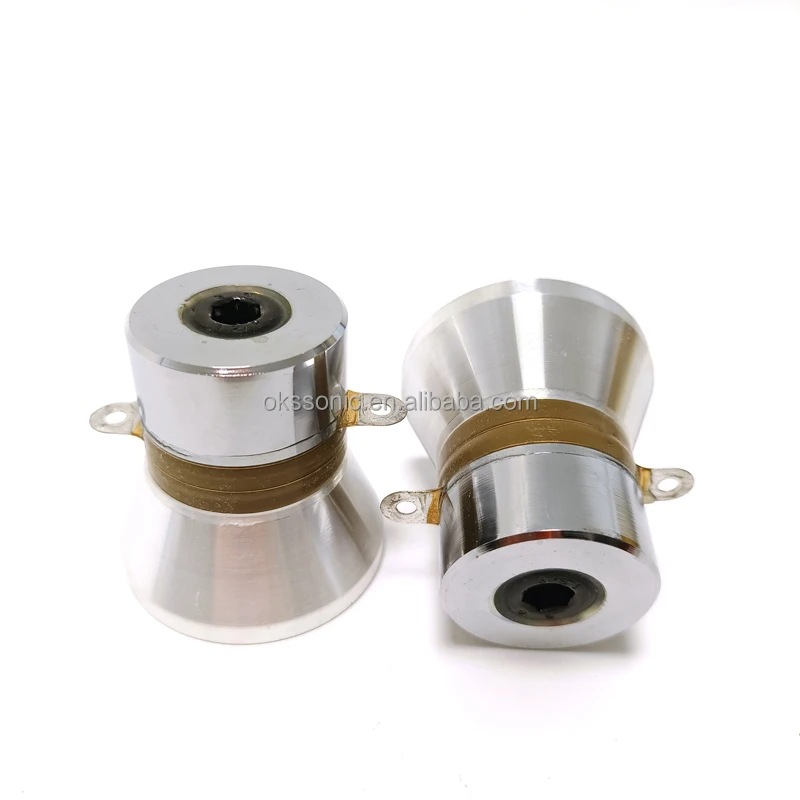

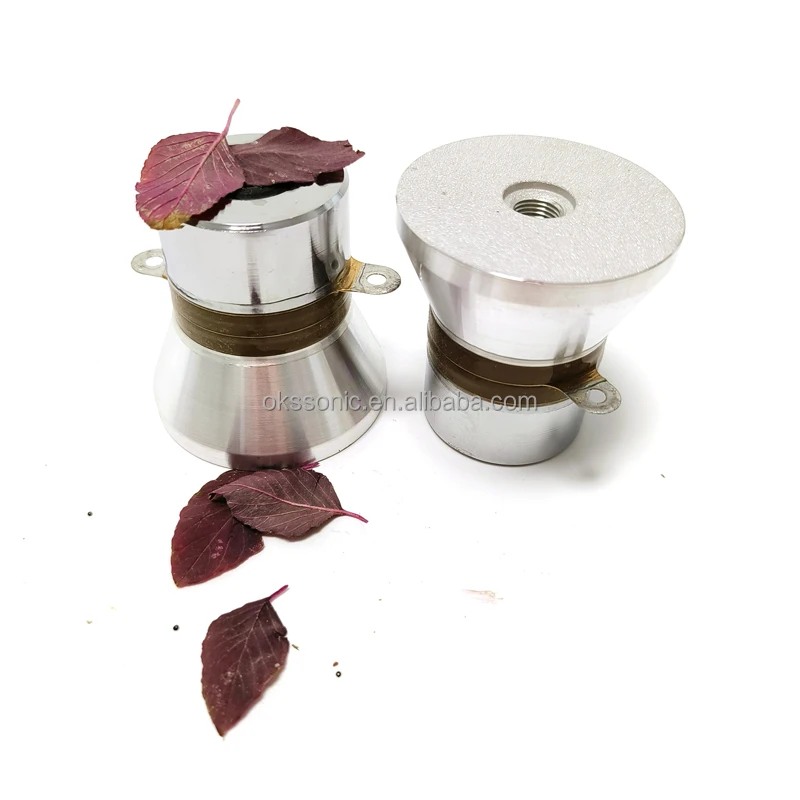

Customized 33KHz 60W PZT8 Ultrasonic Oscillator Piezoelectric Transducer For Cleaning Machine

Product Overview

Description

Customized 33KHz 60W PZT8 Ultrasonic Oscillator Piezoelectric Transducer For Cleaning Machine



Frequency is defined as the number of signals or waves that can be appeared in a fixed time. Units for the frequency are Hertz (Hz). These frequencies are divided into several ranges depending upon the frequency values. They are Very Low Frequencies (VLF), Low Frequencies (LF), Medium Frequencies (MF), High Frequencies (HF), Very High Frequencies (VHF), Ultra-High Frequencies (UHF), Super High Frequencies (SHF), and Extremely High Frequencies (EHF). The frequency range may be varies based on the type of frequencies. The frequency range of VLF ranges from 3 to 30 kHz. The frequency range of LF ranges from 30 kHz to 300 kHz. The frequency range of MF ranges from 300 to 3000 kHz. The frequency range of HF ranges from 3 MHz to 30 MHz. The frequency range of UHF ranges from 300 MHz to 3000 MHz. The frequency range of SHF ranges from 3 GHz to 30 GHz. The frequency range of EHF ranges from 30 GHz to 300 GHz. This article discusses an overview of the ultrasonic transducer and its working.

Features of ultrasonic vibrator:
1. High performance: high mechanical Q value, high conversion efficiency and good quality;
2. Ultrasonic vibrator transducer has large amplitude and superior performance;
3. Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic material has good heat resistance, which can expand the temperature range of use, at the same time, the Q value is high, the resonance impedance is small, and the heat generation is small;
4. The appearance of the ultrasonic vibrator transducer is clean, free of rust, no obvious dents and scratches.

Specification List
Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	(KHz)	(pF)	(Ω)	Radiation head*Height (mm)	(W)	(2500VDC)
OKS-4UCT-2540	40±0.8	2400±10%	≤30Ω	25*58	20w	≥100MΩ
OKS-4UCT-2540	40±0.8	2400±10%	≤30Ω	30*50	20w	≥100MΩ
OKS-4UCT-2560	60±1.5	2300±10%	≤35Ω	30*35	20w	≥100MΩ
OKS-4UCT-2565	65±1.5	2300±10%	≤35Ω	25*31	20w	≥100MΩ
OKS-4UCT-3055	55±1.0	3100±10%	≤35Ω	32*40	35w	≥100MΩ
OKS-4UCT-3050	52±2.0	3100±10%	≤35Ω	38*40	35w	≥100MΩ
OKS-4UCT-3528*	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
OKS-4AH-3540*	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
OKS-4UCT-3825*	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
OKS-4UCT-3828*	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
OKS-4UCT-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
OKS-4UCT-3835	35±0.5	4800±10%	≤20Ω	45*55	60w	≥100MΩ
