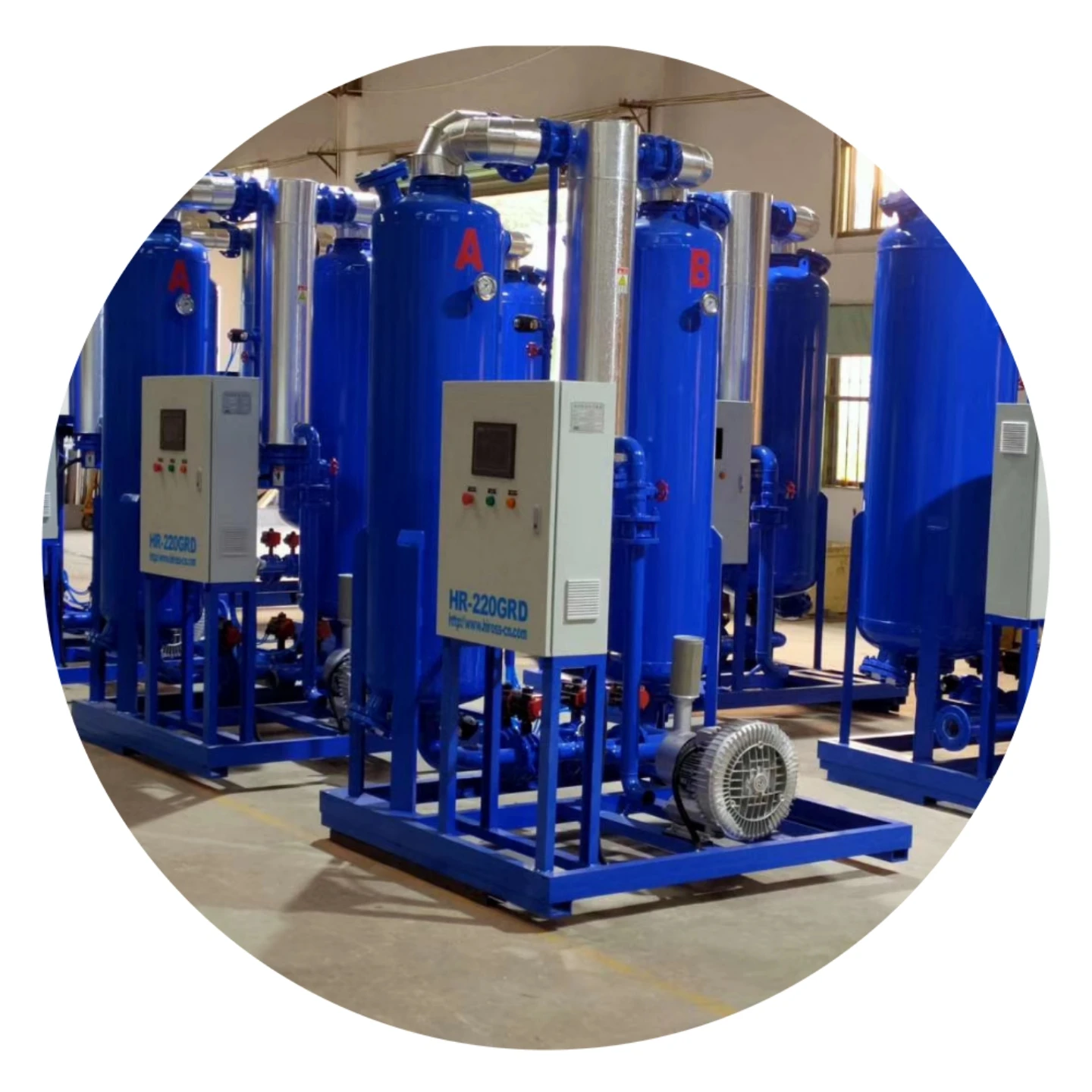

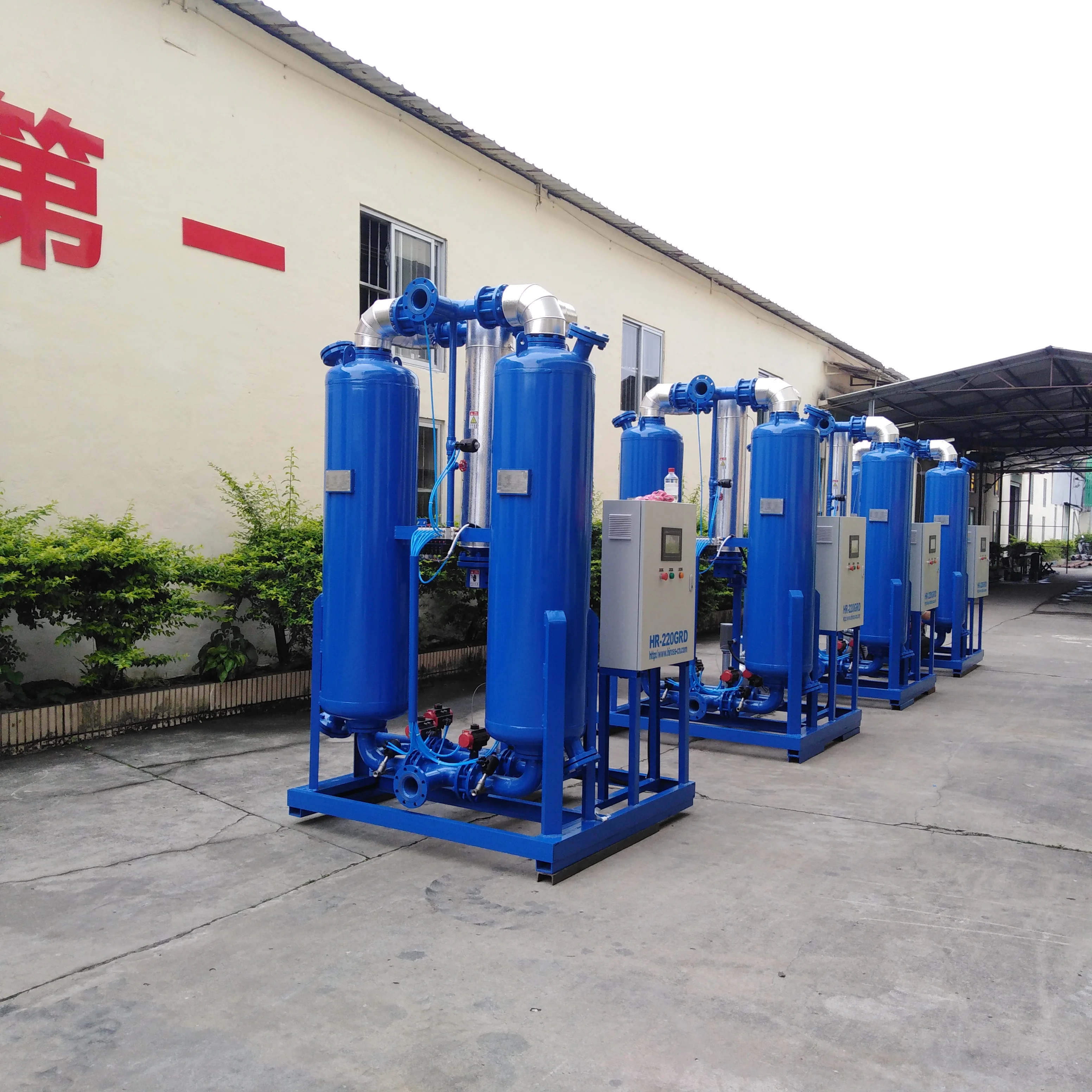

Zero Gas Consumption Blower Heated Twin Tower Desiccant Air Dryer
- Category: >>>
- Supplier: Hiross (Zhangzhou) Industrial Machinery Co. Ltd.
Share on (1600980667221):
Product Overview
Description
Product Description

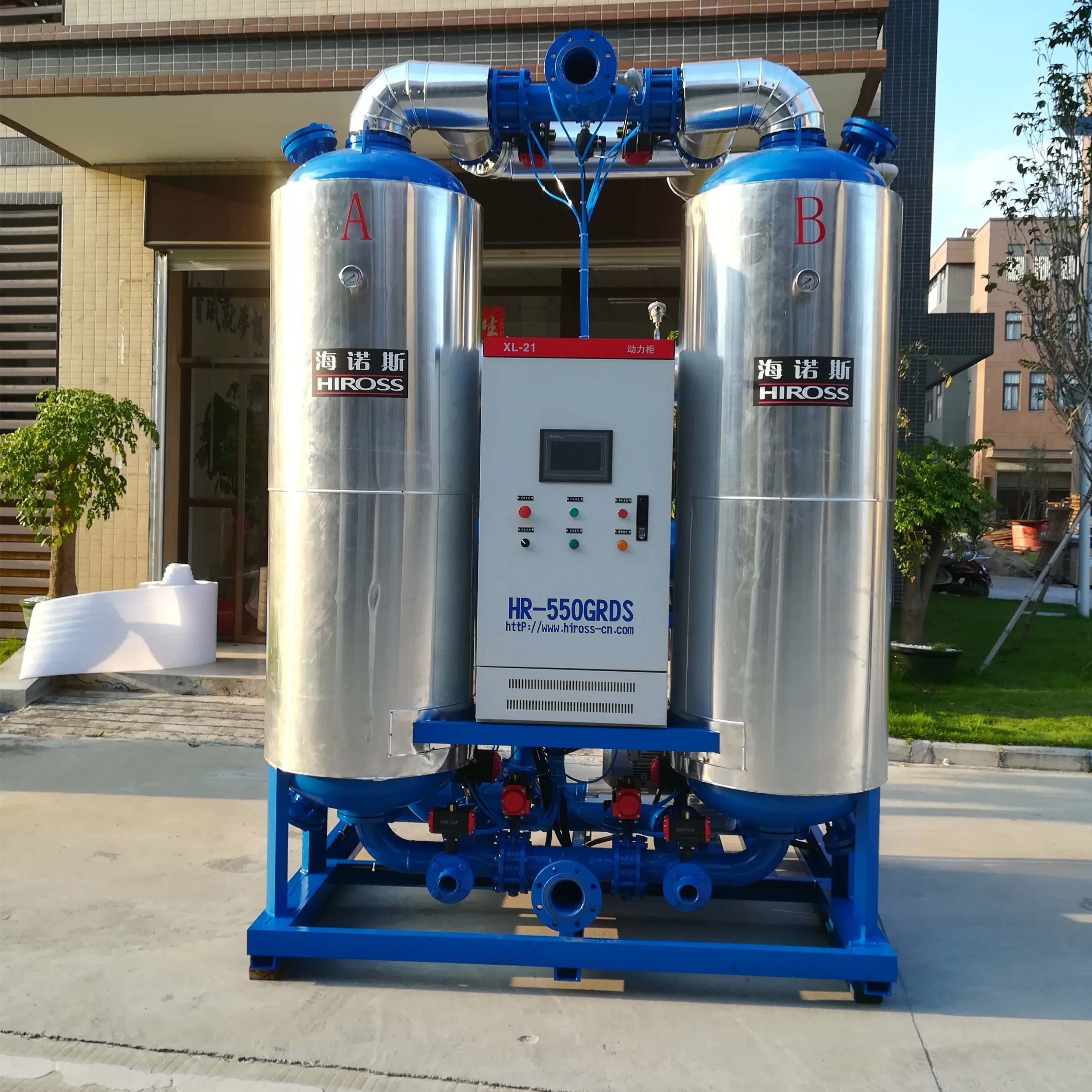

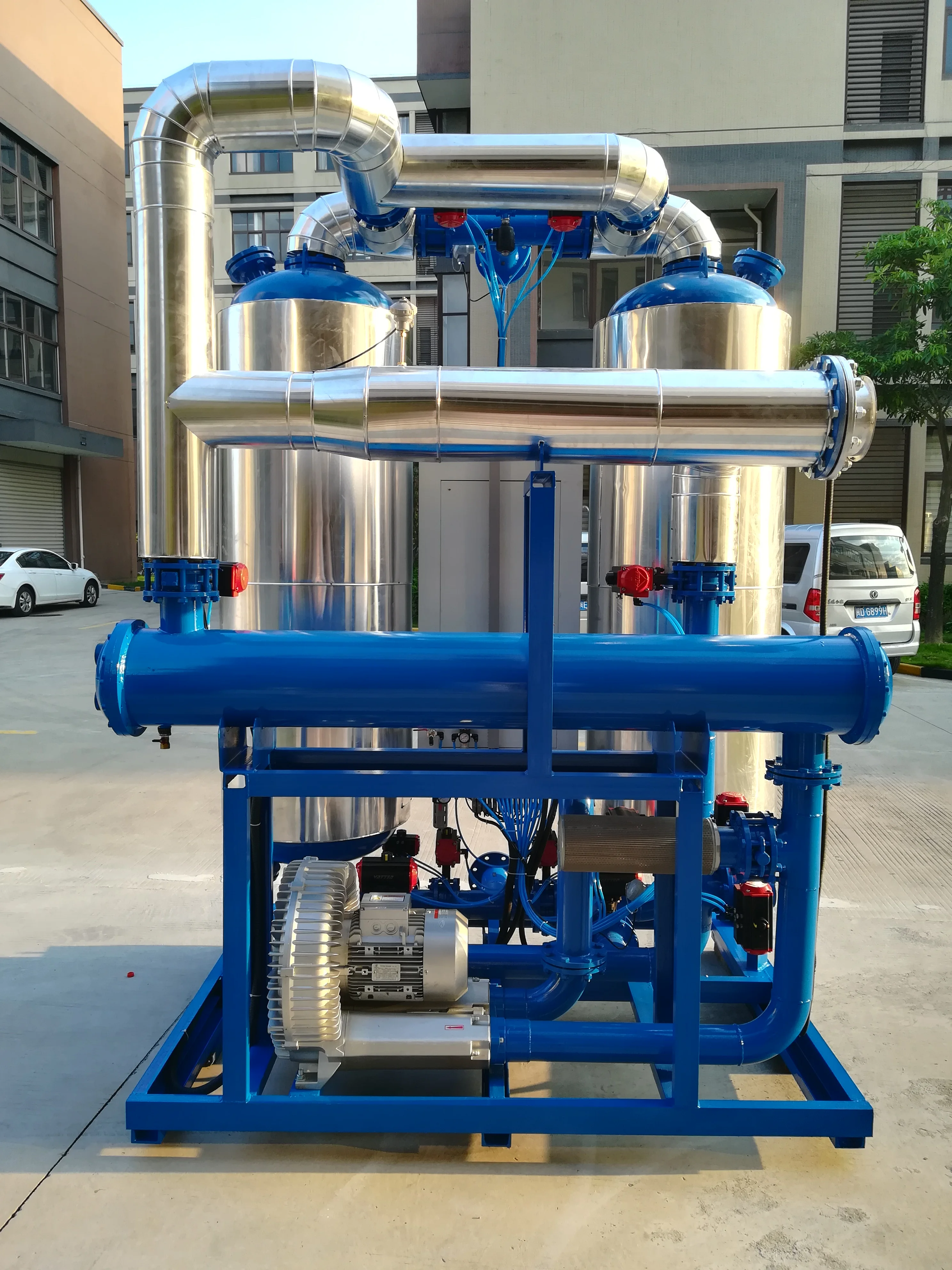

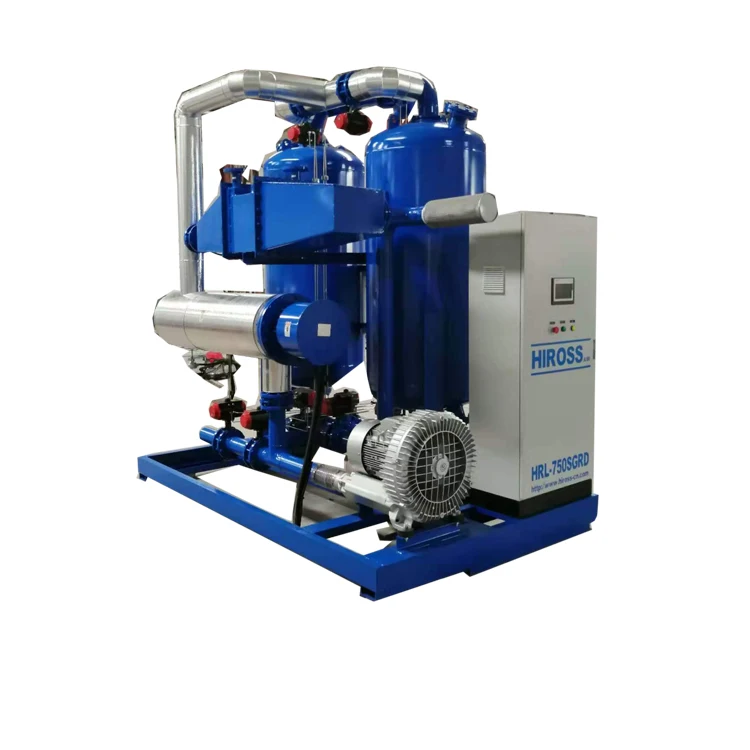

Hiross Blower Purge Heated Regenerative Desiccant Dryer
Inlet temperature ≤40℃
Ambient temperature ≤40 ° C
Working pressure 0.4~ 1.0mpa
Pressure dew points -20℃, -40℃, -70℃
Working cycle: 8 hours
Adsorbent: activated alumina/molecular sieve
Intake oil content ≤ 0.1ppm
Average regeneration gas consumption: ≤0%~2%
(select according to requirements)
Characteristic :
1. User friendly design: Scientific and reasonable structural design; novel and neat appearance; long-term efficiency；stable performance; convenient operation and maintenance; simple installation (no foundation).
2. Using pressure swing adsorption working principle, the cycle time can be programmed according to working conditions, factory standard set 10min, according to customer needs to choose a reasonable control mode, such as PLC control, remote monitoring, dew point display and signal transmission function.
3. Using well-known brand blower, reliable performance, low energy consumption.
4. The inner wall of the cylinder with professional anti-rust treatment, 10 years of corrosion.
5. Adsorbent filling amount is very abundant, large capacity in the drying agent bed to ensure that the air and desiccant have enough contact time, so that the desiccant can fully absorb water, to achieve stable outlet dew point, ensure the stability of outlet air dew point and water effect.
6.Flexible and stable pneumatic valve, reliable work, long service life.
7. Good quality muffler, effectively reduce product noise, with pressure protection function, improve product safety.
8. Maintain the appropriate flow rate of air in the adsorption cylinder, not only to ensure full contact between compressed air and adsorbent, but also to prevent adsorbent movement and powder.
9.The product has unique design, small air flow pulse, flat air pressure without fluctuation, greatly reducing the crushing of
adsorbent, and less dust in the outlet gas.
2. Using pressure swing adsorption working principle, the cycle time can be programmed according to working conditions, factory standard set 10min, according to customer needs to choose a reasonable control mode, such as PLC control, remote monitoring, dew point display and signal transmission function.
3. Using well-known brand blower, reliable performance, low energy consumption.
4. The inner wall of the cylinder with professional anti-rust treatment, 10 years of corrosion.
5. Adsorbent filling amount is very abundant, large capacity in the drying agent bed to ensure that the air and desiccant have enough contact time, so that the desiccant can fully absorb water, to achieve stable outlet dew point, ensure the stability of outlet air dew point and water effect.
6.Flexible and stable pneumatic valve, reliable work, long service life.
7. Good quality muffler, effectively reduce product noise, with pressure protection function, improve product safety.
8. Maintain the appropriate flow rate of air in the adsorption cylinder, not only to ensure full contact between compressed air and adsorbent, but also to prevent adsorbent movement and powder.
9.The product has unique design, small air flow pulse, flat air pressure without fluctuation, greatly reducing the crushing of
adsorbent, and less dust in the outlet gas.
Model | Capacity Nm3/min | air inlet/outlet port size | Power supply |
HR-220GRD | 22 | DN65 | 220V/50HZ or customized |
HR-290GRD | 29 | DN80 | |
HR-350GRD | 35 | DN80 | |
HR-450GRD | 45 | DN100 | |
HR-550GRD | 55 | DN100 | |
HR-650GRD | 65 | DN125 | |
HR-750GRD | 75 | DN125 | |
HR-850GRD | 85 | DN125 | |
HR-1000GRD | 85 | DN150 | |
HR-1400GRD | 140 | DN150 | |
HR-1600GRD | 160 | DN200 | |
HR-1900GRD | 190 | DN200 | |
HR-2100GRD | 210 | DN200 |
Spare parts Images
Control Panel
Pneumatic butterfly valve
(clamp type)
Pneumatic valve
silencer
diffuser
active aluminium oxide / molecular sieve

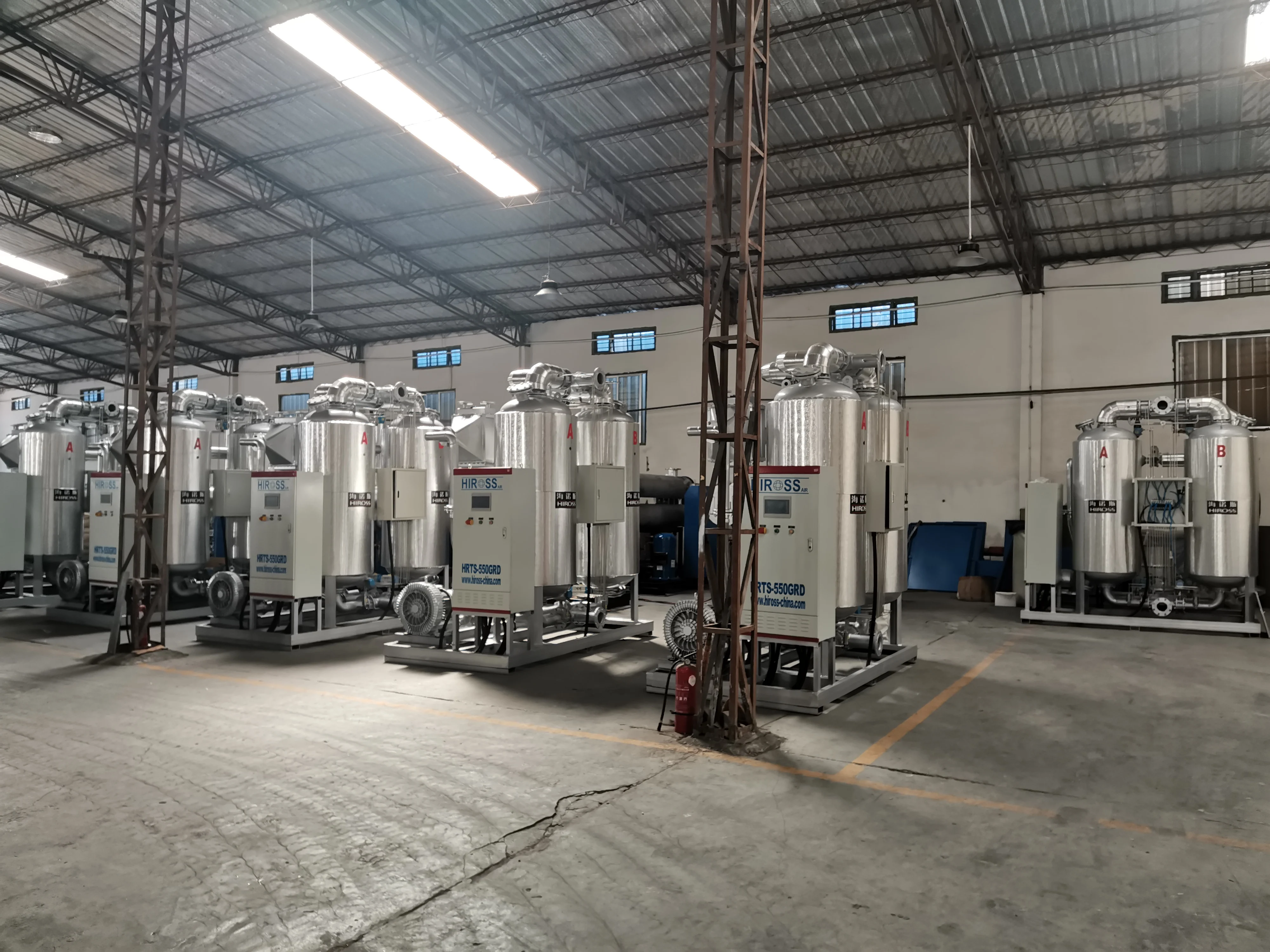

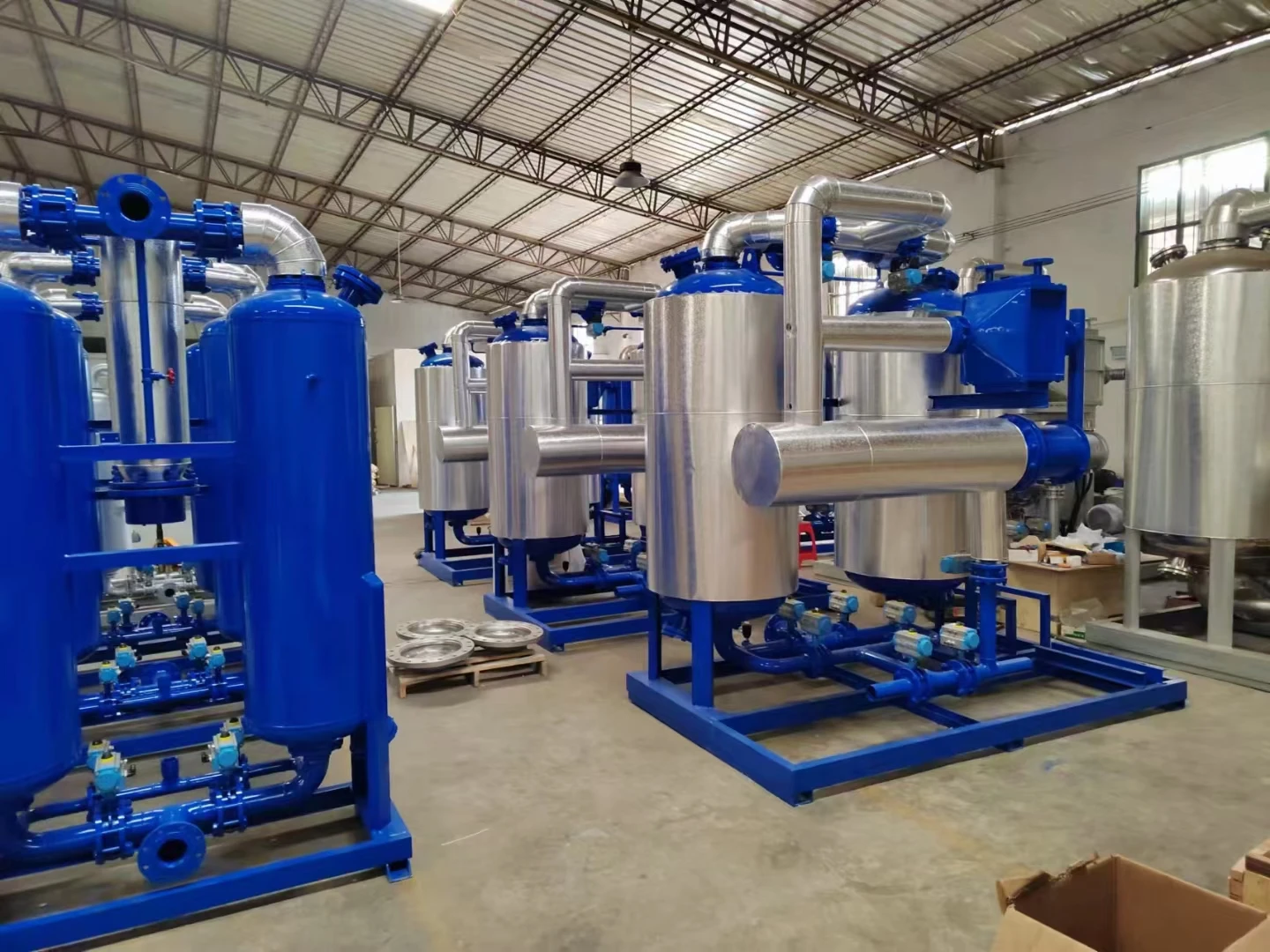

Warehouse
Packing & Delivery
