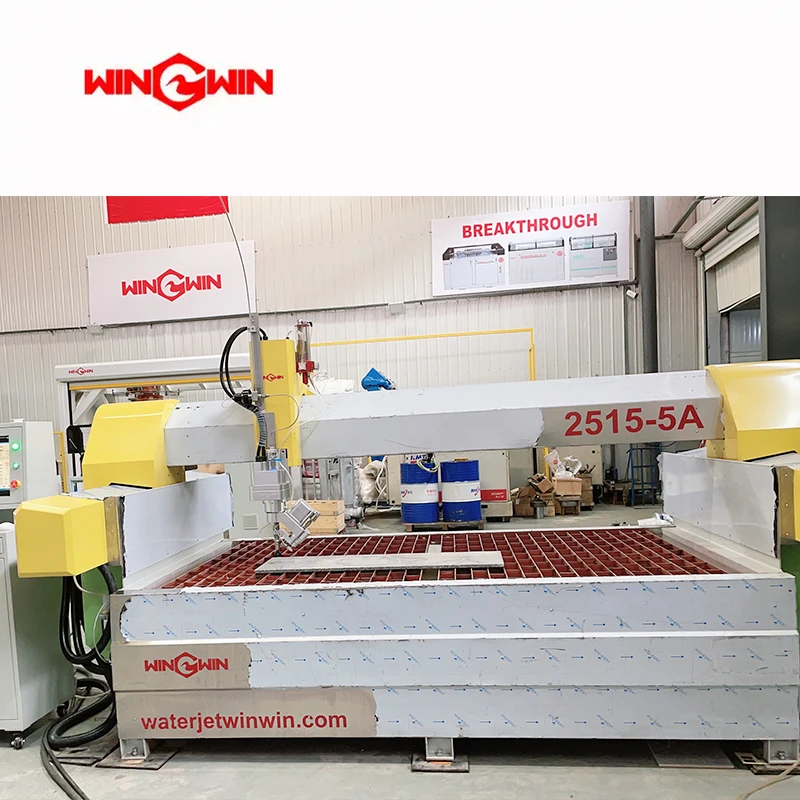

WINWIN company supports color customization, this equipment is WW5060jet intensifier pump + 4020 AC 5 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation.

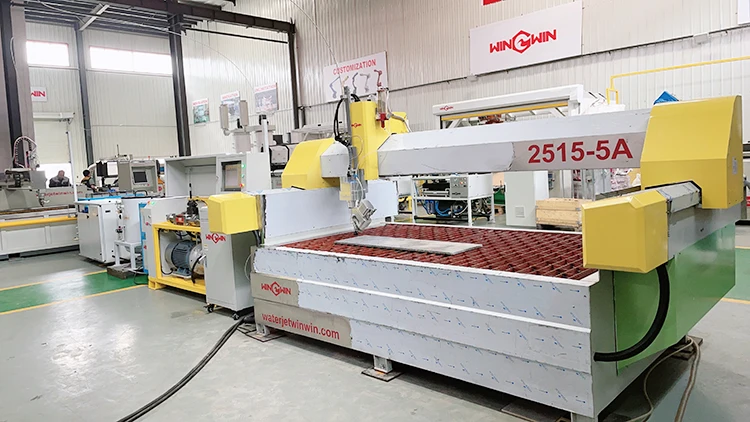

AC 5 Axis CNC Waterjet Cutting Machine

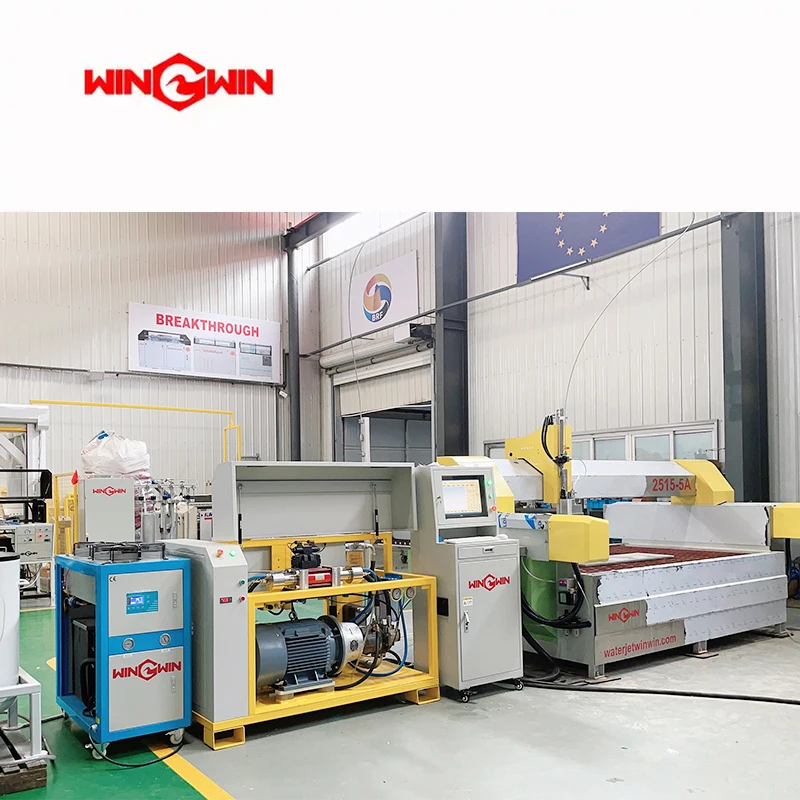

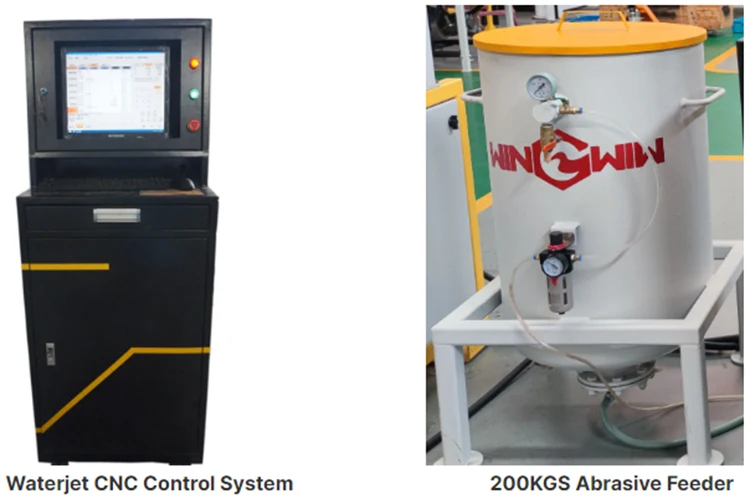

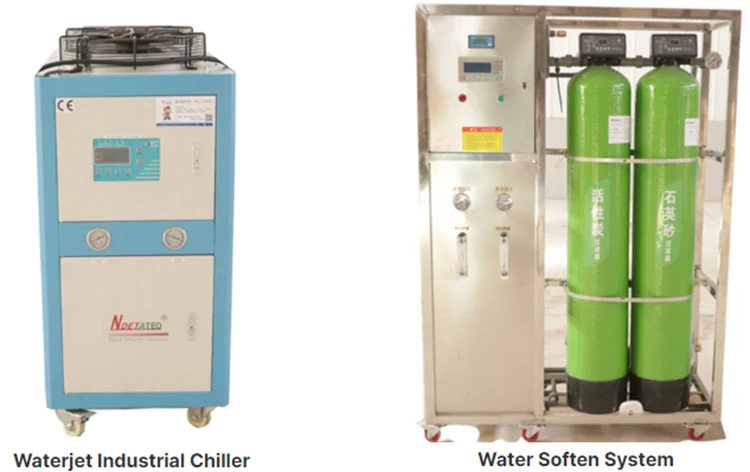

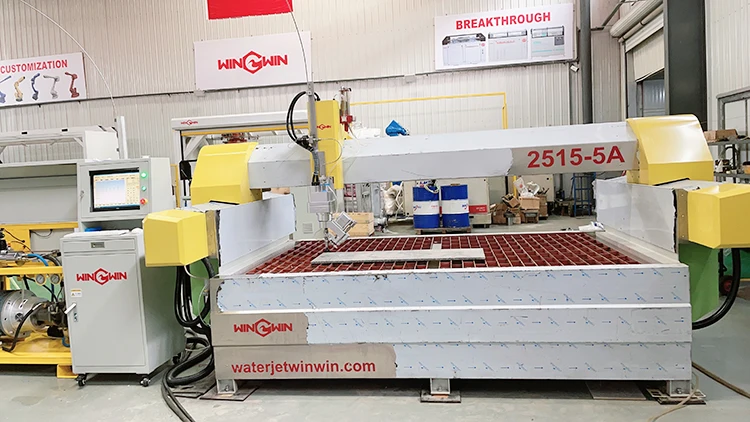

The whole set waterjet cutting machine equipped with AC 5 axis cutting head, 4000mm x 2000mm cutting table, the WW5060JET intensifier pump, WEIHONG CNC control system, 200KGS abrasive feeder, industrial chiller and also the water soften system.

Features

A. High-Quality Cutting Head

Aluminum AC-5aixs waterjet cutting head, light weight but high hardness, lighten gantry running load, relatively fast walking speed, higher cutting efficiency.

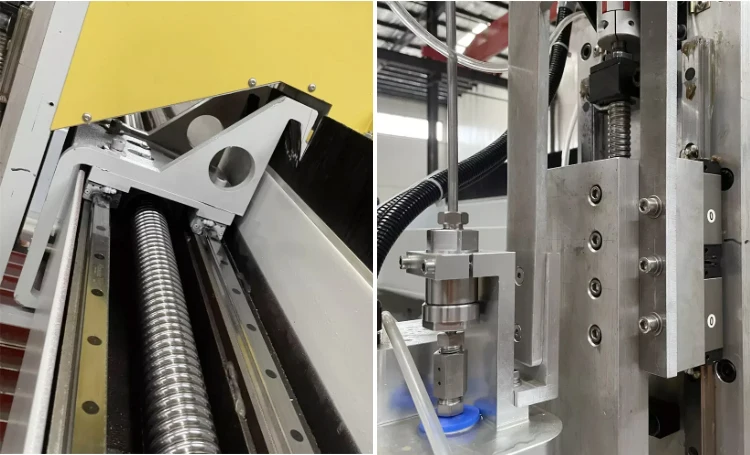

B. Fully Oil-Immersed Linear Guide

WW2515-5A adopts thick linear guides and large screw balls. The X, Y axis adopts the self-made oil-immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.

C. Integrated Stainless Steel Bath

The table is made of fully stainless steel, anti-rust, anti-corrosion, bright as new for 10 years.

D. The cutting table size can be customize.

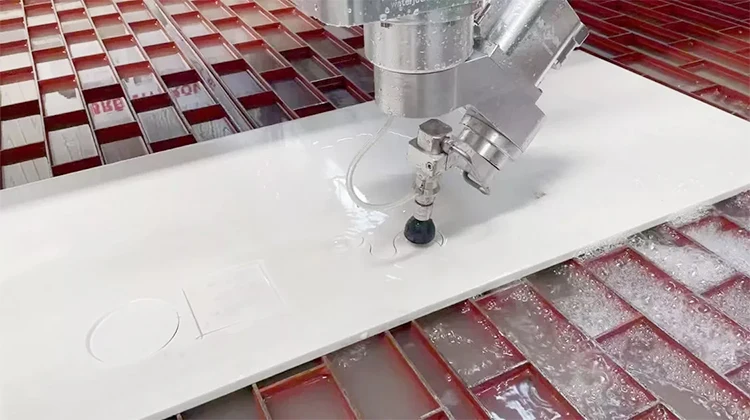

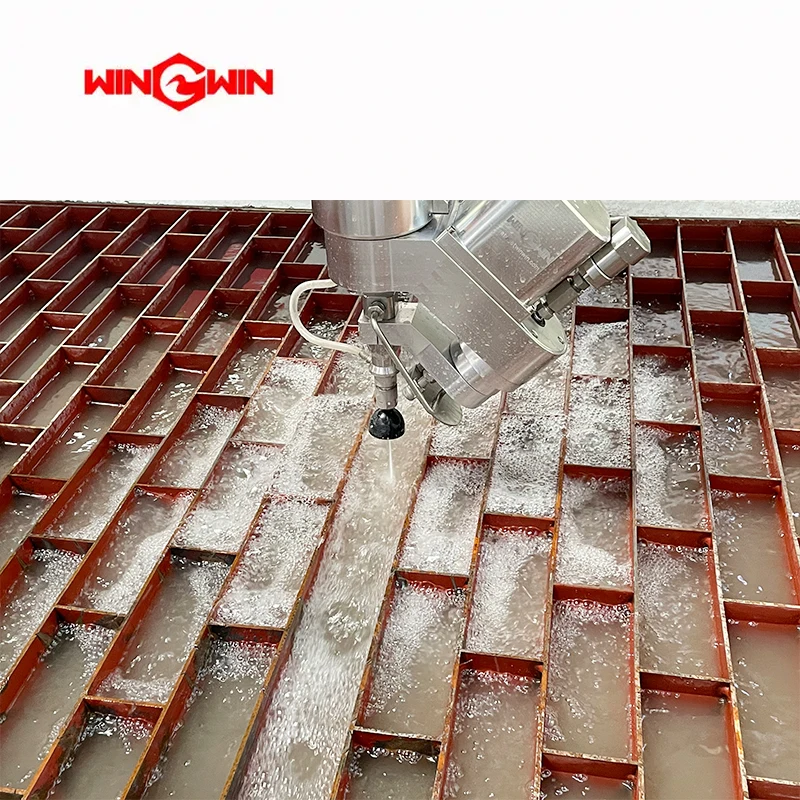

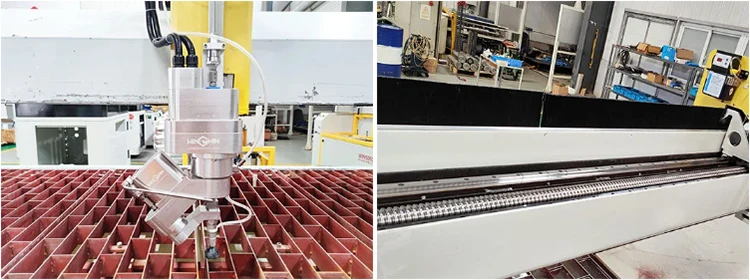

AC 5 axis cutting head

Swing angle ±68°, absolute encoder control system.AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts

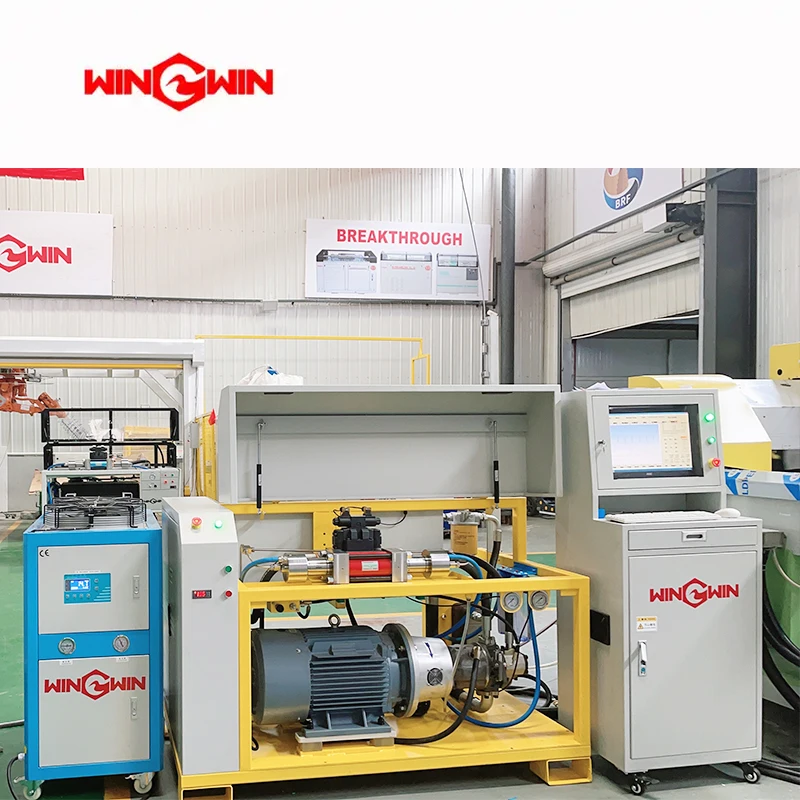

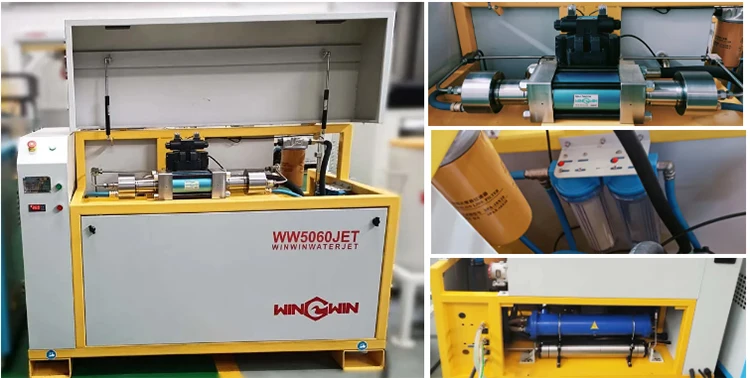

WW5060JET Intensifier Pump
Voltage	380V / Customize
Rated Power	30KW / 40HP
Max. Operating Pressure	420Mpa / 4137Bar / 60,000Psi
Max. Discharging Rate	3.8L/min
Orifice Diameter	0.33mm or others
Nozzle Diameter	1.02mm or others
Oil Tank Volume	150L

Features:

A. High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can purchase the corresponding parts in any waterjet machine market.

B. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked,
and prolong the service life of the Intensifier Pump.

C. Double-Level Water-Filtration System

WW5060JET adopts double layers of water filtration in low pressure water transport to remove hard metal elements from industrial water. The waterjet is less likely to produce scale, protecting important high pressure components and extending the service life of the entire Waterjet Cutting Machine.

D. 1L Large Capacity Accumulator

1L capacity accumulator, eliminate the fluctuation of the cutting, integral forging, no rubber seals, maintenance-free.

Optional Devices

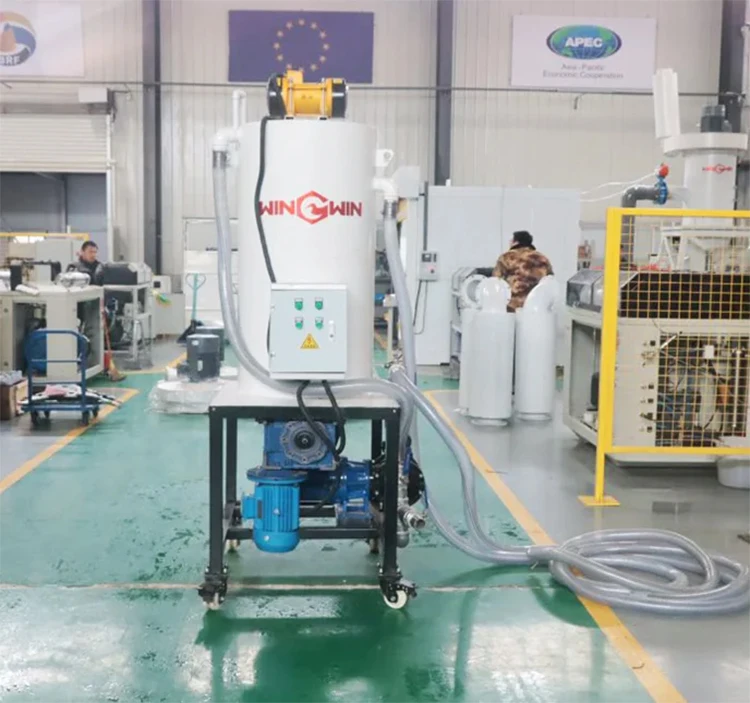

 Abrasive Removal System

* When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each
other.

* The device can be installed within 10m of the waterjet cutting machine.

* The flow rate can reach 162L/min.

* The abrasive removal rate is more than 90%.

* During the entire abrasive removal process, the filtered water continues to be discharged into the water sink, and the water sink
does not need to be replenished after abrasive removal.
