Product Overview
Description
Product Overview

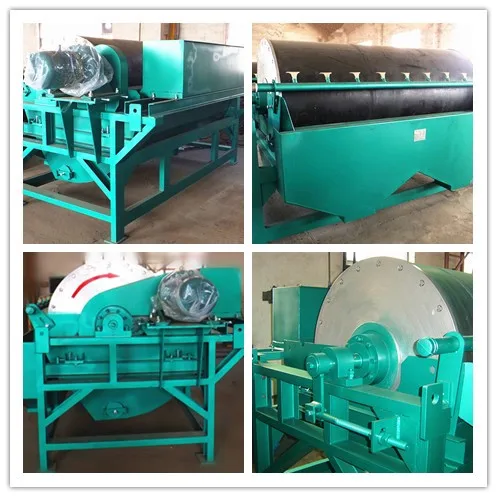

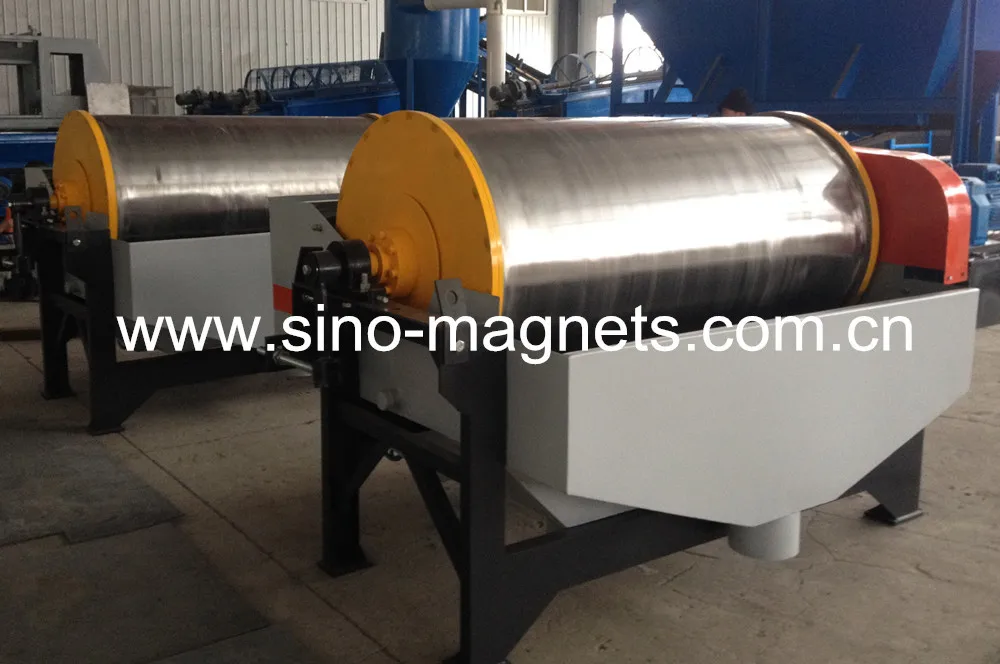

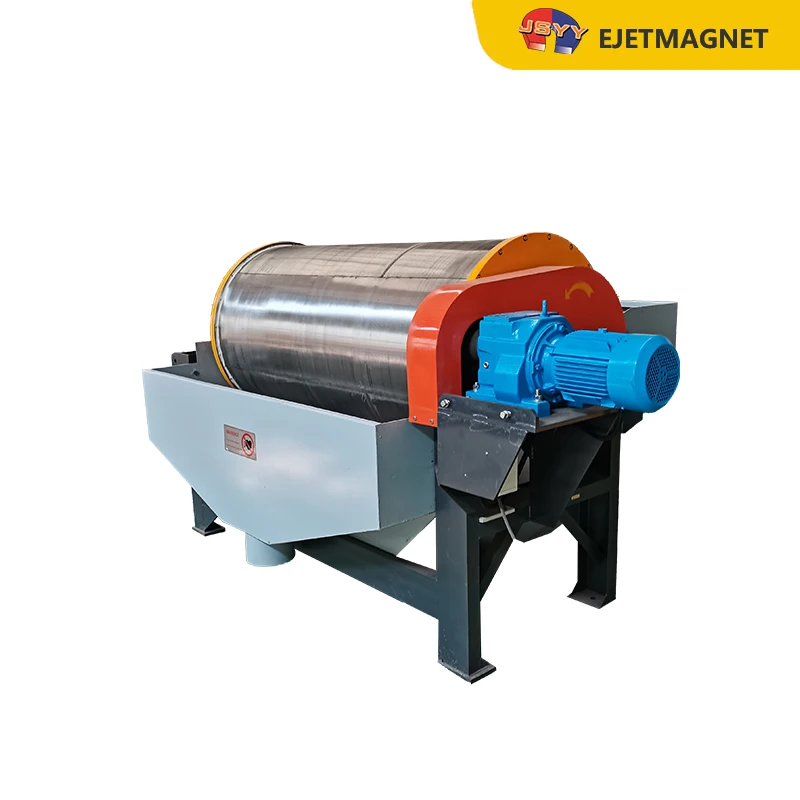

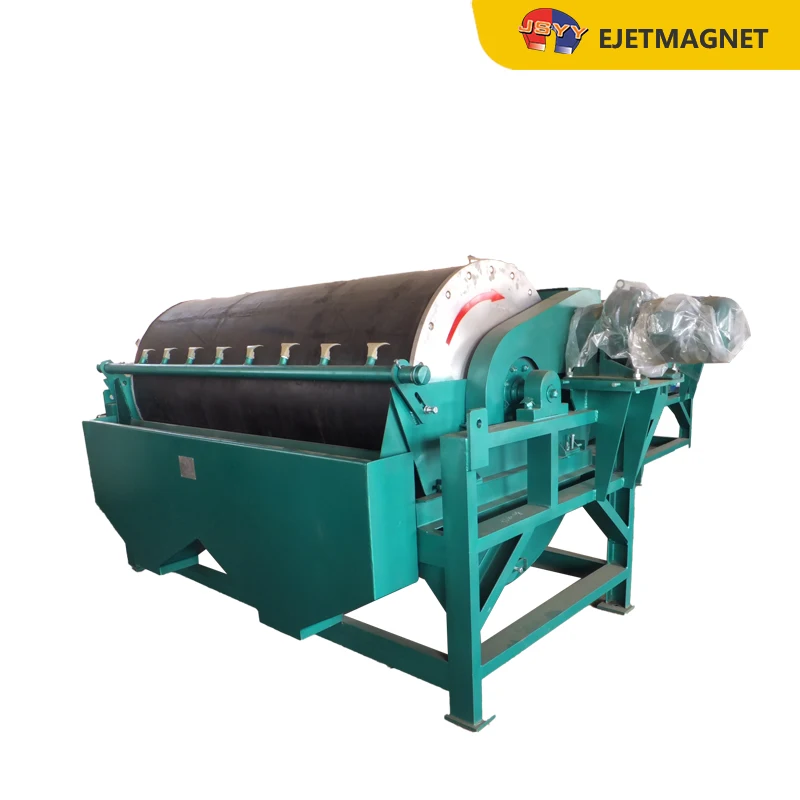

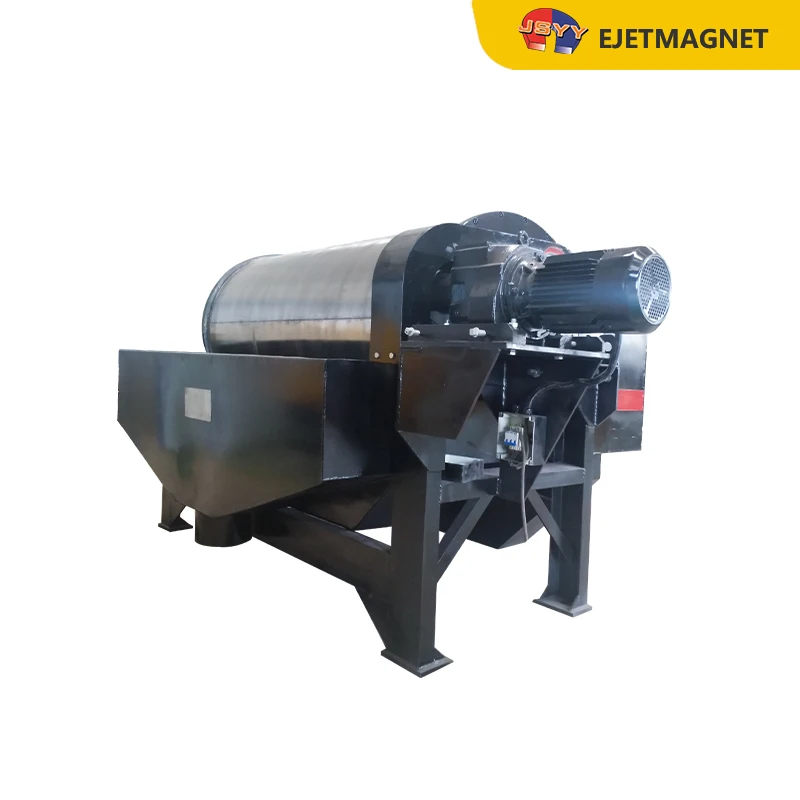

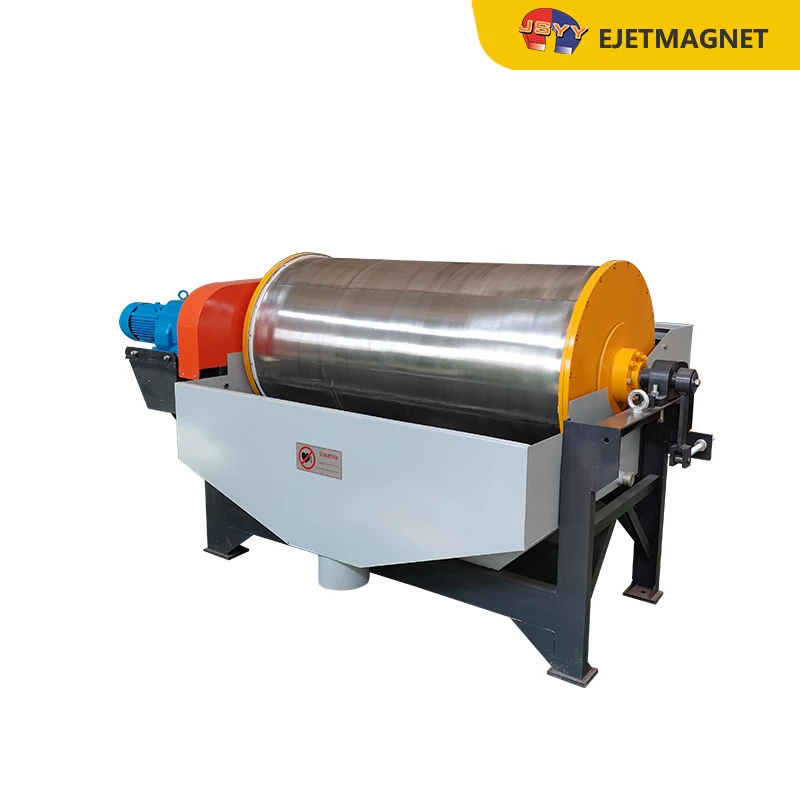

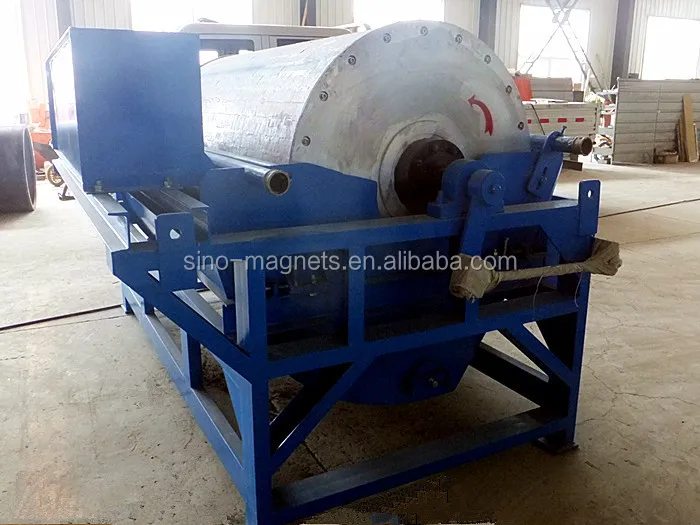

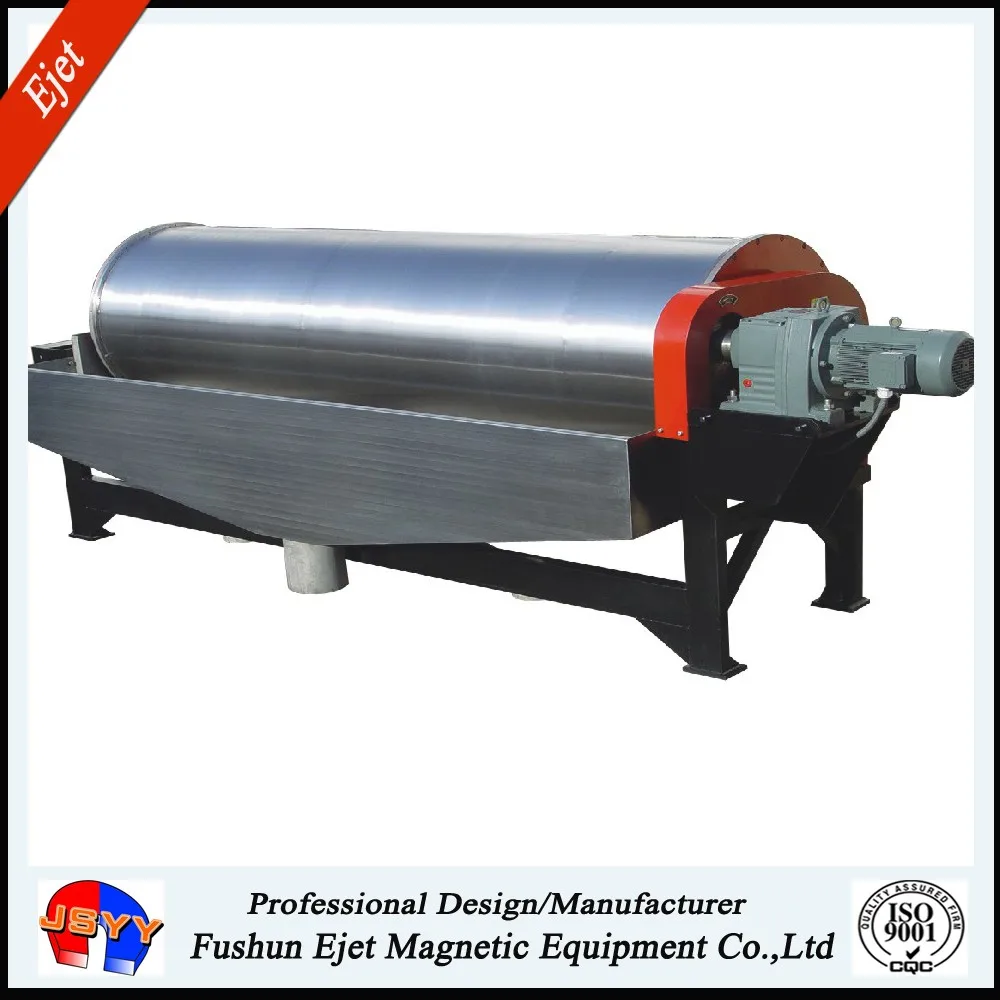

High quality EJET Wet Magnetic Drum Separators
EJET' Drum Separators are setting industry standards. The newest advances in magnetic circuitry design, and 37 years of experience with solid/liquid separation, are combined in EJET Wet Magnetic Drum Separators.
Innovations in both magnetic circuit design and materials of construction are applied to EJET wet drum magnetic separators. This results in maximum magnetite recovery while operating with a minimum amount of wear and maintenance. Refinements in the magnetic circuit, tank design, and drive system have resulted in further improvements in metallurgical performance and operation.
Innovations in both magnetic circuit design and materials of construction are applied to EJET wet drum magnetic separators. This results in maximum magnetite recovery while operating with a minimum amount of wear and maintenance. Refinements in the magnetic circuit, tank design, and drive system have resulted in further improvements in metallurgical performance and operation.
FEATURES AT A GLANCE
Efficient Magnetic Separation
Durability
Custom Solutions
Ease of Maintenance
Versatile Application
Superior Magnetic Field
Durable Design
Easy Maintenance
Variety of Sizes
Optimized Separation
Reduced Downtime
CTB type
concurrent
Grain-Size(mm): 0~0.6
Applications: Concentration of mine
CTN type
countercurrent
countercurrent
Grain-Size(mm): 0~0.6
Applications: Heavy medium recovery
CTS type
concurrent
Grain-Size(mm): 0~6
Applications: Tailing Recycling
PRODUCT SPECIFICATIONS
Model | Drum specifications | Revolution | Magnetic surface | Capacity | Motor power | ||||
Diameter (mm) | Length (mm) | rpm | mT | t/h | m³/h | kW | |||
CTB/N/S44 | 400 | 400 | 45 | 60-500 | 1~2 | 3 | 1.1 | ||
CTB/N/S46 | 400 | 600 | 45 | 1~3 | 5 | 1.1 | |||
CTB/N/S63 | 600 | 300 | 40 | 60-700 | 3~5 | 8 | 1.1 | ||
CTB/N/S66 | 600 | 600 | 40 | 5~10 | 16 | 1.1 | |||
CTB/N/S69 | 600 | 900 | 40 | 8~15 | 24 | 1.1 | |||
CTB/N/S612 | 600 | 1200 | 40 | 10~20 | 32 | 2.2 | |||
CTB/N/S618 | 600 | 1800 | 40 | 15~30 | 48 | 2.2 | |||
CTB/N/S712 | 750 | 1200 | 35 | 15~30 | 48 | 3.0 | |||
CTB/N/S718 | 750 | 1800 | 35 | 20~45 | 72 | 3.0 | |||
CTB/N/S912 | 900 | 1200 | 28 | 18~30 | 45 | 4.0 | |||
CTB/N/S918 | 900 | 1200 | 28 | 25~55 | 90 | 4.0 | |||
CTB/N/S924 | 900 | 1800 | 28 | 35~70 | 110 | 4.0 | |||
CTB/N/S1015 | 1050 | 1500 | 21 | 30~55 | 95 | 4.0 | |||
CTB/N/S1018 | 1050 | 1800 | 21 | 40~75 | 120 | 5.5 | |||
CTB/N/S1021 | 1050 | 2100 | 21 | 45~88 | 140 | 5.5 | |||
CTB/N/S1024 | 1050 | 2400 | 21 | 52~100 | 160 | 5.5 | |||
CTB/N/S1027 | 1050 | 2700 | 21 | 60~110 | 180 | 7.5 | |||
CTB/N/S1030 | 1050 | 3000 | 21 | 65~125 | 200 | 7.5 | |||
CTB/N/S1218 | 1200 | 1800 | 19 | 47~90 | 140 | 5.5 | |||
CTB/N/S1224 | 1200 | 2400 | 19 | 82~120 | 192 | 7.5 | |||
CTB/N/S1230 | 1200 | 3000 | 19 | 80~150 | 240 | 7.5 | |||

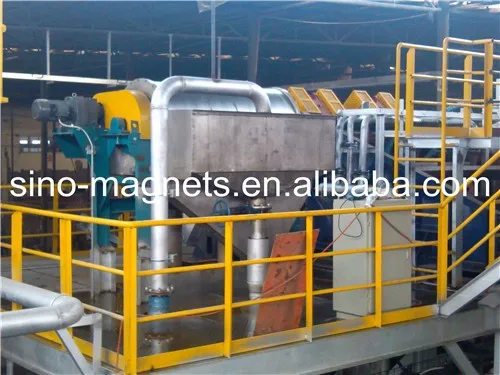

Successful Project
Project in Africa
Project in India
Project in Russia
The Wet Drum Magnetic Separator by EJET is a versatile and powerful tool designed to serve a wide range of industries, providing effective magnetic separation solutions. Its applications are numerous, and its capabilities are vast:
Food Industry
In the food industry, it aids in removing ferrous contaminants from food products, maintaining product quality and safety.
Construction and Aggregates
For construction and aggregates, it ensures the quality of construction materials by removing ferrous materials from various aggregates and construction waste.
Water Treatment
The Wet Drum Magnetic Separator can be applied in water treatment processes to eliminate ferrous particles and improve water quality.
Mining and Mineral Processing
The Wet Drum Magnetic Separator is extensively used in mining operations for the extraction of valuable minerals from ore. It helps in separating ferrous impurities, ensuring the purity of final mineral products.
Coal Washing
In the coal industry, this separator plays a crucial role by removing ferrous contaminants from coal, enhancing the quality of coal and reducing potential damage to downstream equipment.
Recycling
The separator is employed in recycling facilities to separate ferrous materials from non-ferrous ones. This aids in the recycling of valuable metals and ensures a clean and environmentally friendly recycling process.
Waste Management
The Wet Drum Magnetic Separator is utilized in waste management to efficiently remove ferrous contaminants from various waste streams, contributing to cleaner and more sustainable waste processing.
Coal Washing
In the coal industry, this separator plays a crucial role by removing ferrous contaminants from coal, enhancing the quality of coal and reducing potential damage to downstream equipment.
Recycling
The separator is employed in recycling facilities to separate ferrous materials from non-ferrous ones. This aids in the recycling of valuable metals and ensures a clean and environmentally friendly recycling process.
Waste Management
The Wet Drum Magnetic Separator is utilized in waste management to efficiently remove ferrous contaminants from various waste streams, contributing to cleaner and more sustainable waste processing.
Food Industry
In the food industry, it aids in removing ferrous contaminants from food products, maintaining product quality and safety.
Construction and Aggregates
For construction and aggregates, it ensures the quality of construction materials by removing ferrous materials from various aggregates and construction waste.
Water Treatment
The Wet Drum Magnetic Separator can be applied in water treatment processes to eliminate ferrous particles and improve water quality.
Coal Washing
Recycling
Waste Management
Food Industry
Construction and Aggregates
Water Treatment
SIMILAR PRODUCTS
FAQ
Q1：Are you original manufacfure?
Q3: Which type should I use for my recycling plant?
Q5: How long is the machine warranty period?
A1：Yes.we EJET are a official leading manufacture in MagneticEquipment in China and we have the whole series products you need.
Q2: What is the MOQ of your machine?
A2: Our MOQ is 1 set.
A2: Our MOQ is 1 set.
Q3: Which type should I use for my recycling plant?
A3: In order to recommend the most suitable model, please let us knowthe material's situation .including the composition , size ,handlingcapacity and expected separation result .
Q4: Which payment terms are avalibale to us?
A4: T/T term or L/C term,30% down payment is required in advance.and70% balance shall be settled before shipment.On L/C term.a100%irevocable L/C without “soft clauses" can be accepted.
Q5: How long is the machine warranty period?
A5: a:For magnetic property: 8 years
b:For main engine:1 years
Our Services
In order to give you the responsible quotation, pls kindly inform us of the following details:
1. What kind of material you are going to deal with?
2. What's the size of the materials?
3. What's the production capacity you are going to achieve?
4. The recycling rate of Heavy Media Content, as per the reference table
1. What kind of material you are going to deal with?
2. What's the size of the materials?
3. What's the production capacity you are going to achieve?
4. The recycling rate of Heavy Media Content, as per the reference table
The most suitable machine or product model would be recommended to you according to your information.
