Customized Copper Graphite Bushing Copper Tile Graphite Bushing For All Kinds Of Punch Press Machinery
- Category: >>>
- Supplier: Zaozhuang Yiding Bearing Co. Ltd.
Share on (1600981528069):
Product Overview
Description

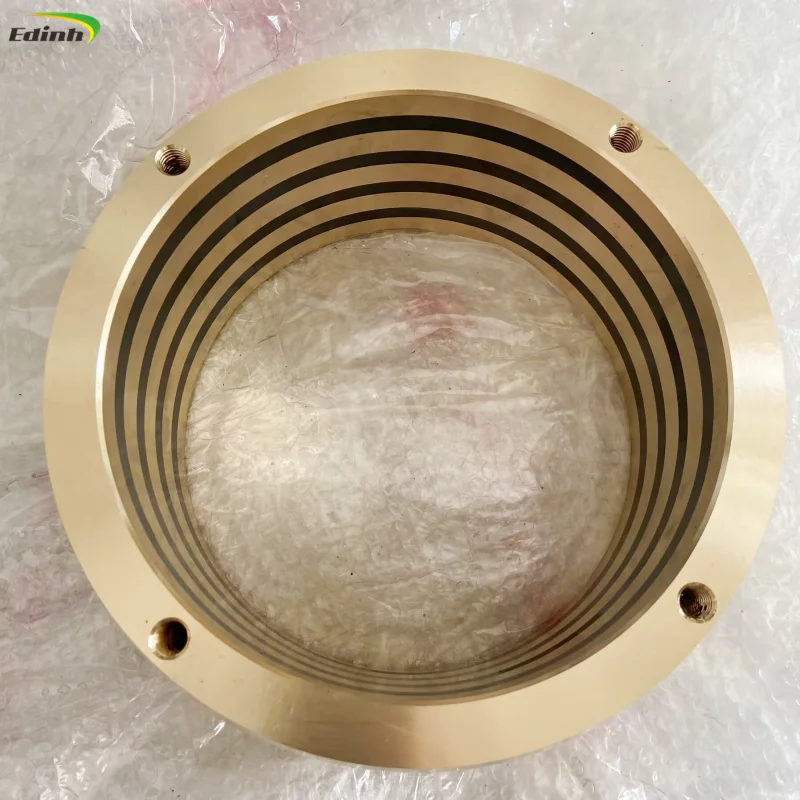

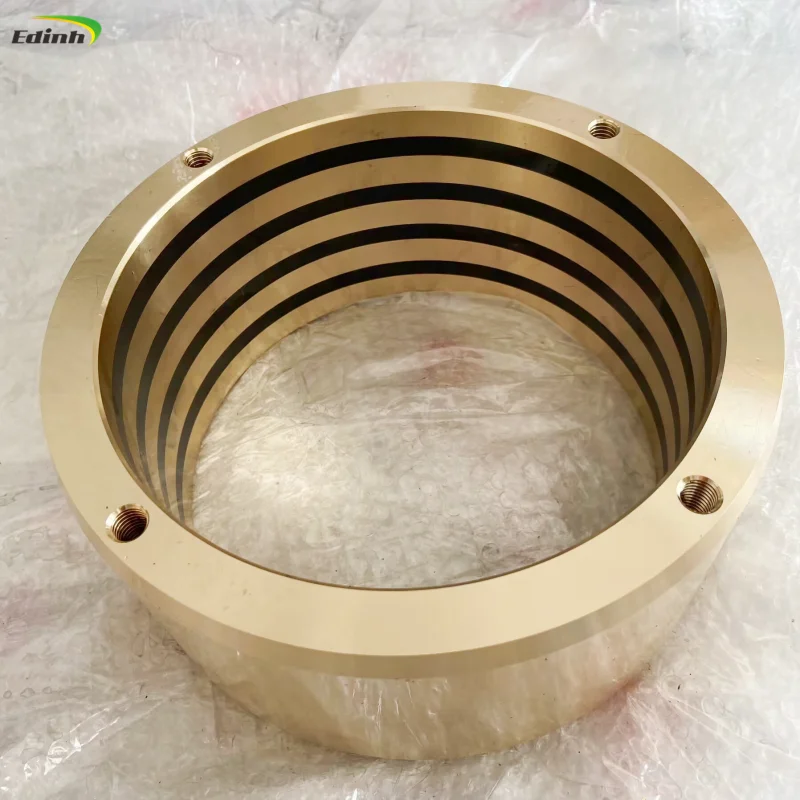

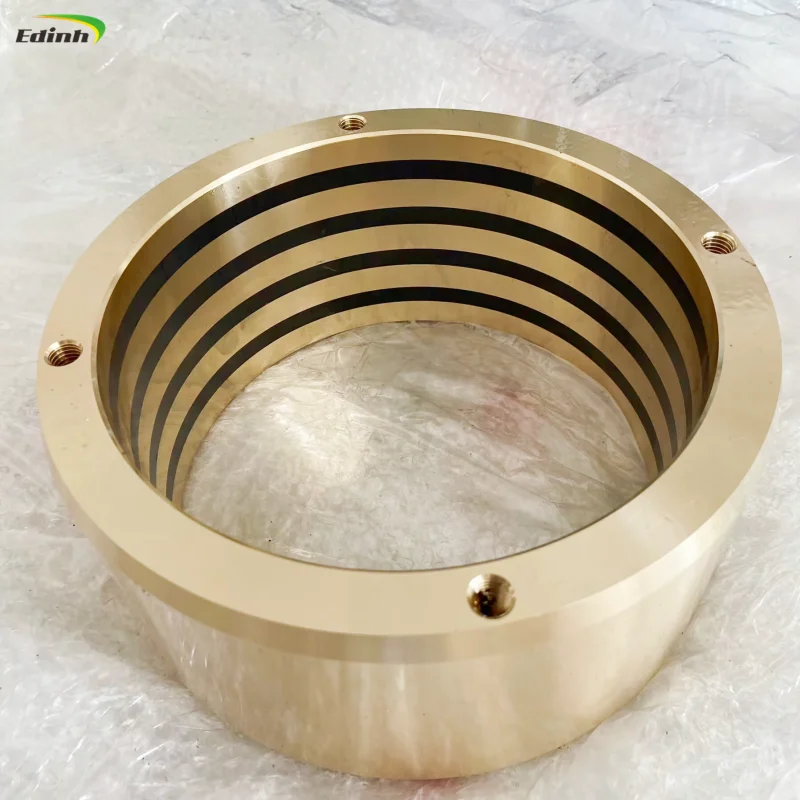

Customized Copper Graphite Bushing Copper Tile Graphite Bushing For All Kinds Of Punch Press Machinery
Product Description
Oil Free Composite Copper Alloy Graphite Plugged Brass Shaft Bushing Bearing
Oil-free bushing fixing method
When pressing the oil-free bushing, use a vise or punch to press it in quietly. In order to facilitate the press-in, it is recommended to chamfer the end of the inner diameter of the fixed seat, apply a small amount of lubricating oil to the inner diameter of the fixed seat and the outer diameter of the bushing.
Anti-rotation screw/bonding
Note that when the oil-free bushing is prevented from falling off and turning, it is recommended to use the following methods depending on the conditions of use and the environment.
When pressing the oil-free bushing, use a vise or punch to press it in quietly. In order to facilitate the press-in, it is recommended to chamfer the end of the inner diameter of the fixed seat, apply a small amount of lubricating oil to the inner diameter of the fixed seat and the outer diameter of the bushing.
Anti-rotation screw/bonding
Note that when the oil-free bushing is prevented from falling off and turning, it is recommended to use the following methods depending on the conditions of use and the environment.

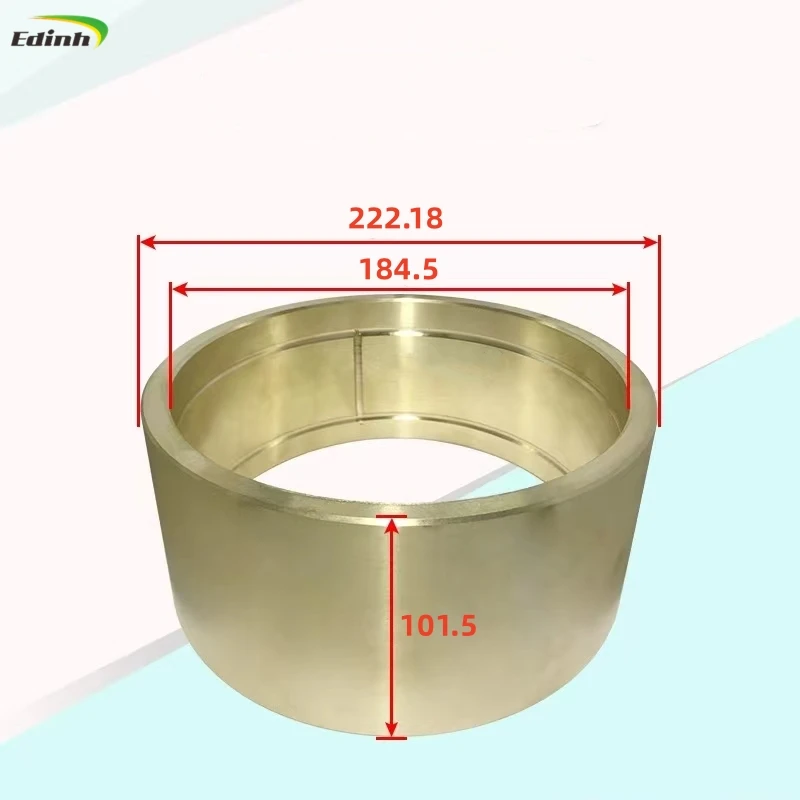

size information

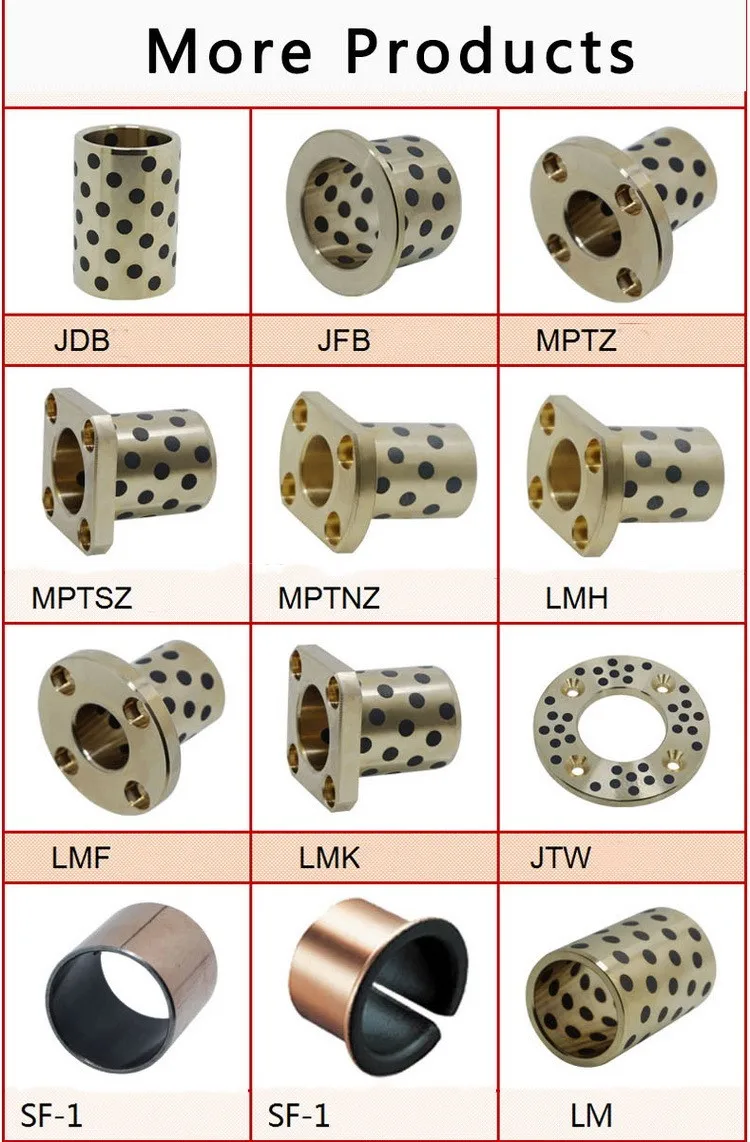

Our Main Products
ZCuSn10Pb1
High hardness, excellent wear resistance, not easy to produce bite death, good casting performance and cutting performance, good corrosion resistance in atmosphere and fresh water.
It can be used for high load (below 20Mpa) and high sliding speed (8m/s) for wear-resisting parts, such as connecting rod, bushing, bearing shell, gear, worm wheel, etc.
ZCuSn10Pb5
Corrosion resistant, especially for dilute sulfuric acid, hydrochloric acid and fatty acids.
Structural materials, corrosion resistant, acid - resistant accessories and crusher bushing, bushing.
ZCuPb10Sn10
Good lubrication performance, wear resistance and corrosion resistance, suitable for bimetal casting materials. Bearing, load peak of 100Mpa internal combustion engine bimetal bearing, and piston pin sleeve, friction plate, etc.
ZCuPb15Sn8
In the absence of lubricants and water lubricants, the sliding and self-lubricating properties are good, easy to cut, poor casting performance, and good corrosion resistance to dilute sulphuric acid.
Surface pressure is high, and the lateral pressure of bearing, copper cooling pipe can be made from cold rolling mill, impact resistance load of up to 50 mpa parts, internal combustion engines of bimetallic bearing, mainly used for the biggest load of 70 mpa of piston pin set, acid-proof accessories.
ZCuZn38Mn2Pb2
Good mechanical properties and corrosion resistance, good wear resistance and good cutting performance. General use of structural parts, ships, instruments and other simple types of casting, such as sleeve, bushing, bushing, sliding block and so on
High hardness, excellent wear resistance, not easy to produce bite death, good casting performance and cutting performance, good corrosion resistance in atmosphere and fresh water.
It can be used for high load (below 20Mpa) and high sliding speed (8m/s) for wear-resisting parts, such as connecting rod, bushing, bearing shell, gear, worm wheel, etc.
ZCuSn10Pb5
Corrosion resistant, especially for dilute sulfuric acid, hydrochloric acid and fatty acids.
Structural materials, corrosion resistant, acid - resistant accessories and crusher bushing, bushing.
ZCuPb10Sn10
Good lubrication performance, wear resistance and corrosion resistance, suitable for bimetal casting materials. Bearing, load peak of 100Mpa internal combustion engine bimetal bearing, and piston pin sleeve, friction plate, etc.
ZCuPb15Sn8
In the absence of lubricants and water lubricants, the sliding and self-lubricating properties are good, easy to cut, poor casting performance, and good corrosion resistance to dilute sulphuric acid.
Surface pressure is high, and the lateral pressure of bearing, copper cooling pipe can be made from cold rolling mill, impact resistance load of up to 50 mpa parts, internal combustion engines of bimetallic bearing, mainly used for the biggest load of 70 mpa of piston pin set, acid-proof accessories.
ZCuZn38Mn2Pb2
Good mechanical properties and corrosion resistance, good wear resistance and good cutting performance. General use of structural parts, ships, instruments and other simple types of casting, such as sleeve, bushing, bushing, sliding block and so on
Company Information
ZAOZHUANG YIDING BEARING CO.,LTD
ls specialized in bearings export production selling and after-service. In practice for many years,we established strict quality assurance system.
Our products range covers Cylindrical Roller Bearing, Needle Roller Bearing, Tapered RollerBearing, Spherical roller bearing, Deep Groove Ball Bearing, Angular Contact Ball Bearing (single row& double row),Thrust Ball/Roller Bearing, Linear bearing,Plain shaft(Axis) series, Linear guide rail,Rod end bearing, Joint bearing, Stainless Steel Bearings, Ceramic bearings,Plastic bearing, Thinwall bearing, Excavator bearing, Rotor bearing and so on. They are widely used in applications likeAgriculture, Automotive, Steel industry, Pumps & Compressors, Railways, Mining & Construction,Motorcycles, Electric Motors,Printing and Power Tools, etc.
We can do OEM products, and do following drawings.
We are the agent of world famous brands:NSK NTN KOYO NACHI ASAHI KO THK UBC NMB DPI and so on.
Our principle is service and quality Firstl! By ceaselessly improve our quality and, our products win highpraise for our favorable price...
Packing & Shipping
package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
FAQ
Q1: What the MOQ of your company?
Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter highercost,
ure the more you purchase the cheaper cost you could get.
Q2: Could you accept OEM and customize?
Yes,we can customize for you according to sample or drawing.
Q3: Could you supply sample for free?
Yes,we can supply sample for free,do you mind to buy her a ticket?
Q4: Dose your factory have any certificate?
Yes we have ISO 9001:2008,IQNET and SGS. If you want other like CE ,we can do for you.
Q5: IS you company factory or Trade Company?
We have our own factory ;our type is factory +trade.
Q6: Could you tell me the material of your bearing?
We have chrome steel, and stainless steel,ceramic and plastic material.
Q7: Could you offer door to door service?
Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
Q8: Could you tell me the payment term of your company can accept?
T/T.Western Union,PayPal
Q9: Could you tell me the delivery time of your doors?
If stock,in 7days or base on your order quantity
Q10:Can you give me some discount?
Yes, you can, contact me immediately to get more discounts.
