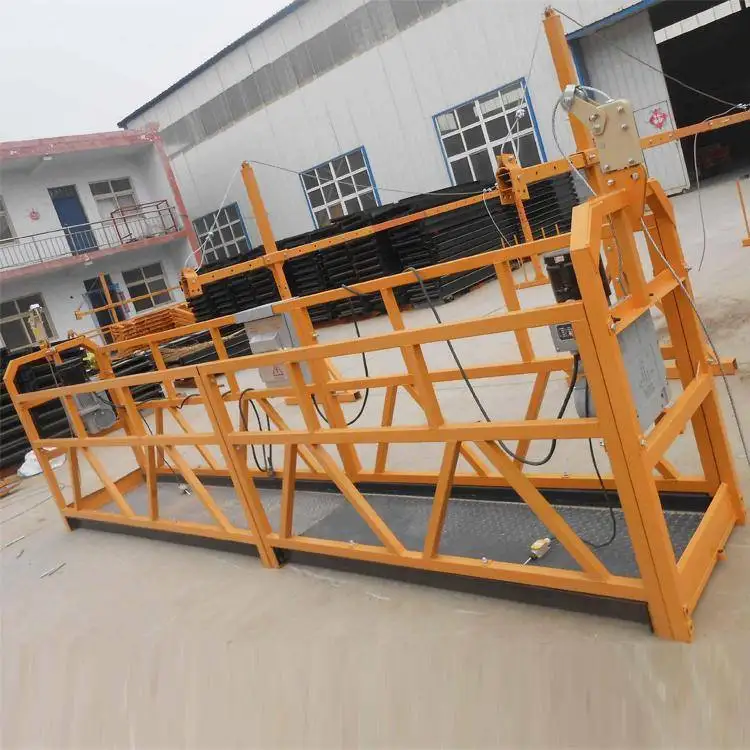

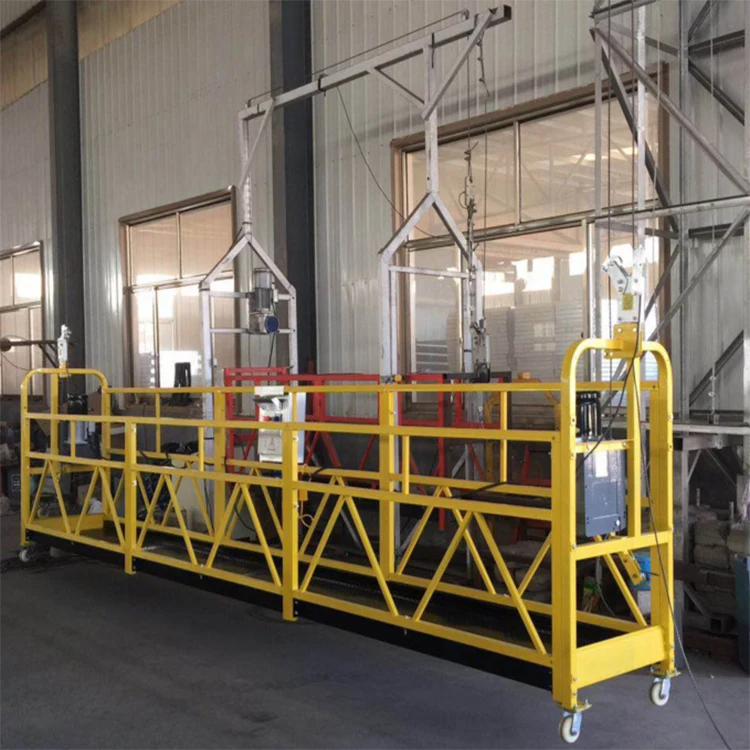

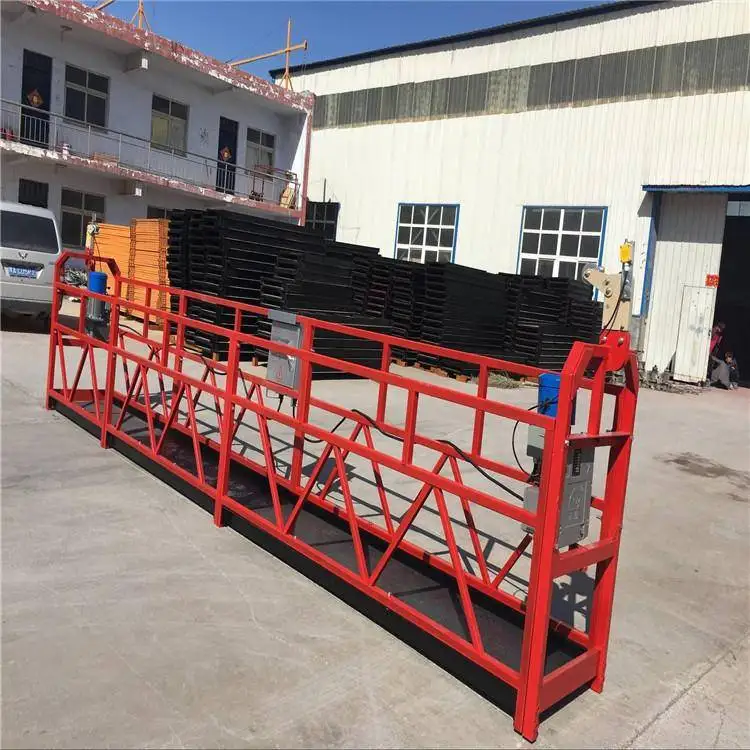

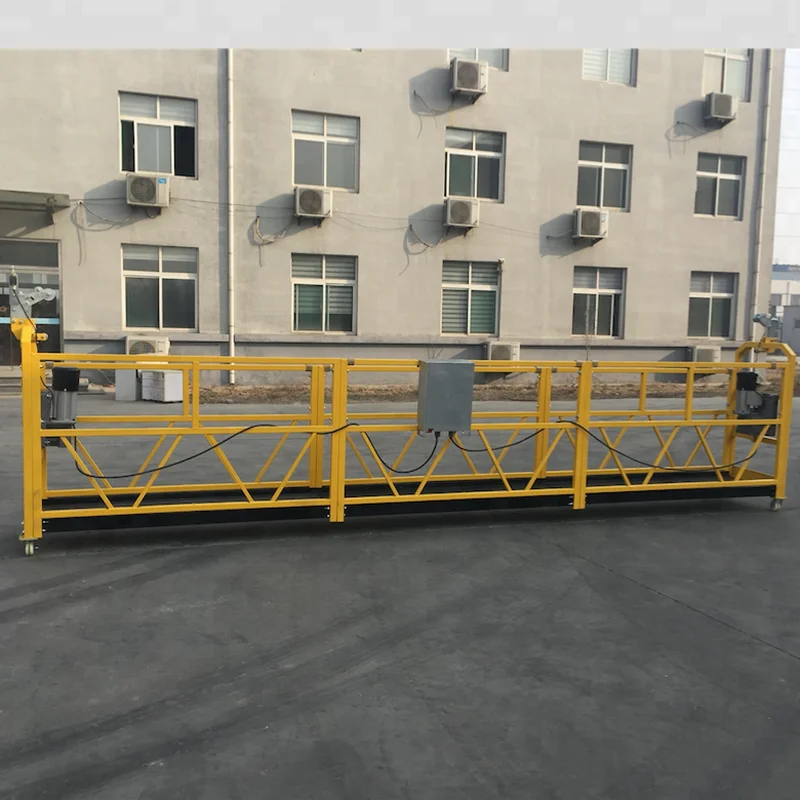

ZLP800 Steel Work Platform Building Maintenance Window Clean Lifting Gondola Cradle Platform
- Category: >>>
- Supplier: Shanghai Power Engineering Machinery Co. Ltd.
Share on (1600981585605):
Product Overview
Description
Product description
Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.
Why Suspended Platform Cradles?
1. The most stable and secure while moving and working.
2. Easy to disassemble, assemble operate and maintain.
3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many
2. Easy to disassemble, assemble operate and maintain.
3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many
site configurations.
4. Composed of 70% aluminum, they are both lightweight and corrosion resistant.
5. Easy to transport where each platform is packed in its own box.
6. Works and fits tanks, bridge piers or towers.
7. Anti-slipping aluminum base platform.
8. Cradle is provided with soft non-marking facade rollers, to protect facade from any
damages during operation manual lowering in case of power or winch failure.
9. Has electrical of IP 54 protection.
10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices.
11. Castor wheels for transportatio.
4. Composed of 70% aluminum, they are both lightweight and corrosion resistant.
5. Easy to transport where each platform is packed in its own box.
6. Works and fits tanks, bridge piers or towers.
7. Anti-slipping aluminum base platform.
8. Cradle is provided with soft non-marking facade rollers, to protect facade from any
damages during operation manual lowering in case of power or winch failure.
9. Has electrical of IP 54 protection.
10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices.
11. Castor wheels for transportatio.

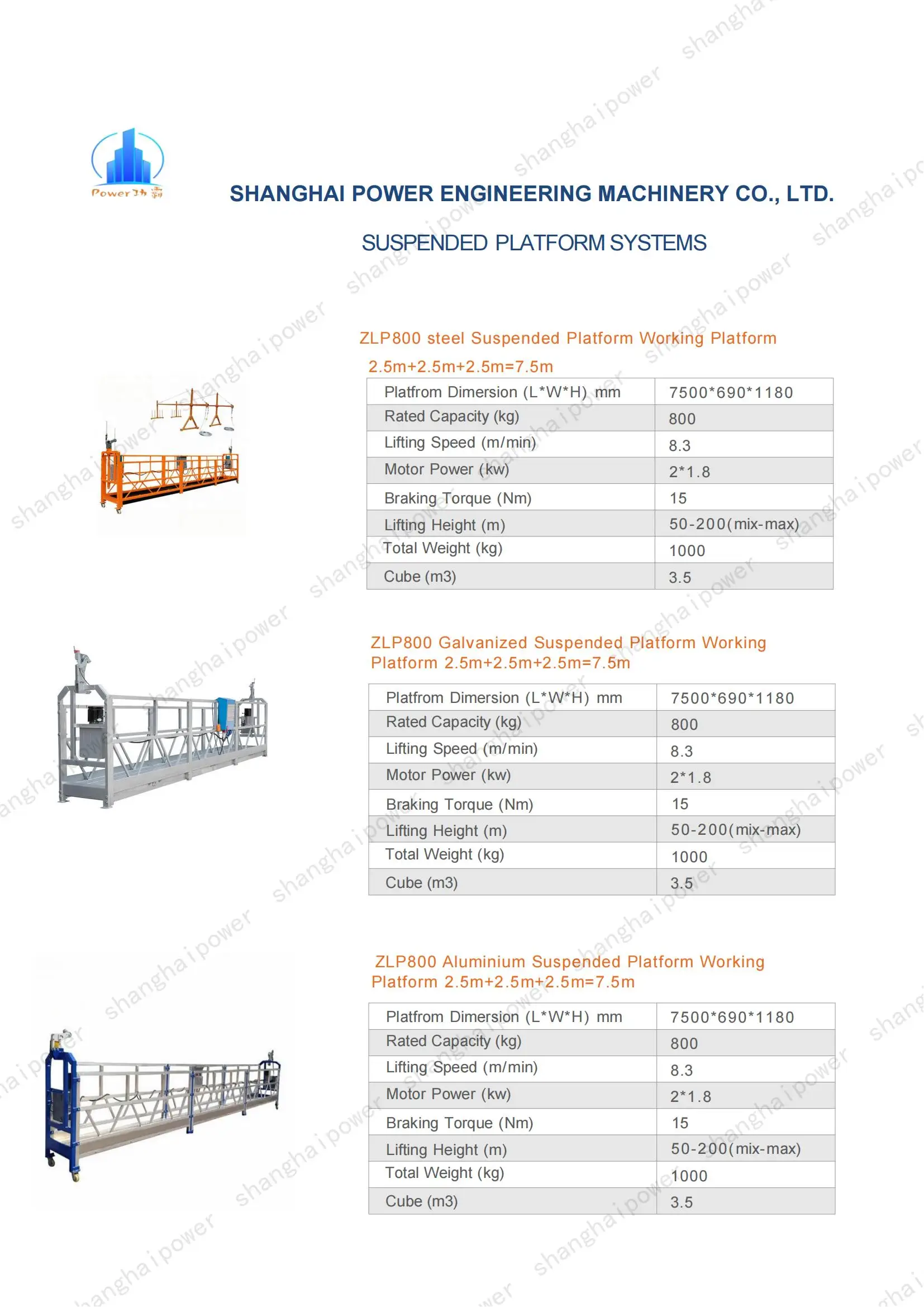

Parameters of ZLP800 Suspended Platform | ||
Type | Bolt Type | |
1. Rated Load | 800kg | |
2. Lifting speed | 9.3m/min | |
3. Lifting height | 50m | |
4. Hoist | LTD8.0 | |
4.1 Power | 1.8kw, 2 Pcs | |
4.2 Voltage | 380V 50Hz 3PH | |
5. Safety Lock | LSG30, use 9.1mm Steel Rope | |
6. Electric Cabinet | 380V 50Hz 3PH | |
7. Platform Sise | L=7.5m(2.+2+2+1.5), W=0.69, H=1.18m | |
8. Steel Wire Rope | 4pcs, 100m/pcs, D=9.1mm | |
9. Electric Cable | 1pcs, 100m/pcs, 2.5mm2 | |
10. Safety Rope | 1pcs, 100m/pcs | |
11. Gross Weight (without Counterweight) | 980kg | |
12. Counter Weight (Optional) | Cement, 1000kg, 40pcs, 25kg/pcs | |
13. Quantity of one 20" Container | 13 sets | |
Component Series
Hoist | ||
Model | LTD6.3 | |
Quantity | 2 pcs | |
Lifting Speed | 9.3±0.5m/min | |
Lifting Force | 8.3KN | |
Motor Brand | Tianjin YONGHENG | |
Power | 1.5kw*2，1.8kw*2，2.2kw*2 | |
Voltage | 3 Phase 380V 50Hz | |
Rotational Speed | 1420rpm | |
Model: LSG30
Quantity: 2 pcs
Locking Rope Angle: 3°~8°
Allow impulsive force: 30KN
Steel Wire Diameter: 8.3mm
Weight:5kgx2
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.
Quantity: 2 pcs
Locking Rope Angle: 3°~8°
Allow impulsive force: 30KN
Steel Wire Diameter: 8.3mm
Weight:5kgx2
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.
Steel Rope | ||
Length | 100 m/pc, 4pcs | |
Weight | 30 kg x 4 | |
Diameter | 9.1 mm | |
Nylon Safety Rope | 1 Pc=100 m | |
Electric Cable | 1 Pc=100 m, 1.5m-2.5mm2 | |
Counter Weight (Optional) | Cement or Cast Iron | |
With manual Switch
Voltage: 380V 50Hz 3PH
On Electric Control Cabinet, there are 4 buttons and a 220V 50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )
Successful Case
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity,
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity,
material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot
2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot
dip gavalnized surface.----
Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
4. What payment terms do you accept?
T/T, L/C, Alibaba trade.
5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality
Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
4. What payment terms do you accept?
T/T, L/C, Alibaba trade.
5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality
within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
6. Can you make suspended platform with our brand?
Yes.
7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
