Product Overview
Description

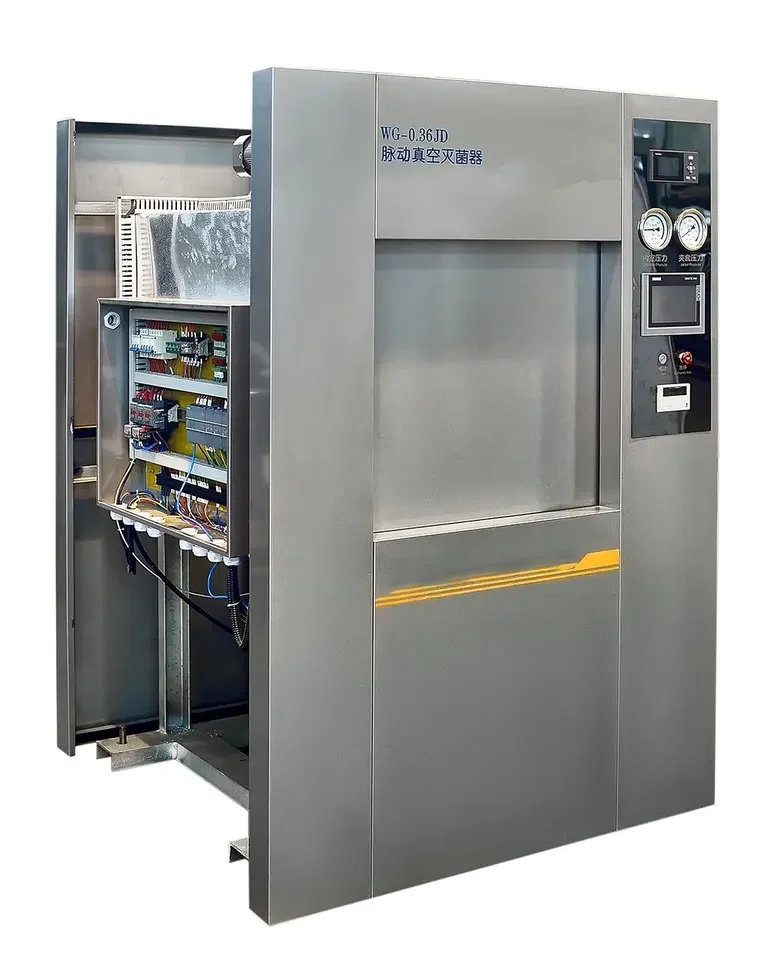

WG Series Pulse Vacuum Autoclave
WG series pulsating vacuum sterilizers use saturated steam as the sterilizing medium, by relying on the physical property that the saturated steam can release a large amount of latent heat and moisture during condensation, it renders items to be sterilized in a highly heated and humid state. After a period of heat preservation, the purpose of sterilization is achieved. The effect of cold air on temperature is eliminated by means of pulsating vacuum exhaust, finally the items drying is realized by the vacuum de-humidification combined with jacket.
WG series pulsating vacuum sterilizers are mainly used in central sterile supply department, third-party disinfecting supply centers and operating rooms, where medical devices, dressings, rubber, lumen devices, implantable devices and liquids are sterilized.
PRODUCT PREVIEW
PRODUCT PREMETERS

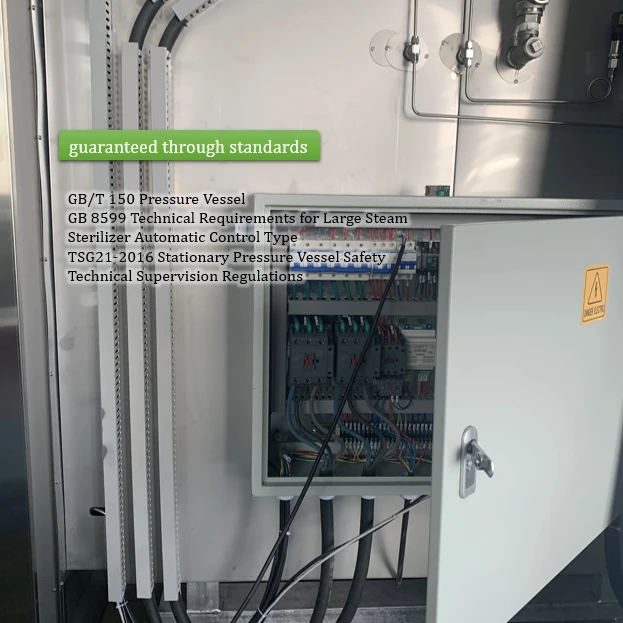

Design Standard | designed, manufactured and inspected by: GB/T 150 "Pressure Vessel" GB 8599 "Technical Requirements for Large Steam Automatic Control Type" TSG 21-2016 "Stationary Pressure Vessel Safety Technical Supervision Regulations" | ||||||||

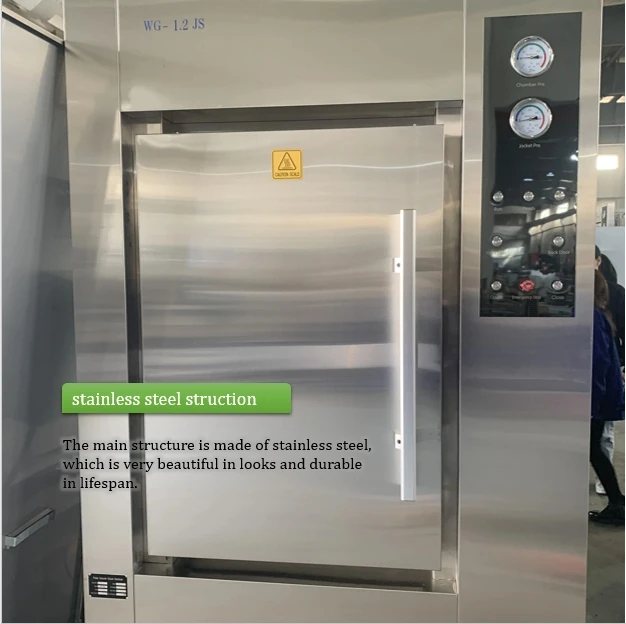

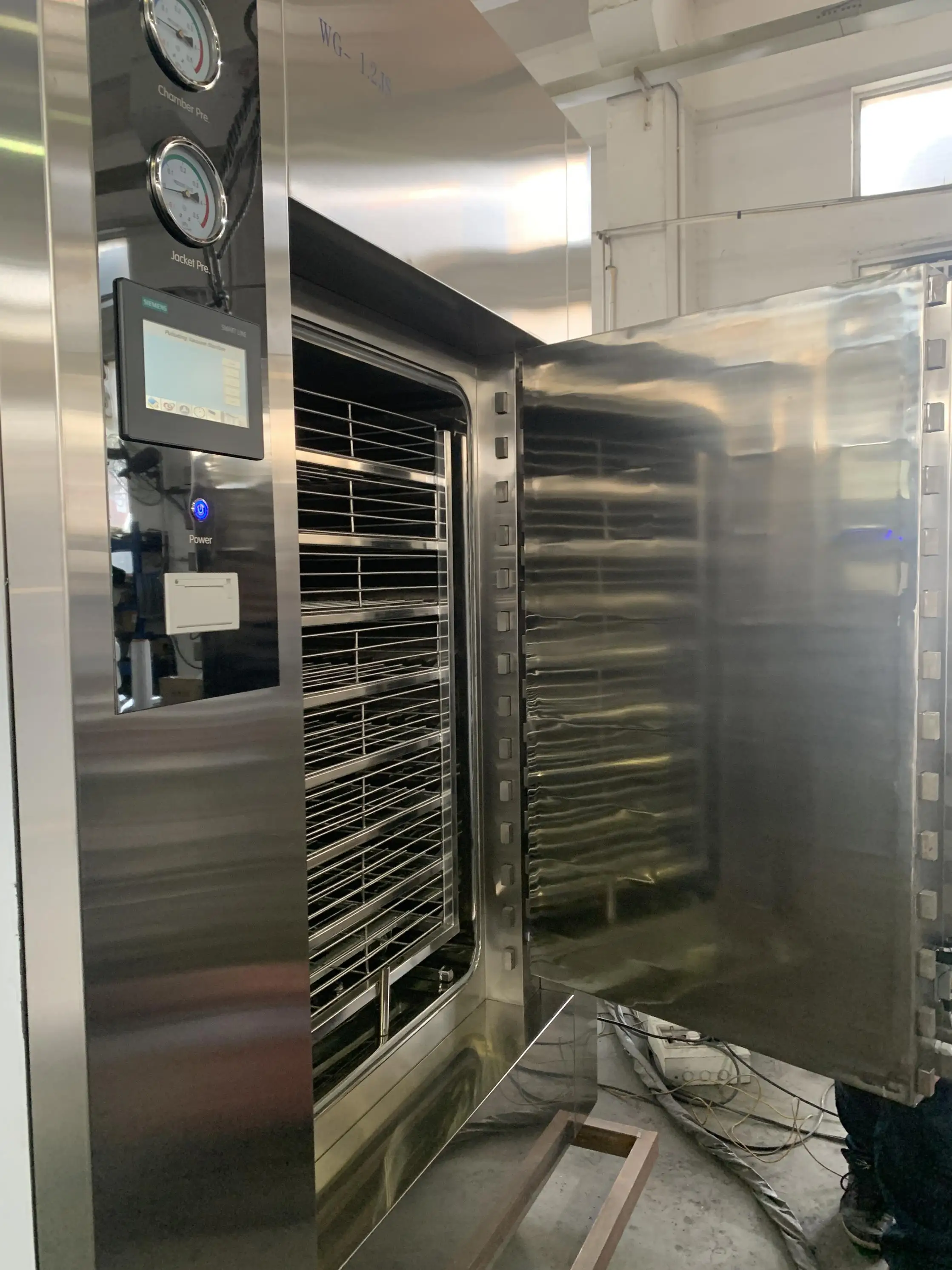

Main Stucture | rectangular cross section with european ring-type jacket and reinforced ribs, pneumatically sealed doors which are interlocked | ||||||||
Main Material | S30408 stainless steel: parts which are contacted with steam (interior liner, door panels) (316L optional) S30408 stainless steel: gear rack, teeth Q245R material: pressure vessels (S30408 optional) 204 stainless steel: sanitary pipes with clamp joints | ||||||||
Main Features | standard GMP authentication interface | ||||||||

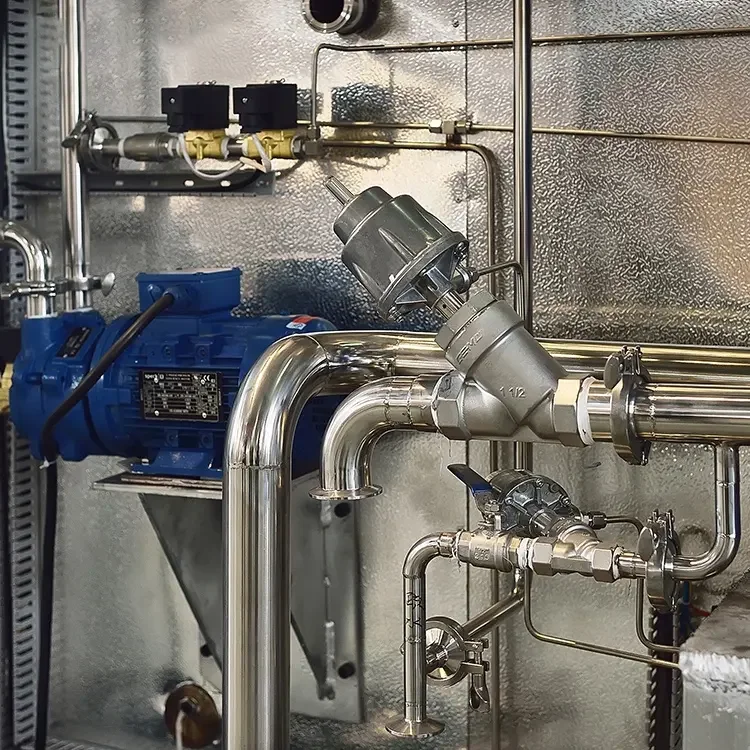

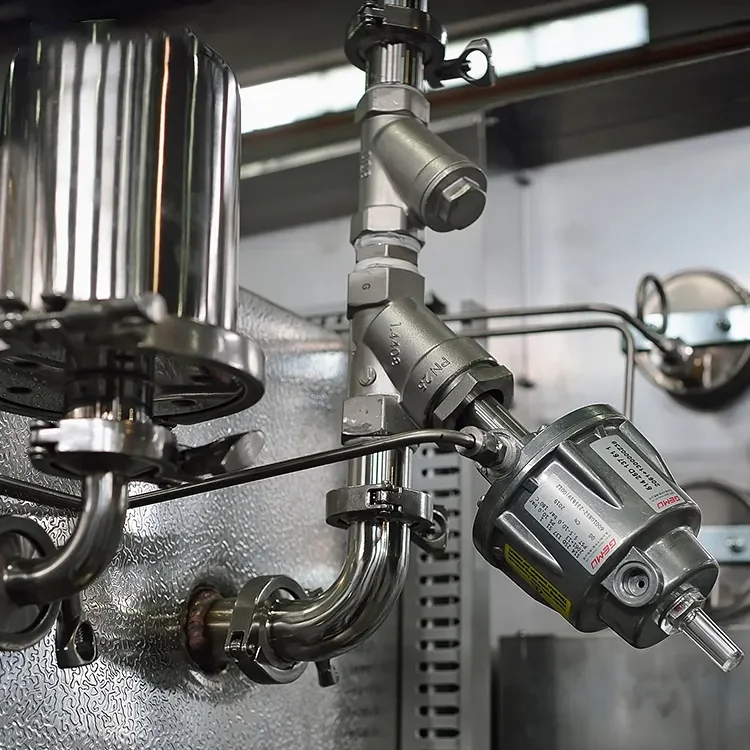

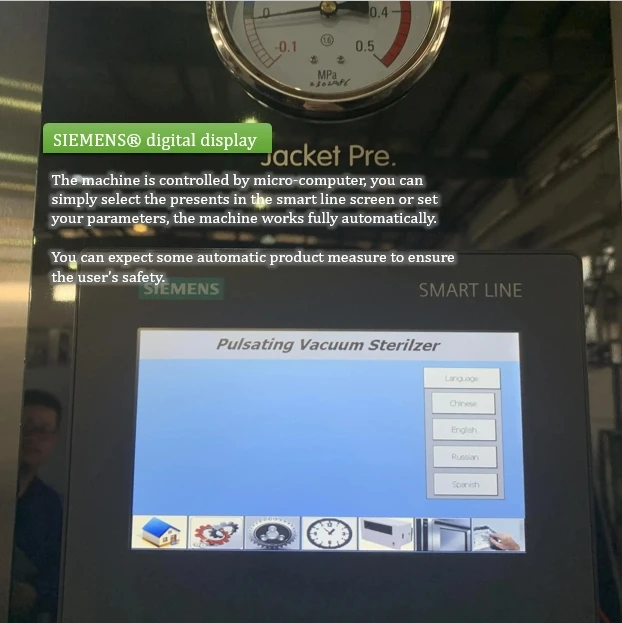

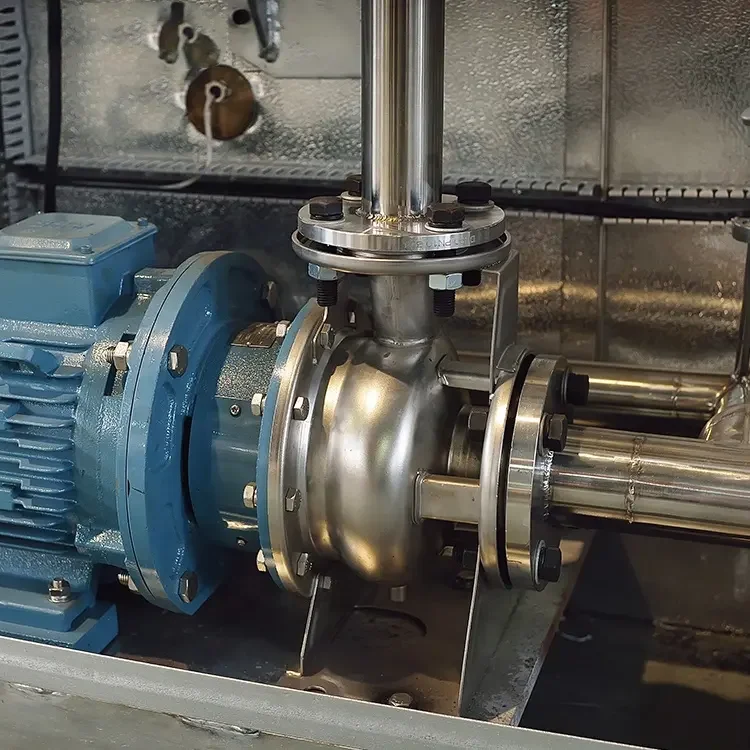

German GEMU angle seat pneumatic valves German SPECK water ring vacuum pump Taiwan AirTAC solenoid valves Siemens PLC and colourful touch screens | |||||||||
printer system to monitor its working process | |||||||||
communication interface connected with quality tracing system of disinfecting supply center | |||||||||
double pulsation to thoroughly disinfect interior air, with great drying performance | |||||||||
Optional Features | intellegent maintenance system with remote monitor and maintenace modules smart automatic drainage system, water-conservative noise reduction system and pipeline insulation treatment | ||||||||
Optional Feature | smart automatic drainage system, water-conservative noise reduction system and pipeline insulationtreatment | ||||||||
Designed Pressure of Inner Chamber | -0.1 MPa ~ 0.3 MPa | Opening Pressure for Inner Chamber's Safey Valve | 0.28 MPa | ||||||
Designed Pressure of Jacket | 0.3 MPa | Opening Pressure for Jacket's Safety Valve | 0.28 MPa | ||||||
Designed Temperature | 150 °C | Precision of Sterilization Temperature Control | 0 °C ~ 2 °C | ||||||
Maximum Working Pressure | 0.25 MPa | Temperature Uniformity | ±1 °C | ||||||
Maximum Working Temperature | 139 °C | Negative Pressure Pulsation Vacuum Amplitude and Times | A: -80 KPa ~ 0 KPa, T: 1 ~ 99 | ||||||
Vacuum Leakage Rate | ≤ 0.13 kPa/min | Times of Pulses Across Pressure | A: -80 KPa ~ 80 KPa, T: 1 | ||||||
Ultimate Vacuum | -97 kPa | Times of Positive Pressure Pulses | 1~3 | ||||||
