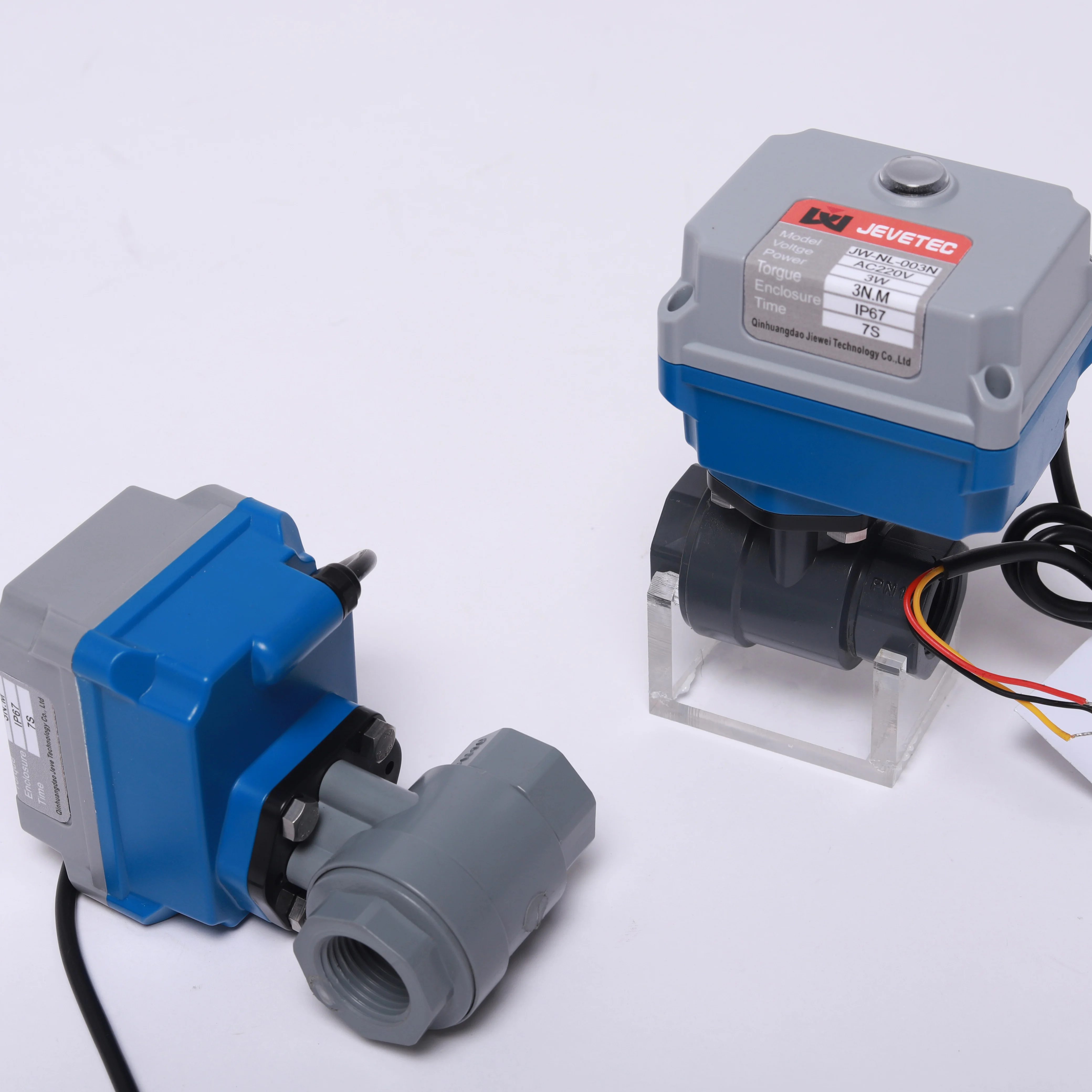

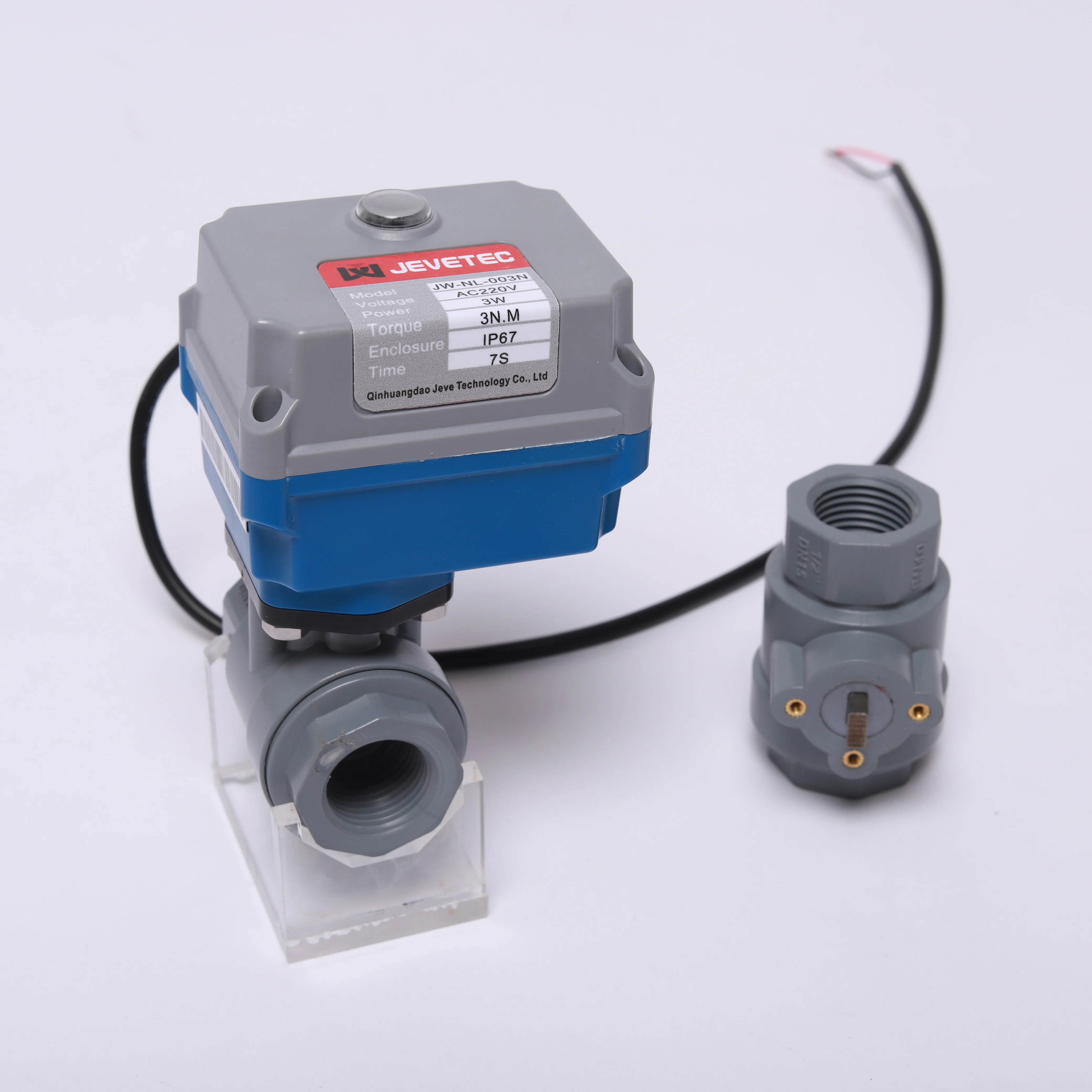

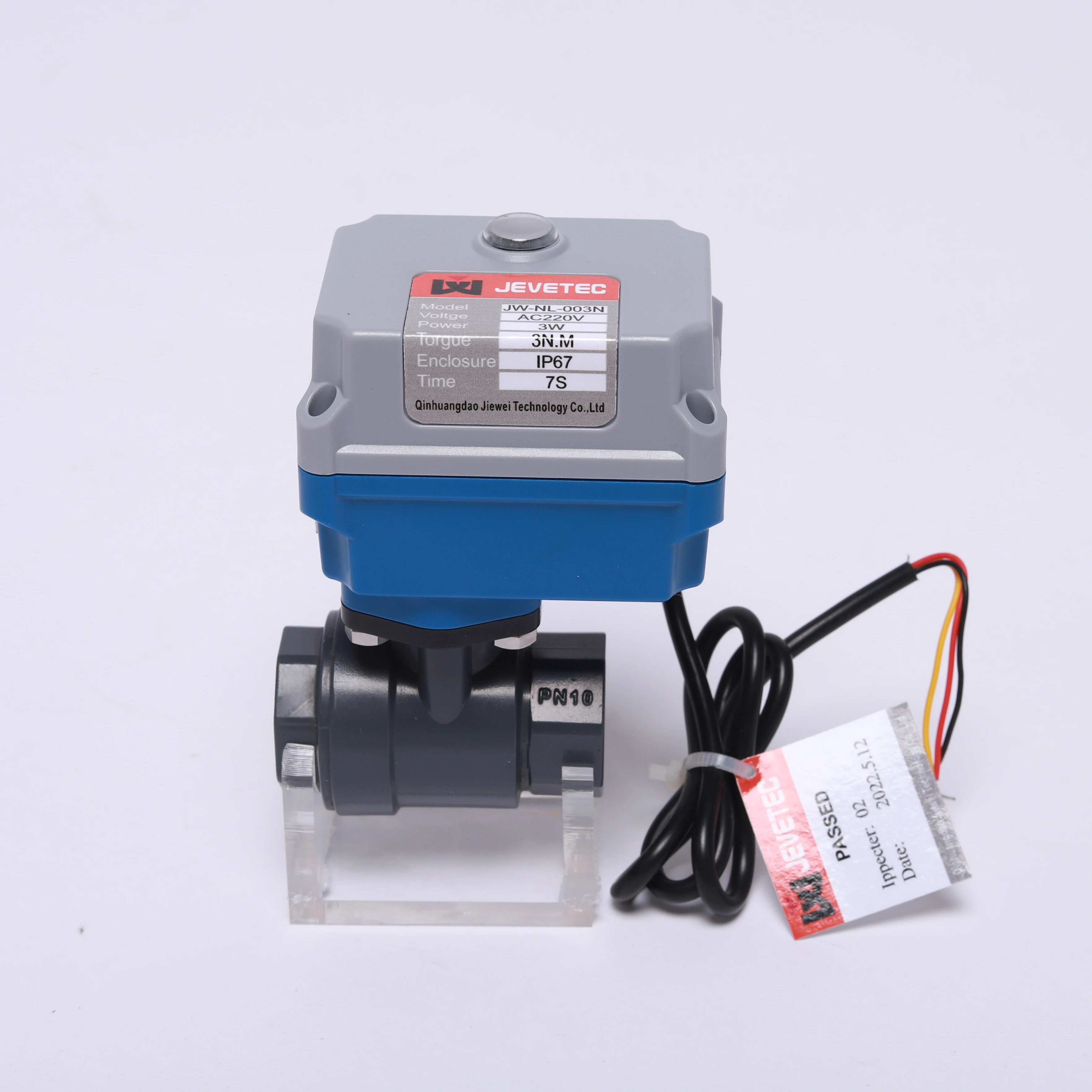

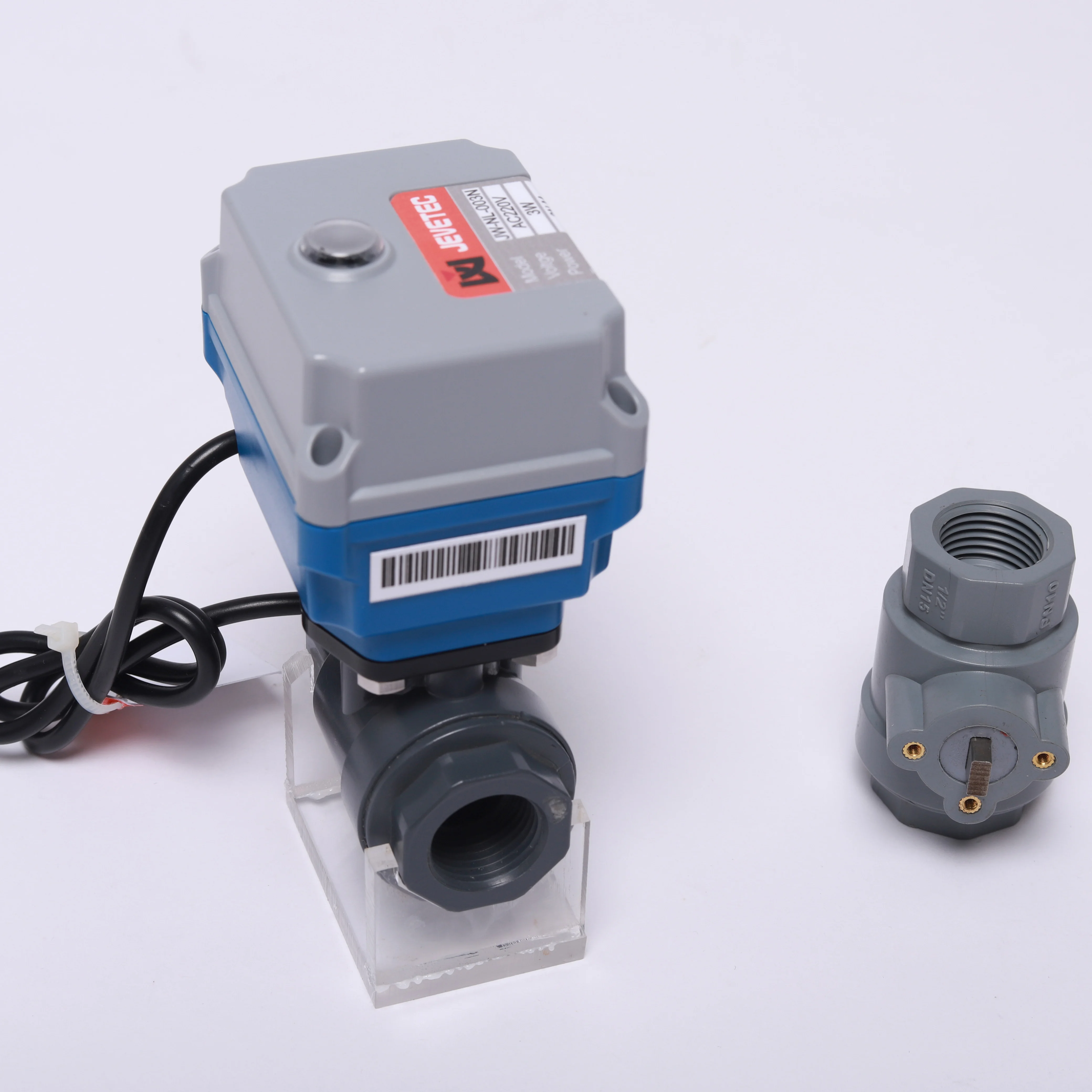

cwx25s 3v 12V mini smart actuator electric motorized ball valve
- Category: >>>
- Supplier: Qinhuangdao Yandakeli Plastic Co. Ltd.
Share on (1600981663233):
Product Overview
Description
Product Name: RS485 electric true union ball valve
Brief Introduction:
Materials
* Body:UPVC
* Seal O-ring:EPDM or FPM
End Connections
* Size:DN50-2”
* Connection:female threaded / male thread / barb / Spigots
* Pipe standard: ANSI/DIN/JIS/NPT/BSPT
Temperature and Pressure
* Temperature:0℃—55℃
* Pressure:<1.0Mpa
Motorized actuator
* 90°Rotatetime: 30 Secs
* Power supply:24VDC/12VDC/220VAC/24VAC
* Control way: RS485/4G/WIFI
* Rotation angle: 90°
* Signal output:4-20mA. 0-5V 5-10V
Brief Introduction:
Materials
* Body:UPVC
* Seal O-ring:EPDM or FPM
End Connections
* Size:DN50-2”
* Connection:female threaded / male thread / barb / Spigots
* Pipe standard: ANSI/DIN/JIS/NPT/BSPT
Temperature and Pressure
* Temperature:0℃—55℃
* Pressure:<1.0Mpa
Motorized actuator
* 90°Rotatetime: 30 Secs
* Power supply:24VDC/12VDC/220VAC/24VAC
* Control way: RS485/4G/WIFI
* Rotation angle: 90°
* Signal output:4-20mA. 0-5V 5-10V
