Best Materials Construction Columna Wall Ties Htt 16 in. 11 Gauge Galvanized Heavy Tension Tie Steel Flat Ties
- Category: >>>
- Supplier: Hebei Fulangsi Metal Wire Mesh Product Co. Ltd.
Share on (1600981701696):
Product Overview
Description
Products Description

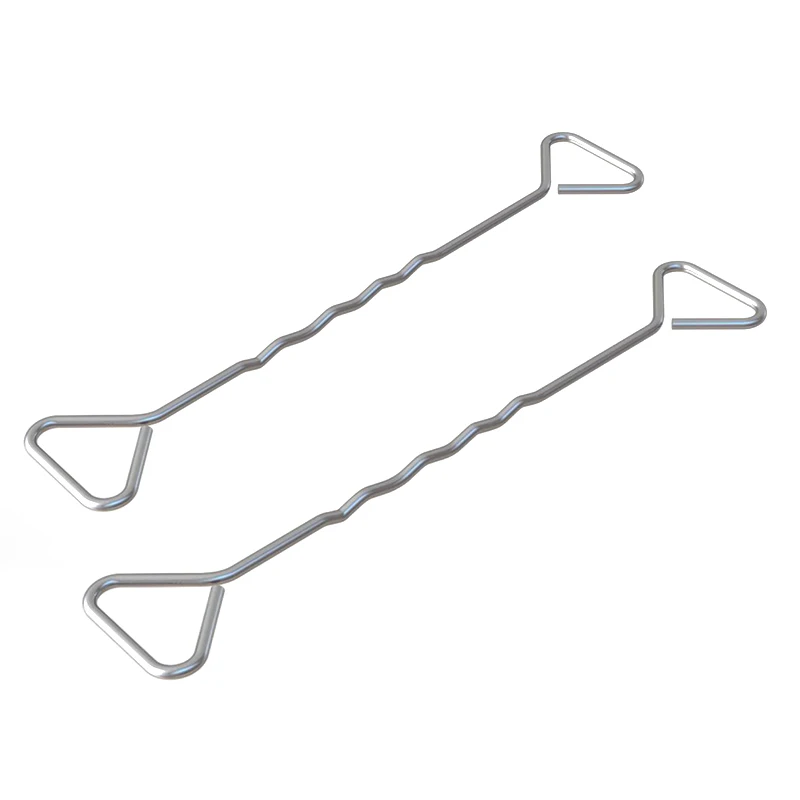

The Wall Ties

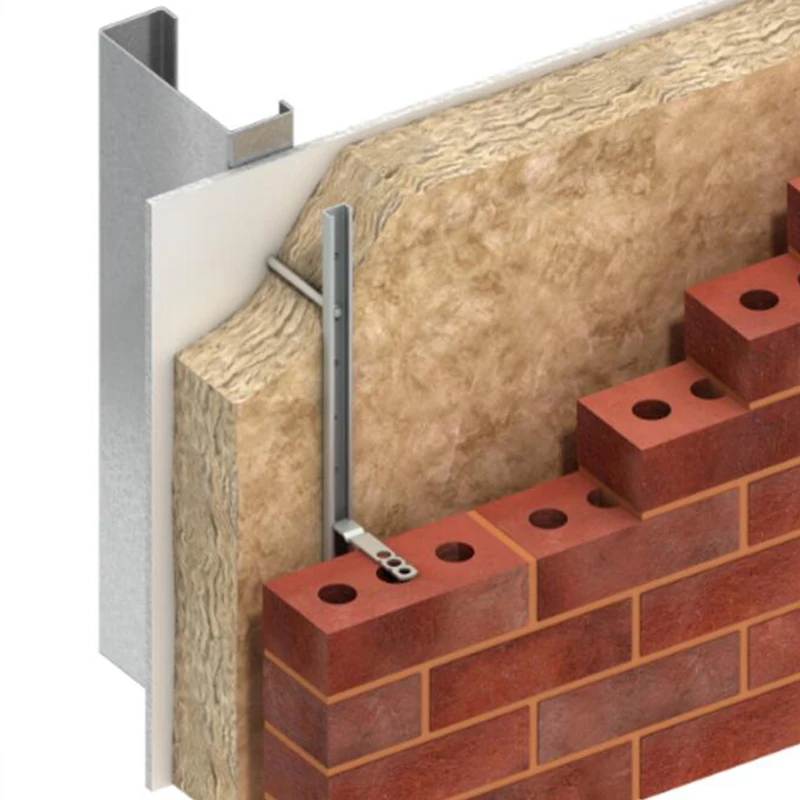

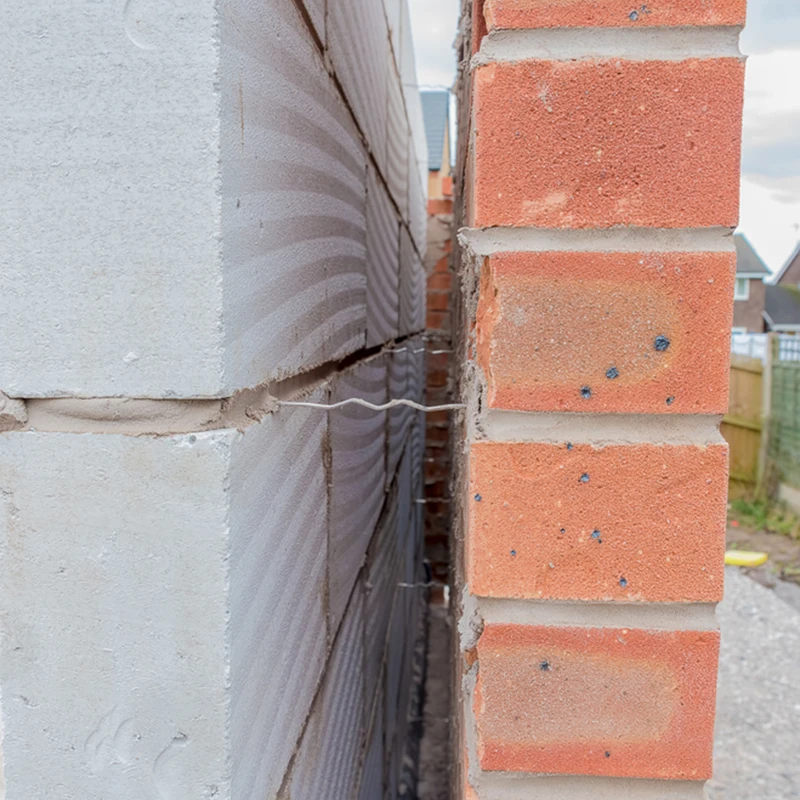

A range of wall ties specifically designed to secure wall skins and framework together to provide structural integrity through
various forms of movement and force. A wide-ranging choice of wall ties and fixings has been developed to provide the maximum
performance for any combination of materials used on a project.
various forms of movement and force. A wide-ranging choice of wall ties and fixings has been developed to provide the maximum
performance for any combination of materials used on a project.
WHICH WALL TIES SHOULD I USE? WE’VE GOT YOUR ANSWER..
With all the different tasks wall ties must perform and all the related regulations for their use, it’s no wonder the question ‘which wall tie do I use?’ is one we hear all the time. As the UK’s leading independent wall tie manufacturer, we are in a strong position to give you the correct advice.
It’s a complex area, so this blog won’t be covering every last detail of every wall tie we make. It’s simply intended to give you a sound overview of what can be used, where and why. If you would like further advice, our technical teams are always willing to answer any questions.
It’s a complex area, so this blog won’t be covering every last detail of every wall tie we make. It’s simply intended to give you a sound overview of what can be used, where and why. If you would like further advice, our technical teams are always willing to answer any questions.
WHAT ARE THE DIFFERENT TYPES OF WALL TIE
Type 1 – Heavy Duty Wall Tie
A heavy-duty wall tie suitable for most building sizes and types. These ties are rigid and should not be specified where large differential movements are expected or low strength masonry units are in use. They are suitable for buildings of any height and most UK locations. Vista Type 1 wall ties include the Wall TieT1, Wall TieE1, Wall TieS6 and the Neutras 1.
CODE | SIZE | CAVITY | UNITS |
Wall TieT1-200 | 200mm | 50-75mm | 250 box |
Wall TieT1-225 | 225mm | 76-100mm | 250 box |
Wall TieT1-250 | 250mm | 101-125mm | 250 box |
Wall TieT1-275 | 275mm | 126-150mm | 250 box |
Wall TieT1-300 | 300mm | 151-175mm | 250 box |
Wall TieT1-325 | 325mm | 176-200mm | 250 box |
Wall TieT1-350 | 350mm | 201-225mm | 250 box |
Type 2 – General Purpose Wall Tie
A general-purpose wall tie for applications such as small commercial buildings and domestic properties. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 31m/s and altitude is not greater
than 150m above sea level. When you’re ordering Type 2 ties, ask for Wall TieN2, Wall TieE2, Wall TieV26 Neutras 2 or Wall TieTPT.
than 150m above sea level. When you’re ordering Type 2 ties, ask for Wall TieN2, Wall TieE2, Wall TieV26 Neutras 2 or Wall TieTPT.
CODE | SIZE | CAVITY | UNITS |
Wall TieTPT-300 | 300mm | 151-175mm | 200 box |
Wall TieTPT-325 | 325mm | 176-200mm | 200 box |
Wall TieTPT-350 | 350mm | 201-225mm | 200 box |
Wall TieTPT-375 | 375mm | 226-250mm | 100 box |
Wall TieTPT-400 | 400mm | 251-275mm | 100 box |
Wall TieTPT-425 | 425mm | 276-300mm | 100 box |
Type 3 – General Purpose Wall Tie
As Type 2 above but where the basic wind speed does not exceed 27m/s. For a Type 3 tie ask for the Wall TieV26 300mm long.
purpose wall tie for applications such as small commercial buildings and domestic properties. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 31m/s and altitude is not greater than 150m above sea level.
CODE | SIZE | CAVITY | UNITS |
Wall TieV26-150 | 150mm | 0mm | 250 bundle |
Wall TieV26-250 | 250mm | 101-125mm | 250 bundle |
Wall TieV26-275 | 275mm*† | 126-150mm | 250 bundle |
Wall TieV26-300 | 300mm*† | 151-175mm | 250 bundle |

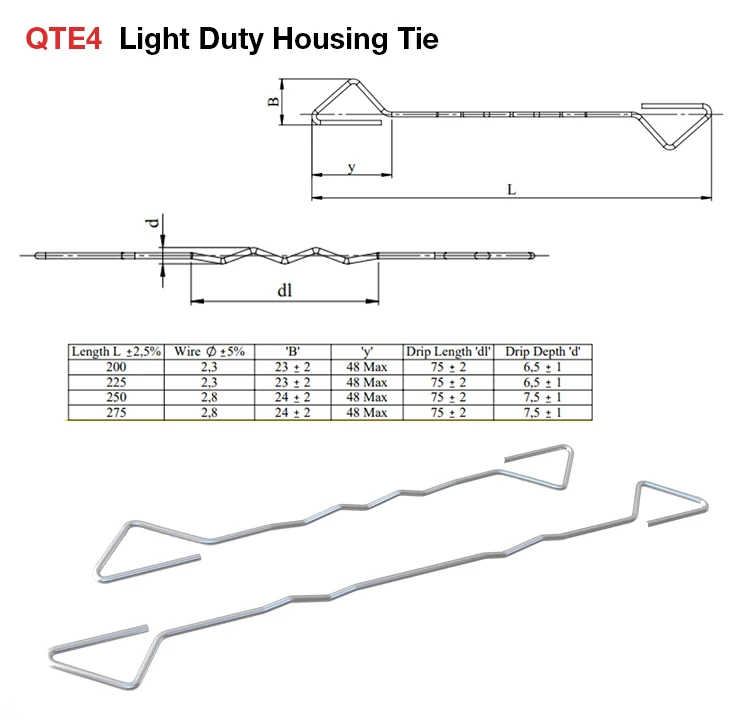

Type 4 – Light Duty Wall Tie
A light duty wall tie used in box-form domestic dwellings that have inner and outer leaves of a similar thickness. They are
suitable for buildings with a maximum height if 10m and for flat sites where the basic wind speed is up to 27m/s and altitude is
not greater than 150m above sea level. The Wall TieE4 light duty housing tie is our standard Type 4 tie and the Neutras range are low
thermal conductivity wall ties.
suitable for buildings with a maximum height if 10m and for flat sites where the basic wind speed is up to 27m/s and altitude is
not greater than 150m above sea level. The Wall TieE4 light duty housing tie is our standard Type 4 tie and the Neutras range are low
thermal conductivity wall ties.
CODE | SIZE | CAVITY | UNITS |
Wall TieE4-200 | 200mm | 50-75mm | 250 box |
Wall TieE4-200-1 | 200mm | 50-75mm | 50 Bag |
Wall TieE4-225 | 225mm | 76-100mm | 250 box |
Wall TieE4-225-1 | 225mm | 76-100mm | 50 Bag |
Wall TieE4-250 | 250mm | 101-125mm | 250 box |
Wall TieE4-250-1 | 250mm | 101-125mm | 50 Bag |
Wall TieE4-275 | 275mm | 126-150mm | 250 box |
Wall TieE4-275-50BAG | 275mm | 126-150mm | 50 Bag |
WHAT’S THE BEST MATERIAL FOR WALL TIES?
In the past, galvanised wall ties have been shown to corrode badly within cavity walls. Therefore, all our cavity wall ties are manufactured from grade 304 stainless steel as standard, ensuring full corrosion resistance for the duration of the building design life.
Grade 316 stainless steel wall ties are also available for ties used in heavy industrial or marine environments.
The new basalt fibre composite NEUTRAS wall tie is an extremely versatile product and has been designed to serve as a uniquely adaptable substitute for traditional steel ties. Wall ties crossing a cavity act as a thermal bridge and it is becoming increasingly important to reduce this transmission in order to comply with Building Regulations. Our NEUTRAS range of low thermal conductivity wall ties have high structural performance levels. They can be excluded from the current U value calculations in EN ISO 6946 and provide a credible solution to new legislation requirements.
Grade 316 stainless steel wall ties are also available for ties used in heavy industrial or marine environments.
The new basalt fibre composite NEUTRAS wall tie is an extremely versatile product and has been designed to serve as a uniquely adaptable substitute for traditional steel ties. Wall ties crossing a cavity act as a thermal bridge and it is becoming increasingly important to reduce this transmission in order to comply with Building Regulations. Our NEUTRAS range of low thermal conductivity wall ties have high structural performance levels. They can be excluded from the current U value calculations in EN ISO 6946 and provide a credible solution to new legislation requirements.
---------------------------------------------------------------------------------
Brick mesh has the following product features:
Brick mesh has the following product features:
1.Easy to operate
2.can form an overall construction with great ensile strength
3.the pressure resistance
4.vibration-proof
5.bearing the temperature change
2.can form an overall construction with great ensile strength
3.the pressure resistance
4.vibration-proof
5.bearing the temperature change
Company Profile
Hebei Fu lang si Metal Wire Mesh Product Co.,LTD is located in Matun Industrial Zone nearby Anping Wire Mesh Town and is specialized in manufacturing Expanded Metal Lath, Rib Lath, Brick Lath and Decorative Wire Mesh .
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Certifications
FAQ
1、What is the material of your products ?
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
>>>Please send an inquiry to Contact us
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
