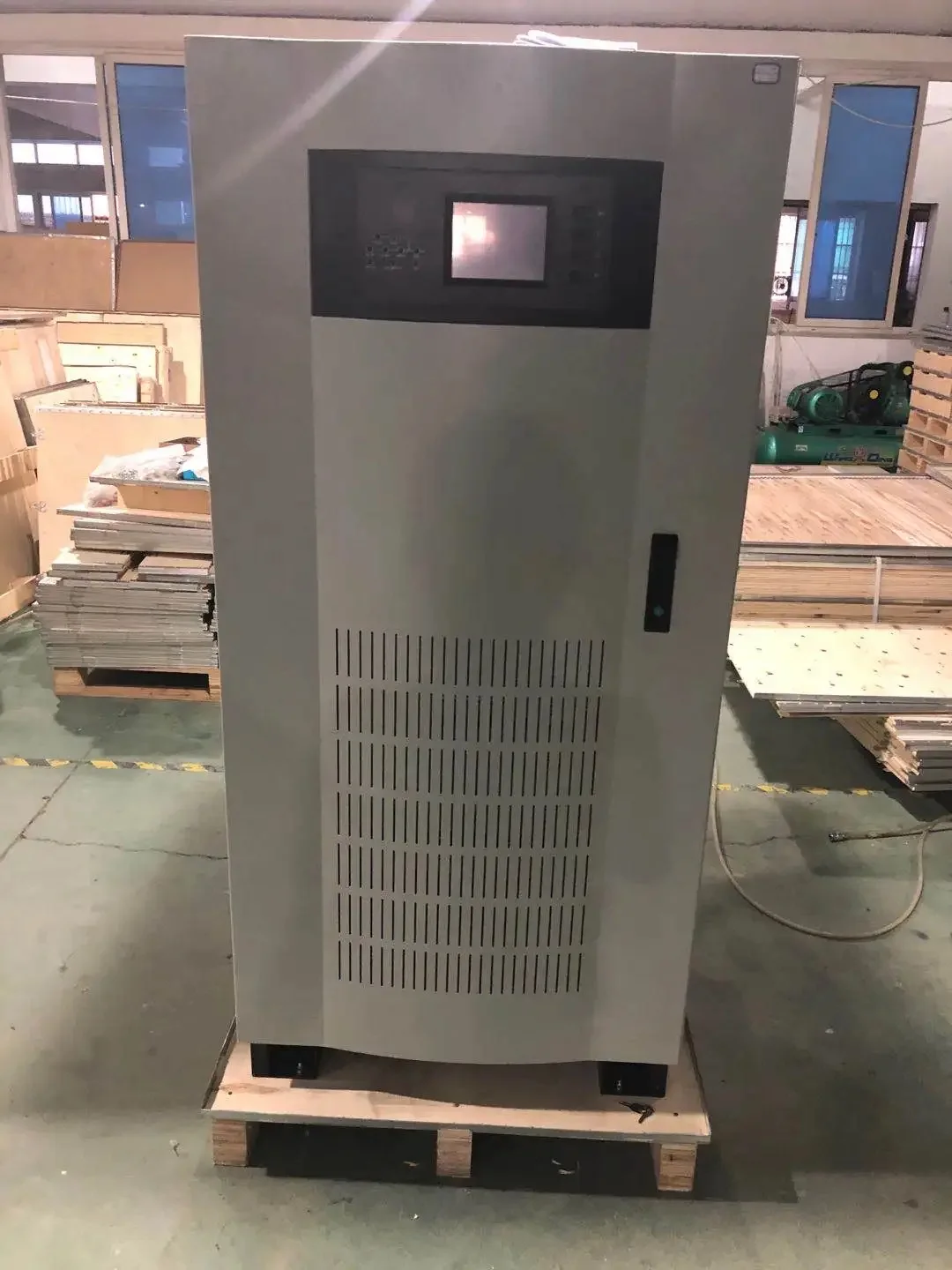

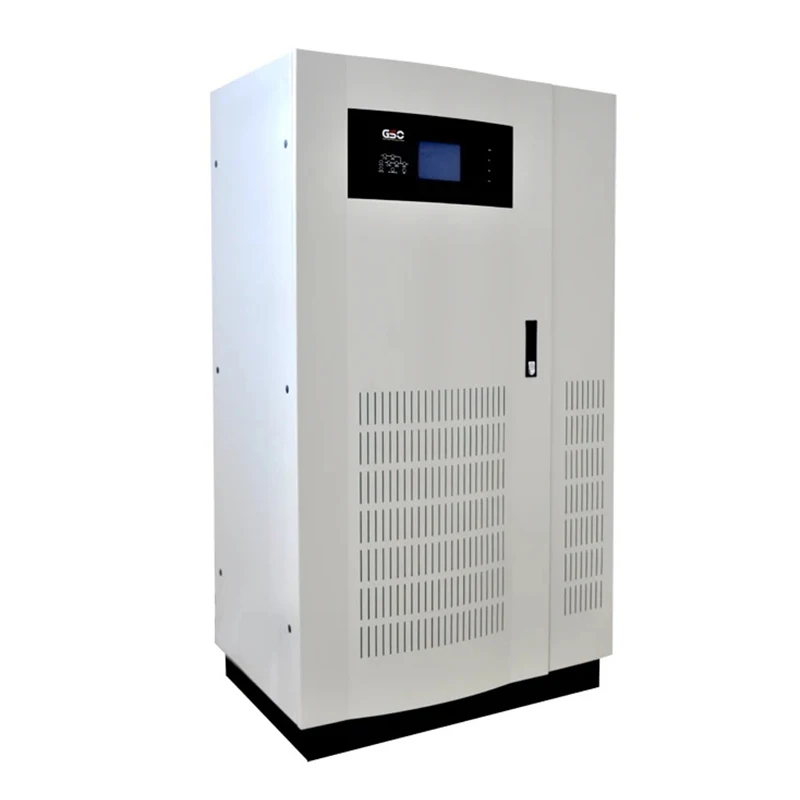

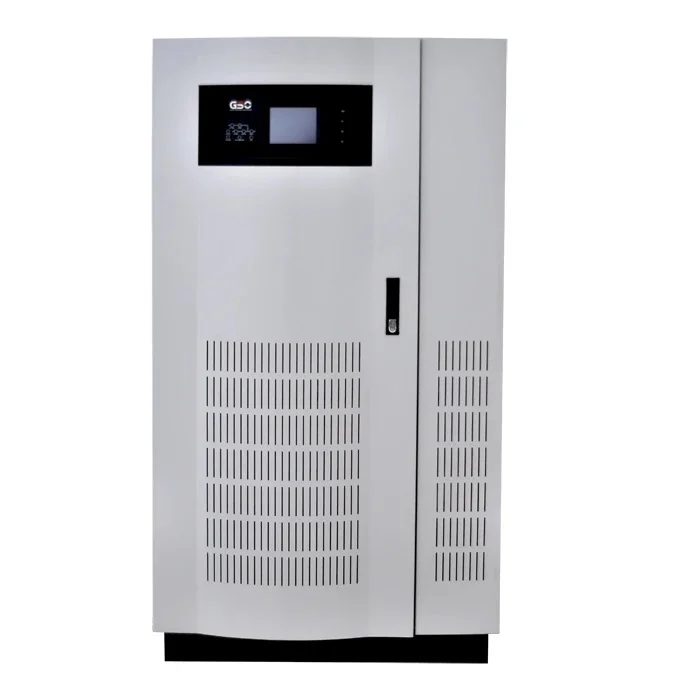

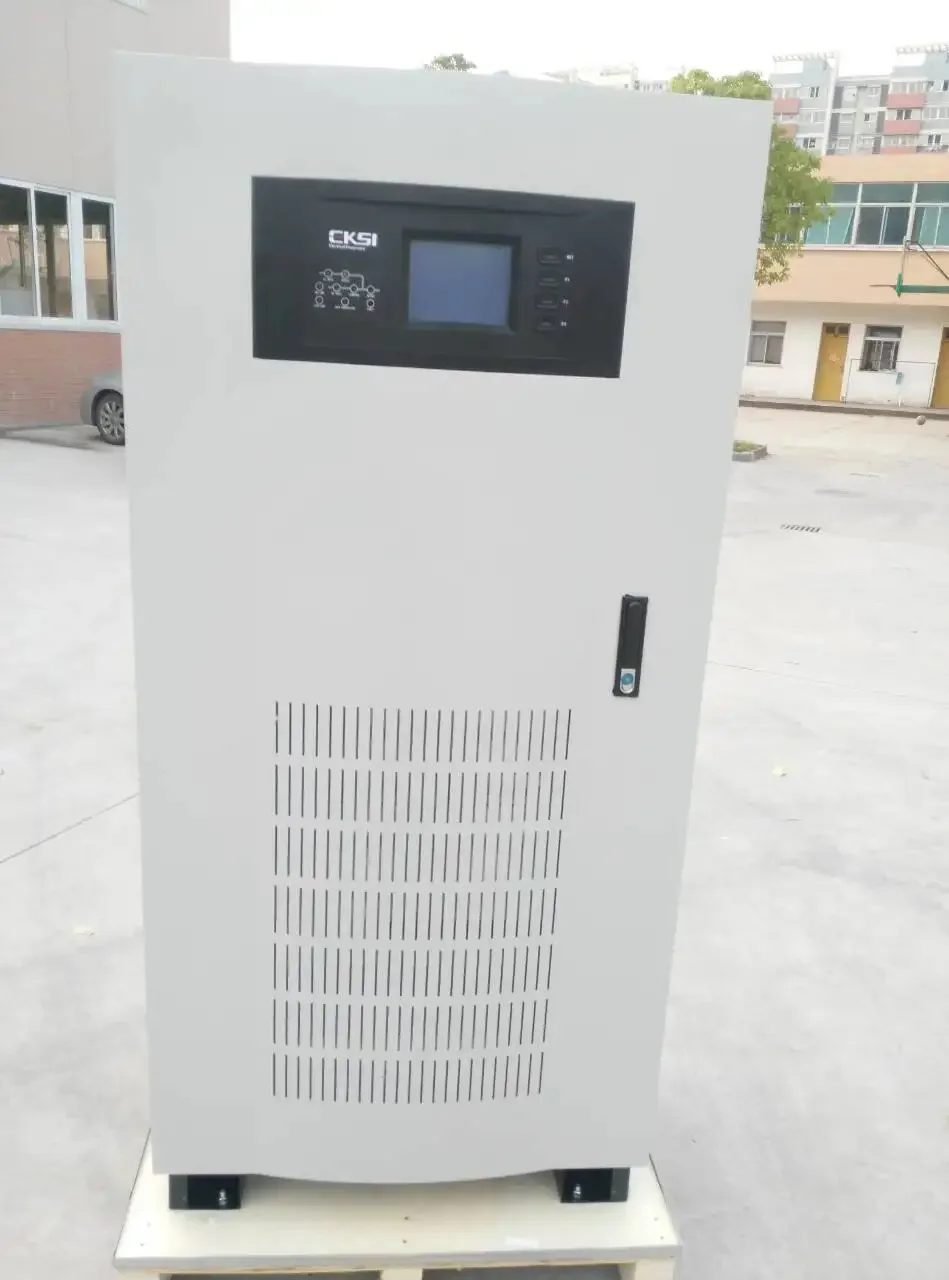

3 Phase solar Inverter 200KVA 160KW off grid inverter with Digital Control
- Category: >>>
- Supplier: Yangzhou Bessent Trading Co. Ltd.Yangzhou Ltd.
Share on (1600982052956):
Product Overview
Description
Main characteristics:
(1) Using MPPT (Maximum Power Point Tracking) algorithm makes full use of solar photovoltaic energy.
(2) Three-stage charging(constant current, constant voltage, float charge), effectively extending the battery life.
(3) Capacity of the battery depending on the configuration, to automatically adjust the battery charging current.
(4) Pure sine wave output, enough power output.
(1) Using MPPT (Maximum Power Point Tracking) algorithm makes full use of solar photovoltaic energy.
(2) Three-stage charging(constant current, constant voltage, float charge), effectively extending the battery life.
(3) Capacity of the battery depending on the configuration, to automatically adjust the battery charging current.
(4) Pure sine wave output, enough power output.
(5) LCD display interface can real-time monitor
the parameters of battery voltage, load current, temperature inside, AC output voltage, AC output current etc.
the parameters of battery voltage, load current, temperature inside, AC output voltage, AC output current etc.
(6) Protection function: output overload protection, output short circuit protection, reverse polarity protection, input over
voltage, over temperature protection and series of alarm and protection functions
(7) Installation and maintenance easy and fast, to meet indoor and outdoor installation requirements.
(8) Intelligent empty load automatic sleep function.
(9) Using the battery or Grid priority can be flexibly adjusted.
(10) Remote monitoring via GPRS(Selectable).
voltage, over temperature protection and series of alarm and protection functions
(7) Installation and maintenance easy and fast, to meet indoor and outdoor installation requirements.
(8) Intelligent empty load automatic sleep function.
(9) Using the battery or Grid priority can be flexibly adjusted.
(10) Remote monitoring via GPRS(Selectable).
Product Description
Specification
Rated power(KVA) | GSI 10/15/20/30KVA | GSI 40/50/60KVA | GSI 80/100/120KVA | GSI 160/200 KVA | GSI 250/300 KVA | ||||
Rated DC voltage(VDC) | 220/360/384 | 220/360/384 | 360/384 | 360/384 | 384 | ||||
Phase | Three phase+N+G | ||||||||
Nominal voltage | 380VAC/400VAC | ||||||||
Nominal frequency | 50/60Hz | ||||||||
Frequency stability: when out of sync | <±0.05% | ||||||||
Frequency stability: when synchronized | <±5% | ||||||||
Current peak factor | 3:1 | ||||||||
Output waveform | Pure sine wave | ||||||||
THD | Liner load＜3%;Non-liner load＜5% | ||||||||
Dynamic load voltage transients (from 0 to 100%) | <±5% | ||||||||
Load voltage | <±3%(Balanced Load); <±5% (unbalnced load) | ||||||||
Overload capacity | 125%10min,150%1min | ||||||||
Inverter efficiency,load 100% | >92% | ||||||||
Computer communication interface | RS232 (485 Network remote monitoring Optional) | ||||||||
Operating temperature | 0~40°C | ||||||||
Relative Humidity (No condensation) | 20%~90% | ||||||||
Altitude | ≤5000 (above 1000meters,rated power derating1% every 100meters) | ||||||||
Cooling | Forced cool air | ||||||||
Noise dB | 45~65 (1m from the machine) | ||||||||
Color | Black(Optional) | ||||||||
Weight(kg) | 190-340 | 450-750 | 750-950 | 1100-1600 | 1800-2300 | ||||
Dimension(W*D*H)mm | 600*600*1600 | 800*600*1600 | 805*800*1800 | 1005*900*1800 | 1100*1340*1920 | ||||

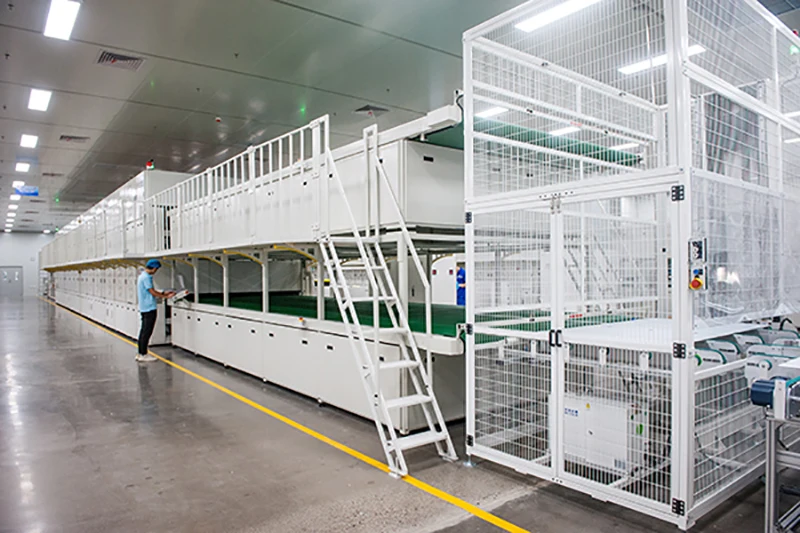

Company Profile
