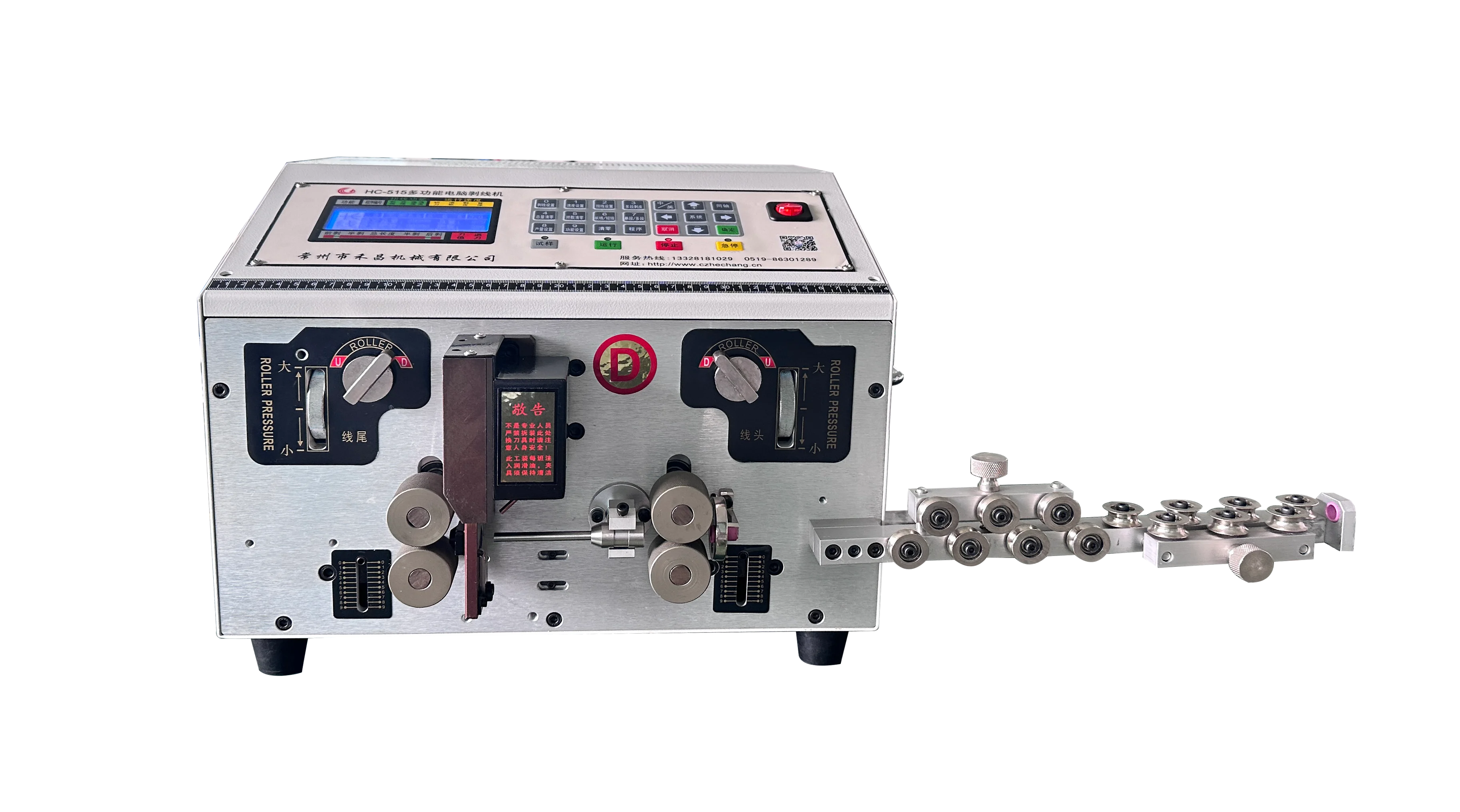

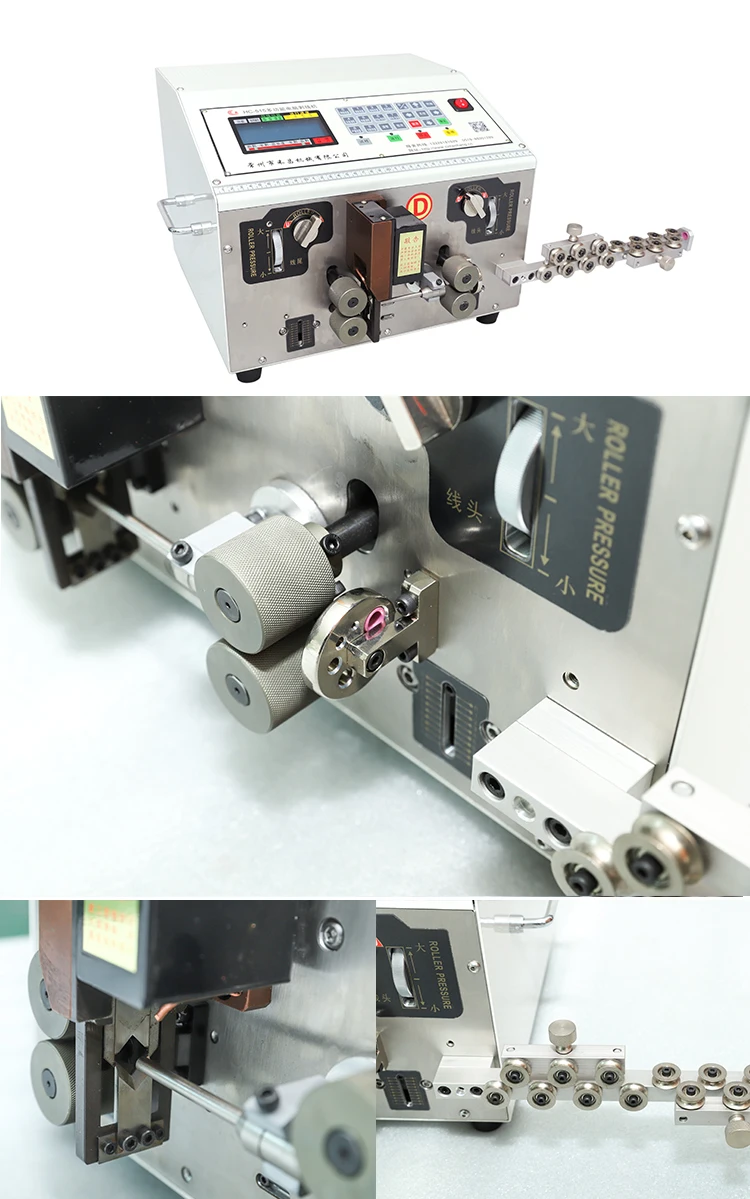

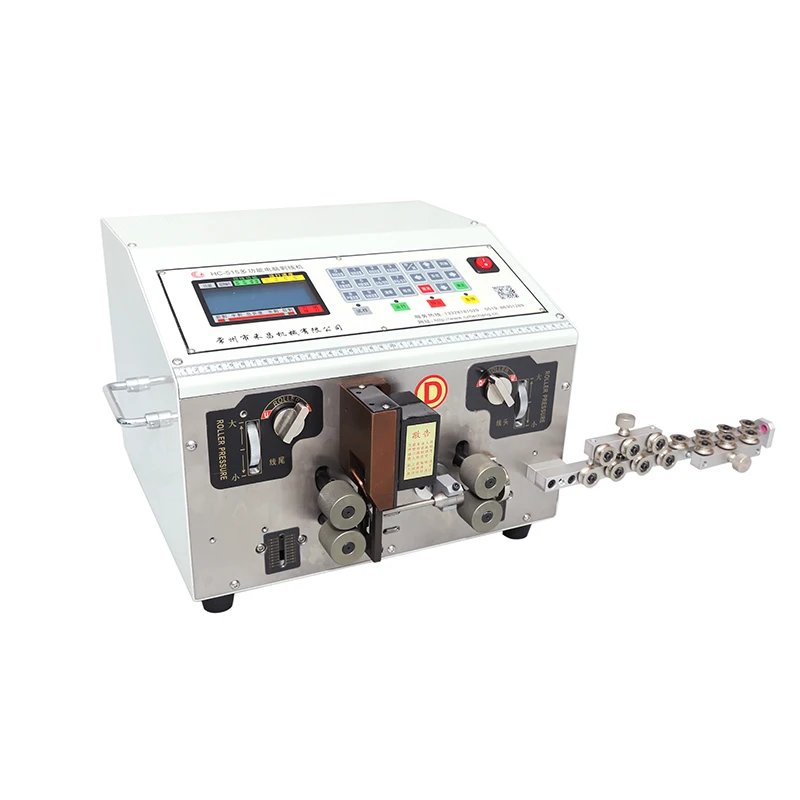

HC 515D Small Electric Wire Cut Strip Machine

HC-515C Automatic electrical cable wire cutting stripping machine

 High performance automatic cuting and stripping machine for processing wire up to AWG10 (6mm ²

The compact body provides an optimum speed for mass production and ensures a high lever of productivity.

very high performance even in a small-scale production of many diversified of wires.

HC-515C Suited for under 6 square of electric wire cutting  stripping , for single strand wire max 1mm2

       Feature:

• Exceptional price to performance ratio


•  Intuitive, flexible and simple User-friendly english operation


•  Extremely low maintenance


• Light and portable,High performance


•  High speed, high precision


• Technical Data:






































































  Model	HC-515D
  Outer dimensions	L670mm*W480mm*H310mm
  Weight	30kg
  Power supply	220V
  Power consumption(220V)	450W
  Display	English or Chinese interface
  Cutting length	0.5mm--99999.99mm
  Cutting tolerances	±( 0.002×L )mm  L : indicates a cutting length.
  Stripping length	0.5mm--30mm
  Applicable wires	PVC, glass wire,1015,1017,PVC,XPL spring wire, steel iron wire , copper wire, PVC tube, rubber pipe.ect
  	Size	0.1-6mm2 multi strands soft wire 0.1- 1mm2  single strand hard wire
  Wire feed speed	variable
  Conduit diameter	7mm
  Drive supply	four-wheels drive,independent drive box driver
  Productivity(pcs/min)	50pcs/minute





•


  Processing Capabilities:cutting to length , Full strip, Half strip,





•


  precision cut




  Sample : cutting stripping wire automaticlly .




















  Our main products included Fully-automatic terminal crimping machine, Automatic wire cutting and stripping machine,





•


  Terminal crimping machine, cable/wire printing inkjet marking machine,




  wire Twisting Tinning machine , Seal insertion, Applicators for terminal crimping,





•


  Industrial robot and other special wiring harness processing electronic equipments.














1.What are the wearing parts?

Blade and belt. More spare parts info, please contact us.

2.Operation and user manual?

English and Chinese optional.

3.How long is the warranty period?

1year, all belts and blades without of the warranty.

4.What after sales service do you provide?

Technicians online support, video technical support within 24 hours.

If you need local service please check with Hechang Machinery. Generally require additional charges.
