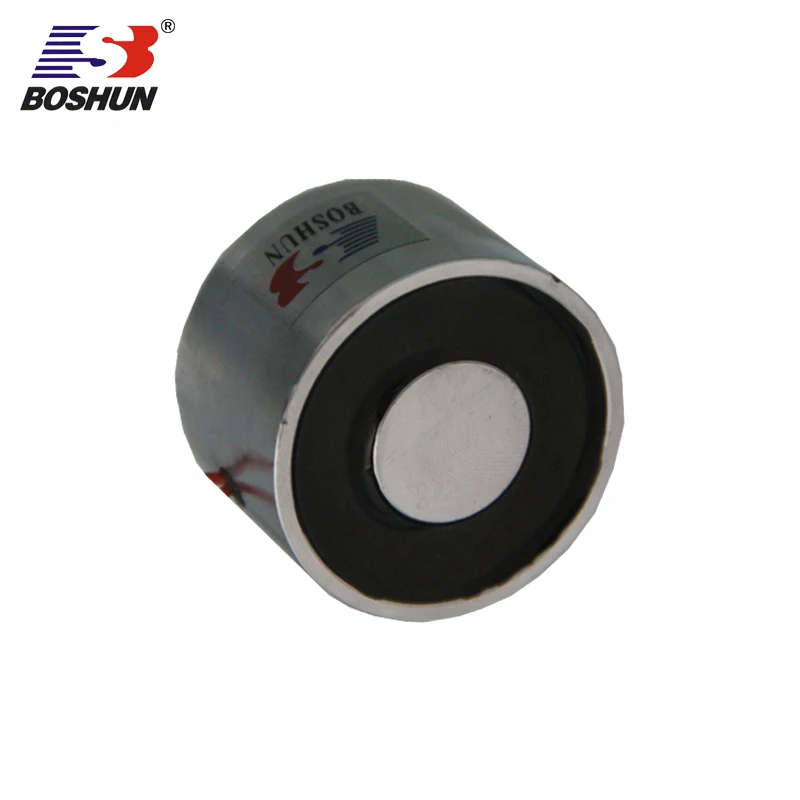

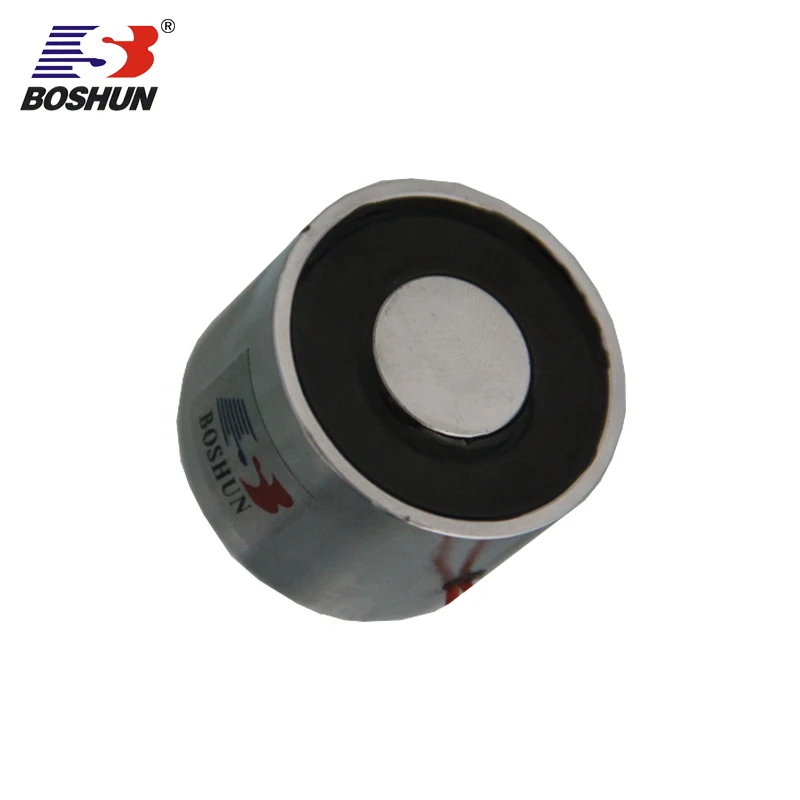

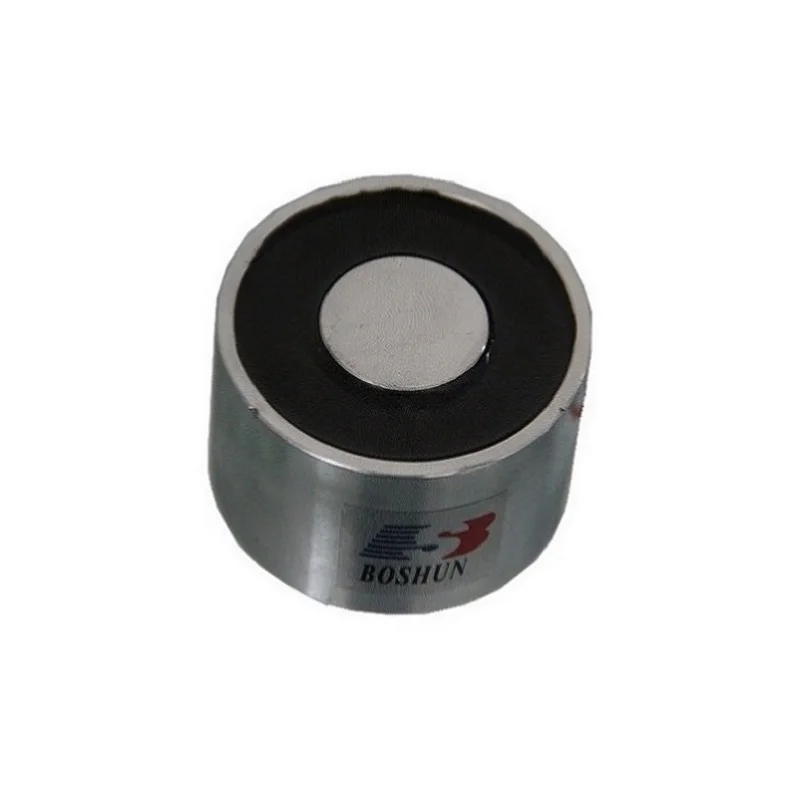

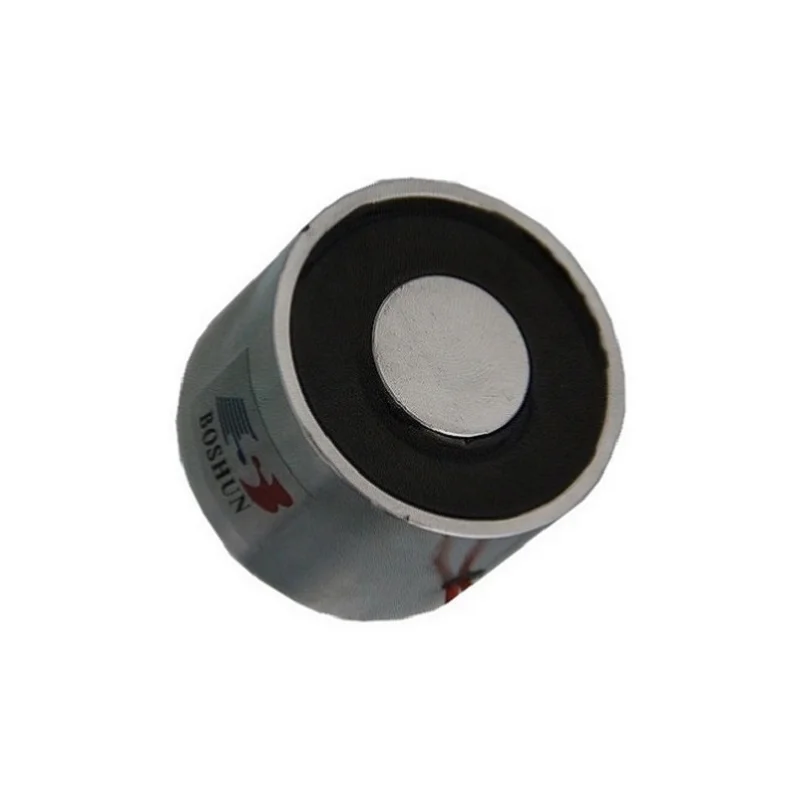

Factory Customized Dc 24v Holding Solenoid Electromagnet
- Category: >>>
- Supplier: Dongguan Boshun Industry Co. Ltd.
Share on (1600982148295):
Product Overview
Description
Products Description
Factory Customized Dc 24v Holding Solenoid Electromagnet
1. Product name: | BS-4027X |
2. Text condition | 2.1 Temperature range:-20℃～65℃ 2.2Relative humidity:5%～60%RH 2.3Rated voltage:DC12/24/48V 2.4Wattage:6W 2.5 Working cycle:10-100% |
3 Apperance: | no damage, rupture, rust, or surface stain |
4 Electrical | 4.1Working voltage:DC12/24/48V±10% 4.2Power:≥20kgf 4.3 Insulation resistance:DC500V,≥50MΩ 4.4High voltage:AC700V 50/60Hz-1s,maximum Maxleakage current 1 mAh (between coil and housing) |
5Biometry: | >500000times |
