4cavities 1.5L disposable mango pulp milk par bottle hdpe small 20 liter bottle making machine
- Category: >>>
- Supplier: Henan Tengyue Machinery Technology Co. Ltd.
Share on (1600982183271):
Product Overview
Description
Product Overview

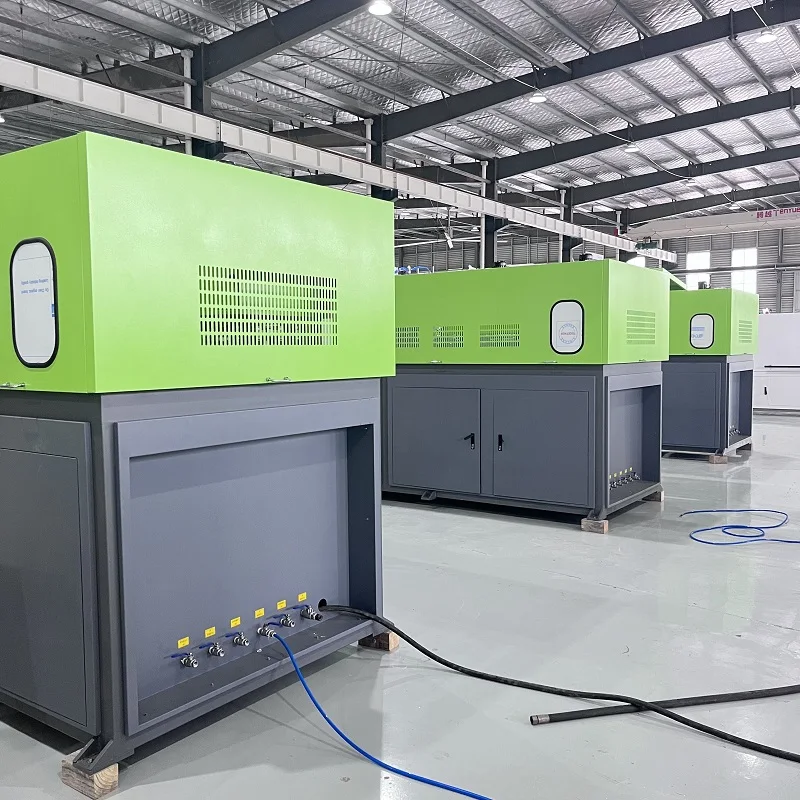

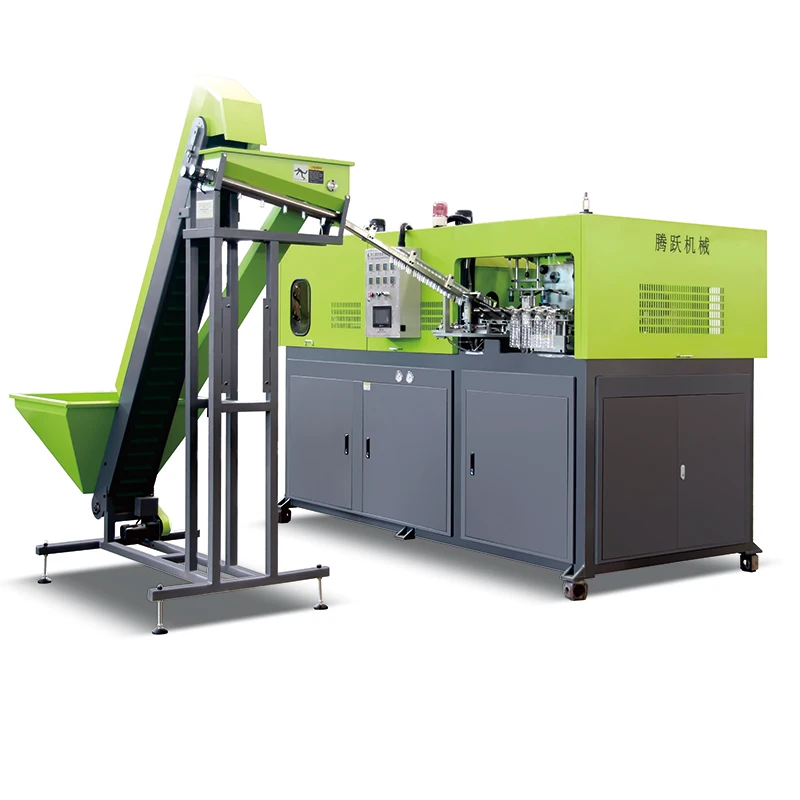

TY4800 Bottle Making Machine
TY4800 series is pet linear automatic blow molding machine, mainly with 4 cavities, the blowing volume range is 0.6-1.5L, and the maximum output is 4500BPH,suitable for blowing any kind of carbonated beverage bottle, sparkling beverage bottle, pure water bottle, mineral water bottle, fruit juice beverage bottle, cosmetic bottle, large diameter bottles, high temperature bottles resistance and other packaging bottles.
Details Images

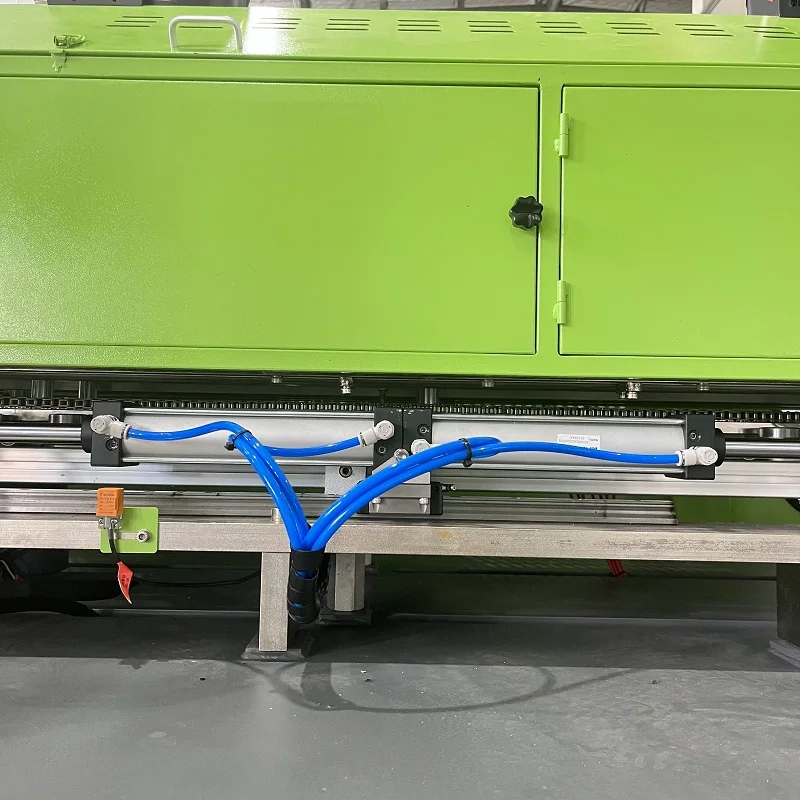

Drive Technology
-High precision SMC cylinder
- Trouble-free and energy-efficient production
- Trouble-free and energy-efficient production

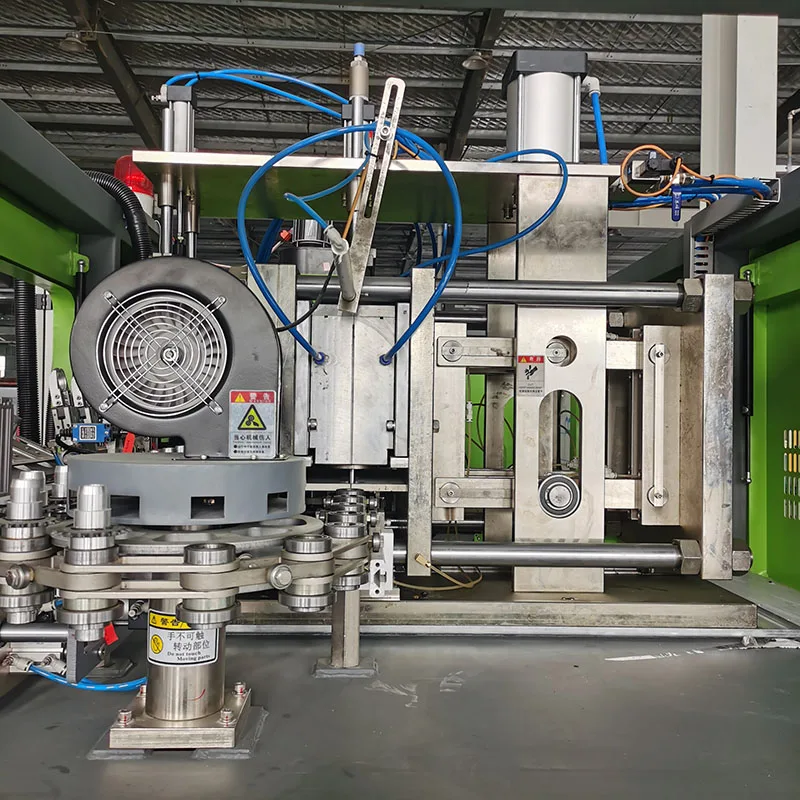

Blow Molding Technology
-SMC cylinder drives the stretching system
- Highly flexible formwork
- Low consumption and high productivity
Air Recovery Technolog
-SMC cylinder drives the stretching system
- Highly flexible formwork
- Low consumption and high productivity
Air Recovery Technolog
- 25% of high pressure gas can be recovered for machine operation

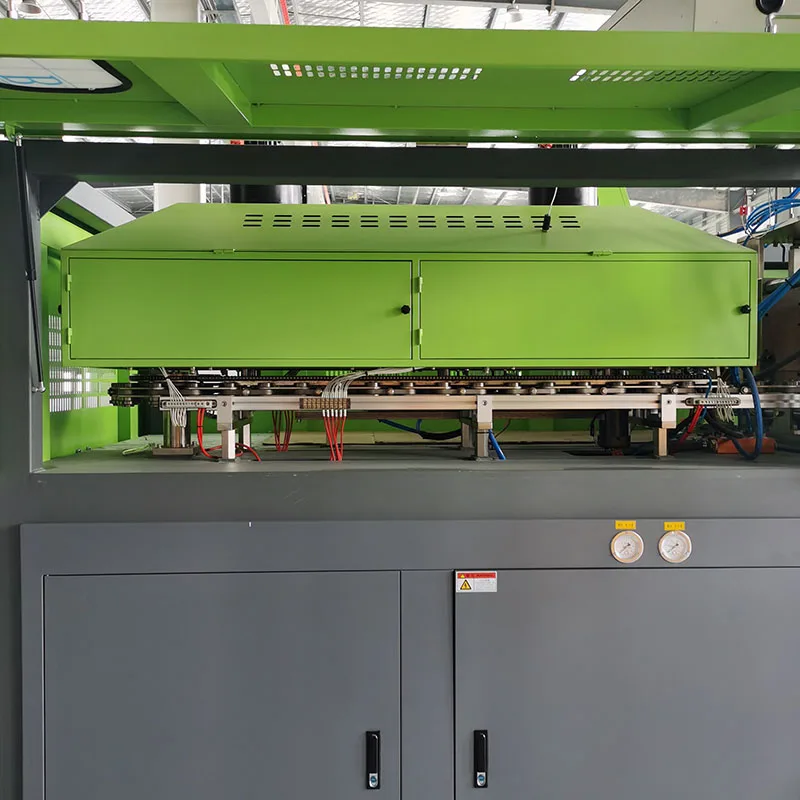

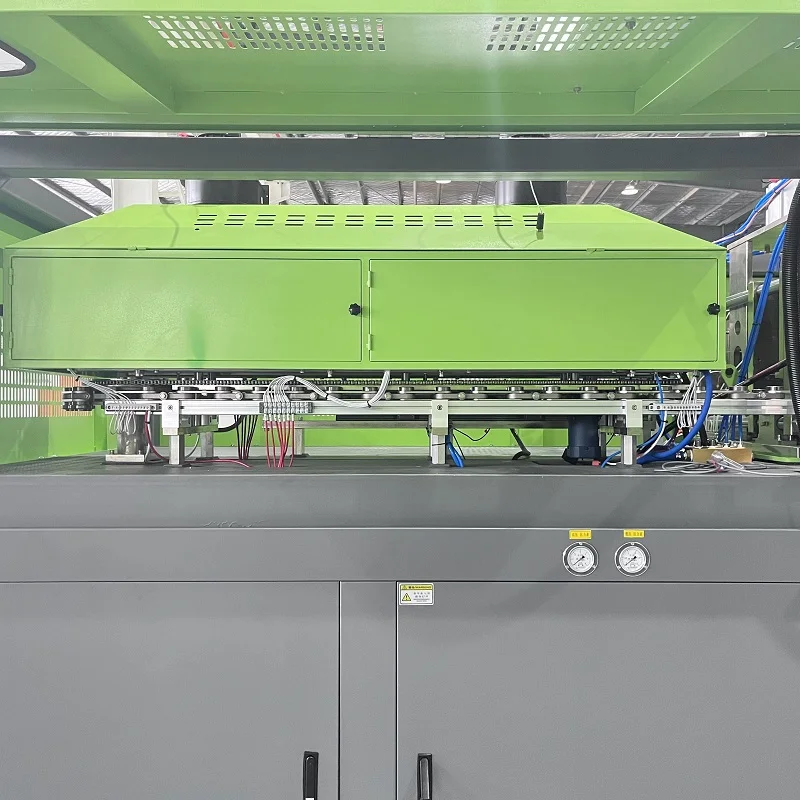

Heating System
- constant temperature 120°C
- Rotary heating
-Energy saving and low scrap rate

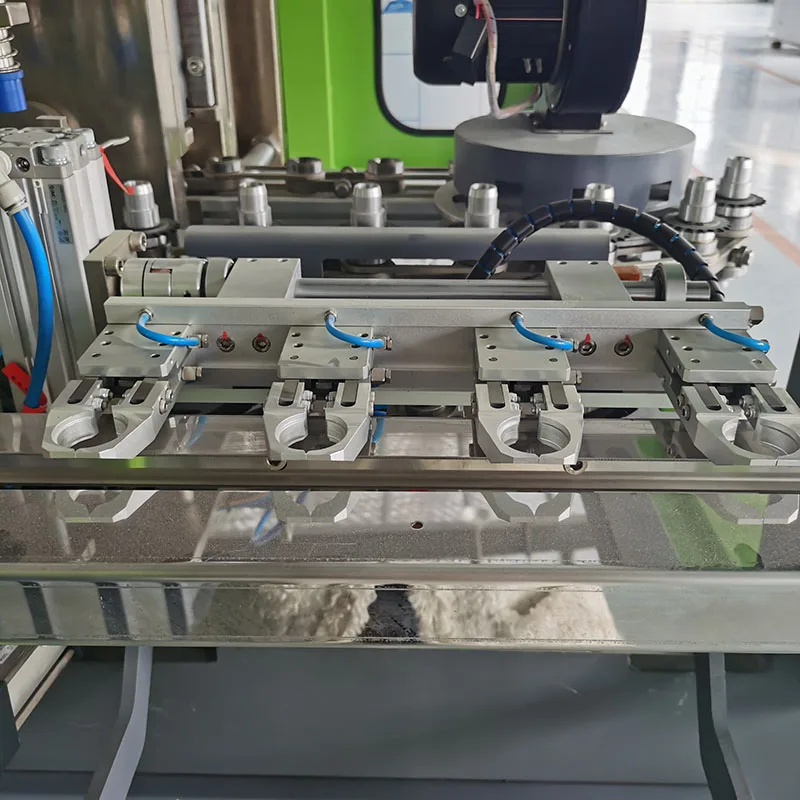

Transmission system
-Using the patented dual-drive dual-point linear guideway structure
-High stability and long life cycle
Preform Feeding System
-360° Surround Design -Preforms will not be left in the hopper
Preform recycling device
-Reduce the jam of preforms
Preform recycling device
-Reduce the jam of preforms
- effectively reduce by 10%

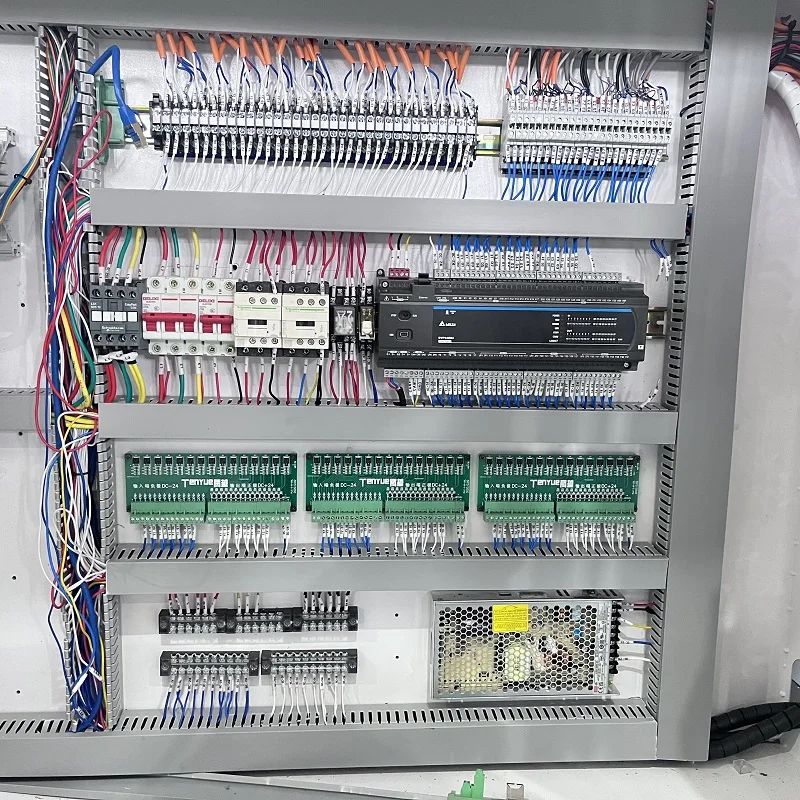

Electric control system
-PLC control system,simple operation-fully automatic operation
-Solder treatment at the line interface, not easy to damage
-custom terminals, with the logo of "Tenyue"
Product Paramenters
Item | Unit Name | TY4800 | ||
理论产量 | Theoretical Output | Pcs/h | 4500 | |
最大瓶身容积 | Max.Bottle Voulme | L | 1.5 | |
最大瓶身高度 | Max.Bottle Height | mm | 340 | |
最大瓶身直径 | Max.Bottle Diameter | mm | 90 | |
模穴数 | Number of cacity | / | 4 | |
电源 | Power | V | 220/380 | |
加热功率 | Heating power | KW | 56 | |
电力总容量 | Total power capacity | KW | 58 | |
灯箱数量 | Heating light boxs | unit | 2 | |
加热灯管数量 | Heating tubes | pcs | 28 | |
高压耗气量 | High pressure air consumption | L/min | 2400 | |
低压耗气量 | Low pressure air consumption | L/min | 1500 | |
机器规格 | Main body dimension(L*W*H） | M | 3.4*1.5*2.3 | |
机器重量 | Weight | KG | 4000 | |
Company Profile
Henan Tengyue Machinery Technology CO.,LTD
-Founded in 2007,15 years of manufacturing experience in the Bottle blowing machine
industry
-Standardized workshop with the area of 2000 ㎡
-6 Teams over 200 employees :Design team accounts for more than 10%
-Produce up to more than 1,000 sets machine per year
-Lot of World-class professional Machining equipment:Mazak,DOOSAN,HISION,JINDIAO;
-2 CNC Machining Center
-Exported to more than 40 countries all over the world
-The first machine which is produced in 2007 is still working .
industry
-Standardized workshop with the area of 2000 ㎡
-6 Teams over 200 employees :Design team accounts for more than 10%
-Produce up to more than 1,000 sets machine per year
-Lot of World-class professional Machining equipment:Mazak,DOOSAN,HISION,JINDIAO;
-2 CNC Machining Center
-Exported to more than 40 countries all over the world
-The first machine which is produced in 2007 is still working .
Exhibition
Packing And Shipping
Certifications
FAQ
1. Are you manufacturer or trading company?
We are a direct factory located in Shangqiu City. We are export office with owned 20000㎡factories with 200 workers in total.
We are a direct factory located in Shangqiu City. We are export office with owned 20000㎡factories with 200 workers in total.
2. How to choose suitable machine?
-Tell us the bottle size,bottle shape,bottle material and how many bottle size do you have.
- Tell us the label size you want for your bottle.
- Tell us the capacity,such 9000 BPH, 12000 BPH etc.
-Then we will advise you.
3.How about the delivery date
Generally , After you determine the bottle shape , we arrange production.The machine will be sent within 30days.
4.what’s the MOQ
If samples in stock, the MOQ will be 1 pcs , if no samples in stock , that will be based on different items
5:What is your payment term ?
30% T/T in advance ,70% balance before shipment or Negotiable If you have another question, please feel free to contact us as below.
6.How to ensure the safety of your funds and deliver on time?
-Tell us the bottle size,bottle shape,bottle material and how many bottle size do you have.
- Tell us the label size you want for your bottle.
- Tell us the capacity,such 9000 BPH, 12000 BPH etc.
-Then we will advise you.
3.How about the delivery date
Generally , After you determine the bottle shape , we arrange production.The machine will be sent within 30days.
4.what’s the MOQ
If samples in stock, the MOQ will be 1 pcs , if no samples in stock , that will be based on different items
5:What is your payment term ?
30% T/T in advance ,70% balance before shipment or Negotiable If you have another question, please feel free to contact us as below.
6.How to ensure the safety of your funds and deliver on time?
-Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
-Through the letter of credit, you can easily lock the delivery time.
-After visiting the factory, you can ensure the authenticity of our bank account.
7. how long is the warranty?
-Within 1 year from date of the factory, if parts failure or damage(because of the quality problem ,except wearing parts)
8.Do you provide technical support?
We provide lifelong technical support .Help each customer solve problems is our original intention.
9.How do you make our business long-term and good relationship?
-we keep good quality and competitive price to ensure our customers benefit
-We respect every customer as our friend and we sincerely do business and make friends with them , no matter where you are from .
-Through the letter of credit, you can easily lock the delivery time.
-After visiting the factory, you can ensure the authenticity of our bank account.
7. how long is the warranty?
-Within 1 year from date of the factory, if parts failure or damage(because of the quality problem ,except wearing parts)
8.Do you provide technical support?
We provide lifelong technical support .Help each customer solve problems is our original intention.
9.How do you make our business long-term and good relationship?
-we keep good quality and competitive price to ensure our customers benefit
-We respect every customer as our friend and we sincerely do business and make friends with them , no matter where you are from .
