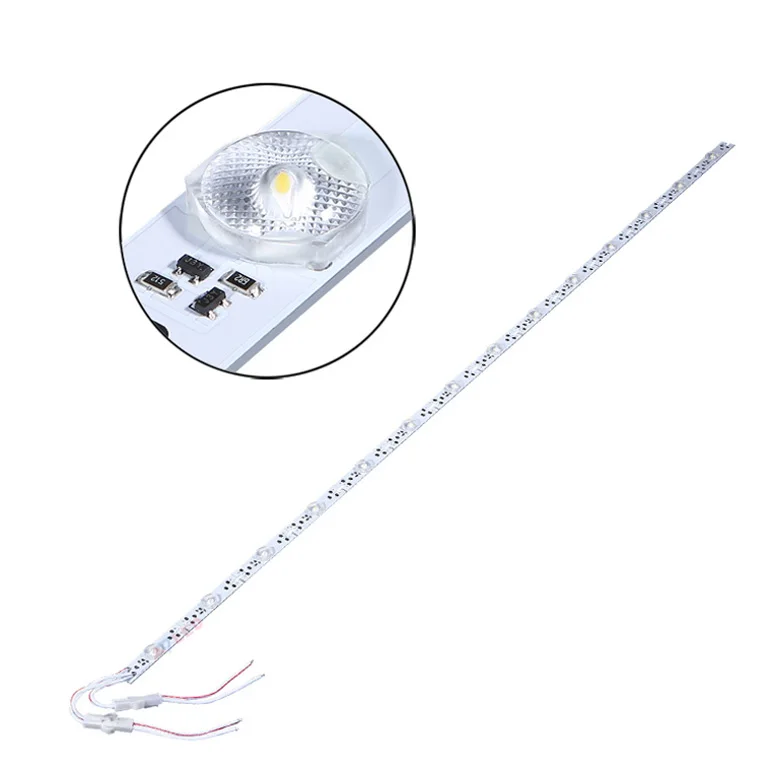

Hot 14 LED Meter SMD 3030 1m Rigid LED Light Bar for Lightbox Frames Backlit Fabric Constant Current 24V Input UL CE Certified
- Category: >>>
- Supplier: Shenzhen Adled Light Limited
Share on (1600982186239):
Product Overview
Description

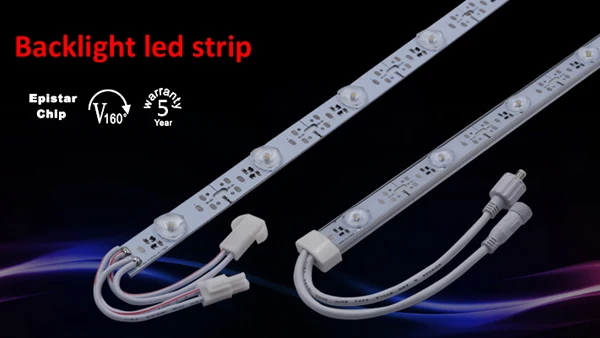

Hot 14 LED Meter SMD 3030 Back Lighting Rigid LED Light Bar for Lightbox Frames Backlit Fabric
Parameters
Name | SMD3030 14leds/m led backlight strip |
ADs-N3030-14Model | ADS-N3030-14 |
LED Type | Epistar chip SMD3030 |
LED Quantity | 14Leds/m |
Input Voltage | DC12V/24V |
Power | 16.8W or custom |
Color | Warm white/White/Cool white |
Beam angle | 160° |
IP grade | IP20 |
Lumen | 1540lm |
Size | 990*18*7 mm |
Warranty | 5 years |
HS code | 9405409000 |
LED Strip Accessories | LED Driver，LED Dimmer |
Other service | OEM & ODM, One to One Communication |
Application | Recommended depth 6-20cm internal single side light boxes |

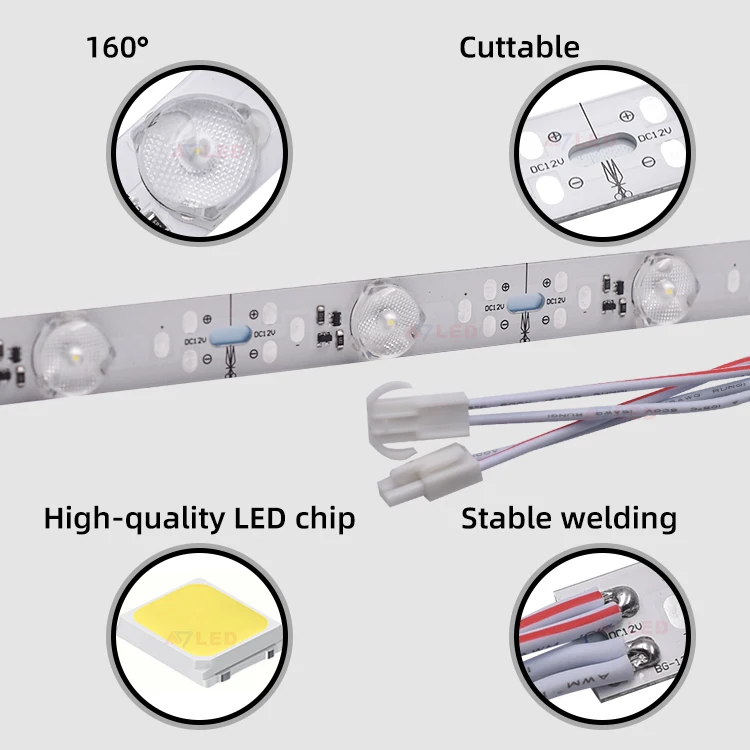

Features
1. Powered by Epistar chip SMD3030 led
2. DC12V/24V low-voltage power supply
3. Driven by constant current
4. 1.6mm aluminum base for good heat sinking
5. Each lamp can be cut,length can be customized
6. Dimmable by using dimmer controller
2. DC12V/24V low-voltage power supply
3. Driven by constant current
4. 1.6mm aluminum base for good heat sinking
5. Each lamp can be cut,length can be customized
6. Dimmable by using dimmer controller
Size

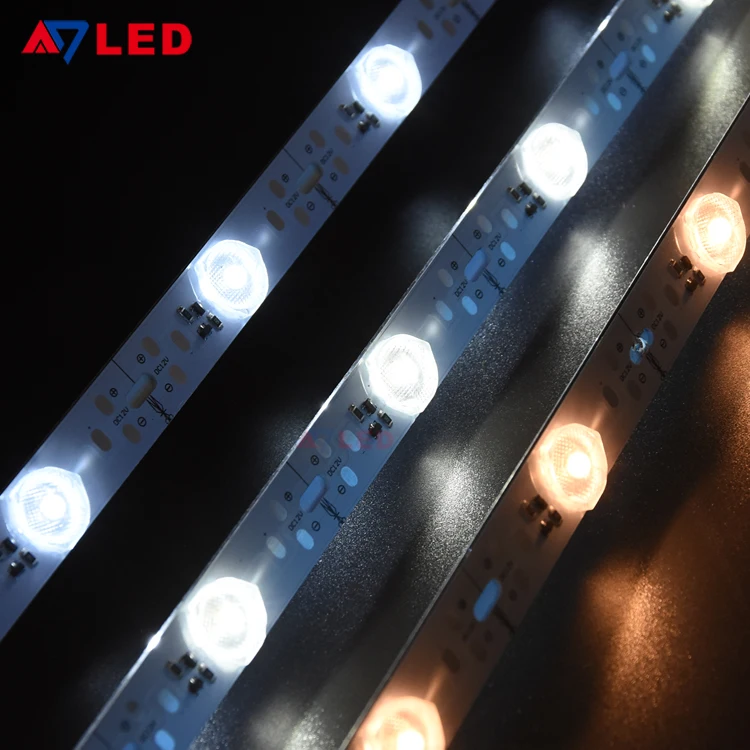

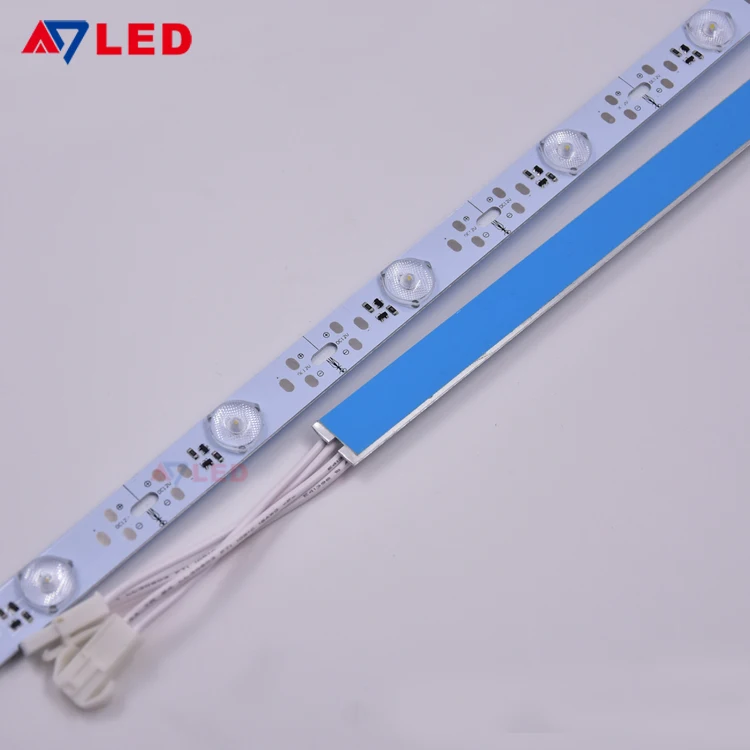

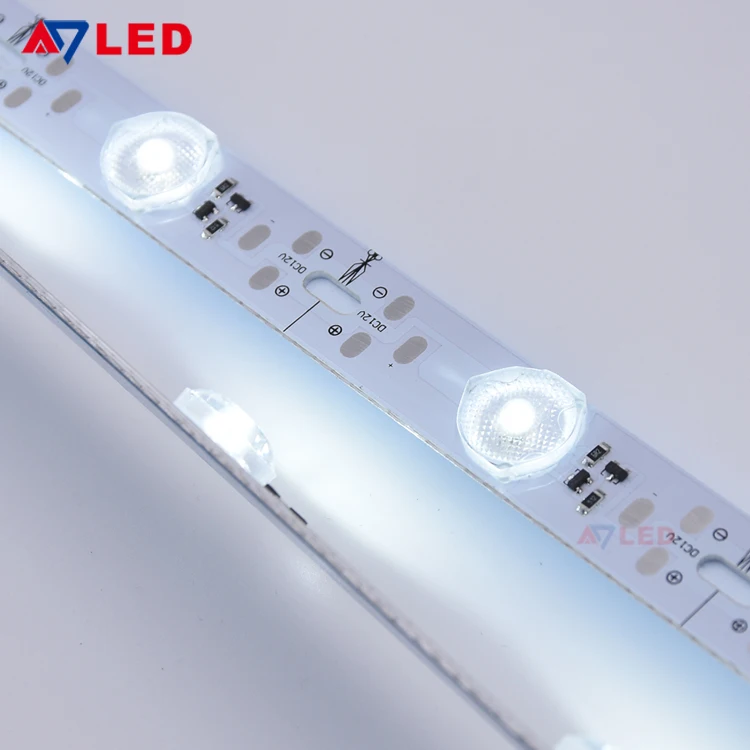

Detail image
Led module light distribution graph：
Mode of connection:

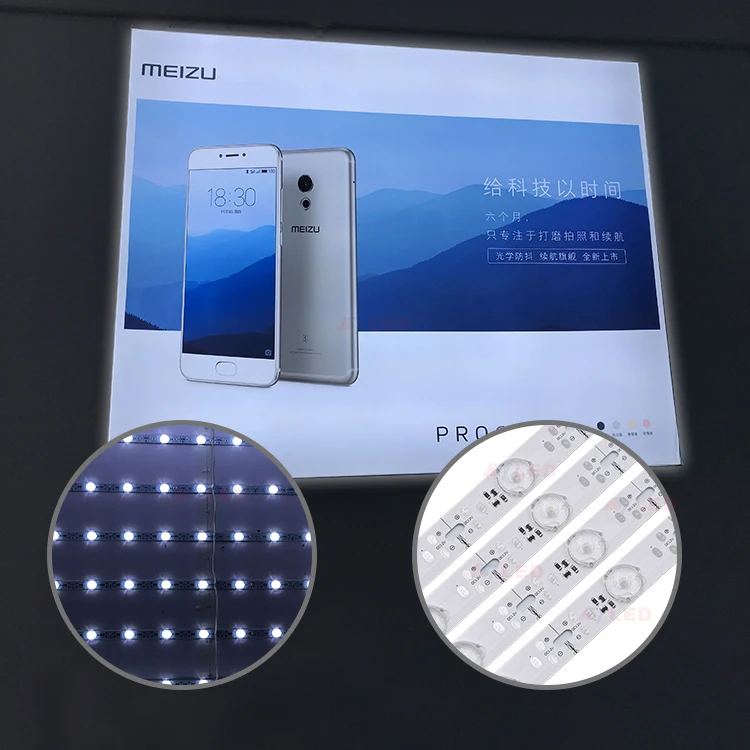

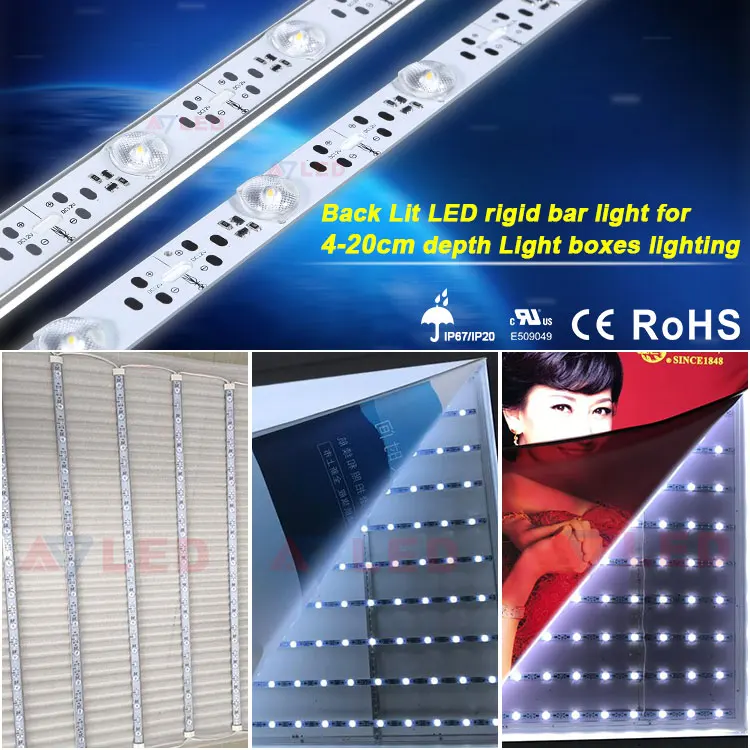

Applications
1.Led backlight strip suitable for airport light box,metro light box,railway station light box,bus station light box,parking lot
light box
2.Led backlight strip suitable for exhibition light box,ceiling roof lights
3.Led backlight strip suitable for building decorative lighting,billboard advertising signs
4.Recommended depth 4-20cm internal single side light boxes
light box
2.Led backlight strip suitable for exhibition light box,ceiling roof lights
3.Led backlight strip suitable for building decorative lighting,billboard advertising signs
4.Recommended depth 4-20cm internal single side light boxes
FAQ
1. What is MOQ?
We can support you any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types samples.
3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-7days.
4. Can I also buy LED Power supply from you?
Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power supply and other led transformers.
5. How can I get the best solution for light box?
Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs within 24 hours.
We can support you any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types samples.
3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-7days.
4. Can I also buy LED Power supply from you?
Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power supply and other led transformers.
5. How can I get the best solution for light box?
Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs within 24 hours.
