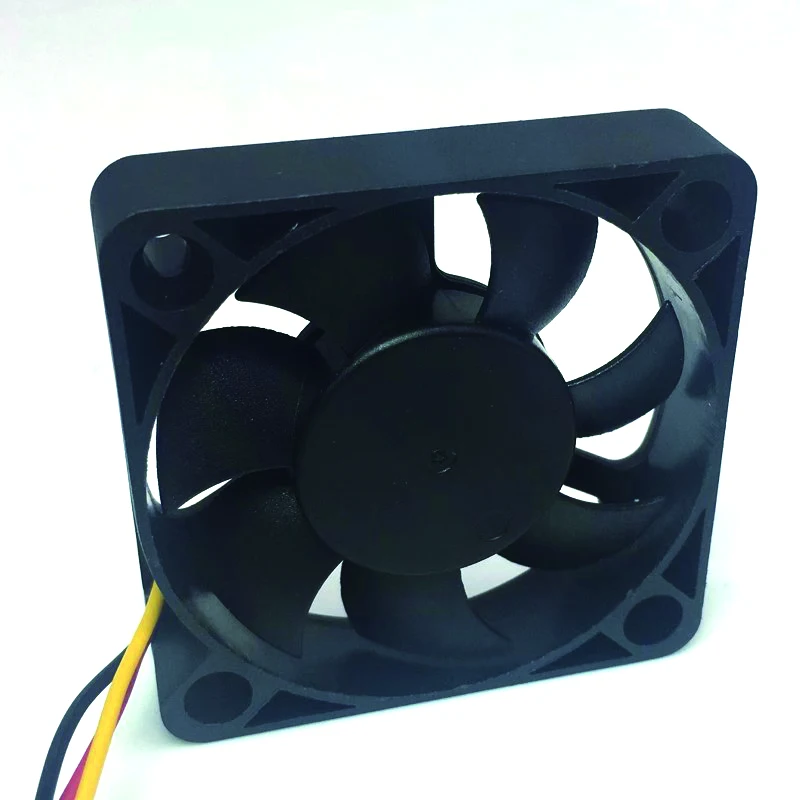

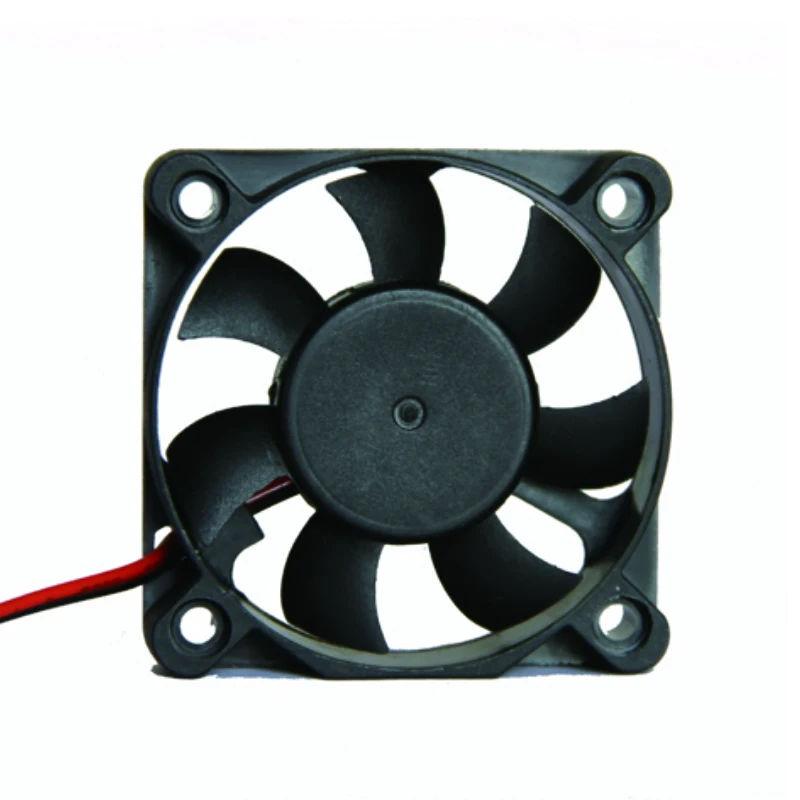

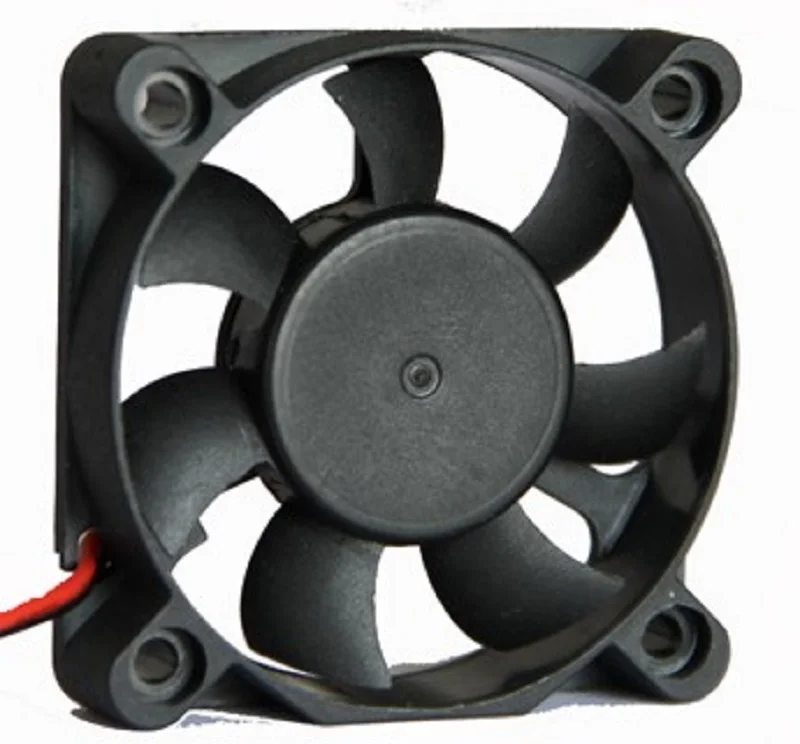

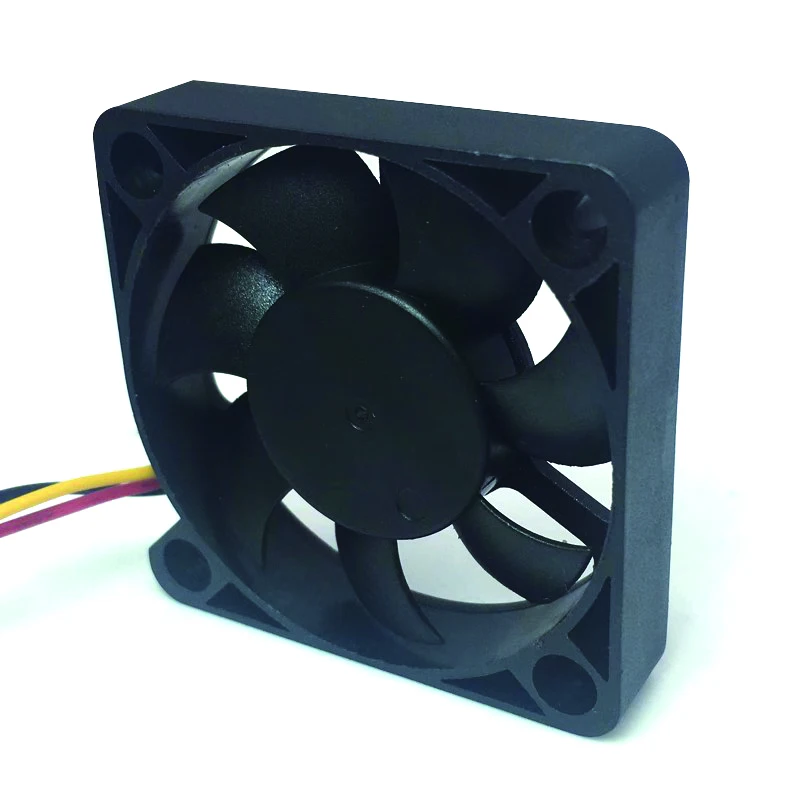

5010 50x50x10mm High Speed Dc Brushless Fans 50mm 12v Small DC Cooling Fan
- Category: >>>
- Supplier: Shenzhen Feng Huishun Technology Development Co. Ltd.
Share on (1600982242124):
Product Overview
Description
Product Description
Product Name | DC Axial Fan |
Product Dimension | 50x50x10mm(Length* Width *Thickness) |
Material | Plastic Blade and Plastic Frame |
Rated Voltage | 12V DC (5V 24V Optional) |
Rated Speed: 6000RPM(At rated Voltage,Measured after 3Mins.) Air Flow: 12.02CFM (Maximum In Free Air) Air Pressure: 0.16Inch-H2O (Maximum When Air Flow = 0) Noise Level: 37dBA (At Rated Speed) | |
Bearing Type | Double ball bearing (Sleeve Bearing Optional) |
Operating Temperature & Life expantacy | Ball bearing: -30°C to +75°C @ 50000hours at 40°C Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C |
Optional Function | PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection |
Wire & Connector & Tube | Wire length & Connector model ( as required ) |
Package | Carton box,we can also according to the requirements of customers. |

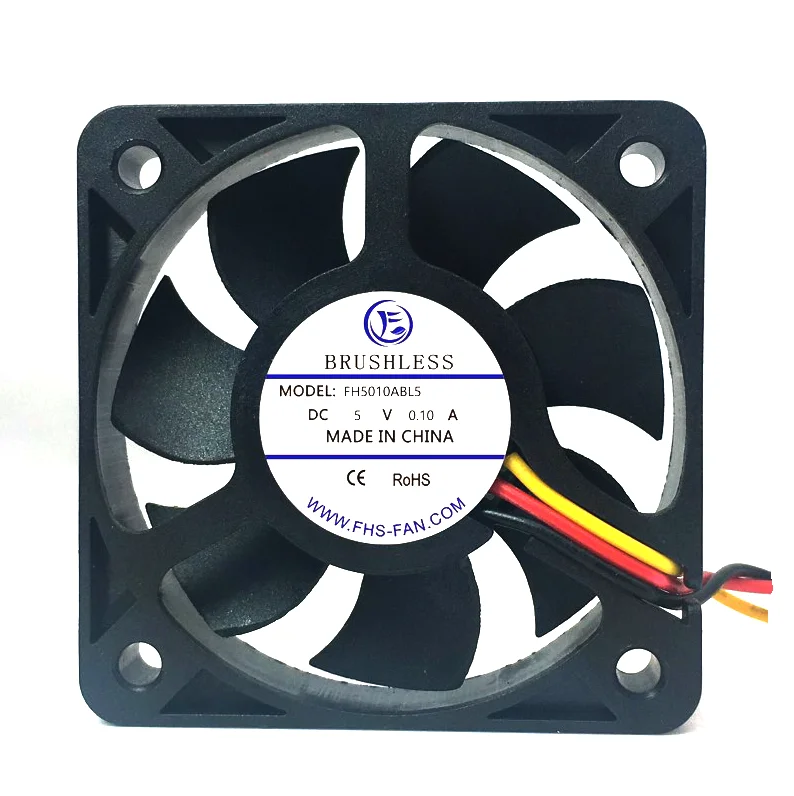

Details Images
Product Specification
The specifications of some models are as follows:
Model | Bearing Type | Rated Voltage | Operating Volt | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | ||||||||
Part NO. | B.S.Y | VDC | VDC | Amp | Watt | RPM | CFM | Pa | dB-A | ||||||||
FH5010AB(S/Y)H5 | B | 5 | 3.5-5.5 | 0.25 | 1.25 | 5500 | 10.83 | 33.15 | 34 | ||||||||
FH5010AB(S/Y)M5 | B | 5 | 3.5-5.5 | 0.21 | 1.05 | 5000 | 9.91 | 26.77 | 31 | ||||||||
FH5010AB(S/Y)L5 | B | 5 | 3.5-5.5 | 0.18 | 0.9 | 4500 | 9.26 | 23.93 | 28 | ||||||||
FH5010AB(S/Y)U1 | B | 12 | 7.0-13.8 | 0.16 | 1.92 | 6000 | 7.64 | 39.32 | 37 | ||||||||
FH5010AB(S/Y)H1 | B | 12 | 7.0-13.8 | 0.14 | 1.68 | 5500 | 10.83 | 33.15 | 34 | ||||||||
FH5010AB(S/Y)M1 | B | 12 | 7.0-13.8 | 0.12 | 1.44 | 5000 | 9.91 | 26.77 | 31 | ||||||||
FH5010AB(S/Y)U2 | B | 24 | 14.0-27.6 | 0.12 | 2.88 | 6000 | 7.64 | 39.32 | 37 | ||||||||
FH5010AB(S/Y)H2 | B | 24 | 14.0-27.6 | 0.1 | 2.4 | 5500 | 10.83 | 33.15 | 34 | ||||||||
FH5010AB(S/Y)M2 | B | 24 | 14.0-27.6 | 0.08 | 1.92 | 5000 | 9.91 | 26.77 | 31 | ||||||||
More Models | Other RPM/CFM/Voltage/Current...please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs | ||||||||||||||||

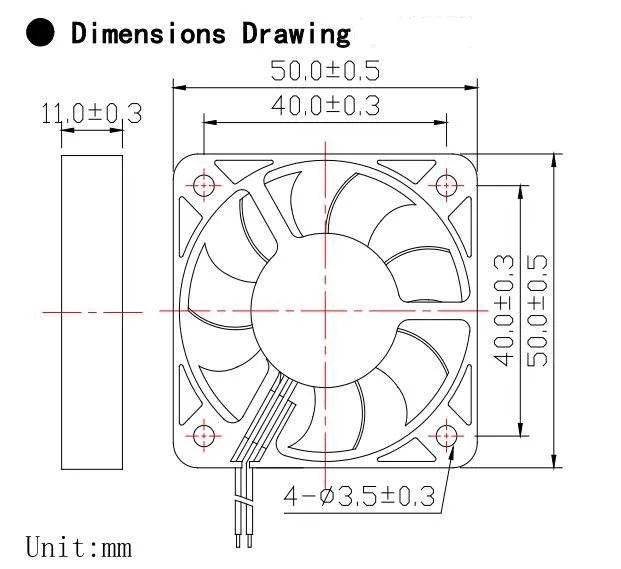

Dimensions(Unit：mm)
Recommend Products
Packing&Shipping
1. Standard Packaging, inside single package, out carton package.
2. Upon customers' request, but the price is different with neutral packing.
Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.
Company Introduction
Shenzhen Feng Huishun Technology Development Co., Ltd. (Funfan) is a professional manufacturer of brushless cooling fans, including dc axial-flow fans, blower fans, centrifugal fans, cross flow fans, AC/EC fans etc.The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields.
The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages.
Feel free to contact us for any customized fans solutions.
The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages.
Feel free to contact us for any customized fans solutions.
Factory
Sales department
Workshop
Assembly line 1
Assembly line 2
Quality control
Product test
Packaging
Warehousing
