Plastic EVA Vacuum Cleaner Spiral Flexible Duct Hose Pipe Tube Extrusion Extruder Making Machine Production Line
- Category: >>>
- Supplier: Qingdao Wings Plastic Technology Co. Ltd.
Share on (1600982271963):
Product Overview
Description
Product Description

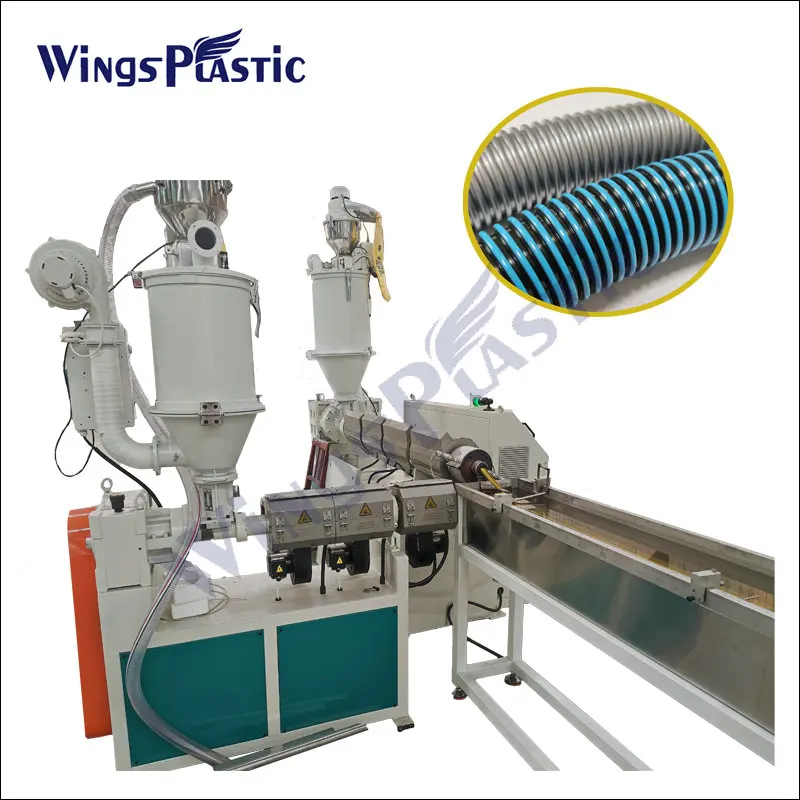

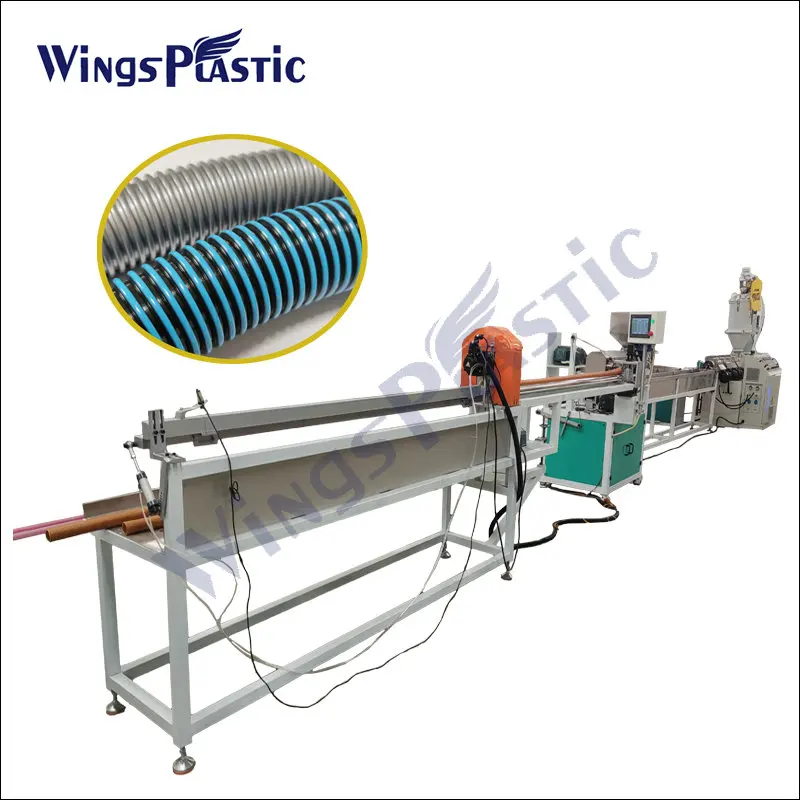

Plastic Swimming Pool EVA Vacuum Cleaner Flexible Spiral Suction Hose Extrusion Machine Production Line
EVA Vacuum Cleaner Hose Extruder Making Machine Production Machinery
EVA LLDPE Swimming Pool Hose Pipe Production Line
This hose mainly material is EVA & LLDPE, mainly used to produce vacuum cleaner hose and swimming pool hose.
What is our different for this hose line:
1.High speed
Max speed will be 6 meters per minute, this is same as Italy same machine. But our price only 1/20 of Italy machine.
2.easy operation
machine control by PLC , all the procedure can achieve by input program. Even for common worker, they can operate on the machine easily.
3.servo motor cutting.
cylinder control cutting the knife working stroke need 0.2 second. But servo motor only need 0.02 second. Servo motor drive can cut the hose section very smoothly and tidy . we covered the cutting units to confirm the CE standard. When the line's speed
exceed 4 meters per minute, common drive cutter can not match the hose spiral speed, so must use servo motor cutting.
4.stable working.

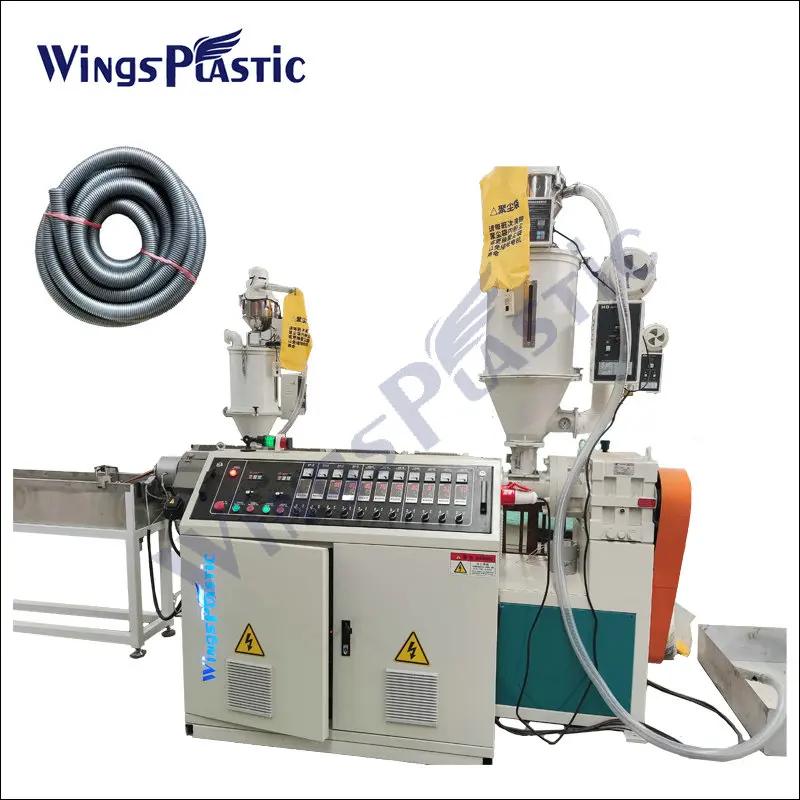

Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system
Colorful extruder
It is smaller extruder for making another color on pipe surface.

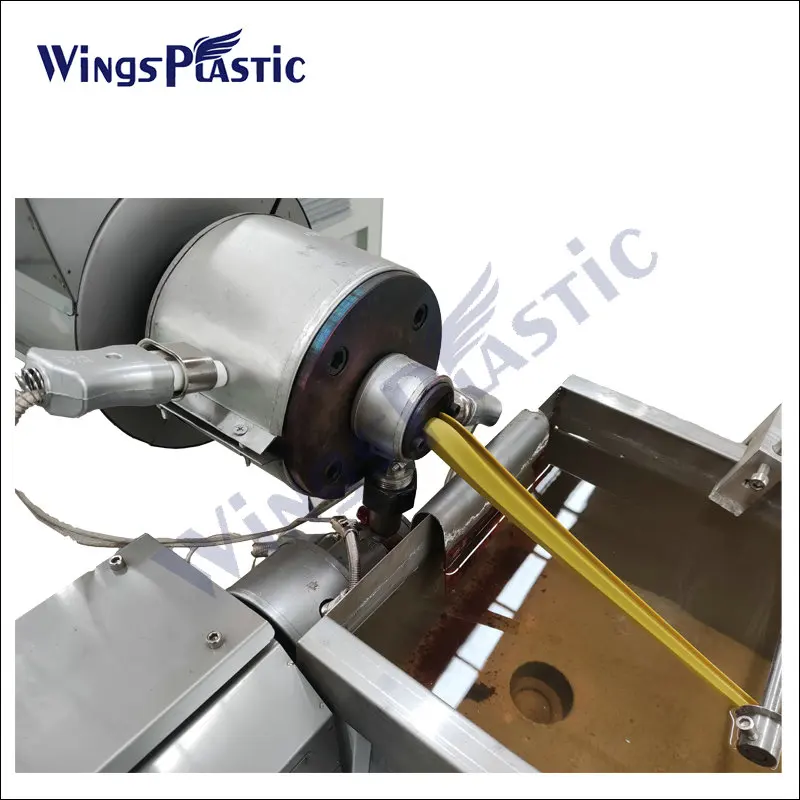

High Prescion Moulds
40Cr materials, we design the mould according customer sample request. High strength, no deformation, high precision
Water cooling tank and tranport unit Glue Extruder
Stainless steel materials with dewater fans.

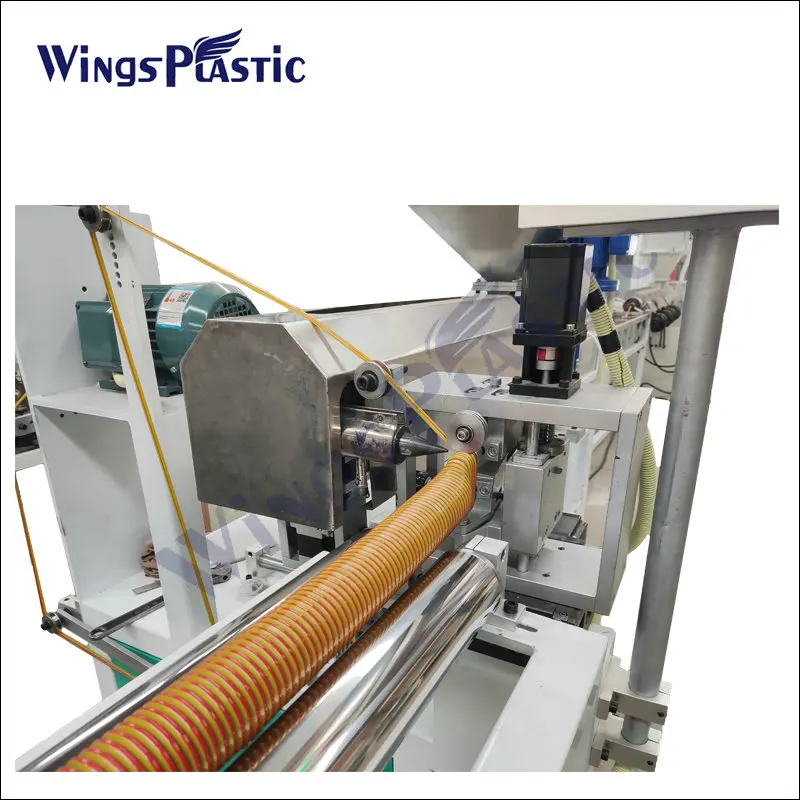

New Technology Forming Machine
This design is from Italy, it use PLC control system, could meet max 6m/min forming speed.It is a 25/25 single screw extruder with 1.1kw motor. Specially working for high precison glue extrusion for pipe forming
Fly Knife Cutting Machine with stacker
It uses servo motor cutting way, high precision and automatic meating
Model & Parameters
Items | Description of main extruder | Remark | Color extruder | ||
Extrude | 65mm | Special design screw | 30mm | ||
Motor | 22kw | Big motor for high speed | 2.2kw | ||
Speed | 4-6meters/min | High speed | Capacity 5-10kg /h | ||
Can make length of pipe | 30meters | Can make long meters hose | Make second color | ||
Cutting | Servo motor | Patent design | |||
Control | PLC | Easy operation | |||
Forming system | As your inquiry design | ||||
Machine List
Final Product & Application
APPLICATION：
Flexible EVA Ribbed Suction Hose is widely used in transporting various powdery particles and liquids, used in civil and building works ,agriculture, mining, construction, ship and fishery.
ADVANTAGES:
●Smooth inner surface are excellent for conveying liquid,air,powders.
●Extensively used in industry and agriculture for pumping and transfering needs.
●Smooth inner surface are excellent for conveying liquid,air,powders.
●Extensively used in industry and agriculture for pumping and transfering needs.
●Corrugated outer surface provide high flexibility and small bending radius.
Payment, Delivery, After sell service
What is the procedure when you buy our machine
Confirm the technology and machine configure -----confirm price----sign contract and make PI---send down payment – start to make machine---inform you before machine finish—you come our factory to check the machine---you accept the machine ----finish payment—exporting---send our technicians to your factory install the machine---answer your question all the using time and supply spare parts with cost only.
Confirm the technology and machine configure -----confirm price----sign contract and make PI---send down payment – start to make machine---inform you before machine finish—you come our factory to check the machine---you accept the machine ----finish payment—exporting---send our technicians to your factory install the machine---answer your question all the using time and supply spare parts with cost only.
After sales service:
1. we send technician to buyer factory to install the machine
2. in Covid period , we provide machine working videos, machine working instructions , manuals , help you to install the machine
3. we provide raw material formation.
4. we give training to your workers in our factory.
5. we provide all necessary help to you.
1. we send technician to buyer factory to install the machine
2. in Covid period , we provide machine working videos, machine working instructions , manuals , help you to install the machine
3. we provide raw material formation.
4. we give training to your workers in our factory.
5. we provide all necessary help to you.
