Price:$28,000.00 - $30,000.00

Quantity:


Product Overview

Description



Overview

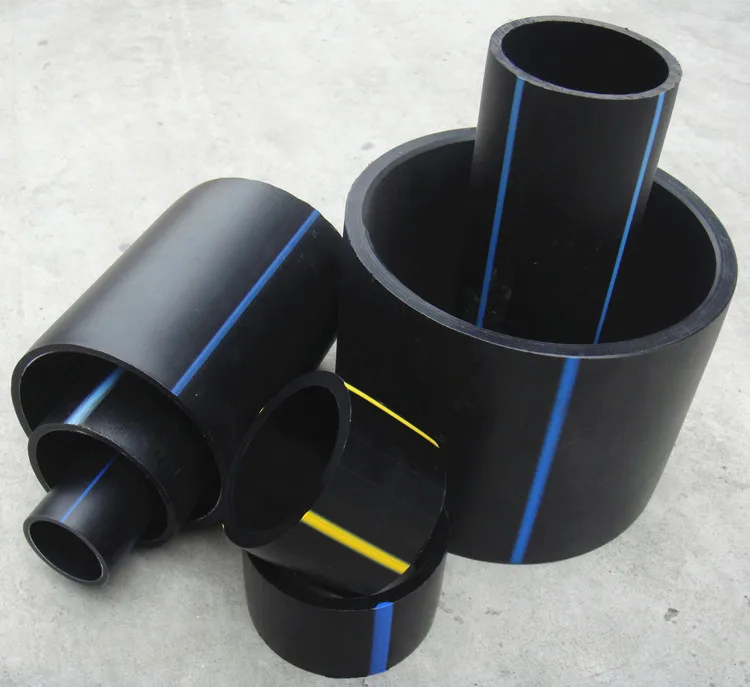

PE Pipes
PE Pipe is mainly used for producing agricultural irrigation pipes, drainage pipes, gas pipes, water supplying pipes , cable conduit pipes etc.
The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental
stress cracks resistant, good creep resistant, etc.

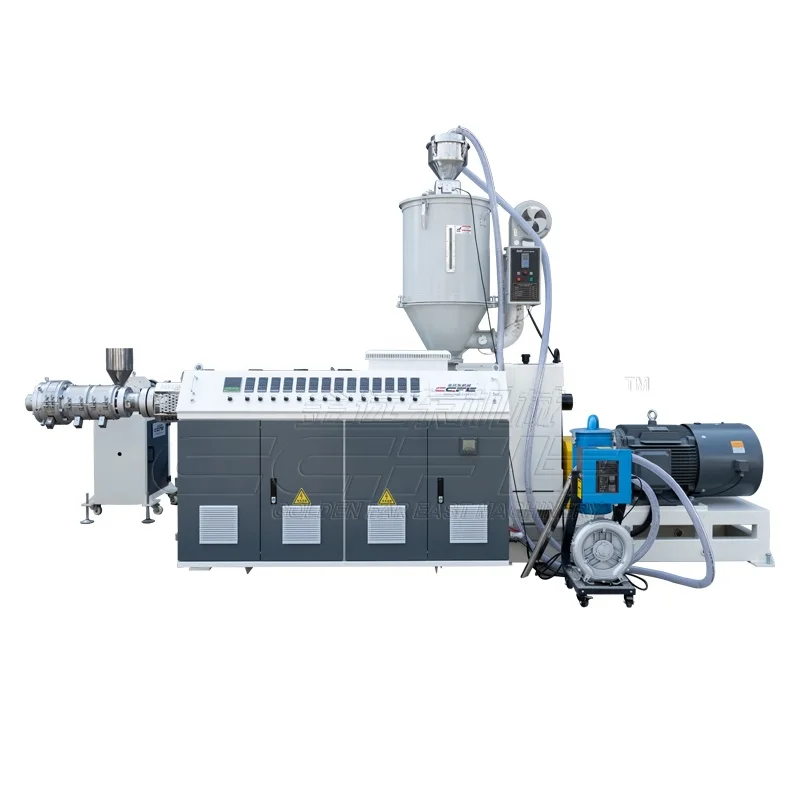

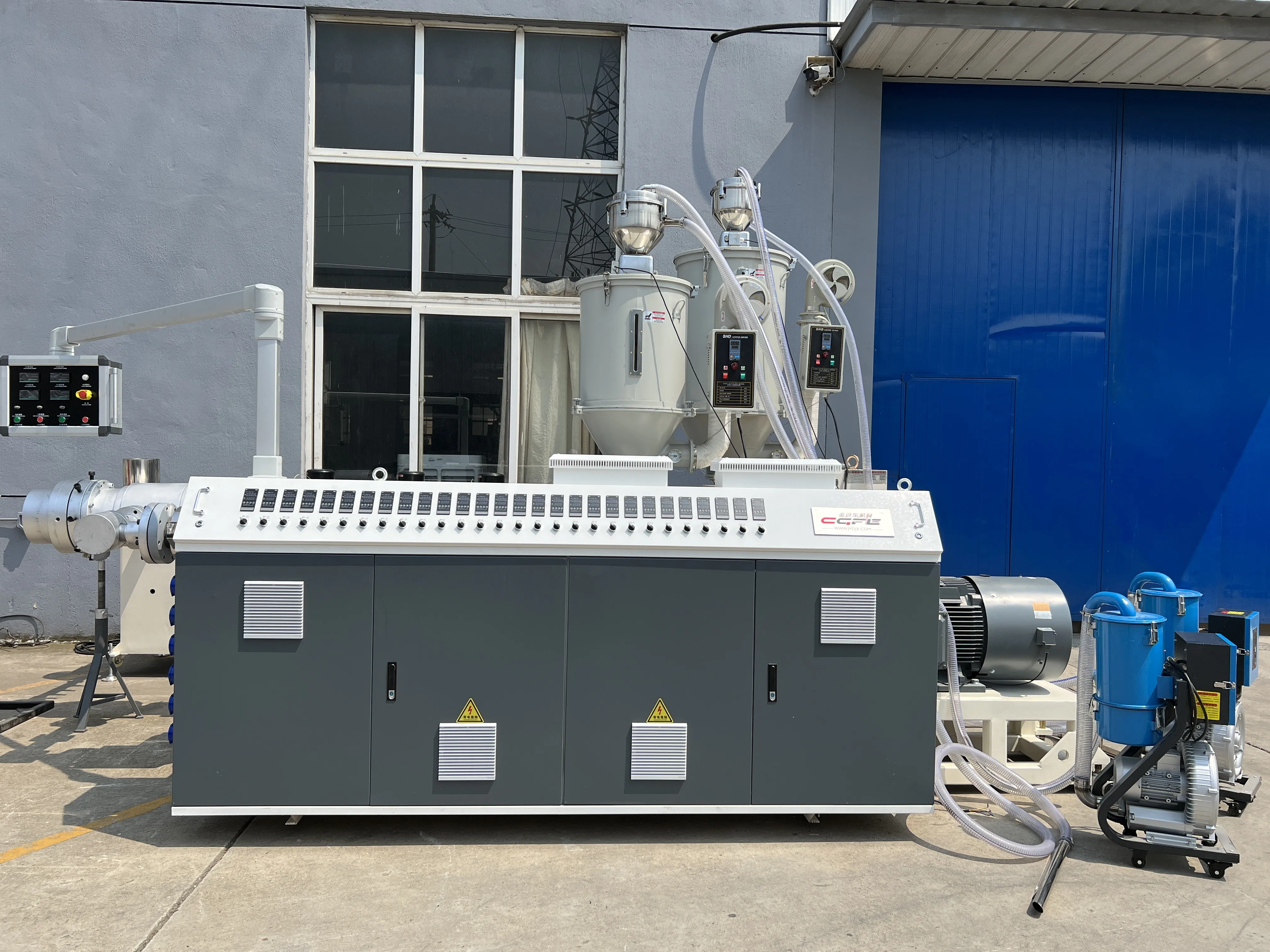

our extrusion line is designed with high efficiency extruder and equipped with

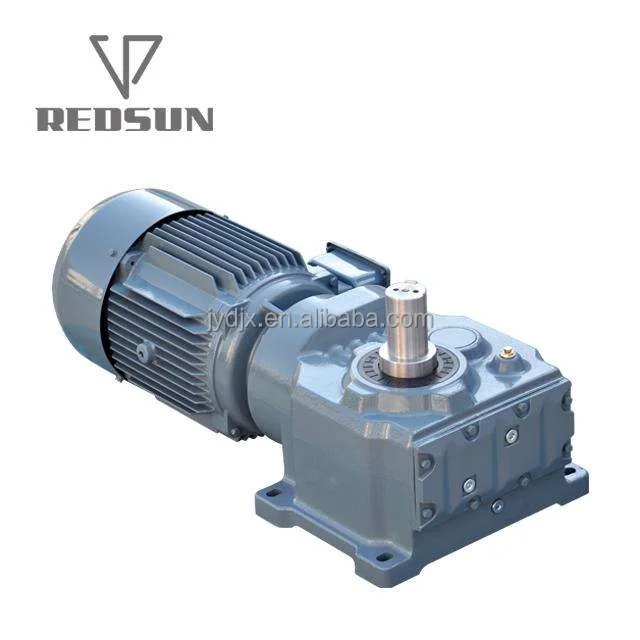

reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes .



Products Description




Process Flow

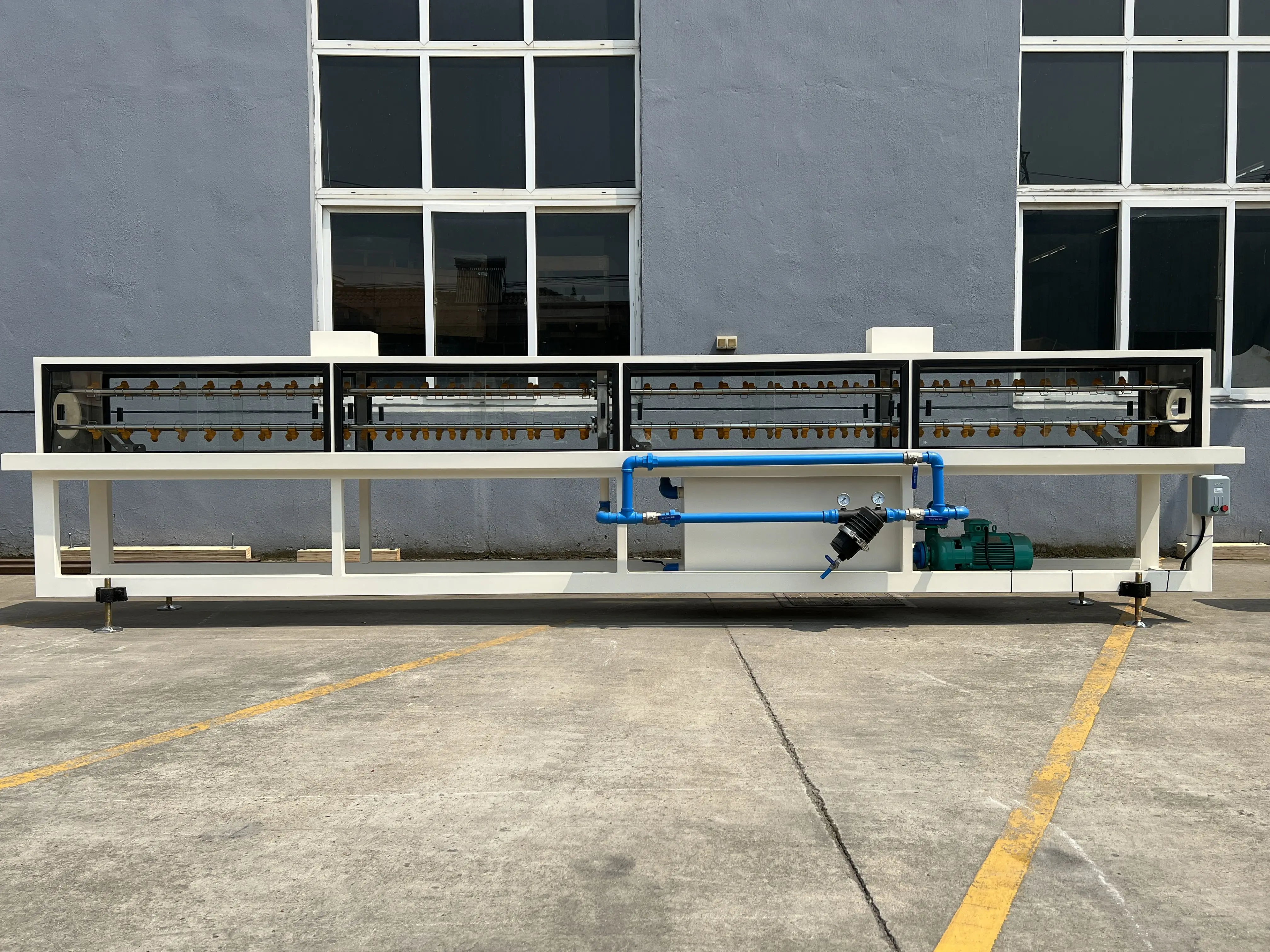

Granule Mixing → Vacuum loading→ Drying hopper →Single Screw Extruder → Mould → Vacuum Calibration Tank →Spraying Cooling →Haul-off → Planetary Saw Cutter →(Coiling )→ Final Product Inspecting &Packing


Details Images




Model
SJ50/33
SJ65/33
SJ75/33
SJ90/33
SJ120/33
SJ150/33

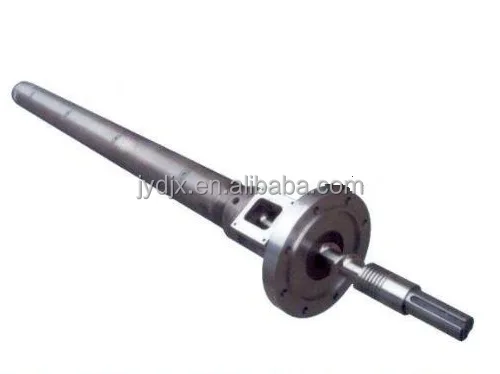

Screw Dia(mm)
50
65
75
90
120
150
L/D
33:1
33:1
33:1
33:1
33:1
33:1

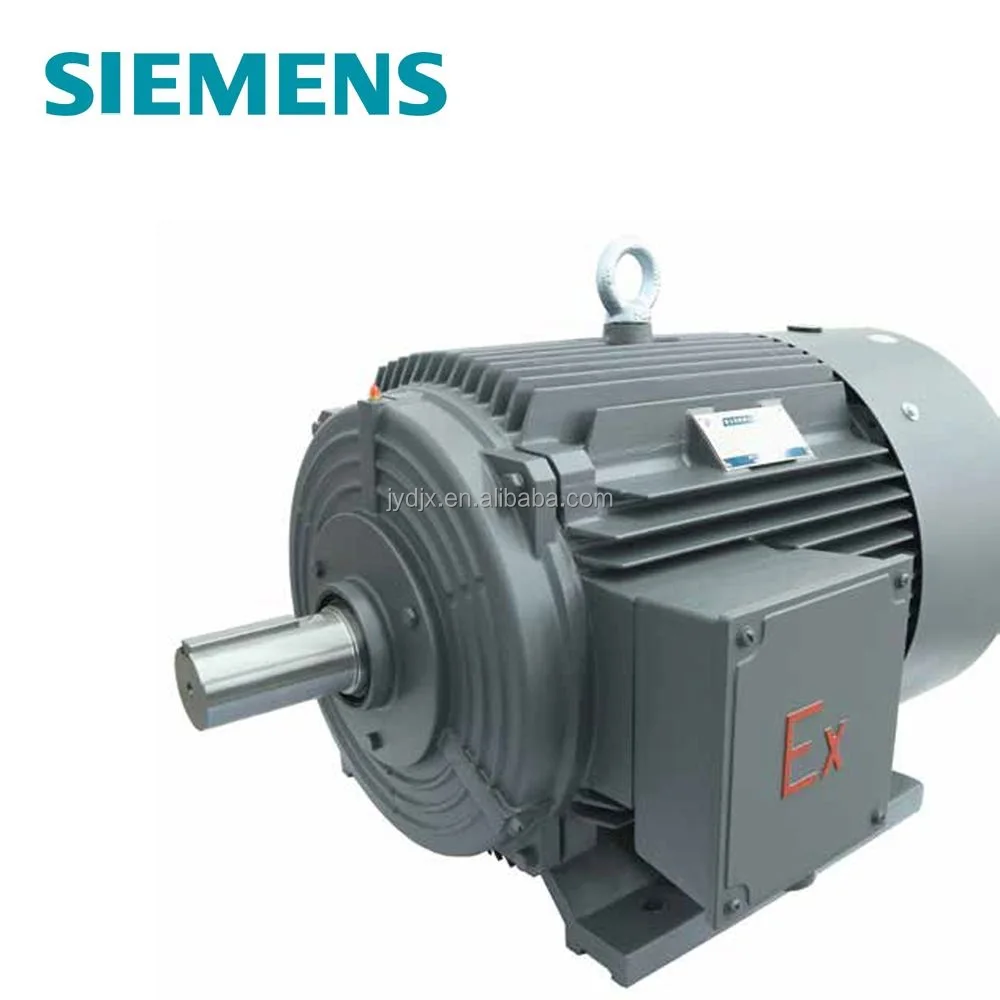

Main Motor
22
37/45
90
110
220
260
Heating power
12
16.5
37
42
64
80
Output(Kg/h)
50-60
50-120
100-160
150-250
300-500
500-800

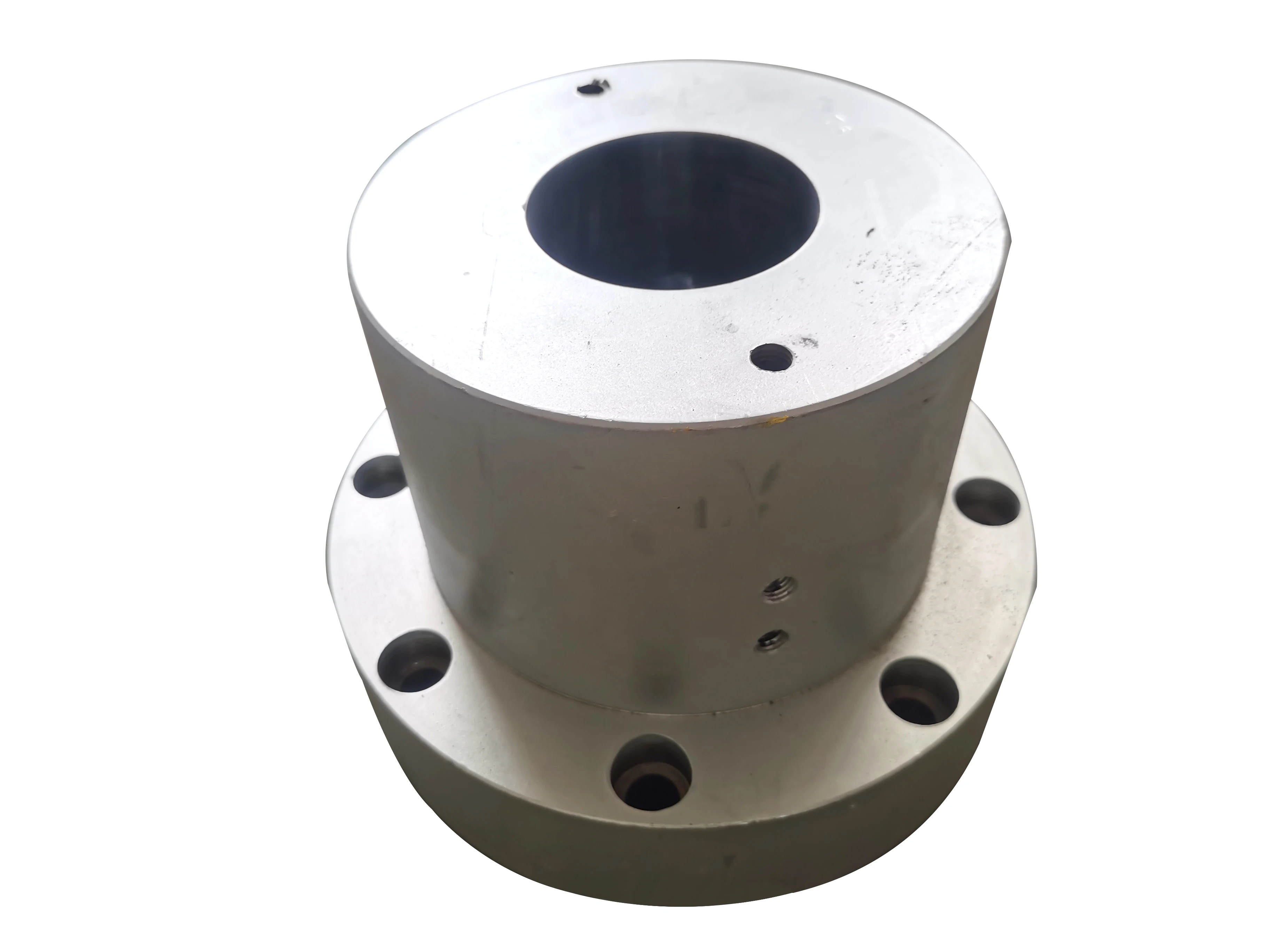

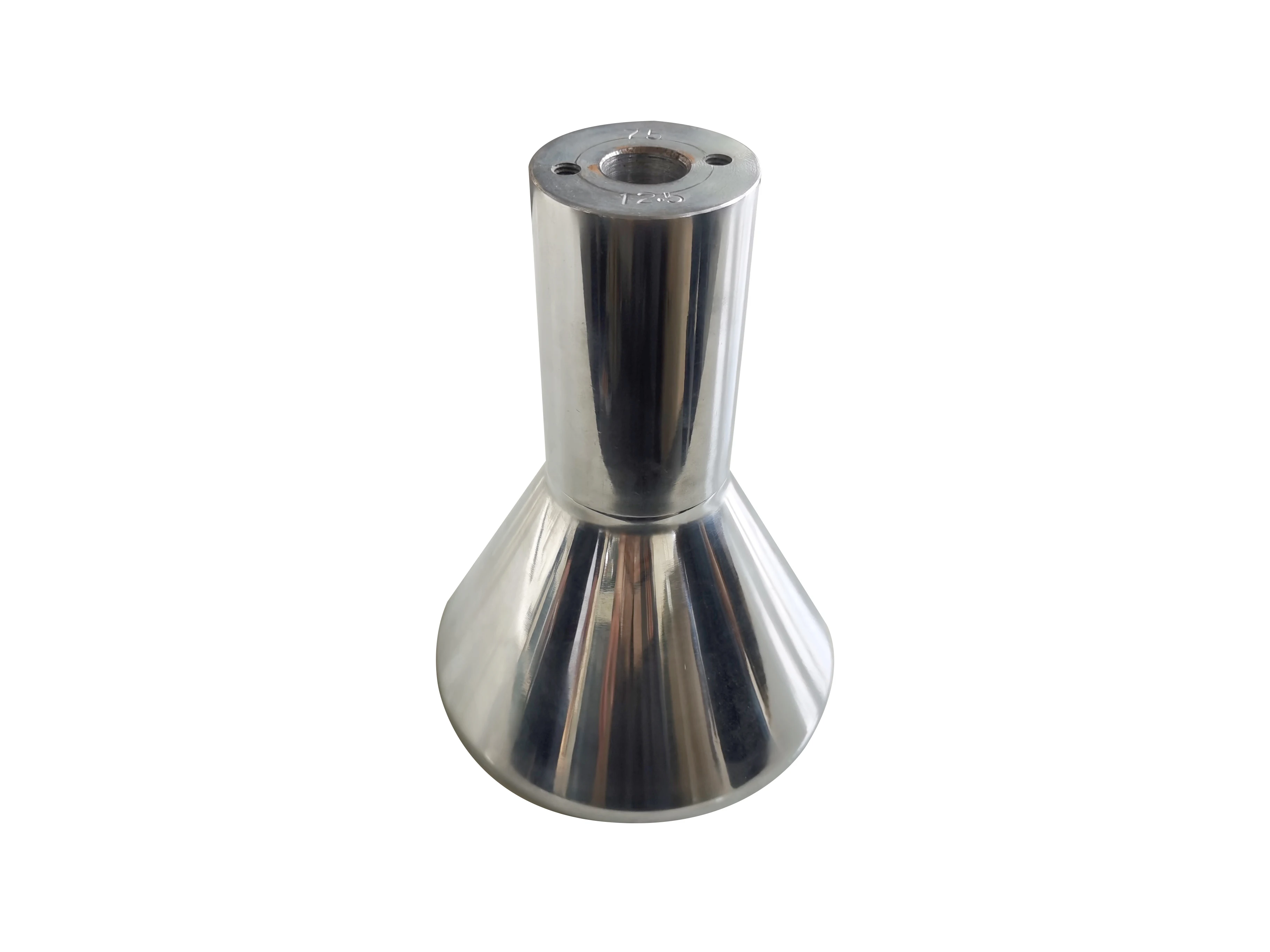

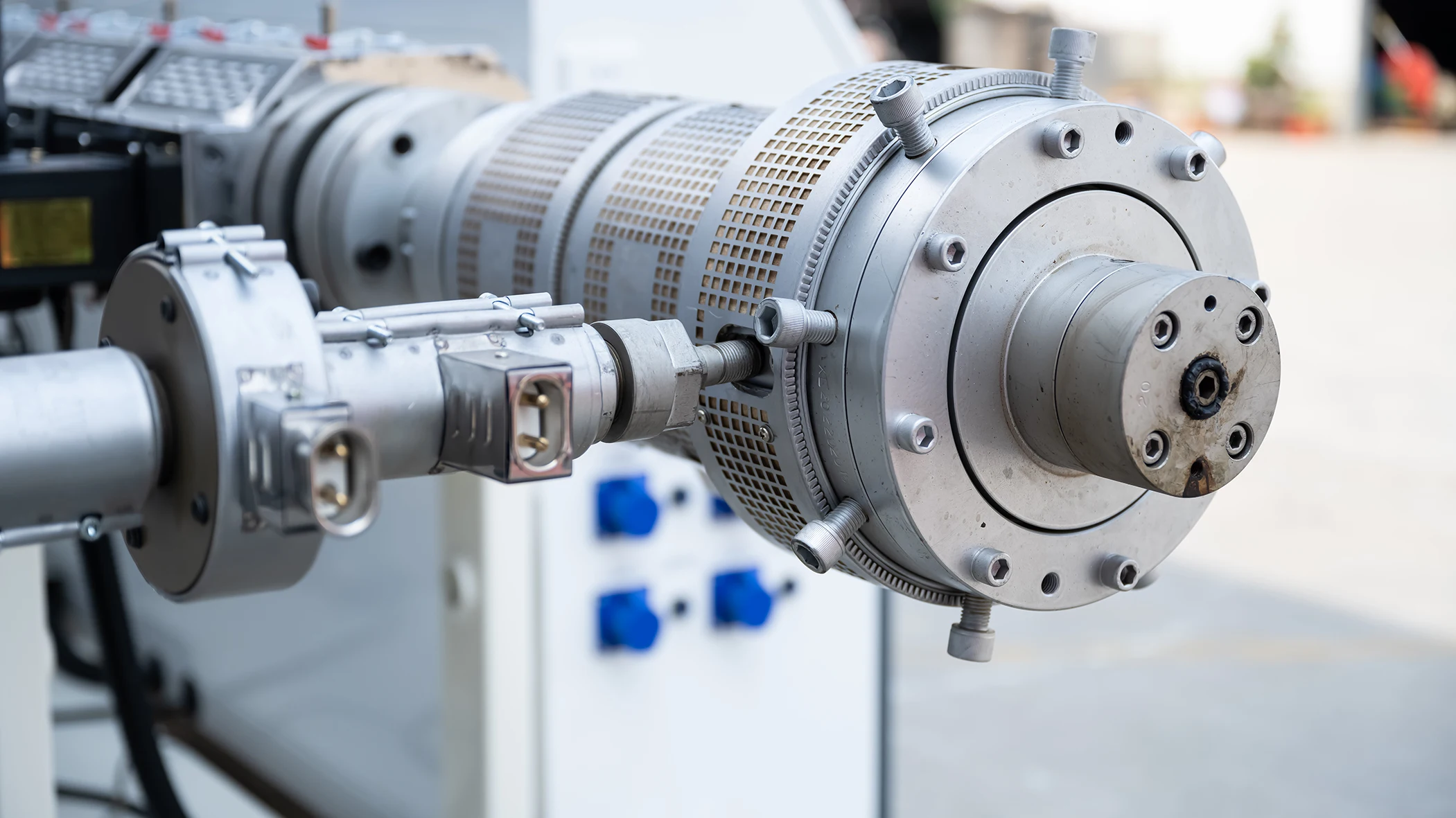

Die head&Mould
--Suitable for PVC-U and CPVC pipe production
--Diameter range from Ø16 to Ø160mm
--High melt homogenity
--Low pressure built up even with high outputs
--Melt channel distribution system
--Equipped with seramic heaters
--Pipe head carriage for easy movement
--Pipe heads are designed according to application requirements.

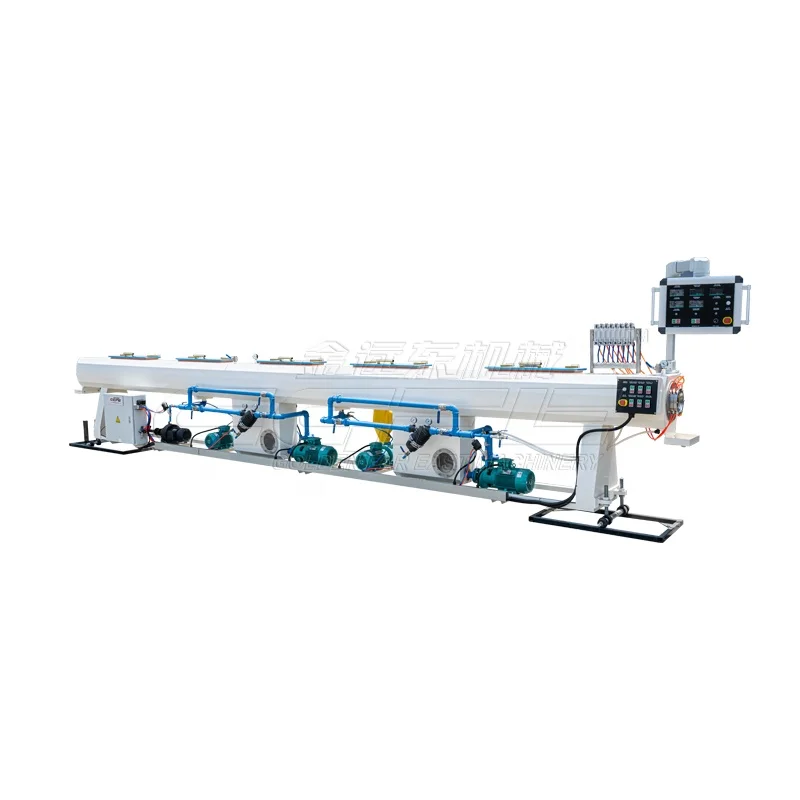

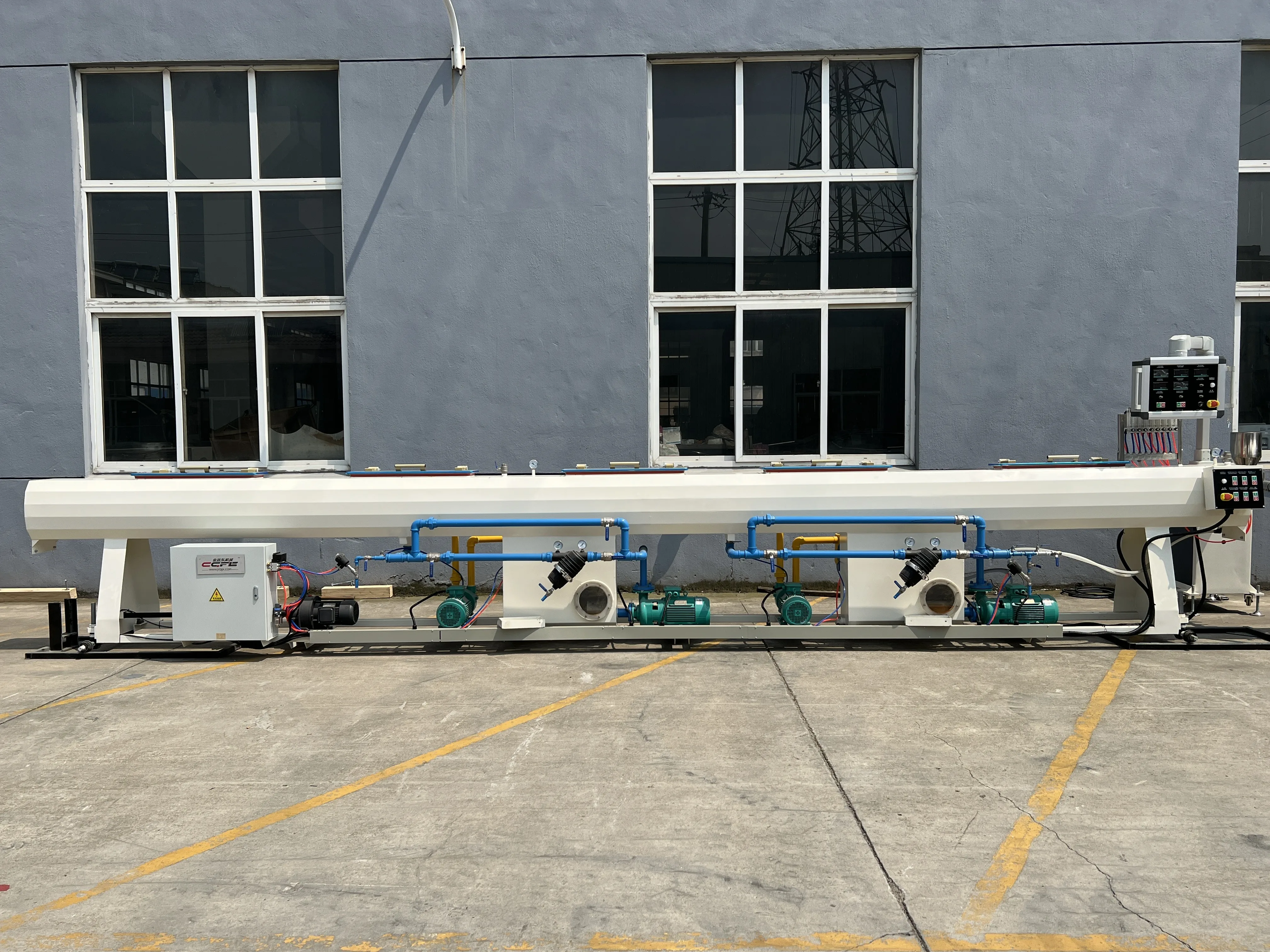

Vacuum Calibration Tank
--Diameter range from Ø16 to Ø1600 mm
--Two independent Vacuum Calibration chamber
--304 stainless steel with painted outer surface

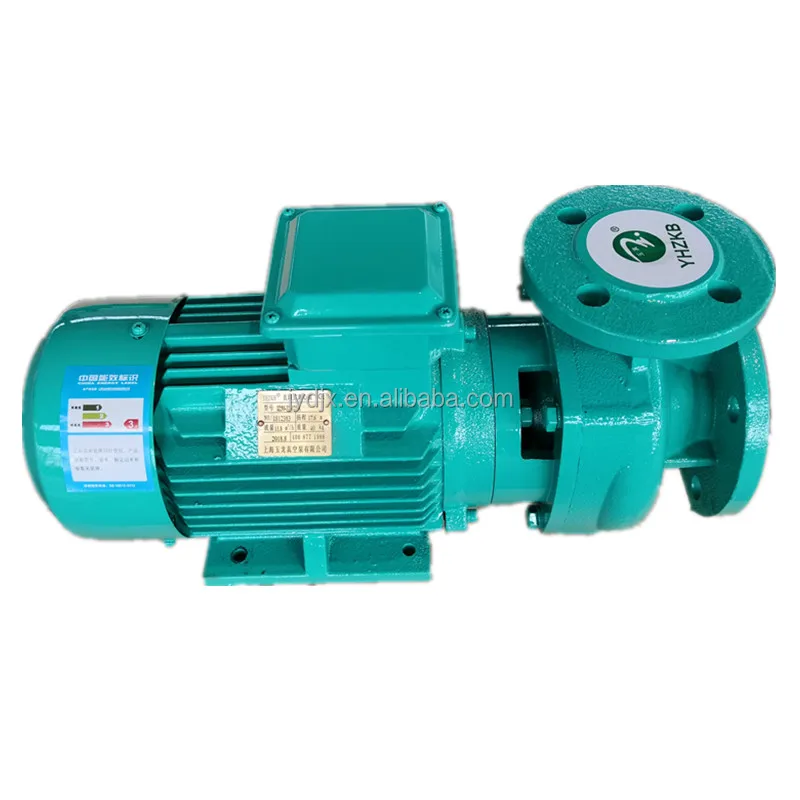

--Equipped with a vacuum pump and a drainage pump with separate functions.
--Electronic float to control water intake
--Automatic drainage temperature-controlled pneumatic angle seat valve
--Equipped with a manual water replenishment function.
--The machine is equipped with zero downtime and has a front and rear movement
device, a high and low adjustment device and a three-dimensional correction.

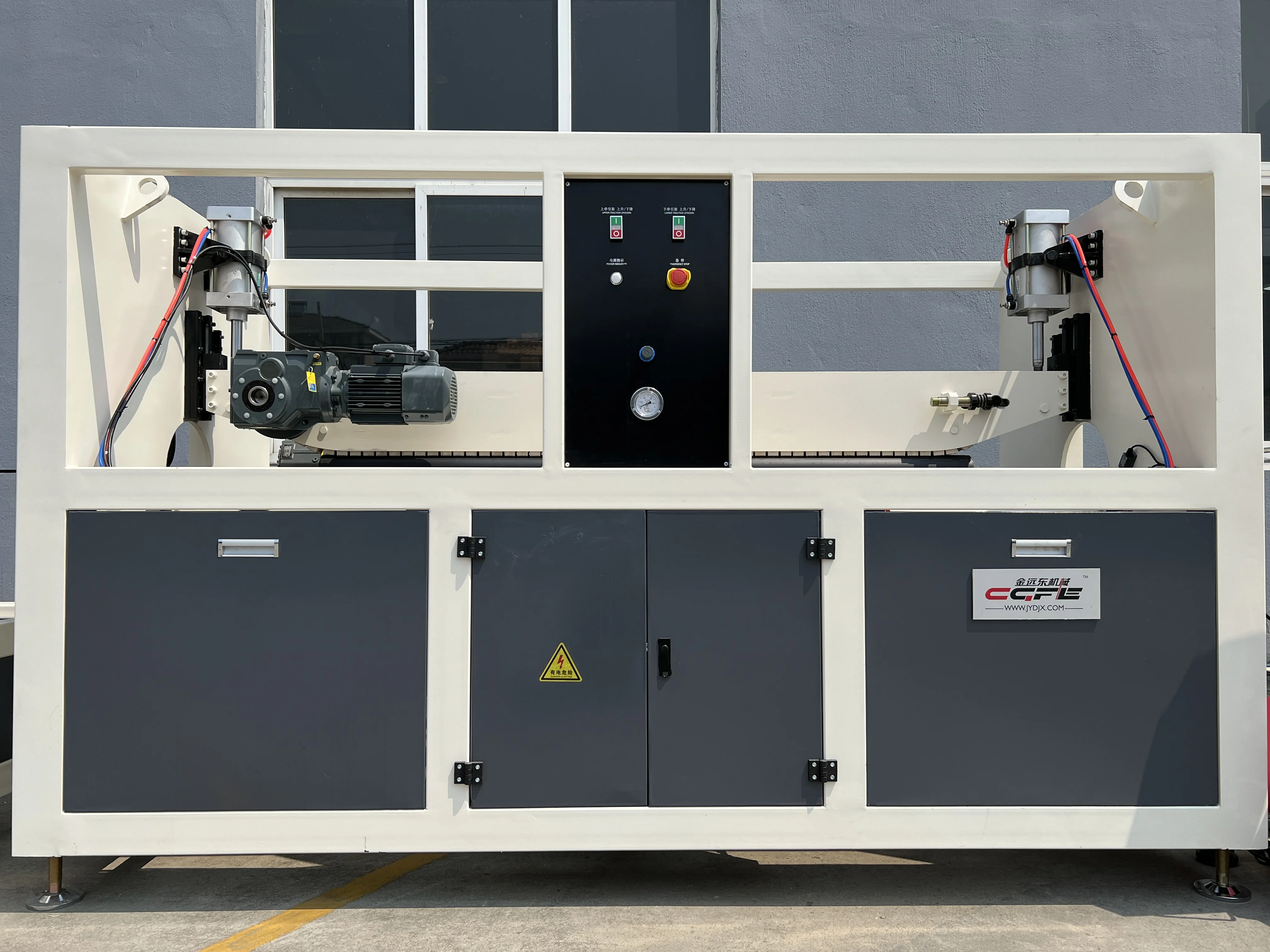

PE Pipe Haul-offs
--Pipe range from Ø16 to Ø1600 mm.
--High pulling force without lose the shape of the pipes.
--Equipped with 2, 3, 4, 6, 8,10 or 12 caterpillars according to the application.
--Servo motor driving for providing stable torque and running.
--Motorized positioning of the lower caterpillars.
--Simple operation.
--Completely closed protection for maximum safety.
--Chain conveyors with special rubber pads on chains which do no mark on the pipe.
--Synchronization with the extruder screw speed allows stable production during changing the production speed.

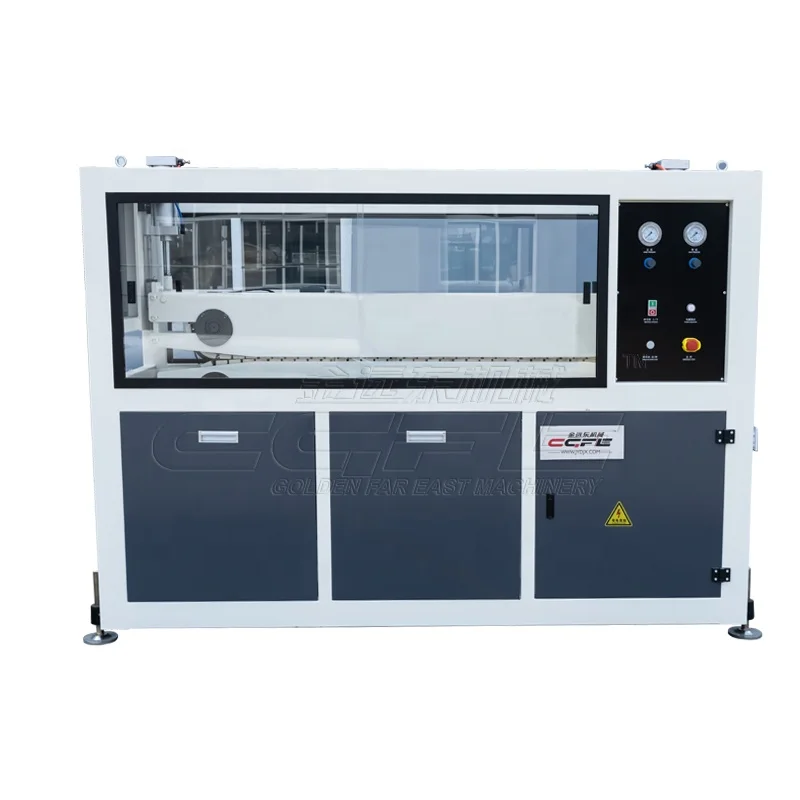

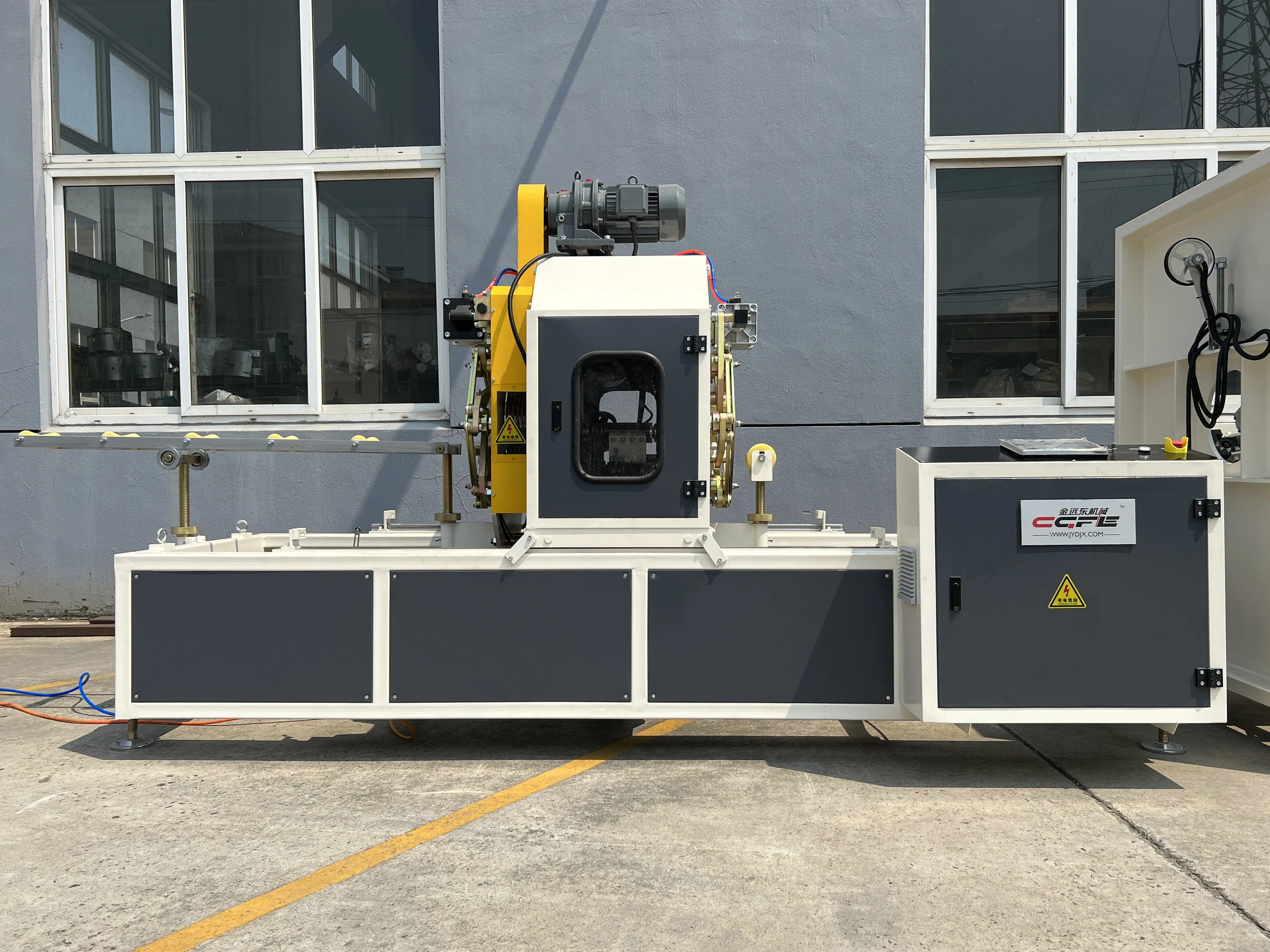

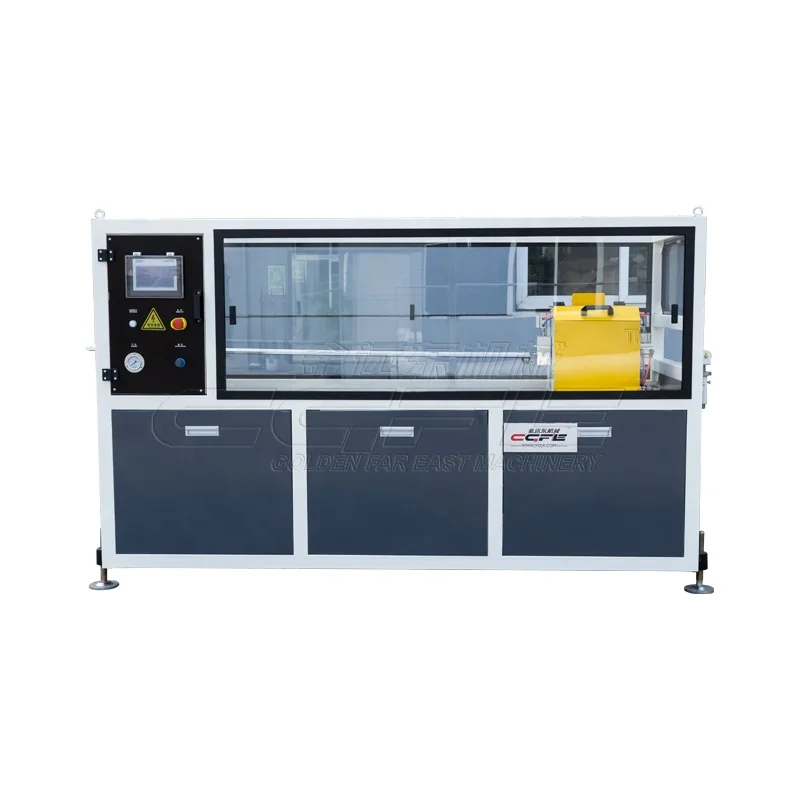

PE Pipe Non-Dust Cutting Machine
--Dust-free equipped with disk blade to ensuring smooth cutting surface without any dust

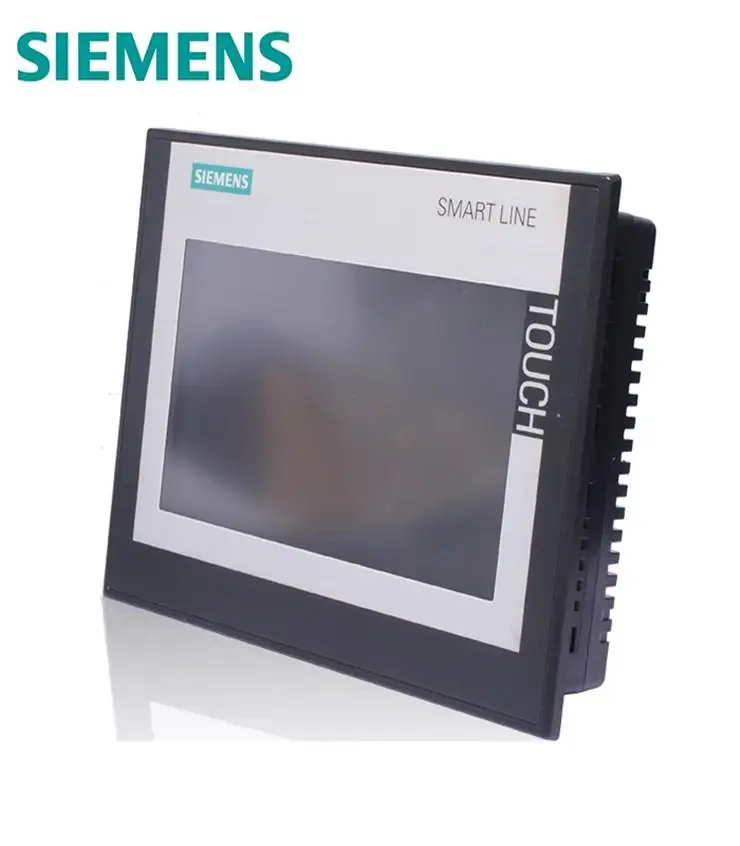

--Touch screen control panel
--User friendly software developed by FAYGO
--All movements are motorized and controlled by control panel
--Pipe blocking with using universal clamping for easy operation
--Type of the cutting unit is chose depend on pipe
--Completely closed and secured machine for maximum safety

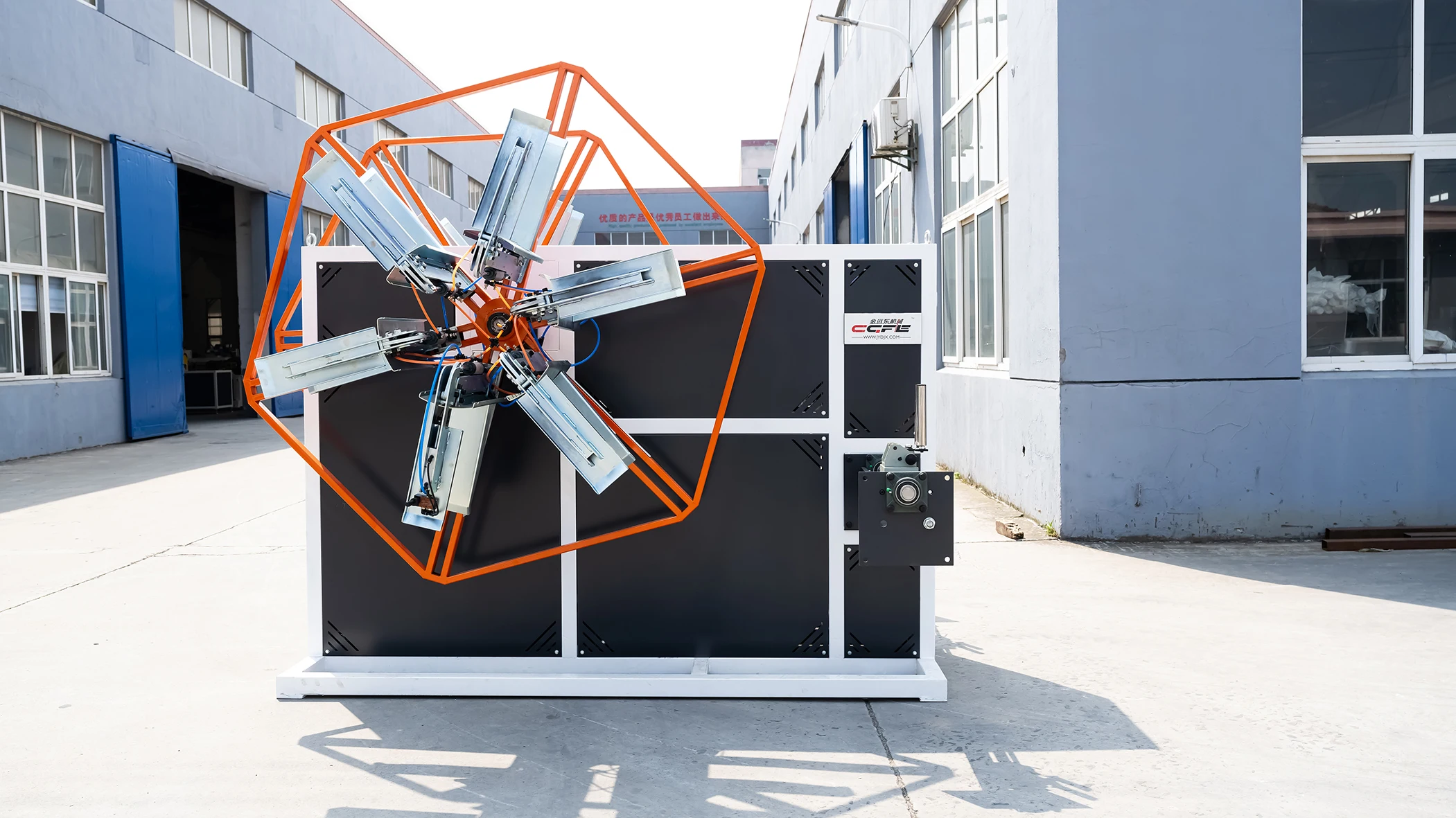

Winding machine



Why Choose Us




Technology cooperation




Our Company

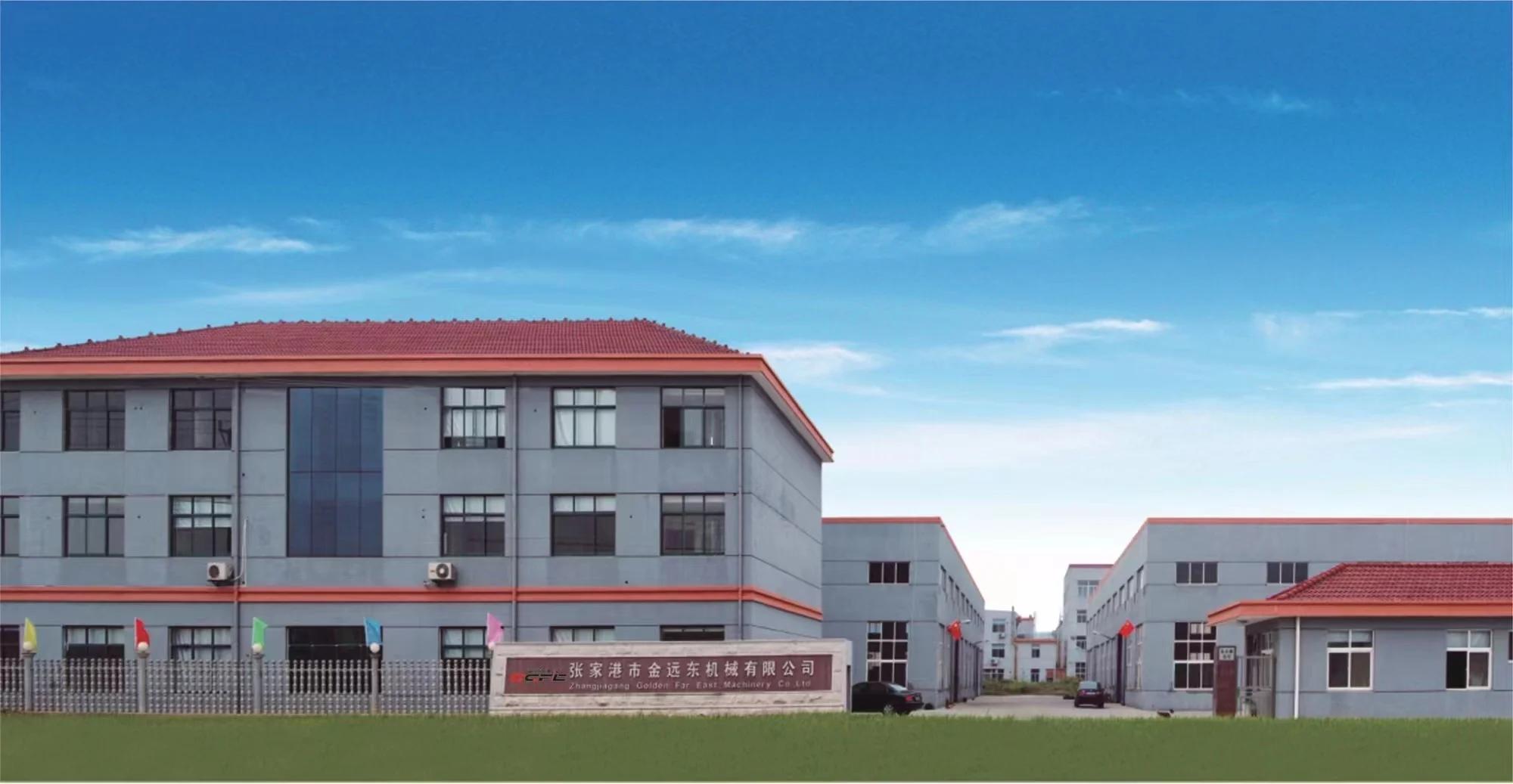

Golden Far East Machinery Co., ltd. is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines. It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Our products include single screw extruder, twin screw extruder, PVC/HDPE/PP-R pipe extrusion line, PVC profile extrusion line,
WPC profile extruding line, high speed mixer and plastic sheet production lines with the relative plastic auxiliary machine, etc.
Our products have been exported to Egypt, Uzbekistan, Brazil, Turkey, Russia, UAE, Thailand, Italy, etc.


Exhibition


2023 ChinaPlast
2023 Saudi Arabia
2024 Bangladesh IPF


Contact us




FAQ


1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you
arrive in Shanghai or Wuxi, we can pick you up to visit our factory.

2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.

3.How to ensure the safety of your funds and deliver on time?
(1) Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
(2) Through the letter of credit, you can easily lock the delivery time.
(3) After visiting the factory, you can ensure the authenticity of our bank account.

4. How to ensure the quality of machine?
(1) In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have
accumulated professional processing methods in the past few years.
(2) Each component before assembly needs to be strictly controlled by inspectors.
(3) After all equipment is completed, we will connect all machines and run the entire production line in our company before
shipping to ensure the stable operation.
