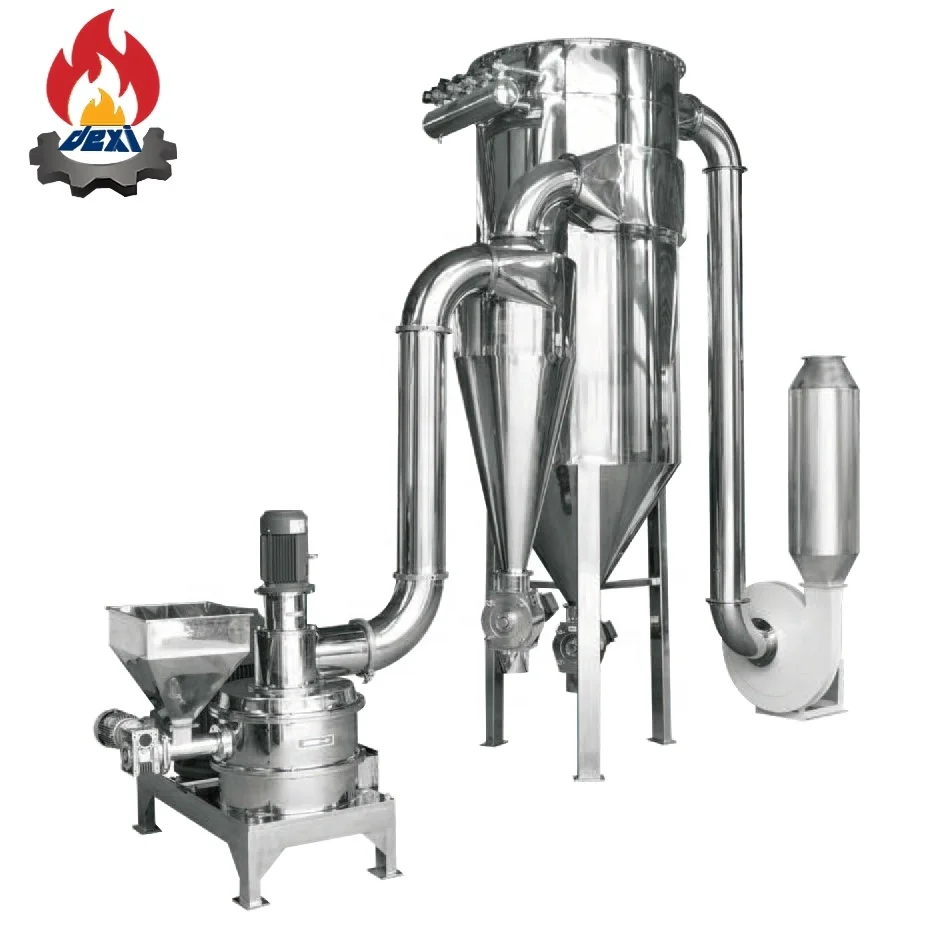

Spice Manufacturing Plant Uses Ultrafine Grinder/Mill Super Micro Mill Superfine Pulverizer
- Category: >>>
- Supplier: Shandong Dexi Machine Co. Ltd.
Share on (1600982437191):
Product Overview
Description
Product Description

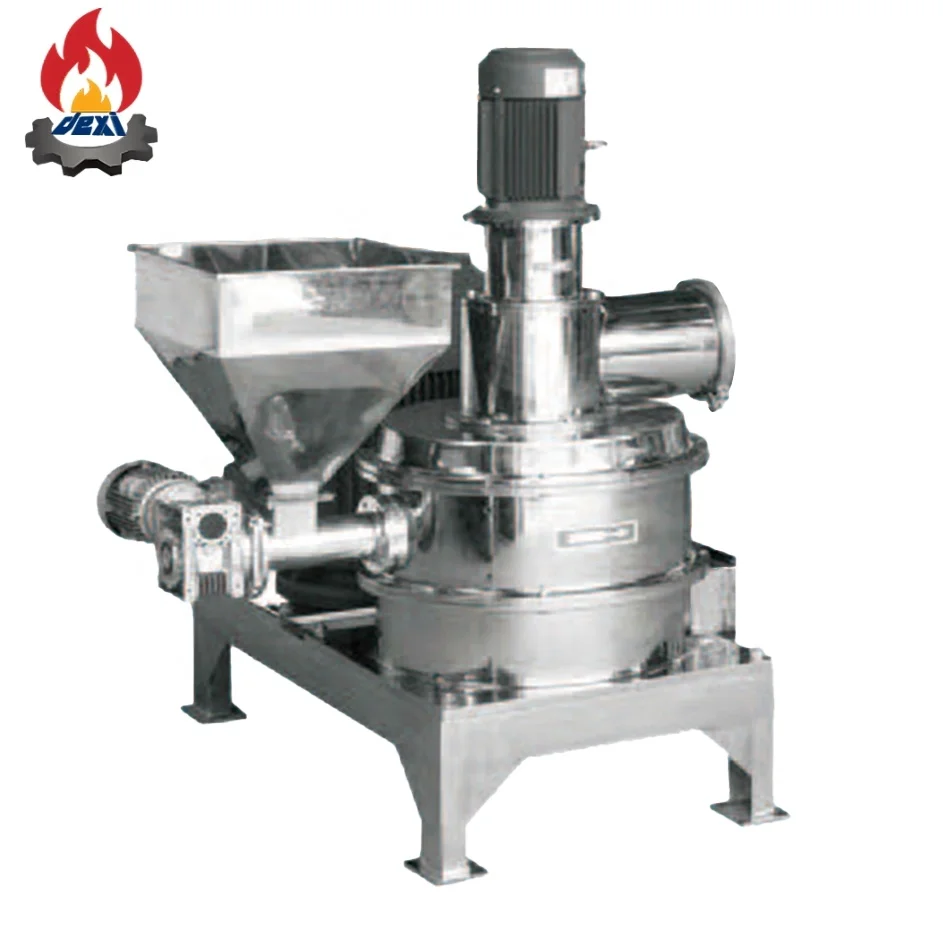

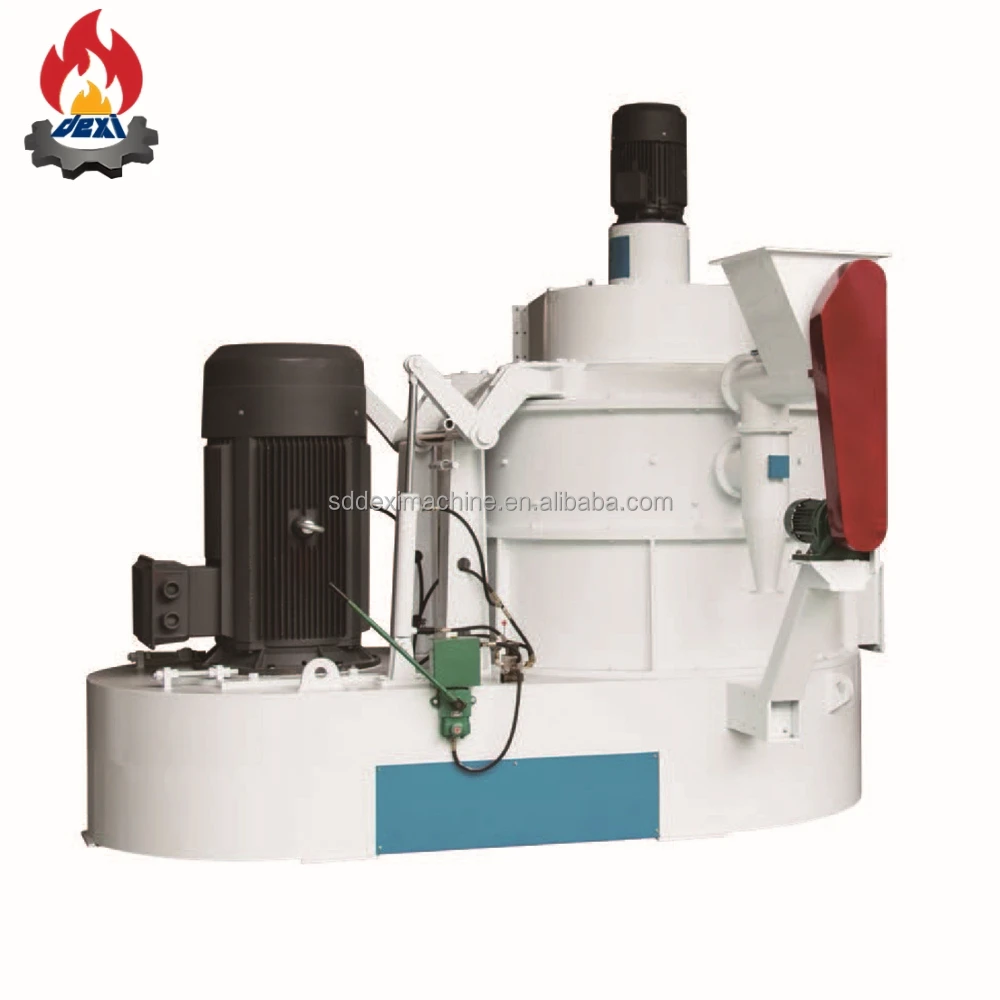

Ultrafine Grinder Mill Super Micro Mill Incense Powder Making Machine
1-->CWF series powder grinder machine is compact in design, reasonable in structure, and has air-selected type, no screen and no net. The machine is equipped with grading mechanism, which can make the crushing and grading complete at one time.
2-->CWF series powder grinder machine is mainly using for crushing different kind of grain, biomass and chemical materials into fine powder, output size can be 60 mesh to 2000 mesh.
3-->CWF series It is ideal equipment for crushing pesticides, chemical industry, animal feeding industry, pharmaceuticals industry and other industries.
2-->CWF series powder grinder machine is mainly using for crushing different kind of grain, biomass and chemical materials into fine powder, output size can be 60 mesh to 2000 mesh.
3-->CWF series It is ideal equipment for crushing pesticides, chemical industry, animal feeding industry, pharmaceuticals industry and other industries.

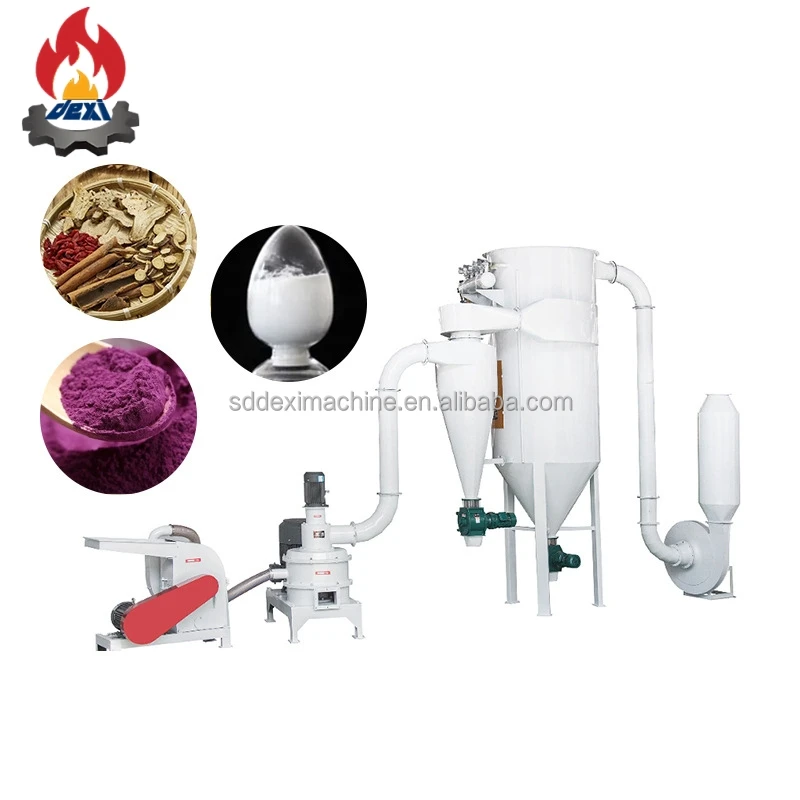

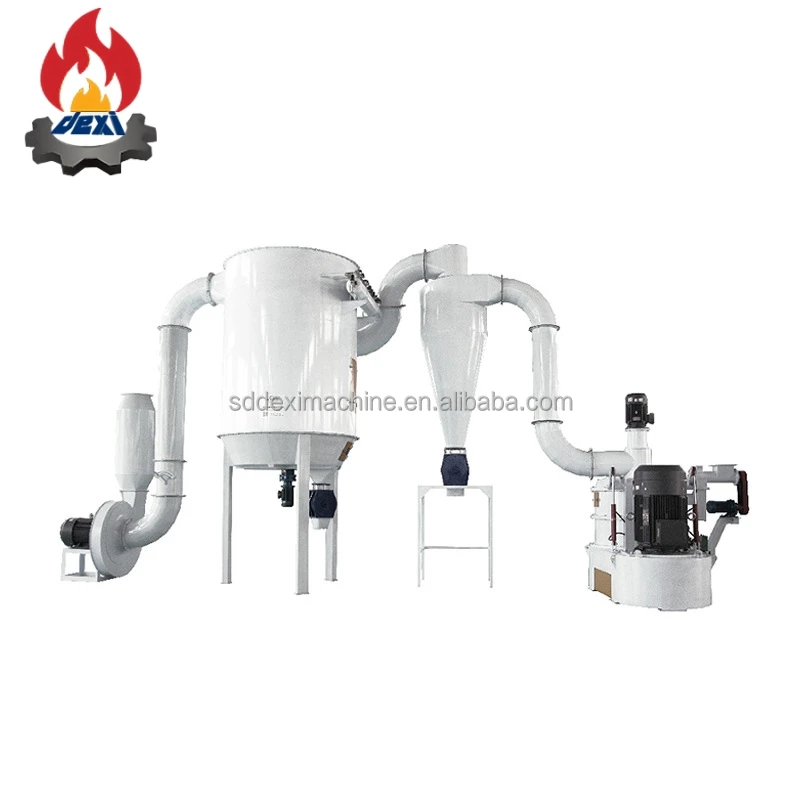

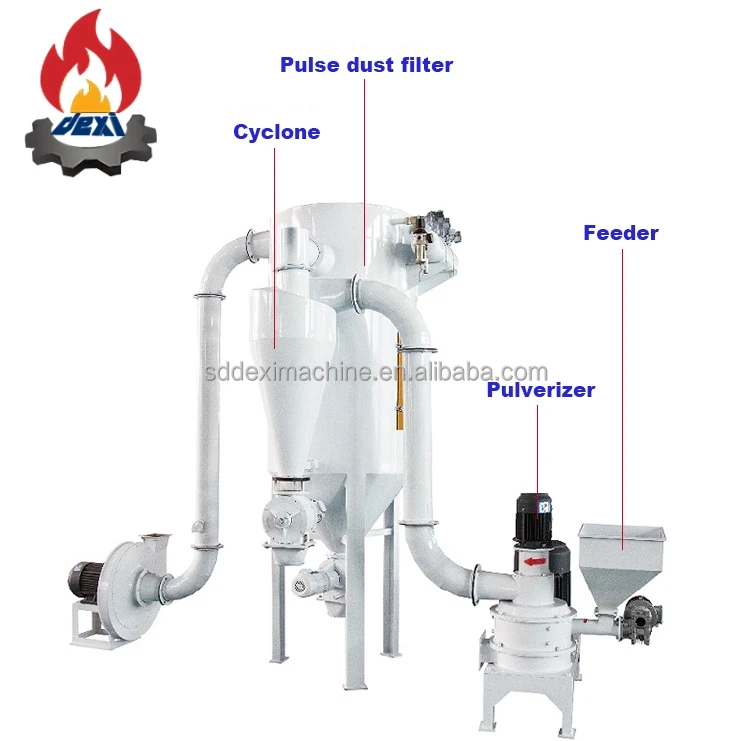

Working Principle:

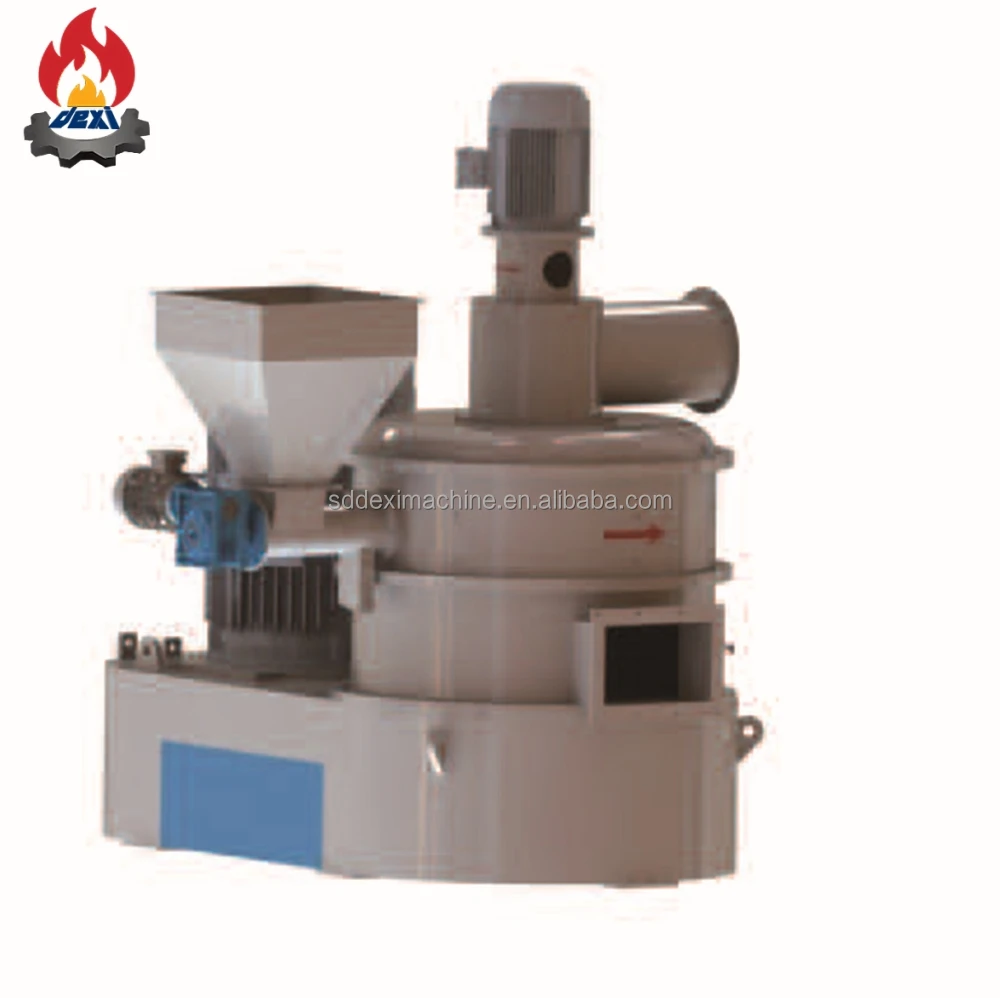

1. Through screw conveyor, feeding the materials into the grinding chamber, the material will been cut and crushed by high-speed rotating hammers.
2. After grinding, the fine material is transported into cyclone separator by negative pressure air transportation, and the fine material will been discharge from cyclone bottom airlock.
3. And some very light dusting will go into the behind pulse dust filter, then clean air come out, roughly no material lost.
2. After grinding, the fine material is transported into cyclone separator by negative pressure air transportation, and the fine material will been discharge from cyclone bottom airlock.
3. And some very light dusting will go into the behind pulse dust filter, then clean air come out, roughly no material lost.
Specification
Model | Power (KW) | Capacity (kgs/hour) | Product size (Mesh) | Grinding ratio (%) | Disc diameter (mm) | Machine Dimension (mm) |
CWF30 | 15/18.5 | 40-300 | 60-2000 | ≥95% | 300 | 4500x1600x2600 |
CWF40 | 30/37 | 80-1000 | 60-2000 | ≥95% | 400 | 5500x2000x3900 |
CWF50 | 37/45 | 200-2000 | 60-2000 | ≥95% | 500 | 5600x2000x3900 |
CWF75 | 75/90 | 360-3000 | 60-2000 | ≥95% | 750 | 7000x2500x4200 |
CWF90 | 90/110 | 500-5000 | 60-2000 | ≥95% | 900 | 8300x3500x4000 |
CWF110 | 110/132 | 1000-6000 | 60-2000 | ≥95% | 1100 | 10000x4000x5200 |
CWF130 | 132/160 | 1800-10000 | 60-2000 | ≥95% | 1300 | 11000x4000x5200 |
CWF150 | 160/200 | 2500-18000 | 60-2000 | ≥95% | 1500 | 12500x6500x6500 |
CWF170 | 220/250 | 3500-20000 | 60-200 | ≥95% | 1700 | 14000x7500x7500 |
Note: Due to the differences in raw materials, output will be different.
Different models of machines have different sizes.
Different models of machines have different sizes.

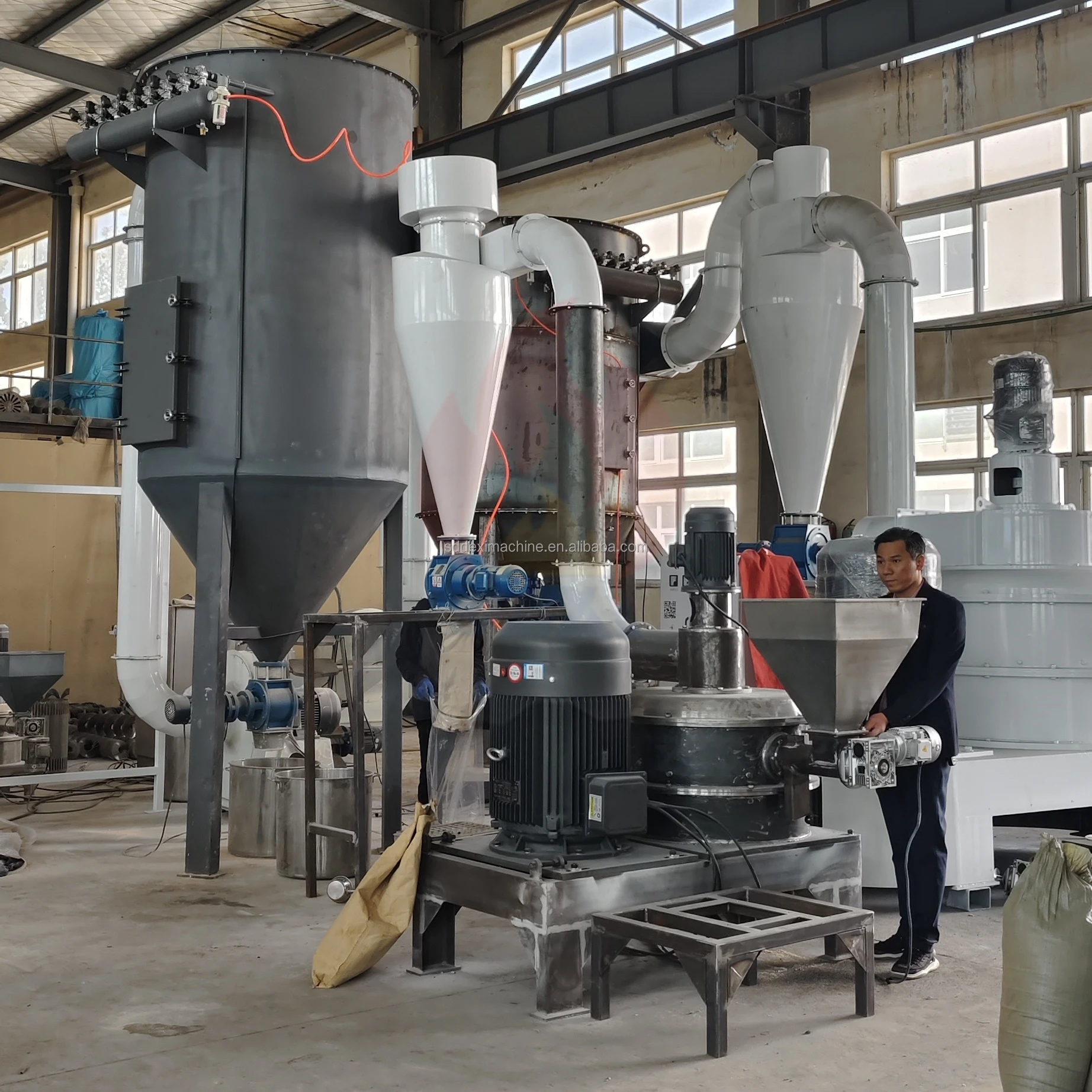

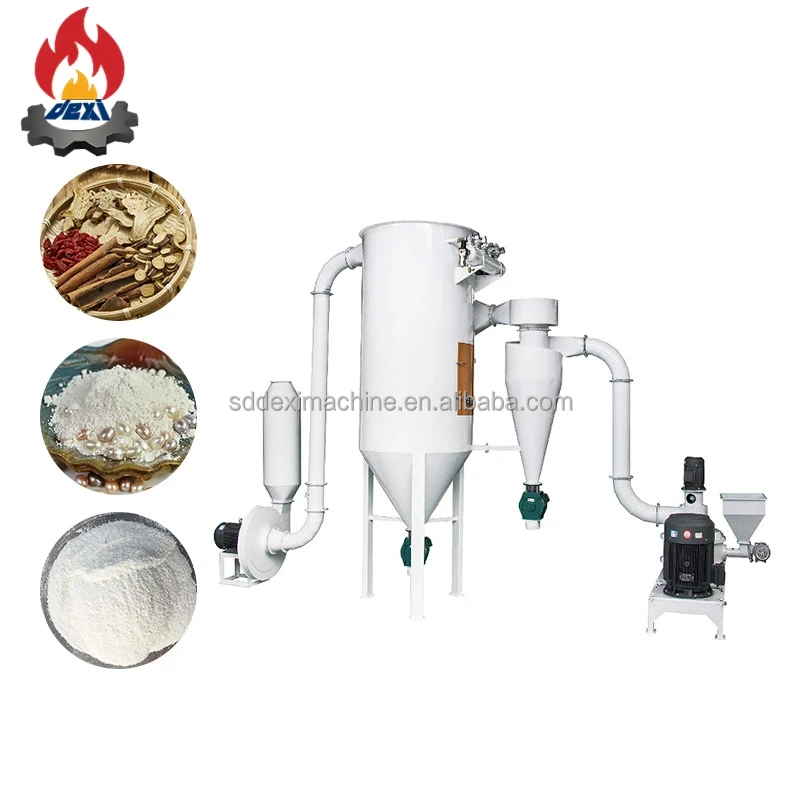

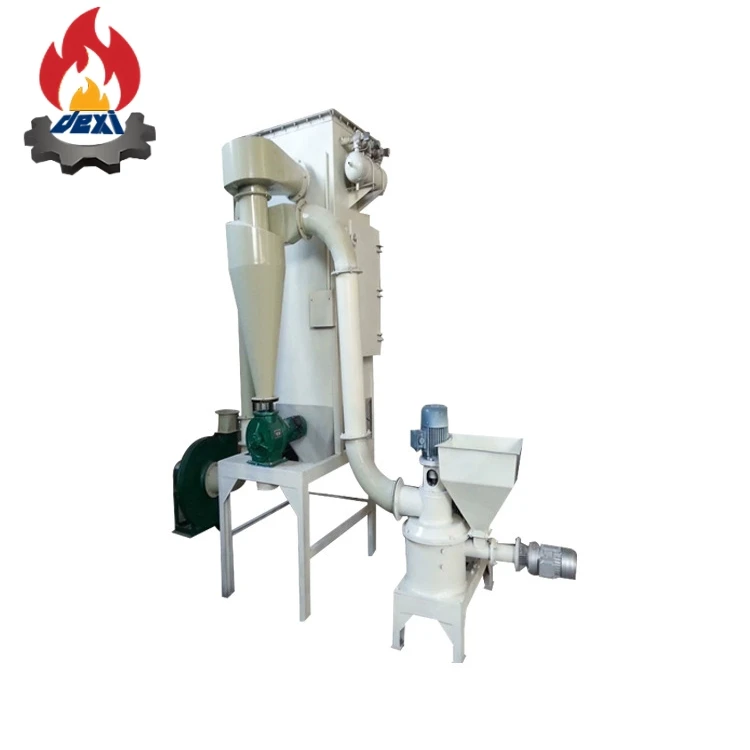

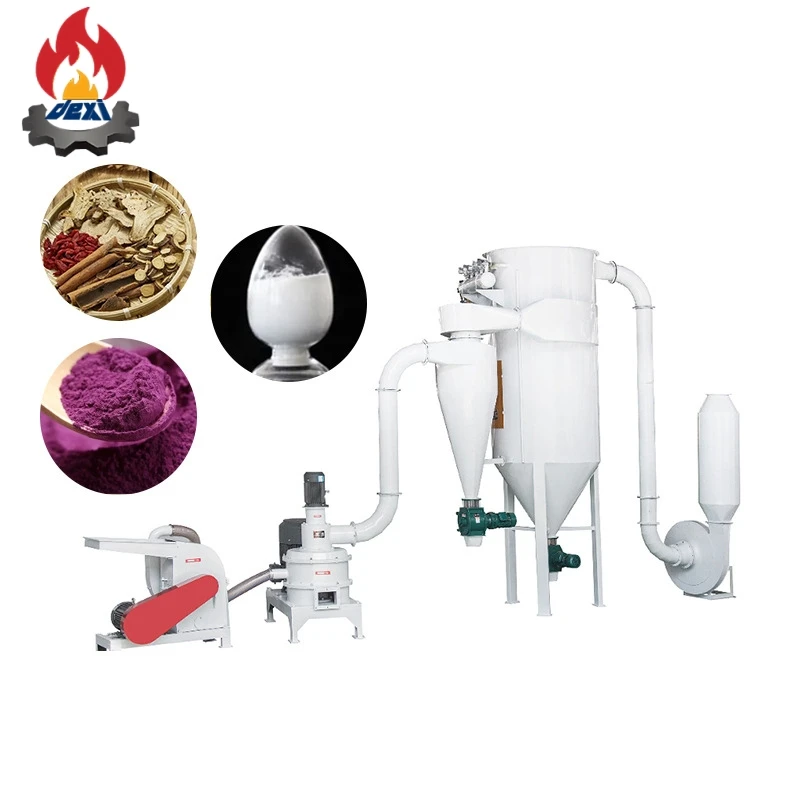

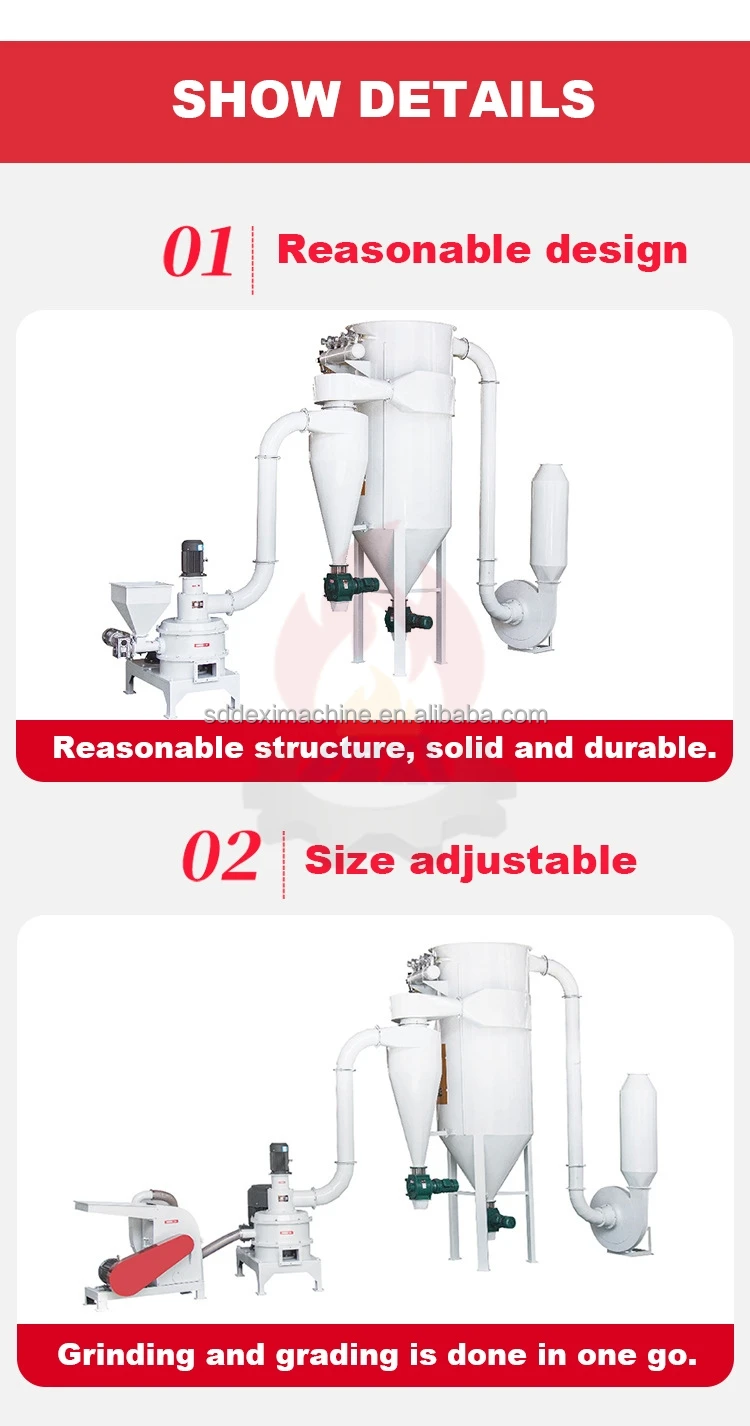

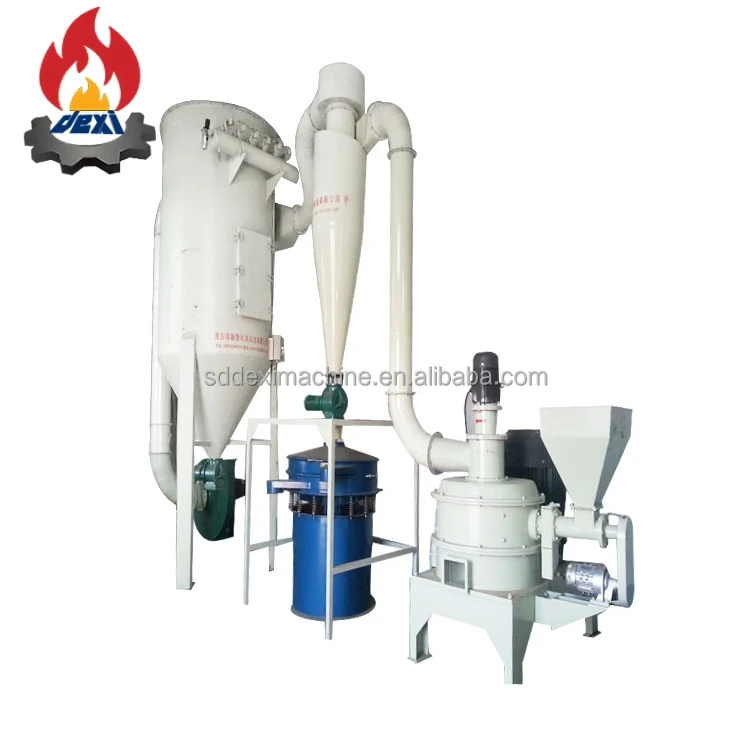

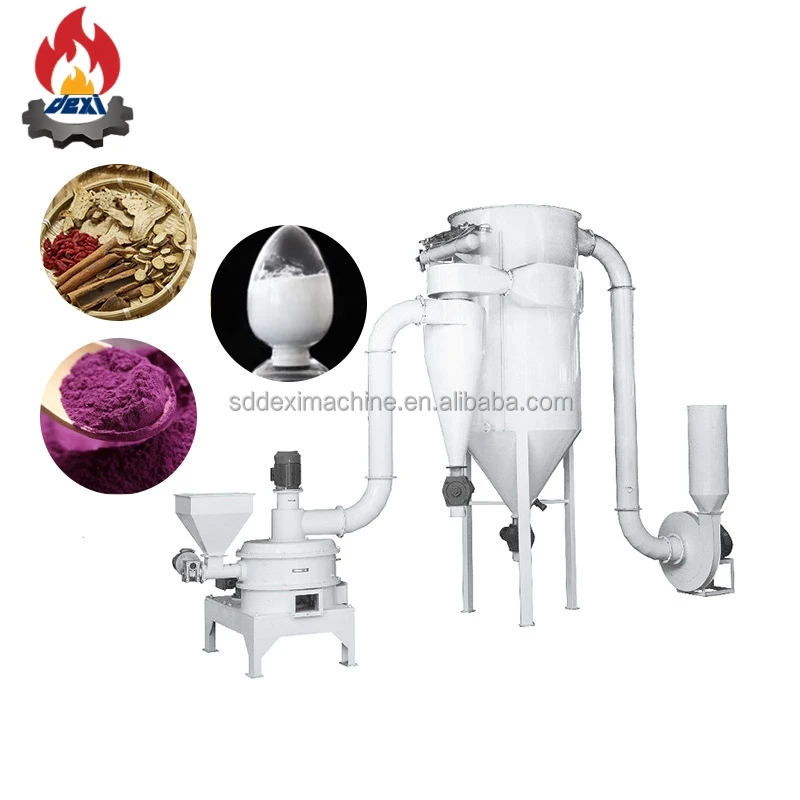

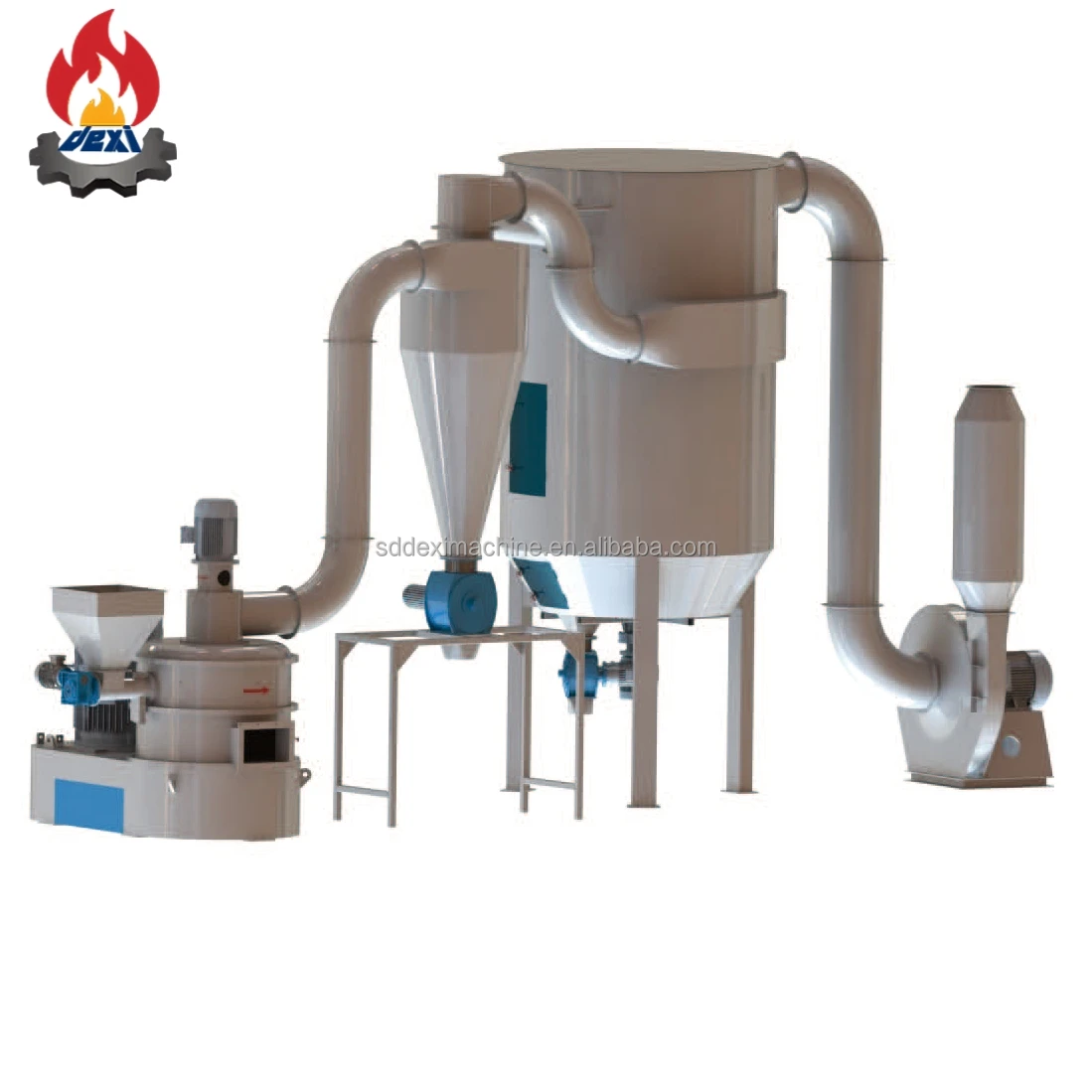

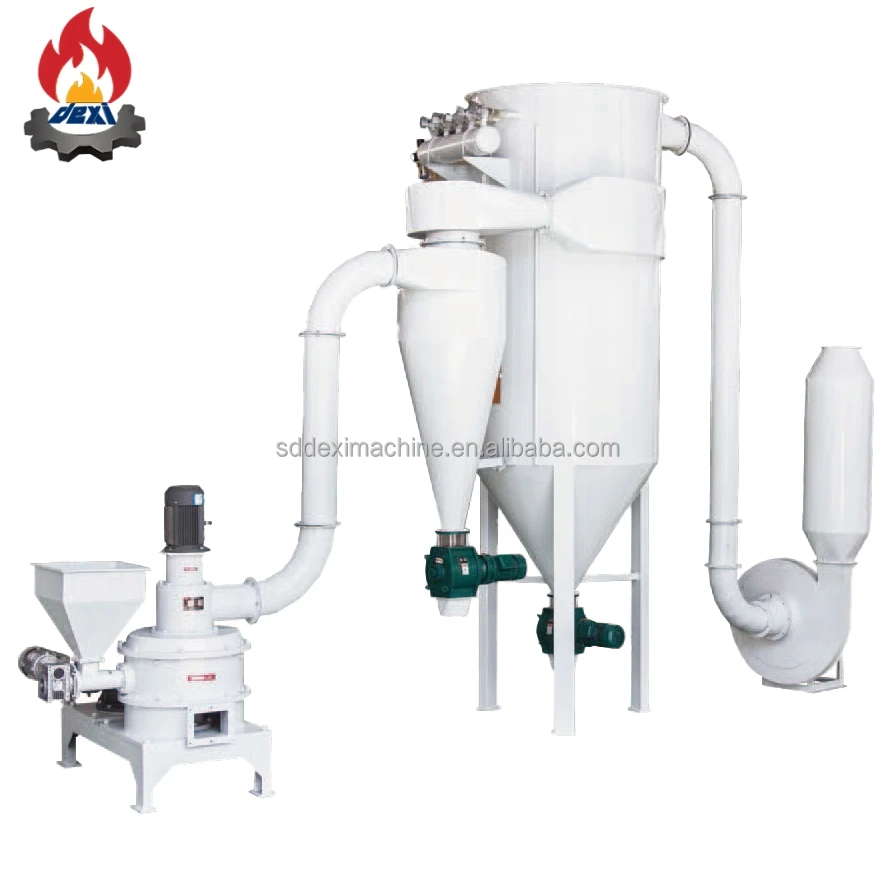

Product show
Product Features
Combined with different raw materials, customize machines of different materials, such as all-steel material; all-stainless steel material.
Stainless steel suitable for food grade work.
Made of iron material | Made of stainless steel material |

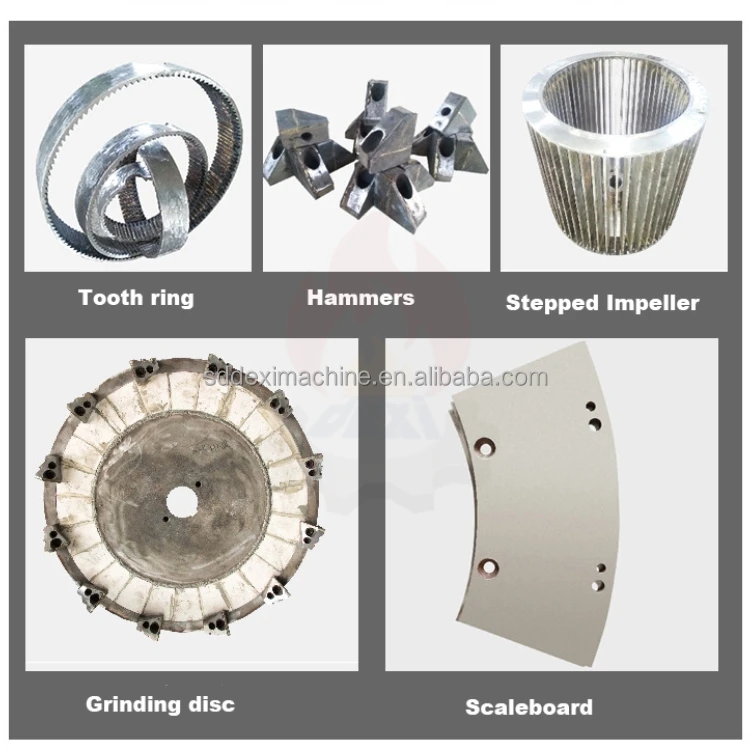

Product configuration
2. Wide range of applications.
3. Long working life.
2. Negative pressure working condition can prevent dust and be suitable for heat sensitive material.
3. Output size is adjustable via air classifier.
4. Feeding rate is automatic controlled.
Packing & Delivery
1.Some other grinding machine for salt, sugar, pepper,coffee or product of food, flavoring,pharma, etc.
2.Traditional Chinese medicine, roots, stems, corn, rice, pepper, pepper, oil and wheat, soybean, soybean meal, garlic,star anise,
cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic slices, sugar, saccharin, food, shrimp, pumpkin powder, seasoning.
2.Traditional Chinese medicine, roots, stems, corn, rice, pepper, pepper, oil and wheat, soybean, soybean meal, garlic,star anise,
cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic slices, sugar, saccharin, food, shrimp, pumpkin powder, seasoning.
Weight: It depends

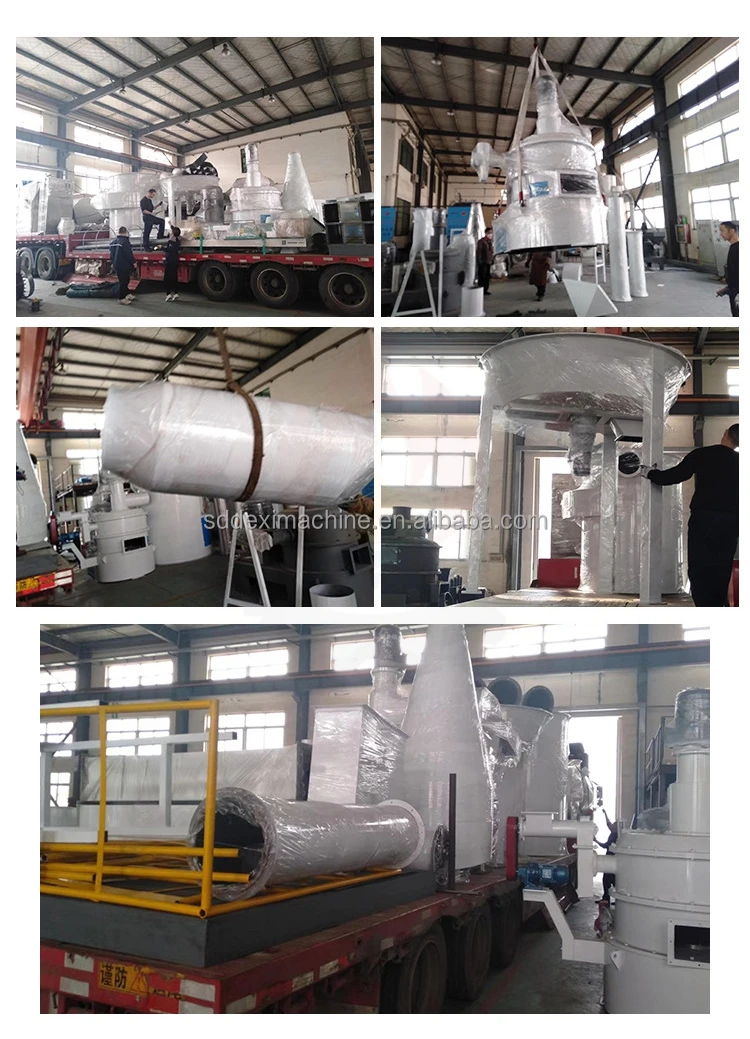

Packaging Details:
1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.
2.For big machine, we will pack the machine inside container directly with steel wires and nails.Then the machine won't move inside the container.
2.For big machine, we will pack the machine inside container directly with steel wires and nails.Then the machine won't move inside the container.
Related Products
Click on the product image to jump to the link to check related product information-->-->-->-->-->
Company Profile Our Advantages

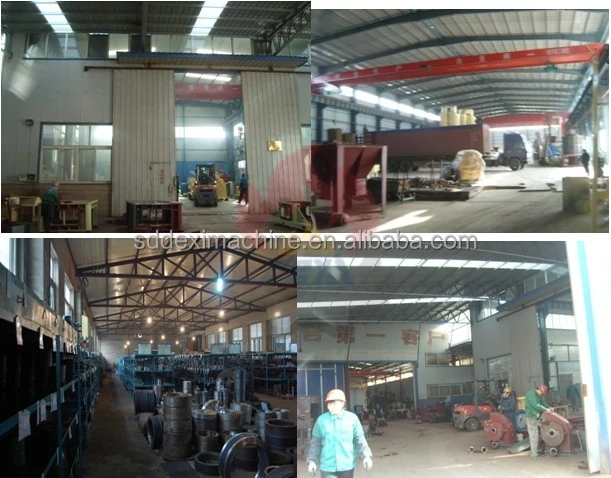

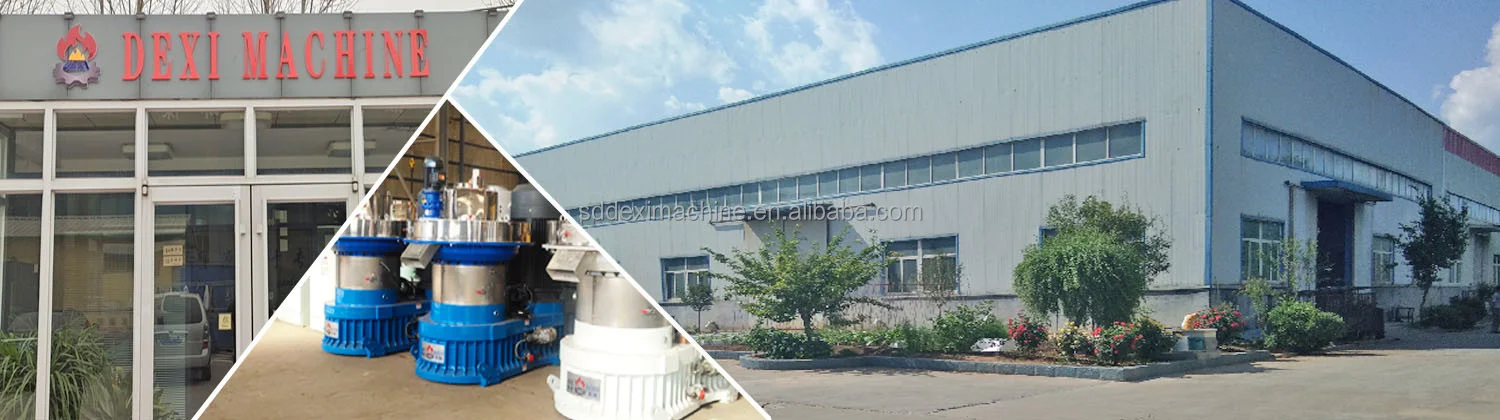

Shandong Dexi Machine Co., LTD
Shandong Dexi Machine Co., Ltd is professional supplier for the biomass pellet machines and complete pellet production line. our products involve , wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other related auxiliary equipment.
We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Any interesting for the wood pellet making machines, please feel free to contact us.
We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Any interesting for the wood pellet making machines, please feel free to contact us.
After-sales service
1.Our engineers are able to go abroad to install the machines.
2.One year quality assurance:Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included.Warranty does not cover abuse or user error.
3.24-hour on line service:Any questions will be replied within 24 hours.
4.Our company can agree payment by T/T, L/C,ects Cash.
5.Our company has our own exporting right and forwarder.
