Hot Sale Mini CNC 5 Axis Very Small CNC Lathe Turning Machine of 5 Axis Rotary Table 5 Axis (1600982851968)

Share on:


Price:$2,000.00 - $2,400.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

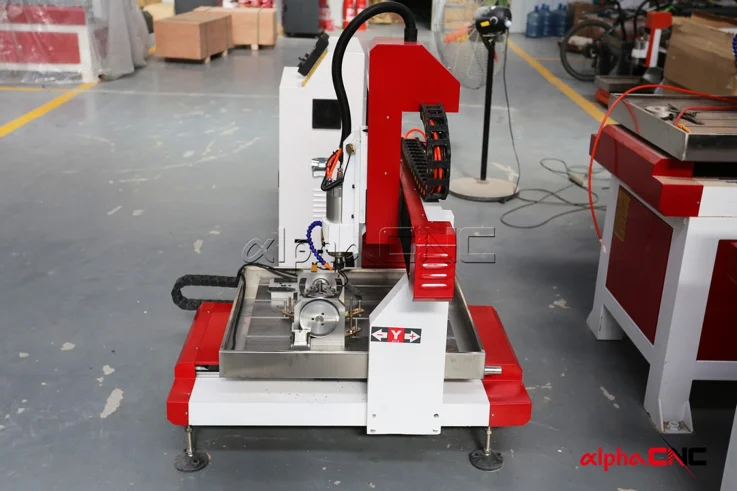

The machine is desktop style, which only need small space for it. Although it is small but is still a high quality machine, all the machine body is iron cast structure, which is with strong rigidity.
The machine is a 5 axis machine, which is ideal for processing curved objects.
It can process many different materials, such as: wood, acrylic, MDF, plywood, ABS, OSB, foam, aluminum, stone, etc.
It is widely used in furniture, sign, stone, gift, decoration, and metal processing industry.
The machine can do 2D or 3D engraving, milling, cutting, drilling work.
No matter for the serious hobbyist or for the commercial shop, ABT-6090-5 will be your best choice.





Parameters \t
Standard Specifications of ABT-6060-5
Spindle Power
2.2KW variable speed, water-cooled
X,Y,Z Working Area for Panel
600*600*350mm
Machine Frame
Iron Cast and Steel
X,Y,Z Traveling Positioning Accuracy
±0.05mm
Table Surface
iron cast
X,Y,Z Rail and Transmission
X, Y, Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate
20,000mm/min
Max. Working Speed
12,000mm/min
Spindle Speed
0-24,000RPM
Drive Motors
Stepper motor
Working Voltage
 AC 220V/50-60Hz or AC 110V/50-60Hz or Custom made
Command Language
G Code
Operating System
Mach 3 (6 axis)
Interface
 USB or Ethernet
Software capabilities
Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks, etc.
Running Environment
Temperature: 0℃~45℃
Relative Humidity: 30%~75%
Net/Gross Weight
300kg/350kg
Packing Size

1.5*1.3*1.5m


Detailed Images


Base Frame


The base frame is heavy iron cast, with strong rigidity. Not like other suppliers with Aluminum frame, the machine is more durable and hardly to deformable. So the machine will not get deformed after long time use. It can process hard material such as stone and metal.

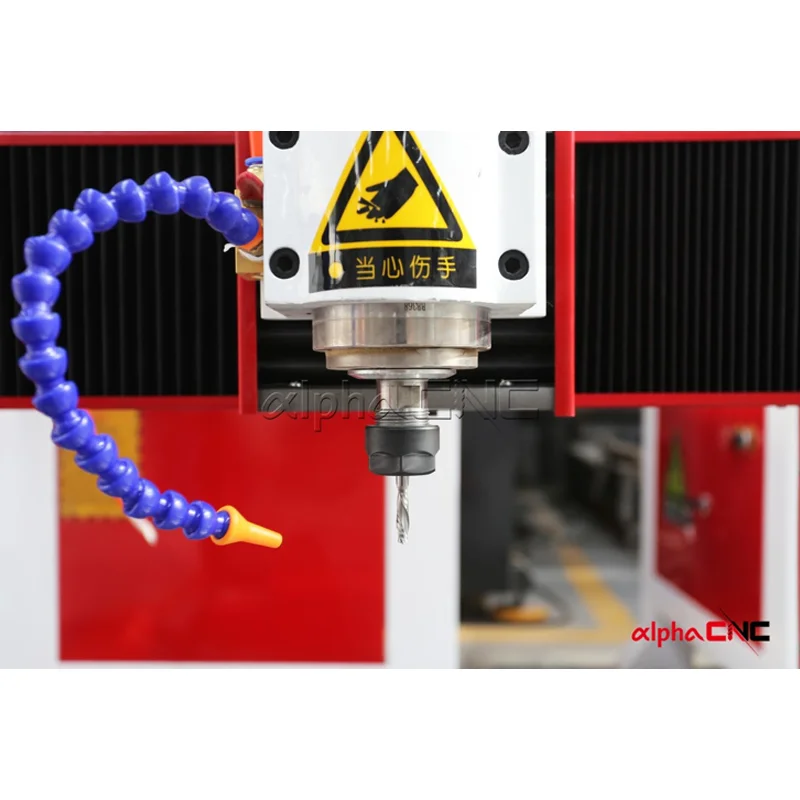

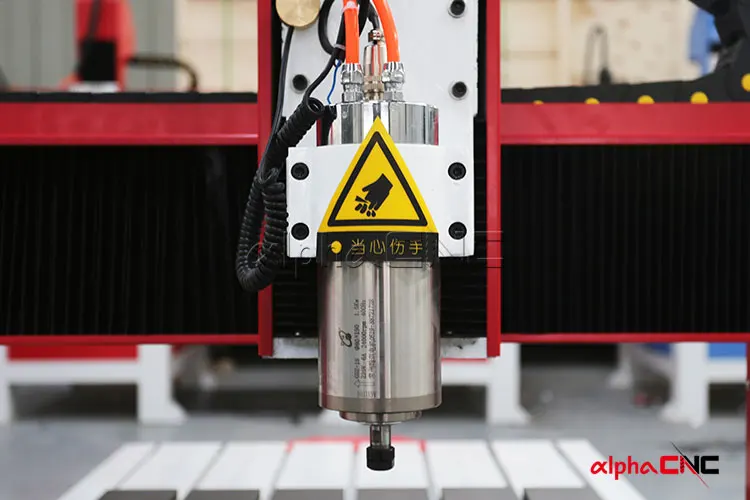

2.2kw High Frequency Spindle

The Alpha AMN series CNC Router machine comes standard with2.2kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets. Fully programmable speeds from 6,000 to 24,000 RPM.

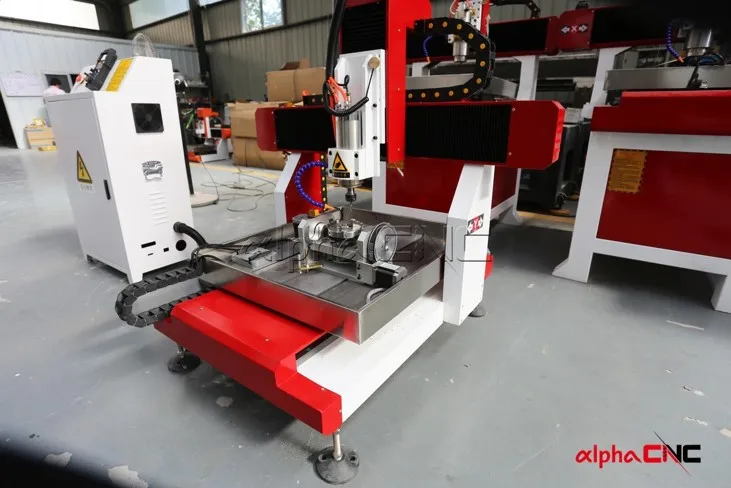

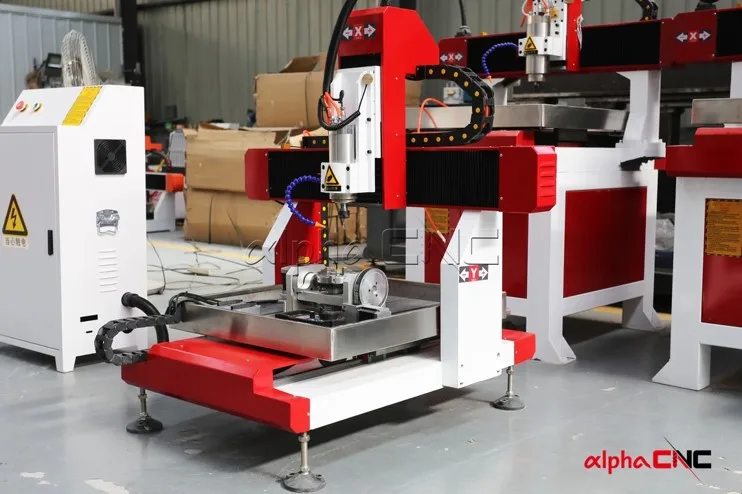

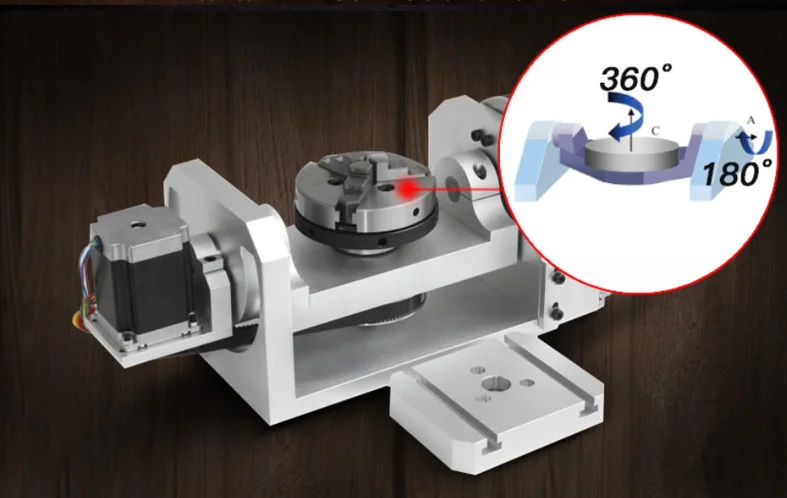

Cradle type rotary axis


The axis of rotation makes it possible for the machine to process 3D curved surfaces. The rotation axis can rotate 360 ° + 180 °







Drive Motors


The Alpha CNC Router utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.

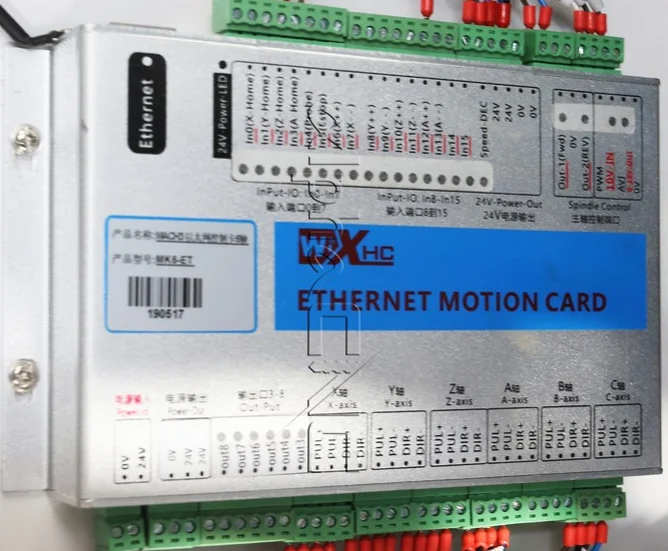

MACH 3 Controller

Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Mach3 was developed by American programmers, both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving.

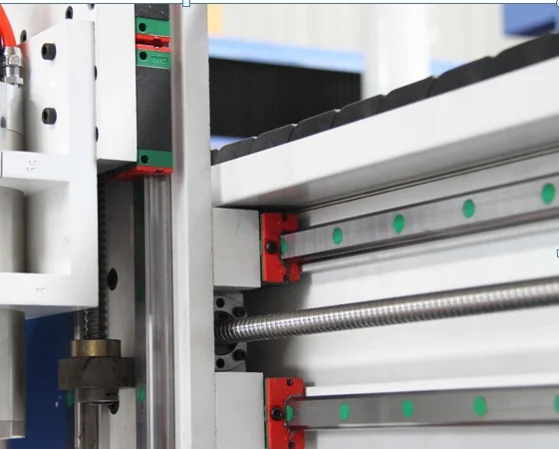

Hiwin Square Rail&High Precision Ball Screw

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality ballscrew, makes it high precision.



Japan Omron limited sensor

There is Japan Omron limited sensor on XYZ axis. The sensor will avoid the machine overtravel working. OMRON is the best quality and with longer service life.



Dustproof on X Z AXIS

The machine has dustproof on X Z axis, which will protect the dust do into the ball screw and the guide rail, to make sure the machine with long service life.

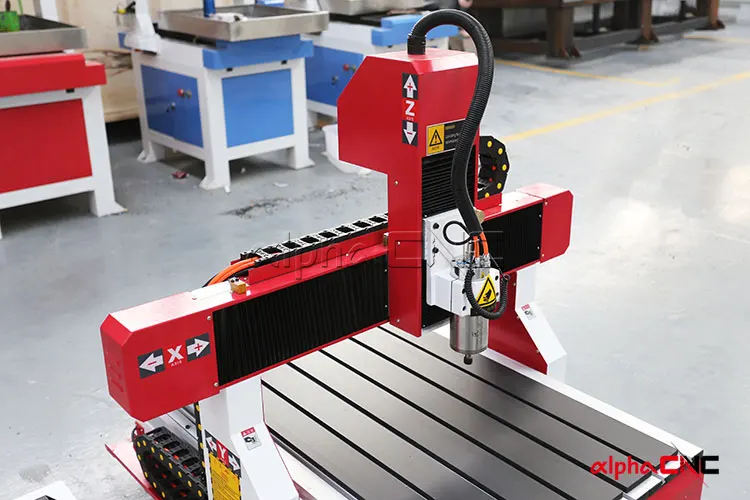

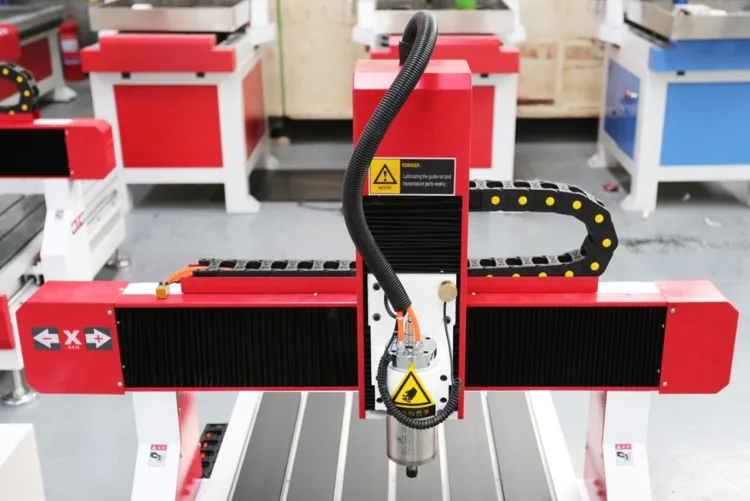

Gantry fixed and table moving structure


The machine is table moving, compared with the gantry moving machine, the table moving machine is with higher precision, more stable. It is more suitable for the hard material processing.

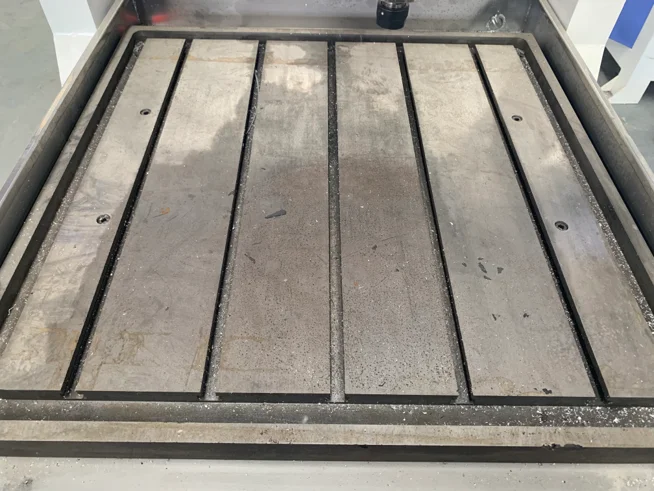

Iron cast machine table

Iron cast table is for hard and with high precison. When process the hard material such as the metal, the iron cast table is hard to become deformation.

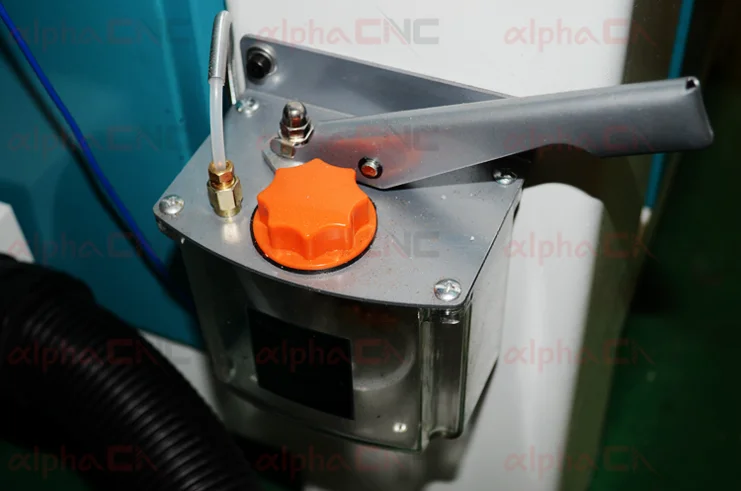

Lubrication Pump

It is easy to press the lubricating to the guide liner. Just need 3 seconds once.

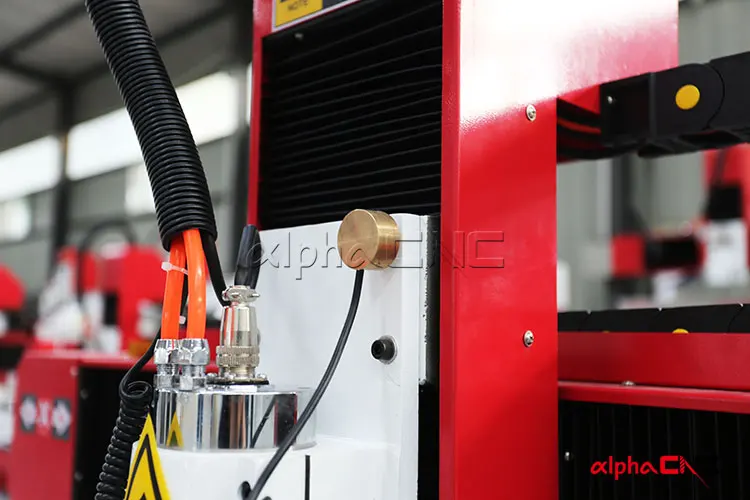

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

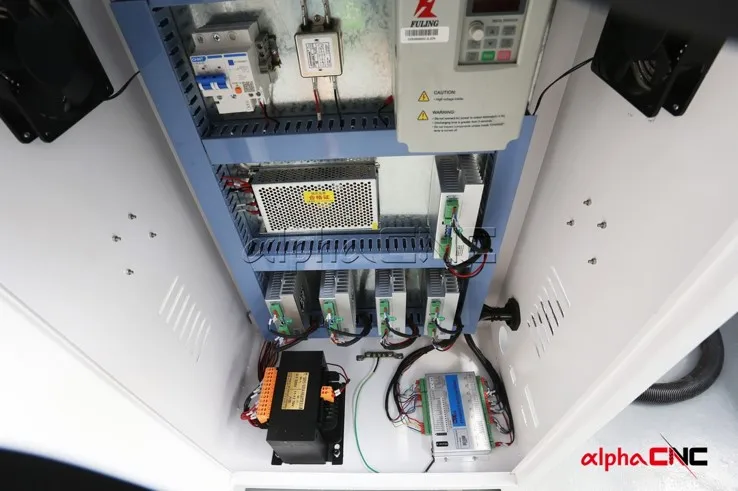

The Electronics of the CNC Router

All the electrical components are housed and wired in electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.



Optional Parts

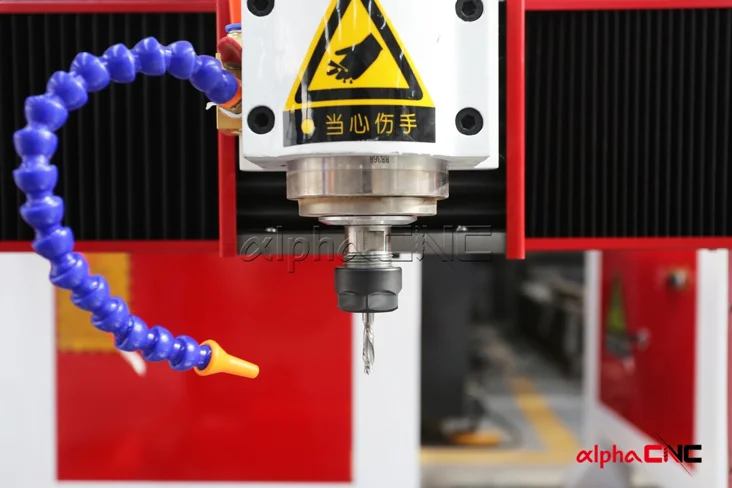

Oil mist Coolant System


The Oil mist Coolant System is ideal for coolant tools for cutting metal. The unit's micro-dispenser delivers a very small amount of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

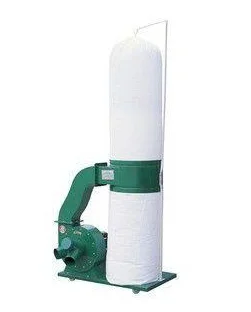

Dust collector

Big dust collector is powerful enough for collect the dust. It will make your workshop without dust.




Water tank

When engraving the hard material such as stone and steel, water is needed for cool the cutter. The water tank can collect the used water and lead the water to the specified bucket, to prevent dirty water from flowing directly to the ground.

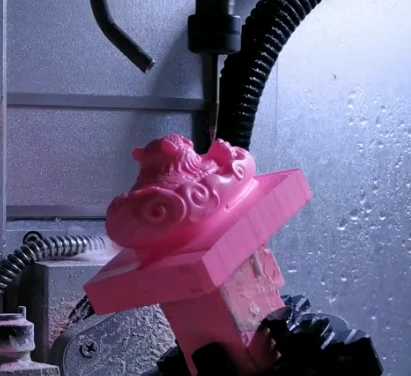

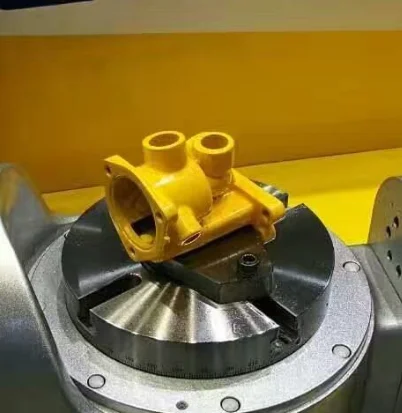

Sample








Packing & Delivery




Our Company

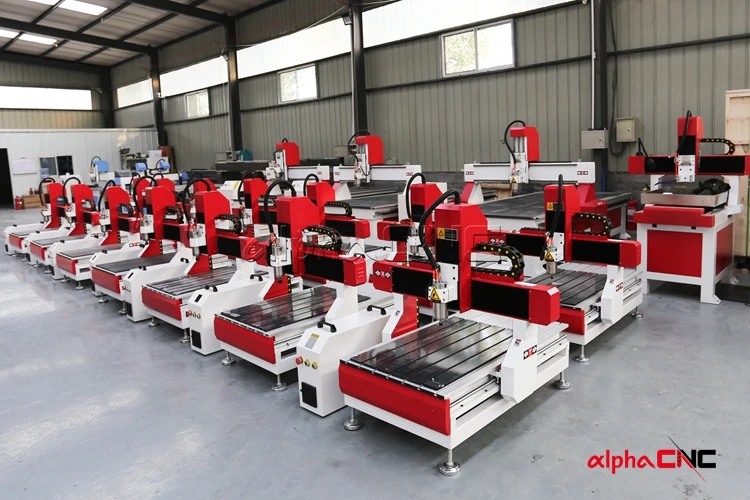

Alpha CNC Co., Ltd. was established in 2000, specializing in CNC machinery with rich experience! The company has two factories:
