IP67 Waterproof long reading outdoor and indoor Directional Wall Mount Flat Patch Panel rfid 900mhz antenna for warehouse
- Category: >>>
- Supplier: Winnix Technologies Co. Limited(Shenzhen)
Share on (1600983136934):
Product Overview
Description
Product Description
HYN503 RFID antenna features extremely low voltage standing waves (VSWR) and axial ratios. With these low ratios, the user will be able to maximize the performance of the panel antenna and improve efficiencies in the system. With an IP rating of 67, the heavy-duty radome antenna enclosure is perfect mounting directly to the walls of industrial environments such as warehouses, terminals, distribution centers, and more.
Product Name | 9dBi UHF RFID RHCP Antenna |
Material | Engineering Plastic ASA,Aluminums |
Color | Ivory-white |
Frequency Range | 860-868mhz or 902-920mhz |
Maximum VSWR | 1.3:1 |
Polarization | Circular Polarization |
Input Impedance | 50ohm |
Antenna Connection | N-50KFD( external thread female) |
Relative humidity | 5%~95% |
Enclosure Rating | IP67 |
Working temperature | -40℃~+ 85℃ |
Storage Temperature | -40℃~+ 85℃ |

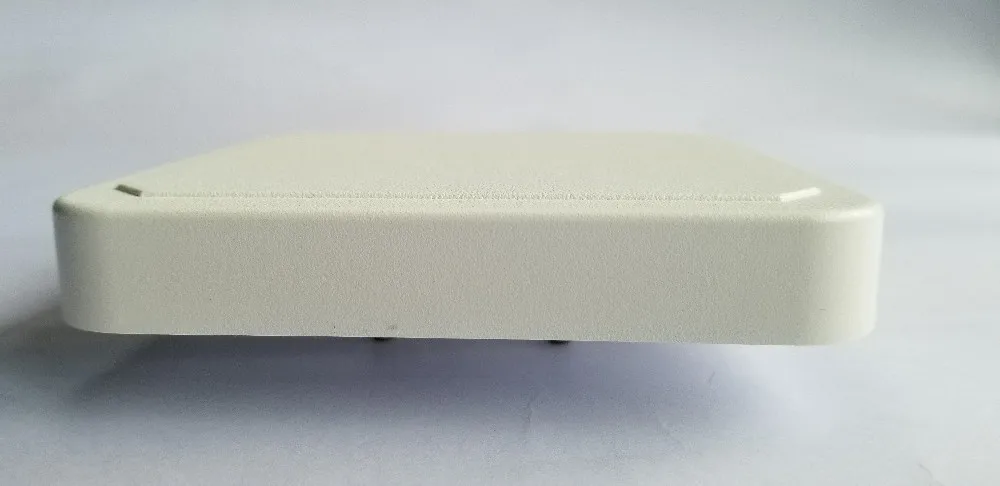

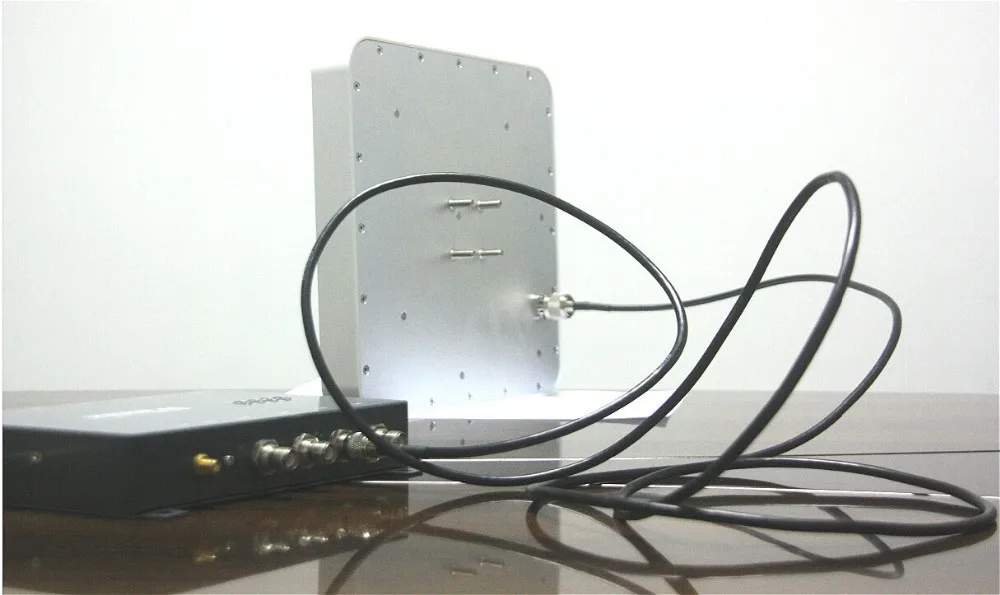

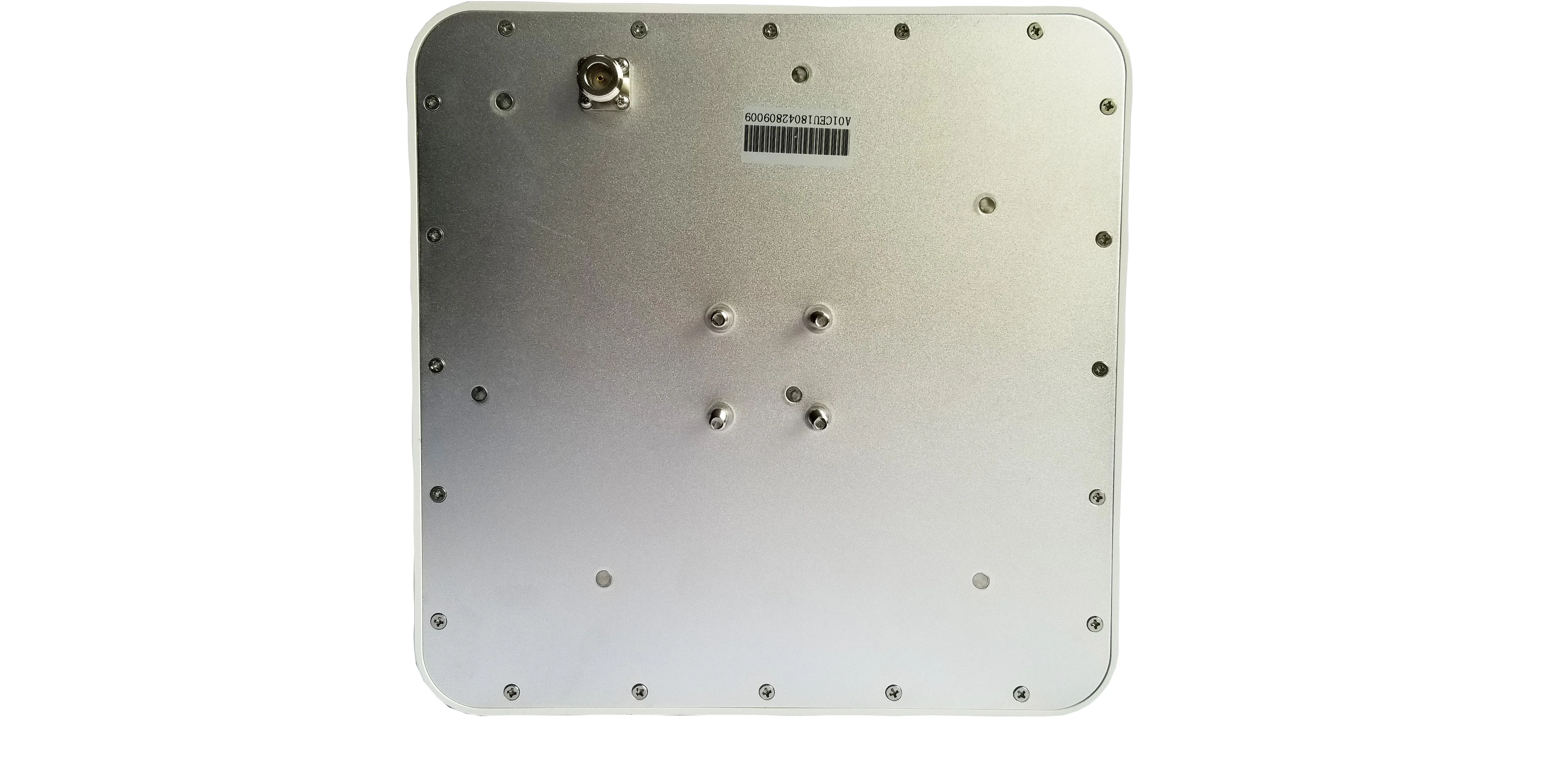

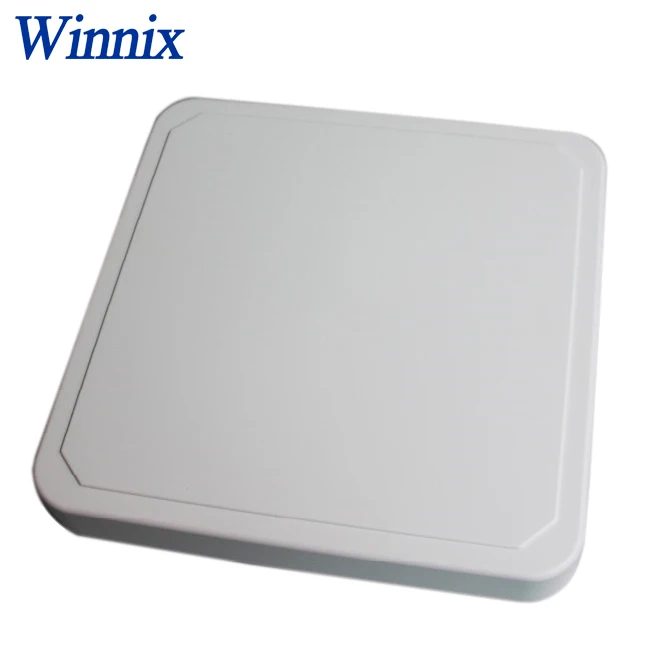

Products Show
Company Profile
Application
Our Factory
Factory
Factory
Factory
Factory
Instruction
Antenna Radiation
VSWR
