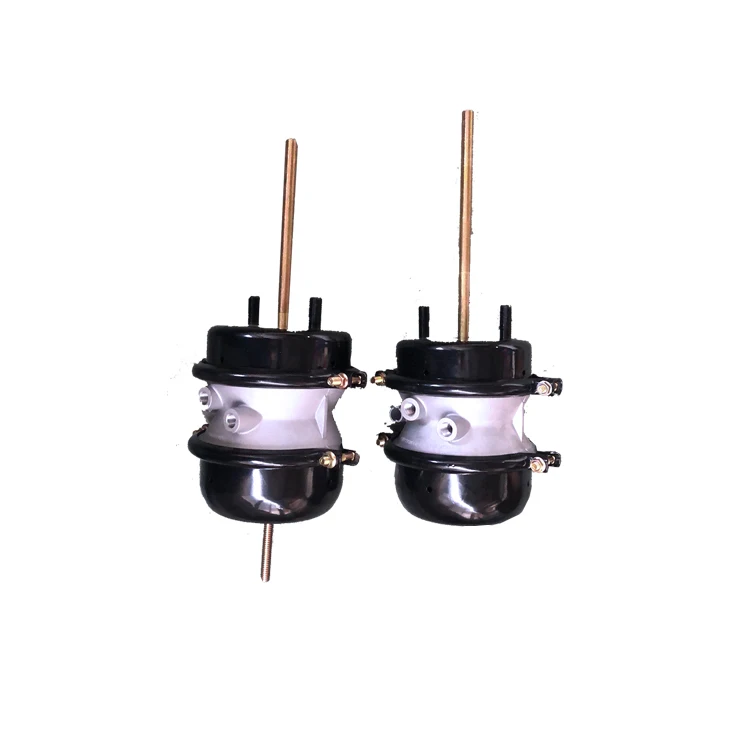

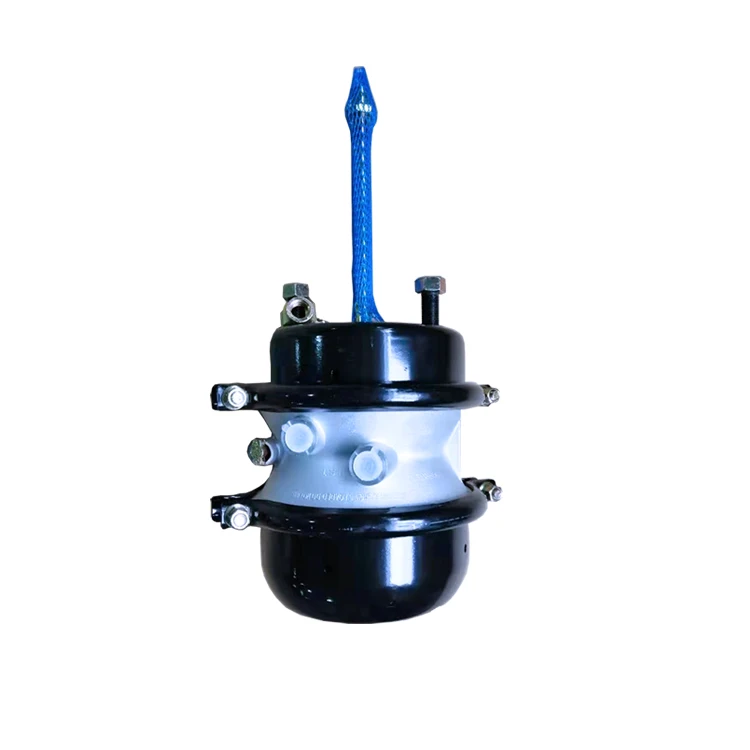

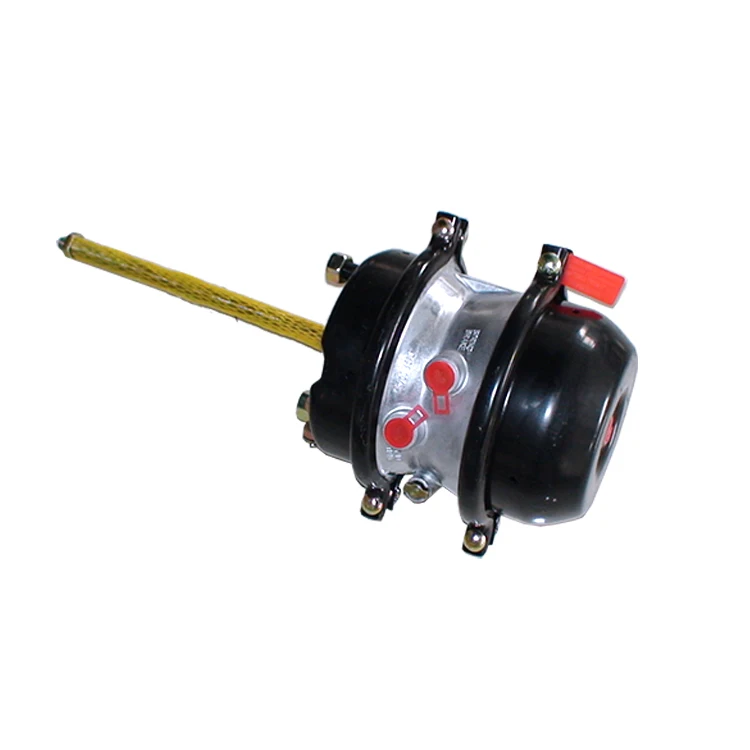

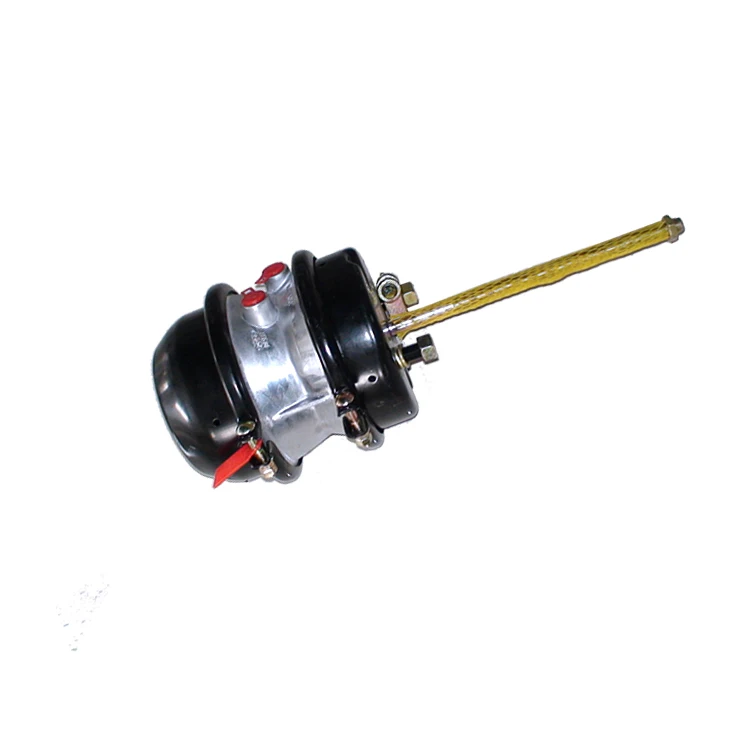

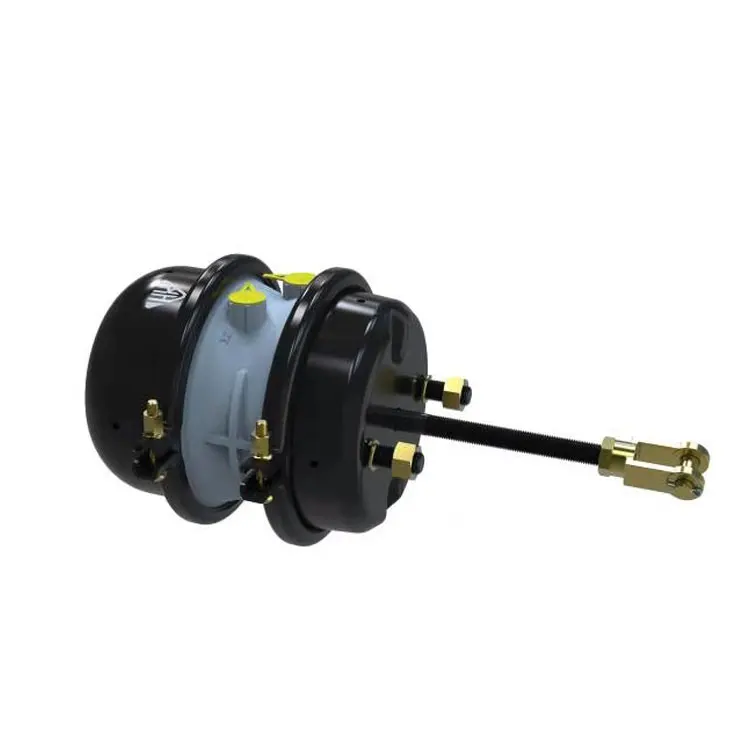

Manufacturer Truck Spare Parts Spring Brake Chamber Pressure for Trailer Bus

Product Overview

Description

Brake chambers for volvo truck





Type	Stroke	R1	R2	L1	L2	Pushrod Thread Length L4	Pushrod Thread	Air Inlet Thread	Mounting Bolt Thread	Mounting Inluded Angle	Weight
T-24/24	64	116	93	224	270	207	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45°	8kgs
T-30/30	64	130	106	238	255	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	45°	9kgs
T-24/30	64	116	93	230	212	255	5/8"-18UNF2A	3/8"-NPTF	5/8"-1 1UNC2A	90°	8kgs
Chamber Volume(Litre)  (Measure Pressure:700kpa)
Type	Service Chamber				Paking Chamber	Service Chamber	Paking Chamber		Parking Chamber Hold-off Pressure	(kn) Parking Chmber Force Output (Stroke:38mm)
T-24/24	1.04					1.16			537	4.98
T-30/30	1.32					1.78			500	6.11













          Team

• We have a professional &efficient technology team to ensure the high quality products.And we will provide the professional solution and help you to solve the problems at first time.

         Quality Control

• Confirm each detail before production.


• The materials will be fully inspected before the production.


• The strict management system control each production processing during production.


• The completed products will be inspected again before delivery.


• We provide the photos and videos to clients who can learn the updated order progress at any time.

           Shipment

• We choose the economy and fast shipping solutions for clients.And deliver the related commercial documents to clients ASAP in order for clients to clear the goods in time.
