MESKERNEL 40m Precision Sensor Laser Small Distance 3 5v Laser Diode Module laser Sensor Industrial
- Category: >>>
- Supplier: Chengdu Meskernel Integrated Technology Co. Ltd.
Share on (1600983540441):
Product Overview
Description
Products Description

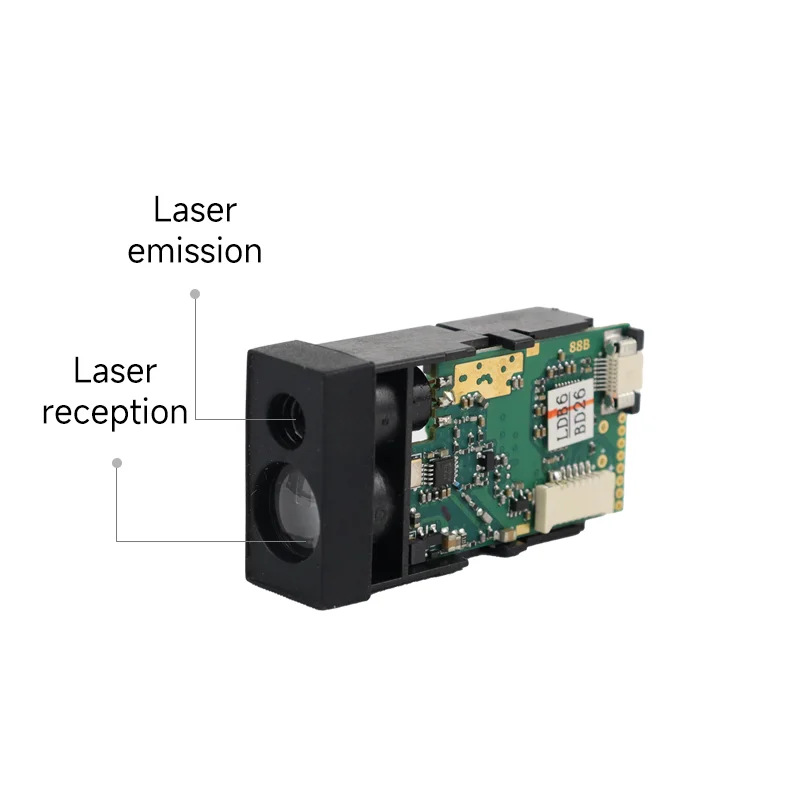

LDK Module
Laser Distance Module is designed for precise measurement, which has high accuracy, fast measuring speed, easy to install and operate. Our module has been widely used in daily measurement,industrial measurement, warehouse monitoring, traffic investigation, and robots etc.

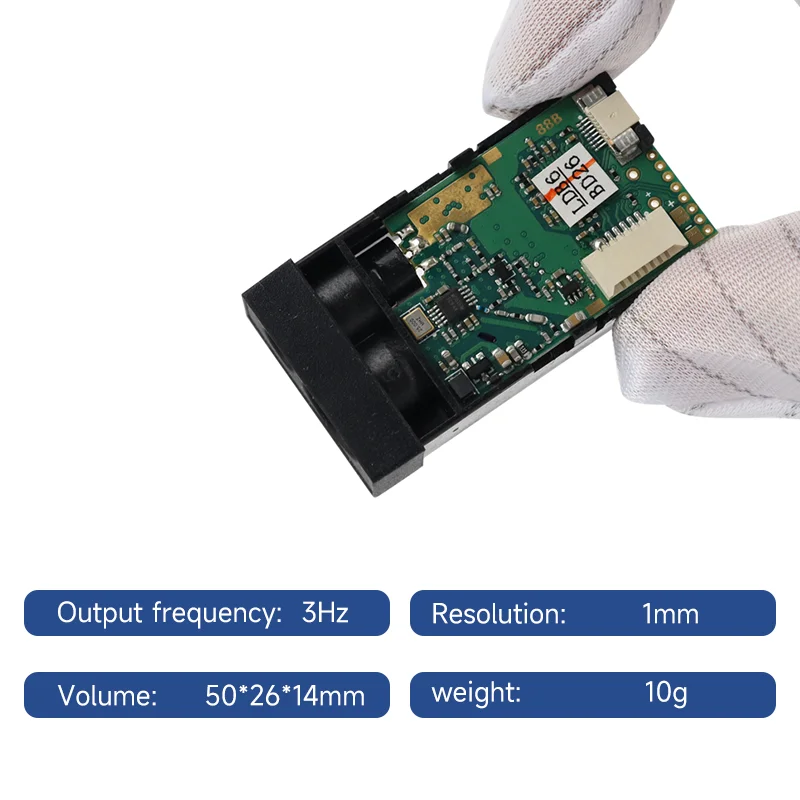

Product Parameters
Indoor range | 0.03-40m（90% Rate of reflection） |
Outdoor range | 0.03-35m（Special reflector plate） |
Output frequency | 3Hz |
Accuracy | 2mm |
Absolute accuracy | ±2mm |
Resolution | 1mm |
Blind area | 3cm |
Light | 635nm，<1mW，Red laser, class II safety laser |
Communication interface | UART TTL |
Serial level | VTTL=3.3V |
Operating temperature | -40~60 ℃ |
Working voltage | DC+3.3 V |
Working current | 80mA |
Power | 0.27W |

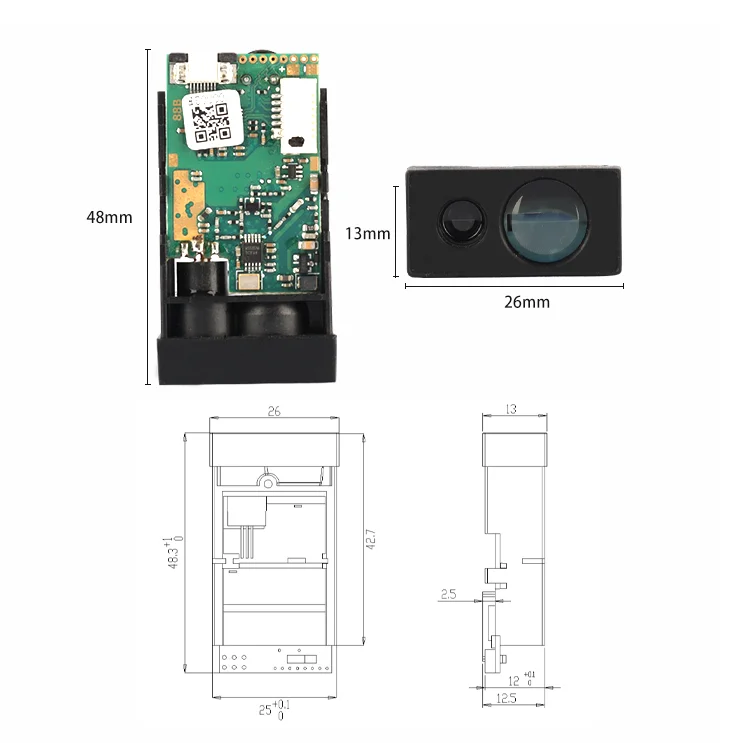

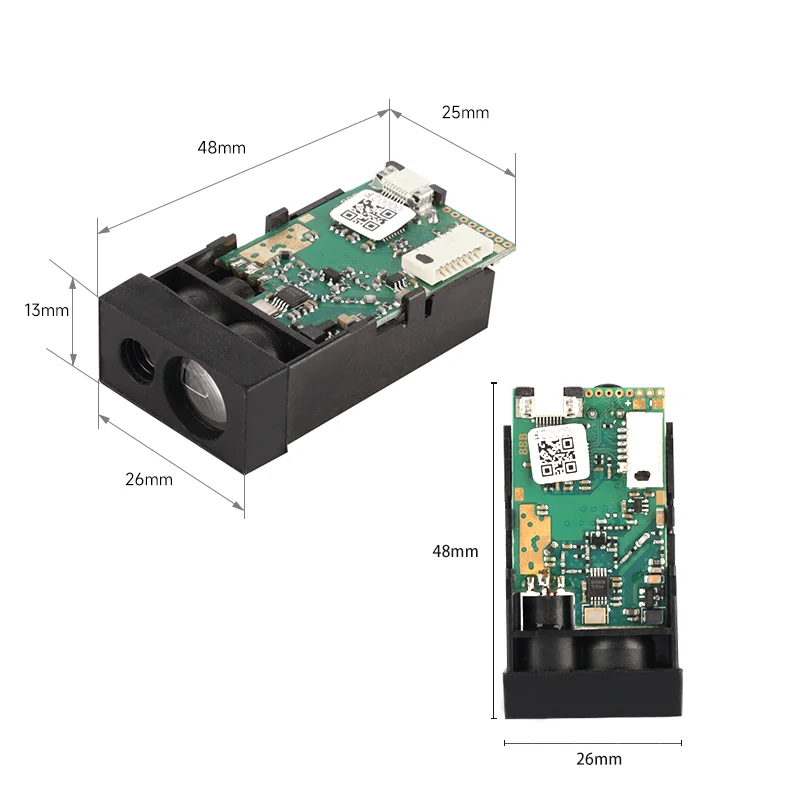

Volume | 48*26*13mm |
Weight | 10g |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Operating temperature -10 ℃~50 ℃ can be customized.
4. 8Hz only be activated when Fast continuous measuring mode is using.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Operating temperature -10 ℃~50 ℃ can be customized.
4. 8Hz only be activated when Fast continuous measuring mode is using.

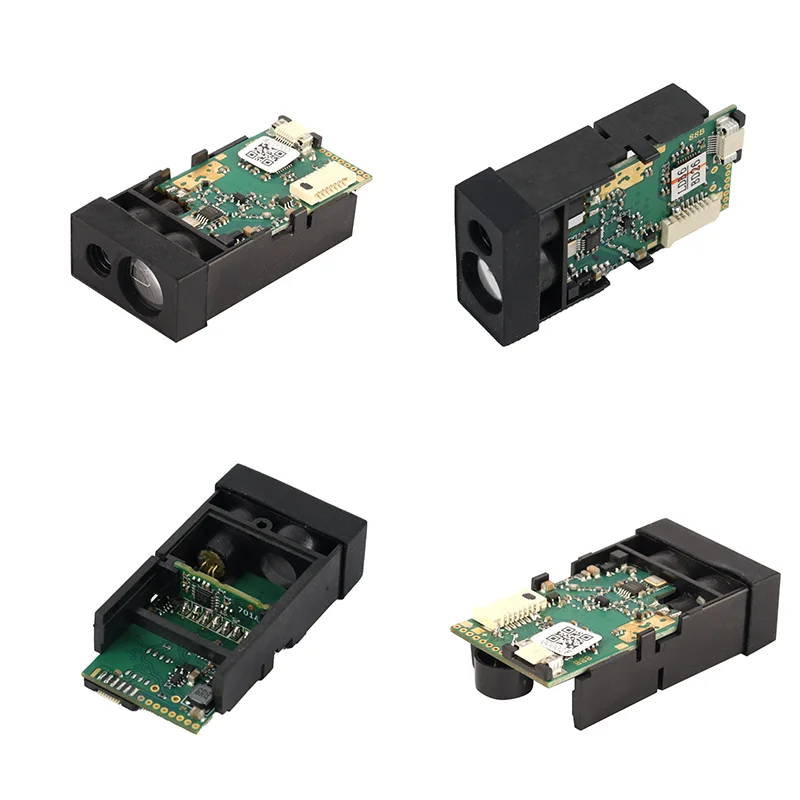

Product Details

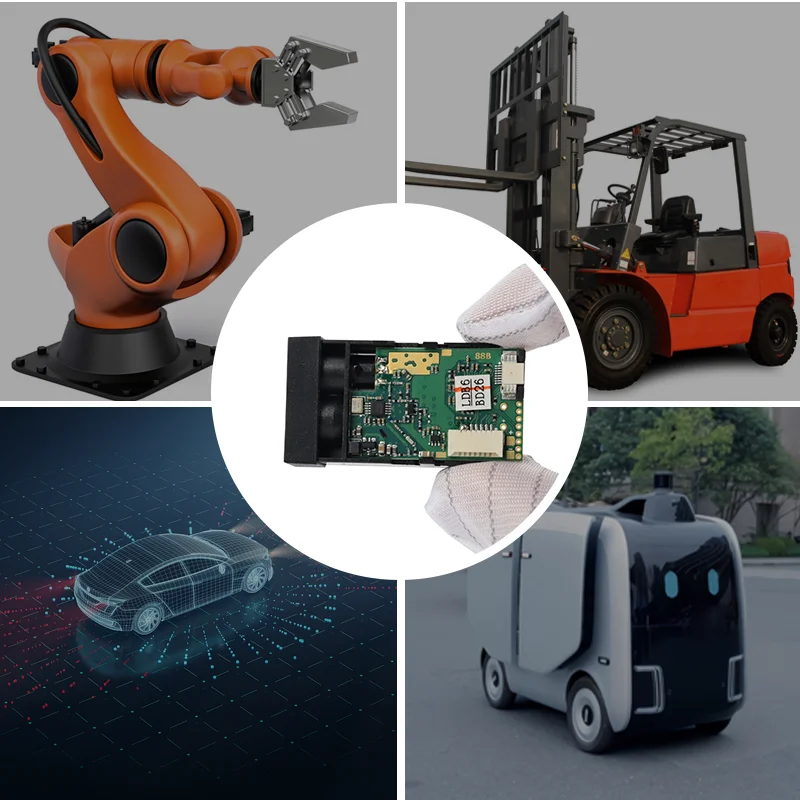

Application
Intelligent mechanical arm
Add high-precision distance transmission to the robot arm to accurately control the distance of the robot arm target.
Intelligent logistics
It can be used in intelligent logistics to ensure that goods are placed at a specified distance without human operation.
engineering surveying
Widely used in distance, area, volume measurement
Security Monitoring
Can be used with Airport Security Monitoring and infrared-cameras
Transfer belt
Measure whether there is cargo on the conveyor belt.
Company Profile
Chengdu Meskernel Integrated Technology Co.,Ltd.
Chengdu Meskernel Integrated Technology Co.,Ltd. is a high-tech enterprise specializing in laser measurement (sensing) core chip and system development, design and production, has formed a laser measurement chip, laser measurement module (1D, 2D and 3D LIDAR) as the leading series of products, its high precision, small size, low power consumption, stable performance, reasonable price and other advantages have been recognized by domestic and foreign customers and The company is headquartered in Chengdu, Sichuan Province, China! Headquartered in Chengdu, Sichuan Province, the company has more than 70 employees, including more than 30 R & D personnel, accounting for more than 40%.
At present, the company is a gazelle enterprise in Chengdu City, Sichuan Province, Sichuan Province, specializing in new enterprises, and has obtained the National Ultra-High-Definition Video Innovation Center Joint Laboratory, Chengdu City, Enterprise Technology Center, ISO management system certification and more than 60 various types of intellectual property rights.
Only by keeping our feet on the ground can we look up to the stars! In the future, we will always uphold the values of "unity, focus, integrity, and co-progress", focusing on the development of higher, faster, stronger laser measurement core, adhere to the R & D innovation, strengthen the market, and make every effort to build a world-renowned brand in the field of the most competitive!
Only by keeping our feet on the ground can we look up to the stars! In the future, we will always uphold the values of "unity, focus, integrity, and co-progress", focusing on the development of higher, faster, stronger laser measurement core, adhere to the R & D innovation, strengthen the market, and make every effort to build a world-renowned brand in the field of the most competitive!

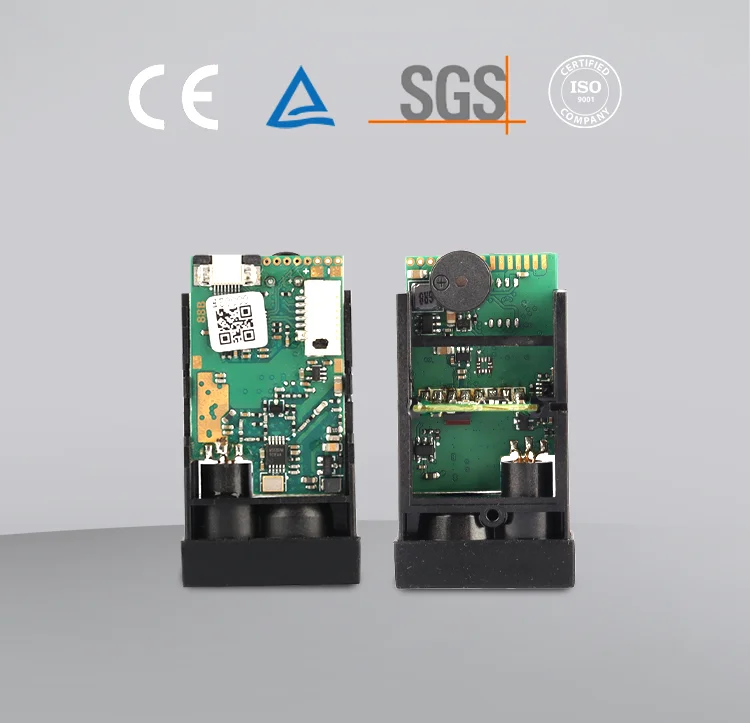

Certifications
Packaging And Delivery
FAQ
Q1. Are you trading company or manufacture?
A1：We are original manufacturer locates in Shuangliu District Chengdu. Our company was established in 2004 with more than 37 national patents and own brands, Welcome to visit us.
MESKERNEL 40m Precision Sensor Laser Small Distance 3-5v Laser Diode Module laser Sensor Industrial
Q2. What is your main product?
A2:Our company has mainly focused on the field of laser measurement and control, Laser Ranging Module, Laser Distance Sensor, Laser Rangefinder Module as long as Laser Distance Meter, Laser Rang Finder and 2D 3D LiDAR.
MESKERNEL 40m Precision Sensor Laser Small Distance 3-5v Laser Diode Module laser Sensor Industrial
Q3. What’s the warranty of your products?
A3:We provide 12 months of Factory Warranty for all our products since shipping date.
Q4. Can you offer customized service?

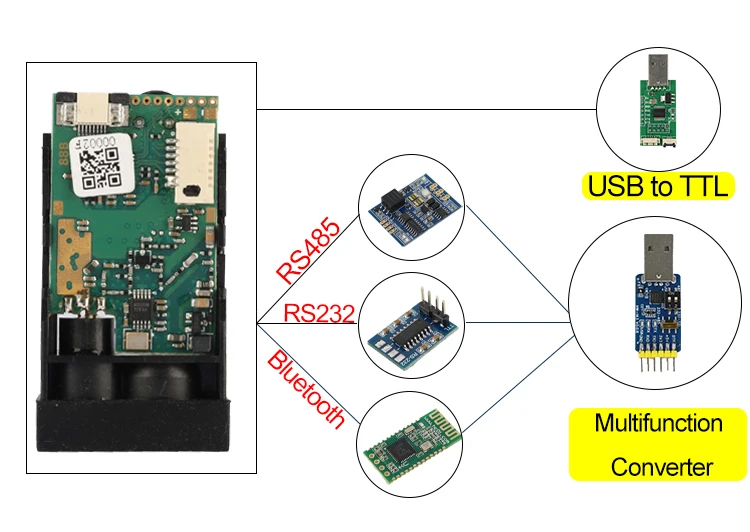

A4: Sure we can provide clients OEM and ODM products and solutions. For products function data like Distance, Precision, Frequency, interface of Bluetooth, Communication Protocol RS485, RS232, USB, TTL, we all provide ODM even the programming.
Q5. Can I have a sample for testing?
A5: Yes, we can provide 1-2 pcs samples for clients testing for its programming compatibility and stability.but clients will firstly pay the sample cost and shipping cost.
Q6. How much does it cost to ship to my country?
A6:You can send us your shipping address and we can calculate the shipping cost.
Q7. What is your payment method?
A7: T/T, Paypal, Western Union, L/C is available.
Q8. What is the packing method, dose it suit for long distance shipping?
A1：We are original manufacturer locates in Shuangliu District Chengdu. Our company was established in 2004 with more than 37 national patents and own brands, Welcome to visit us.
MESKERNEL 40m Precision Sensor Laser Small Distance 3-5v Laser Diode Module laser Sensor Industrial
Q2. What is your main product?
A2:Our company has mainly focused on the field of laser measurement and control, Laser Ranging Module, Laser Distance Sensor, Laser Rangefinder Module as long as Laser Distance Meter, Laser Rang Finder and 2D 3D LiDAR.
MESKERNEL 40m Precision Sensor Laser Small Distance 3-5v Laser Diode Module laser Sensor Industrial
Q3. What’s the warranty of your products?
A3:We provide 12 months of Factory Warranty for all our products since shipping date.
Q4. Can you offer customized service?
A4: Sure we can provide clients OEM and ODM products and solutions. For products function data like Distance, Precision, Frequency, interface of Bluetooth, Communication Protocol RS485, RS232, USB, TTL, we all provide ODM even the programming.
Q5. Can I have a sample for testing?
A5: Yes, we can provide 1-2 pcs samples for clients testing for its programming compatibility and stability.but clients will firstly pay the sample cost and shipping cost.
Q6. How much does it cost to ship to my country?
A6:You can send us your shipping address and we can calculate the shipping cost.
Q7. What is your payment method?
A7: T/T, Paypal, Western Union, L/C is available.
Q8. What is the packing method, dose it suit for long distance shipping?
A8: Due to its international shipment,we treat the packages very well and strengthen packed.The products will firstly wraps with film and then insert to the grooved plastic foam board.
Q9. Can I be your distributor or agent?
Q9. Can I be your distributor or agent?
A9: Yes, you are welcome to be our agent or distributors, we have some policy for the management of our agent or distributors
