Anern portable bipv 450W 580W 630W solar panel outdoor foldable solar charger portable solar panel
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1600983678087):
Product Overview
Description

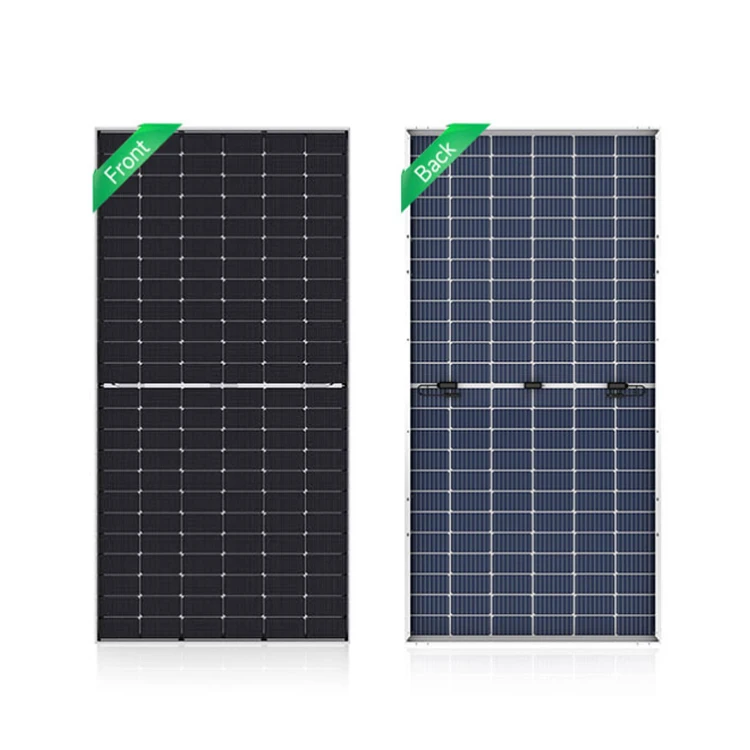

Half Cells Mono Panel

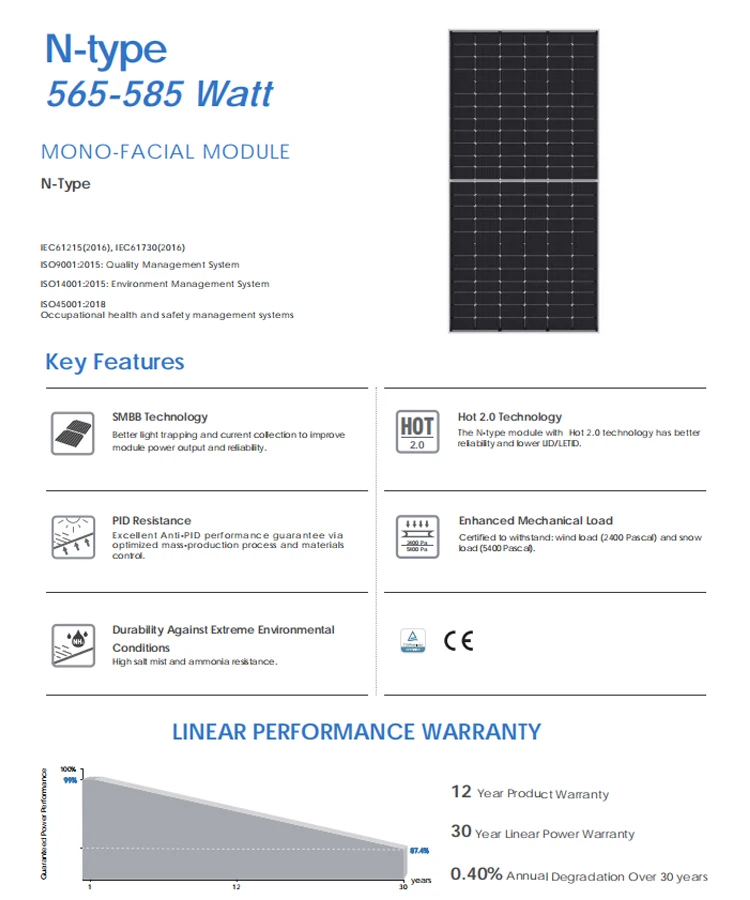

N-Type Dual Glass Half Cut Cell Panels：

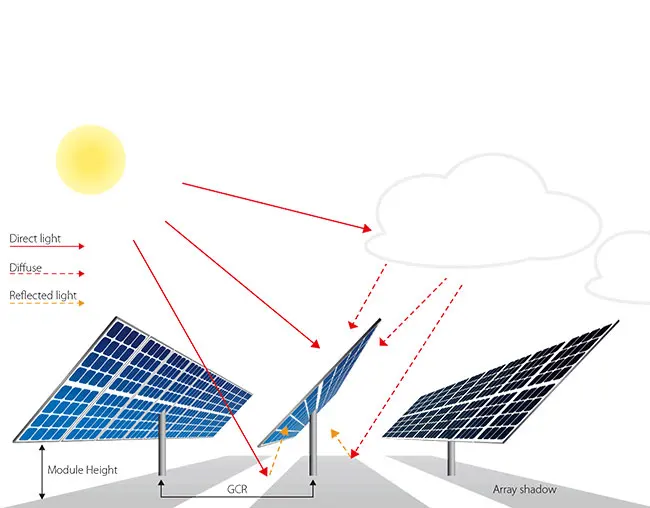

Offering OEM services. Reliable after-sale service. ANERN MONO half-cut single / double glass module,as sembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back, offer the advantages of higher power output,reduce shading effect on the energy generation,enhance the mechanical load bearing capacity as well.
Offering OEM services. Reliable after-sale service. ANERN MONO half-cut single / double glass module,as sembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back, offer the advantages of higher power output,reduce shading effect on the energy generation,enhance the mechanical load bearing capacity as well.

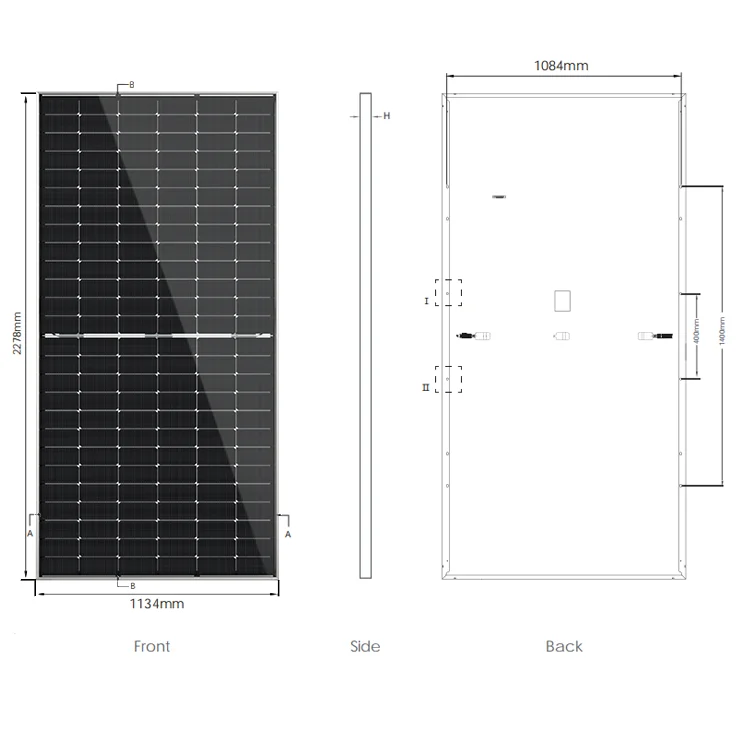

Item No. | PM(w) | Maximum Power Voltage | Maximum Power Current | Open Circuit Voltage | Short Circuit Current | Module Size | Weight |
ANM-N630W | 630W | 46.57V | 13.53A | 55.90V | 14.32A | 2464*1134*30mm | 34kgs |
ANM-N580W | 580W | 42.37V | 13.69A | 51.02V | 14.47A | 2278*1134*30mm | 28kgs |
ANM-N430W | 430W | 31.88V | 13.49A | 38.49V | 14.23A | 1722*1134*30mm | 22kgs |
ANM-ND580W | 580W | 42.59V | 13.62A | 51.47V | 14.37A | 2278*1134*30mm | 32kgs |
ANM-ND430W | 430W | 31.88V | 13.49A | 38.49V | 14.23A | 1722*1134*30mm | 25kgs |
Details Images
*Anti Reflective Glass*Self-cleaning function
*Module efficiency is increased by 2%
*Translucency of normal luminance is increased by 2%
*Module efficiency is increased by 2%
*Translucency of normal luminance is increased by 2%
* Anti-PID
* Appearance Consistency

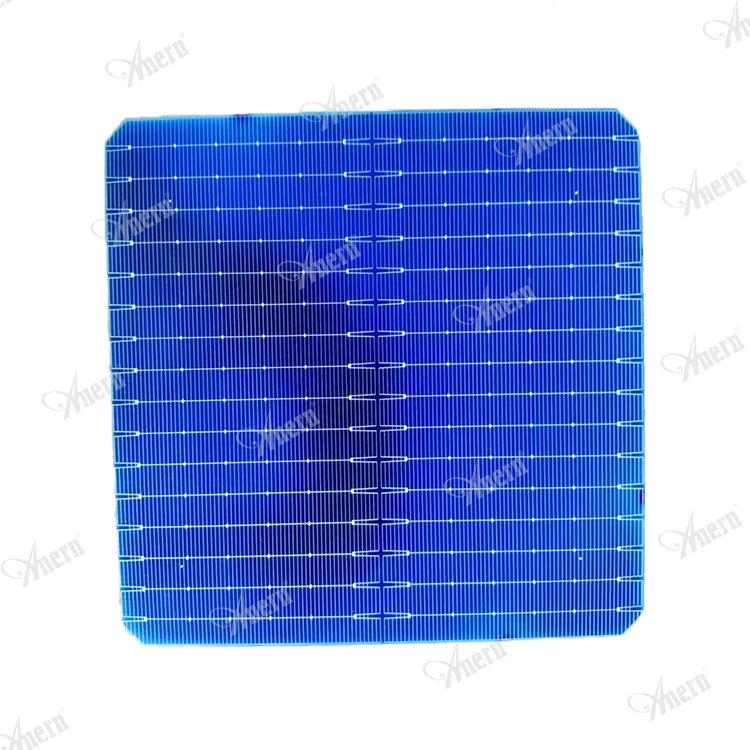

* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module

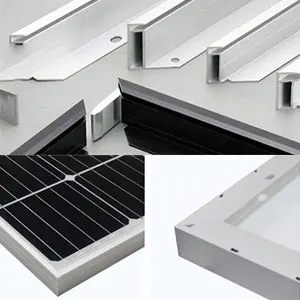

Frames
* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and long service life
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and long service life

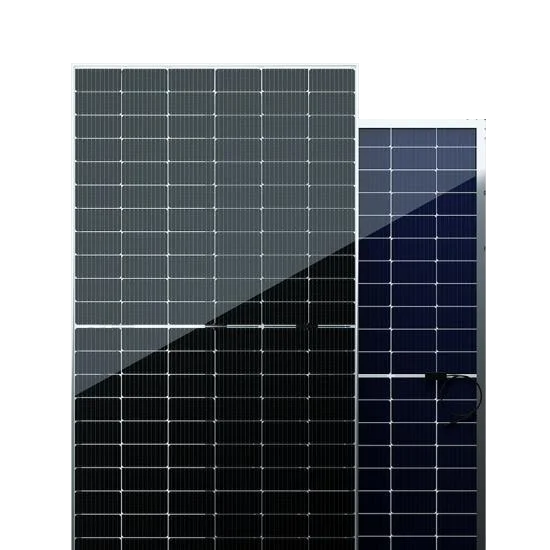

*Bificial technology
*Half-cut technology
*Ultra-high Power Generation / Ultra-high Efficiency

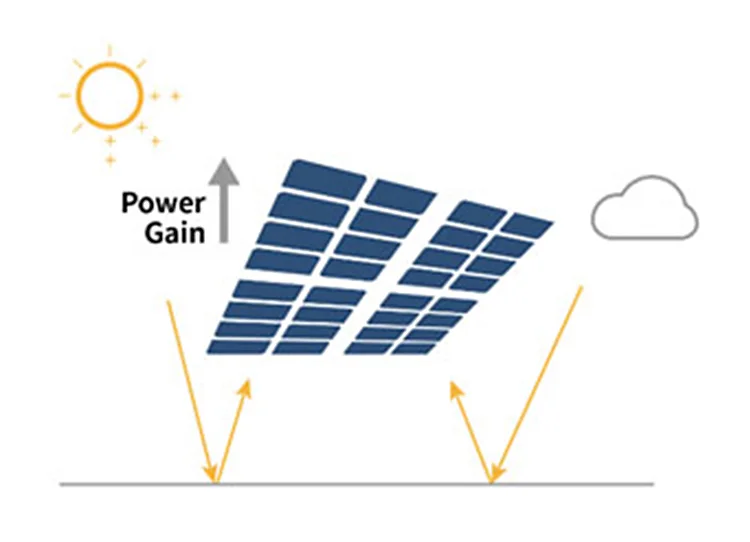

*Higher Bifacial Gain
*Service life is as long as 30 years
*Ultra-high Power Generation / Ultra-high Efficiency
*Higher Bifacial Gain
*Service life is as long as 30 years
Bifacial half-cell module will help to achieve the lowest LCOE in regions which is rich in sun radiation resources

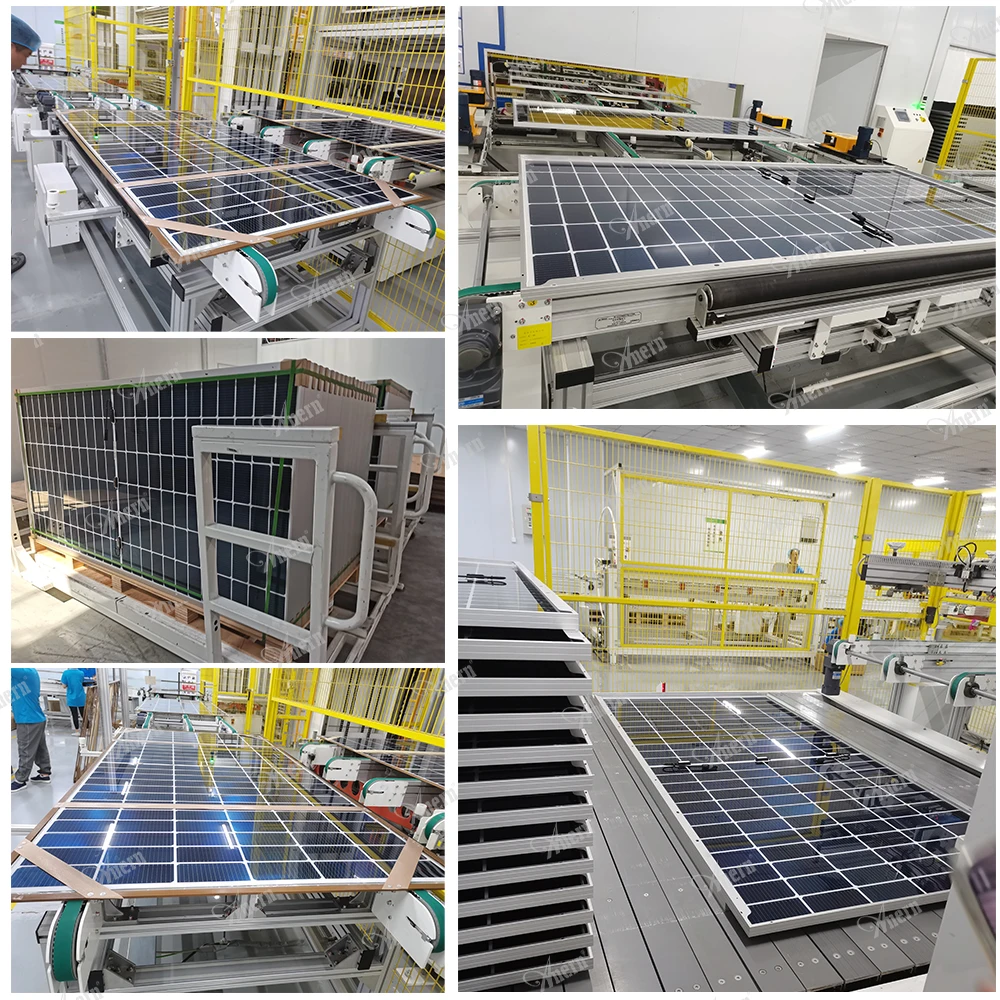

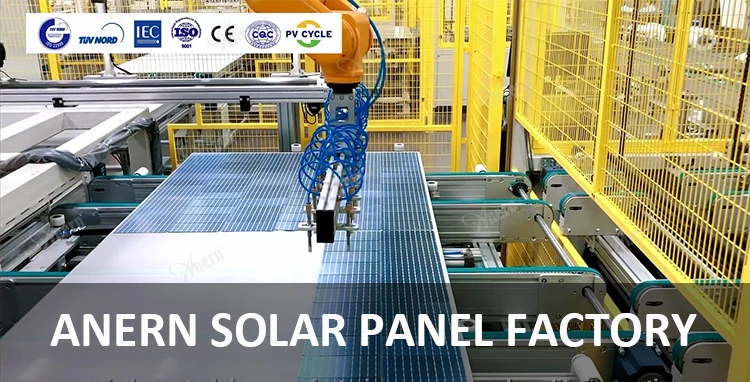

Anern Factory
Anern owns professional automation factory, introducing advanced automation production equipment, specialized production line,talented R&D team and owns CE, ROHS, TUV, ISO9001 Certificate and so on.

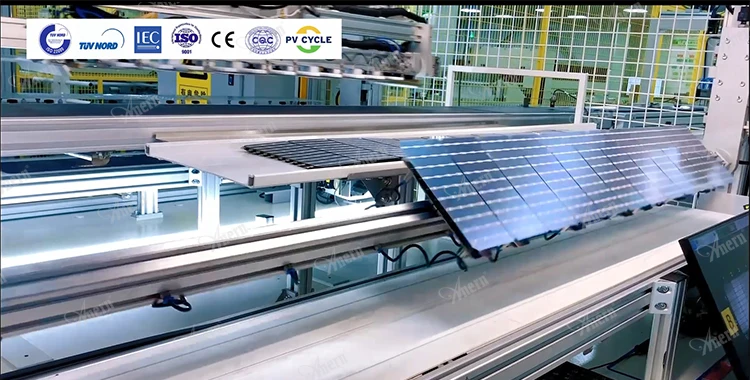

Automatic Solar cell Welding
Use automatic welding machine to connect solar cells in series; All the solar cells are made by high quality solar cell.

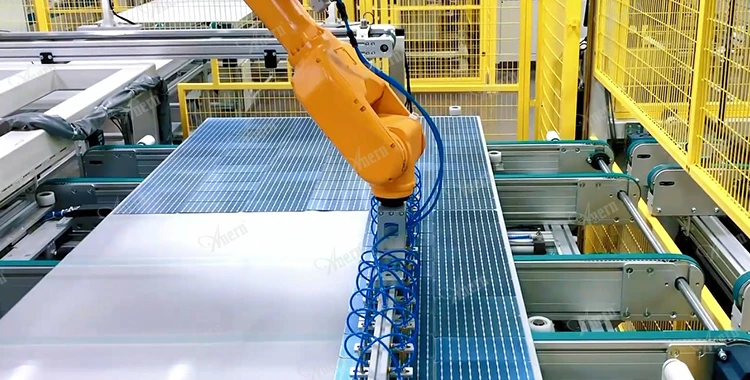

Automatic typesetting machine
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically typeset the battery string. High precision, high efficiency, low defect rate

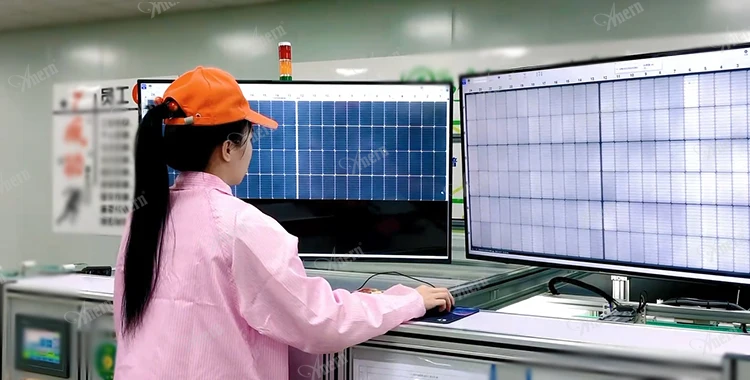

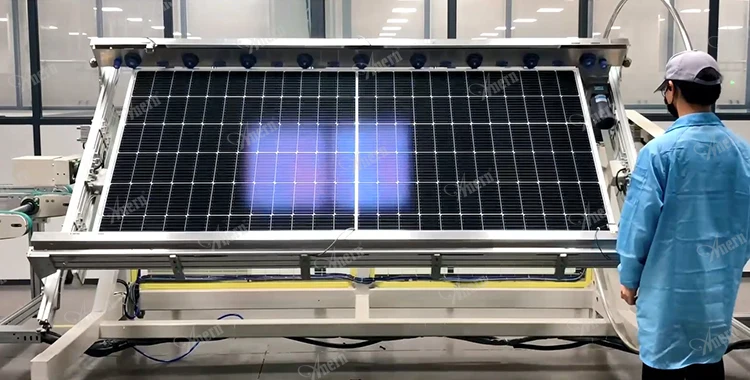

EL Testing
Use the mirror to inspect the appearance of the solar modules before lamination, and repair them if they are defective

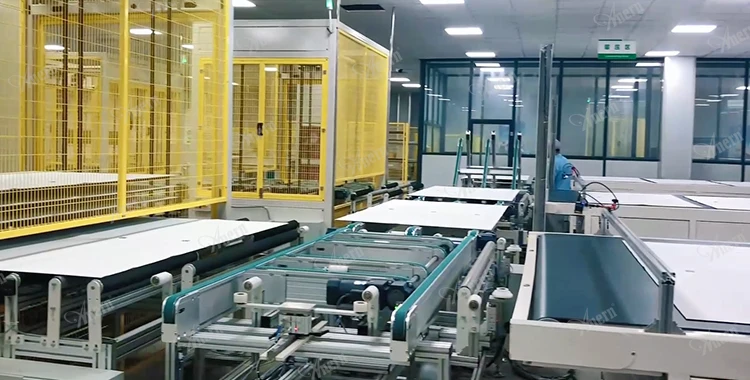

Automatic welding
Automatic laying of EVA, backing, automatic cutting of excess backing material; 100% automation of the entire production process
Visual Inspection
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the previous process

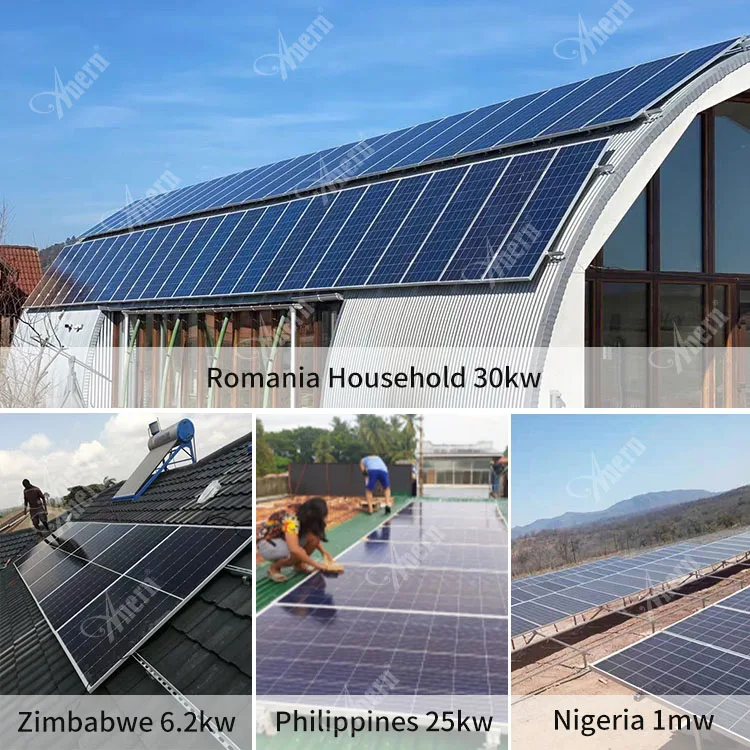

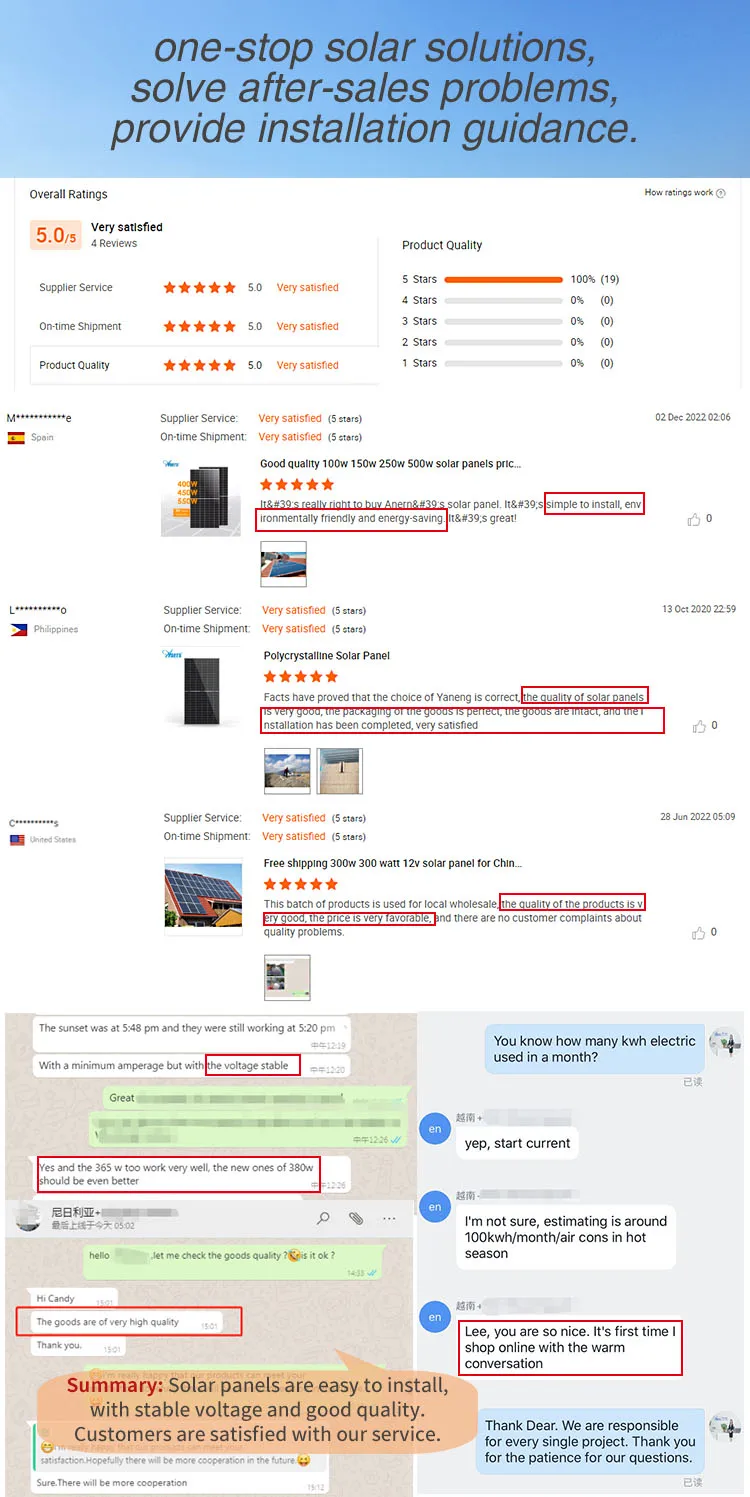

Project & Feedback
One-stop new energy solution provider! we are the one of the most professional solar module manufacturers and whole solar energy system supplier. Anern has excellent after-sales service, with professional guidance for installation.
One-stop new energy solution provider！we are the one of the most professional solar module manufacturers and whole solar power system supplier
Information from our customers, if you want to know more information, please feel free to contact us, thank you!

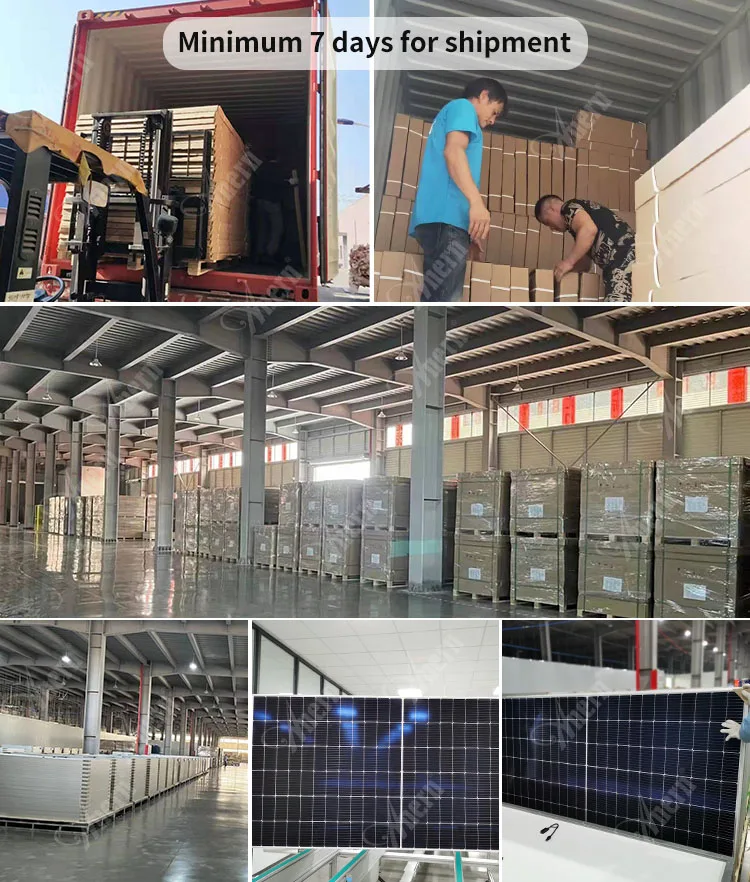

Packaging & Shipping
Anern has strong supply capacity with a fast delivery time and the shortest delivery time is 7 days.
Certifications
Anern products are ISO9001, CE, ROHS,TUV, ISO, FC approved and MSDS, UN38.3 for lithium battery, meeting various certification requirements for different countries, Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.
