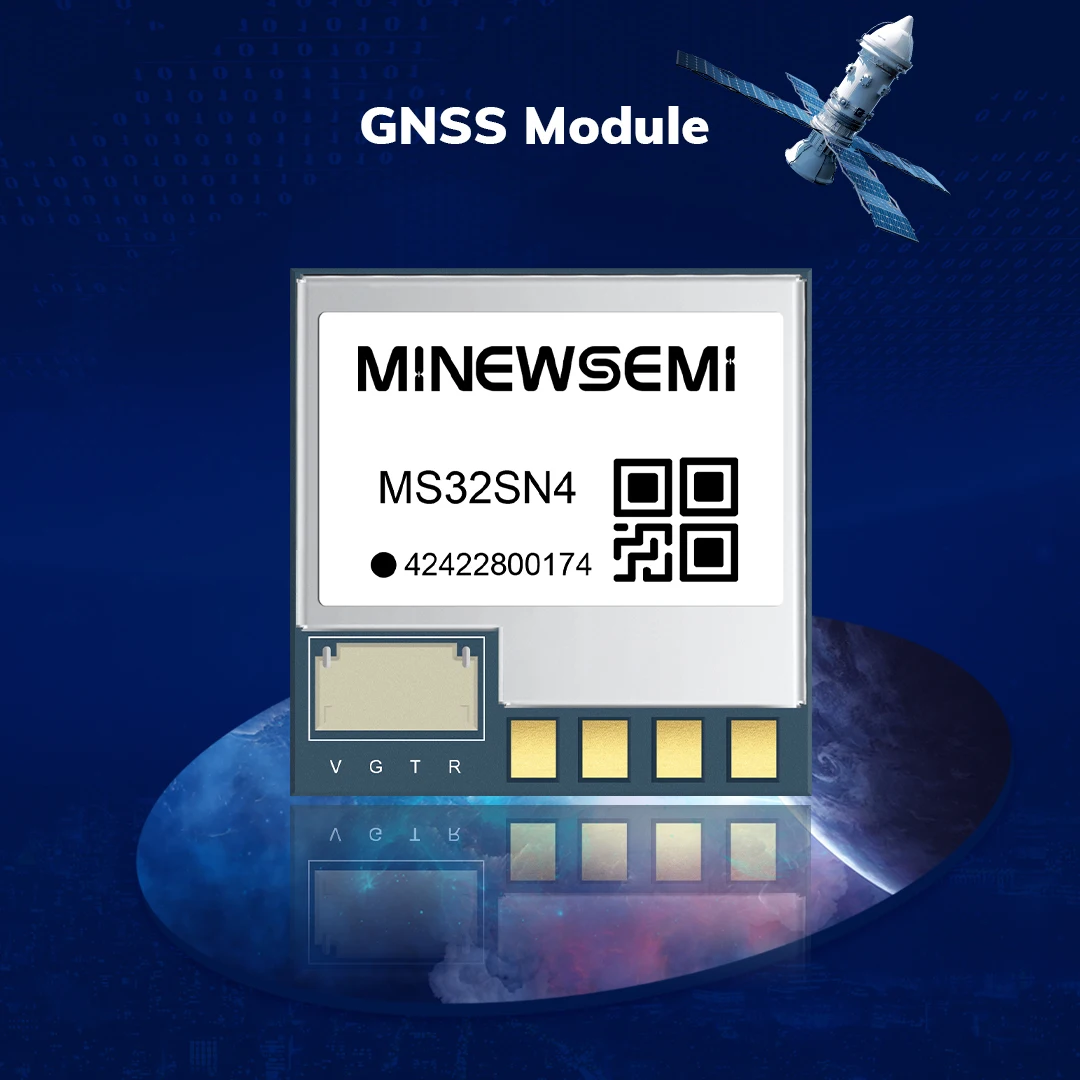

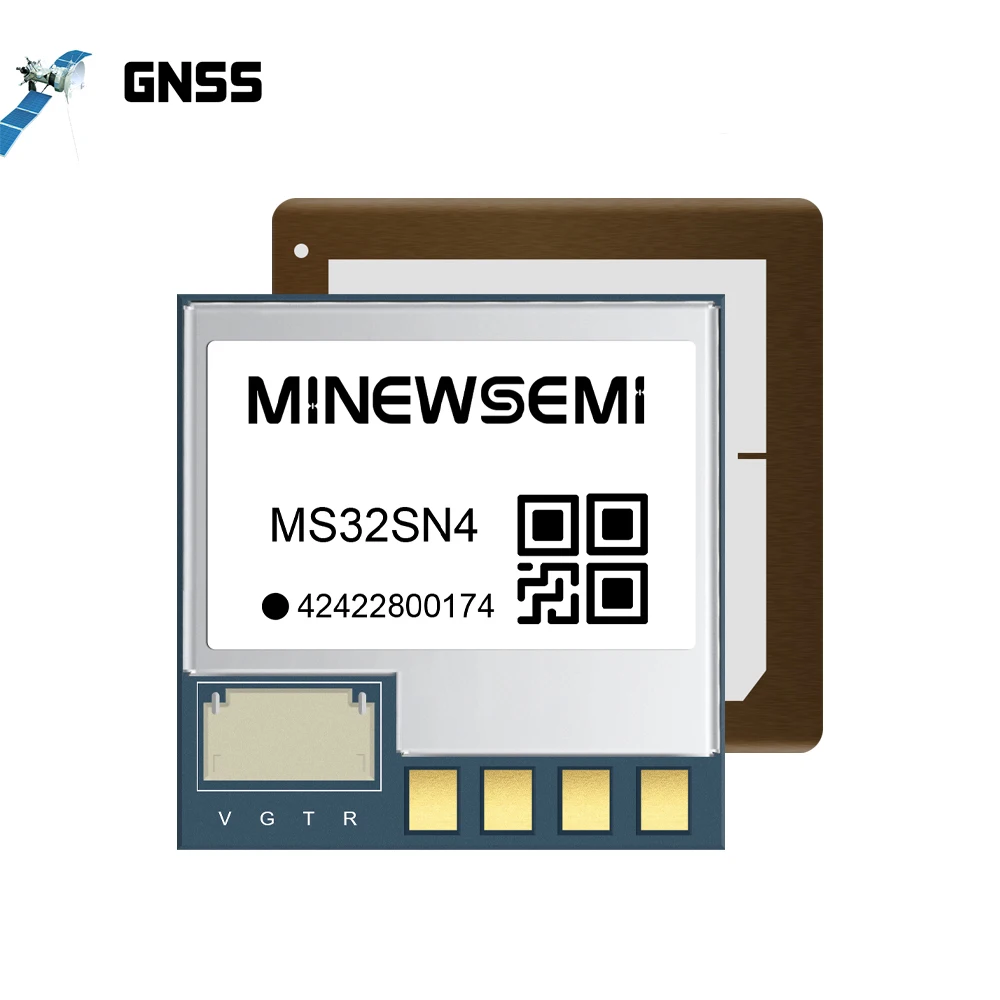

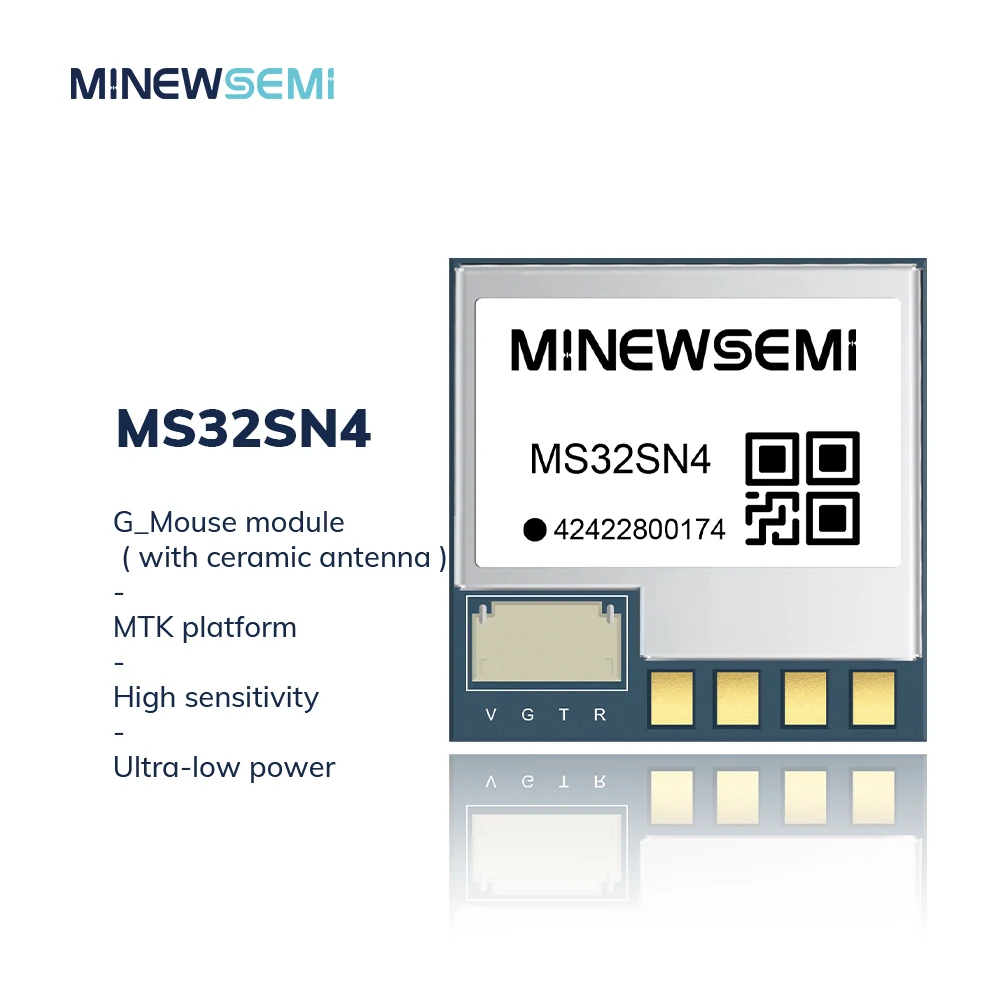

MS32SN4 MTK Ultra Low Energy High Sensitivity Low Price gps module G Mouse Ceramic Antenna PVT for tracker and GPS devices
- Category: >>>
- Supplier: Shenzhen Minewsemi Co. Ltd.
Share on (1600983972633):
Product Overview
Description
Products Description
1: Supporting satellite system: GPS, QZSS
2: Supports 3 AGPS acceleration positioning solutions such as EPO™, AlwaysLocate™, and EASY™
3: Two modes of operation: continuous mode for best performance and power saving mode to optimize power consumption
MS32SN1 is a complete GPS module that features high sensitivity, low power and small form factor.
It is based on the high performance features of the MediaTek MT3337 single-chip architecture.
Satellite System | GPS/QZSS |
Sensitivity | Tracking: -165dBm; Re-capturing: -163dBm; Cold Start: -148dBm |
Cold Start | 29s (avg ), Open sky |
Hot Start | 1s (avg ) |
AGPS Assist | EASY 10s (avg ) |
Max Height | 50,000m |
Max Speed | 500 m/s |
Baud Rate | 9600bps (factory default) |
MS34SN2 supports and tracks GPS (SBAS and QZSS) satellite constellation, and the receiving frequency is: 1575.42 MHz. Supports 3 AGPS acceleration positioning solutions such as EPO™, AlwaysLocate™, and EASY™.

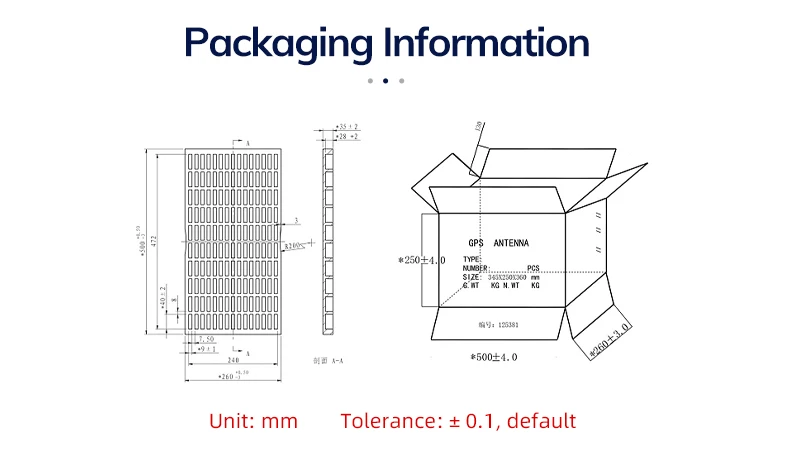

Packaging
