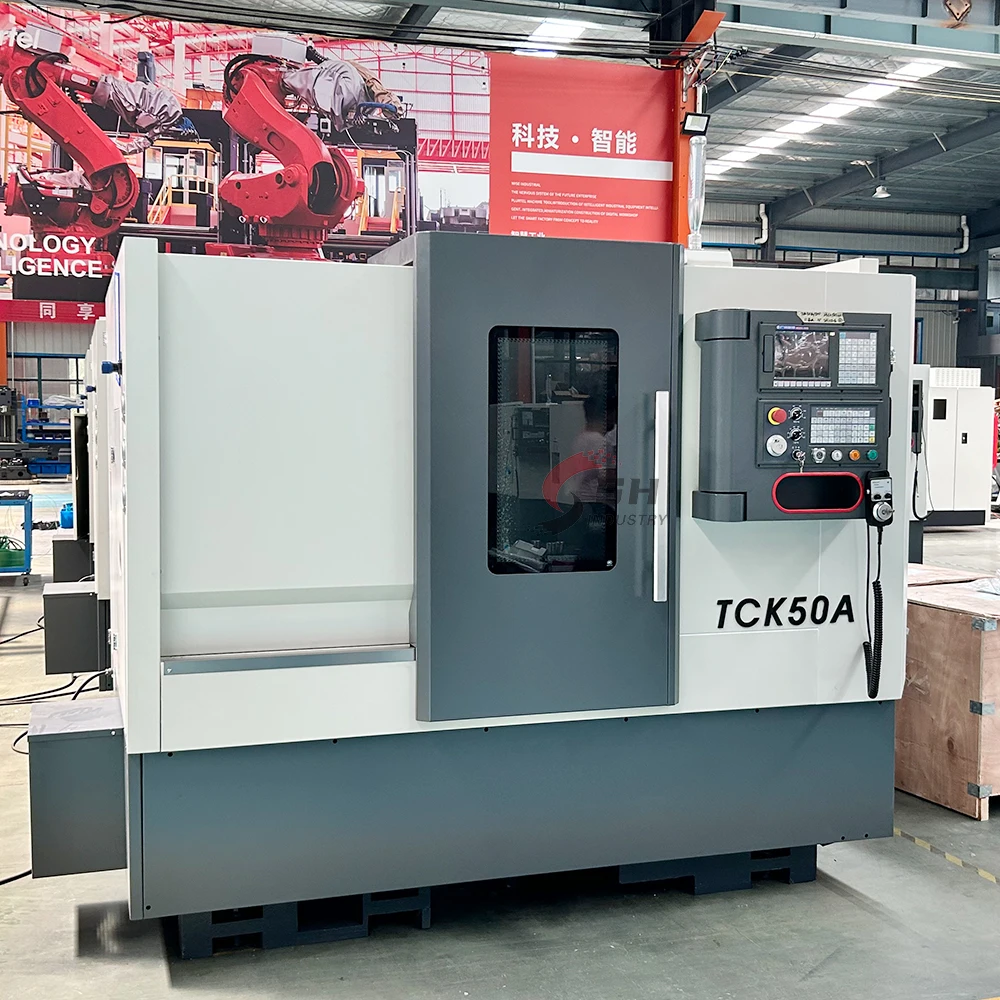

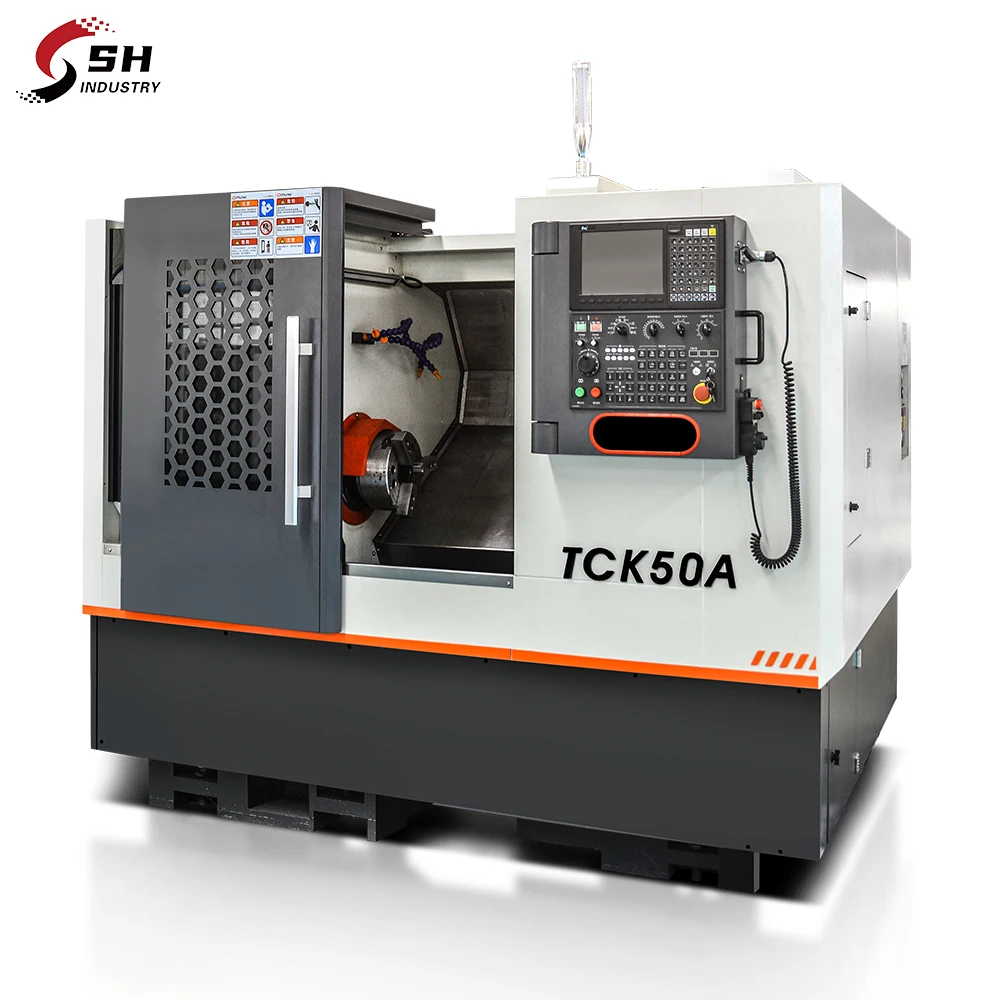

China Slanted Bed CNC Lathe TCK50 Metal Slanted Bed CNC Lathe TCK50
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1600984034589):
Product Overview
Description
Features:
Standard configuration: Optional configuration:
Spindle units (3500 rpm) 5000rpm Taiwan spindle units
Hydraulic chuck Taiwan ball screw
Servo main motor Chip conveyor
Taiwan linear Railway 12 position Hydraulic turret
Ball screw
8 Hydraulic turret
Standard configuration: Optional configuration:
Spindle units (3500 rpm) 5000rpm Taiwan spindle units
Hydraulic chuck Taiwan ball screw
Servo main motor Chip conveyor
Taiwan linear Railway 12 position Hydraulic turret
Ball screw
8 Hydraulic turret
Specification
Specification | Unit | TCK50A |
Max.swing over bed | mm | 500 |
Max.swing over cross slide | mm | 260 |
Max. Processing length | mm | 350/500/800 |
Max. Bar capacity | mm | 55/75 |
Max.processing diameter of plate type of workpiece | mm | 400/320 |
Spindle nose type | A2-6/8 | |
Spindle bore | mm | 66、66/86 |
Spindle speed range | r/min | 0-3000 |
Main motor power | kw | 11/11/15 |
Chuck form | Hydraulic chuck | |
Chuck size | inch | 10/12 |
X axis rapid traverse | M/min | 24 |
Z axis rapid traverse | M/min | 24 |
X axis servo motor torque | N.m | 7.5/10 |
Z axis servo motor torque | N.m | 7.5/10 |
X axis travel | mm | 240 |
Z axis travel | mm | 400/540/900 |

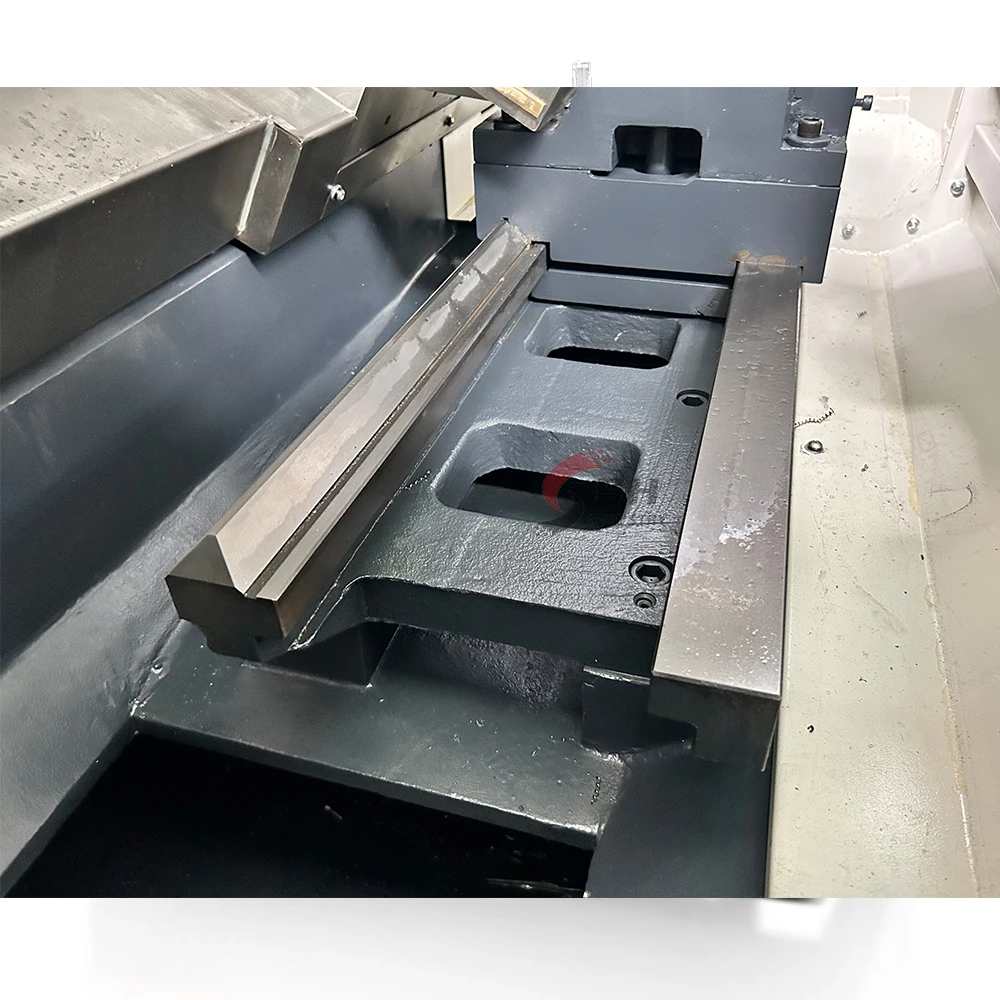

Guide rail type | linear rail | |
Tool post type | Horizontal 8/12 station | |
Tool shank size | mm | 25x25/dia.32 |
Tailstock type | hydraulic | |
Tailstock quill dia. | mm | 70/88 |
Tailstock quill travel | mm | 80 |
Tailstock quill taper | MT5 | |
Total rated power | kw | 14/18 |
Total rated current | A | 30 |
Machine weight | kg | 3200/3600/4500 |
Machine dimension | mm | 2700/2700/3300x2000x2000 |
