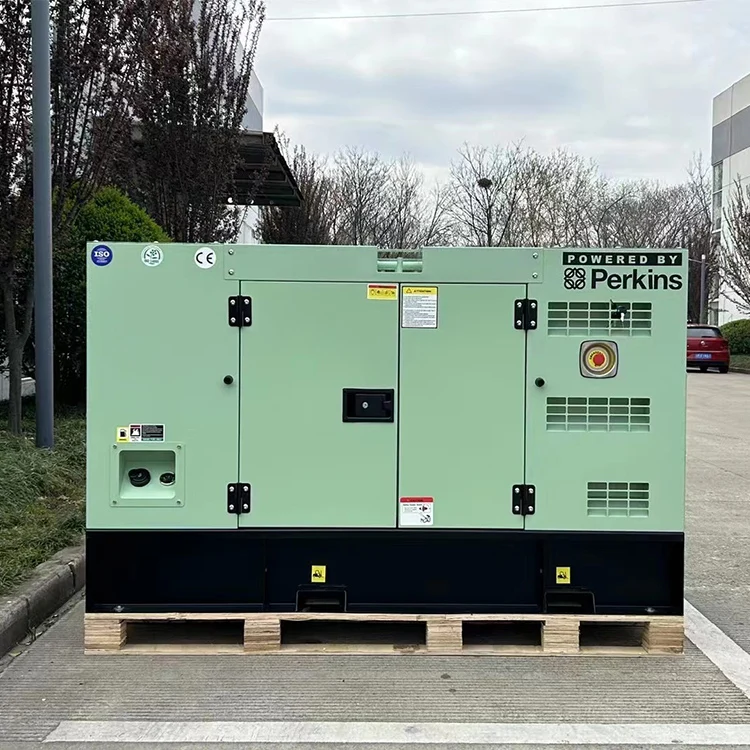

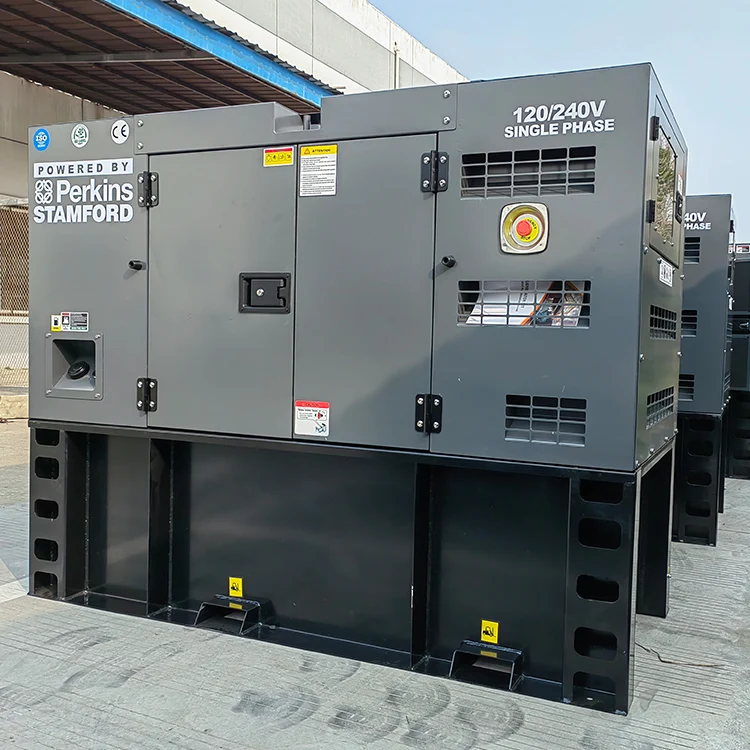

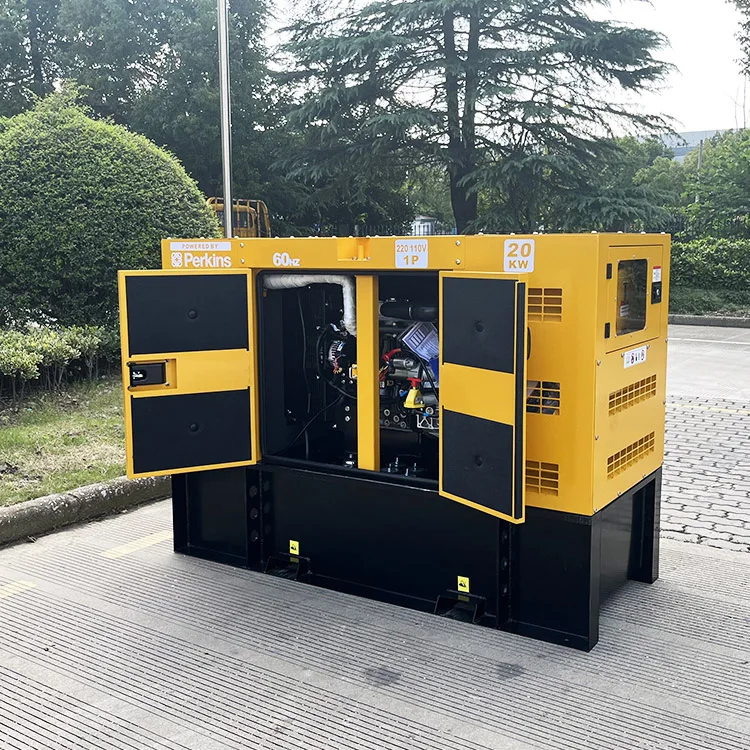

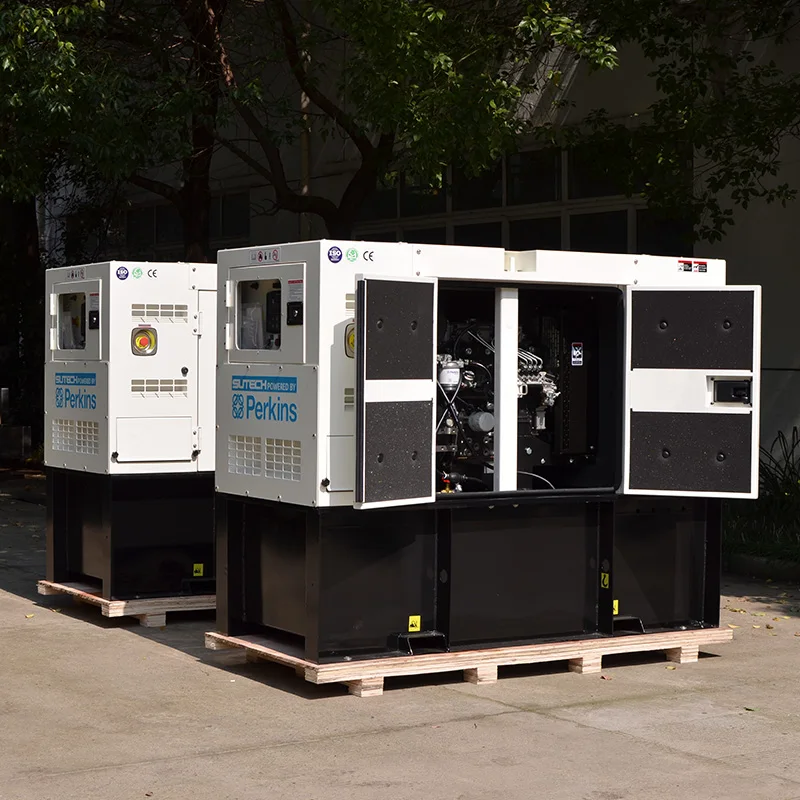

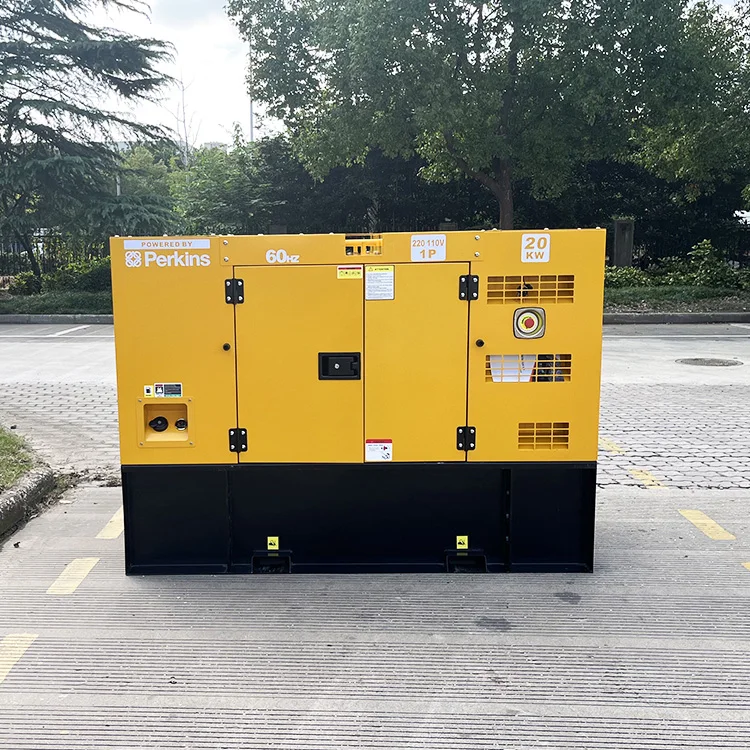

EPA Powered By Perkin Stamford Single Phase 20Kw Genset 25Kva 480 3 Phase Silent Diesel Generator
- Category: >>>
- Supplier: Jiangsu Wellpower Generator Co. Ltd.
Share on (1600984092010):
Product Overview
Description
Products Description

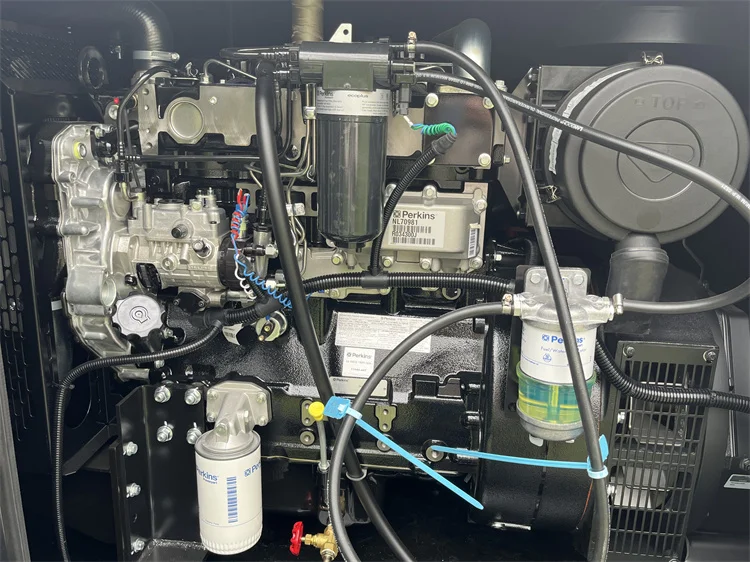

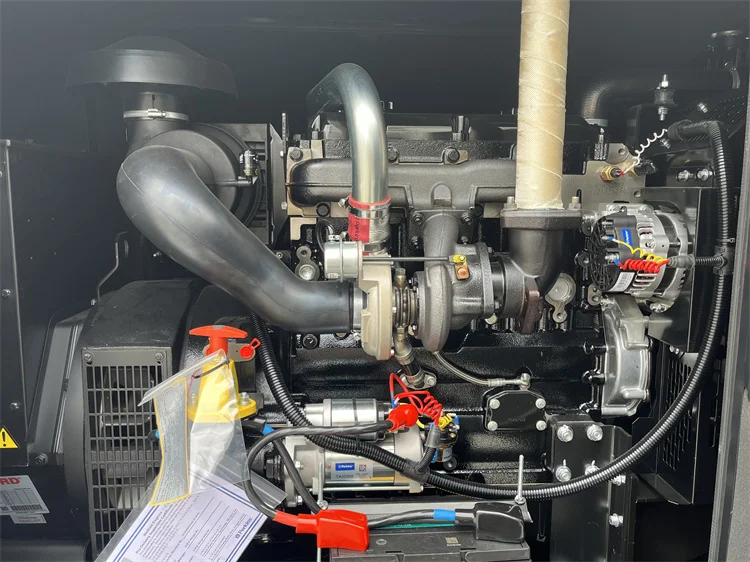

Perkins Engine Data | ||
Engine Model | 404D-22G | |
Number of Cylinders | 4 cylinders | |
Cylinders arrangement | Vertical in line | |
Cycle | 4 stroke | |
Aspiration | Naturally | |
Bore×Stroke | 84mm x100mm | |
Displacement | 2.216L | |
Compression ratio | 23.3:1 | |
Output Power/Speed | 20.6kw/1800rpm | |
Speed Governor | Mechanical/Electronic | |
Cooling System | Forced water cooling cycle | |
Steady speed droop | ≤1% | |
Total lubrication system capacity | 10.6L | |
Fuel Consumption at 100% Load | 237g/kw.h | |
Total coolant capacity | 7L | |
Starter Motor | DC12V | |
Alternator | DC12V | |
Alternator Data | ||
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… | |
Prime power | 20 KW | |
Frequency/speed | 50Hz/1500rpm (60Hz/1800rpm) | |
Exciter type | Single bearing, Brushless, Self-excited | |
Power factor | 0.8 | |
Voltage adjust range | ≥5% | |
Voltage regulation NL-FL | ≤±1% | |
Insulation Grade | H | |
Protection Grade | IP23 | |

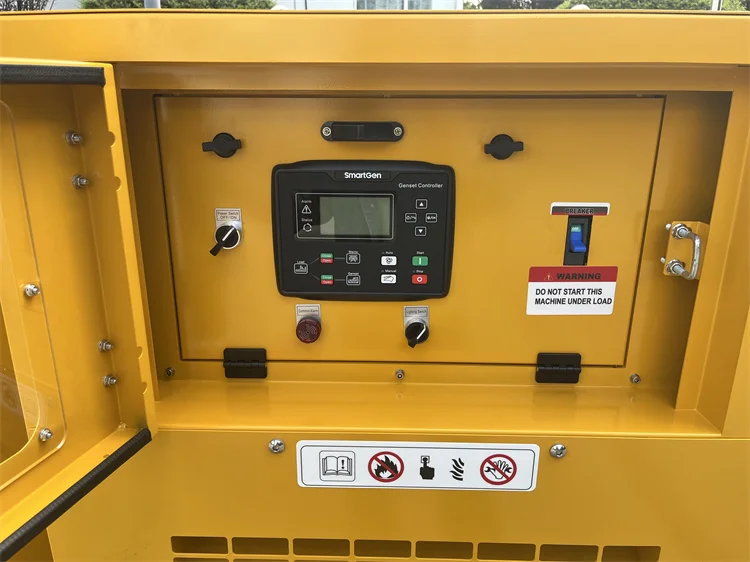

Control panel Model：DeepSea/SmartGen/ComAp
The control module gives digital readouts of:
Generator voltage;Output frequency;Engine speed;Battery voltage;Engine hours run
The control module has indicators for failure information:
Overspeed/underspeed;Emergency stopLow oil pressure;High water temperature;Failure to start;Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;High engine water temperature;Overspeed/underspeed;Failure to start after three attempts
Generator voltage;Output frequency;Engine speed;Battery voltage;Engine hours run
The control module has indicators for failure information:
Overspeed/underspeed;Emergency stopLow oil pressure;High water temperature;Failure to start;Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;High engine water temperature;Overspeed/underspeed;Failure to start after three attempts

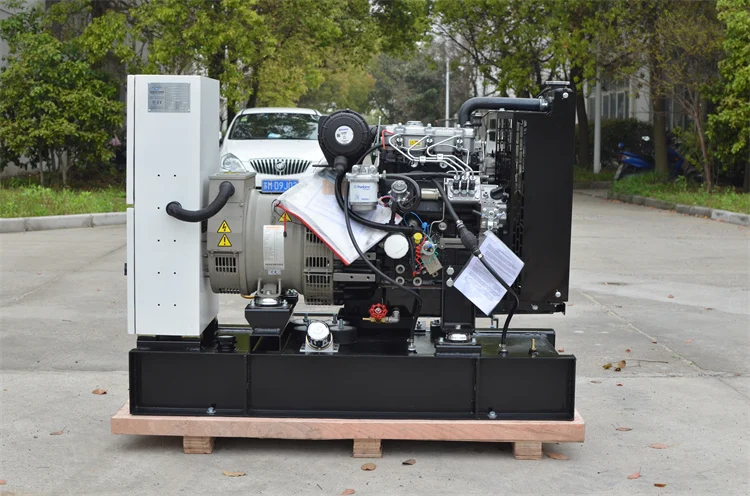

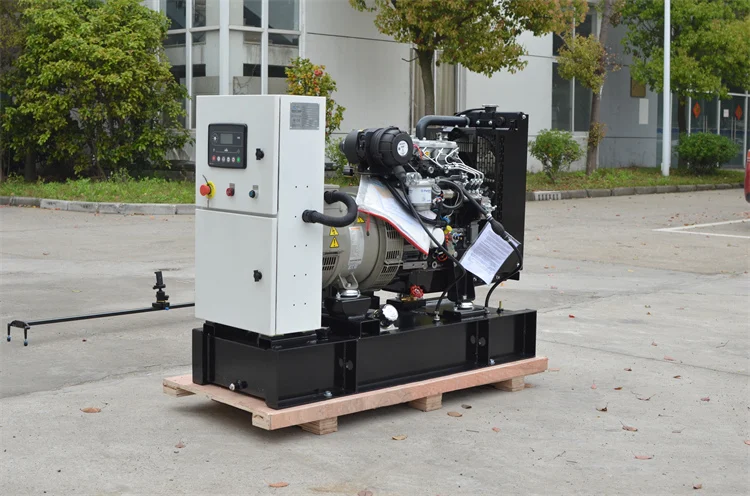

Open Type：

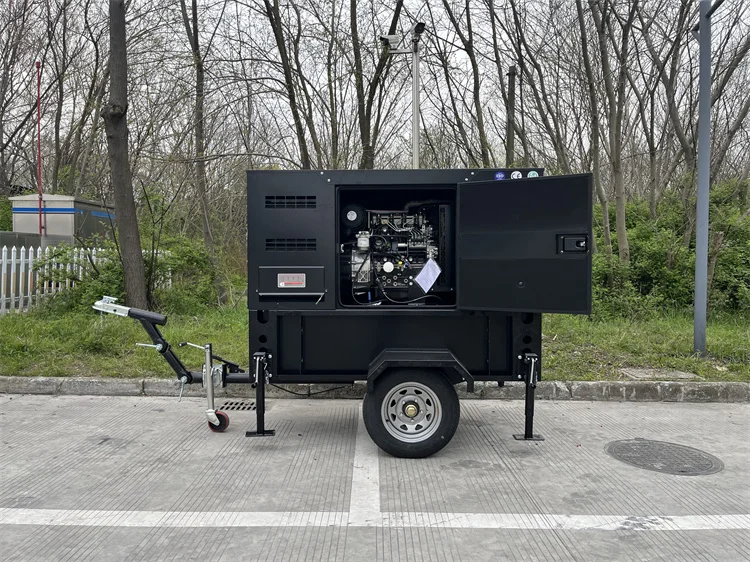

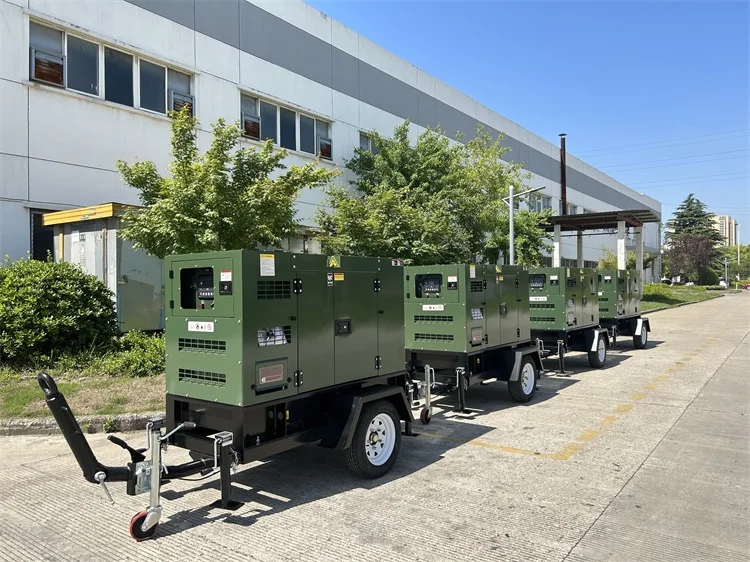

Trailer Type：
Buyer feedback
Why Choose Us
Related Products
Company Profile
WELLPOWER GENERATORS, PROFESSIONAL POWER SOLUTION.
Jiangsu WellPower Generator Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland.Until now,Wellpower has been exported to more than 80 countries and regions and have got a lot of praise from our customers.Our production capacity amounts to 9000 sets per year. We are specialized in making 5kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA...Our generator mainly use DEEPSEA and SMARTGEN control panel.According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts,customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Application scenarios
FAQ
1.Q: What is your MOQ of this item?
2.Q: What is the lead time?
3.Q: Is it all right to make customer's own brand name?
4.Q: Where is your Loading Port?
5.Q: What are your payment terms?
6.Q: What is your company's available production capacity?
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
