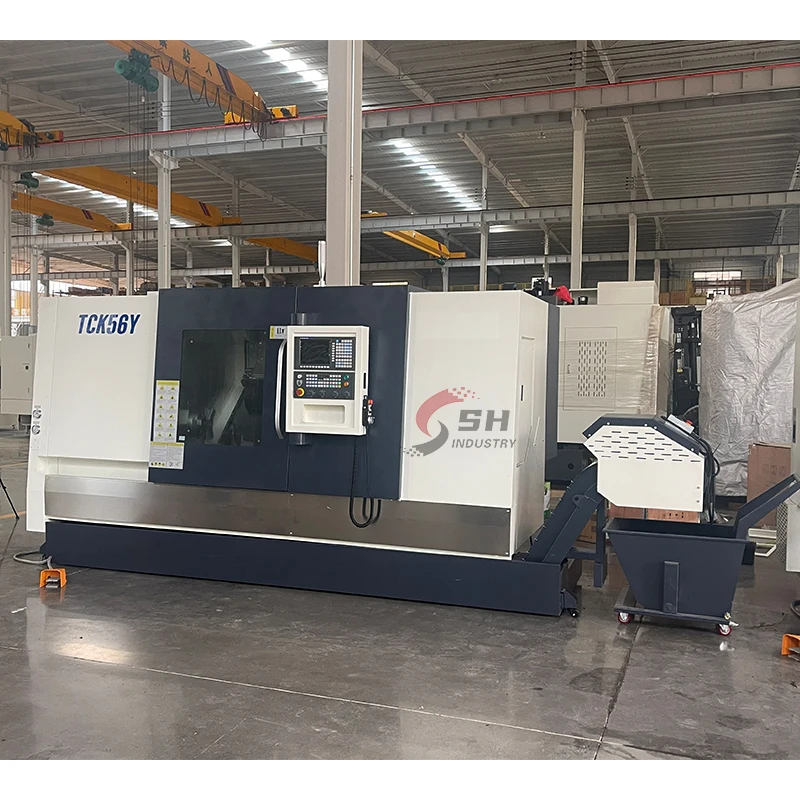

High precision slant bed CNC lathe TCK56Y slant bed CNC lathe with Y axis power head
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1600984128465):
Product Overview
Description
Features:
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 30mm. It can also be processed by C axis linkage.
The cnc turning center integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,
drilling, tapping and other composite processing of end and side faces.
The cnc turning center is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time.
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 30mm. It can also be processed by C axis linkage.
The cnc turning center integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,
drilling, tapping and other composite processing of end and side faces.
The cnc turning center is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time.
SPECIFICATIONS | Units | TCK56Y | TCK56Y-BMT55 |
Swing over bed | mm | 560 | 600 |
Max.processing length | mm | 420 | 500 |
Max.processing diameter | mm | 310 | 460 |
Spindle nose type | - | A2-6 | A2-6 |
Spindle bore | mm | 65 | 65 |
Spindle speed steps | stepless | stepless | |
Spindle speed range | rpm | 50-4500 | 50-4500 |
X axis travel | mm | 200 | 280 |
Y axis travel | mm | ±30 | ±50 |
Z axis travel | mm | 500 | 500 |
Main spindle motor | kw | 30 | 30 |
X/Y/Z axis rapid traverse | M/min | 30/12/30 | 30/12/30 |

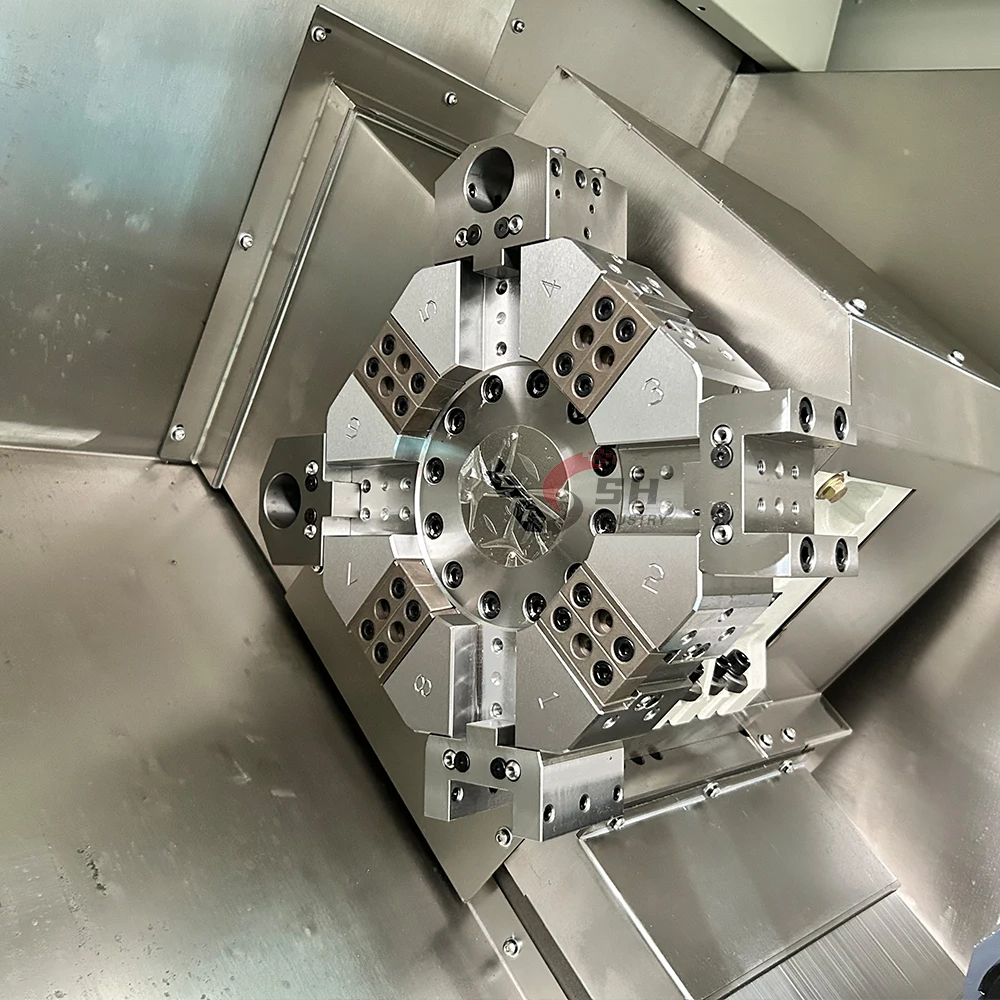

Turret type | - | 12 station power turret | 12 station power turret |
Machine weight | kg | 3600 | 4500 |
Details Display
Company Profile
Exhibition
Customer visit
Certifications
Packing & Delivery
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to South Asia(70.00%),Eastern Asia(20.00%),Southeast Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,CNC Milling Machine,Surface Grinding,Lathe,Radial Drilling Machine
4. why should you buy from us not from other suppliers?
The Strength Of The Company's Production In Mainland China Has Three Sub-Production Plants
From Product Casting,Processing To The Assembly, The Entire Production Process Has Full Control, Enough To Ensure The Quality Of The Product.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Russian
We are based in Shandong, China, start from 2017,sell to South Asia(70.00%),Eastern Asia(20.00%),Southeast Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,CNC Milling Machine,Surface Grinding,Lathe,Radial Drilling Machine
4. why should you buy from us not from other suppliers?
The Strength Of The Company's Production In Mainland China Has Three Sub-Production Plants
From Product Casting,Processing To The Assembly, The Entire Production Process Has Full Control, Enough To Ensure The Quality Of The Product.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Russian
