Hot Sale Large Scale Industrial Vacuum Freeze Dryer for Sweet Corn Food Lyophilizer Strawberry Freeze Drying Equipment

Product Overview

Description

 Summary:

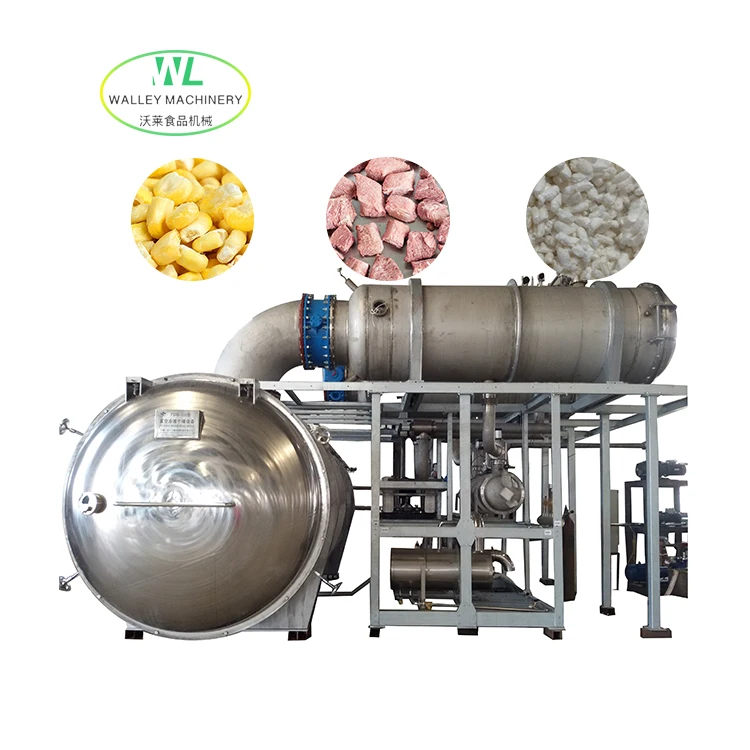

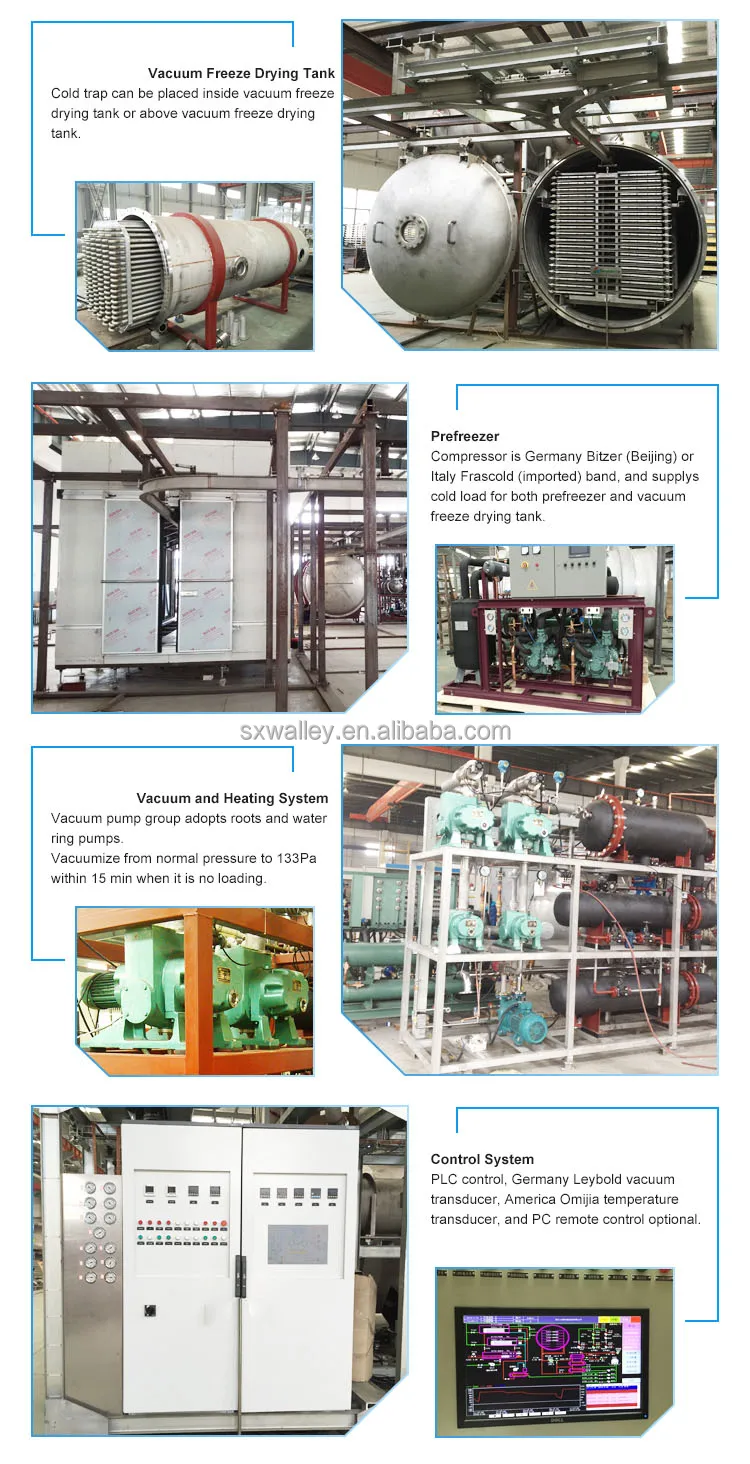

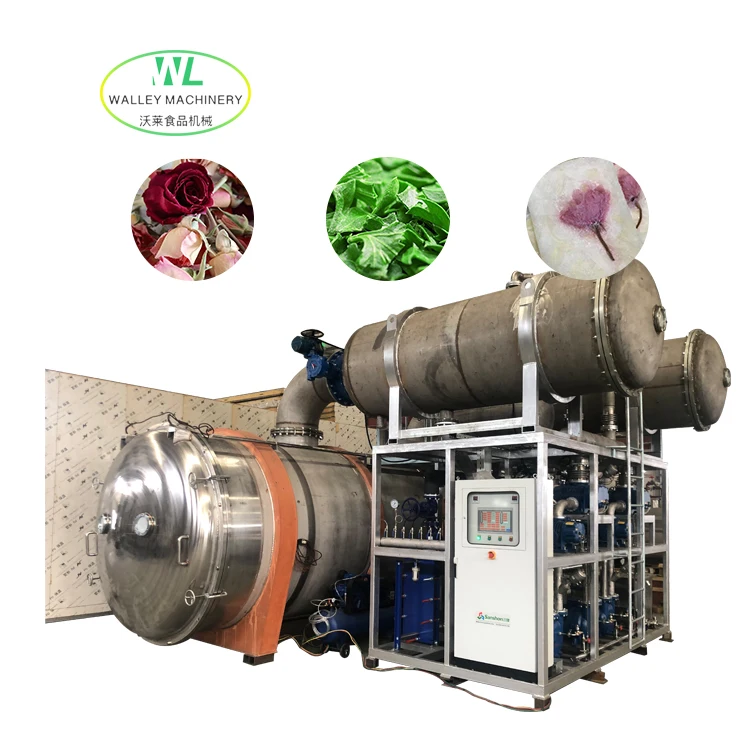

SFD freeze dryer machine is consisted of freezing and drying pot, vacuum pumps, heating system, refrigerating machines, pre-frozen system and control system, etc.



Application:

FD equipment has a wide application. It can be widely used in such fields as vegetables, fruits, aquatic products, meat, condiments, flour products, biological products, beverage, agricultural products and specimen, etc.; it even can be used in such industries as ceramic, chemistry and grapheme, etc.





Working principle:

vacuum freeze drying is a drying method which heats the frozen water-content product, under a condition of vacuum and low temperature, sublimates the moisture in product from solid state to gas state. Under the function of cold trap, freezes the moisture in gas state into ice, so as to get rid of the moisture in product and preserves the product.





Models:

Model	SFD-0.5	SFD-1	SFD-5	SFD-10	SFD-25	SFD-50	SFD-100	SFD-125	SFD-200
drying area (m2)	0.5	1	5	10	25	50	100	125	200
average moisuture output(kg/h)	0.6	1	5	10	25	50	100	125	200
tray size(mm)	500*340*35	750*340*35	540*635*35	540*870*35	540*635*35
tray quantity(pcs)	3*2	4*2	16*2	22*2	72*2	144*2	288*2	360*2	576*2
drying pot size(m)	d0.5*1.5	d0.5*1750	d1.2*2.3	d1.6*2.9	d1.8*4.4	d2.4*4.1	d2.4*6.8	d2.4*8.2	d2.4*12.3
overall dimension(m)	1.9*1.3*1.8	2.6*1.25*1.8	4.4*2.3*2.0	7.4*2.3*2.4	/	/	/	/	/
operation vacuum(pa)	13.3~200
heating plate temperature(℃)	RT.~120℃
electric heating(kw)	2	3	15	24	45	96	/	/	/
steam consumption(kg/h)	/	/	/	/	70	160	320	400	540
cold load(kw)	1.5	2.4	11	18	45	110	180	225	360
power required(kw)	8.5	10.4	35	63.2	64+	130+	245	287	404
