Mobile Monitoring System Outdoor Wireless CCTV Camera Trailer Solar Light Tower
- Category: >>>
- Supplier: Shleme Power Co. Ltd.Shleme Ltd.
Share on (1600984200403):
Product Overview
Description
Product Description
Mobile Monitoring System Outdoor Wireless CCTV Camera Trailer Solar Light Tower
Solar Trailer Tower
Max Mast Height: 7m & 9m for optional
Type: Solar trailer tower with light/solar trailer tower with camera/ solar trailer tower only without camera for optional
Lifting Way: Manually/ Electric / Hydraulic
MOQ: 1 Set
OEM & ODM Customized: Support
Color: White, Black, Green, Red, Yellow, Blue, etc
Applications: Monitoring System, CCTV Camera, Construction,Outdoor, Road,Emergency.Traffic Surveillance System

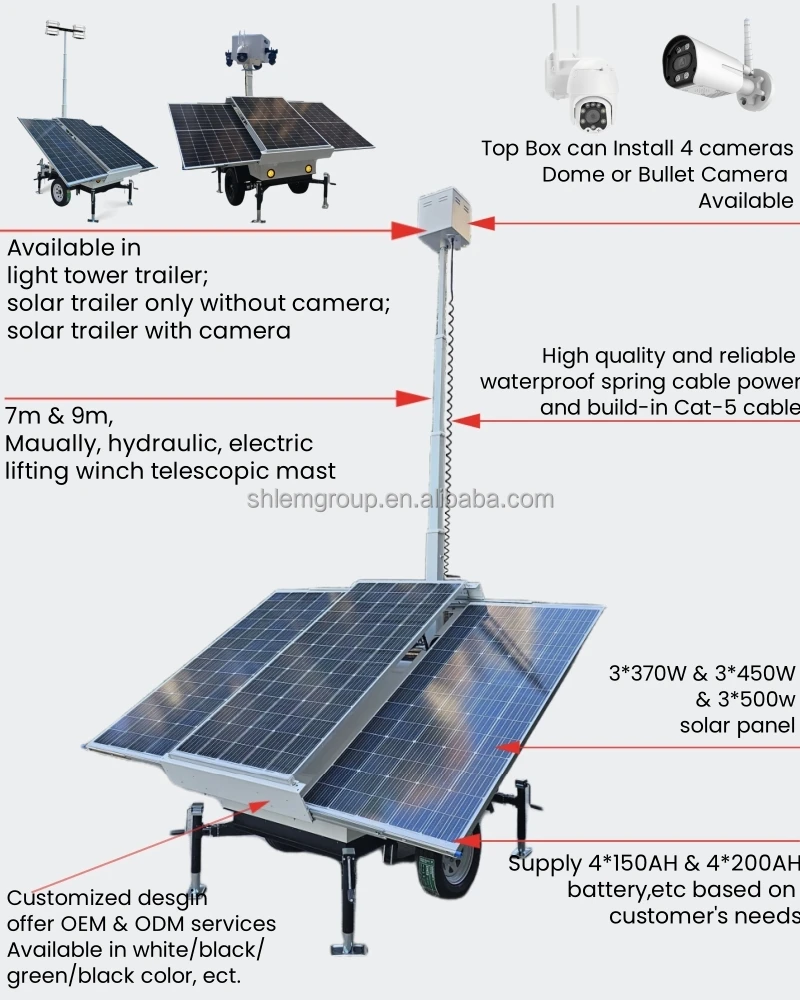

Introduce SHLEME's multifunctional and environmentally friendly solar trailer tower series, which offers a range of options to meet different needs. Solar Trailer Tower with Light can provide powerful illumination, making it ideal for areas that require reliable lighting solutions. For camera functions, Solar Trailer Tower with Cameras combine lighting with safety monitoring. For more basic applications, Solar Trailer Tower Only Without Camera can also be used. 7m & 9m mast has manual, electric, and hydraulic lifting modes. Adjustable solar panels can achieve optimal energy generation. In addition, different battery options
ensure extended operating time, making these towers a flexible and sustainable choice for various outdoor applications.
ensure extended operating time, making these towers a flexible and sustainable choice for various outdoor applications.
Specification
Model | Solar Trailer Tower | ||||||
Mast | Full Extending Height | 7m & 9m Mast Optional | |||||
Rotation Mode | Manually | ||||||
Material | Steel | ||||||
Lifting Mode | Hand Crank | ||||||
Solar Panel | Type | Monocrystalline Silico | |||||
Expansion Method | Manual expansion and closure | ||||||
Total Power | 370W*3 | 450W*3 | 500W*3 | ||||
Rated Max Power(Pmax) | 370W | 450W | 500W | ||||
Open Circuit Voltage(Voc) | 45V | 39.04V | 42.82V | ||||
Short Circuit Current(Isc) | 11.1A | 14.67A | 14.25A | ||||
Voltage at Pmax(Vmp) | 36V | 32.21V | 37.00V | ||||
Current at Pmax(lmp) | 10.27A | 13.97A | 13.52A | ||||
Maximum System Voltage | 1000V | 1500VDC | 1500V | ||||
Battery | Type | Gel Battery | |||||
Capacity | 4*150AH DC12V 7200wh | 4*200AH DC12V 9600wh | 6*200AH DC12V 14400wh | ||||
Battery Charging | Solar / Mains | ||||||
Hybrid Inverter | Capacity | 800W | |||||
AC Input | 220V±25% 50Hz/60Hz±5 | ||||||
AC Output | 220V±10% 50Hz/60Hz±0.3 | ||||||
AC Charger | 20A (Max) | ||||||
MPPT Solar Controller | 60A | ||||||
Solar Power Input | 1440W(Max) | ||||||
Solar Voltage Input | 30-130VDC(Max) | ||||||
Battery Voltage | 24 VDC | ||||||
Trailer | Color | White/Black/Yellow/Green, etc | |||||
Speed limit | 80 km/h(117km/h / 73mph) | ||||||
Tire | R140 ,185 | ||||||
Support legs | 4 | ||||||
Mobile trailer | with brake system | ||||||
Customized Services | Support | ||||||
Packing Way | Wooden Case | ||||||
Packing & Delivery
Certification
Recommend Products
Company Profile
SHLEME is a high-tech oriented company specialized in the R&D, design, manufacture, sale and marketing of working light, street light, explosion-proof light, flood lights etc more than 20 years. We have a group of professional technical R&D teams, who can provide OEM/ODM services according to customers and LED lighting solutions.
Our factory has passed the authentication of ISO9001:2015, CE, UL, RoHS SAA and TUV.Our products have been sold to Australia, South America, North America, Middle East, Africa, South-east Asia etc. We warmly welcome domestic and overseas agents and wholesalers to join us, to light up a green planet, for a more environmental earth.
Our factory has passed the authentication of ISO9001:2015, CE, UL, RoHS SAA and TUV.Our products have been sold to Australia, South America, North America, Middle East, Africa, South-east Asia etc. We warmly welcome domestic and overseas agents and wholesalers to join us, to light up a green planet, for a more environmental earth.
