Metal Steel MBK12 57 MBK12 60 Stepping Motor Drive Ball Screw Seat for CNC Milling
- Category: >>>
- Supplier: Suzhou Weipeng Precision Machinery Co. Ltd.
Share on (1600984284473):
Product Overview
Description
Products Description

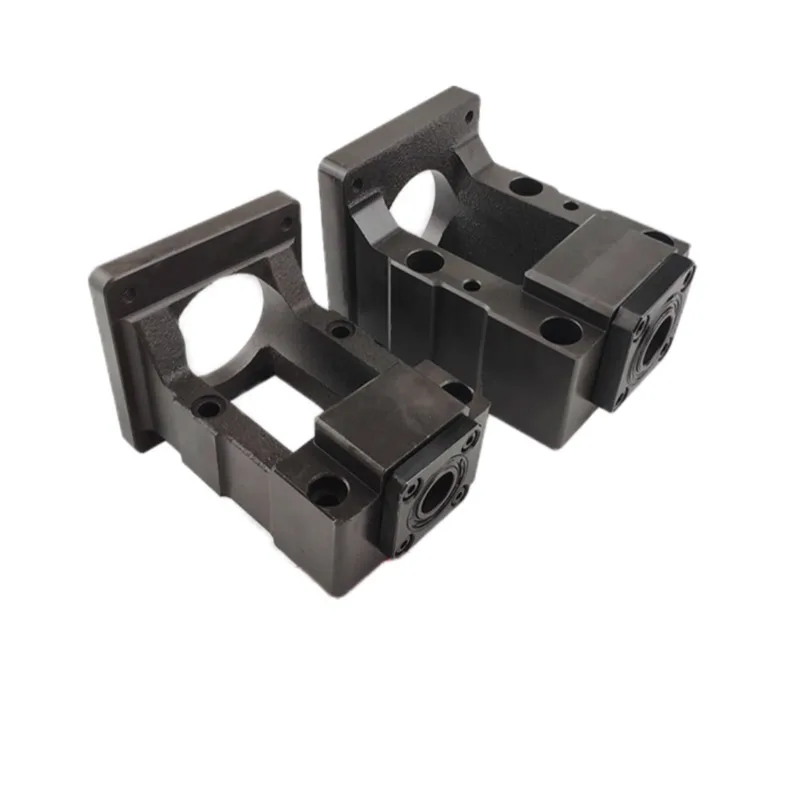

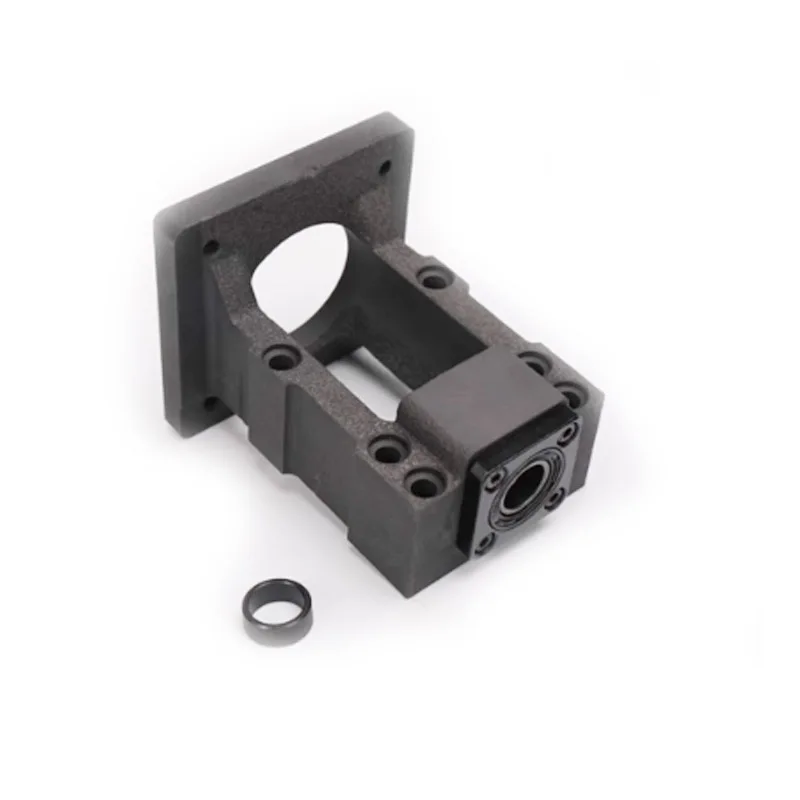

This product is MBK series standard ball screw motor holder, which is functionally equivalent to BK series screw fixed bearing seat end support ball screw and fixed seat/motor bracket. Stepper motor integrated motor mounting positioning hole and fixed bearing seat end support block mounting hole are integrated processing to ensure that the motor shaft, coupling shaft, axial bearing hole and ball screw shaft are strictly in a straight line. Make the ball screw assembly and drive system operate more accurately, with less noise and longer life.
Product Paramenters
Model | Detail |
MBK10 | MBK10-60 (Matched 400w 60 servo motor) |
MBK10-57 (Matching 57 stepper motor) | |
MBK12 | MBK12-57 (Matching 57 stepper motor) |
MBK12-60 (Matched 400W 60 servo motor) | |
MBK15 | MBK15-57 (Matching 57 stepper motor) |
MBK15-60 (Matched 400W 60 servo motor) | |
MBK15-80 (Matched 750W 80 servo motor) | |
MBK15-86 (Matching 86 stepper motor) | |
MBK17 | MBK17-80 (Matched 80 servo motor) |
MBK17-86 (Matching 86 stepper motor) | |
MBK20 | MBK20-60 (Matched 60 servo motor) |
MBK20-80 (Matched 750W 80 servo motor) | |
MBK20-86 (Matching 86 stepper motor) | |
MBK20-110 (Matched 110 servo motor) | |
MBK20-110 (Matching 110 stepper motor) | |
MBK20-130 (Matching 130 stepper motor) | |
MBK20-130 (Matched 130 servo motor) | |
MBK25 | MBK25-110 (Matching 110 stepper motor) |
MBK25-110 (Matched 110 servo motor) | |
MBK25-1300 (Matched 130 servo motor) | |
MBK30 | MBK30-130 (Matched 130 servo motor) |
MBK35 | MBK35-130 (Matched 130 servo motor) |
MBK40 | MBK40-150 (Matched 150 servo motor) |
MBK40-180 (Matched 180 servo motor) |
Product Overview
Product packaging

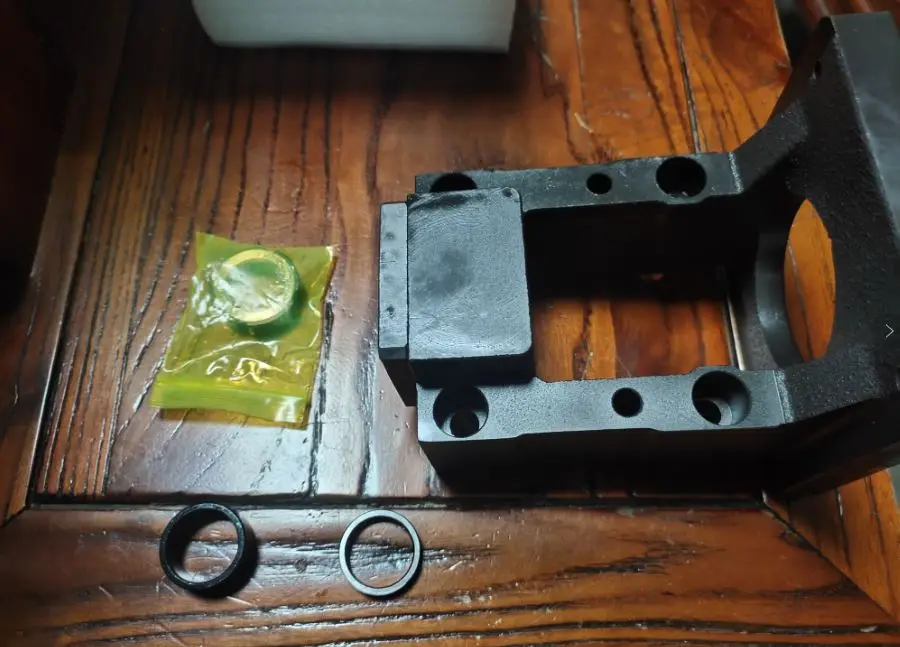

Customer Photos
