Zwayn Mini Solar Generator Home HyGrid Energy System 3KW 5KW 6KW Lithium Storage Battery 4000W 5000W 3000W CAN Communication
- Category: >>>
- Supplier: Shenzhen Zooming Electronic Co. Ltd
Share on (1600984372702):
Product Overview
Description
Product Description
Model | ES-BOX26 | ||
Nominal Voltage | 51.2V | ||
Nominal Capacity @25℃ | 100AH | ||
Nominal Energy @25℃ | 5 KWH | ||
Inverter | DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc. | ||
Battery Cell Type | Square / Cube / Prismatic / Prismary / Pouch 3.2V 100Ah 102Ah li-ion LiFePO4 Lithium iron phosphate battery | ||
Configuration (*S*P) | 16S1P | ||
Max. Continous Charge Current @25℃ | 100A | ||
Max. Continous Discharge Current @25°C,10s | 100A | ||
60Dimension (mm) | 48X66X15cm | ||
Weight (KG) | 50KG | ||
DC Resistance | ≤10mΩ | ||
Full Charged Voltage | 58.4V | ||
Discharge Cut-off Voltage | 40V | ||
Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C | ||
Humidity (non-condensing) | Max. 95% | ||
Display | LCD | ||
Communication Interface | RS485/ RS232 / CAN | ||
Waterproof | IP65 | ||
Cycle life | About 6000 times -8000 times | ||
Service Life | 10-15 years | ||
Warranty | 5 years | ||
We have many items Home Energy Storage Battery from Small to Super big as below:
ES-BOX N Smart—2.5KWH 24V100AH;
ES-BOX N Normal—5KWH 48V100AH/51.2V100AH;
ES-BOX N Pro—7.5KWH 51.2V150AH;
ES-BOX N PLUS—10KW 51.2V200AH;
ES-BOX N MAX—14.5KWH 51.2V280AH
Product Usage
This section elaborates the interface functions of the front interface of the device. It's integrated BMS communication protocol
to comprehensive hybrid and off grid inverters.
to comprehensive hybrid and off grid inverters.

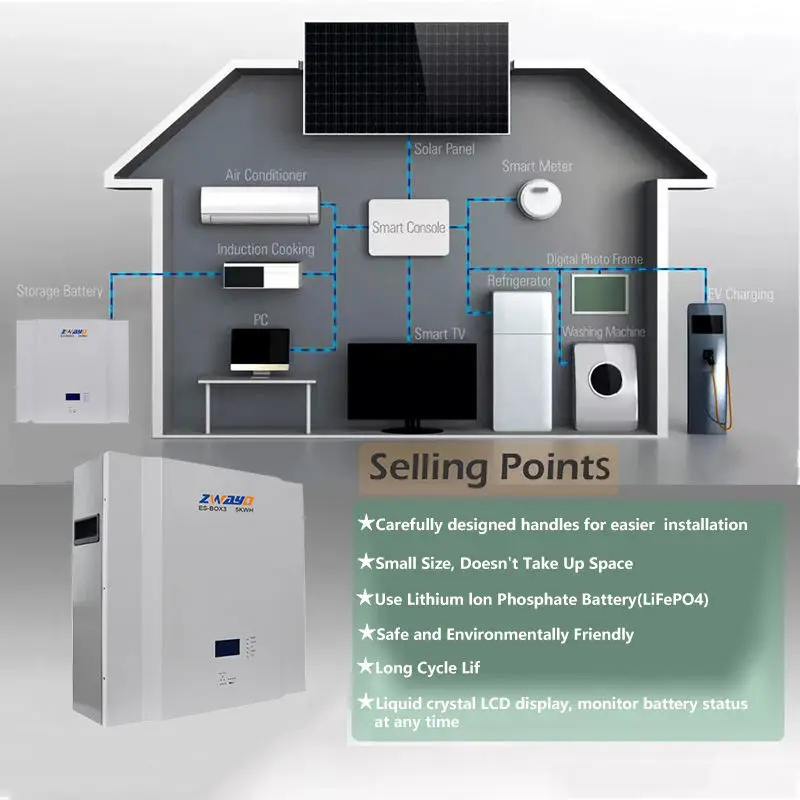

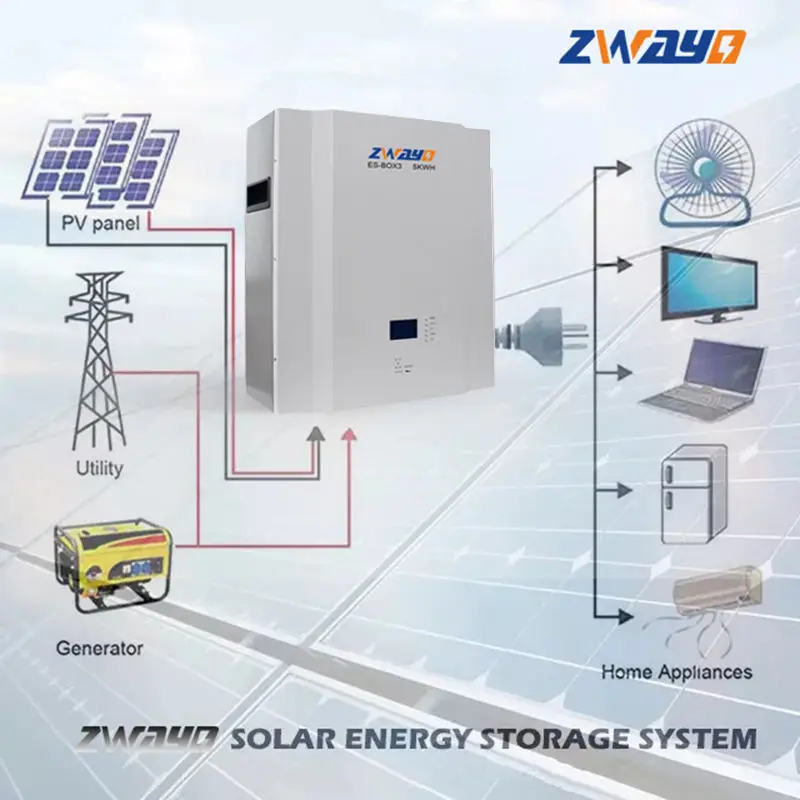

Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power
to user’s equipment as power backup at nighttime or any time when needed. It can improve the efficiency of photovoltaic power
generation and increase the electric power efficiency by peak load shifting.
to user’s equipment as power backup at nighttime or any time when needed. It can improve the efficiency of photovoltaic power
generation and increase the electric power efficiency by peak load shifting.
Company Introduction
Zwayn is focusing on the production Li-ion battery energy, designing and marketing of battery, solar generator, energy storage system, telecom backup battery, UPS, solar street light battery and customized battery pack services.
Our factory are already certified with ISO 9001-2015, ISO14001, BSCI etc. With more than 10 national and international patents, our products has already been certified with IEC,UL,CE,FCC,ROHS,UN38.3,MSDS,PSE,SAA,SASO,KC, 1.2meter dropping test, shipping report, and etc.
Zwayn's long-term value creation model of developing, building, operating scale solar storage battery projects, unlocks and
storage the power of the sun. We consistently contribute to the economic and social development of the communities where Zwayn operates. We demonstrate through our actions, conduct, and keen focus on climate & environment, our steadfast and proven track record for bringing new solar power to emerging markets, growing cities, and communities urgently needed to access affordable, clean solar energy storage.
Our factory are already certified with ISO 9001-2015, ISO14001, BSCI etc. With more than 10 national and international patents, our products has already been certified with IEC,UL,CE,FCC,ROHS,UN38.3,MSDS,PSE,SAA,SASO,KC, 1.2meter dropping test, shipping report, and etc.
Zwayn's long-term value creation model of developing, building, operating scale solar storage battery projects, unlocks and
storage the power of the sun. We consistently contribute to the economic and social development of the communities where Zwayn operates. We demonstrate through our actions, conduct, and keen focus on climate & environment, our steadfast and proven track record for bringing new solar power to emerging markets, growing cities, and communities urgently needed to access affordable, clean solar energy storage.
Why choose us
1.10 years specializing in lithium battery;
2. 4 Semi-automatic production line, more than 200 employees,70 manufacturing equipment, 150MWh annual output of electricity;
3. ISO 9001-2015, ISO14001, BSCI;
4. OEM&ODM, Professional Technical support&customer service;
5. 8 patent products, 16 patent certificates; 2 mechanical engineers, 4 Bms developing engineers, 3 electrical engineer&application engineers, 2 technical after-sales support engineers;
6. Stock battery, locked battery price; Support T/C payment.
FAQ
Q: How long is the warranty period?
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.
Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001
certifications, but each type of product may be different.
Q: What kind of product quality your factory offer?
A: We provide the most competitive products at the highest quality price.
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.
Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001
certifications, but each type of product may be different.
Q: What kind of product quality your factory offer?
A: We provide the most competitive products at the highest quality price.
