HiOSO Mini Pizza Box EPON OLT 2 x 1000M SFP ports, 4 x 1000M LAN uplink ports 1AC 1DC power supply with 4 x px20 PON modules
- Category: >>>
- Supplier: HiOSO Technology Co. Ltd.
Share on (1600984553821):
Product Overview
Description
Product Description
- Overview
HA7304VD-ADC is a pizza box type 4 SFP PON ports EPON OLT.HA7304VD works with different brands EPON ONUs and XPON ONUs which support CTC standard. The whole system supports 4-PON, 256 ONUs.
HA7304VD-ADC applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access.
HA7304VD-ADC applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access.
Feature
1.Supply 4 SFP PON ports, 2 1000M SFP ports, 4 1000M LAN uplink ports
2.Each PON port support 1.64 split ratio, total 256 ONUs access
3.Distance can reach 20km under 1:32 split ratio
4.Support to work EPON XPON ONUs to establish passive network
5.Support WEB and SNMP, integrate switching function
6.Inside 2 fan, better for heat dissipating and reliability operating Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
2.Each PON port support 1.64 split ratio, total 256 ONUs access
3.Distance can reach 20km under 1:32 split ratio
4.Support to work EPON XPON ONUs to establish passive network
5.Support WEB and SNMP, integrate switching function
6.Inside 2 fan, better for heat dissipating and reliability operating Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Technical Specification
Parameter | Specification |
Operating wavelength | 1310(RX) /1490(TX) |
Optical power | +2.5 ~ +7dBm |
Receiving sensitivity | -30dBm |
Max distance | 20km |
Max splitter ratio | 1:64 |
Capacity | 4 PON, maximum 256pcs ONU |
MAC | 8k |
Uplink port | 2 1000M SFP ports + 4 1000M LAN RJ45 ports |
PON port | 4 SFP 1000M fiber ports |
Control port | 1 10/100M MGMT NMS RJ45 port; 1 Console(RJ45), to debug the device; |
MTBF | 100,000 hours |
EPON traits | Support IEEE802.3ah |
Support DBA with minimum1Kbps granularity adjustable | |
Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
Support powerful OAM function, implement telnet management, maintenance and upgrade | |
Support auto discovery and auto register of ONU (real-time operation) | |
Other functions | Support IGMPv1/v2, IGMP Snooping and IGMP Proxy Support remote config onu, remote upgrade ;Real time alarm |
Protocols supported | Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z |
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree | |
Support IEEE 802.1P QoS、IEEE802.3X Flow Control | |
Support IEEE802.3ad Trunk、IEEE802.1W RSTP | |
Network management | Support GUI management based on SNMP |
Support WEB/CLI, Support inband and outband management |
Working Environment
Parameter | Specification |
Power | AC100~240V 50/60HZ |
Power Consumption | 18W |
Operating temperature | -10—55 ℃ |
Storage temperature | -40—80 ℃ |
Humidity | 5%--90% non-condensing |
Dimension | 276mm(length) * 200mm(width) * 44mm(height) |

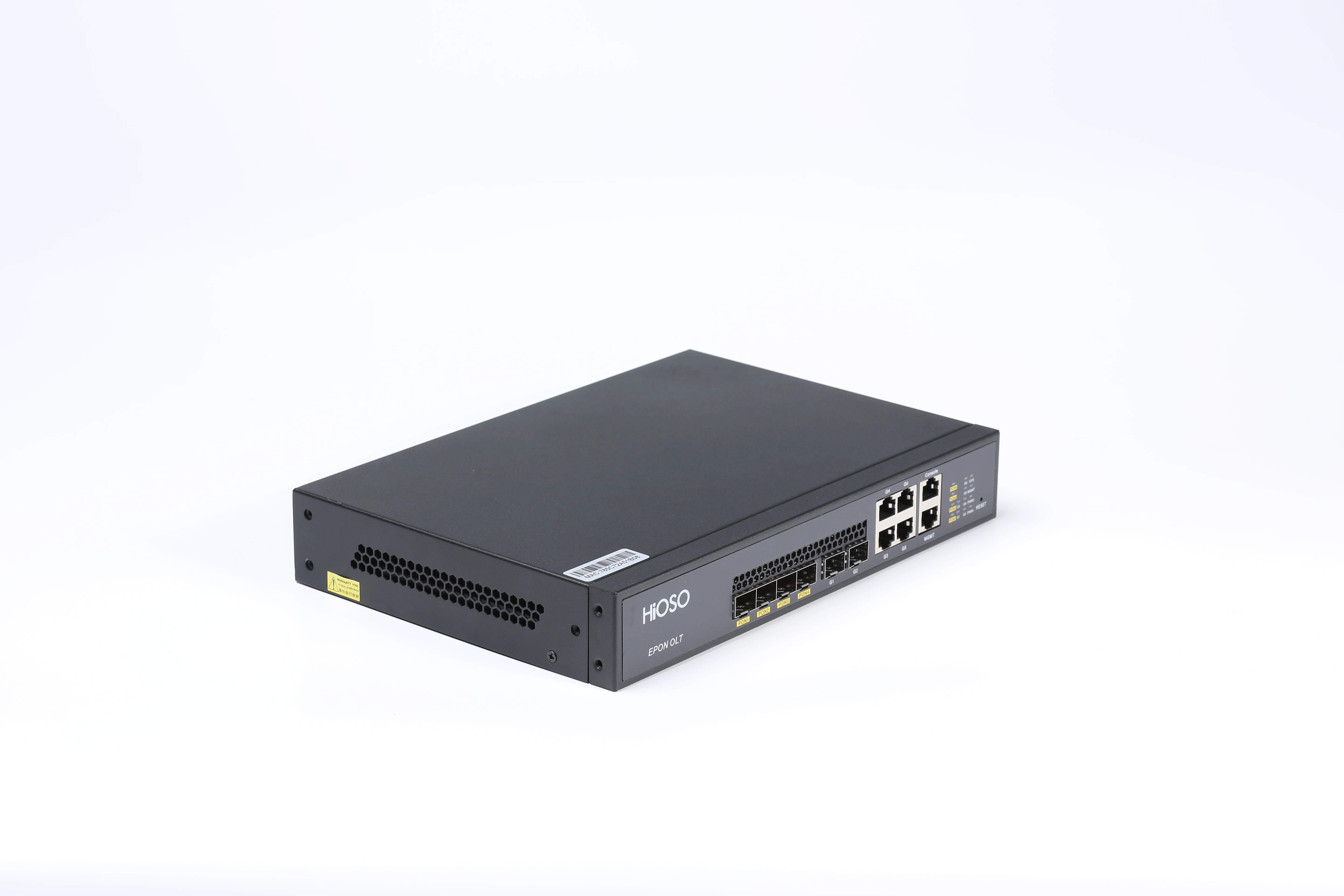

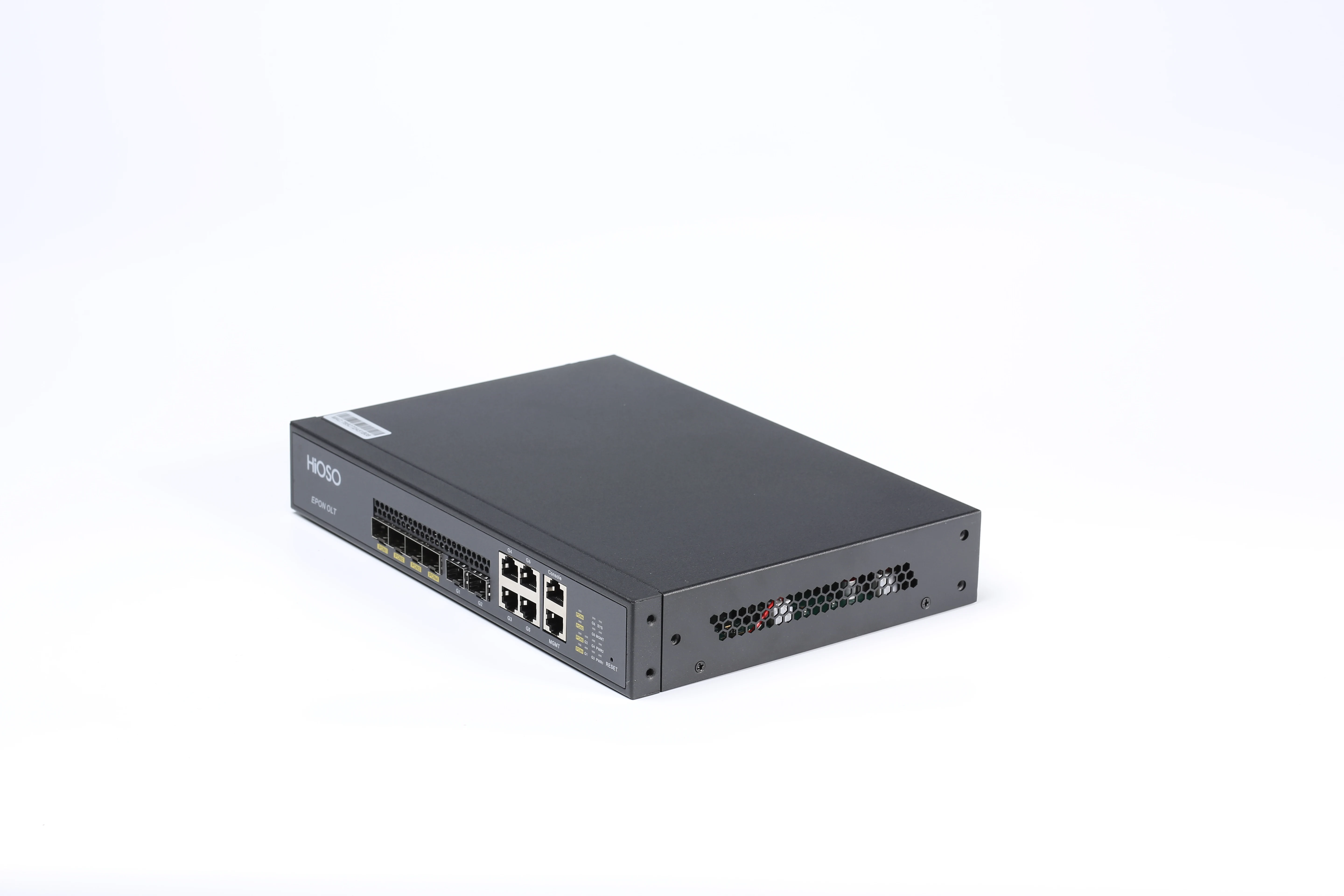

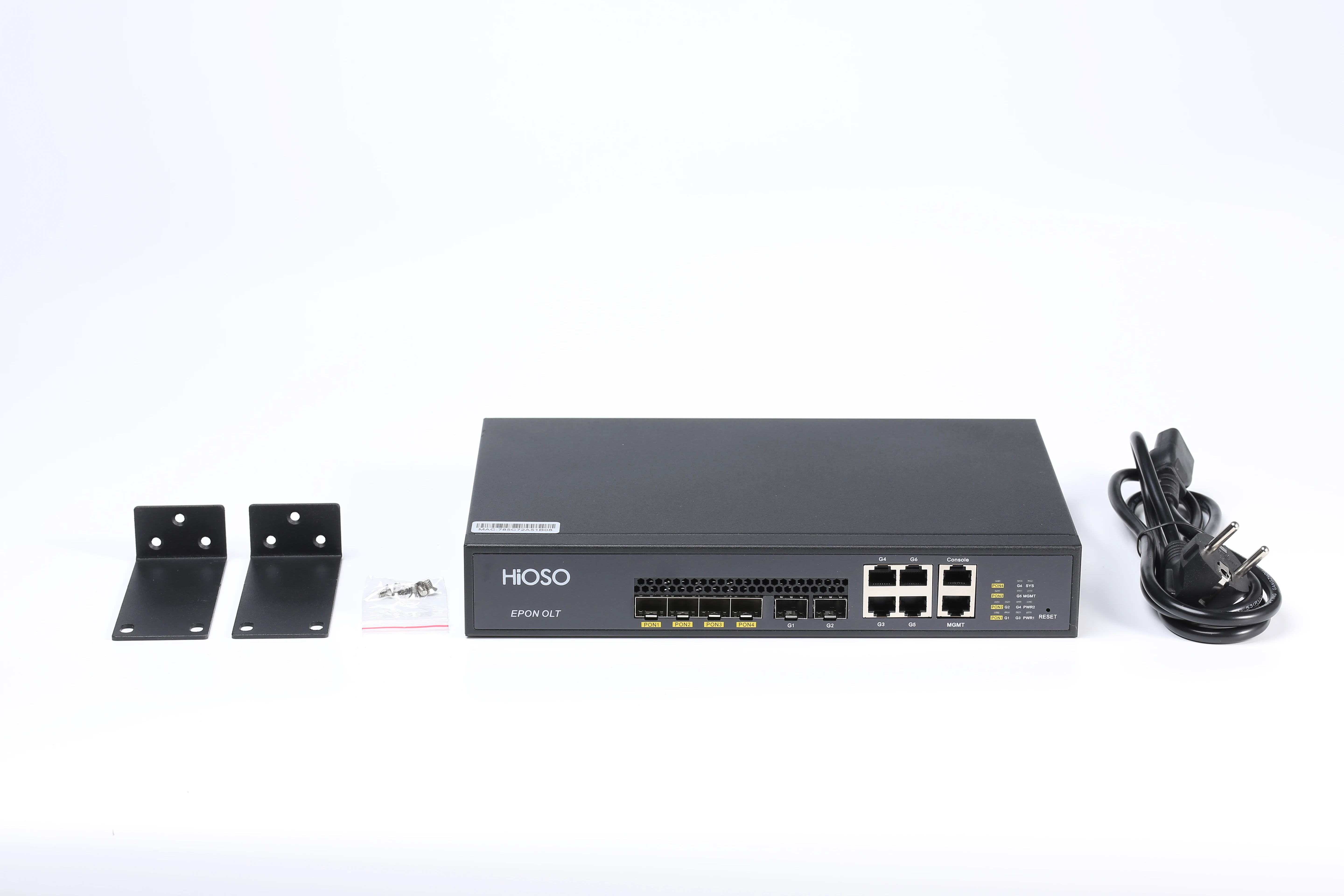

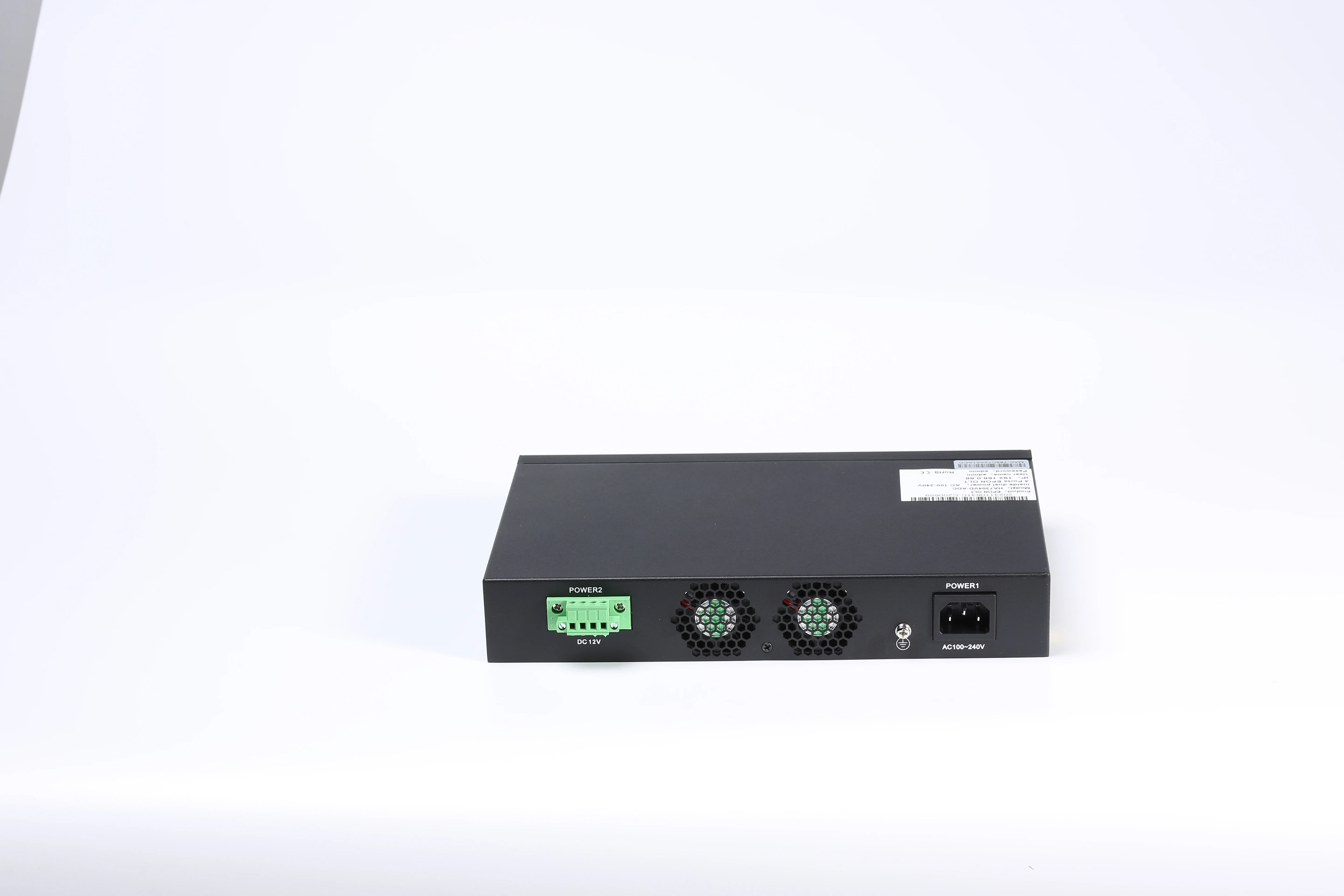

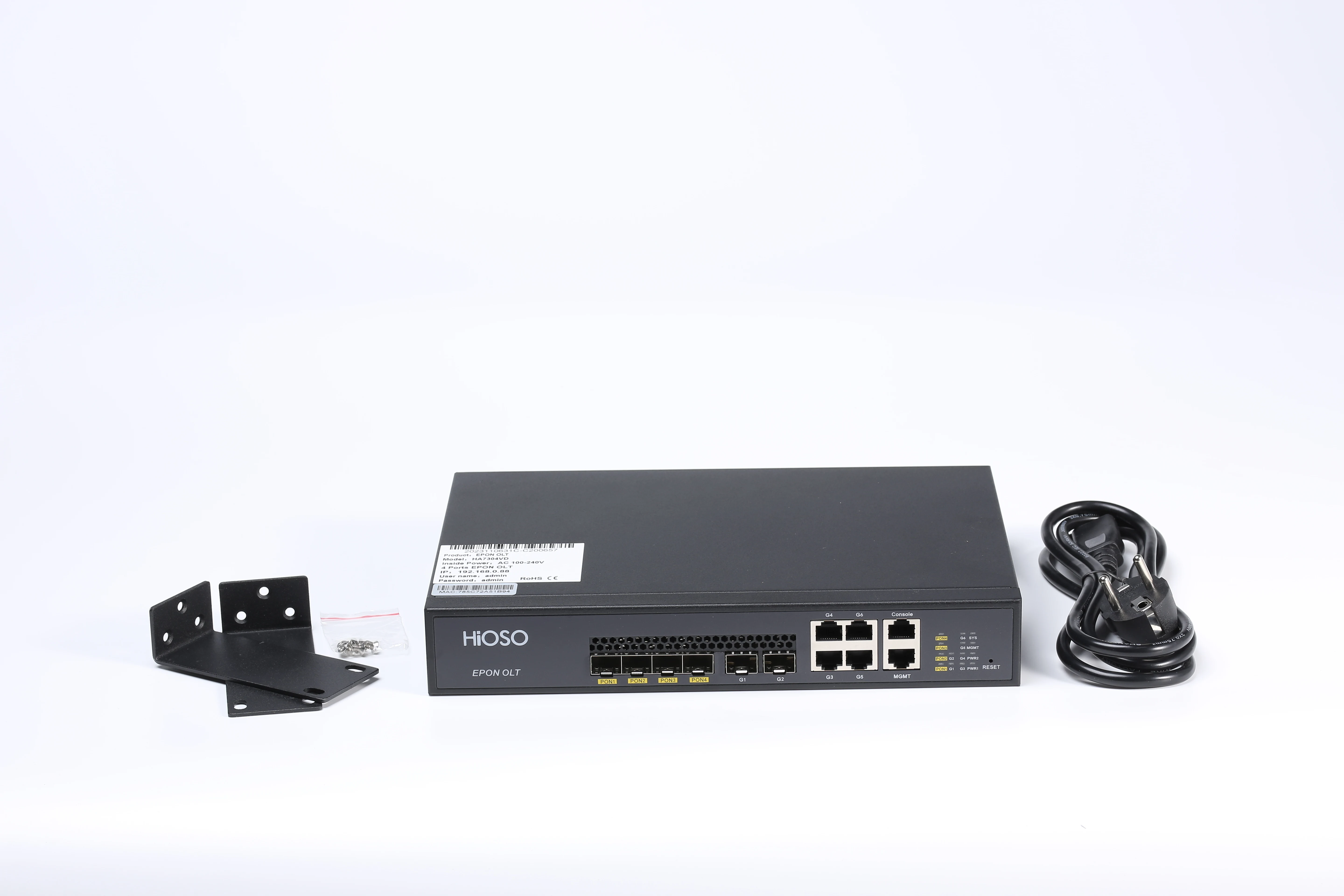

Details Images
