Product Overview
Description
Rubber extruder
Rubber extruder

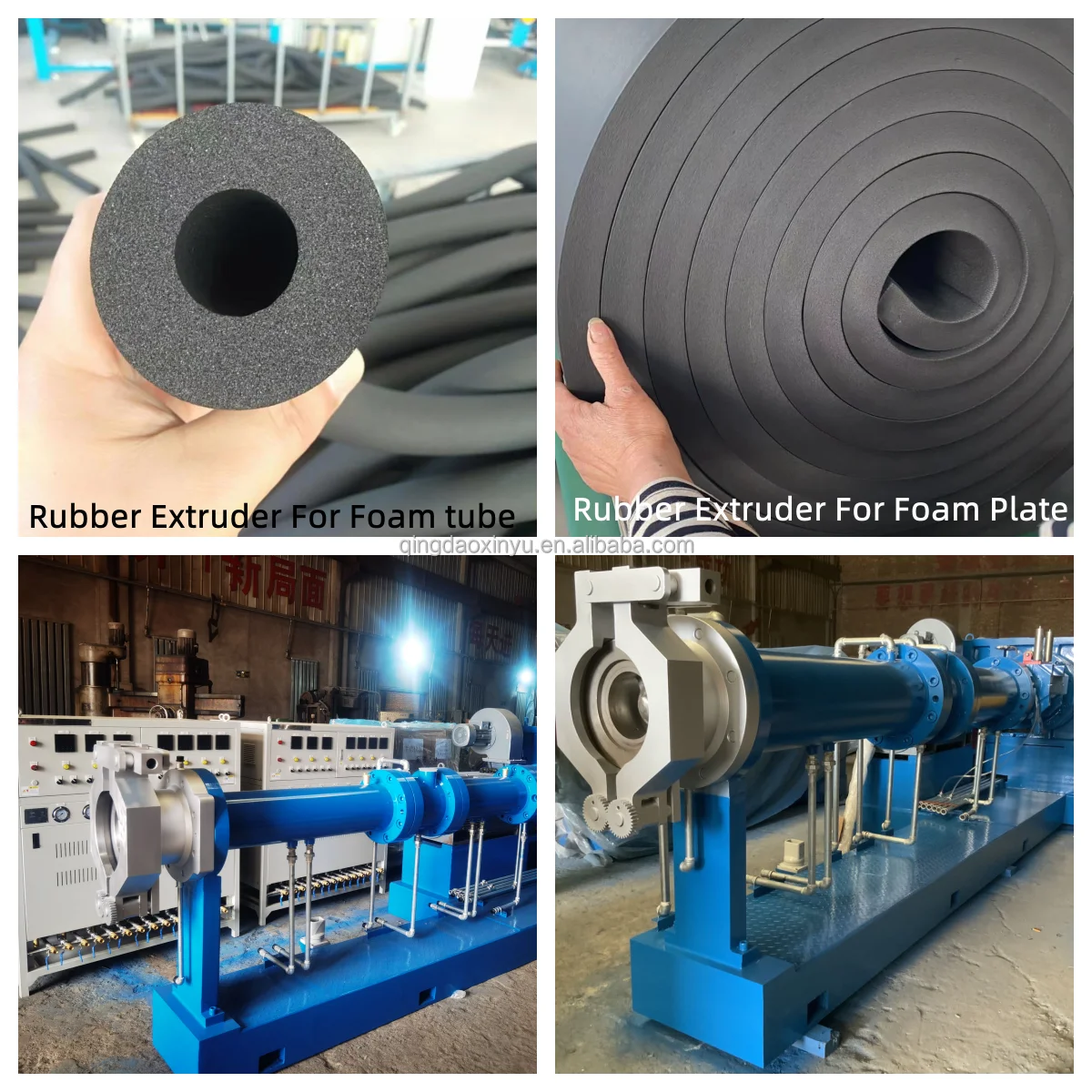

1. The purpose of the rubber extruder: to mold the mixed rubber into different shapes: strips, tubes, sheets, plates, etc.
Rubber extruder is a common equipment for rubber product manufacturers.

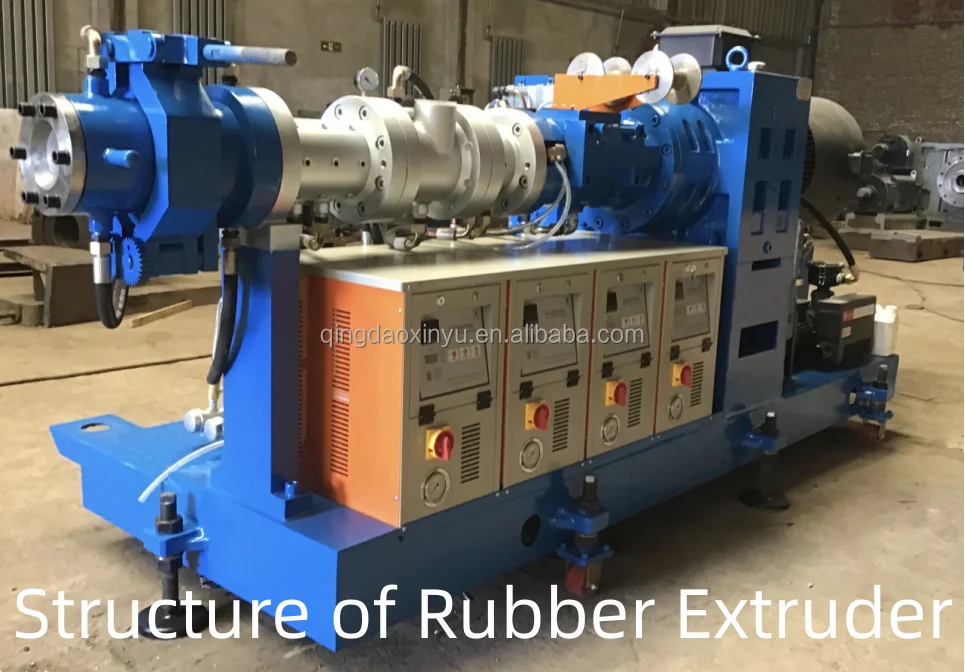

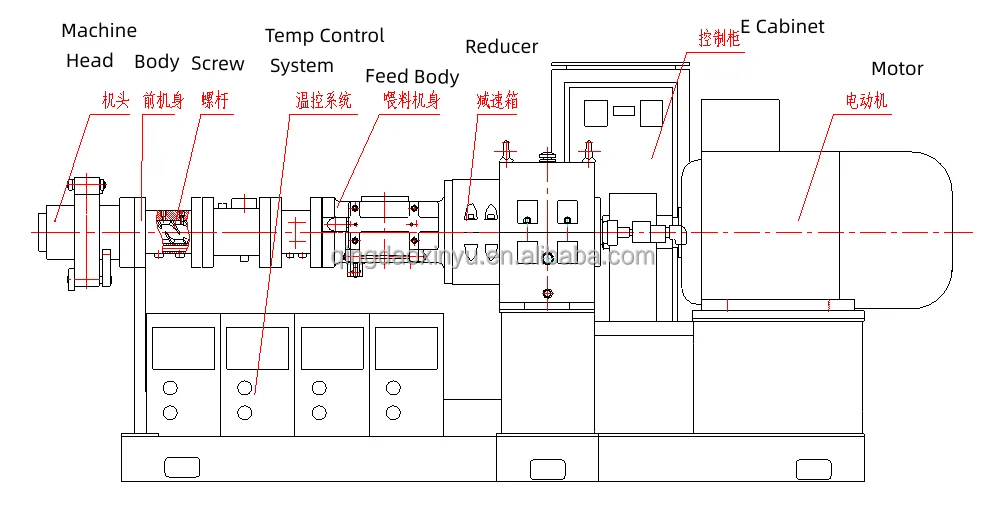

2. Structure of rubber extruder:
1. The purpose of the rubber extruder: to mold the mixed rubber into different shapes: strips, tubes, sheets, plates, etc.
Rubber extruder is a common equipment for rubber product manufacturers.
2. Structure of rubber extruder:
3.Rubber extruder specifications: The size of the screw diameter is the specification of the extruder: Φ60, Φ65, Φ75, Φ90, Φ120,
Φ130, Φ150, Φ170, Φ180, Φ200, Φ220, Φ250, Φ300, Φ350, Φ400, etc.
Φ130, Φ150, Φ170, Φ180, Φ200, Φ220, Φ250, Φ300, Φ350, Φ400, etc.
Model | XJ-90 | XJ-120 | XJ-150 | |
screw diameter | 90mm | 120mm | 150mm | |
screw speed | 55 r/min | 50 r/min | 43 r/min | |
motor | 55 kw | 110 kw | 185-220 kw |
Rubber extruder machine
Rubber extruder machine
Hot feed rubber extruder : XJ-60(65), XJ-85(90),XJ-115(120),XJ-150.XJ-200,XJ-250
Cold feed rubber extruder :XJW-65 (60),XJW-75,XJW-85(90),XJW-115(120),XJW-150,XJW-200

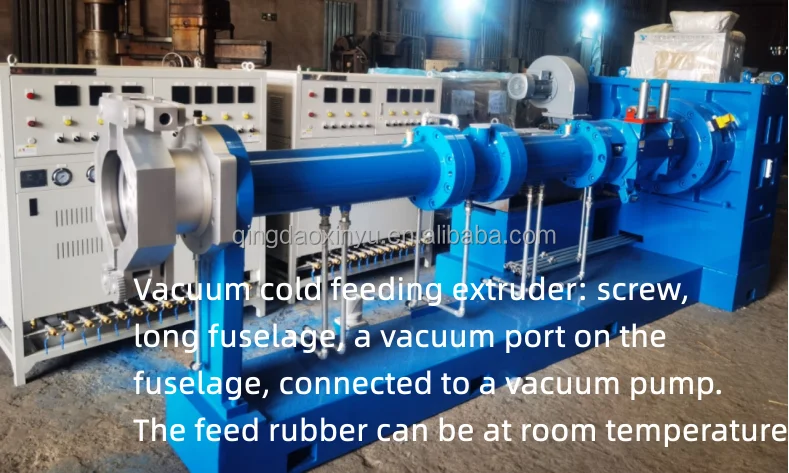

Exhausted rubber extruder :XJ-50,XJ-60,XJ-65,XJ-70,XJ-75,XJ-90,XJ-120,XJ-150,XJ-200,XJ-250
Pin barrel rubber extruder :XJ-50,XJ-60,XJ-65,XJ-70,XJ-75,XJ-90,XJ-120,XJ-150,XJ-200,XJ-250
rubber strainer : XLJ-150,XLJ-200,XJL-250
Hot feed rubber extruder : XJ-60(65), XJ-85(90),XJ-115(120),XJ-150.XJ-200,XJ-250
Cold feed rubber extruder :XJW-65 (60),XJW-75,XJW-85(90),XJW-115(120),XJW-150,XJW-200
Exhausted rubber extruder :XJ-50,XJ-60,XJ-65,XJ-70,XJ-75,XJ-90,XJ-120,XJ-150,XJ-200,XJ-250
Pin barrel rubber extruder :XJ-50,XJ-60,XJ-65,XJ-70,XJ-75,XJ-90,XJ-120,XJ-150,XJ-200,XJ-250
rubber strainer : XLJ-150,XLJ-200,XJL-250
Rubber profile extruder
The extrusion line manufactures endless strips of profiled, or shaped compounds. We offers various type of general rubber
extruder, fit for different capacity requirements.

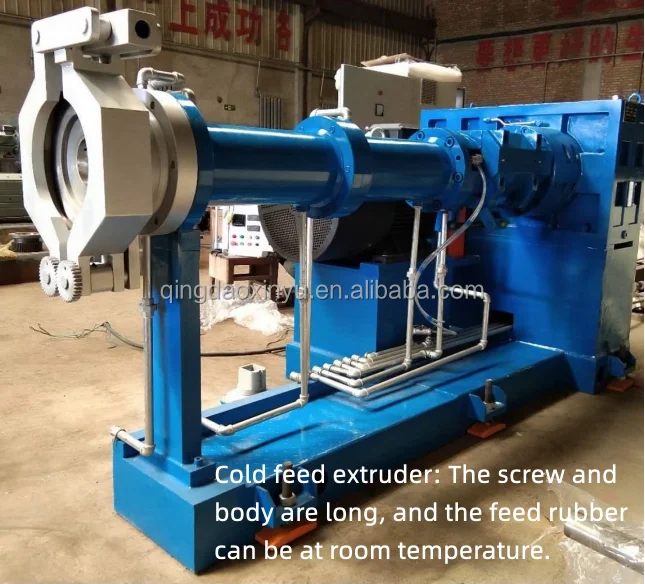

cold feed rubber extruder
We offer extruder in different diameter, 55mm, 60mm,
75mm, 90mm, 120mm, 150mm for tubes, profiles, tyre
treads, blanks, slugs, fuel tubes, fenders, rubber liners &
other technical extrusions.
The extrusion line manufactures endless strips of profiled, or shaped compounds. We offers various type of general rubber
extruder, fit for different capacity requirements.
cold feed rubber extruder
We offer extruder in different diameter, 55mm, 60mm,
75mm, 90mm, 120mm, 150mm for tubes, profiles, tyre
treads, blanks, slugs, fuel tubes, fenders, rubber liners &
other technical extrusions.
Application
Spiral channel with fuselage system, good thermal conductivity
Screw and bushing adopt nitrided steel for good strength and wear resistance
Screw structure adopt main thread structure for good plasticizing and self cleaning
c/w temperature control unit controlled by hot water circulating device
c/w AC variable frequency or DC motor
Spiral channel with fuselage system, good thermal conductivity
Screw and bushing adopt nitrided steel for good strength and wear resistance
Screw structure adopt main thread structure for good plasticizing and self cleaning
c/w temperature control unit controlled by hot water circulating device
c/w AC variable frequency or DC motor

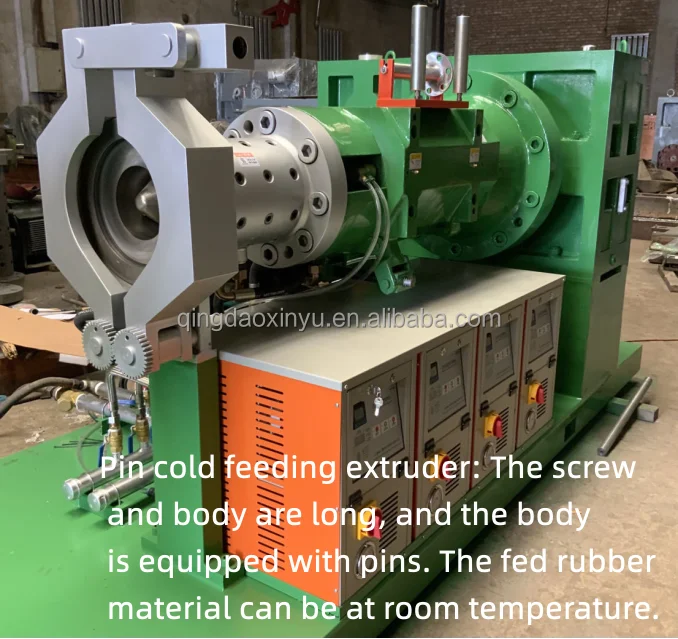

Pin barrel cold feed rubber extruder
Pin barrel cold feed rubber extruder
Pin barrel for sectional structure, feeding belt over the
barrel of the spiral groove, and the roller with increase the
feeding capacity, plasticizing and extruding barrel
containing different numbers on the pin
Application
Pin type cold feed extruder of Acten is introduced with advance manufacturing technology
Pin barrel for sectional structure, increase plasticizing
Screw by CNC milling, polished with high accuracy, nitrided treatment
Strong extrusion capability, lower temperature generation, stable production.
Pin barrel for sectional structure, feeding belt over the
barrel of the spiral groove, and the roller with increase the
feeding capacity, plasticizing and extruding barrel
containing different numbers on the pin
Application
Pin type cold feed extruder of Acten is introduced with advance manufacturing technology
Pin barrel for sectional structure, increase plasticizing
Screw by CNC milling, polished with high accuracy, nitrided treatment
Strong extrusion capability, lower temperature generation, stable production.
model | XJ-120 | XJ-150 | XJ-200 | |
Screw diameter | 120mm | 150mm | 200mm | |
screw speed | 50 r/min | 43r/min | 40 r/min | |
motor | 110 kw | 185-220 kw | 315 kw |
rubber profile extrusion
rubber profile extrusion
we provide a quality profile production system to
manufacture profiles of rubber, TPE or silicone. We
recognized the importance of different extrusion and
vulcanization technology, completed with suitable cooling,
cutting and winding system for a steady production flow.
we provide a quality profile production system to
manufacture profiles of rubber, TPE or silicone. We
recognized the importance of different extrusion and
vulcanization technology, completed with suitable cooling,
cutting and winding system for a steady production flow.

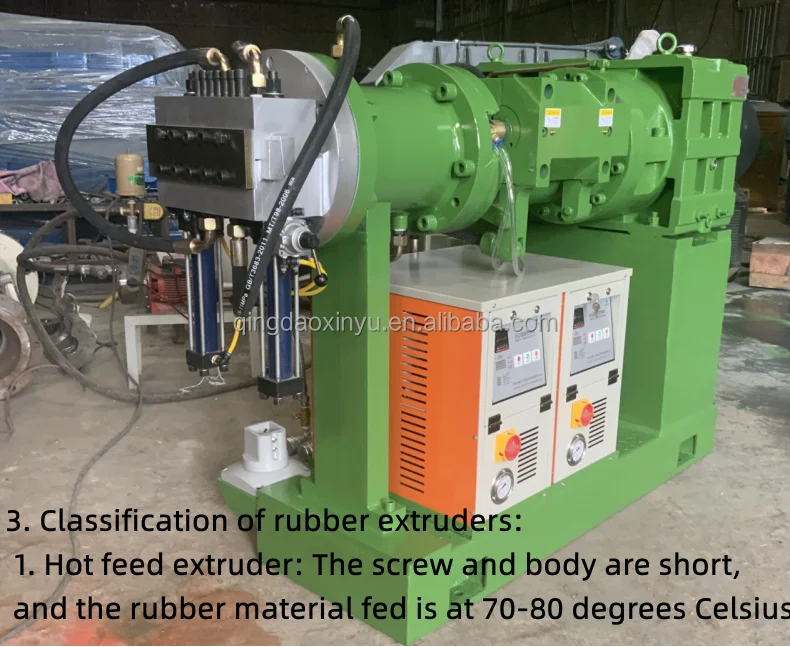

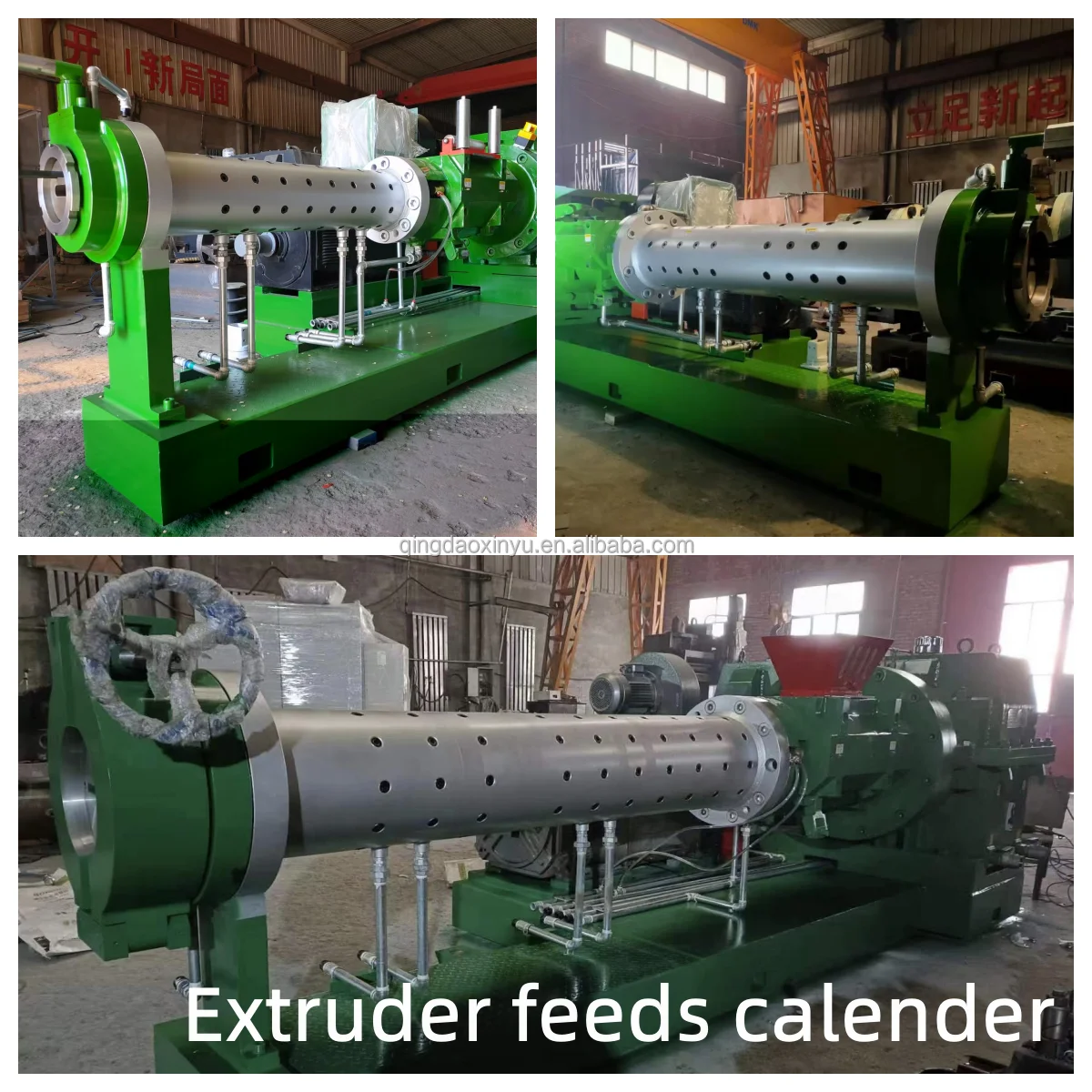

Hot feed rubber extruder
Hot feed rubber extruder
it is widely used in rubber hose , tubes ,rubber sheet,inner liner ,seals ,and other rubber products extruding shaping ,also can
be used to supply rubber for calender
it is widely used in rubber hose , tubes ,rubber sheet,inner liner ,seals ,and other rubber products extruding shaping ,also can
be used to supply rubber for calender
Model | XJ-65 | XJ-85 | XJ-115 | |
screw diameter | 65 | 85 | 115 | |
L/D ratio | 4:1 | 4.8:1 | 4.8:1 | |
rotated speed | 20-50 | 20-60 | 20-60 |
