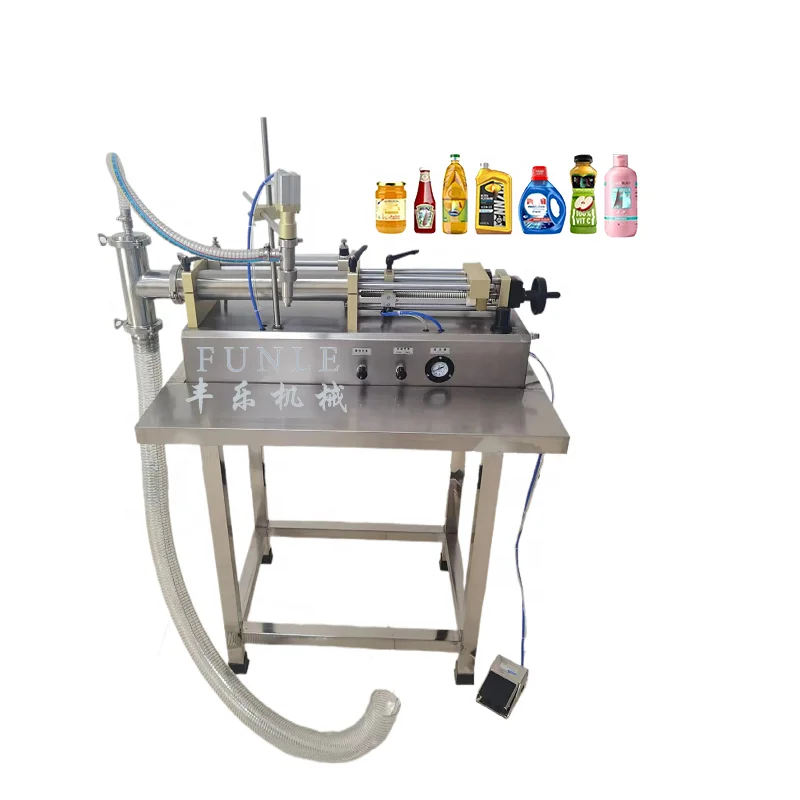

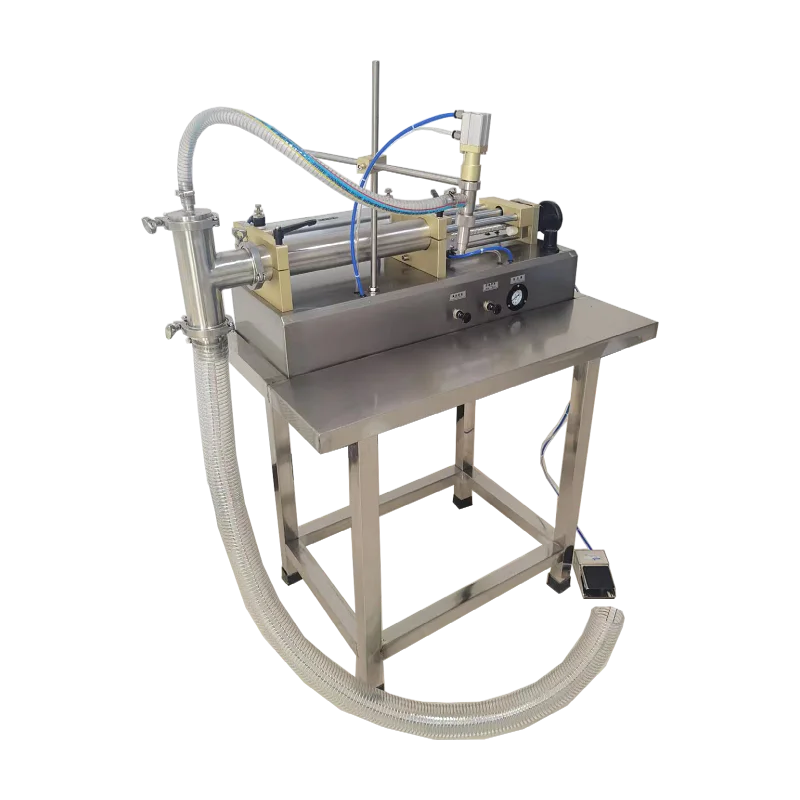

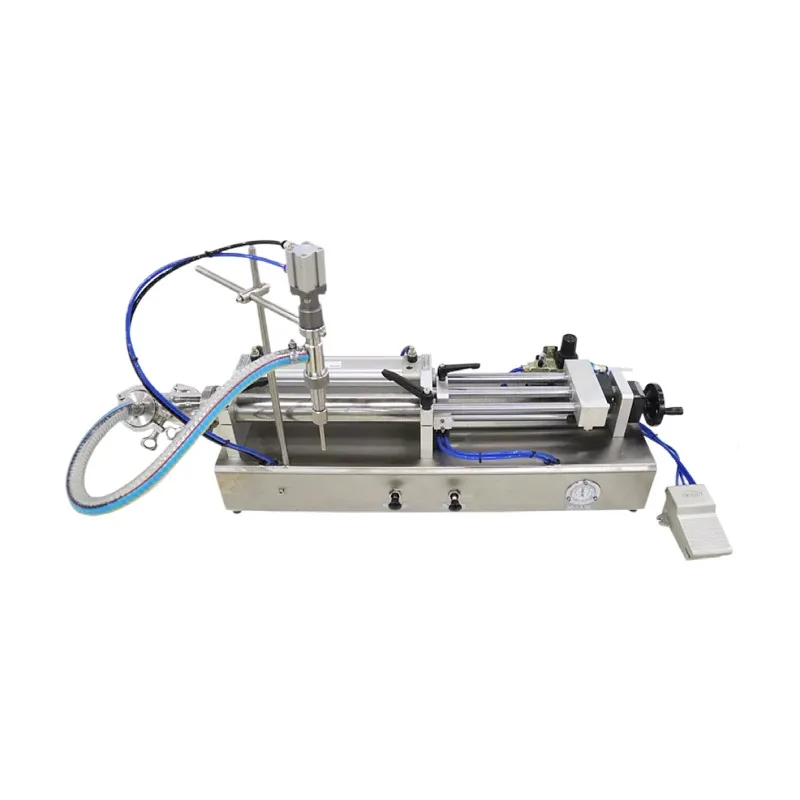

Factory sales Stainless steel semiautomatic self priming pure pneumatic liquid paste filling machine for Cosmetics Cream Shampoo
- Category: >>>
- Supplier: Wenzhou Fengle Machinery Co. Ltd.
Share on (1600984681908):
Product Overview
Description
Working principle

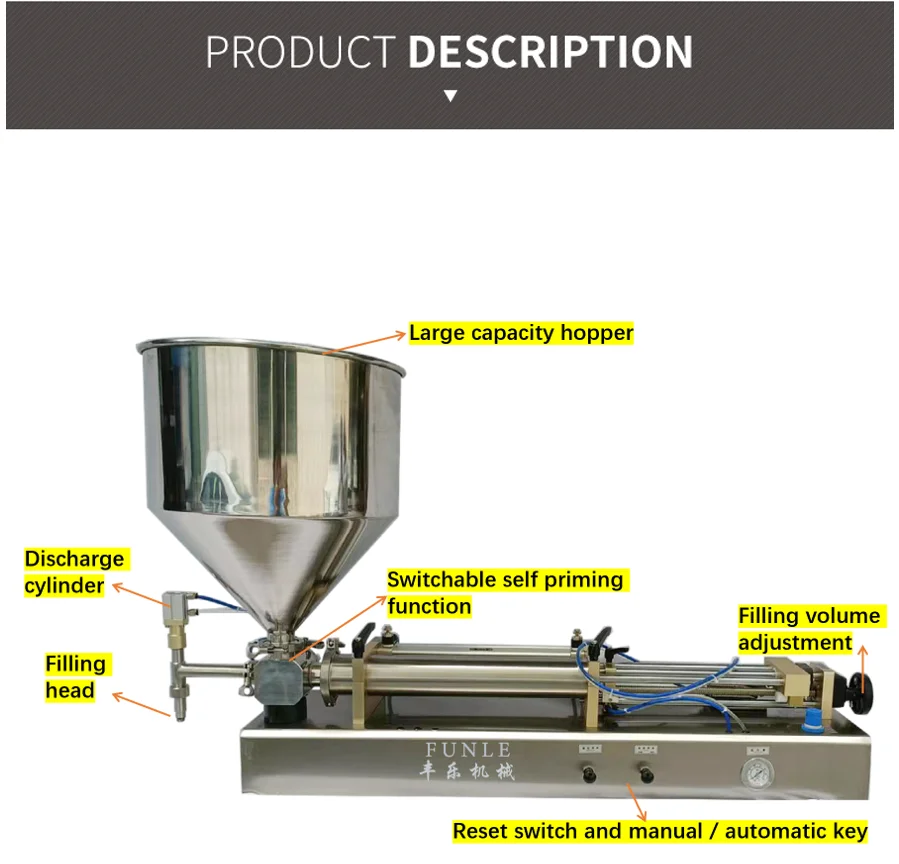

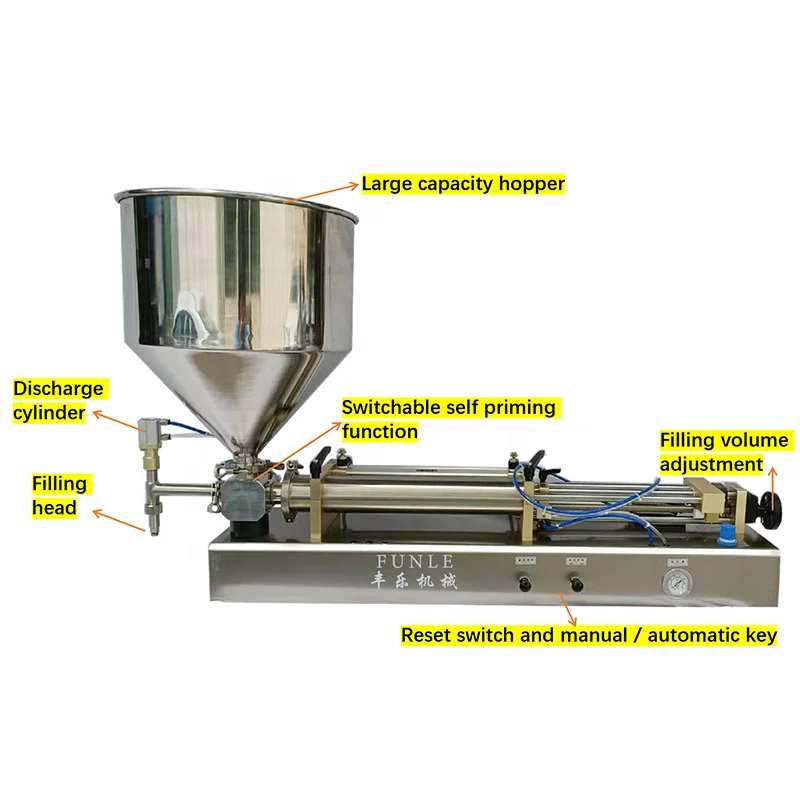

Pneumatic semi-automatic vertical rotary valve filling machine is a kind of filling machine for filling materials with high viscosity and fluidity developed by our company. It is based on the principle that the cylinder drives a piston to extract and eject flowing materials, and the stroke of the cylinder is controlled by the pneumatic control valve to adjust the filling volume and filling speed.
This equipment has the characteristics of simple and reasonable structure, easy operation and high accuracy.
Pneumatic semi-automatic vertical rotary valve filling machine is a kind of filling machine for filling materials with high viscosity and fluidity developed by our company. It is based on the principle that the cylinder drives a piston to extract and eject flowing materials, and the stroke of the cylinder is controlled by the pneumatic control valve to adjust the filling volume and filling speed.
This equipment has the characteristics of simple and reasonable structure, easy operation and high accuracy.
Main technical parameters | ||||||||||||
Model | FL-100-300 | FL-500 | FL-1000 | FL-2000 | FL-3000 | FL-5000 | ||||||
Filling range | 3-100ml 30-300ml | 50-500ml | 100-1000ml | 200-2000ml | 300-3000ml | 500-5000ml | ||||||
Air pressure range | 4-8kg/cm² | |||||||||||
Filling speed | 0-50Bottle / min | 0-30Bottle / min | 0-10Bottle / min | |||||||||
Filling Precision | ＜±1% | ＜±0.5% | ||||||||||
Weight | 25-27KG | 30KG | 35KG | 40KG | 45KG | 50KG | ||||||
Host size | 95*30*70cm | 115*30*70cm | 130*30*80cm | 140*40*80cm | 150*50*80cm | 160*40*85cm | ||||||
Application:
This equipment is mainly applicable to the ideal filling equipment for food, daily chemical, pesticide, medicine and special industries. The equipment will be affected by the following during operation:
Influence of factors:
1. The filling accuracy of the pneumatic semi-automatic vertical rotary valve filling machine will be affected by the stability of the air pressure, the uniformity of the materials, and the filling speed.
2. The filling speed of the pneumatic semi-automatic vertical rotary valve filling machine will be affected by the following factors: the viscosity of the material, the stroke of the cylinder, the size of the filling nozzle, and the proficiency of the operator.

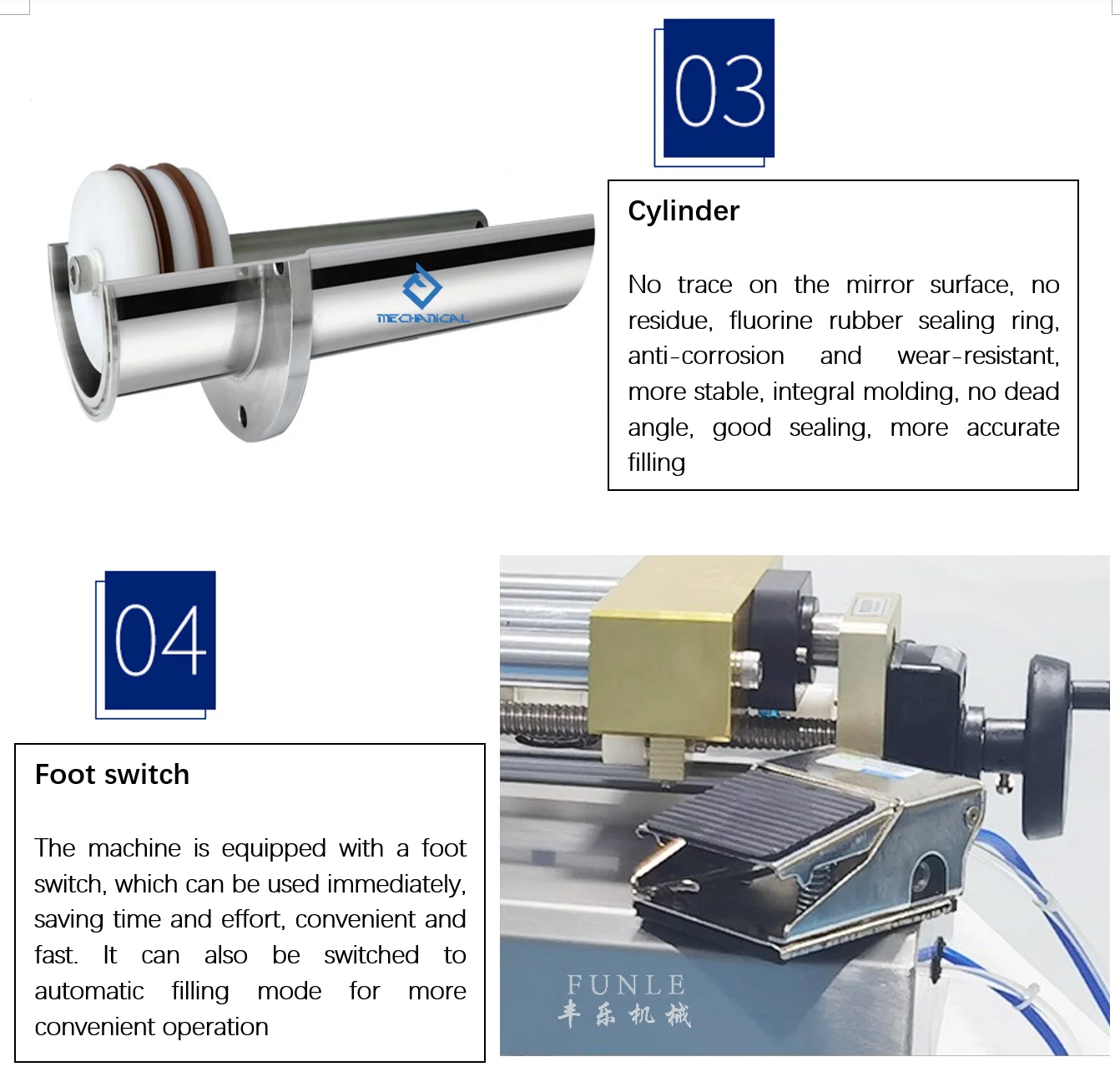

3. This machine has two filling modes, foot pedal and automatic, which can be switched arbitrarily.
This equipment is mainly applicable to the ideal filling equipment for food, daily chemical, pesticide, medicine and special industries. The equipment will be affected by the following during operation:
Influence of factors:
1. The filling accuracy of the pneumatic semi-automatic vertical rotary valve filling machine will be affected by the stability of the air pressure, the uniformity of the materials, and the filling speed.
2. The filling speed of the pneumatic semi-automatic vertical rotary valve filling machine will be affected by the following factors: the viscosity of the material, the stroke of the cylinder, the size of the filling nozzle, and the proficiency of the operator.
3. This machine has two filling modes, foot pedal and automatic, which can be switched arbitrarily.
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on
production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment.
Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on
production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment.
Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
