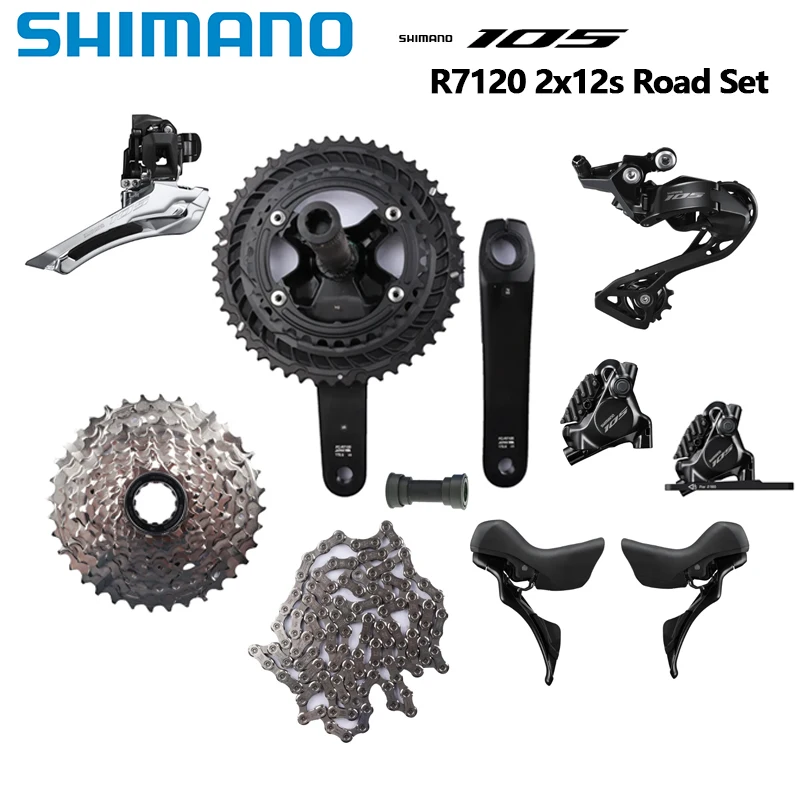

Shimano R7120 2x12s Road Group R7100 Crankset Brake R7170 Shifter R7120 Hydraulic Disc Brake CN M7100 R7100 Derailleur Groupset

Product Overview

Description

himano R7120 2x12s Road Group R7100 Crankset Brake R7170 Shifter R7120 Hydraulic Disc Brake CN M7100 R7100 Derailleur Groupset

Package include:

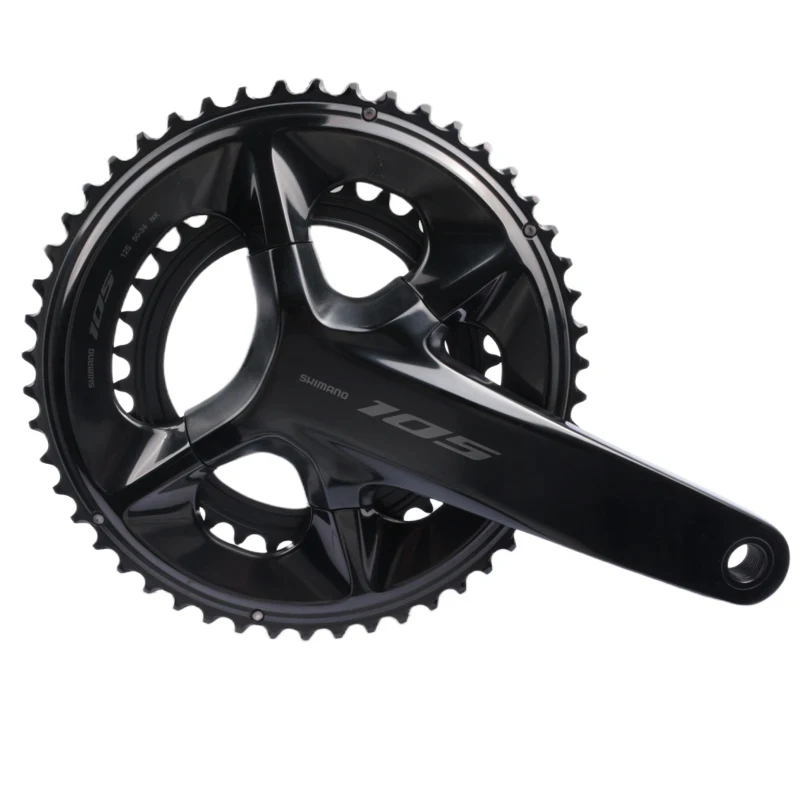

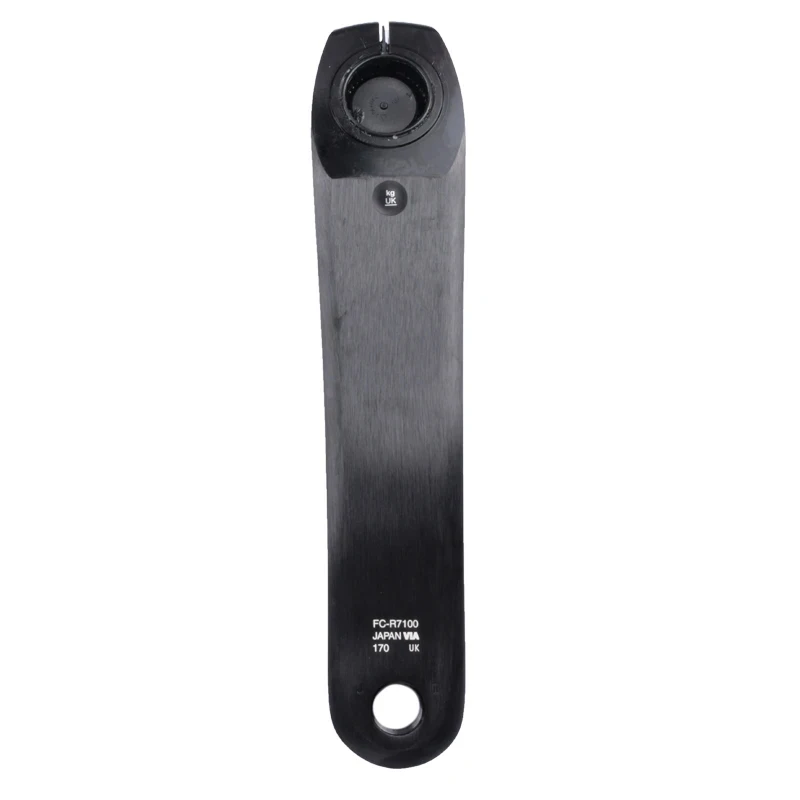

1. 1 PCS R7100 Crankset 165MM/170MM/172.5MM/175MM
50-34T/52-36T(need choose)

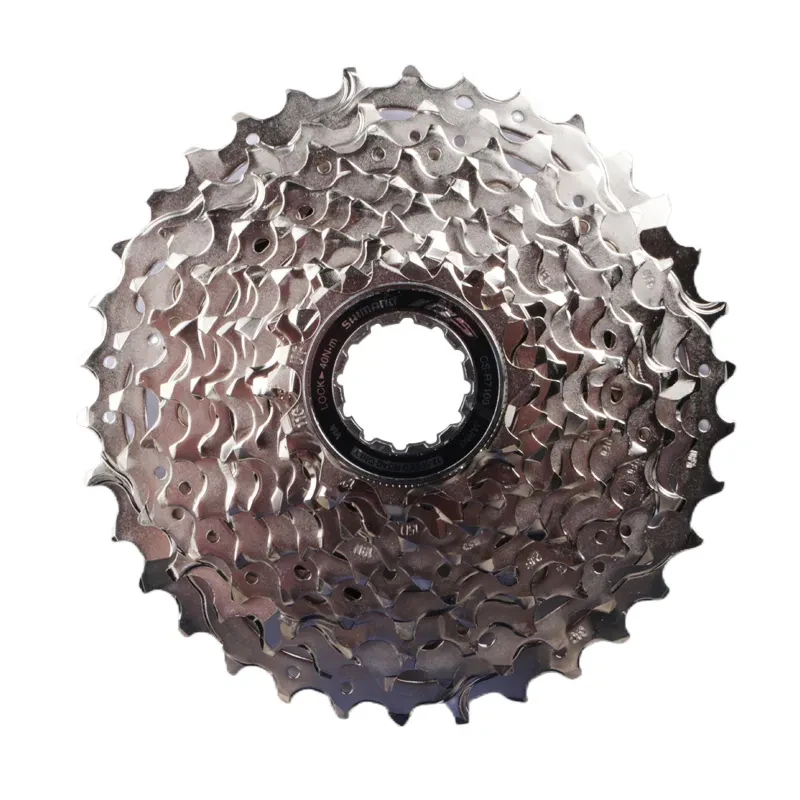

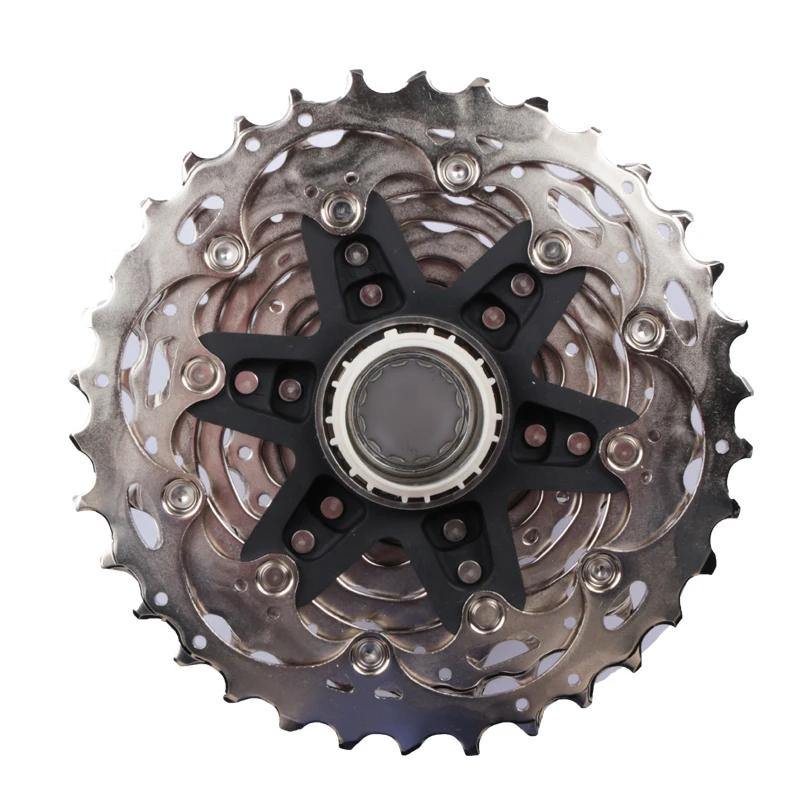

2. 1 PCS R7100 Cassette 11-34T(11-36t Additional instructions +8$are required)

3. 1 PCS ST-R7120+BR-R7170 with K05S/L05A pads(random delivery)

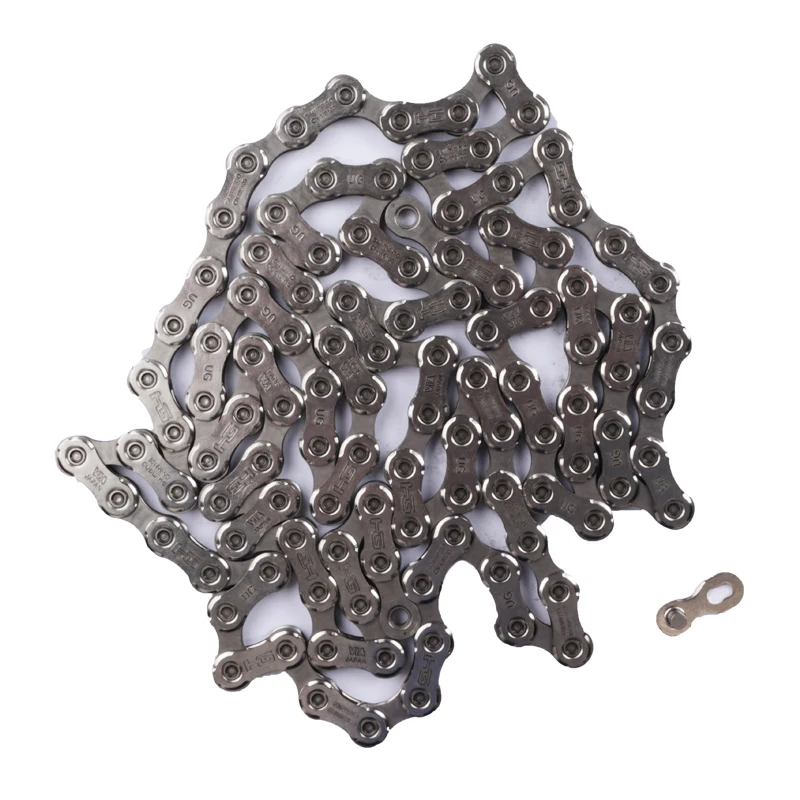

4. 1 PCS CN-M7100 chain

5. 1 PCS RD-R7100 rear derailleur

6. 1 PCS FD-R7100 front derailleur

7. 1 PCS BB-BBR60 Bottom Bracket /BB72-41B Bottom Bracket(need choose)



ST-R7120-R NEW

New lever design brings better control to a wider variety of riders



The SHIMANO 105 R7120 DUAL CONTROL LEVERS feature a revised lever position and bracket shape developed using data from a broad study of different hand shapes. That’s combined with the all-condition confidence of hydraulic disc brakes and the quick and intuitive shifting cyclists expect from SHIMANO 105.



FEATURES

Mechanical 12-speed dual control lever with updated ergonomics

Light shifting operation lets you focus on the road ahead

New blade shape creates shorter lever access curve allowing riders with a wide range of hand sizes and shapes to comfortably reach their levers



PRODUCT SPECIFICATIONS

MODEL NO ST-R7120-R

SERIES SHIMANO 105 R7100 MECHANICAL Series

Color Series color

Average weight 612 ( /pair)

Shifter type DUAL CONTROL LEVER

Shift lever|Rear speeds 12

Brake lever|Brake hose (kit) SM-BH90-JK-SSR, SM-BH90-J-SSR

Brake lever|Hose joint Straight

Brake lever|Brake hose color (kit)|1 Black

Brake lever|Recommended brake caliper BR-R7170

Brake lever|Oil SHIMANO Mineral

Brake lever|Reach adjust

Brake lever|Clamp band (mm) 23.8-24.2

Brake lever|Funnel bleeding

Shift lever cable|Outer casing|Lever side OT-SP41

Shift lever cable|Outer casing|Rear derailleur side OT-RS900

Shift lever cable|Inner cable|OPTISLICK



TECHNOLOGIES

reach_adjust

dcl_dual_control_lever



SHIMANO 105 Rear Derailleur 12-speed







BR-R7170

Disc brakes optimized for road riding



With proven hydraulic braking technology, the new SHIMANO 105 calipers feature the SHIMANO Flat Mount System and its low-profile design that is ideal for road bikes. More compact and lighter than ever, the R7170 brakes offer wide pad clearance for easy wheel removal and quiet performance as well as one-way bleeding for easy, clean maintenance.



FEATURES

10% wider pad clearance decreases the chance of disc brake rotor rub

Maintenance-friendly bleeding process



PRODUCT SPECIFICATIONS

MODEL NO BR-R7170

SERIES SHIMANO 105 R7100 MECHANICAL Series

Color Black

Average weight 123

Brake type Hydraulic disc brake

Brake hose (kit) SM-BH90-J-SSR SM-BH90-JK-SSR

Hose joint Straight

Brake hose color (kit)|1 Black

J-Kit spec (for OEM)

ICE TECHNOLOGIES pad compatible caliper

Pad|Standard 1 K05S-RX Resin (w/o fin)

Pad|Standard 2 L05A-RF Resin (w/ fin)

Pad|Option 1 L04C-MF Metal (w/ fin)

Fixing screw spec for rear mount|10 mm mount

Fixing screw spec for rear mount|15 mm mount

Fixing screw spec for rear mount|20 mm mount

Fixing screw spec for rear mount|25 mm mount

Fixing screw spec for rear mount|30 mm mount

Fixing screw spec for rear mount|35 mm mount

Recommended brake lever ST-R7170

Recommended disc brake rotor SM-RT70, SM-RT64

Oil SHIMANO mineral

ONE WAY BLEEDING

Mount type Flat mount

Piston 2

Caliper fixing screw|Tool size 4 mm

Caliper fixing screw|Anti loosen method Screw fix pin

Pad mount Pad axle



TECHNOLOGIES

ice_technologies

one_way_bleeding
