  • 15mm PM Gear stepper Motor PG15S 020 with planeraty gear box 5VDC Mini size and large torque
15mm PM Gear stepper Motor PG15S 020 with planeraty gear box 5VDC Mini size and large torque
15mm PM Gear stepper Motor PG15S-020 with planeraty gear box 5VDC Mini size and large torque
15mm PM Gear stepper Motor PG15S-020 with planeraty gear box 5VDC Mini size and large torque
15mm PM Gear stepper Motor PG15S-020 with planeraty gear box 5VDC Mini size and large torque

15mm PM Gear stepper Motor PG15S 020 with planeraty gear box 5VDC Mini size and large torque

Share on (1600984816632):


Price:$4.89 - $8.00

Quantity:


Product Overview

Description



Product Description


General Specifications:


Item
Specification
Step Angle Accuracy
±8%(full step, no load)
Resistance Tolerance
±10%
Inductance Tolerance
±20%
Temperature Rise
80.C Max.(rated current,2 phase on)
Ambient Temperature
-20.C~+50.C
Insulation Resistance
100MΩMin. ,500VDC
Dielectric Strength
600VAC , 1s , 1mA


Parameters:


Model No.
Voltage (VDC)
No. of Phase
Step Angle
(Deg.)
Gear Ratio
Winding Resistance
(Ω)
Max. Pull-in Rate
(PPS)
Holding Torque (g.cm)
PG15S-020-173/10
5
2
18/10
1/10
10
800
350
PG15S-020-173/20
5
2
18/20
1/20
10
800
700
PG15S-020-173/30
5
2
18/30
1/30
10
800
1200
PG15S-020-173/50
5
2
18/50
1/50
10
800
1750
More reduction ratio availble: 1/10, 1/20, 1/30, 1/50, 1/100, 1/110, 1/150, 1/210, 1/298, 1/380, 1/1000

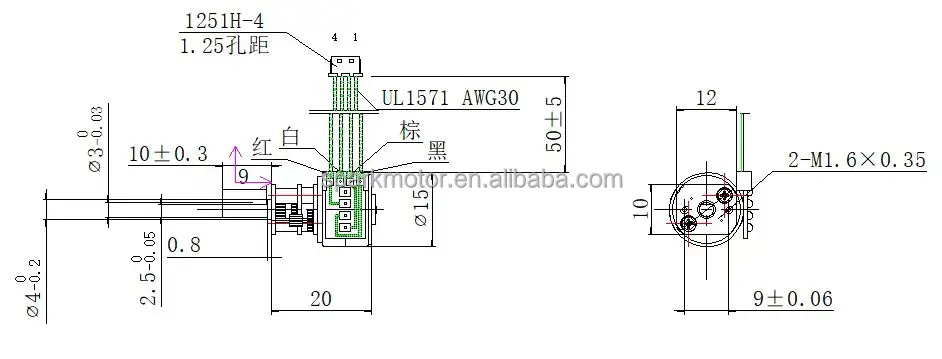

Dimension:






Customization as per your request:
Coil Modifications
Resistance and Inductance.
Plastic
To yield higher linear force or reduced detent levels.
Magnets
Higher Strength Plastics for higher impact forces.
Detent Force
Reduced or increased Detent Force to suit the application.
Screw
Metric or imperial tips, length.
Flanges, Connectors, End of motion detection sensors
Can be customized.
Wire Harness
Connectors, pins, lead length, shrink tubing.


Recommend Products


High-performance, Spark stepper motors provide accuracy and torque to meet numerous application needs:
- Excellent open loop control solution
- High continuous motor torque output per package size
- Long life provided by high-quality bearing assembly
- Unipolar and bipolar windings available




Application


Wide applications
Stepper motors use input pulses to take proportional steps. These motors can be used for positioning and/or speed control in a wide variety of applications:
* Valve control.                                                                            * Clinical Diagnostics
* CCTV system.                                                                           * Printers and copiers
* Pharmaceutical dispensing.                                                   * Robotics Antenna positioning


Our Markets
More than 20 countries and territories all over the world with high client satifaction.




About Us










Packing & Delivery




FAQ
