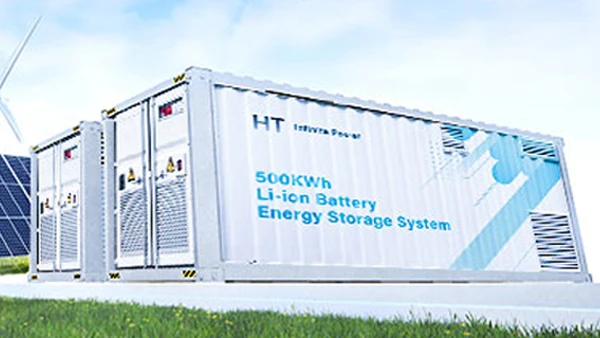

HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System
HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System
HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System
HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System
HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System
HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System
HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System

HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System

Share on (1600984856540):


Price:$72,713.23 - $93,996.77

Quantity:


Product Overview

Description



Product Introduction

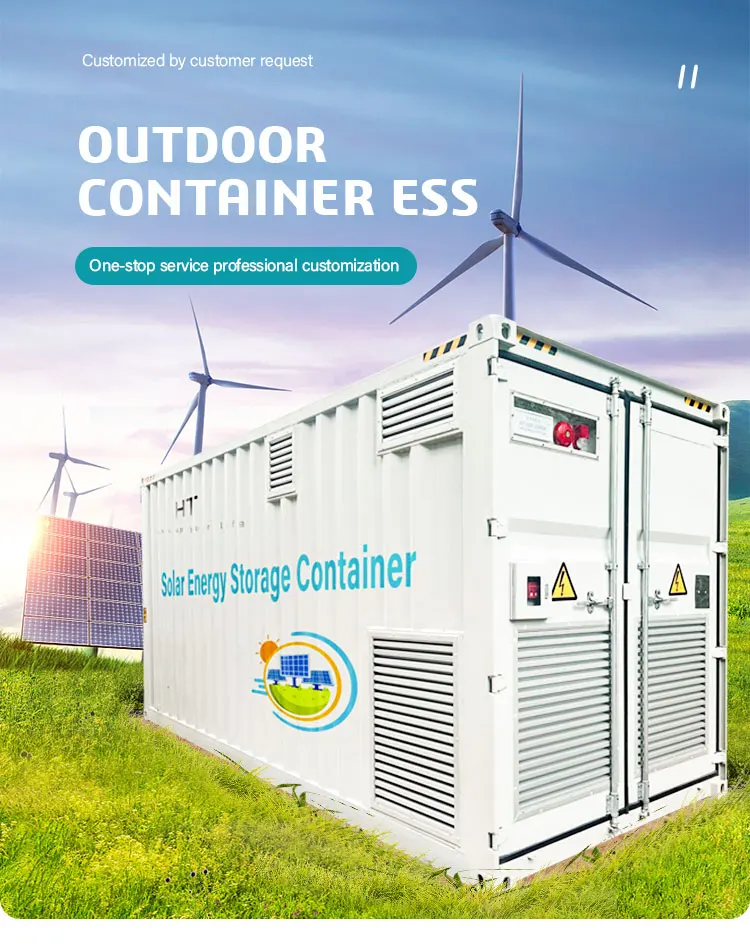

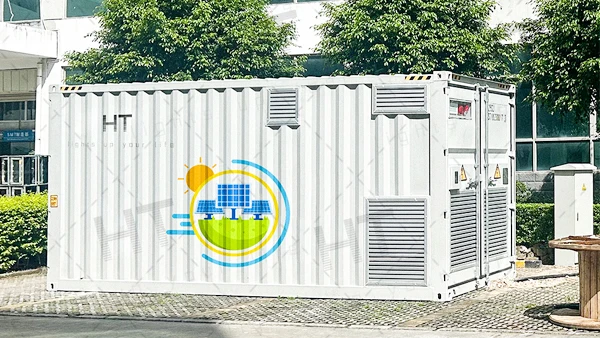

HT 1mw 2mw 3mw ESS Energy Storage Container Powerpack Utility Scale BESS Battery Storage System 1mwh 2mwh 3mWh Megapack System










BATTERY (DC)
Nominal Voltage
600V-800V
Capacity (KWH)
1290.24KWH

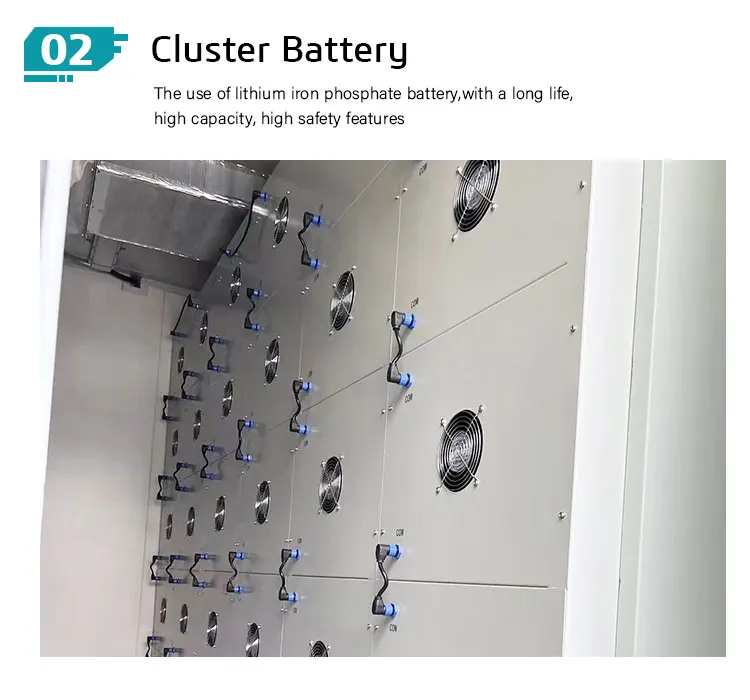

Number Of Battery Racks
8
BMS Communication Interface
RS485
AC Power (AC)
Rated AC power
500KW
Maximum AC Current
722A
Max. AC Power
550KW
Allowable Grid Voltage Range
320~460 V
Rated grid frequency
50Hz/60Hz
DC Current Component
＜0.5%
THDi
＜3%(Rated power)
Rated Grid Voltage
400
Allowable Grid Frequency Range
45~55/55~65
Power Factor
1lagging-1leading
Environmental temperature
-25-60°C(Derating above 45 °C)
Relative humidity
0-95%non-condensing
Isolation Method
No Isolation
General data
Ingress Protection
IP54
Fire Extinguishing System
Support
Running Time (full power)
2H
Operating temperature (℃)
-30~55℃
Altitude
4,500m(>3,000 Derating)
BMS Communication
RS485
EMS Communication
Modbus TCP
Dimension(W X D X H) (mm)
12,192×2,438×2,896
Weight
12T




























1.Q : Could you do the customized ESS energy storage container?
A: Yes, we can provide the customized ESS solar solutions for you based on your requirements.

2.Q :What are the components of the whole ESS energy storage container system?

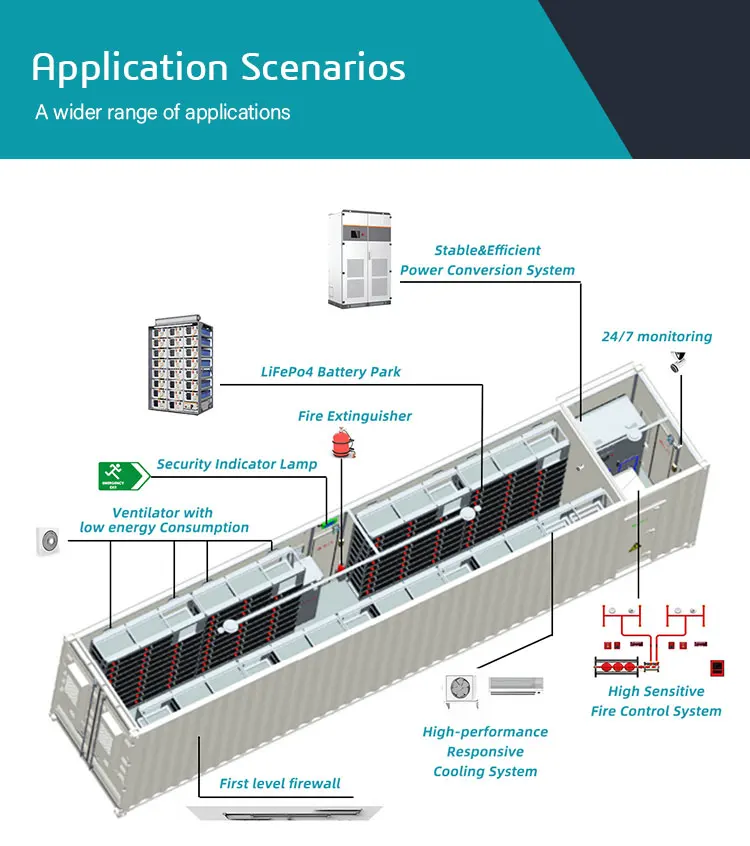

A: The whole ESS energy storage container is integrated with PCS(power conversion system), battery pack, battery cluster, high voltage box, energy management system, temperature management system, fire protection system, distribution control system, remote control, monitoring and reporting.

3.Q : How many power could you supply for the ESS energy storage container？
A：We can provide the large scale solar project from 0.5mwh--50mwh.

4.Q: How is your technical support?

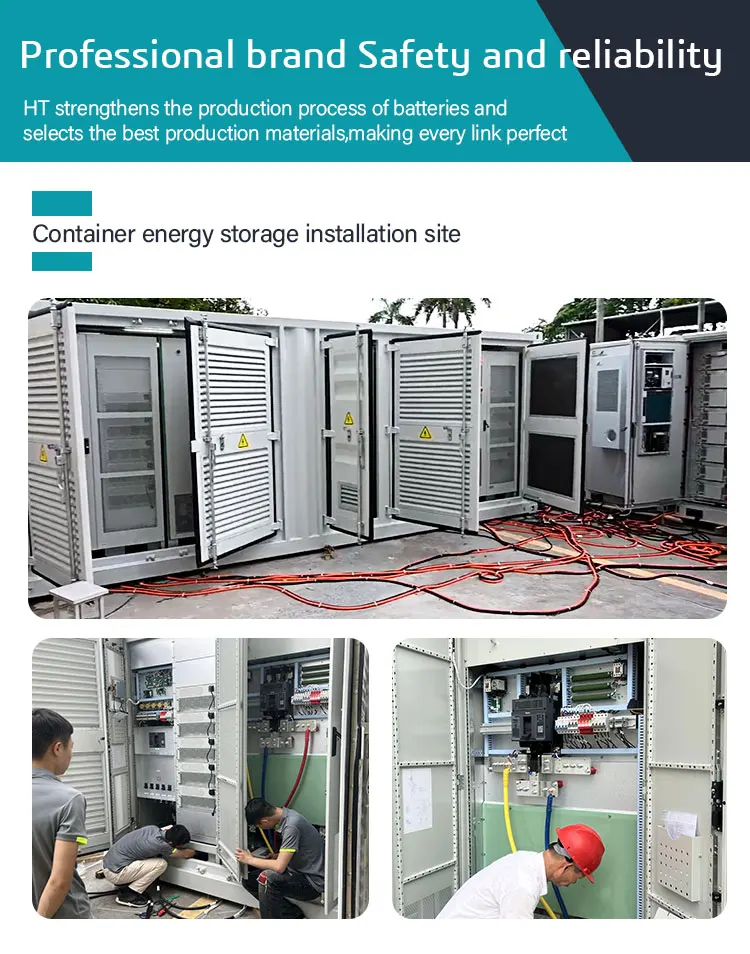

A: Our professional engineers team will support the on-site installation service for you.

5.Q:What’ s the advantages of your products?
A: With modular design, easy for installation and maintenance, help you reduce labor cost. The whole storage system could be customized based on your needs.

6.Q: Do you support OEM/ODM?
A: Of course, we can do OEM/ODM services for our partners.

7.Q:How to get the price details?
A: Firstly, please tell me your solar project requirements, then our professional engineer will design the safe, high efficiency, cost-effective ESS solar solutions with detailed quotation for you.

8.Q :What is the warranty period, and how many years?
A: The warranty the ESS battery energy storage container is 5-10 years.
