PJAUTO AI 360 AVM Surround View Safe Driving Assistance System with 6CH Support Collision Warning Pedestrian & Vehicle Detection
- Category: >>>
- Supplier: Guangzhou Pj-Auto Electronic Technology Limited
Share on (1600984959837):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Why do you need PJAUTO AI 360 surround bird view car camera system for car truck ?
1.Potential dangers hidden among blind areas.
2.Possibility of scratching in narrow roads while no one shares the cost.
3.Situation of racketeer for car accident keeps increasing.
4.Indeterminate responsibility for rear-end collision.
1.Potential dangers hidden among blind areas.
2.Possibility of scratching in narrow roads while no one shares the cost.
3.Situation of racketeer for car accident keeps increasing.
4.Indeterminate responsibility for rear-end collision.

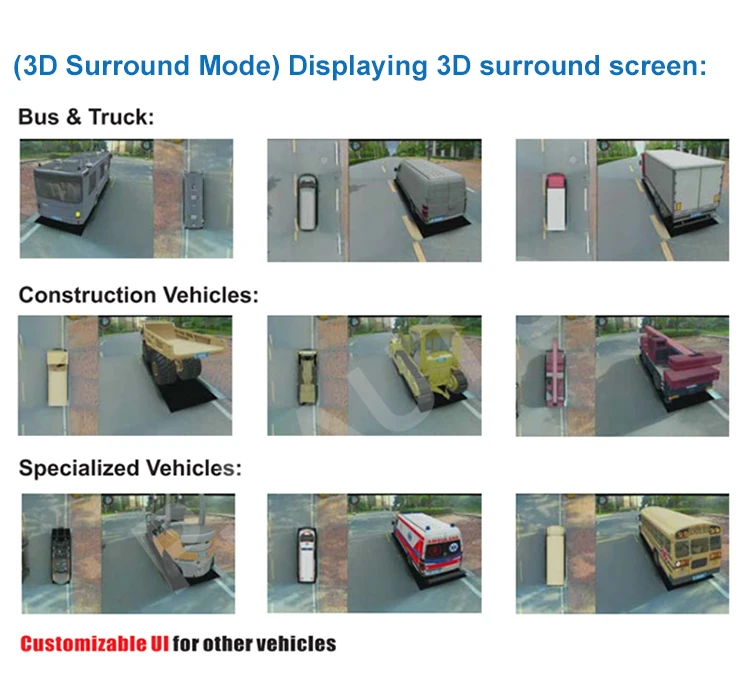

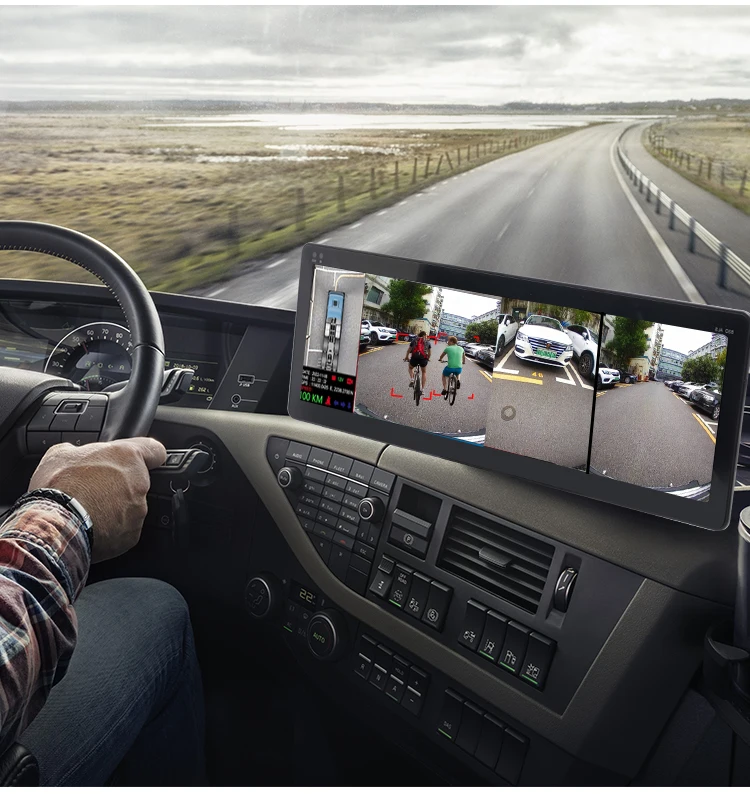

The AI 360-degree panoramic bird's eye view system is suitable for engineering vehicles, trucks, and RVs, providing a truly 360-degree panoramic bird's eye view monitoring without blind spots, ensuring driving safety. It uses panoramic image synthesis technology and can simulate a 3D realistic driving scene. Combined with radar detection system, it can greatly improve driving safety. Designed specifically for trucks, buses, emergency vehicles, and other modes of transportation.
Applications:
Suitable for engineering vehicles, trucks, RVs, buses, and other transportation modes.
Benefits:
- Provides a truly 360-degree panoramic bird's eye view monitoring without blind spots, ensuring driving safety.

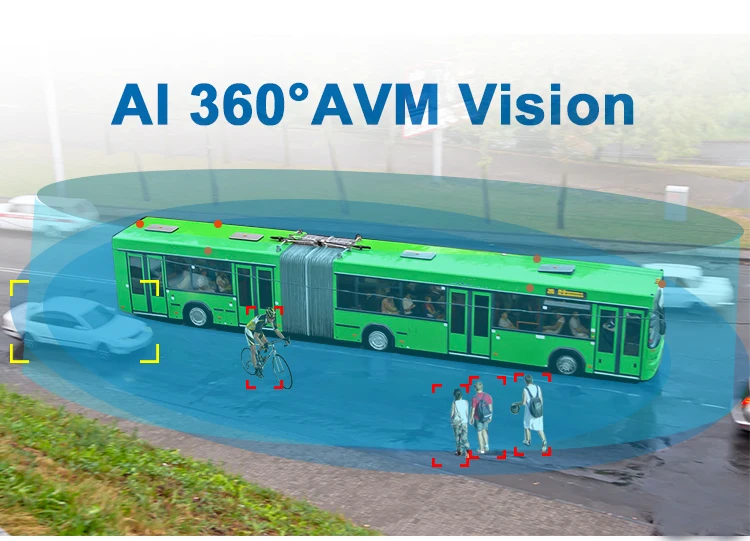

- With AI visual blind spot detection, it recognizes pedestrians and motor vehicles in all four directions of the vehicle, providing blind spot warnings.
- Supports intelligent voice control system and automatic view switching, making it easier and safer for drivers to use.

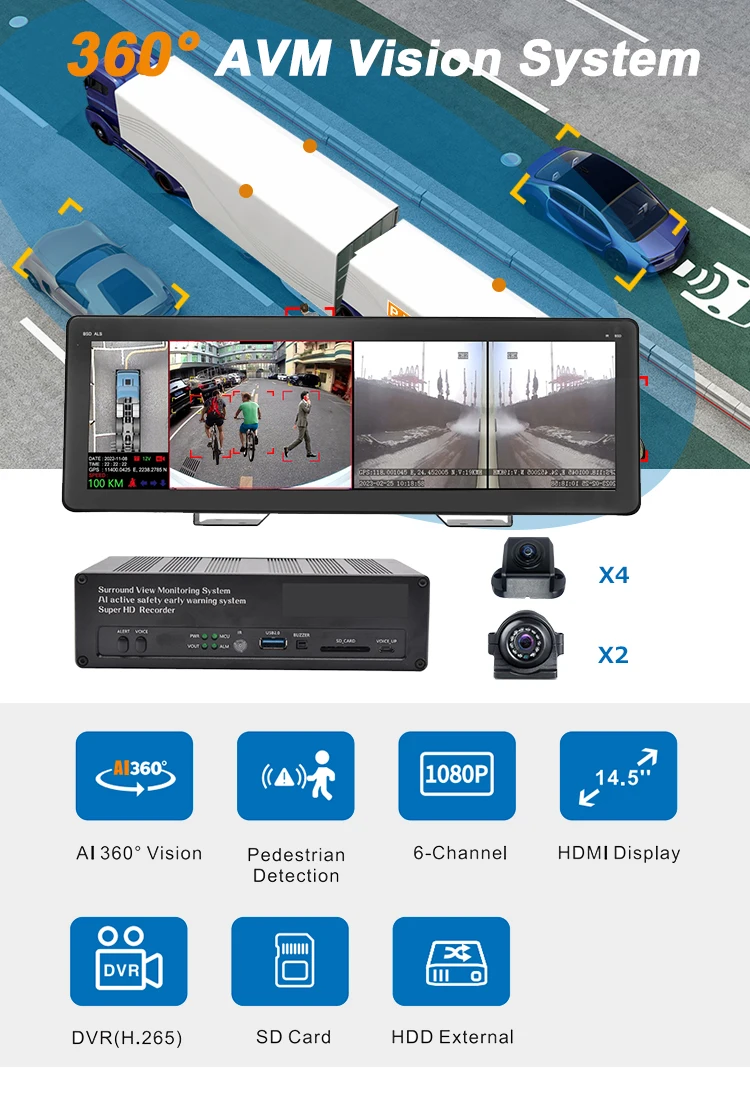

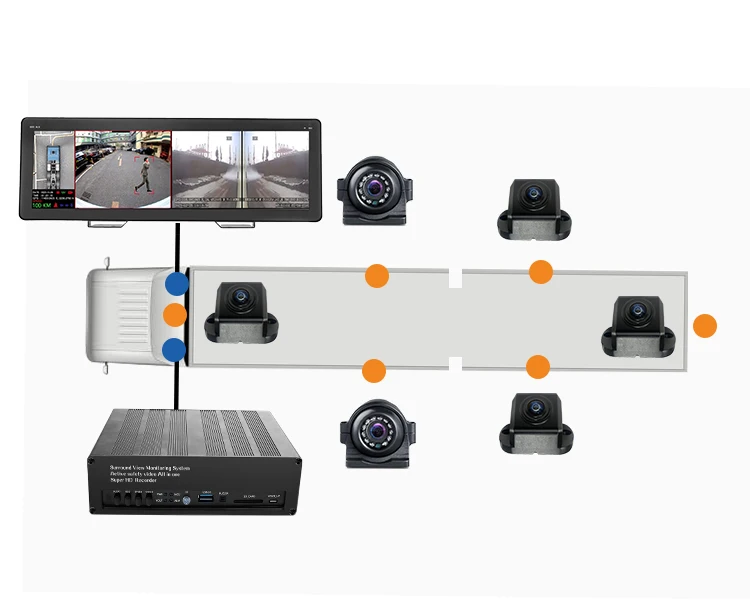

- 6-CH 1080P input (4CH for 360AVM vision and 2CH for side blind spot)
Suitable for engineering vehicles, trucks, RVs, buses, and other transportation modes.
Benefits:
- Provides a truly 360-degree panoramic bird's eye view monitoring without blind spots, ensuring driving safety.
- With AI visual blind spot detection, it recognizes pedestrians and motor vehicles in all four directions of the vehicle, providing blind spot warnings.
- Supports intelligent voice control system and automatic view switching, making it easier and safer for drivers to use.
- 6-CH 1080P input (4CH for 360AVM vision and 2CH for side blind spot)

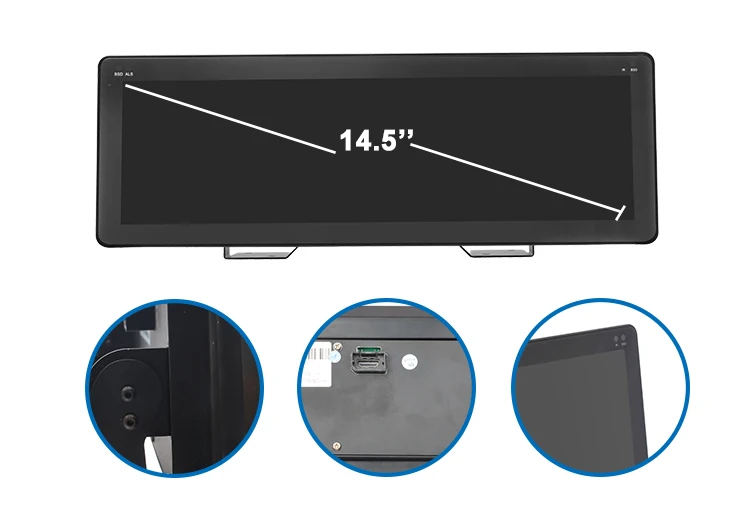

- HDMI display, an interface that integrates display, power supply, and serial communication (touch) functions.
- Support extra Radar and flashing alarm for warning

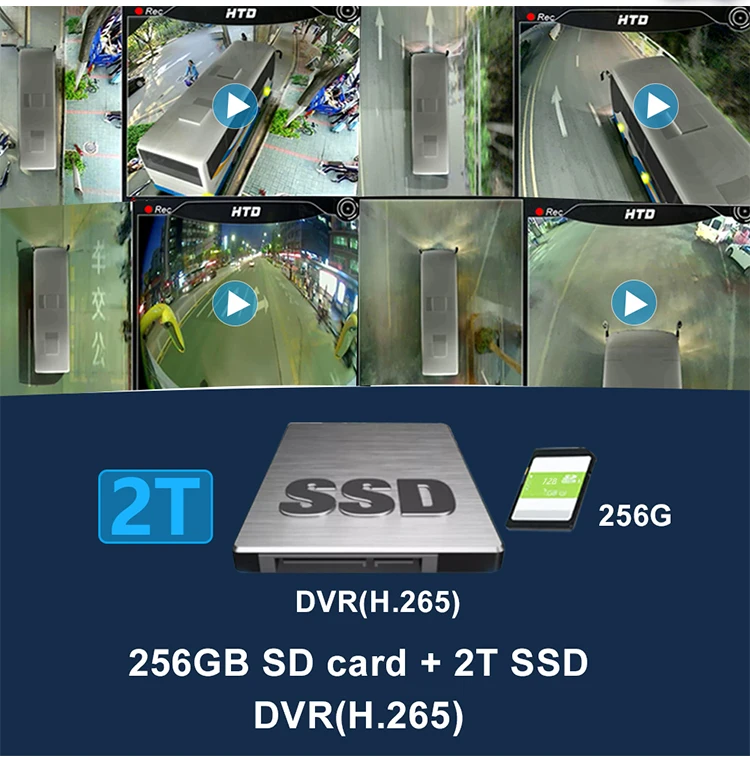

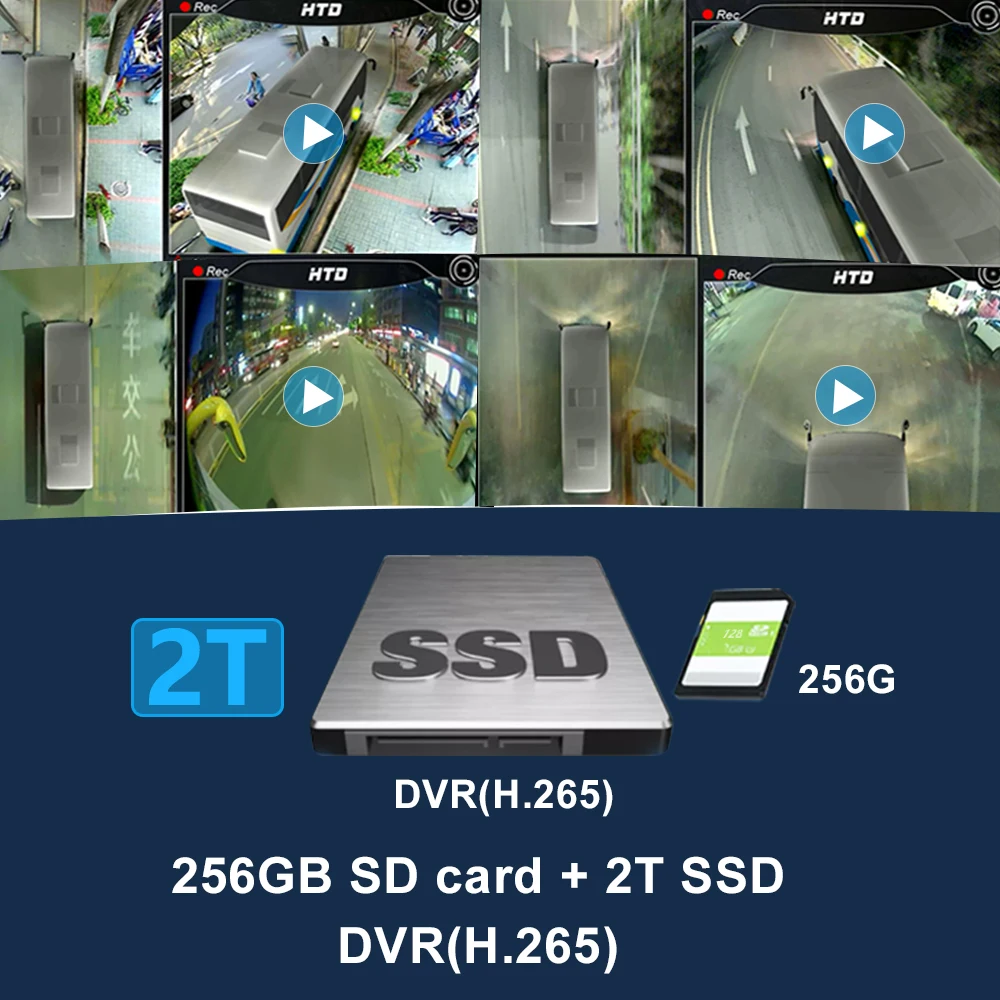

- Support SD card storage (256G), support external HDD (2TB)
Reasons to choose us:
- Our product is specially designed for large vehicles, with a proprietary large vehicle 360 splicing algorithm.
- Our product meets the ISO-7637 standard, the vehicle power supply specifications, and has a wide voltage design of DC12-36V.
- Our product supports multiple video outputs and four-direction 16-probe ultrasonic radar, providing comprehensive monitoring and assistance functions.
- Our product supports AI visual blind spot detection, interior and exterior sound and light alarms, and voice broadcast functions, providing a comprehensive active driving safety assistance system.
- Our product supports proprietary algorithms, intelligent voice control, automatic view switching, and security functions, making it easier and safer for drivers to use.
Reasons to choose us:
- Our product is specially designed for large vehicles, with a proprietary large vehicle 360 splicing algorithm.
- Our product meets the ISO-7637 standard, the vehicle power supply specifications, and has a wide voltage design of DC12-36V.
- Our product supports multiple video outputs and four-direction 16-probe ultrasonic radar, providing comprehensive monitoring and assistance functions.
- Our product supports AI visual blind spot detection, interior and exterior sound and light alarms, and voice broadcast functions, providing a comprehensive active driving safety assistance system.
- Our product supports proprietary algorithms, intelligent voice control, automatic view switching, and security functions, making it easier and safer for drivers to use.
Product Features:
1. Specially developed 360-degree panoramic imaging for trucks and special vehicles, with proprietary large vehicle 360 splicing algorithm, small size, highly integrated, wide temperature design, and operating temperature can reach -20~70 degrees.
2. The product meets the ISO-7637 standard, the vehicle power supply specifications, and has a wide voltage design of DC12-36V, reverse protection design, strengthened TVS+ESD design, and the main power supply has a faraday capacitor to ensure the reliability of unauthorized power-off recording.

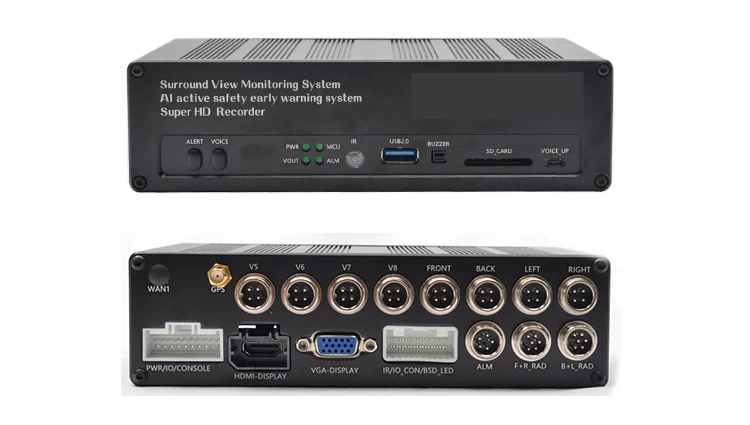

3. The product supports multiple video outputs, supporting CVBS/VGA/HDMI/AHD.

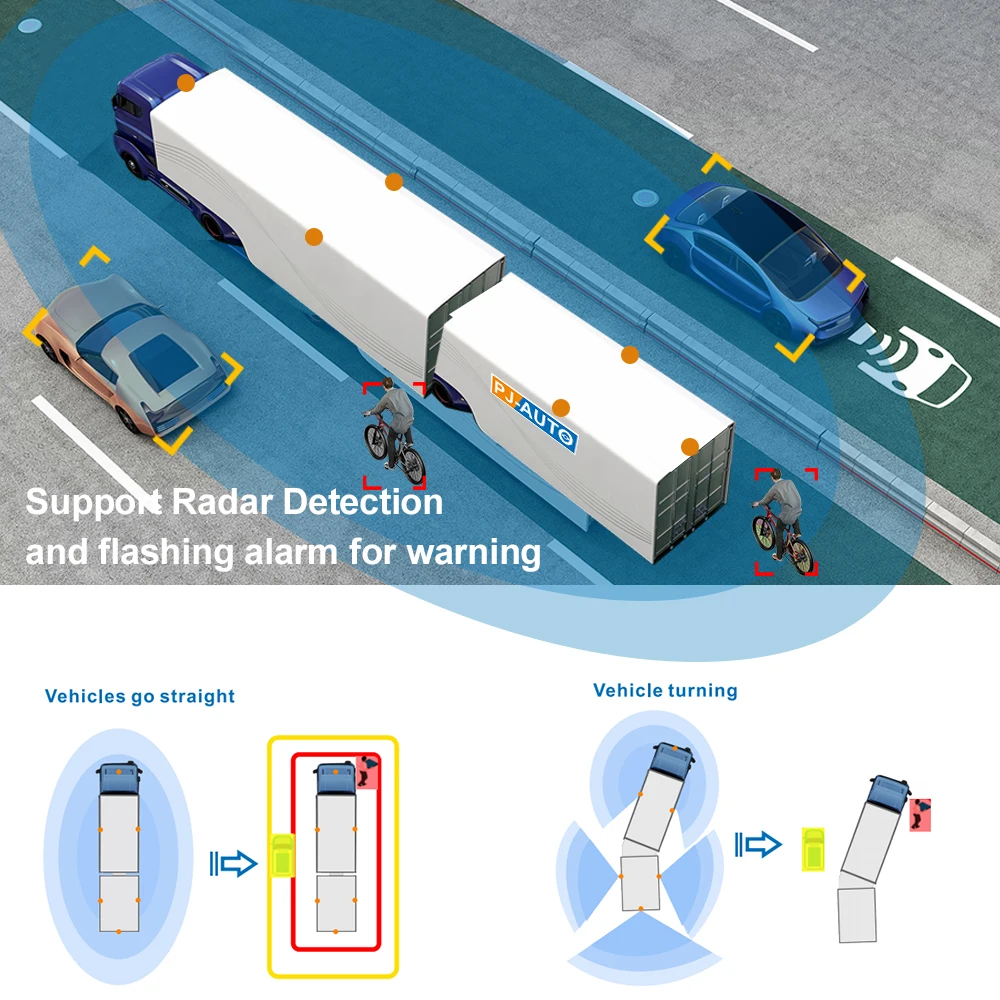

4. The product supports four-direction 16-probe ultrasonic radar, combined with vehicle speed sensor, proprietary algorithm, and real-time communication with 360 panoramic view. The radar information is intuitively displayed on the 360 vehicle model, supporting enhanced right-blind area (BSD) detection, supporting lane change assistance (LCA) function, and the radar is linked with sound and light alarms to provide blind spot warnings.

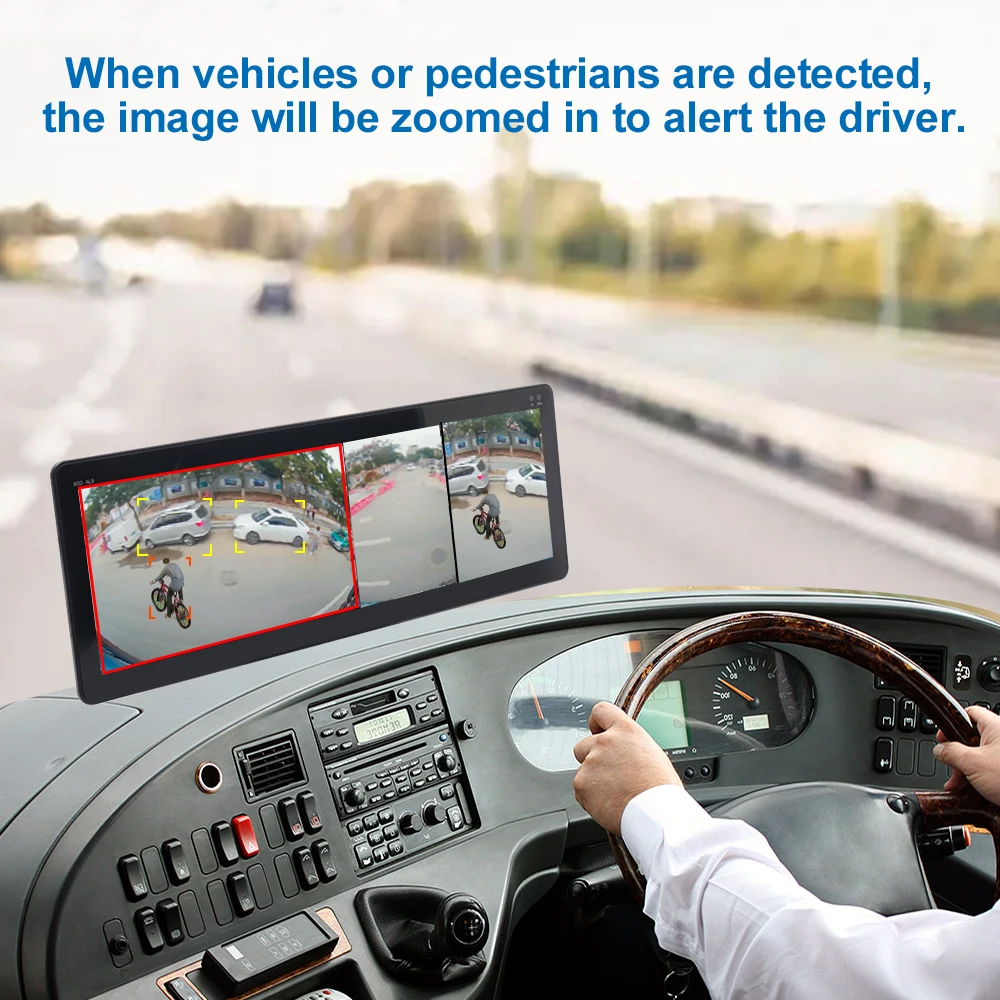

5. The product supports AI visual algorithm for four-way blind spot detection, which can recognize pedestrians and motor vehicles in all four directions of the vehicle. With exterior sound and light alarms, it warns pedestrians not to approach the truck's blind spot and interior voice speakers + blind spot indicator lights, reminding the driver to drive carefully when pedestrians or motor vehicles are nearby.
6. The product supports CAN communication function, supporting communication between the original vehicle data and the 360-degree panoramic host, realizing IO control, touch, steering wheel angle, vehicle speed, radar, and other original vehicle information.
7. The product supports our intelligent voice control system developed specifically for the large vehicle 360-degree panoramic imaging system, which can control the 360-degree panoramic imaging through voice, ensuring driving safety.
8. The product supports proprietary algorithms. Through the sensors inside the host, the 360-degree panoramic imaging can automatically switch the view according to the application scenario.
10. Supporting SD card storage method, small size, low power consumption, and super anti-seismic.
11. The product supports electronic rear view mirror product mode, with unique dual AHD output function, which can simultaneously display the 360-degree image on two screens.
12. When paired with our company's production and vehicle-specific display, Android car machine, it can achieve touch control and high-definition display functions.
2. The product meets the ISO-7637 standard, the vehicle power supply specifications, and has a wide voltage design of DC12-36V, reverse protection design, strengthened TVS+ESD design, and the main power supply has a faraday capacitor to ensure the reliability of unauthorized power-off recording.
3. The product supports multiple video outputs, supporting CVBS/VGA/HDMI/AHD.
4. The product supports four-direction 16-probe ultrasonic radar, combined with vehicle speed sensor, proprietary algorithm, and real-time communication with 360 panoramic view. The radar information is intuitively displayed on the 360 vehicle model, supporting enhanced right-blind area (BSD) detection, supporting lane change assistance (LCA) function, and the radar is linked with sound and light alarms to provide blind spot warnings.
5. The product supports AI visual algorithm for four-way blind spot detection, which can recognize pedestrians and motor vehicles in all four directions of the vehicle. With exterior sound and light alarms, it warns pedestrians not to approach the truck's blind spot and interior voice speakers + blind spot indicator lights, reminding the driver to drive carefully when pedestrians or motor vehicles are nearby.
6. The product supports CAN communication function, supporting communication between the original vehicle data and the 360-degree panoramic host, realizing IO control, touch, steering wheel angle, vehicle speed, radar, and other original vehicle information.
7. The product supports our intelligent voice control system developed specifically for the large vehicle 360-degree panoramic imaging system, which can control the 360-degree panoramic imaging through voice, ensuring driving safety.
8. The product supports proprietary algorithms. Through the sensors inside the host, the 360-degree panoramic imaging can automatically switch the view according to the application scenario.
10. Supporting SD card storage method, small size, low power consumption, and super anti-seismic.
11. The product supports electronic rear view mirror product mode, with unique dual AHD output function, which can simultaneously display the 360-degree image on two screens.
12. When paired with our company's production and vehicle-specific display, Android car machine, it can achieve touch control and high-definition display functions.

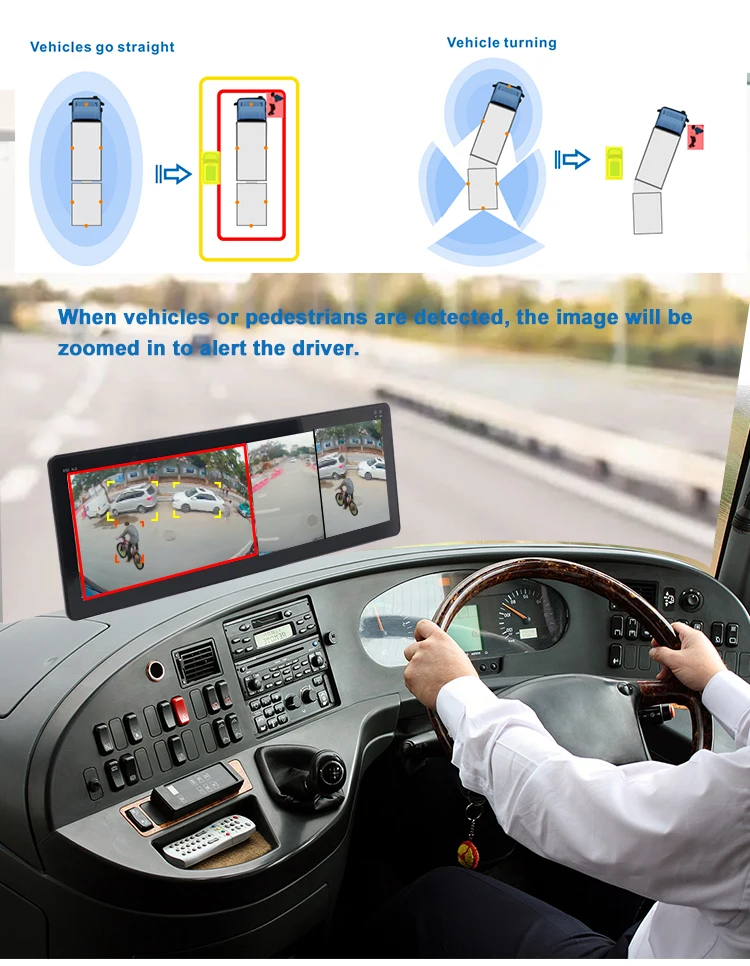

To address situations where there are people or obstacles passing or staying directly under the front of the vehicle while waiting for parking, the radar detects in advance and the in-car radar buzzer sounds to remind the driver that there are people or obstacles directly under the front of the vehicle. At the same time, the 360-degree view automatically switches to a forward-view wide-angle view, presenting a 180-degree image of the front of the vehicle to the driver to avoid accidents caused by blind spots.
When parked, press the hazard lights, and the 180-degree wide-angle image of each camera and the 720-degree wide-angle image of the 4 cameras will be displayed in real-time on the screen to ensure parking safety. When driving at high speed, if a vehicle enters the radar area on the left or right rear side and the turn signal is turned on to change lanes, the buzzer in the car will sound to remind the driver if there is a car in the blind spot. The buzzer will not sound if there is no car in the blind spot.
Specification
Description | AI 360 Panoramic View DVR System | 360 Panoramic View DVR System | |||
Video output | AHD 720P/CVBS/VGA/HDMI | AHD 720P/CVBS/VGA/HDMI | |||
Camera input | 6-channel | ||||
Trigger signal | high beam,turn signals,reverse light | high beam,turn signals,reverse light | |||
Video recording | H.265 algorithm 1920*1080@25fps | H.264 algorithm 1920*1080@25fps | |||
Storage medium | U disk/SSD | U disk/SSD | |||
Power Consumption | 10-30W | 9W(panoramic mode) 10.5W(recording mode) | |||
Operating voltage | 12-36V | 9.5-36V | |||
Camera lens angle | diagonal 210° | diagonal 202° | |||
Camera IP rating | IP68 | IP69K | |||
Camera Resolution | AHD 1080P | AHD 1080P | |||
Storage Temperature | -40ºC~+80ºC | -40ºC~+85ºC | |||
Working Temperature | -20ºC~+70ºC | -20ºC~+70ºC | |||
