Lamp | LED | |
Power Supporting | Solar Energy | |
Battery type | Lead-Acid / LiFePO4 | |

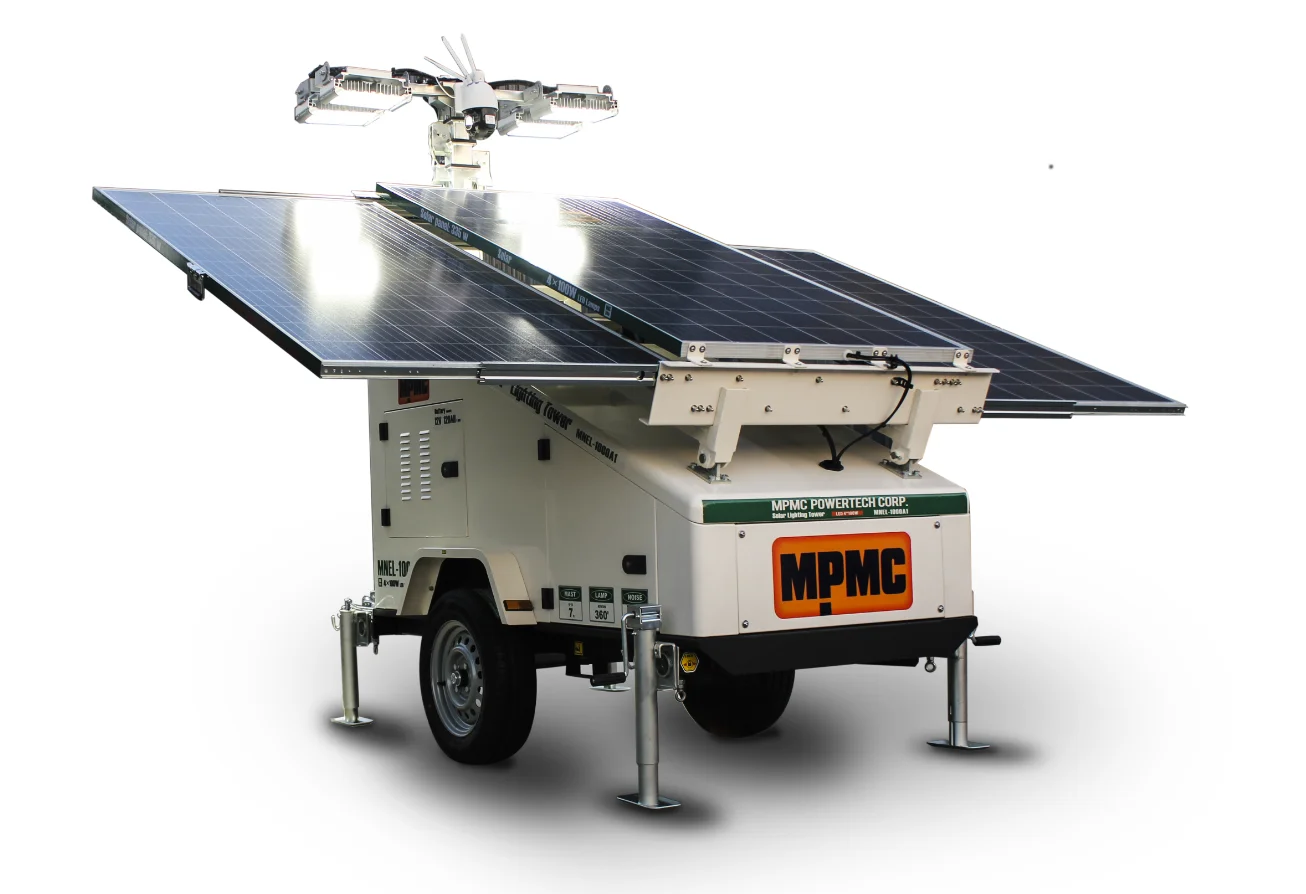

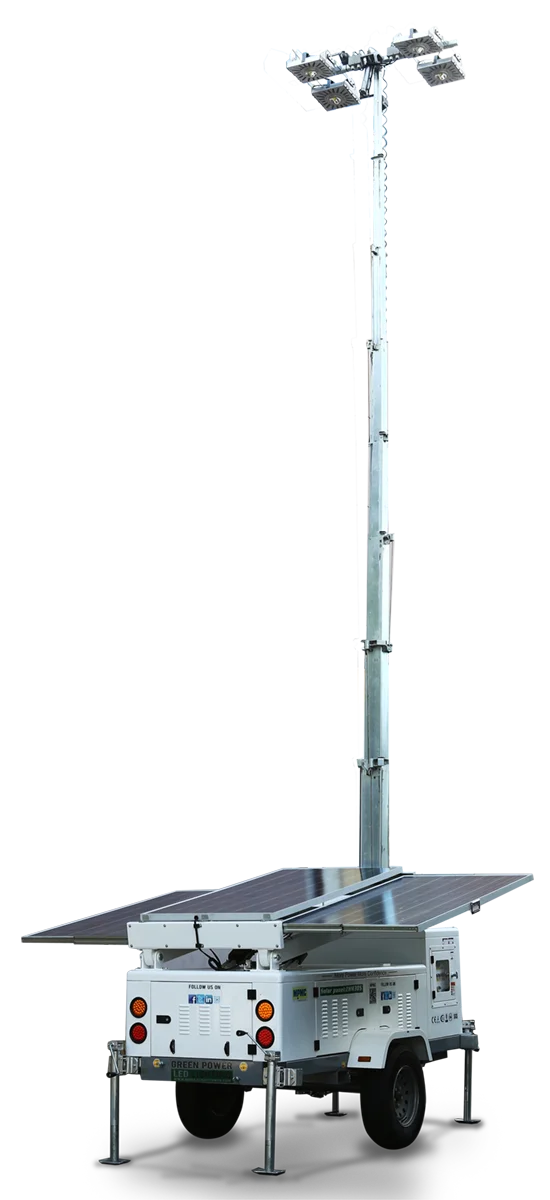

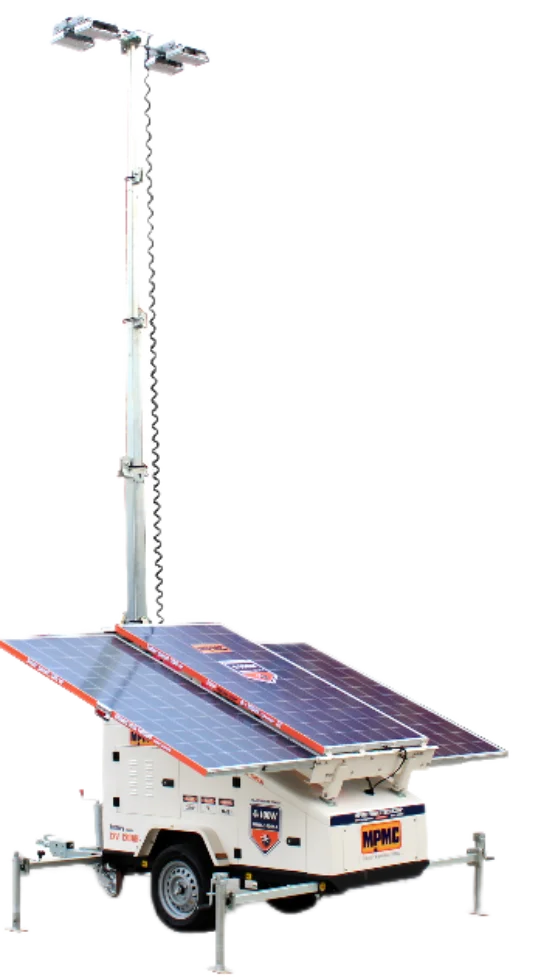

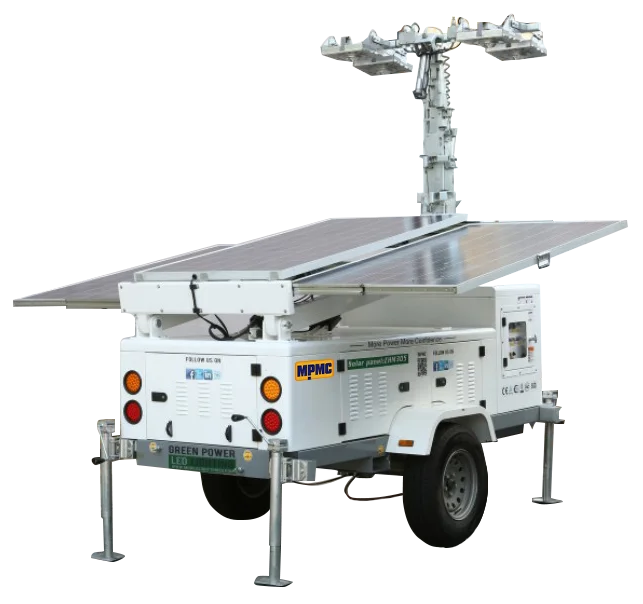

The Solar Light Tower takes full advantage of solar renewable energy and LED light systems on the road. It provides cost-effective bright white Led lighting without all of the disadvantages inherent to diesel lighting systems-high operating costs (diesel fuel, maintenance, labor) as well as carbon. | ||
MODEL | HSL-1000B | HSL-1320B | HSL-1650B |
Rated Power(LED Lamp) | 100W*4pcs | 150W*4pcs | 200W*4pcs |
System Voltage | 24VDC | 24VDC | 24VDC |
PV Panel | 335W | 440W | 550W |
PV Quantity | 3pcs | 3pcs | 3pcs |
Vertical Rotation Angle(PV Panel) | 22°~60° | 22°~60° | 22°~60° |
Battery Type | LFP | LFP | LFP |
Mast Driver | Electrial | Electrial | Electrial |
Maximum Lifting Height | 7.2m | 7.2m | 7.2m |
Horizontal Rotation Angle | 0°~355° | 0°~355° | 0°~355° |
Standby Generator | 2000W / 220Vac 1P | 2000W / 220Vac 1P | 2000W / 220Vac 1P |
Solar Charger | 24V60A | 24V60A | 24V60A |
AC Charger | 24V60A | 24V60A | 24V60A |
AC Output | 2000W | 2000W | 2000W |
Solar SystemCharge Time | 4h | 4.5h | 4.5h |
Standby GeneratorCharge Time | 3h | 4h | 5h |
Lighting Discharge Time | 8h | 8h | 8h |
Loading Dimensions(LxWxH) | 2267*1140*2550mm | 2300*1150*2500mm | 2660*1250*2475mm |
Expanding Dimensions(LxWxH) | 3400*2950*7200mm | 3400*3080*7200mm | 3500*3470*7200mm |
Net Weight | 750kg | 780kg | 920kg |
