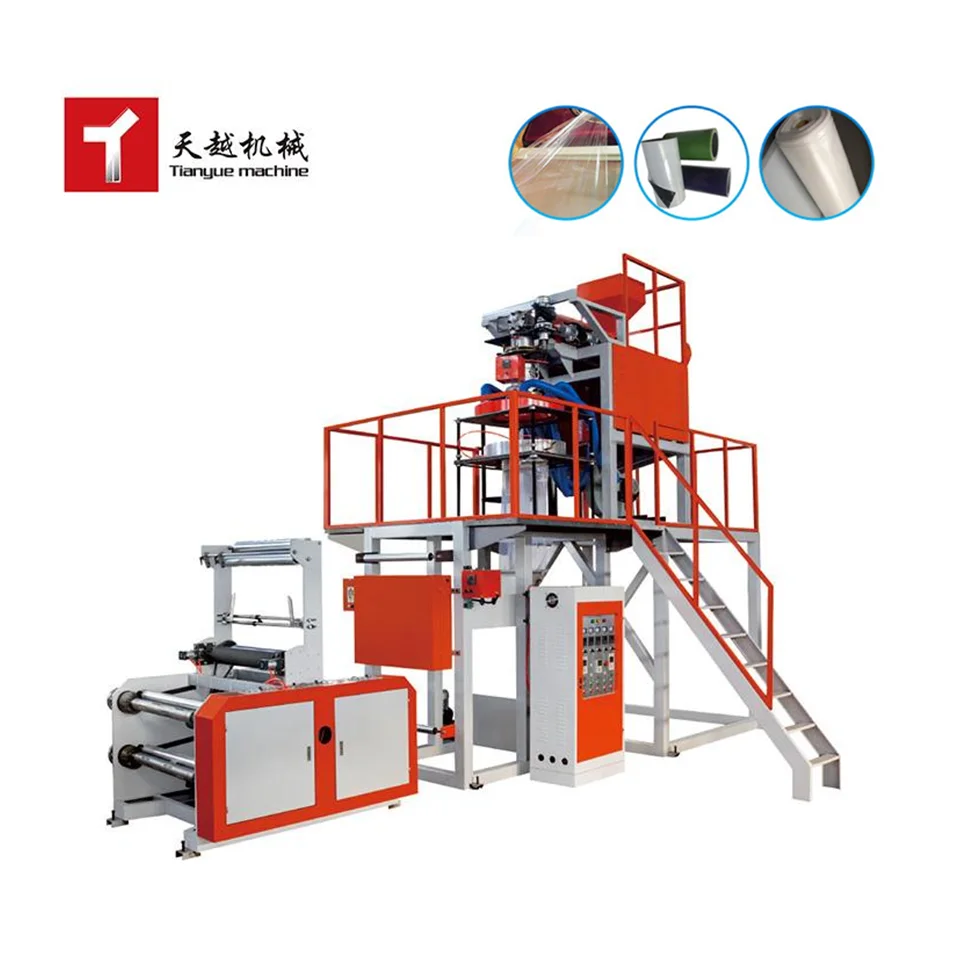

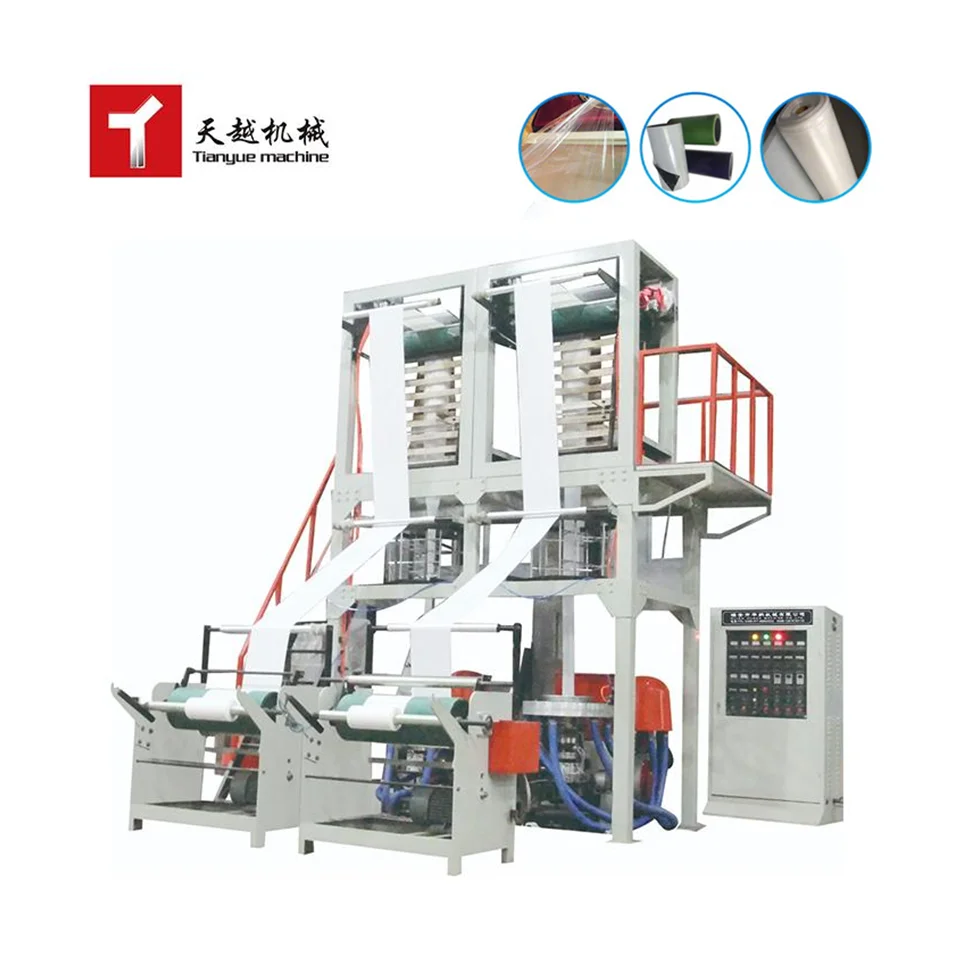

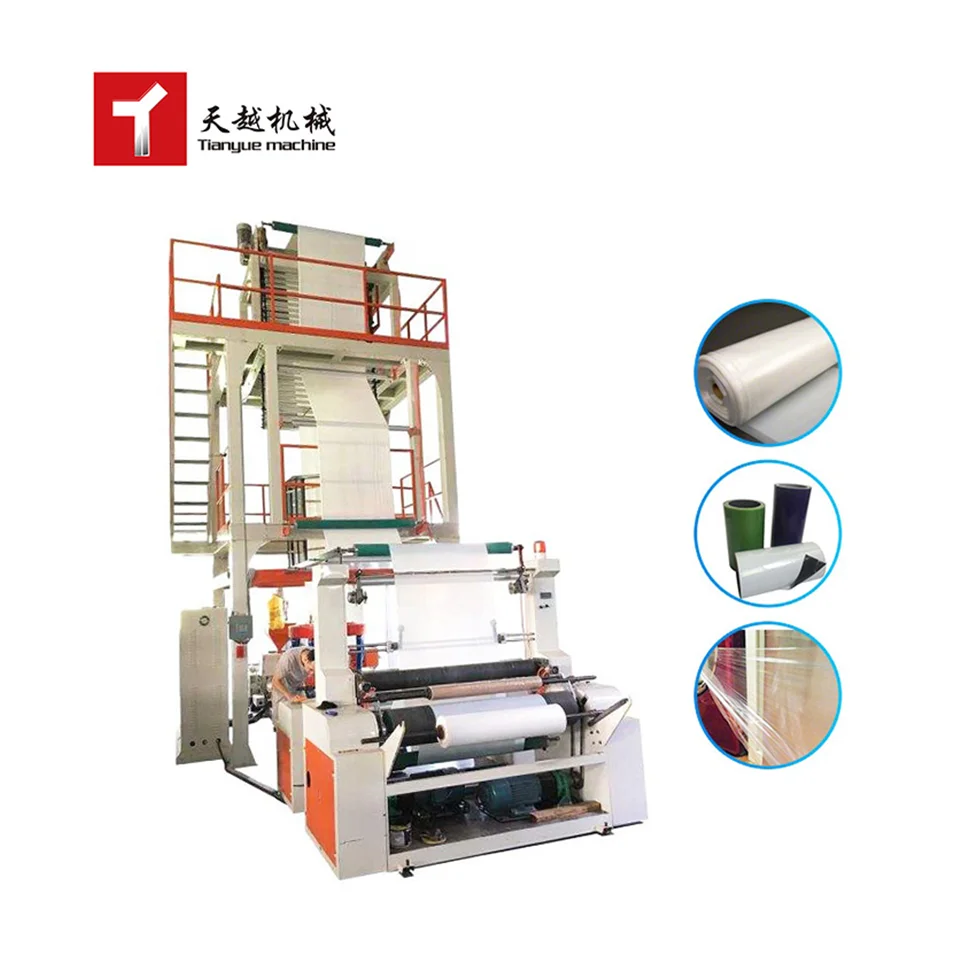

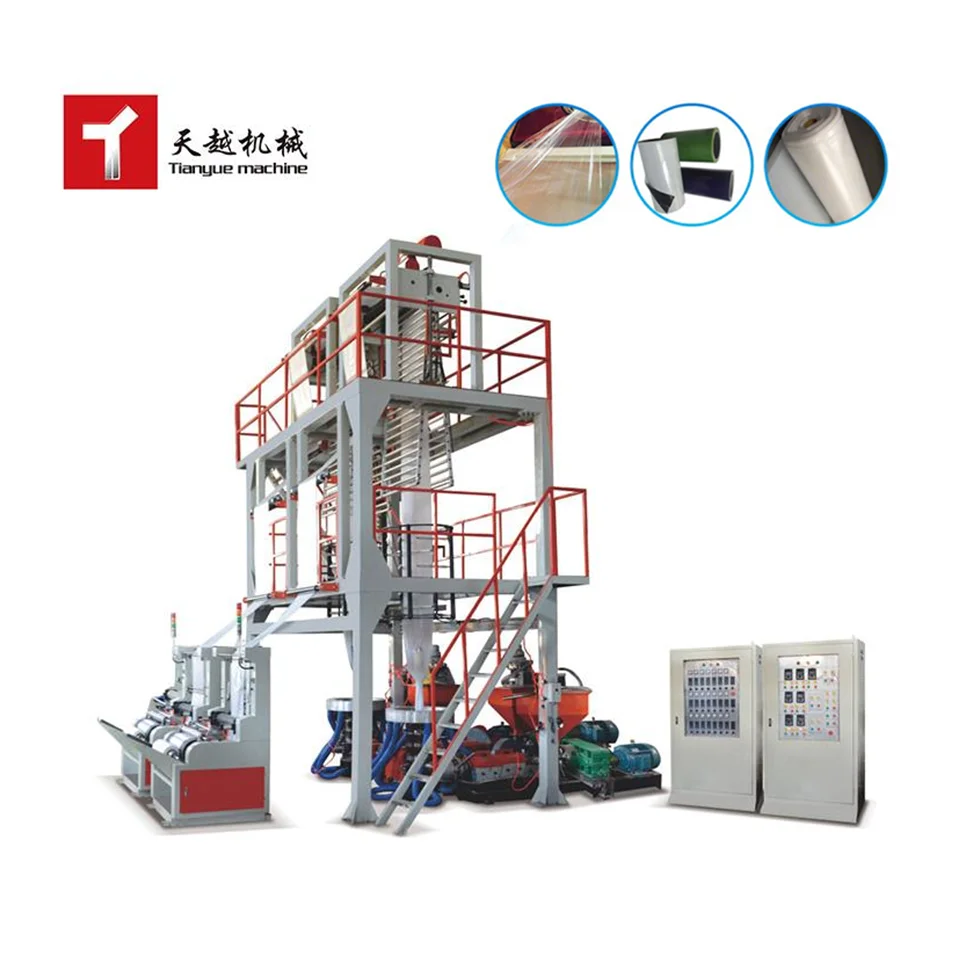

High Speed Fully Automatic LDPE HDPE PVC PP PE Plastic Greenhouse Film Blowing Extruder Machine Blowing Film Machine
- Category: >>>
- Supplier: Wenzhou Tianyue Machinery Co. Ltd.
Share on (1600985035147):
Product Overview
Description
Products Description
The extruder,barrel and screw rods are made of high quality 38CRMOALA alloy steel that have been nitrized and processed in a precision way,It is good in hardness,durable in corrosion resistance,The special designed screw is of high quality,which helps increase the production capacity,lt is applied to blowing the plastic films like low density polytene,high density polytene and linear low density polytene,lt is widely applied to producing the packing bags for foodstuff,clothing,rubbish bad and vest ones.
Feature:
1).This machine set adopt bottom blow type to produce polypropylene plastic film with good fransparency and without such phenomena as flow liner, corrugation and fold, etc.
2).This screw material cylinder is elabroately made of 38CRMOALA alloy steel after nitrogen treatment and has best rigidity and corosion resistance.
3).The nould head is plated with hard chromium and has screw mandrel structrue with uniform and smooth material
discharging. And the aircooled device has labyrinth type stucture with characteristica as uniform air-jut quantity, automatic temperature control and automatic heating.
4).The coiling device adopts torque motor to keep proper tension with even rolling and convenient roll replacing.
Feature:
1).This machine set adopt bottom blow type to produce polypropylene plastic film with good fransparency and without such phenomena as flow liner, corrugation and fold, etc.
2).This screw material cylinder is elabroately made of 38CRMOALA alloy steel after nitrogen treatment and has best rigidity and corosion resistance.
3).The nould head is plated with hard chromium and has screw mandrel structrue with uniform and smooth material
discharging. And the aircooled device has labyrinth type stucture with characteristica as uniform air-jut quantity, automatic temperature control and automatic heating.
4).The coiling device adopts torque motor to keep proper tension with even rolling and convenient roll replacing.
Model | TYSJ-55 | TYSJ-60 | TYSJ-65 |
screw diameter | Φ55 | Φ60 | Φ65 |
screw ratio L/D | 28:1 | 28:1 | 28:1 |
screw speed | 15-100r/min | 15-100r/min | 15-100r/min |
main motor power | 15kw | 18.5kw | 22 |
extrusion output(single) | 45kg/h | 55kg/h | 60kg/h |
range of die | Φ220 | Φ250 | Φ280 |
single-sided thickness of film | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm |
max folding width of film | 500mm | 600mm | 700mm |
electric total capacity | 32kw | 40kw | 44kw |
overall dimension | 4500×2000×3500 | 4500×2500×4500 | 4500×3800×3800 |
weight of machint | 3.0T | 3.5T | 4.5T |

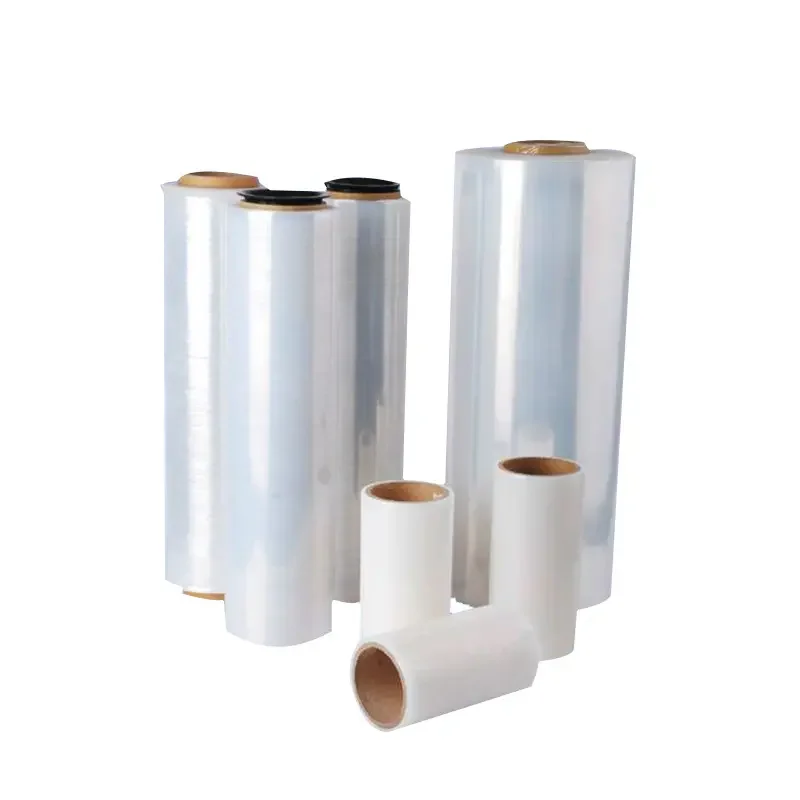

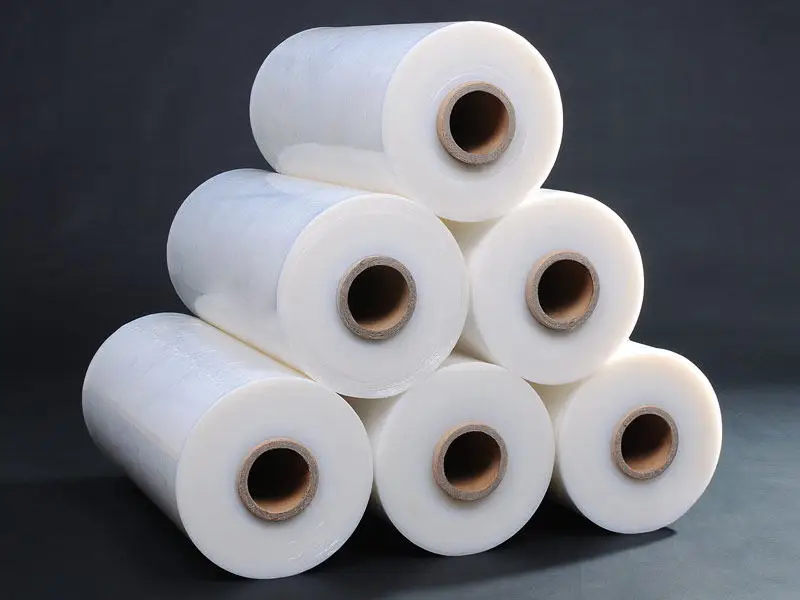

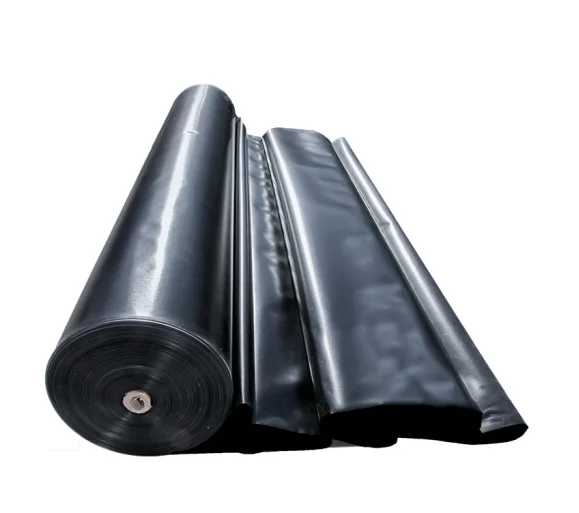

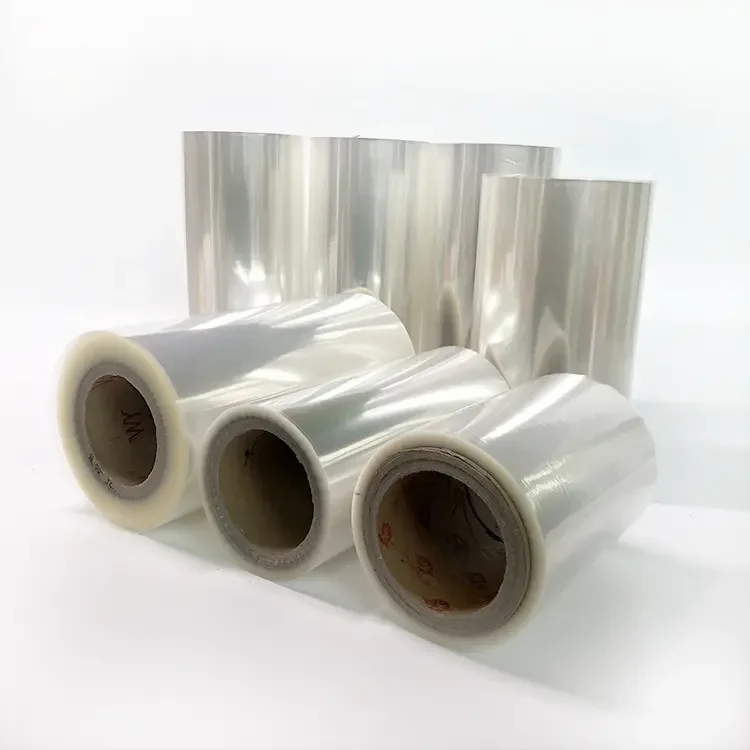

Finished Products Display
Main Product
Recommend Products
About Us

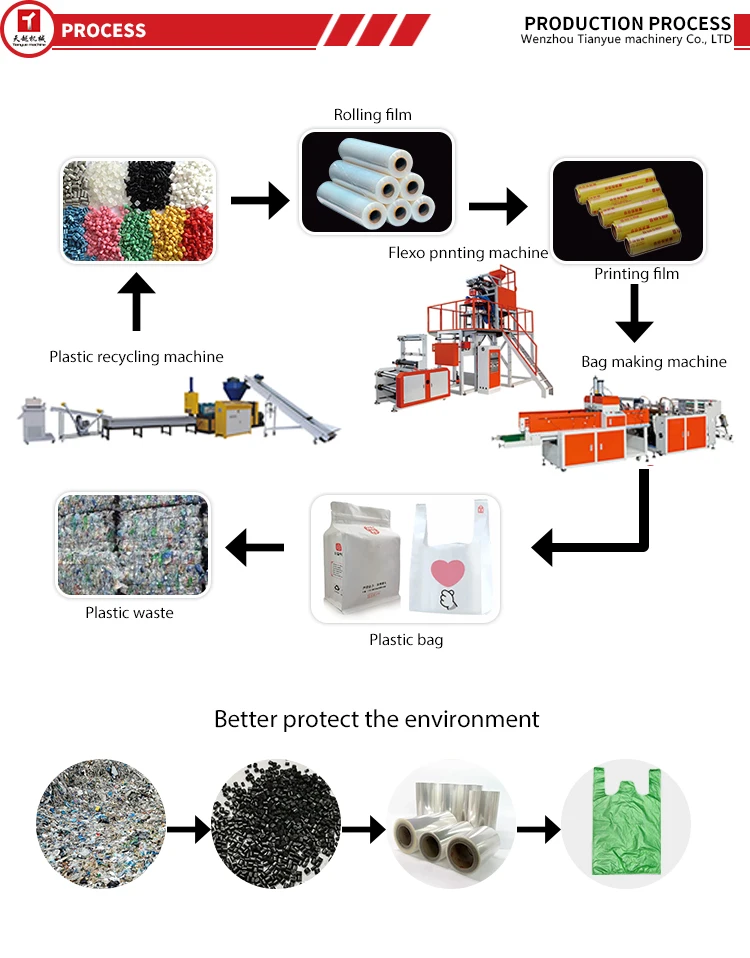

Production Process
Our Certificate
Our Customers
Logistics Mode
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.48hours running without stop to confirm no problem.
Q3: What is your payment term ?
A3:Payment: by bank T/T payment. 30% down payment, and balance for 70% payment before shipment,
Delivery time: within 45 working days after receiving the deposit.
Q4: How about warranty?And after sales ?
A4: From the day of the use of the machine in the buyer's factory: 1year. The seller guarantees the mc are 100% new.
The above clause is only effective being properly used, any artificial misuse or destroy prepensely is not within the limit of quality.
Q5: What do you have to tell us before buying?
A5: If the buyer need seller's engineer to go to his factory to help install and test the mc, please be kindly bear their visa,
go and return ticket, lodging and eating, salary us$100/ per day. But this can be negotiated by both side.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.48hours running without stop to confirm no problem.
Q3: What is your payment term ?
A3:Payment: by bank T/T payment. 30% down payment, and balance for 70% payment before shipment,
Delivery time: within 45 working days after receiving the deposit.
Q4: How about warranty?And after sales ?
A4: From the day of the use of the machine in the buyer's factory: 1year. The seller guarantees the mc are 100% new.
The above clause is only effective being properly used, any artificial misuse or destroy prepensely is not within the limit of quality.
Q5: What do you have to tell us before buying?
A5: If the buyer need seller's engineer to go to his factory to help install and test the mc, please be kindly bear their visa,
go and return ticket, lodging and eating, salary us$100/ per day. But this can be negotiated by both side.
